Family Fun Companies Pharaohs Revenge User manual

OperationManual
Family Fun Companies, INC.
Parts, Service and Distribution
708-598-3720

Pharaohs Revenge
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
Important Safety Instructions ................................................................................2
1. SPECIFICATIONS ...................................................................................................4
2. PACKAGE CONTENTS ...........................................................................................5
3. PART NAMES.........................................................................................................6
4. SET UP & INSTALLATION ......................................................................................7
5. HOW TO PLAY..................................................................................................... 11
6. GAME OPTIONS ................................................................................................. 12
7. MAINTENANCE & INSPECTION.......................................................................... 14
8. OVERALL CONSTRUCTION ................................................................................ 20
9. GAME DECALS........................................................................................................35
10. IO CHART..............................................................................................................38
WARNING

Pharaohs Revenge
2
Thank you for purchasing Pharaohs Revenge. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of product
operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and troubleshooting
guide. If the product fails to function properly, non-technical personnel should under no
circumstance attempt to service the machine. Contact your distributor or manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and understand
these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury. Unplug the game from the outlet when not in use, when moving
from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on the
potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Pharaohs Revenge
3
Use the following safety guidelines to help ensure your own personal safety and to help protect
your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury and/or
machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to
ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
WARNING

Pharaohs Revenge
4
1. SPECIFICATIONS
Rated power supply：AC220-240V 50/60Hz
Mini power consumption: 250W
Max power consumption: 350W

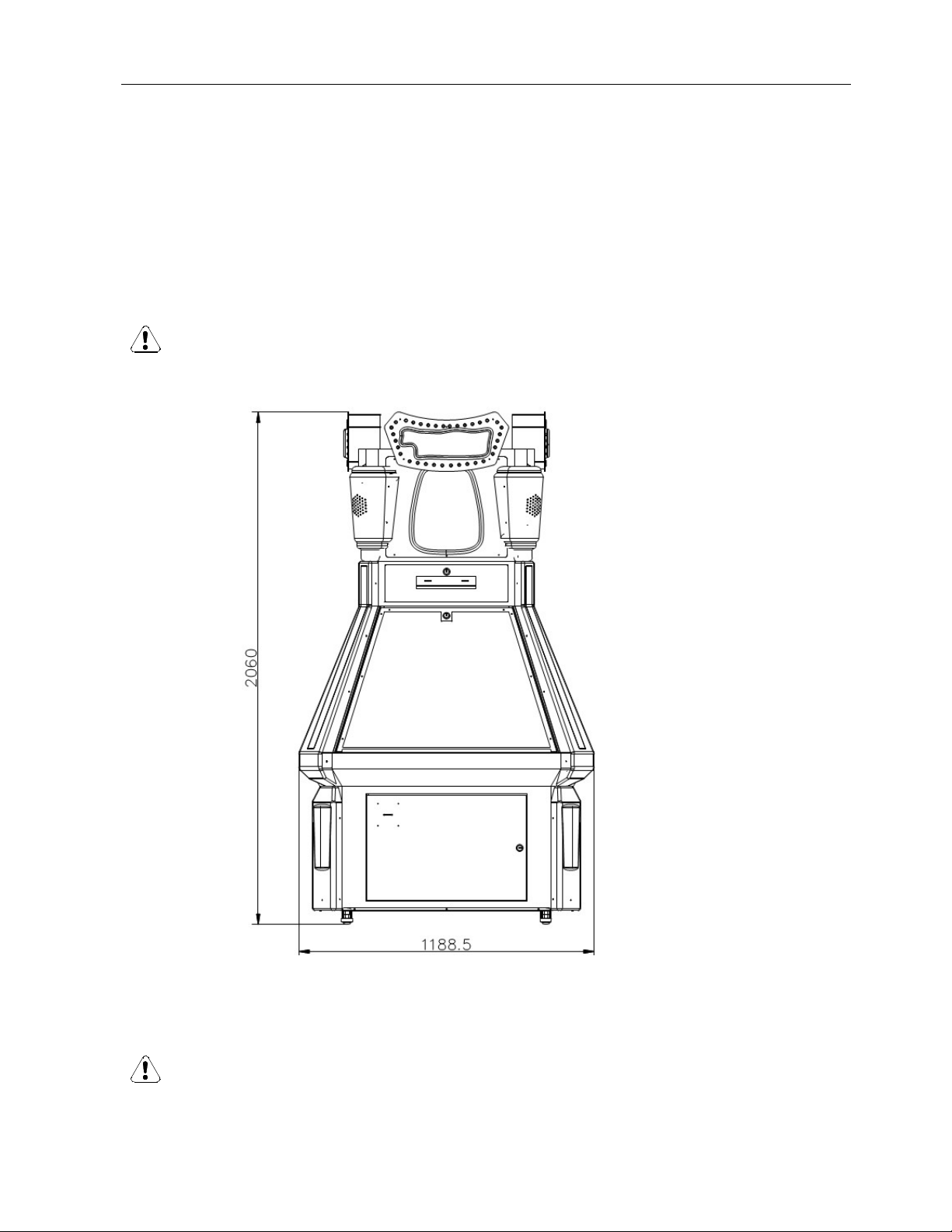

Dimension：W1188.5×D1188.5×H2060 (mm)
Weight：Approximately 750Kg
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: Game parameters are subject to change without notice.
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.

Pharaohs Revenge
5

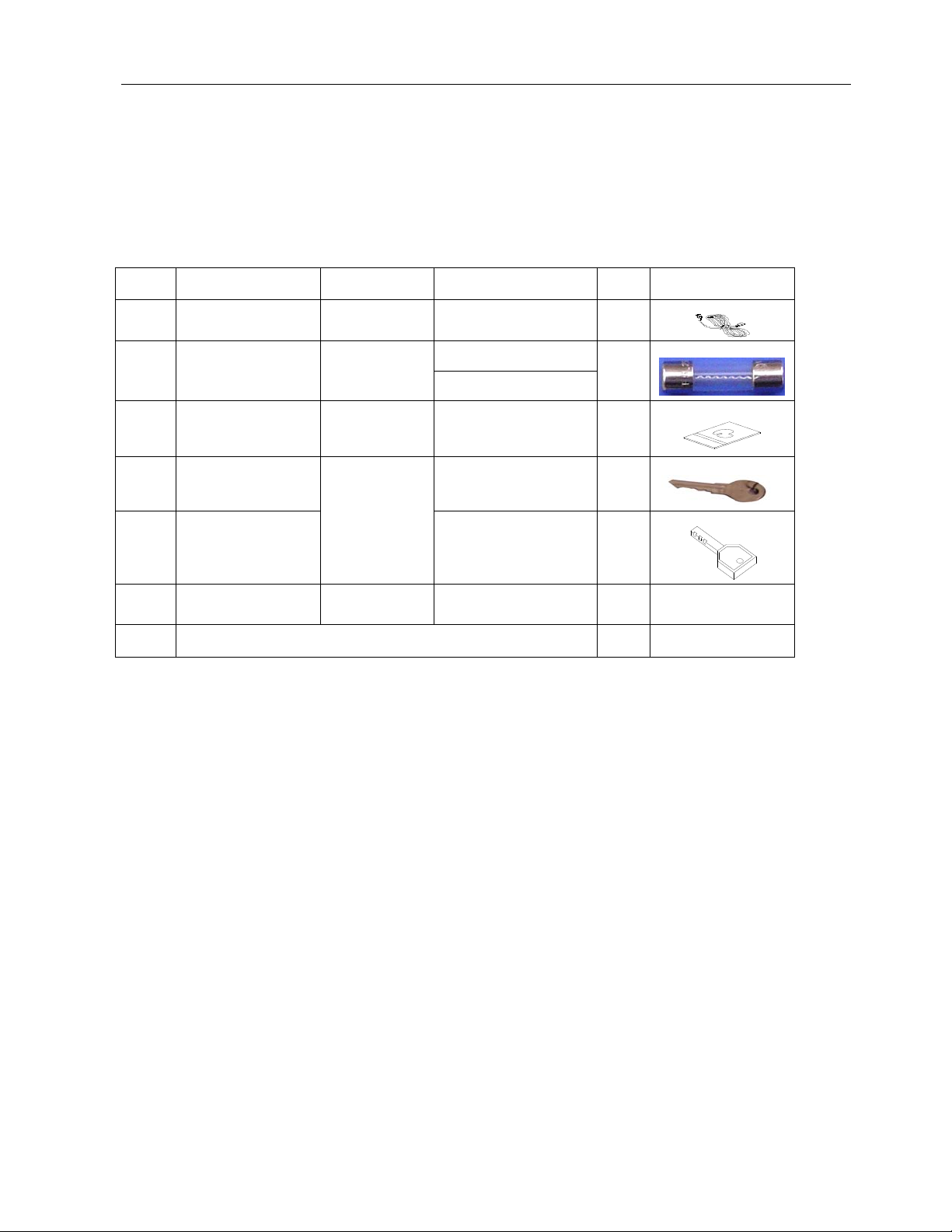

2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1 x Body Assembly
Following accessories
No. Part No. Name Spec. Qty Picture
1 F119-465-000
AC Power
cord 10A/110V 1.8m 1
2 F119-460-000 Fuse 6.3A/125Vφ5-20 2
3A/250Vφ5-20
3 F119-759-000 Manual Chinese 1
4 F119-462-000
Key
171 2
5 F119-463-000 2222 2
6 F119-464-000
Microwave
Switch CNR-05S-03 2
Total 10
If any items are found to be missing, please contact your sales representative for help
immediately.
NOTE: Part models are subject to change without notice.

Pharaohs Revenge
6

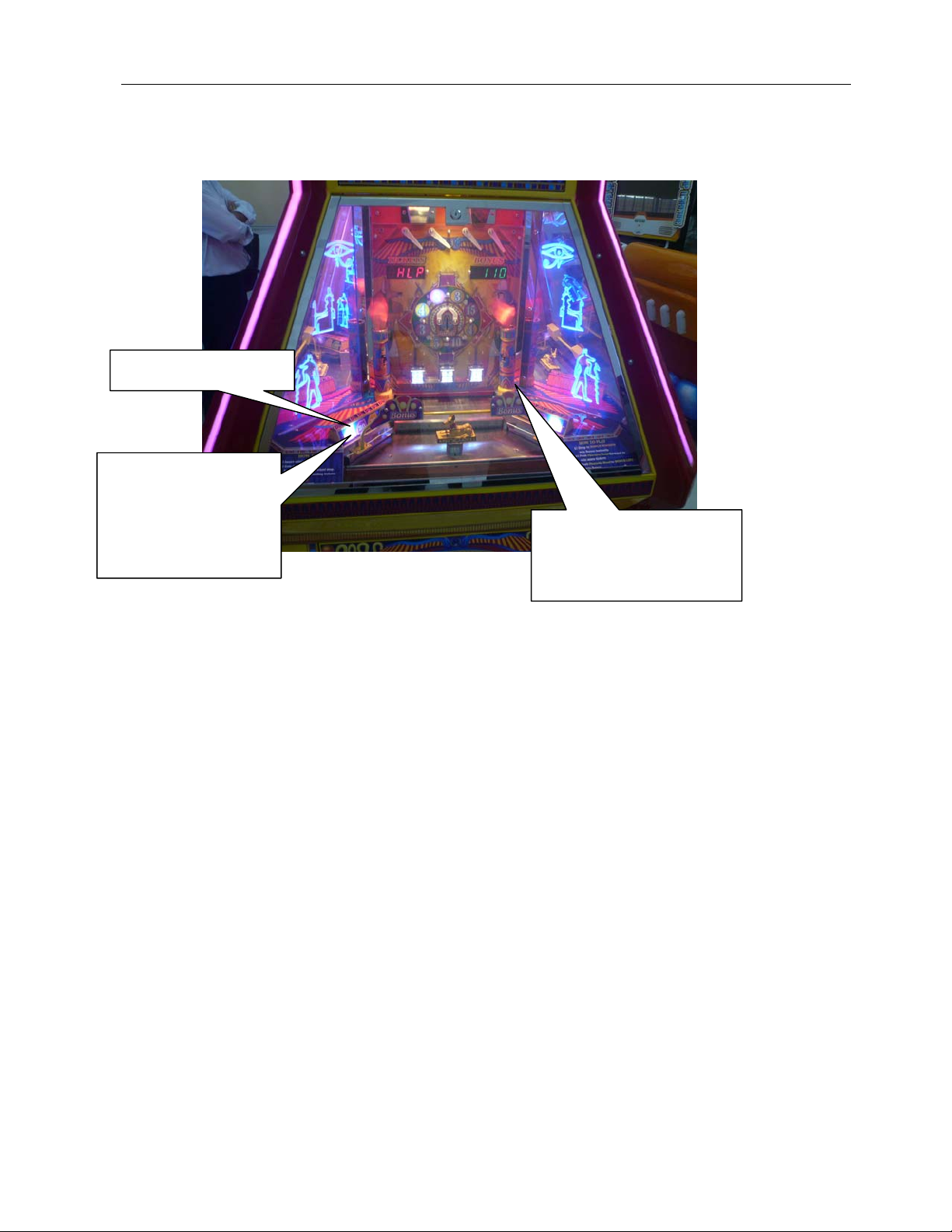

3. PART NAMES
Top marquee
Speaker marquee
Bottom marquee
Coin chute
Playfield

Pharaohs Revenge
7
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by wall.

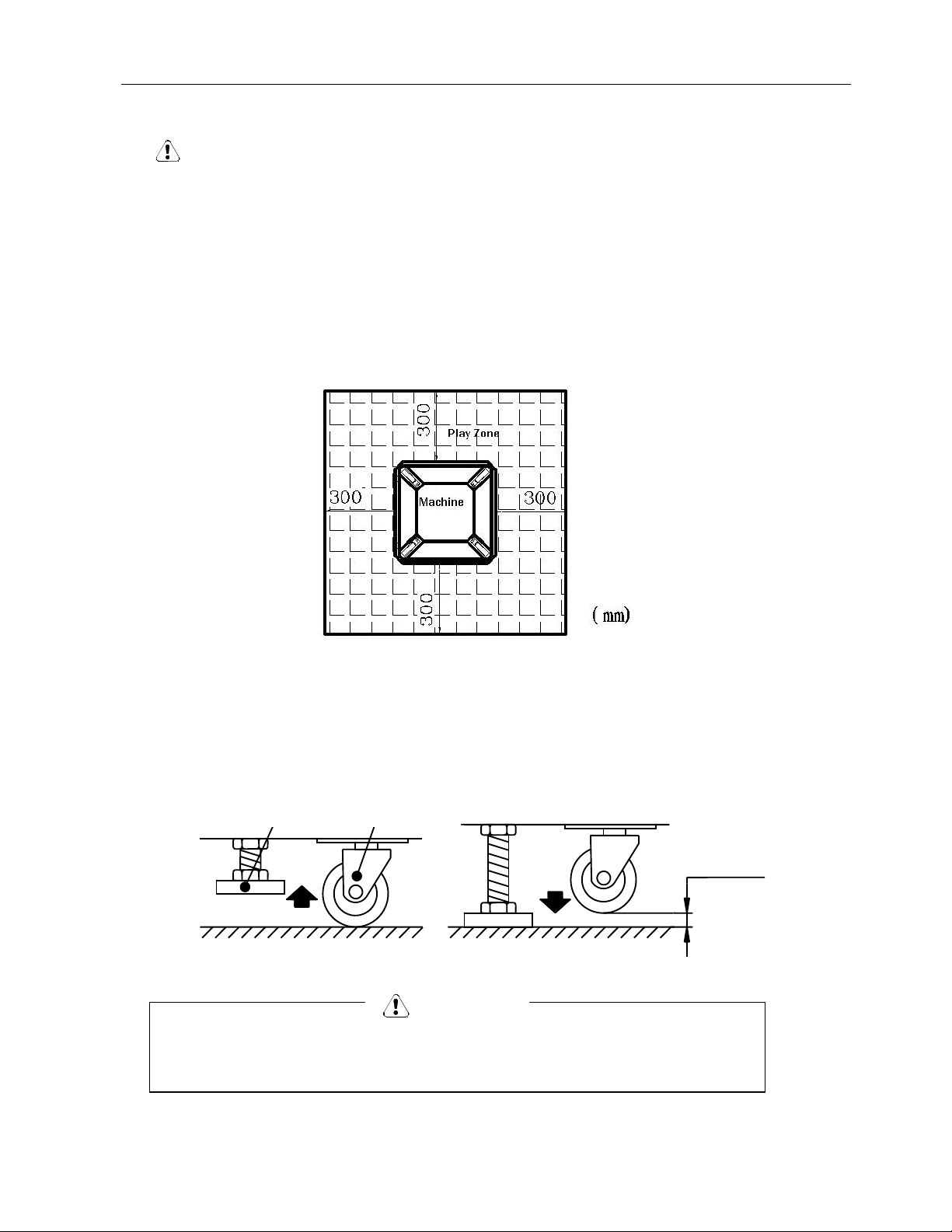

4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Playarea:300mm
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game.
If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the
ground by 5mm. Repeat the same for all levelers.
Leveler Caster
About 5cm
Move Fix
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE

Pharaohs Revenge
8
4.3 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position so the casters touch
the ground.
NOTICE
Be careful not to damage the machine during transport.
The machine should be handled with care when bringing it down from a higher level.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages
4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to an
electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
Connect the grounding conductor to the earth terminal (GND):







Leveler Caster
Move Fi
x
Power socket
Power outlet
Power plug
Power cord
Power plug

Pharaohs Revenge
9
WARNING

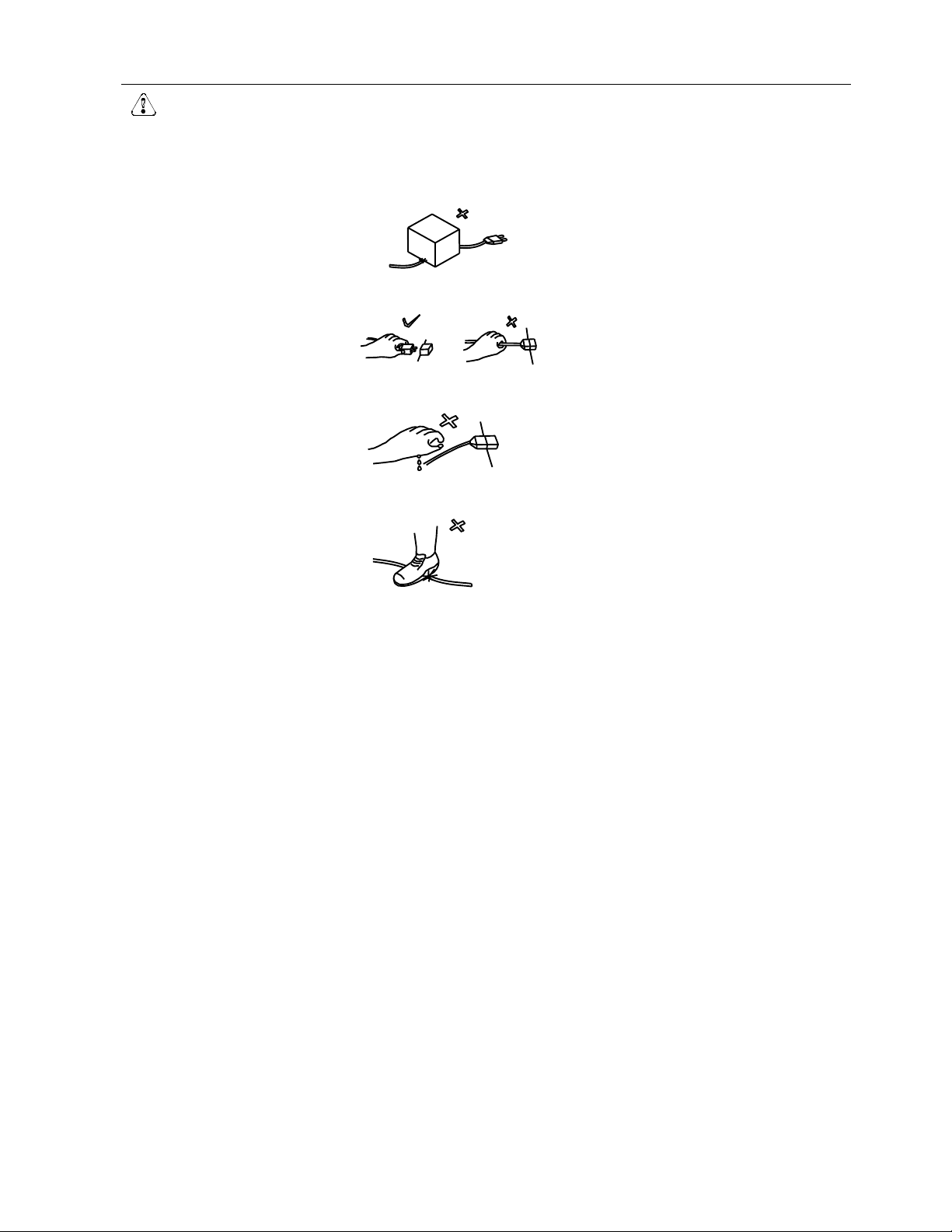

Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not
sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped on
or tripped over.

Pharaohs Revenge
10

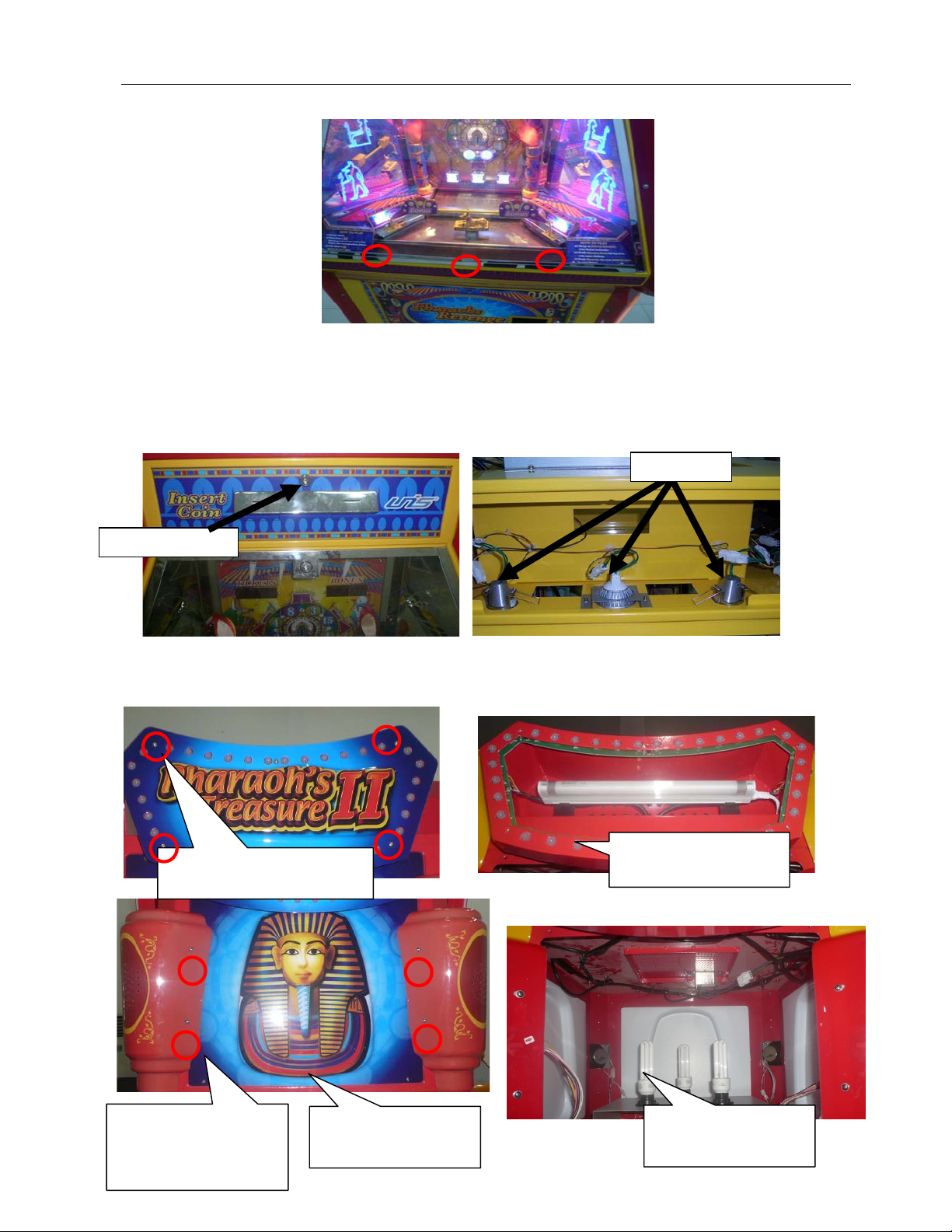

4.5 How to install parts
Open the package, please take out the accessories ( side light cover, light cover fixed board
3,LED48NC-48 strip) and install them.
Step 1: Install light cover fixed board3.
Step 2: Install strip and connecting wire.
Step 3: Install side light cover.
Light cover fixed
board 3.
Connecting wire
Side light cover
LED48NC-48 strip

Pharaohs Revenge
11

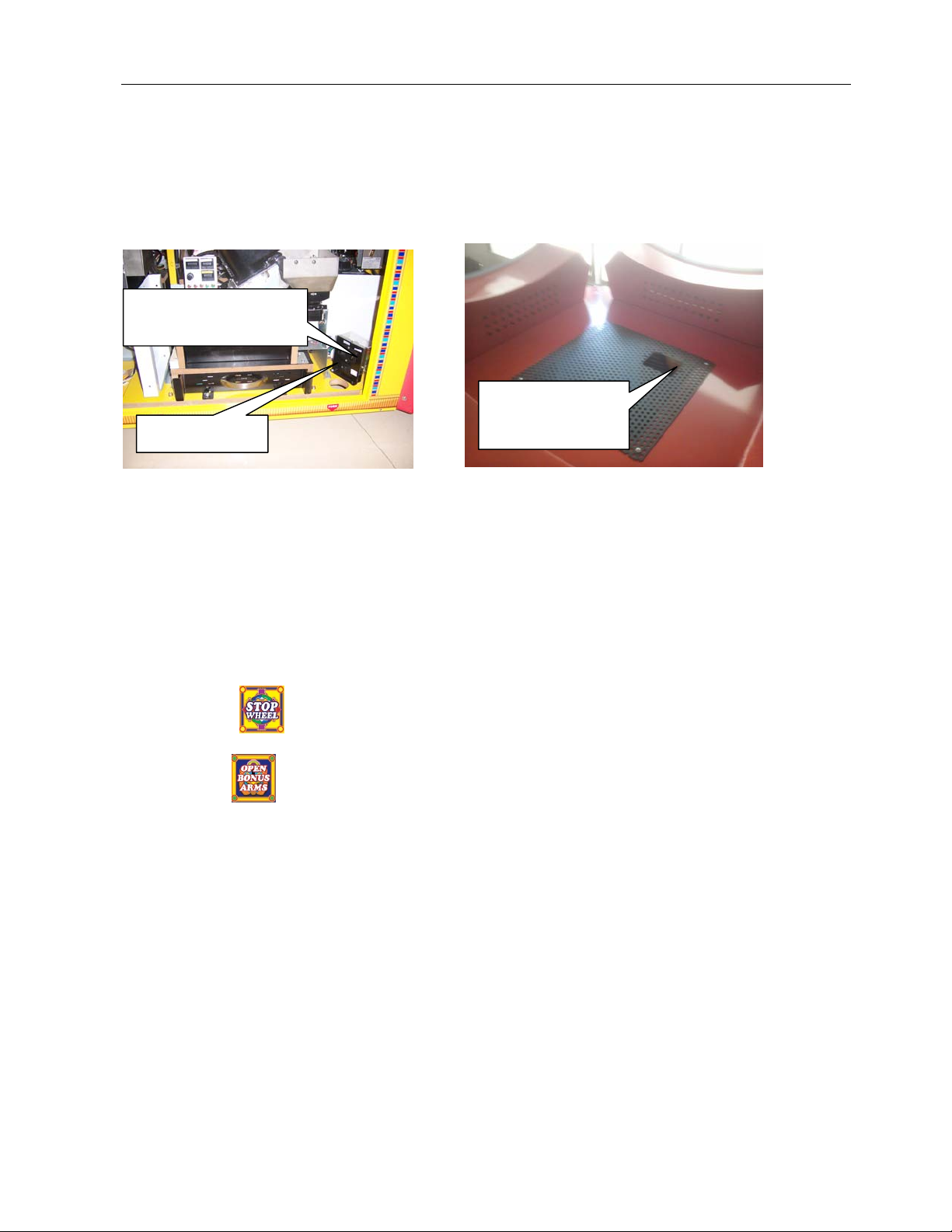

4.6 Power SW & install filter:
Following is machine power SW:
Note: 1. Do not change SW position, when machine bottom install filter must seal up top
marquee filter with metal sheet.
2. Do not change SW position, when install filter on the top marquee. (Refer to electrical
equipment part information)
5. HOW TO PLAY
1. Insert coin(s)
2. Coins drop in . Spinning light on the wheel will stop. Players win corresponding tickets.
3. Coin drop in .Bonus window open.
4. Drop in BONUS WINDOW wins Bonus instantly.
5. Push Pharaohs Hund forward to win more tickets.
6. Push Pharaohs Hund to BONUS LINE to win Bonus.
Power switch
Install position
for top filter.
Install position for
bottom filter.

Pharaohs Revenge
12
6. GAME OPTIONS
6.1 Please refer to the I/O chart and schematics included with the game.
6.2 To adjust DIP settings, please refer to the I/O chart. The initial settings are in CAPITAL
LETTERS.

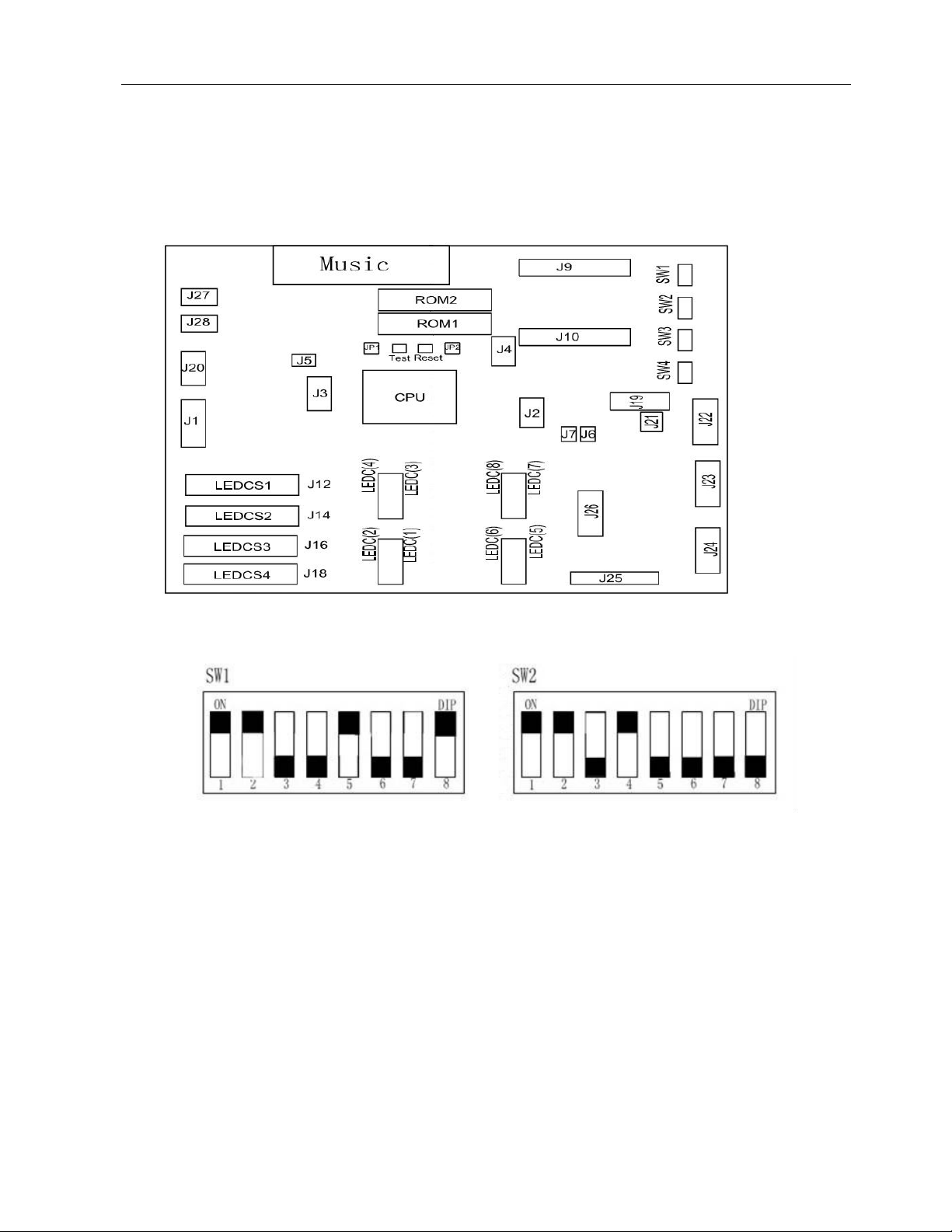

6.3 Main Board:
6.4 DIP adjust（Default Value）
Test mode:
Press “test” button get into the test menu.
1. LED displays segment scan, digit scan and shows <8, 7, 6, 5, 4, 3, 2, 1> and <87654321> - To
check LED display.
2. Press TEST button again and LED displays 1, shows the LED 1 and LED2 of 1# in DIP SW.
3. Press TEST button again and LED displays 2, shows the number of on-off SW.
4. Press TEST button again and LED displays 3.
5. Press TEST button again and LED displays 4, hold IN1-40 corresponding OUT1-40 output.
6. Press TEST button again and LED displays 5, OUT1-40 Corresponding lighting output.
7. Press TEST button again and LED displays 6,
Clear memory：
Press mother board “TEST” button startup, and keep about 3s, clear memory.

Pharaohs Revenge
13
6.6 Error display：
1. If input signal isn’t normal, score flicker display error SW number.
2. Digital alternating display ticket count and “Help” prompt signal when lack of tickets.
3.Error cord display:
E01 1# Error of the ticket reset button E41
3# Error of the ticket reset button
E02 1# Error of the ticket amount button E42 3# Error of the ticket amount button
E03 1# Error of swing motor or sensor E43 3# Error of swing motor or sensor
E04 1# Error of hopper reset button E44 3# Error of hopper reset button
E05 1# Error of the coin1 E45 3# Error of the coin1
E06 1# Error of the coin2 E46 3# Error of the coin2
E09 1# Error of the JP gate switch E49 3# Error of the JP gate switch
E10 1# Error of the gate sensor or the
motor E50
3# Error of the gate sensor or the
motor
E11 1# Error of the switch1(L) E51 3# Error of the switch1(L)
E12 1# Error of the switch2(M) E52 3# Error of the switch2(M)
E13 1# Error of the switch3(R) E53 3# Error of the switch3(R)
E14 1# Error of the pusher initial position
and motor E54
3# Error of the pusher initial position
and motor
E19 1# Error of the pusher sensor E59 3# Error of the pusher sensor
E21 2# Error of the ticket reset button E61 4# Error of the ticket reset button
E22 2# Error of the ticket amount button E62 4# Error of the ticket amount button
E24 2# Error of hopper reset button E64 4# Error of hopper reset button
E25 2#Error of the coin1 1# Coin1 E65 4# Error of the coin1
E26 2# Error of the coin2 1# Coin2 E66 4# Error of the coin2
E29 2# Error of the JP gate switch E69 4# Error of the JP gate switch
E30 2# Error of the gate sensor or the E70
4# Error of the gate sensor or the
E31 2# Error of the switch1(L) E71 4# Error of the switch1(L)
E32 2# Error of the switch2(M) E72 4# Error of the switch2(M)
E33 2# Error of the switch3(R) E73 4# Error of the switch3(R)
E34 2# Error of the pusher initial position
and motor E74
4# Error of the pusher initial position
and motor
E39 2# Error of the pusher sensor E79 4# Error of the pusher sensor
Notice: After remove failures, you should wait 5s to restart, if not may be not running normal.

Pharaohs Revenge
14
7. MAINTENANCE & INSPECTION
7.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly
7.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine
• Before servicing the machine, be sure to turn power off. Servicing without turning the power
off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be replaced
immediately.
• When or after installing the product, avoid pulling the power cord to prevent unnecessary
wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire, electric
shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the machine.
Unplug the power cord of the service outlet. Operating the machine without correcting the
problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating, resulting in
fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the labels are
not hidden behind other game machines.
WARNING

Pharaohs Revenge
15
7.4 Trouble shootings:
Problem Cause Possible solution
Machine stop running
and no display
1.Not connect power
2.Wiring head loosen
3.Mech short circuit
1.Connect power
2.Check connector lug whether
loosen and again fasten
3.Check circuit
Lights are not light
up Light burn out or circuit breaker. Change fluorescent light, check circuit.
Don’t open panel
door
1. Micro SW check no signal
2. Drainage tractor break down or
line fall off.
1. Change SW.
2. Check drainage tractor is
normal or not.
Can’t win BONUS
1. Sensor BONUS SW no signal was
detected.
2. Doggon moving tightly or motor
don't reset.
3. Sensor testing SW breakdown.
1. Moving sensor or motor reset
or not.
2. Change sensor.

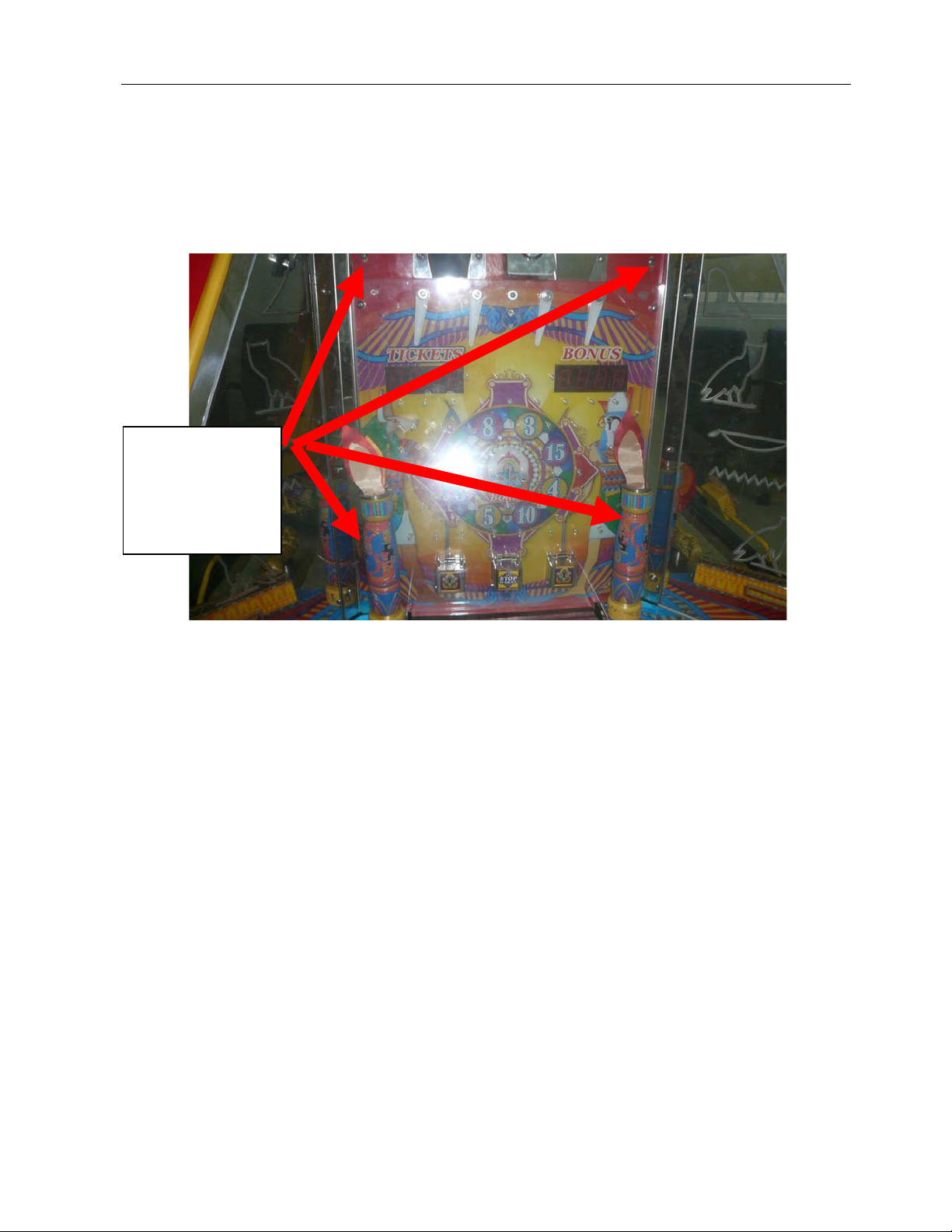

7.4 Machine adjustment& maintenance
7.4.1 Side hole adjustment
Step 2: Remove
A、B、C、D 4
screws to take
off the cover .
E
Step 3 ：Release
screw show in the
picture to adjust the
hole size.
Step 1: Open
the lock, lift up
the glass lightly.

Pharaohs Revenge
16
7.4.2 Coin pile up adjustment：
Remove 3 screws, adjust the pile up strip can control the coin drop down amount.
7.4.3 Replace the spot light
Step 1: Open the coin mech lock, take out slot and replace spot light.
Step 2：Replace the fluorescent light tube and top marquee light board inside the game.
S
p
ot li
g
ht
Coin mech lock
First, release screws,
and remove sides
speaker cover.
Then, remove this
plastic.
Last, change
fluorescent light.
First, remove 4 screws,
and
take off this plastic
.
Then, change light
board.

Pharaohs Revenge
17
7.4.4 Panel assembly maintenance:
Step 1: Open glass maintenance door, release screws to take off panel cover. (Such as in 7.4.1
step 1 and step 2.)
Step 2: Release game panel four fasten screws and unplug wiring, tilt the panel and can be
removed. Moving panel, then push coins mechanism, swing leg mechanism, Jackpot
mechanism can be maintained.
Release game
panel 4 screws,
panel can be
removed.

Pharaohs Revenge
18
7.4.5 Swing leg mechanism, Jackpot mechanism，Bonus inching maintenance：
Step 1: Take off the whole panel, method such as 7.4.4
Step 2: Release fasten screws on the panel, and take off front Acrrylic board.
Take off this
plastic.
Step 3: Release these 4
screws, take off swing
leg mechanism at the
back.
Release these 6 screws,
take off and maintain swing
leg mechanism.
Release these 4
screws, take off
and maintain
Jackpot
mechanism.
Step 4: Release these 2
screws, take off Jackpot
mechanism.
Release these
2 screws and
replace Bonus
inching.
Jackpot mechanism
can’t opening and
closing, might be tractor
drainage barrows fall off

Pharaohs Revenge
19

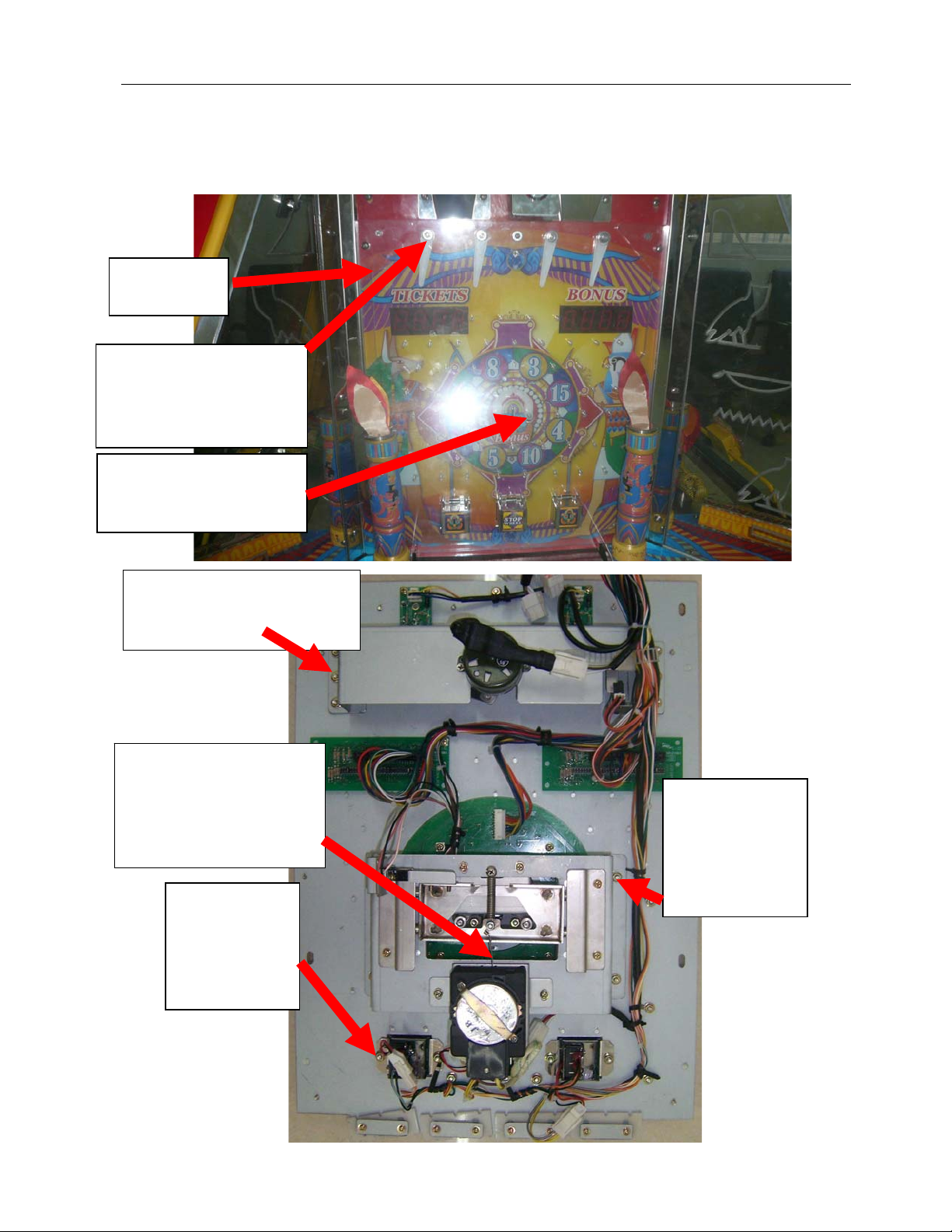

7.5 Push Jackpot light board and score groups light panel maintenance.
If push Jackpot light board or score group light board damaged, please release 2 fasten screws
on plastic to change light board.
Release 2 fasten
screws, take off
Jackpot plastic or
score plastic, change
light board.
Score group plastic.
Take off Jackpot plastic,
replace Jackpot light
board.
