Family Fun Companies THE REVENGE OF HAMMERHEAD User manual

GAME MANUAL
Be sure to read this Operation Manual before using your machine to ensure safe operation
WARNING
CTCZ-180102

1
CONTENTS
1. SPECIFICATIONS............................................................................................................1
2. INTRODUCTION.............................................................................................................. 2
2-1 OVERVIEW:...................................................................................................................................................... 2
2-2 IMPORTANT SAFETY INFORMATION....................................................................................................... 2
2-3 SET UP:............................................................................................................................................................. 3
3. PACKAGE CONTENTS.................................................................................................. 4
4. INSTALLATION................................................................................................................ 5
4-1 OPERATION ZONE:........................................................................................................................................5
4-2 LOCATIONS TO AVOID:................................................................................................................................5
4-3 GAME LEVELING:...........................................................................................................................................5
5. CONNECTING THE POWER CORD........................................................................... 6
6. PARTS DESCRIPTION................................................................................................... 7
6-1 GAME OUTLOOK............................................................................................................................................7
6-3 WHEEL...............................................................................................................................................................8
6-4 BALLS COMING OUT AREA........................................................................................................................ 9
6-5 SETTING BUTTON..........................................................................................................................................9
6-6 COUNTER......................................................................................................................................................... 9
6-7 SCORE BOARD.............................................................................................................................................10
6-8 POWER JUNCTION BOX.............................................................................................................................10

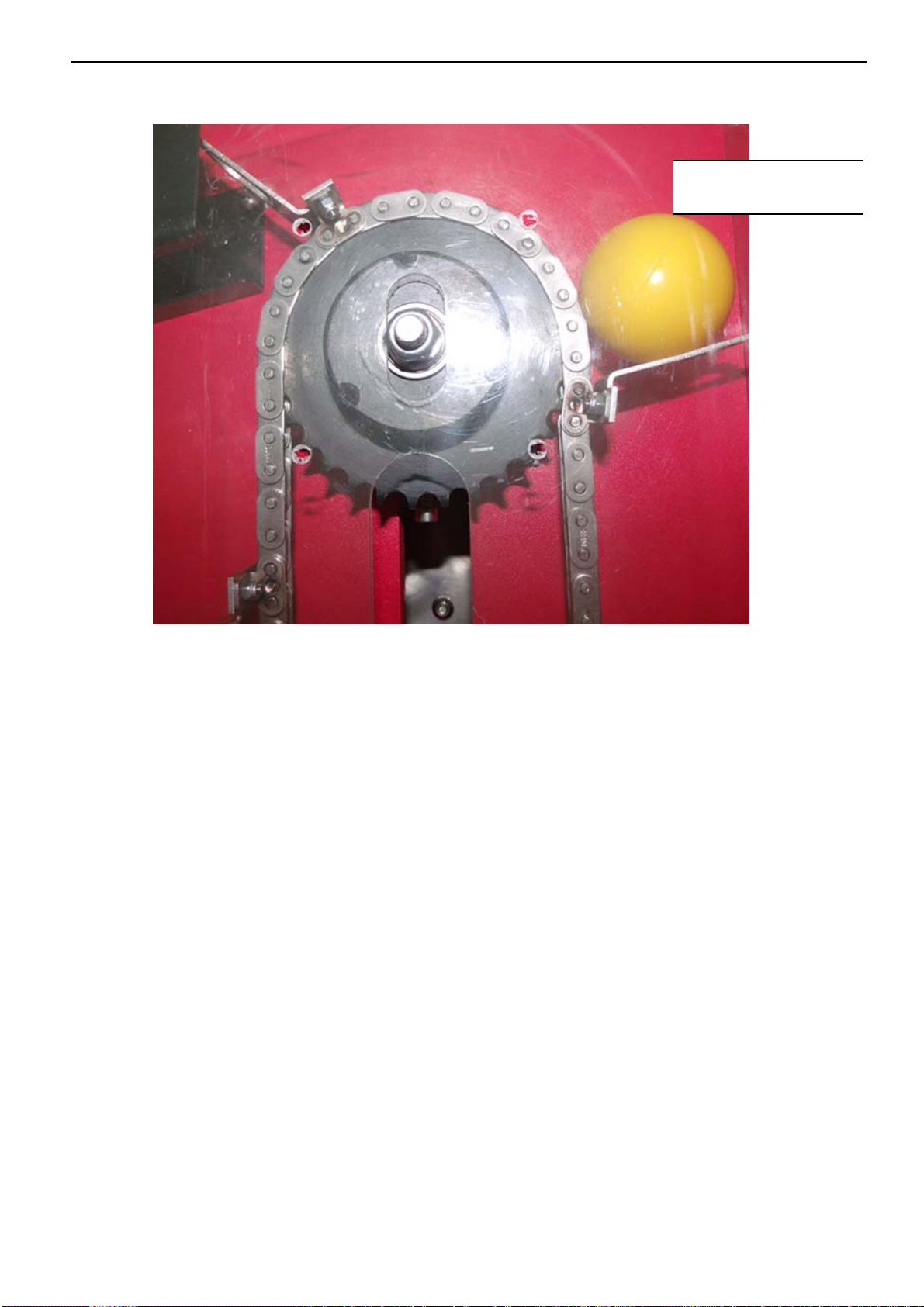

6-9 CHAIN ADJUSTMENT..................................................................................................................................11
7. INSTRUCTION FOR PLAY...........................................................................................11

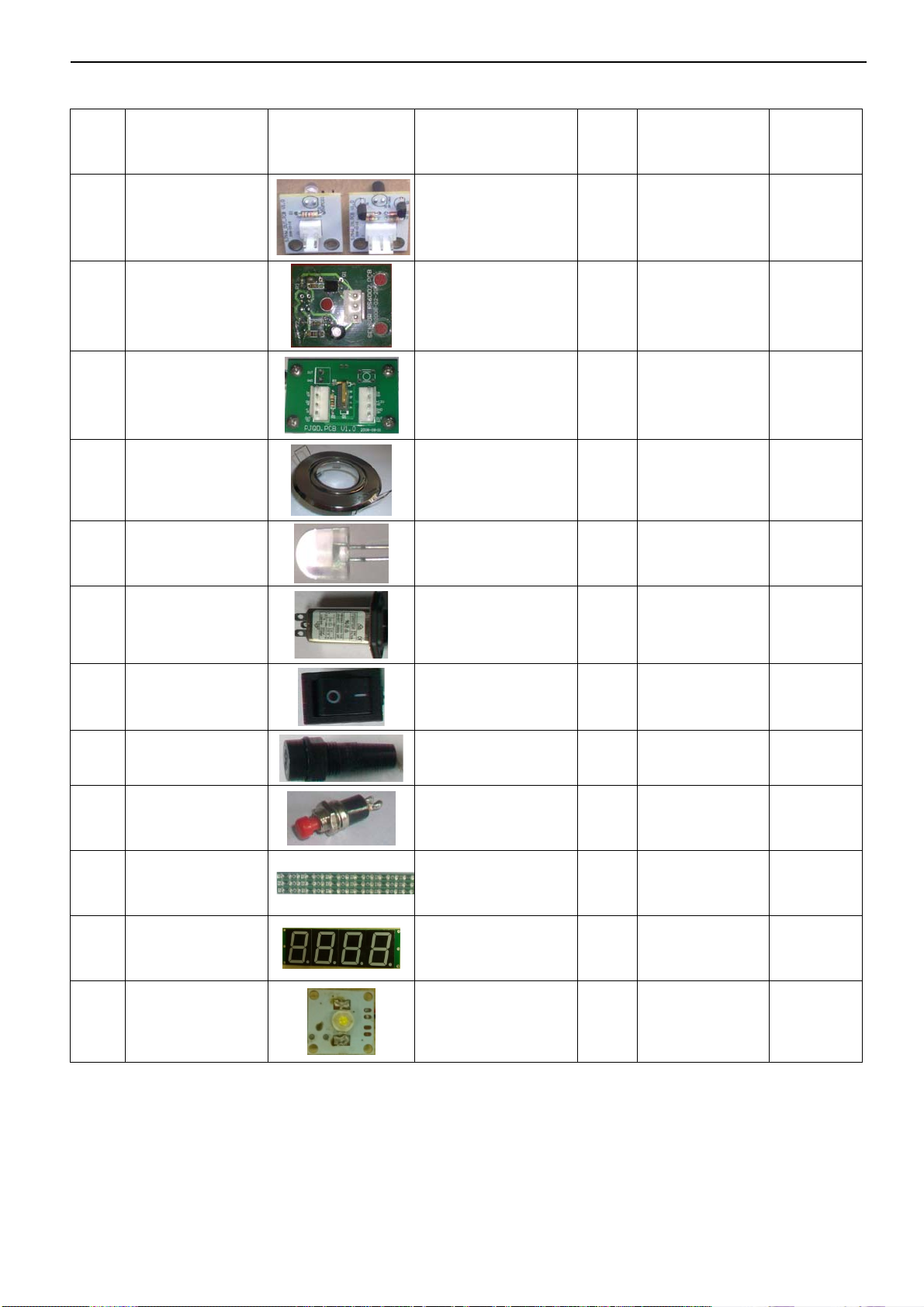

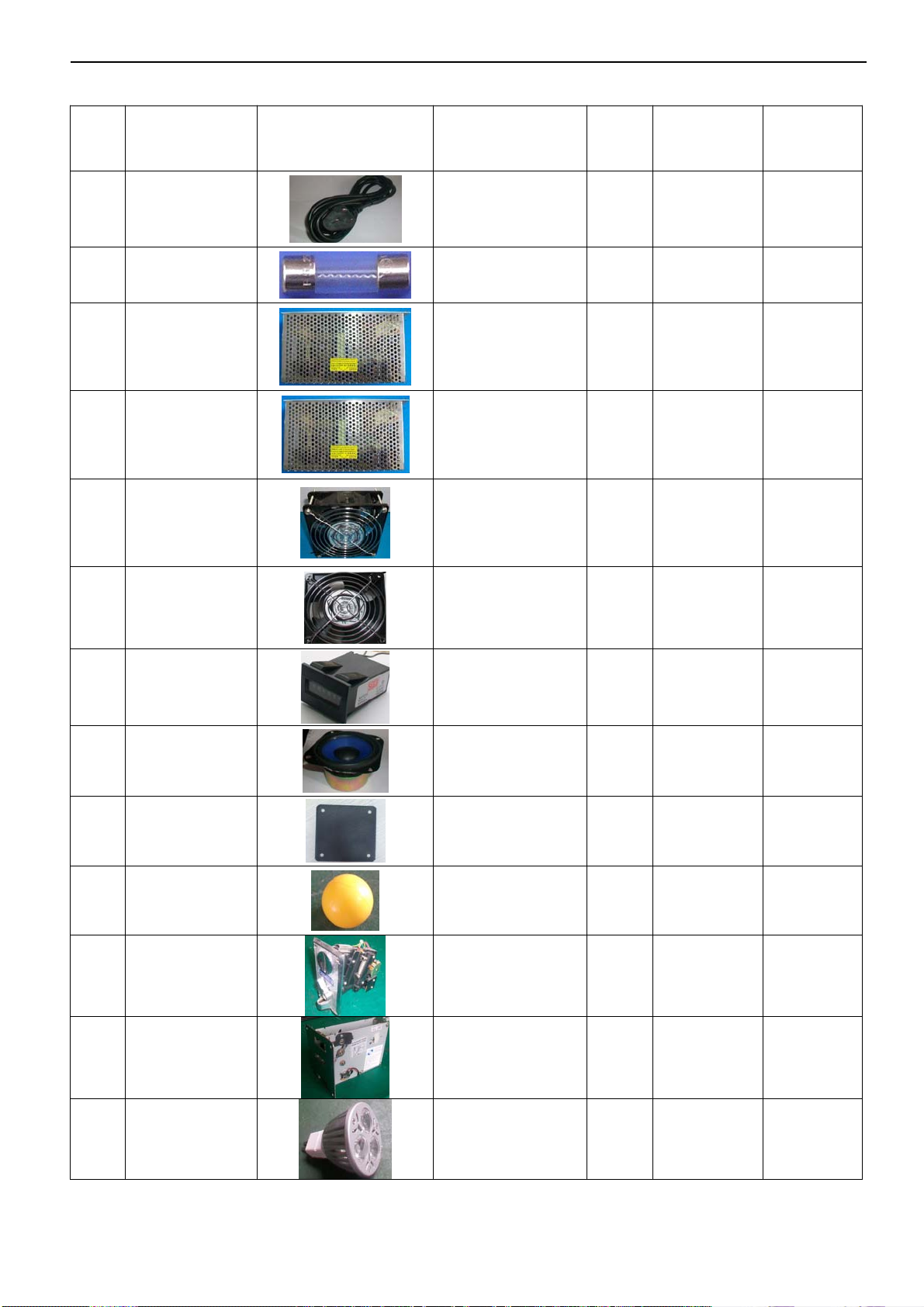

8. MAIN PARTS LIST.........................................................................................................12
9. GAME DIAGRAMS &OPTION SETTINGS............................................................... 15
9-1 PCB PLANE GRAPH.................................................................................................................................... 15
9-2 MENU AND OPTIONS DIRECTORY..........................................................................................................15
10. GENERAL TROUBLESHOOTING........................................................................... 20
11. MAIN MECH. DESCRIPTION.................................................................................... 21
11-1 MAIN MECH. LOCATION DESCRIPTION.............................................................................................. 21
11-2 STEERING WHEEL BACK MECH. COMPONET..................................................................................22
11-3 STEERING WHEEL MECH. COMPONET...............................................................................................23
11-4 BALLS CARRY MECH. COMPONET......................................................................................................24
11-5 BALLS COMING OUT MECH................................................................................................................... 25
11-6 BALLS DISPENSE MECH......................................................................................................................... 26
12. ERROR CODE..............................................................................................................27

1
1. SPECIFICATIONS
(1) Voltage：AC 220V±5% 50Hz or AC 110V±5% 60Hz
(2) Power：MIN：111 W MAX：158 W
(Note: Please refer to the label on the game for the actual voltage)
(3) Dimension：L 1855 × W 850 × H 2315 mm
(4) Weight：About:190kg
(5) Operation Condition：Temperature (indoor)：-10℃~+40℃Humidity：≦90%；
NOTE: Game parameters are subject to change without notice.

2
2. INTRODUCTION
2-1 OVERVIEW:
This owner’s Manual is intended to provide detailed descriptions together with all the
necessary information covering the general operation of electronic assemblies, servicing control,
spare parts, etc. pertaining to the game.
This manual is intended for the owner, personnel and managers in charge of operation of the
product. Operate the product after carefully reading and sufficiently understanding the
instructions. If the product fails to function satisfactorily, non-technical personnel should under no
circumstances touch the internal system.
To Maintain Safety:
To ensure the safe usage of the product, be sure to read the following before using the
product. The following instructions are intended for the users, operators and the personnel in
charge of the operation of the product. After carefully reading and sufficiently understanding the
warning display and cautions, handle the product appropriately. Be sure to keep this operation
manual nearby the product or elsewhere convenient for referring to it when necessary.
For the safe usage of the product, the following pictographs are used:
Indicates “HANDLE WITH CARE”. In order to protect the human body and equipment,
this display is attached to places where the instruction manual should be referred to.
Indicates a “PROTECTIVE EARTH TERMINAL”. Before operating the equipment, be
sure to connect it to the ground. (The step may be omitted for products in which a power cable
with earth is used.)
Be sure to understand the contents of the displa
y
sbefo
r
e ope
r
ating the equipment o
r
reading the text.
DANGER
WARNING
CAUTION
2-2 IMPORTANT SAFETY INFORMATION
Unplug the game from the AC wall receptacle when servicing this product. Failure to do so
could result in serious injury to yourself or others.
Use only a GROUNDED AC receptacle. Failure to do so could result in improper operation or
damage to the game and could void your warranty. If you are unsure that your AC receptacle
is properly grounded, have a qualified electrician perform this check for you.
Indicates that mishandling the product by disregarding this pictograph will
cause severe injury or death.
Indicates that mishandlin
g
the p
r
oduct b
y
dis
r
e
g
ardin
g
this warnin
g
will
cause a potentiall
y
hazardous situation which can
r
esult in death o
r
se
r
ious in
j
ur
y
.
Indicates that mishandlin
g
the
p
roduct b
y
disre
g
ardin
g
this
caution will cause a sli
g
ht hazardous situation which can result
in
p
ersonal in
j
ur
y
and/or material dama
g
e.

3
Always be sure power to the game is turned off when doing even routine maintenance.
Otherwise, moving parts could activate unexpectedly causing injury.
This product is heavy, necessitated by the design. When moving this game, be sure you have
adequate help. Use a suitable dolly or hand truck where practical.
2-3 SET UP:
SET UP
Be sure that the game is on a level surface. If the game is rocking on the floo
r
adjust the legs
to remove the rocking of the game.
Be sure to plug the game into the prope
r
A
.C. GROUNDED receptacle. Do not use long
extension cords unless absolutely necessary and if so, be sure it is a heavy duty cord of at
least 16 Ga. and no longer than 20 ft. Check the label on the back of the game to make sure
the power requirements of the game match that of your location.
Turn the game on and check to be sure there are no unusual sounds and that everything
appears to be working correctly.

4
3. PACKAGE CONTENTS
Be sure to check that you have received all packages indicated below.
Game Unit
Accessories
No. DESCRIPTION SPECIFICATION QTY IMAGES REMARK
1 POWER CABLE 1.8m 1
2FUSE Φ5×20mm
6.3A/110V 1110V VERSION
3KEY
X919 2SERVICE DOOR
X818 1 COIN BOX
4 MENUAL ENGLISH 1
5 SENSOR SJMHW 1 BALLS DISPENSE
6T4IR MOC70T4 1 BALLS CARRY
MOTOR
7 LED CRICLE CTCZ-LED12.PCB 1 PROCESSED
8LED XY_L01W(V1.0) 1 BILLBOARD
9YELLOW BALL φ45 9
The above are subject change without notice.

5
4. INSTALLATION
Check the parts list before installation. Verify that all parts that have been received and are in
good condition.
4-1 OPERATION ZONE:
This machine requires space for playing the game. Be sure to leave enough space when
installing the machine.
4-2 LOCATIONS TO AVOID:
4-3 GAME LEVELING:
Install this machine on a flat surface. Adjust levelers to lift the legs and level game.
Make sure that the machine is level with the floor. If the machine is not level, the game may not
play well.
●Be sure to check the Electrical Specifications. Ensure that this product is
compatible with your location’s power supply, voltage and frequency requirement.
A plate describing Electrical Specifications is attached to the product. Non-
compliance with the Electrical Specifications can cause a fire and electric shock.
●Putting many loads on one electrical outlet can cause generation of heat and a fire
resulting from overload.
WARNING
The machine is designed for indoor use only. Never install this machine outdoors or in
any of the following:
●Locations exposed to direct sunlight
●Locations subject to rain or water leakage.
●Unstable locations or locations subject to vibration.
●Dusty, hot, or damp locations.
NOTICE
●For indoor use only!
ATTENTION

6
Approx 5mm
5. CONNECTING THE POWER CORD
Power socket
Power plug
Electrical wire box
WARNING
●Do not put heavy items on power cord.
●Hold the power plug instead of the wire to draw the power cord out of the socket.
Disconnect game power
b
efore moving
Make sure all wheels are intact. Replace any wheels that are damaged o
r
b
roken
before moving the game.
When moving the game, DO NOT slide the game across the floor
Ensure the game is level before connecting the power
WARNING

7
●Do not touch the power plug with wet hands.
●Do not draw or twist the cord or near a heat source.
●Do not place the cord where the player can easily trip over or come in contact with it.
●Operate this game with the correct power and fuse configuration.
6. PARTS DESCRIPTION
6-1 GAME OUTLOOK
Wheel
Balls Coming
Out Area
Decoration
Gun
Billboard Light
Supporting Board
Bill Board
电源线盒
JP
Ticket/Score
Speaker
coin door
Service
Door
Back
Plastic
Board
Exhaust
Fan

8

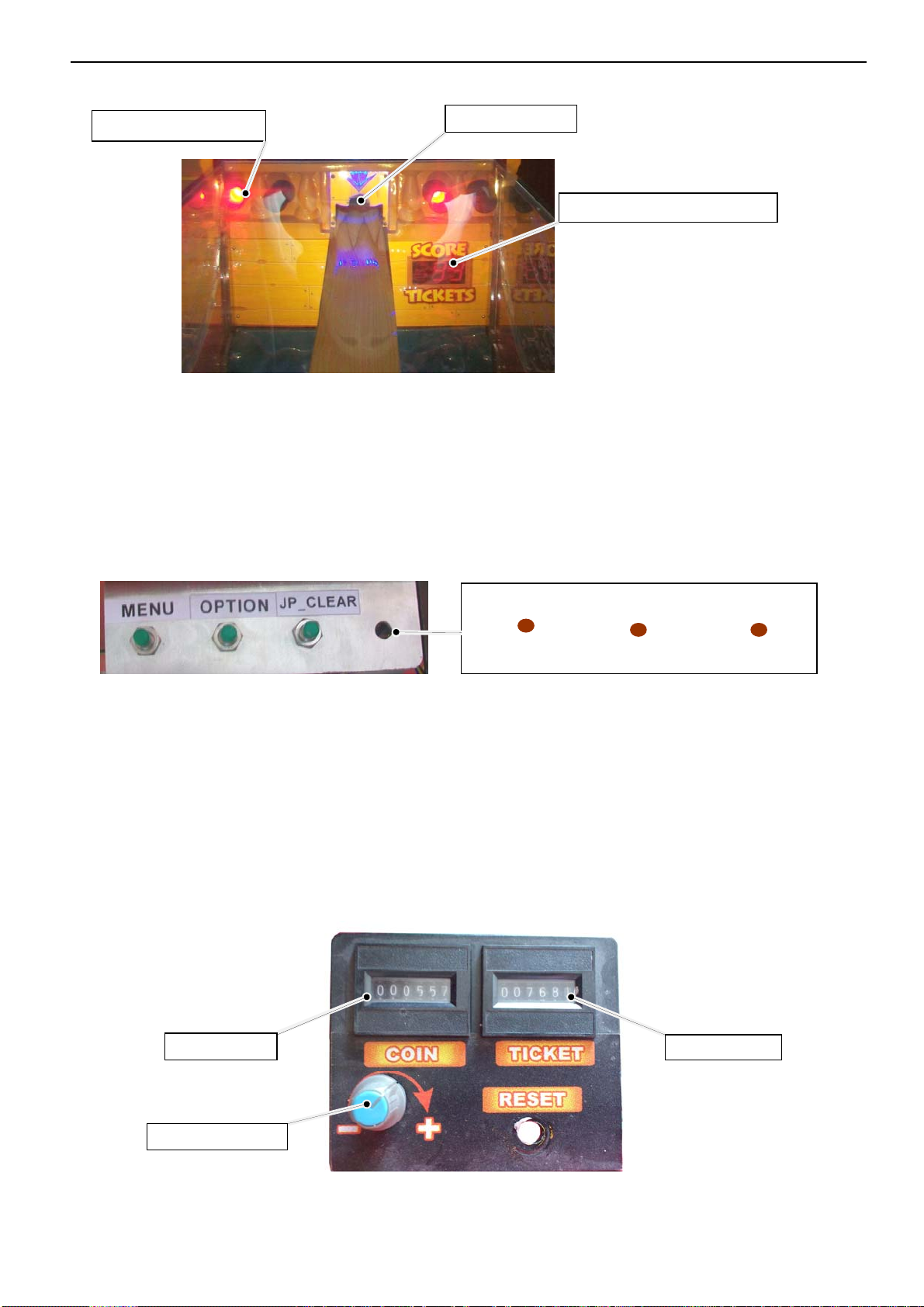

6-2 FRONT DOOR
6-3 WHEEL
Turn the Wheel to make the balls drop into the Buoys.
Coin Slo
t
Ticket
Out
p
u
t
Counter
Setting Button Speaker
Coin
Mech.
Ticket
Mech.
