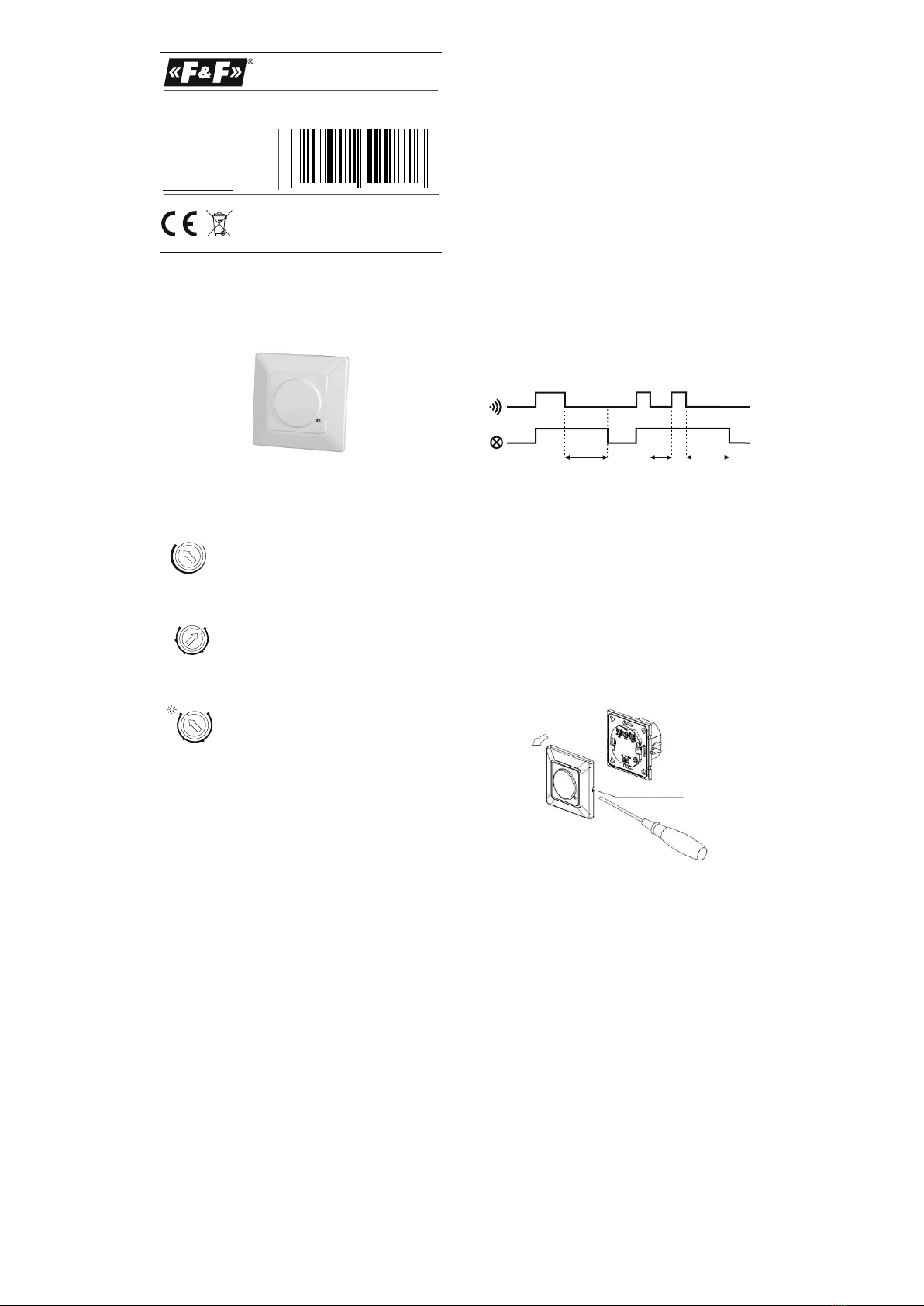

F&F DRM-07 User manual

- 3 - - 4 -
- 1 -
Purpose
The motion sensor is designed for automatic, scheduled lighting activation if
a person or other object appears in places such as corridors, courtyards,
approaches and driveways, garages, etc.
The specific of operation allows to use the DRM-07 as a presence sensor.
The sensor allows to detect movement through wooden boards, plaster-
board panels, glass and plastics.
Functioning
The DRM sensor emits and receives 5.8 GHz high frequency electromagnetic
waves. The sensor detects changes in wave reflection caused by the
movement of the object in the detection area. The sensor detects movement
of the object to and from the sensor. Movement in the detection area
automatically switches on the lighting. From the moment of switching on,
continuous movement causes the lighting to stay on permanently. Only lack
of movement in the detection area triggers the lighting back-up time.
Another movement in the detection area and its disappearance during the
countdown will start the back-up time from the beginning. The nature of the
operation allows the DRM to be used as presence sensor.
After the preset time, the lighting will be switched off automatically. The
motion sensor is equipped with a twilight sensor that prevents the
controlled lighting from being switched on during the day. The detection
status and the readiness to switch on the lights are activated only after dark.
Activation time of the sensor can be adjusted by the user through a
potentiometer. In addition, it is possible to adjust the detection area in the
radius range of 5÷15 m (for h=1÷1,8 m) and to adjust the time of the receiver
in the range of 10sec÷12min. The motion sensor can work indoors. The
sensor allows to detect movement through wooden boards, plasterboard
panels, glass and plastics. Temperature changes do not affect motion
detection. The sensor has a switch for setting the operating mode: perma-
nently on, permanently shutdown and automatic operation.
WARNING!
The power of microwave radiation is relatively low and is completely safe for
humans and animals. Its value is less than 0.2 mW.
By comparison, microwaves and cell phones radiate about 1000mW of
power (100 times harder).
Detection range (SENS)
Actuation time (TIME)
10±3sec for 12±1
(LUX)
.
Operation modes: (ON/OFF/AUTO)
AUTO - automatic ON and OFF
ON - switch on sensor contact permanently (closed output)
OFF - switch off sensor contact permanently (opened output)
Radius of the sensor detection can be adjusted in the range
from 5 m to 15 m (the parameters for the sensor mounted
at a height 1÷1.8 m). Rotate the knob to the right [+]
increases the area of a field of detection, rotate left [−]
reduces the area of the field detection.
Receiver’s actuation time can be adjusted between
min. Rotate knob to the right increases
ON time, rotate left reduces the attached time
Sensitivity of light dependant relay
Sensitivity of light dependant relay can be adjusted in range
from 3Lx to 2000Lx. Rotate the knob to „3” - attached later;
rotation to the „sun” sign - attached earlier.
In order to sensor was active throughout the day, set the
knob maximally toward the „sun”
Settings
Diagram
Assembly
tOFF tOFF<tOFF
DRM-07
1.
2. Do mounting hole in the ground / place flush-mounted box 60.
3. Lift up the hook by screwdriver and remove sensor external cover.
4. Connect the power supply wires according to the scheme.
5. Place body in the mounting hole / flush-mounted box and mount to the
ground with screws.
6. Set detection range, sensitivity of light dependant relay and actuation
time.
7. Assemble the outer casing of the sensor.
8. Connect the power supply.
WARNING!
DRM is inactive for the first 10 seconds after powering up.
Disconnect the power supply.
Ø
5 9 0 8 3 1 2 5 9 9 8 7 6
open front panel
- 2 -
TIME
12min. 10s
6min.
3min.
30s
90s
LUX
3
300 30
SENS
-
+
MICROWAVE
MOTION SENSOR
F&F Filipowski sp. j.
Konstantynowska 79/81 95-200 Pabianice
phone/fax: [phone] POLAND
http://www.fif.com.pl e-mail: biur[email protected]
WARRANTY. The F&F products are
covered by a warranty of the 24 months
from the date of purchase. Effective only
with proof of purchase. Contact your
dealer or directly with us. More informa-
tion how to make a compliant can be
found on the website:
www.fif.com.pl/reklamacje
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collection, as well as to store the
occasion of the purchase of new equipment (in accordance with the principle
of old-for-new, regardless of brand). Electro thrown in the trash or abandoned
in nature, pose a threat to the environment and human health.

- 5 - - 6 -
Technical data
230V AC
current load <6A
microwave radiation frequency 5.8GHz
power radiation <0.2mW
motion detection 0.6÷1.5m/sec
detection area 180°
detection radius - adjustable (for h=1±1.8m) 5÷50m
activation threshold - adjustable 3÷2000Lx
switch-on time of receiver - adjustable 10±3sec÷12±1min
activation delay <1sec
power consumption 0.9W
terminal 1mm² screw terminals
working temperature -25÷50°C
dimensions
external 80×80×48mm
groove Ø=55mm, h=33mm
mounting hole Ø60mm
spacing screw 58mm
mounting flush-mounted box Ø60
protection level IP20
power supply
D161020
Wiring diagram
L
N
N L’ L
1200W 200W
1200W
incandescent fluorescent energy-saving
halogen LED
200W 200W
Table of power
