Fanmaster IFH-2 User manual

FA NM A ST E R
cooling heating ventilation extraction
INSTRUCTION MANUAL
MODEL: IFH-2
INDUSITRAL FAN HEATER ELECTRIC
TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS &
INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS
FOR INDUSTRIAL USE ONLY

FOR YOUR INFORMATION
Thank you for purchasing a Fanmaster electric fan/space heater. Please read this
instruction manual carefully before using this heater.
Disclaimer:
Fanmaster reserves the right to make alterations to specications, quantities,
dimensions, for production or other reasons, subsequent to publication.
While we believe the information is accurate and complete, we make no warranty
or representation for any particular purposes. The information is offered in good faith
and with the understanding that any use of the units or accessories in breach of the
directions and warnings in this document is at the sole discretion and risk of the user
Disposal Guidelines:
Do not dispose of this product with general household waste. This product must be
disposed according to the laws governing Waste Electrical and Electronic Equipment.
If required, contact your local authorities for information regarding the available
disposal facilities.

1. GENERAL SAFETY RULES & WARNINGS
• PLEASE READ INSTRUCTIONS CAREFULLY.
• PLACE INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW
ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, ADJUST OR OPERATE THIS
HEATER.
• IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
MAY RESULT IN CAUSING PROPERTY DAMAGE, SERIOUS INJURY OR LOSS OF LIFE.
• FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS
HEATER, CAN RESULT IN DEATH, SERIOUS INJURY AND PROPERTY LOSS OR DAMAGE FROM
HAZARDS OF FIRE, EXPLOSION, BURN, AND/OR ELECTRICAL SHOCK.
• ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR
SERVICE THIS HEATER. IF YOU NEED ASSISTANCE OR REQUIRE HEATER INFORMATION SUCH AS
AN INSTRUCTION MANUAL, LABELS, ETC. CONTACT FANMASTER.
• DO NOT STORE OR USE GASOLINE, PETROL OR ANY OTHER FLAMMABLE OR COMBUSTIABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS HEATER.
• FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS
BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER
AS RECOMMENDED BY THE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR
MAY CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNER, DUST PARTICLES OR UNKNOWN CHEMICALS
• NOT FOR DOMESTIC OR RECREATIONAL VEHICLE USE
• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE IS CONNECTED MUST COMPLY WITH
LOCAL REGULATIONS. A RESIDUAL-CURRENT DEVICE (RCD) MUST BE INSTALLED.
• UNPLUG THE APPLIANCE BEFORE PERFORMING ANY MAINTENANCE OPERATIONS.
• ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE BENT,
TAUT, STRETCHED, CRUSHED OR ANY WAY DAMAGED.
• IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY FANMASTER, A
SERVICE AGENT OR A QUALIFIED PERSONS.
• DO NOT COVER THE FAN HEATER
• THE FRONT OUTLET IS VERY HOT DURING OPERATION. DO NOT TOUCH! BURN DANGER.
• DO NOT LEAVE THE HEATER UNATTENDED WHEN IN USE.
• NEVER USE THE HEATER WITH WET HANDS OR WHEN EITHER THE HEATER OR THE POWER CABLE
IS WET.
• CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE HEATER.
• THE HEATER IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED
PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LOCK OF EXPERIENCE & KNOWLEDGE.
• DO NOT CONNECT AN EXTERNAL ON/OFF TIMES OR OTHER AUTOMATIC SWITCH.
• IF AN EXTENSION CORD IS USED, IT MUST NOT BE LONGER THAN 2m.
FOR YOUR INFORMATION

2. PRODUCT DESCRIPTION & SPECIFICATIONS
PRODUCT DESCRIPTION
Industrial electric space/fan heater.
SPECIFICATIONS
MODEL IFH-2
Heat Output 2 KW
6,824 BTU
Air Flow (L/s) 33
Control settings 1 x Fan setting
2 x Heat settings
Settings (KW) 0.65/1.3/2
Voltage (V/Hz) 220~240/50
Plug 3 Pin 10amp
Adjustable
thermostat 85’C
Net Weight (kg) 4.76
Dimensions (mm) 243(L)*303(W)*380H)
SAFETY DEVICE
• Overheat Protection - this will automatically disconnect the power to heater at a
pre-set overheat temperature.

3. GETTING TO KNOW YOUR HEATER
Remove the heater from the carton. If the heater is damaged, please contact
Fanmaster or where you purchased the heater from.

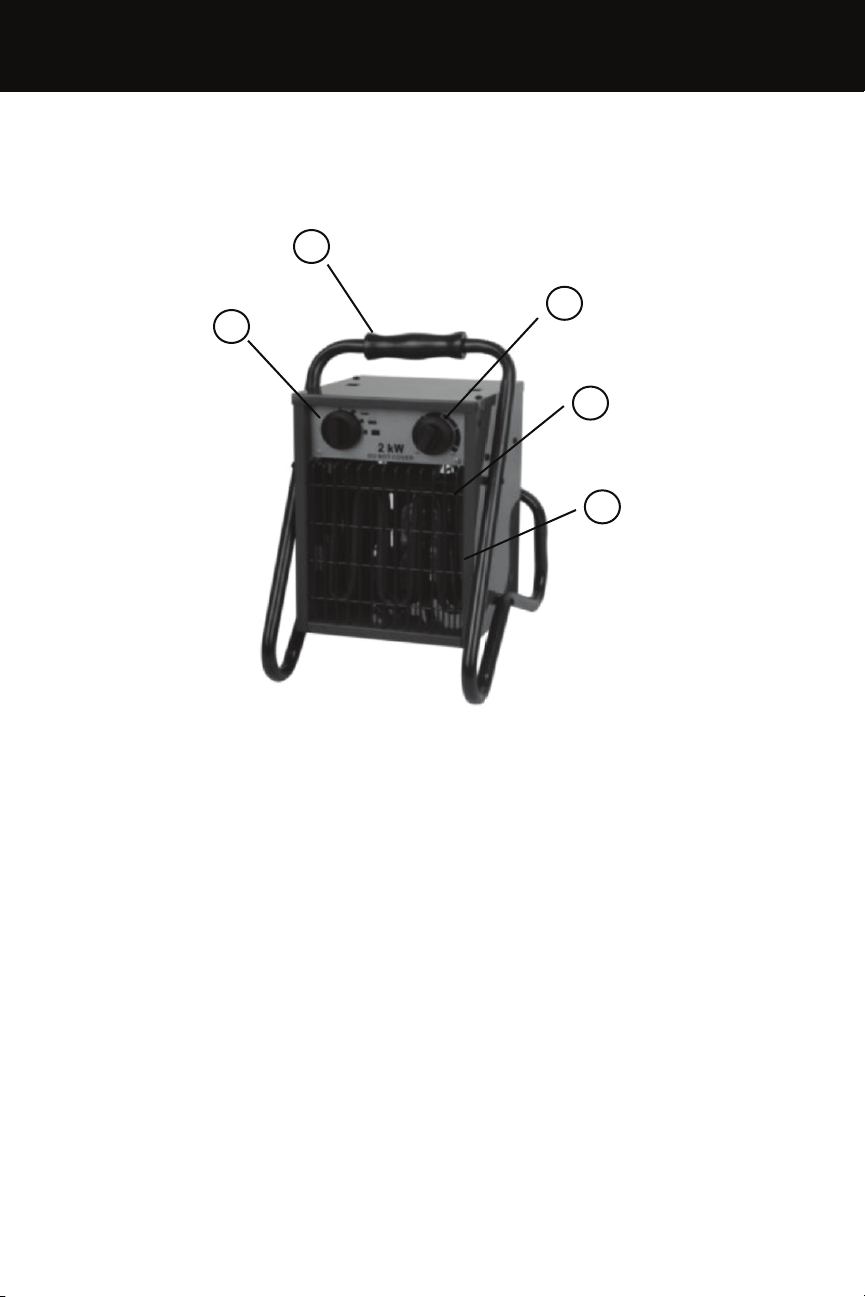

2. PRODUCT DESCRIPTION & SPECIFICATIONS
1. Switch Knob
2. Handle
3. Thermostat Knob
4. Element
5. Front grille
1
2
3
4
5

3. GETTING TO KNOW YOUR HEATER - CONTINUED
• Left Knob = switch control settings
• Right Knob = thermostat control
The rotary switch (left knob) has 3 settings & 4 positions:
• OFF
• 1st Setting: Heating 0.65KW (Fan will turn on)
• 2nd Settting: Heating 1.3 KW
• 3rd Setting: Heating 2 KW
The adjustable thermostat control (right knob) can be turned 0 to 270 degree, you
can control the room temperature between 0~85oC.
CONTROL PANEL
TIPS
• This heater won’t heat up a large or open workshop or warehouse, it is ideal for
personal heating like in a small space such as an ofce, lunchroom, showroom.
• Where possible a nice enclosed environment will get the best performance from
this heater.

First time use, you may notice a slight emission of smoke. This is quite normal & it will
stop after a short time. The heating element is coated with a protection oil.
• This heater is pre-assembled.
• Position the heater so it stands upright & is on a rm surface and at a safe
distance from wet environments and ammable objects.
• Connect the plug to the relevant power source.
• Set the thermostat control (right knob) to MAX & switch control (left knob) to the
highest setting and let the heater operate on full power for 5 to 10 mintues.
• Adjust the thermostat control (right knob) to required temperature.
• Once the room reaches the required temperature, the heating element will
cut-out. Once the ambient temperature decreases, the heating element will cut
back in. The fan heater now starts and stops automatically and thus keeps the
room temperature constant.
• Before switching off the heater, please turn the thermostat to MIN position & turn
the switch to the lowest heat setting position, let the appliance cool down for ve
minutes then turn off the heater and disconnet the plug.
• DO NOT TURN THE HEATER OFF FROM THE POWER SOURCE UNTIL COOLING THE
HEATER DOWN.
4. ASSEMBLY & OPERATING INSTRUCTIONS3. GETTING TO KNOW YOUR HEATER - CONTINUED
5. CLEANING, MAINTENANCE & STORAGE
• Before starting any maintenance task, shut down, unplug and let the heater cool
down for at least 15 minutes.
• Do not attempt any electrical repair yourself. If the heater needs service or repair,
contact Fanmaster or a qualied person.
• When cleaning, make sure that water does not enter the unit.
• Do not open the enclosure to clean the inner parts. Do not spray water into the
heater.
• Never use solvents, gasoline, toluene and similar aggressive chemicals to clean
the heater.
Regularly wipe the enclosure using a soft sponge or cloth. For very dirty parts, use a
sponge wetted with lukewarm water and a mild detergent, then dry using a clean
cloth. Regularly inspect the power cable: if worn, cracked or damaged have it
replaced by a qualied persons only.
Before storing the heater, make sure it is perfectly cool and dry. Cover the unit with a
blanket or tarp and store it in a dry, ventilated place.

6. WIRING DIAGRAM

7. PARTS BREAKDOWN6. WIRING DIAGRAM

8. TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The heater does
not operate, even
when it is plugged
in & the switch,
thermostat are ON
The plug is loose, bad
connection
Disconnect the plug, check
the connection of the plug &
socket. Try another socket
The heating
element is glowing
The input voltage is too high
or too low Check power supply
The air inlet grill is blocked
Do not block the heater, keep
away from articles like curtain,
plastic bags, paper and other
things which can cover the
inlet
The heater doesn’t
heat up only the
fan
The switch was not put on
heat setting Turn switch to heat setting
Thermostat in operation
(ambient temperature
acheived or overheating)
Turn the thermostat know &
listen for a click. If there is no
click & the thermostat is not
damaged, the heater will
automaticaly switch on when
the heater has cooled down
The Self-Resetting
thermostat in operation
(overheating)
Turn the heater off & inspect
the blockage of inlet or outlet.
Disconnect the plug & wait
at least 10 minutes for the
protection system to reset
before attempting to restart
the heater.
Abnormal noise Unlevel ground or stand not
in upright position
Place heater on a level
surface and or correct stnad
positon

9. WARRANTY
Any claim under this warranty must be made within 12 months of the date of
purchase of the product. To make a claim under the warranty, take the product
(with proof of purchase) to the store where you purchased the product or go to
https://www.fanmaster.com.au/warranty-claims-returns.
This warranty is given by Fanmaster Pty Ltd
ABN: 45 353 934 457
Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232
P: 1300 900 345
E: [email protected]
This warranty is provided in addition to other rights and remedies you have under law:
Our goods come with guarantees which cannot be excluded under the Australian
Consumer Law. You are entitled to replacement or refund for a major failure and
to compensation for other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Exclusions: This warranty does not cover:
• Any defects caused by an accident, misuse, abuse, improper installation or
operation, lack of reasonable care, unauthorized modication, loss of parts,
tampering or attempted repair by a person not authorized by the distributor.
• Any product that has not been installed, operated or maintained to a
satisfactory level.
• Any damage caused by improper power input or improper cable connection.

N11664
MADE IN CHINA
Fanmaster Pty Ltd | 1/6-8 Yalgar Road, KIRRAWEE NSW 2232
1300 900 345 | [email protected] | www.fanmaster.com.au
