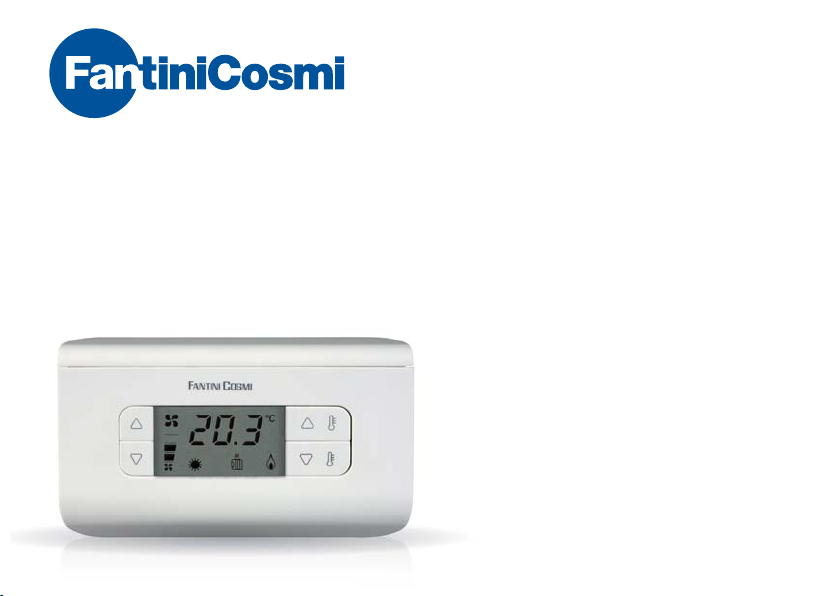

Fantini Cosmi CH130RFR User manual

CH130RFR
RADIO FREQUENCY AMBIENT THERMOSTAT
FOR FAN-COILS

2
Inserting and replacing the batteries .................9
CH172DRF self-learning procedure ..................9
Thermostat configuration .................................10
Technical features of the thermostat ......................13
DIN bar CH172DRF actuator .................................13
Application and use .........................................13
Fastening and connecting ...............................14
Operation .........................................................14
Operation check ..............................................15
Technical features of the actuator ..........................16
TABLE OF CONTENTS
Introduction ..............................................................3
Controls and signals ................................................4
Controls .............................................................4
Signals ...............................................................4
User’s manual .........................................................5
“Summer / Winter” selection ..............................5
Operating modes ...............................................6
“Comfort” operating mode .................................6
“Economy” operating mode ...............................6
“OFF” function (OFF) .........................................7
Fan speed selection ..........................................7
Maintenance ............................................................7
Installation ...............................................................7
Fastening the socket .........................................8
Electric connections ..........................................8
Fastening the thermostat onto the socket .........9

3
Introduction
This fan-coil thermostat control kit CH130RFR
is made up of a CH130RF thermostat and a
DIN bar CH172DRF actuator.
The CH130RF model is a fan-coil 4- or 2-pipe
thermostat that allows you to control the ambi-
ent temperature both in the heating and cooling
mode. These controls are sent to a CH172DRF
actuator that communicates with the CH130RF
through radio frequencies.
The CH130RF is powered by two AA-size bat-
teries (1.5 V). It is able to drive two valves and
control a 3-speed fan-coil motor, in manual
mode.
The thermostat measures the ambient tem-
perature either through an internal probe or an
external sensor. It keeps the set-point by act-
ing on the ventilation speed.
The wide display shows the measured tem-
perature, the fan speed, the program being run
and the selected season.
The settings and data are stored in a perma-
nent memory capable of keeping the same
even when the batteries are not inserted.

4

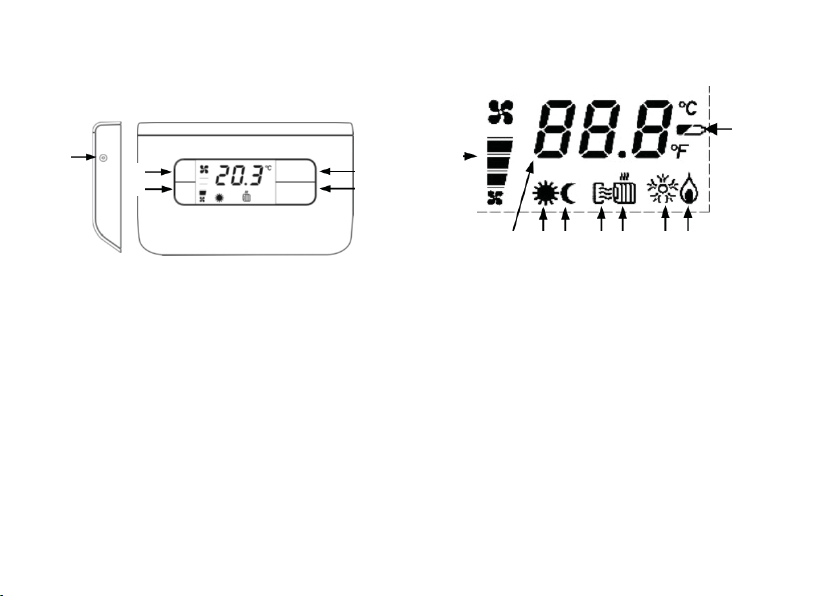

Signals
9
6
1 2 3 4 5 7 8
1. Measured temperature
2. “Comfort” symbol
3. “Economy” symbol
4. “Summer” symbol
5. “Winter” symbol
6. Fan speed symbols
7. System “ON” in summer operation
8. System “ON” in winter operation
9. Low battery charge
Controls and signals
Controls
5
1
23
4
1. Fan speed increase button
2. Fan speed decrease button
3. Selected program temperature value
increase button
4. Selected program temperature value
decrease button
5. Thermostat reset button
Button combinations (press simultan.)
1+2 Summer/Winter switch
3+4 Comfort/Economy switch
2+4 Celsius/Fahreneit switch

5
User’s manual
First of all, make sure that the self-learning
procedure has already been performed (page
8); moreover, verify that both the CH130 and
the CH172D are 30 metres far from each other
at the most. In fact, this distance represents
the free air maximum range for the radio fre-
quency modules used by the thermostat and
the actuator. Please note that the range will
decrease if obstacles are found between the
CH130RF and the CH172DRF.
To start the thermostat after the same has
been installed, proceed as follows:
1. Select the Summer / Winter operation;
2. Select the operating mode;
3. Select the fan speed.
“Summer / Winter” selection
To switch from the “Winter” operation (i.e. heat-
ing system) to the “Summer” operation (i.e.
cooling system), and vice versa, press the 1+2
button combination. The selected operation
will be indicated on the display by the “Winter”
or “Summer” icons.

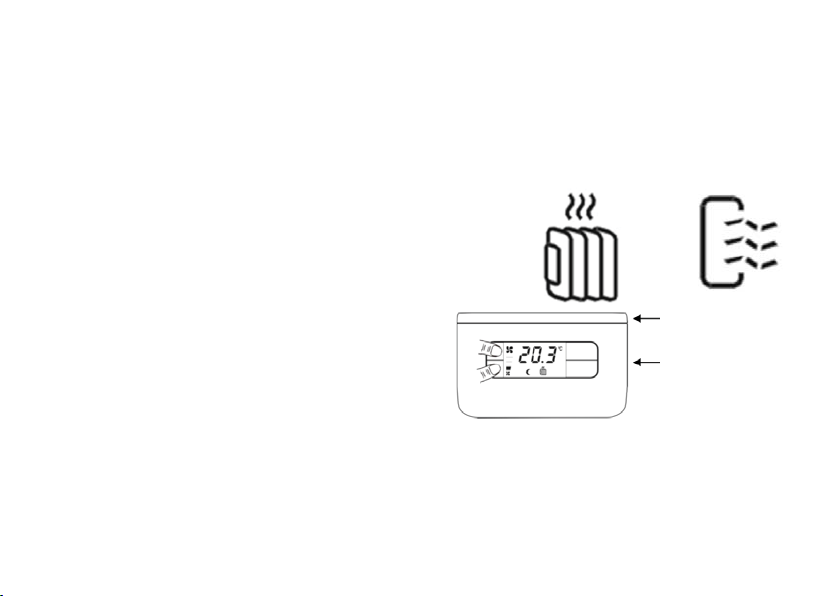

Winter Summer
TOP COVER
THERMOSTAT
FRONT

6
“Economy” operating mode
With the “Economy” operating mode, the ther-
mostat regulates the heating or cooling system
operation in order to always keep the same
economy temperature set. To switch from
“Comfort” to “Economy”, press buttons “3” and
“4” simultaneously.
The temperature level can be modified during
operation by means of buttons “3” and “4”. The
temperature can be changed from 2°C to 40°C
by 0.1°C steps.
Operating modes
The CH130RF thermostat features three dif-
ferent manual operating modes: “Comfort”,
“Economy”, and the “OFF” function (OFF).
“Comfort” operating mode
With the “Comfort” operating mode, the ther-
mostat regulates the heating or cooling sys-
tem operation in order to always keep the
same comfort temperature set. To switch from
“Economy” to “Comfort”, press buttons “3” and
“4” simultaneously.
The temperature level can be modified during
operation by means of buttons “3” and “4”. The
temperature can be changed from 2°C to 40°C
by 0.1°C steps.

7
“OFF” function (OFF)
The “OFF” function can be achieved by setting
the fan speed to zero: in this case, the thermo-
stat will carry out no heat regulation, not even
the antifreeze one.
The system will switch off automatically, and
the “OFF” message will appear on the display.
Fan speed selection
The fan speed can be set either to three fixed
levels (minimum, medium, maximum) by
pressing buttons “1” and “2”.
Maintenance
The thermostat should be cleaned by using
a soft cotton cloth. No detergent should be
used.
Installation
The thermostat installation involves carrying
out the following operations:
• Fastening the socket;
• Making the electric connections;
• Fastening the thermostat onto the socket;
• Inserting and replacing the batteries;
• Configuring the thermostat parameters.
Warning! The thermostat shall be installed only
by qualified personnel, in strict compliance with
the law regulations in force.

8
Fastening the socket
The thermostat is supplied complete with a
socket suitable for mounting both on the wall
and to rectangular or round built-in 3-seat
boxes (503).
Remove the thermostat top cover.
Separate the thermostat socket and front by
removing the screw by means of a suitable tool
and taking the front part off.
Fasten the socket to the desired surface by
means of the special fastening holes; make
sure that the socket is properly engaged, with
no deformation, and that the connecting multi-
pole connector is located in the right bottom

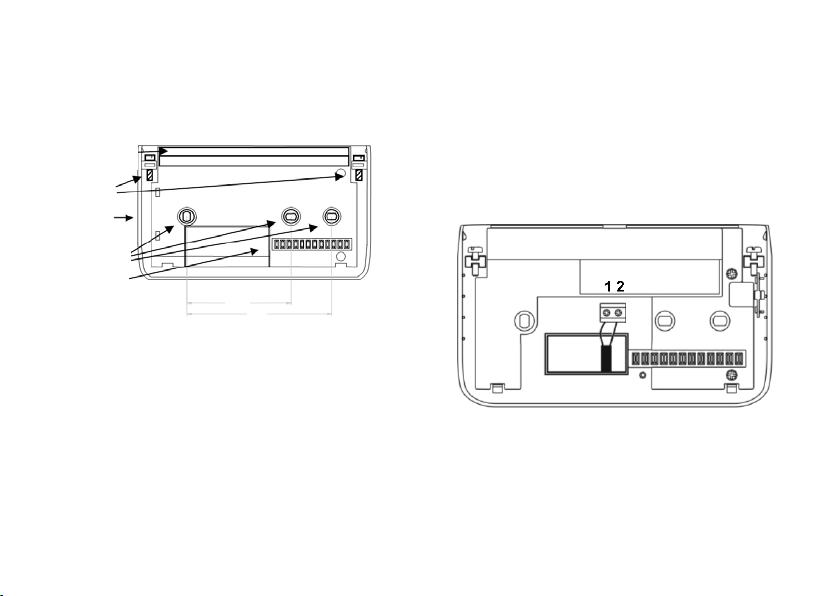

DRILLING CENTERS
BATTERY
COMPARTMENT
SCREWS
SOCKET
FASTENING
HOLES
MULTI-POLE
CONNECTOR
corner.
To ensure correct operation, the socket shall
be placed at a height of approximately 1.5 me-
tres from the floor, far from heat sources (direct
sunlight, etc.) and doors/windows.
Electric connections
External probe connection
Connect the two external probe wires with
screwed terminals “1” and “2”, as illustrated in
the figure. Such probe can be configured as
external probe or minimum temperature con-
tact. See the “thermostat configuration” para-
graph, P02 parameter.
60.083

9
range is approximately 30 metres in the free
air).
To perform self-learning, proceed as follows:
keep the CH172DRF button depressed for
at least 5 seconds, until the multicolour LED
comes on by switching among green, yellow,
red and OFF. Then press the CH130RF reset
button: after a few instants, the LED will be
blinking fast and then illuminate green steadily,
to indicate that the self-learning has occurred
(this procedure is also described in the CH172-
DRF instruction sheet).
N.B. You can also control two or several
CH172DRF actuators by means of one single
CH130RF: of course, the self-learning proce-
dure shall be performed on all the CH172DRFs
(it shall not necessarily be performed at the
same time).
Fastening the thermostat onto the socket
Insert and screw the thermostat down to the
socket (make sure that the multi-pole connec-
tor is engaged correctly).
Inserting and replacing the batteries
Insert two “AA” batteries (1.5 V) into the battery
compartment, according to the correct polarity:
the negative pole shall press the metal spring
(located on the right, when viewing the ther-
mostat from the front). Fit the battery top cover
back into place.
A pair of new batteries will normally last one
year at least. WHEN THE “low battery charge”
SYMBOL APPEARS ON THE DISPLAY, BOTH
BATTERIES SHALL BE REPLACED.
CH172DRF self-learning procedure
In order for the CH130RF and the CH172DRF
to be able to communicate correctly, a “self-
learning” procedure shall be performed. During
this procedure, the remote actuator will recog-
nize and store the CH130RF identity: from now
on, it will be able to perform all of its controls
while leaving out the controls from other trans-
mitters that might be found in the area (please
note that the CH130RF/CH172DRF system

10
Thermostat configuration
The thermostat configuration allows you to
customize the device operation parameters.
To access the configuration program, proceed
as follows:
1. Press the “Reset” button and also button “3”
(with the thermostat ON);
2. Release the “Reset” button, then keep but-
ton “3” depressed for at least 3 seconds.
3. Release button “3”.
The configuration parameters are represented
by an index (P01, P02…) on the display; by
pressing buttons “1” and “2”, the parameter in-
dexes will be scrolled through. Press button “3”
to enter the displayed parameter.
To modify the current parameter, press buttons
“1” and “2”. To exit the parameter, press but-
ton “3”.
Once all parameters have been set, press
button “1” until the “END” message appears,
then press button “3”. Now the thermostat will
save the modified parameters into the internal
memory and will automatically exit the param-
eter menu.
On the contrary, if buttons “1” and “4” are
pressed simultaneously when the “END” mes-
sage is displayed, the CH130RF’s RF address
will be reset and the self-learning procedure
shall be performed again.
N.B. The thermostat will send the switch-on/-off
controls for the three fans and the two valves
to the actuator to a fixed rate of 1 minute.
Warning! The configuration shall be performed
only by qualified personnel.

11
Index Parameter Values Preset
P01 Type of system 1-2 1
P02 External probe 3-4-5 5
P03 Display
visualization
1-2 1
P07 Ambient tem-
perature
correction
-4°C –+ 4°C
(step 0.1°C)
0
P08 “Winter” lower
limit set-point
temperature
2 °C – 40 °C
(step 1°C)
2.0 °C
P09 “Winter” upper
limit set-point
temperature
2 °C – 40 °C
(step 1°C)
40.0 °C
P10 “Summer” lower
limit set-point
temperature
2 °C – 40 °C
(step 1°C)
5.0 °C
P11 “Summer” upper
limit set-point
temperature
2 °C – 40 °C
(step 1°C)
30.0 °C
P14 Differential
adjustment
±0.3 - ±2°C ±0.3 °C
END Thermostat
saving and reset
P01: Type of system
1 two-tube system: the thermostat will drive
only the valve (ON/OFF type) used for heat-
ing both during the heating and the cooling: in
fact, the valve will control both hot water and
cold water.
2four-tube system: the thermostat will drive
one valve (ON/OFF type) used for heating,
plus one additional valve (ON/OFF type) used
for cooling, depending on the needs of the en-
vironment.
P02: External probe.
1 not available with this version.
2not available with this version.
3minimum window/thermostat contact: when
the contact is open, the thermostat will carry
out heat regulation; when it is closed, the heat
regulation will not be carried out.
4 inverted minimum window/thermostat con-
tact: the window contact will operate with an
inverted logic with respect to the statements
made in previous step 3.
5none: the external probe input will not be
controlled by the thermostat.

12
P03: display visualization
1 ambient temperature: the ambient tempera-
ture will be shown on the display.
2 set-point: the current set point will be shown
on the display.
P07: ambient temperature correction
It can be adjusted from –4.0 to 4.0°C. This pa-
rameter is used to correct the acquired ambient
temperature. As a matter of fact, the ambient
temperature reading may, on some instal-
lations, not be satisfying, owing to the probe
location (i.e. internal or resumption). With this
parameter, a constant value upon reading can
be added to or subtracted from.
P08: “Winter” lower limit set-point tempera-
ture
It can be adjusted from 2.0 to 40.0°C. It rep-
resents the lower limit for all the set-points
(“Comfort” and “Economy”) in the heating
mode.
P09: “Winter” upper limit set-point tem-
perature
It can be adjusted from 2.0 to 40.0°C. It rep-
resents the upper limit for all the set-points
(“Comfort” and “Economy”) in the heating
mode.
P10: “Summer” lower limit set-point tem-
perature
It can be adjusted from 2.0 to 40.0°C. It repre-
sents the lower limit for all the set-points (“Com-
fort” and “Economy”) in the cooling mode.
P11: “Summer” upper limit set-point tem-
perature
It can be adjusted from 2.0 to 40.0°C. It rep-
resents the upper limit for all the set-points
(“Comfort” and “Economy”) in the cooling
mode.
P14: differential adjustment
It can be set staring from ±0.3°C (value suit-
able for slow-inertia systems) to ±2°C (value
suitable for very reactive systems).

13
Technical features of the thermostat
Power supply Two “AA” batteries
(1.5 V)
Outputs RF module
Inputs External probe input
Electric connections Screwed terminals
Protection degree IP20 (pollution degree 2)
Setting memorization Non-volatile memory
Software Class A
Temperature adjust-
ment range 2 °C – 40 °C
Max. temperature T45
Local signalling LCD display
Local controls 5 buttons
Dimensions (L x H x D) 135 x 83 x 21
External temperature
probe distance 10 m max.
Reference temperature
gradient 4 K/h
Radio signal features 868.350 MHz <= 15mW
Signal max. range
(in free air)
30 m (indoors);
70 m (outdoors)
Conforming to the
directives
2006/95/CE,
2004/108/CE,
1993/68/CE
Complying with the
standards
R&TTE EN 300 220-3,
EN 60730-1, EN60730-
2-9
ErP classification: ErP Class IV; 2% (EU Reg.
811/2013 - 813/2013)
DIN bar CH172DRF actuator
Application and use
An unlimited number of actuators can, if nec-
essary, be controlled by one single thermostat,
provided that such actuators are subjected to
self-learning and are placed within the maxi-
mum communication distance (see below).

14
Fastening and connecting
The unit has been designed to be built in (in-
side fan-coils, special panels or other suitable
housings).
The unit shall be installed by qualified person-
nel in accordance with the EN regulations in
force.
The maximum communication distance be-
tween the actuator and the transmitter shall
be 30 m. in free air. Connect the wires to the
socket terminal block in accordance with the
diagrams illustrated below.
If a two-tube system is available, connect only
valve “1” (contact between terminals “C” and
“V1”). In case of a four-tube system, valve “1”
is dedicated to heating, whereas valve “2” (be-
tween “C” and “V2”) is dedicated to cooling.
WARNING! Prior to carrying out any operation
on the unit, make sure that you have discon-
nected the mains connecting cables.
Operation
The unit operating status is indicated by the
LED represented by :
• GREEN: good RF signal level.
• YELLOW: poor RF signal level.
• RED: low or poor RF signal level, or signal
not detected.
• Alternating GREEN/RED: relay switch-on
manual mode.
• Alternating GREEN/YELLOW/RED/OFF: sig-
nal self-learning mode.
• Five more red LEDs indicate the switch-on of
the corresponding relays.
To be able to use the CH172DRF with a
CH130RF, a self-learning procedure shall be
performed: keep the CH172DRF button de-
pressed for approximately 5 seconds until the
multicolour LED comes on by switching among
green, yellow, red and OFF.
Then press the CH130RF reset button: after a
few instants, the LED will be blinking fast and
then illuminate green steadily.

15
Operation check
Refer to the preceding instruction manual for
the use of the CH130RF thermostat.
• Make sure that the actuator is close enough
to the thermostat (30 m, in free air – or less, if
obstacles are found).
• Power the actuator by connecting the same
with the electric mains.
• Press the CH172DRF button: the LED will
switch among the green and red light, to indi-
cate the manual mode. Each time the button is
pressed, one or several relays will turn on: this
will be indicated by the switch-on of the cor-
responding red LEDs.
• Below is the switch-on sequence:
1°- accessing the manual mode and valve “1”
switch-on
2°- valve “1” switch-on + engine speed 1
3°- valve “1” switch-on + engine speed 2
4°- valve “1” switch-on + engine speed 3
5°- valve “2” switch-on
6°- valve “2” switch-on + engine speed 1
7°- valve “2” switch-on + engine speed 2
8°- valve “2” switch-on + engine speed 3
9°- exiting the manual mode.
• Perform a self-learning procedure, as de-
scribed above. Now, the CH172DRF and the
CH130RF will be able to communicate.
• Switch over, on the thermostat, the fan mo-
tor speed (3 relays) and the valve control (2
relays), then verify that they have actually
switched over.
Electric connections
CH130RF
V p. supply E.V. A
V p. supply E.V. B
Motor
230Vca
E.V. 2 E.V. 1

16
Technical features of the actuator
Power supply 230V 50 Hz
Absorbed power 2VA
Input Thermostat controls
Relay output
features
5(3)A250 V~
Voltage-free
switching contacts
2 valve outputs
Network voltage
switching contacts
3 motor contact outputs
Receiver OOK 868.350 MHz
Container IP00 (pollution degree 2)
Software class A
Max. temperature T45
Disconnection type 1B (micro-disconnection)
Pulse voltage 4000V
Type of assem-
bling
DIN bar
Dimensions DIN bar 6 module container
(106 x 93 x 42 mm)
Conforms with the
directives
2006/95/CE, 2004/108/CE,
1993/68/CE
Complying with the
standards
EN60730-1,
R&TTE EN 300 220-3,
EN 301 489-3
Fantini Cosmi S.p.A. reserve the right to make any
necessary technical and construction modification
without any obligation to give prior notice.

17
WARNING: SELF-LEARNING PROCEDURE SUPPLEMENT
In case of multiple kits (CH130-- plus CH172DRF) installation, proceed as follows:
1) Make sure that all CH130 are not powered (battery out).
2) Insert batteries in the first CH130--.
3) Start self-learning procedure between the CH130-- and relevant CH172DRF (as per manual instruction)
4) Remove batteries from the first CH130--.
5) Repeat the procedure from 1 to 4 for other kits
6) When all the self-learning procedure had been done with all kits, insert the batteries in each thermostat and test the
heating/cooling system

18
NOTES

DISPOSAL OF PRODUCTS
The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of
separately from household waste. Integrated batteries and accumulators can be disposed of with the
product. They will be separated at the recycling centres. The black bar indicates that the product was
placed on the market after August 13, 2005. By participating in separate collection of products and
batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent
potential negative consequences for the environment and human health. For more detailed information
about the collection and recycling programmes available in your country, please contact your local city
office or the shop where you purchased the product.

GB79335D
FANTINI COSMI S.p.A.
Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY
Tel. [phone]
|
Fax [phone]
|
| [e-mail]
EXPORT DEPARTMENT
Ph [phone]
|
[e-mail]
www.fantinicosmi.com
