Fantini Cosmi CH150RF User manual

1
Radio wave weekly program
chronothermostat
CH150RF / CH151RF / CH152RF

2
separate probe ������������������������������������������������15
Statistical data �������������������������������������������������15
Setting the desired humidity level ��������������������16
Maintenance ����������������������������������������������������������17
Replacing the batteries ������������������������������������17
Installation �������������������������������������������������������������18
Installing the batteries �������������������������������������18
Conguring the chronothermostat �������������������18
Actuator registration ����������������������������������������23
Fastening the socket ���������������������������������������25
Electric connections ����������������������������������������26
Securing the chronothermostat to the socket ��27
Technical features ��������������������������������������������������27
INDEX
Introduction ��������������������������������������������������������������3
Controls and indications ������������������������������������������4
Controls �������������������������������������������������������������4
Indications ���������������������������������������������������������5
User manual ������������������������������������������������������������6
Setting the date and time ����������������������������������6
Summer/Winter selection ����������������������������������7
Operating modes �����������������������������������������������7
“Manual” operating mode ����������������������������������7
“Automatic” operating mode ������������������������������8
“Holiday” operating mode ��������������������������������10
“Jolly” operating mode �������������������������������������10
“OFF” function �������������������������������������������������12
Preset programs ����������������������������������������������13
Chronothermostat programming ���������������������13
Displaying the temperature detected by the

3
Introduction
The CH150RF/151RF/152RF chronothermo-
stat measures the ambient temperature and
controls the heating (conditioning) system
through a radio connection with an actuator�
A humidistat can also be driven� The operat-
ing mode can be either chosen from among
the preset ones or customized to one’s own
needs�
The large display shows the temperature pro-
le – i.e. the relationship between the time ta-
ble and the temperature to be kept – as well as
the measured temperature, relative humidity,
calculated perceived temperature, time and
day of the week�
The chronothermostat is battery powered�
Both the settings and the data are stored in a
non-volatile memory capable of keeping them
even when the batteries are down�
The following external interfaces are available
for the CH150RF chronothermostat:
• Radio actuator
• Separate temperature probe
• Telephone actuator for xed telephone lines,
which makes it possible to perform remote
control through the DTMF keypad (multi-tone)
• Telephone actuator with GSM modem, used
for remote control by means of SMS mes-
sages�
Both telephone actuators allow you to:
• remotely interrogate the chronothermostat, to
be informed about the ambient temperature or
the heating / cooling system status;
• remotely manage the chronothermostat op-
erating modes�
The chronothermostat comes in three colours:
white, silver (CH151RF series) and anthracite
black (CH152RF series)�

4
7� Rotary selector for temperature correction:
T1, Manual temperature, Jolly temperature,
and
Antifreeze temperature *
8� Rotary selector for correcting temperature
T2 or the Jolly operating mode duration *
9� Rotary selector for correcting temperature
T3 or the Jolly operating mode duration
10� Summer/Winter switching button
11� Chronothermostat reset button
* The function associated with the button or se-
lector depends on the current operating mode�
It is highlighted by the icon placed above�
Controls and indications
Controls
1 2 3 4 5 6
11
10
9
8
7
1� Button used to select the “Manual” operating
mode or increase a value (▲) *
2� Button used to select the “Automatic” oper-
ating mode or decrease a value (▼) *
3� Button used to select the “Holiday” operat-
ing mode or go back to the previous data item
(◄) *
4� Button used to select the “Jolly” operating
mode or go to the next data item (►) *
5� Button used for the “OFF” or “Enter” func-
tions *
6� Button used for the “Programming” or “Copy”
or “Statistical data displaying” functions *

5
Indications
14 12 3 4 5
6715
16
98101113 12
1� Time
2. Temperature prole
3� Temperature value T1 or “Jolly” operating
mode duration (days)
4� Temperature value T2 or “Jolly” operating
mode duration (hours)
5� Temperature value T3
6� System ON in Summer operation
7� System ON in Winter operation
8� Relative humidity percentage
9� Perceived temperature (displayed by the
degree)
10� Ambient/external temperature
11� Current day (1 = Monday … 7 = Sunday;
8 = Holiday)
12� Winter operation
13� Summer operation
14� Battery charge level
15� Humidistat enable
16� Humidistat ON

6
User manual
To operate the chronothermostat after it has
been installed, proceed as follows:
1� Set the date and time�
2� Select the Summer/Winter operation�
3� Select the operating mode�

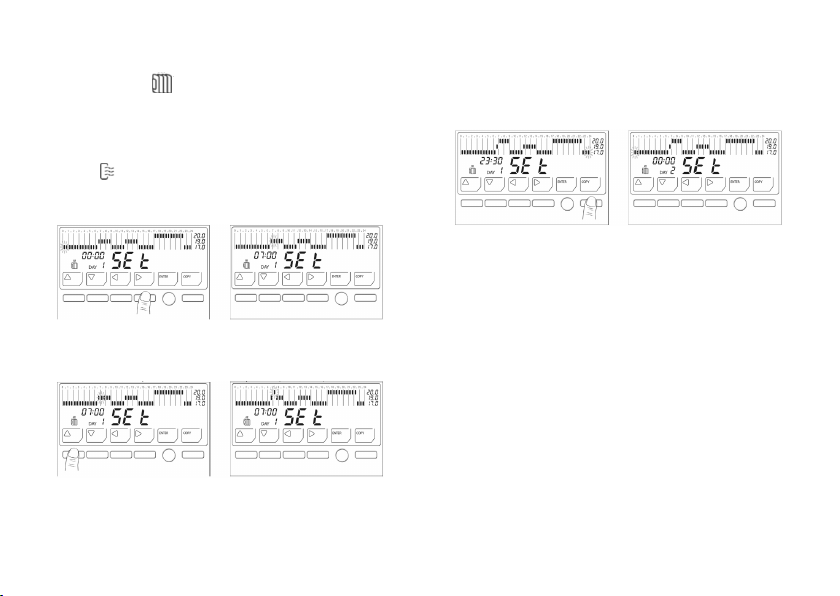

Setting the date and time
To set the current time and date, proceed as
follows:
1� Enter the programming menu main page�
The operating mode currently used will be in-
terrupted temporarily� Choose the time setting
function�
2. Modify the hour setting by means of the ▲
and ▼ buttons, then go to the minute setting
by means of the ► button.
3� Modify the minute setting by means of the
▲ and ▼ buttons, then go to the day setting
by means of the ► button.
4. Modify the day setting by means of the ▲
button, then press ENTER to go back to the
main page of the programming menu�

7
5� Press ENTER again to exit the programming
menu� The chronothermostat operating mode
previously interrupted will be resumed�
Summer/Winter selection
To shift from the Summer opera-
tion (heating system) to the Sum-
mer operation (cooling system),
and vice versa, keep the Sum-
mer/Winter button depressed for
at least 4 seconds� The selected
operation will be shown on the
display by means of the “Winter”
or “Summer” icons�
Winter Summer
Operating modes
The CH150/151/152 chronothermostat fea-
tures four different operating modes: Manual,
Automatic, Holiday and Jolly (in addition to the
OFF function)�
“Manual” operating mode
With the Manual operating mode, the chrono-
thermostat adjusts the operation of the heating
or cooling system in order to always keep the
same temperature� To select “Manual”, press
MAN�

8

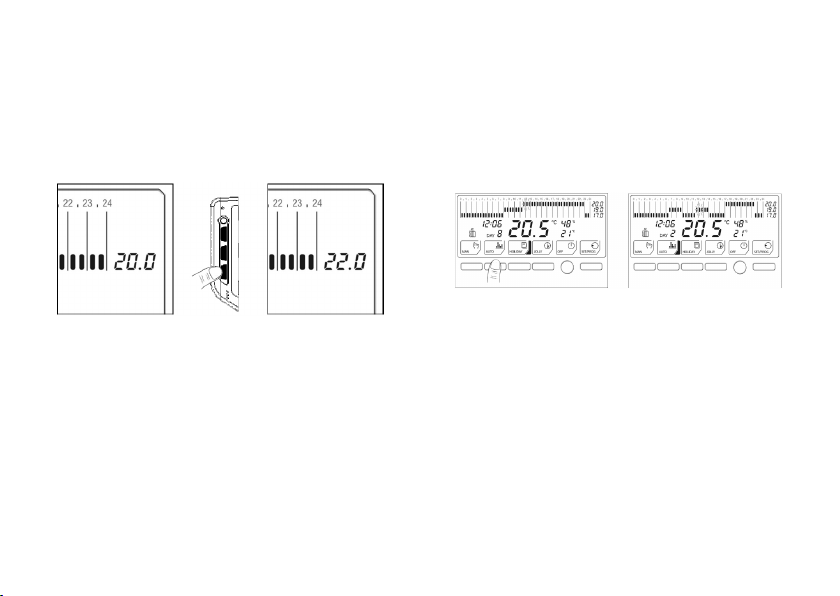

The temperature level can be modied during
operation by means of the lower rotary selec-
tor located on the right side of the chronother-
mostat� The temperature can be changed from
2°C to 40 °C by 0�1°C increments�
“Automatic” operating mode
With the “Automatic” operating mode, the
chronothermostat adjusts the operation of the
heating or cooling system by following the pro-
les dened for the various days of the week.
To select “Automatic”, press AUTO�
The three temperature levels used can be
modied during operation by means of the ro-
tary selectors located on the right side of the
chronothermostat�

9
Temperature T3 cannot be lower than tem-
perature T2 or higher than 40 °C�
During Summer operation, temperature
T3 features an upper limit of 30°C� When this
value is exceeded, T3 will take the OFF value,
which will involve switching the system off�
Temperature T2 cannot be higher than tem-
perature T3 or lower than temperature T1�
Temperature T1 cannot be higher than tem-
perature T2 or lower than 2 °C�
If no customization has been made, the au-
tomatic operating mode will function with the
stored temperature proles, i.e. the preset
ones (refer to «Preset programs»)� To custom-
ize the proles, refer to «Chronothermostat
programming»�

10

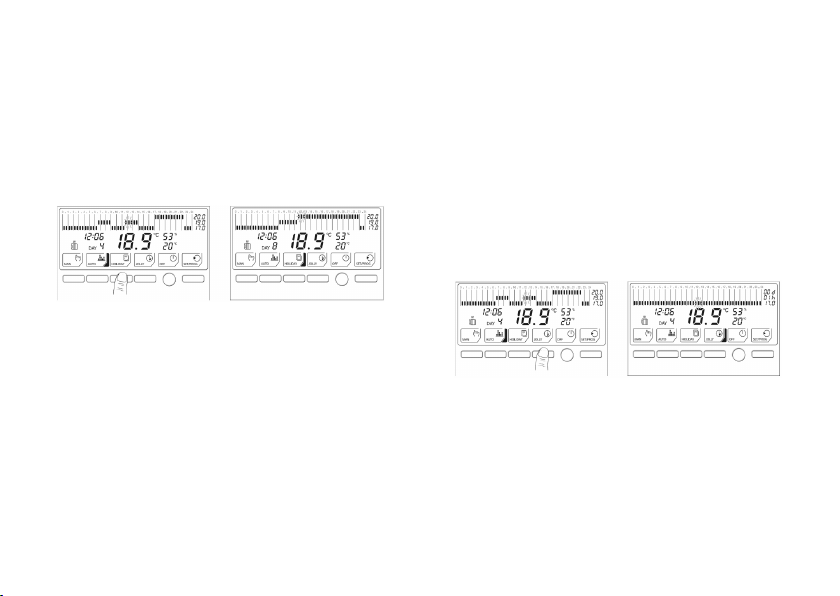

“Holiday” operating mode
With the “Holiday” operating mode, the CH150
chronothermostat CH150 adjusts the opera-
tion of the heating or cooling system by fol-
lowing one single temperature prole, which
is valid for all days� To select “Holiday”, press
HOLIDAY�
To modify the temperature levels, refer to
the description of the “Automatic” operating
mode�
When the preset programs are used (refer to
«Preset programs»), the “Holiday” mode will
follow the prole envisaged for Saturdays and
Sundays� To create a customized “Holiday”
program, refer to «Chronothermostat program-
ming»�
“Jolly” operating mode
“Jolly” operating mode
With the “Jolly” operating mode, the CH150
chronothermostat interrupts the current oper-
ating mode and adjusts the operation of the
heating or cooling system to keep the “Jolly”
temperature during the entire time set (1 hour
to 99 days and 23 hours, by 1 hour incre-
ments). After this time – which is displayed like
a countdown – has elapsed, the previous oper-
ation of the chronothermostat will be resumed�
To select “Jolly”, press JOLLY�
The “Jolly” temperature value and the operat-
ing mode duration can be modied by means
of the rotary selectors located on the right side
of the chronothermostat�

11
Use the lower rotary selector to modify the
temperature level�
The temperature can be modied from 2°C to
40 °C, by 0�1 °C increments�
To set the “Jolly” operating mode duration, i�e�
hours («h»), use the central rotary selector�
The hours can range from 0 to 23�
To set the “Jolly” operating mode duration, i�e�
days («d»), use the upper rotary selector� The
days can range from 0 to 99�
You can interrupt the “Jolly” mode at any time,
by selecting any other operating mode�
The “Jolly” operating mode can be used, for
instance, to:
• save energy by lowering the temperature
when the house is not inhabited at the week-
ends or winter vacation, while being sure that
a comfortable temperature will exist when the
house is inhabited again);
• extend the night heating or cooling beyond
the usual time, i�e� when you stay up in the
company of your guests�

12
“OFF” function
The “OFF” function can be activated by press-
ing OFF�
Winter operation
The system will be fully turned off and the
“OFF” message will appear on the display,
without any temperature prole.
The chronothermostat adjusts the operation
of the heating system to keep the “Antifreeze”
temperature, in order to reduce the energy
consumption and, at the same time, avoid any
damage caused by extremely low tempera-
tures�
The “Antifreeze” temperature can be modied
from 2°C to 7°C (by 0�1°C increments), by us-
ing the lower rotary selector� If a temperature
of less than 2°C is set, the system will be fully
turned off and the antifreeze protection will be
lost�
Summer operation

13

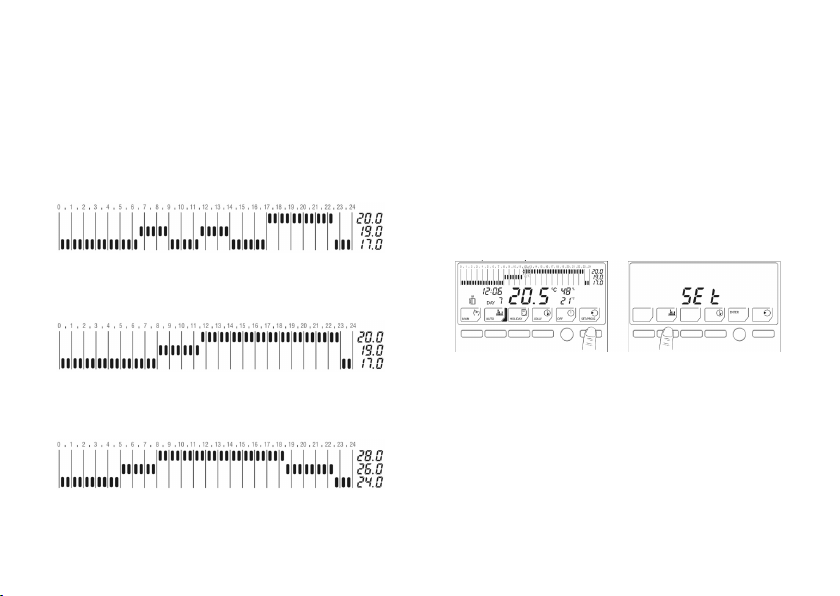

Preset programs
The CH150 chronothermostat features two
preset programs (i�e� “Winter” and “Summer”)
for quicker start-up�
Chronothermostat programming
You can customize the temperature proles for
the “Automatic” and “Holiday” operating modes,
so as to adapt them to your own needs� To set
new temperature proles, proceed as follows:
1� Enter the programming menu main page�
The operating mode currently used will be in-
terrupted temporarily� Choose the temperature
prole customization function.
“Winter” program – working days (Mon-
days through Fridays)
“Winter” program – public holidays (Satur-
days, Sundays and “Holiday” program)
“Summer” program (All days of the week,
plus “Holiday” program)

14
2. The Monday prole (DAY 1) for “Winter” op-
eration (icon ) will be displayed. Use the ◄
and ► buttons to move the bar chart blinking
segment to the time at which the temperature
is to be modied. Each segment equals half an
hour. To modify the “Summer” operation prole
(icon ), press the “Summer/Winter” button
on the left side of the chronothermostat�
3. Use the ▲ and ▼ buttons to modify the tem-
perature level (T1, T2 or T3)�
4� To directly duplicate the temperature pro-
le by going to the next day, press COPY (to
customize every single day separately, refer to
step 5 below)�
5�Press ENTER to go to the next day, then
repeat the operations described starting from
step 2 for the other days of the week (the “Holi-
day” prole will be indicated as DAY 8). To go
back to the programming menu main page, use
the ENTER button to scroll through the eight
days or keep the ENTER button depressed for
3 seconds�
If no button is pressed within the next three
minutes, the chronothermostat operating mode
previously used will be resumed�

15
Preset parameter reset
To resume the preset temperature proles and
values (T1-T2-T3-Temperature used with the
Manual mode, Temperature used with the Jolly
mode, Antifreeze temperature, OFF function),
keep the ▲ and ▼ buttons depressed simulta-
neously when you are in the temperature pro-
le programming mode.
Displaying the temperature detected by
the separate probe
To display the temperature detected by the
separate probe (only if the latter has been con-
gured as an external probe or oor-mounted
probe), the chronothermostat must be cong-
ured (refer to <<chronothermostat congura-
tion>>) and the probe must be connected�
To display the temperature value read by the
separate probe, press the button of the operat-
ing mode currently used (the temperature will
blink)� To display again the temperature detect-
ed by the chronothermostat, press again the
button of the operating mode currently used
(the temperature will not blink any longer)�
Statistical data
The CH150 chronothermostat provides a set of
statistical data concerning the system opera-
tion� To access this data, proceed as follows:
1� Enter the programming menu main page�
The operating mode currently used will be
interrupted temporarily� Choose the statistical
data function�
2� Page 1: number of
hours during which the
system was operated
on the previous day (6
hours in the image)�
Use the ► button to go
to the next page�

16
3� Page 2: total number
of hours during which
the system has been
switched on and operat-
ing since its rst start-up
(16 hours in the image)�
5� Page 4: maximum
temperature reached
on the current day, and
time at which such maxi-
mum temperature was
reached (22�5°C at 09�08
p�m� in the image)�
4�Page 3: minimum
temperature reached
on the current day,
and time at which such
minimum temperature
was reached (15�8°C
at 03�15 a�m� in the im-
age). Use the ► button
to go to the next page�
Use the ► button to go to the next page.
Press the ▲ and ▼ buttons simultaneously to
reset the total system switch-on hours�
Setting the desired humidity level
The CH150RF/151RF/152RF chronothermo-
stat allows you to actuate a humidistat by set-
ting the desired humidity value� To be able to
actuate a humidistat, it is requested that this
function will be enabled through the technical
menu (refer to the <<Chronothermostat cong-
uration>> chapter)� To set the desired humidity
value, proceed as follows:
1� Enter the programming menu main page�
The operating mode currently used will be in-
terrupted temporarily� Choose the time table
setting function�
6� Press the ENTER button twice to go back to
the operating mode previously used�

17
2. Use the ► button to move and highlight the
set humidity value�
3. Modify this value by pressing the ▲ and ▼
buttons until the desired value is displayed�
Press ENTER to go back to the programming
menu main page�
4� Press ENTER again to exit the programming
menu� The chronothermostat operating mode
previously interrupted will be resumed�
Maintenance
The chronothermostat can be cleaned by us-
ing a soft cotton cloth (no detergent must be
used)�
Replacing the batteries
When the battery charge level starts to read
low, the symbol will start blinking on
the display� If the batteries are not replaced
within 15 days, the chronothermostat will be
automatically turned off and the “OFF” mes-
sage will appear on the display instead of the
temperature�
The settings and data are kept in the non-vol-
atile memory�
To remote the chronothermostat from its sock-
et, proceed as follows:
• remove the telephone actuator jack connec-
tor (if any);
• pull the chronothermostat on its left and right
sides, without applying force to the selectors�
If only the “OFF” message appears on the dis-
play when the batteries haven been replaced,
press the round button [button 5] after the
chronothermostat has been tted back to the
socket�

18
Important! The standard battery service life
is more than 1 year� It is recommended that
the batteries should be replaced at the start of
the system operation season, to prevent the
batteries from running out when you are away
from home, e�g� during the summer or Christ-
mas holidays�
The batteries must be properly disposed of in
special containers�
Installation
The chronothermostat installation involves the
following operations:
• Installing the batteries
• Conguring the chronothermostat param-
eters
• Registering the chronothermostat with the
radio actuators
• Fastening the socket to the wall
• Making the electric connections
• Securing the chronothermostat onto the
socket�
Installing the batteries
Separate the socket from the chronothermo-
stat by levering on the slot found at the socket
bottom by using a suitable tool� Insert two
long-life AA alkaline batteries (1�5 V) into the
chronothermostat rear (observe the correct po-
larity)� After installing the batteries, the chrono-
thermostat will turn on automatically� Fasten
the socket back again, making sure that the
multi-pole connector is inserted correctly� The
chronothermostat will click into position�
Conguring the chronothermostat
By conguring the chronothermostat, the de-
vice operation parameters can be customized�
To access the conguration program, proceed
as follows:
1. Press the SET / PROG button [button 6].
The operating mode currently used will be tem-
porarily interrupted and will be automatically
resumed at the end of programming�
2� Keep the SUMMER / WINTER switching
button [button 10] depressed for approximately
5 seconds�
Warning! The unit must be installed only by
qualied personnel, in compliance with the law
regulations in force� Warning! The chronothermostat must be con-
gured only by qualied personnel.

19
In-
dex
Parameter Writing Values Preset
value
1 Type of con-
nected card
COn rEL/ rAd / --- None
2 Heating actuator
registration radio
control
rF t -- - ---
3 Humidity adjust-
ment enable
rH ON/OFF OFF
3A Humidication
actuator registra-
tion radio control
rF rH -- - ---
4 Temperature
scale
CELS
or FHAr
°C / °F °C
5 Type of
adjustment
Std or
ProP
Std / ProP Std
5A Thermal
differential
DIFF HI / LO LO
5A Adjustment band bAnd 1 °C – 4 °C
(step 0�1°C)
2 °C
5B Adjustment
period
PEr 5 / 10 / 20
minutes
10
minutes
6 Separate
temperature
probe
conguration
SEct --- / FLO / In
/ Out
---
6A Floor
temperature limit
tFLO 15 °C –
45 °C
27�0 °C
Each conguration parameter, which features
its own preset settings, is identied on the dis-
play by an index and a writing� To modify the
parameter values, use the ▲ [button 1] and ▼
[button 2] buttons� To move across the param-
eters, use the ► [button 4] button.
To go back to the initial page of the program-
ming menu, press the ENTER [button 5] but-
ton, which will store the modications into the
memory�
If no button is pressed within 3 minutes, the
chronothermostat will exit the conguration
program and the operating mode previously
used will be resumed, without saving�
To eliminate the modications made and
resume the preset conguration parameter
values, keep the ▲ [button 1] and ▼ [button 2]
buttons depressed simultaneously for approxi-
mately 4 seconds�

20
Type of connected card
The chronothermostat is capable of verifying
whether the socked is connected� If the socket
is not connected, the dashes will be displayed;
it if is, the “rAd” writing will appear�
Heating system actuator registration radio
control
It makes it possible, by pressing the but-
ton, to send the actuator registration radio con-
trol used for the heating system� Refer to the
<<Radio actuator conguration>> chapter for
more information�
Humidity adjustment enable
It makes it possible to operate a humidistat
in order to humidify an environment until the
desired humidity level is reached� Refer to the
<<Setting the desired humidity level>> chapter
for more information�
Humidication system actuator registra-
tion radio control
It makes it possible, by pressing the button,
to send the actuator registration radio control
used for the humidication system. Refer to
the <<Radio actuator conguration>> chapter
In-
dex
Parameter Writing Values Preset
value
7 Ambient tem-
perature
correction
Corr -4�0 °C to
+4�0 °C
0�0 °C
8 Optimization OPt ON/OFF OFF
8A Optimization
max� duration
(hours)
OPtH 1h – 5h 2h
9 Pump antiscuff Pu ON/OFF OFF
10 Software version
and radio
address
SOFt xxx xxx
