Fantini Cosmi CH180WIFI LITE User manual

CH180WIFI LITE
TOUCH-SCREEN PROGRAMMABLE THERMOSTAT
WITH WIFI CONNECTION
INSTRUCTIONS FOR USE
FANTINI COSMI S.p.A.
Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY
Tel. [phone] | Fax [phone] | [e-mail]
www.fantinicosmi.it

2
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
Thank you for purchasing a FANTINI COSMI S.p.A. product.
Please read this instruction manual carefully and always keep it at hand should you need to consult it for any reason.
The documentation reflects the characteristics of the product. However, for regulatory or commercial developments,
customers should verify the availability of updates relating to this documentation on the FANTINI COSMI S.p.A.
website: pdf.fantinicosmi.it
OPERATION
The CH180WIFI LITE is a programmable thermostat with a WiFi connection to control heating and/or cooling system
either directly or via the Intelliclima+ APP on a smartphone or tablet.
It has a customised temperature program on a time profile for every season, which can be changed as needed.
The positive LCD display with white backlighting can also show an intuitive graph of the energy consumption of the entire
system.
CONTENTS OF PACKAGE
■1 programmable thermostat
■2 6/32UNC American standard thread screws to secure onto 503 flush mounting box (approximately Ø 3.5mm)
■1 quick guide

3
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
DESCRIPTION OF DISPLAY KEYS
1 Day of the week
2 Activation status: air conditioning or heating
3 Room temperature (Celsius / Fahrenheit) measured
4 Multi-function touch icons
5 Antenna
6 Operating mode
7 Bar graph to display days and time
The function of the multi-function keys varies depending on the situation and is described by the symbol that appears
on the display next to the key.
The first time any touch key is pressed, this activates the functions
of the buttons themselves and lights up the display.
SEL TEMP PROG DISP OFF
ENTER COPY
[ MAN ]
[ AUTO ]
DAY
12
6
7
4
5
3

4
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
TECHNICAL FEATURES
Temperature regulation scale 2 - 40°C, 0.1°C increment
Measurement scale/room T display - 50 - + 50°C
Power supply 230V 50 Hz
Output type
1 relay with potential-free changeover contact
(COM/NO/NC)
3 screw clamps (closed + open)
Contact range 5(3)A 250 Vac
Type of action 1 B.U. (connection micro-switch)
Software class A
Minimum regulation differential 0.3 - 5 K
Reference thermal gradient 4 K/h
Maximum room temperature 45°C
WiFi connection 2.4 GHz (802.11 b/g/n)
Router communication port 1080
Maximum radio frequency power transmitted < 10 mW
Storage temperature -10°C - +60°C
Electric insulation Double insulation
Protection rating IP40
Pollution degree 2
Pulse voltage 4000V
Assembly wall-mounted or on flush mounting box
Dimensions 127 x 82 x 24 mm
Compliant with EN 60730-1 standards and second parts
ErP classification ■ErP Class IV; 2%
[Reg. EU 811/2013 - 813/2013]
Compliant with Directive 2014/53/EU (RED)
Product made in Italy

5
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
Contents
OPERATION ..................................................................... 2
CONTENTS OF PACKAGE................................................. 2
DESCRIPTION OF DISPLAY KEYS .................................... 3
TECHNICAL FEATURES ................................................... 4
1 - INSTALLATION ........................................................... 6
2 - ELECTRICAL CONNECTION........................................ 8
3 - QUICK PROGRAMMING GUIDE (PROG)....................... 9
3.1 - DATE AND TIME SETTING ....................................................9
3.2 - WINTER/SUMMER SETTING ..............................................10
3.3 - SETTING KEYBOARD LOCK WITH PASSWORD ..................11
4 - OPERATION (SEL)..................................................... 12
4.1 - OPERATING PROGRAMS ....................................................12
4.2 - SELECTING THE OPERATING PROGRAM...........................13
4.3 - SETTING “AUTO” PROGRAM TEMPERATURE ....................14
4.4 - SETTING “MANUAL” PROGRAM TEMPERATURE ............... 14
5 - PARAMETER DISPLAY (DISP) ................................... 15
5.1 - SERIAL NUMBER................................................................15
5.2 - HOURS OF USE...................................................................16
6 - ADVANCED FUNCTIONS (PROG) .............................. 17
6.1 - SECONDS DISPLAY STAYS ON ...........................................17
6.2 - DISPLAY LIGHTING INTENSITY ..........................................17
6.3 - DAYLIGHT SAVING TIME.....................................................18
6.4 - ANTIFREEZE TEMPERATURE ............................................18
6.5 - ROOM TEMPERATURE CORRECTION ................................19
6.6 - DIFFERENTIAL MANAGEMENT..........................................19
6.7 - CELSIUS / FAHRENHEIT ....................................................20
6.8 - LANGUAGE SELECTION .....................................................20
6.9 - WIFI.....................................................................................21
6.10 - INFORMATION ..................................................................21
6.11 - RESETTING DEFAULT PARAMETERS...............................22
7 - REMOTE PROGRAMMING VIA APP........................... 23
7.1 - WIFI ACTIVATION ................................................................23
7.2 - INSTALLATION PROCEDURE ............................................ 24
7.3 - WIFI STATUS .......................................................................25
8 - DISPOSAL................................................................. 26
9 - GENERAL WARRANTY CONDITIONS ........................ 26

mm mm
mm
6
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE

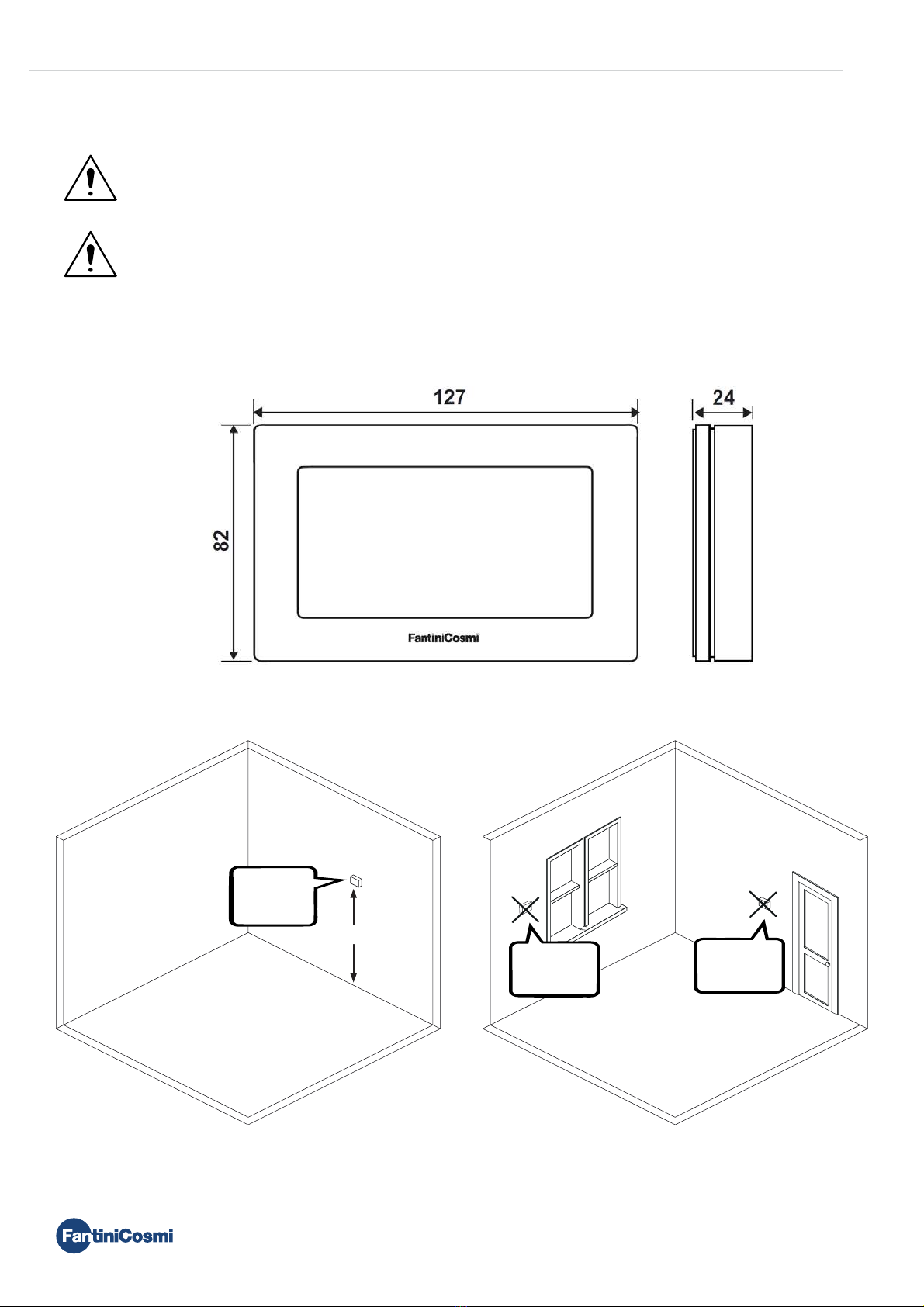

1 - INSTALLATION
ATTENTION!
Installation must be carried out by qualified personnel in compliance with the requirements concerning
the installation of electrical equipment.
ATTENTION!
Installation operations must be performed with the system’s power disconnected.
The CH180WIFI LITE programmable thermostat must be installed on the wall or on a flush mounting box, in 3 units or
round, at a height of about 1.5m from the floor, in a suitable position to detect the room temperature correctly.
1.5 m
OK
NO NO

LN 21 4
230V~
5(3)A 250v~
LN 21 4
230V~
5(3)A 250v~
LN 21 4
230V~
5(3)A 250v~
LN 21 4
230V~
5(3)A 250v~
2
1
3 4
5 6
87
7
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE

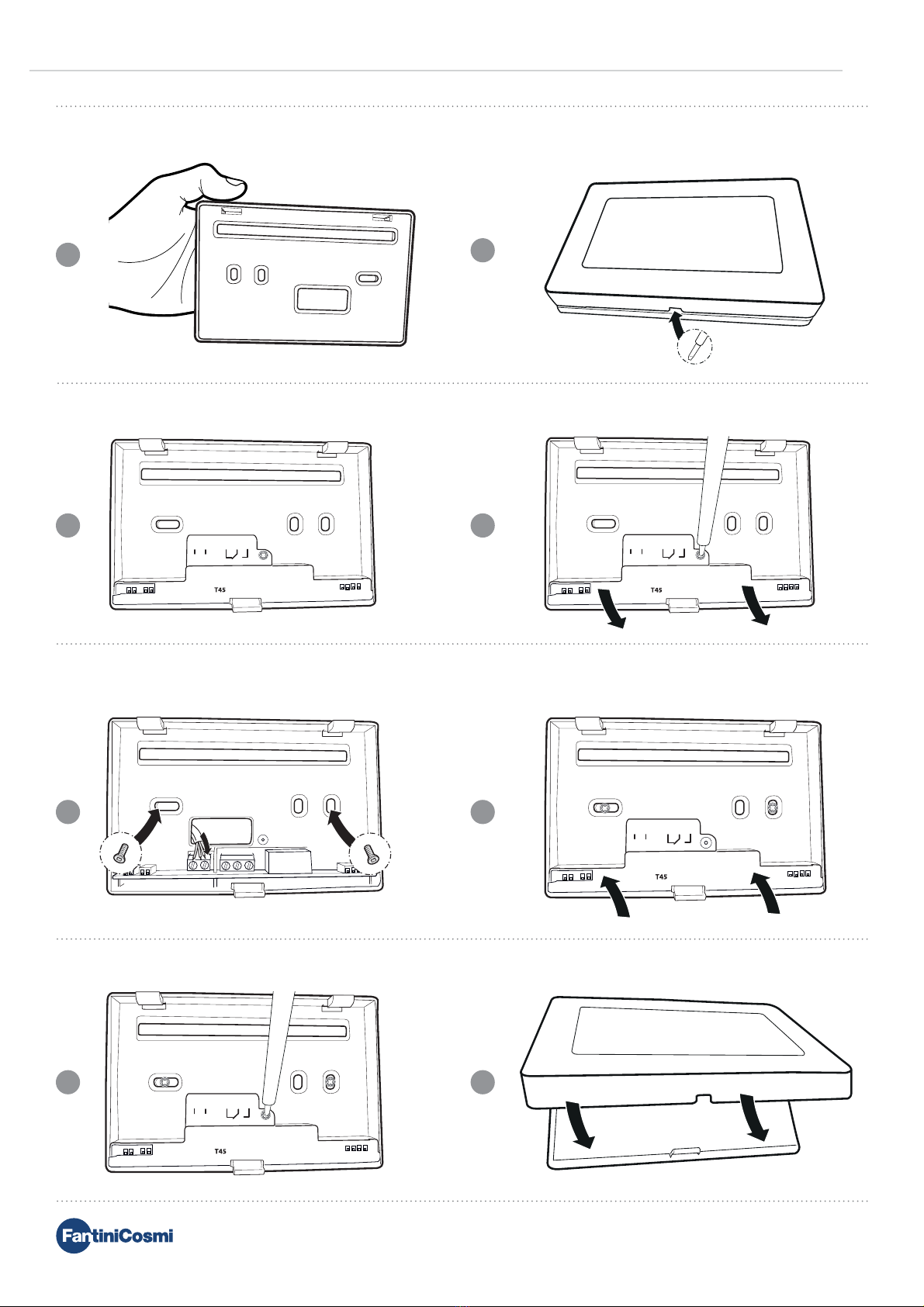

Pry the back panel off the body by applying pressure to the specific groove on the lower part.
Remove the insulating protection by unscrewing the specific waterproof screw.
Make the electrical connections (refer to the “ELECTRICAL CONNECTIONS” paragraph) and secure the panel to the wall
with the supplied screws.
Tighten the screw shown and hook the body onto the panel on the wall.

8
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
2 - ELECTRICAL CONNECTION
ATTENTION!
Electrical connections must be made by qualified personnel.
ATTENTION!
Electrical connection operations must be done with the system’s power disconnected.
Electrical connections must be made by making reference to the following diagram.
Power supply
L-N 230V
Heat
pump
L N
230V~

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
9

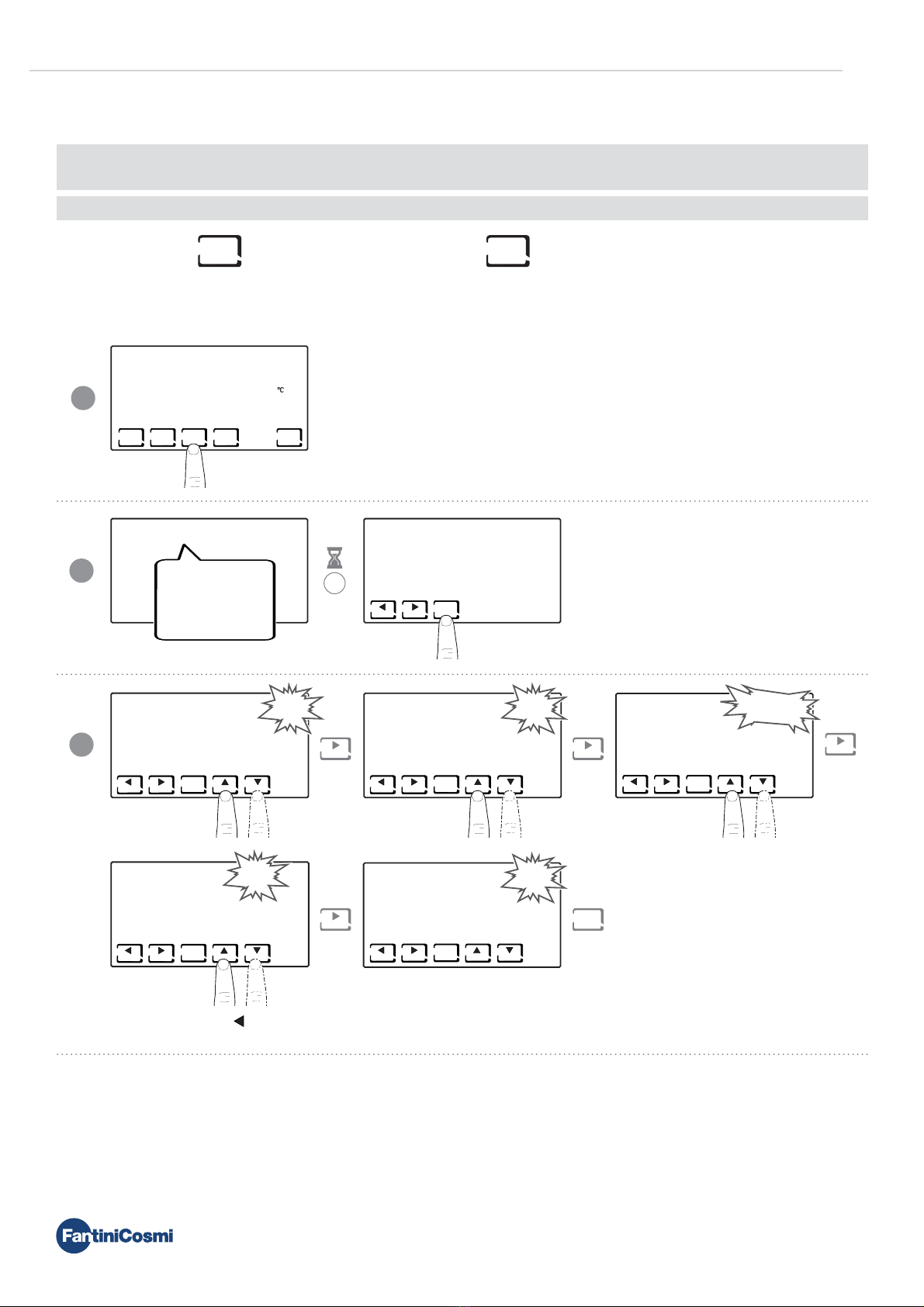

3 - QUICK PROGRAMMING GUIDE (PROG)
The first time any touch key is pressed has no effect, but only activates the functions of the buttons themselves and
lights up the display.
After 60 seconds of no interaction, the display goes back to the main screen.
= allows you to CONFIRM = allows you to PROGRAM
3.1 - DATE AND TIME SETTING
Note: by pressing always allows you to go back to the previous page.
2s
PRESS
PRESS
ENTER
2
ENTER
PROG
PRESS PRESS
PRESS
1
3
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
USER PROGR
DATE AND TIME
WINTER
LOCK NO
DATE AND TIME
PROG
DAY 9
ENTER
MONTH 11
ENTER
YEAR 2018
ENTER
HOURS 12:0212:
ENTER
MIN
ENTER
12:02

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
10
3.2 - WINTER/SUMMER SETTING
2s
2
1
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
USER PROGR
DATE AND TIME
WINTER
LOCK NO
DATE AND TIME
PROG
PRESS
x1
WINTER
ENTER
WINTER
SUMMER
PRESS
ENTER

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
11
Note: selecting LOCK YES displays the PROG key. Then follow the procedure described in points 3 and 4.
3.3 - SETTING KEYBOARD LOCK WITH PASSWORD
When the keyboard is locked, you can only press the SEL key.
Pressing SEL allows you to enter the set password and unlock the keyboard.
2s
2
1
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
USER PROGR
DATE AND TIME
WINTER
LOCK NO
DATE AND TIME
PROG
PRESS
x2
LOCK NO
ENTER
LOCK NO
LOCK YES
3
LOCK YES
PROG
ENTER
PASSWORD
00
1
4
PRESS
ENTER
PASSWORD
1 0
1PRESS
ENTER
PASSWORD
11
1PRESS
ENTER
5
12:01 01-01-18
23.0
[ HOLIDAY ]
SEL
h
DAY

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
12
4 - OPERATION (SEL)
The CH180WIFI LITE programmable thermostat is a device equipped with a temperature sensor, with an output relay on
board, which manages heating and/or air conditioning units.
The LCD display shows you how much energy the entire system consumes through an intuitive graph.
4.1 - OPERATING PROGRAMS
The CH180WIFI LITE programmable thermostat has various operating modes called programs to manage heating/air
conditioning.
[ MAN ]
■MANUAL PROGRAM
The device adjusts the room temperature by using a set temperature
specified each time, for an unlimited amount of time, until another
program is selected.
[ AUTO ]
■WEEKLY PROGRAM
The device manages the set temperatures depending on the hourly
programs on a weekly profile. You can set the following temperature levels:
tC, tE, tA/OFF (every half hour).
NOTE: the weekly program can only be set by APP.
■SYSTEM OFF or ANTIFREEZE PROGRAM
Press the OFF key to switch off the system. During WINTER mode, it
maintains the antifreeze temperature.
If you press the OFF key again in SYSTEM OFF mode, it goes back to the
previously set operating mode.
24.4
1
DAY
[ AUTO ]
SEL TEMP PROG DISP OFF
12:01 01-01-18
TA = 5.0
23.0
SEL TEMP PROG DISP OFF
.
OFF
23.0
[ MAN ]
SEL TEMP PROG DISP OFF
12:01 01-01-18

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
13
Note: you can select the program from: [MAN] - [AUTO].
Pressing the DISP key allows you to display certain parameters set according to the active operating program.
4.2 - SELECTING THE OPERATING PROGRAM
The programs are selected by cyclic sequence.
2
1
2s
23.0
[ MAN ]
SEL TEMP PROG DISP OFF
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
[ MAN ]
12:01 01-01-18
PRESS
SEL 24.4
3
DAY
SEL TEMP PROG DISP OFF
[ AUTO ]
12:01 01-01-18
24.4
3
DAY
SEL TEMP PROG DISP OFF
[ AUTO ]
12:01 01-01-18

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
14

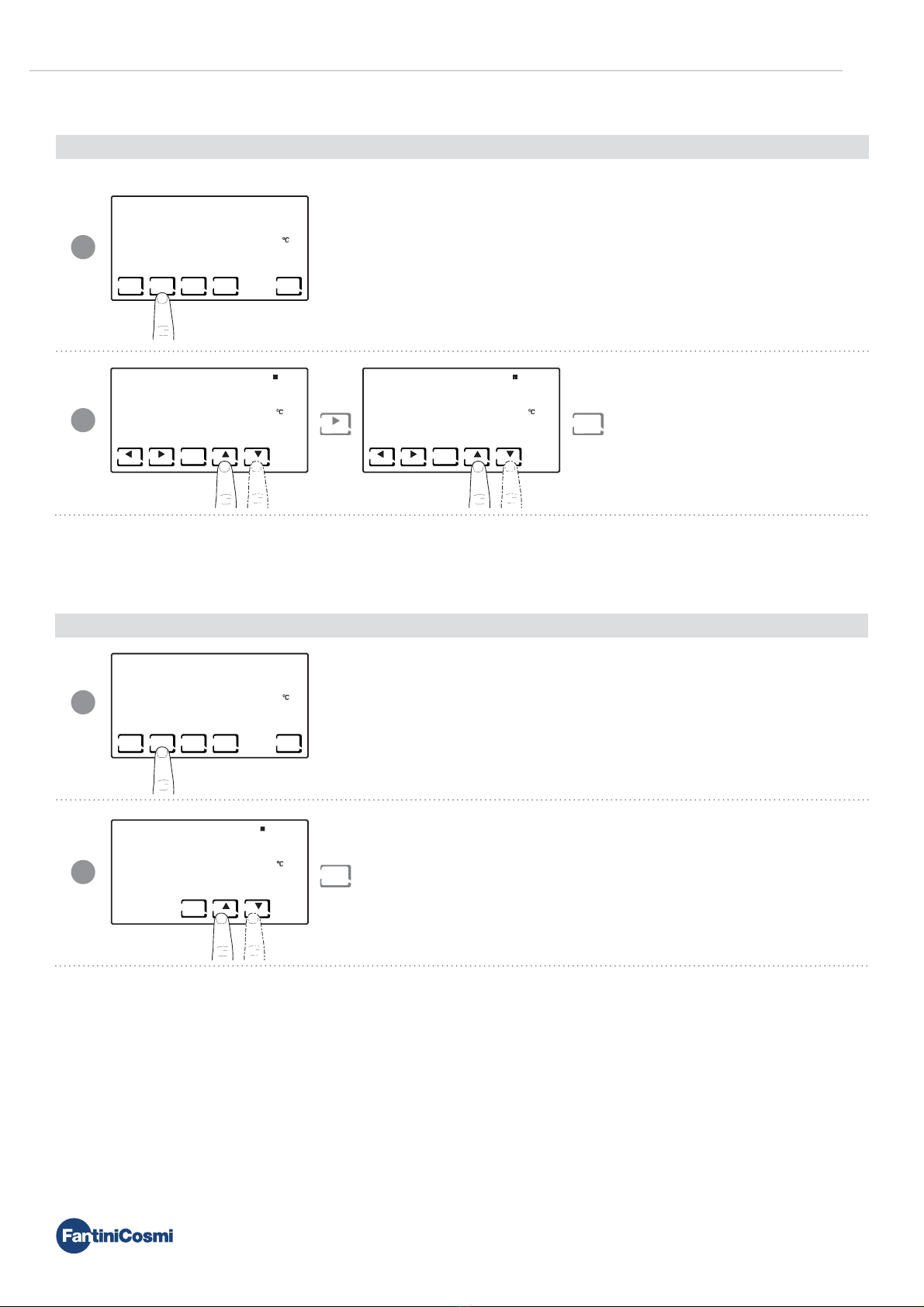

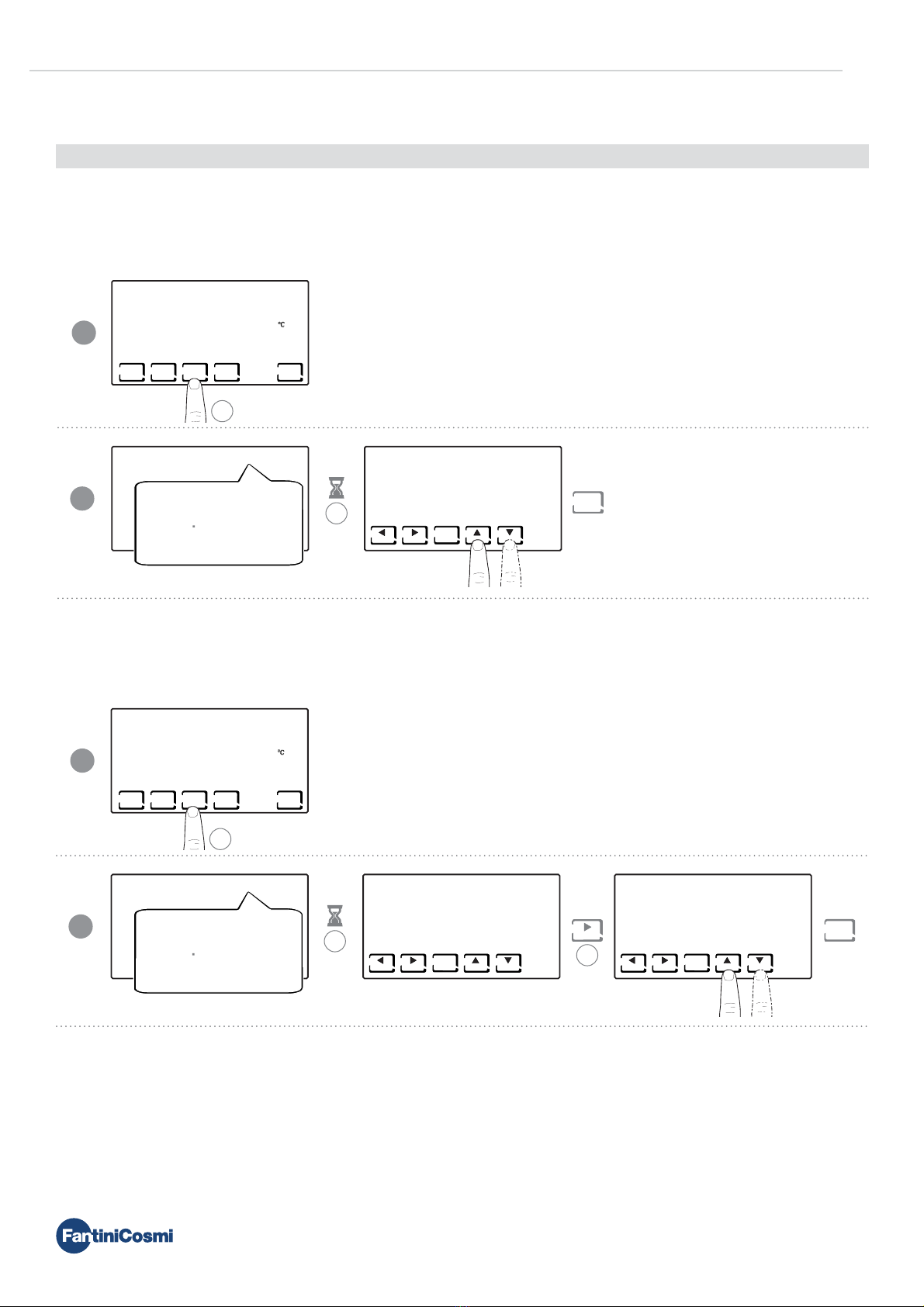

4.3 - SETTING “AUTO” PROGRAM TEMPERATURE
You can set a tCOMF (comfort temperature) and tECO (economy temperature) temperature value between 2° and 40°C.
4.4 - SETTING “MANUAL” PROGRAM TEMPERATURE
You can set a TMAN temperature value between 2° and 40°C.
24.4
3
DAY
[ AUTO ]
SEL TEMP PROG DISP OFF
12:01 01-01-18
24.4
TMAN = 25.0
ENTER
24.4
3
DAY
[ AUTO ]
SEL TEMP PROG DISP OFF
12:01 01-01-18
1
224.4
TCOMF = 20.1
ENTER
PRESS 24.4
TECO = 17.9
ENTER
PRESS
ENTER
1
2
PRESS
ENTER
Note:
tC > tE WINTER
tC < tE SUMMER

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
15
5 - PARAMETER DISPLAY (DISP)
Pressing the DISP key allows you to cyclically view the most important parameters.
Note: this number identifies the single device and is used for the WiFi activation via the “Intelliclima+” app.

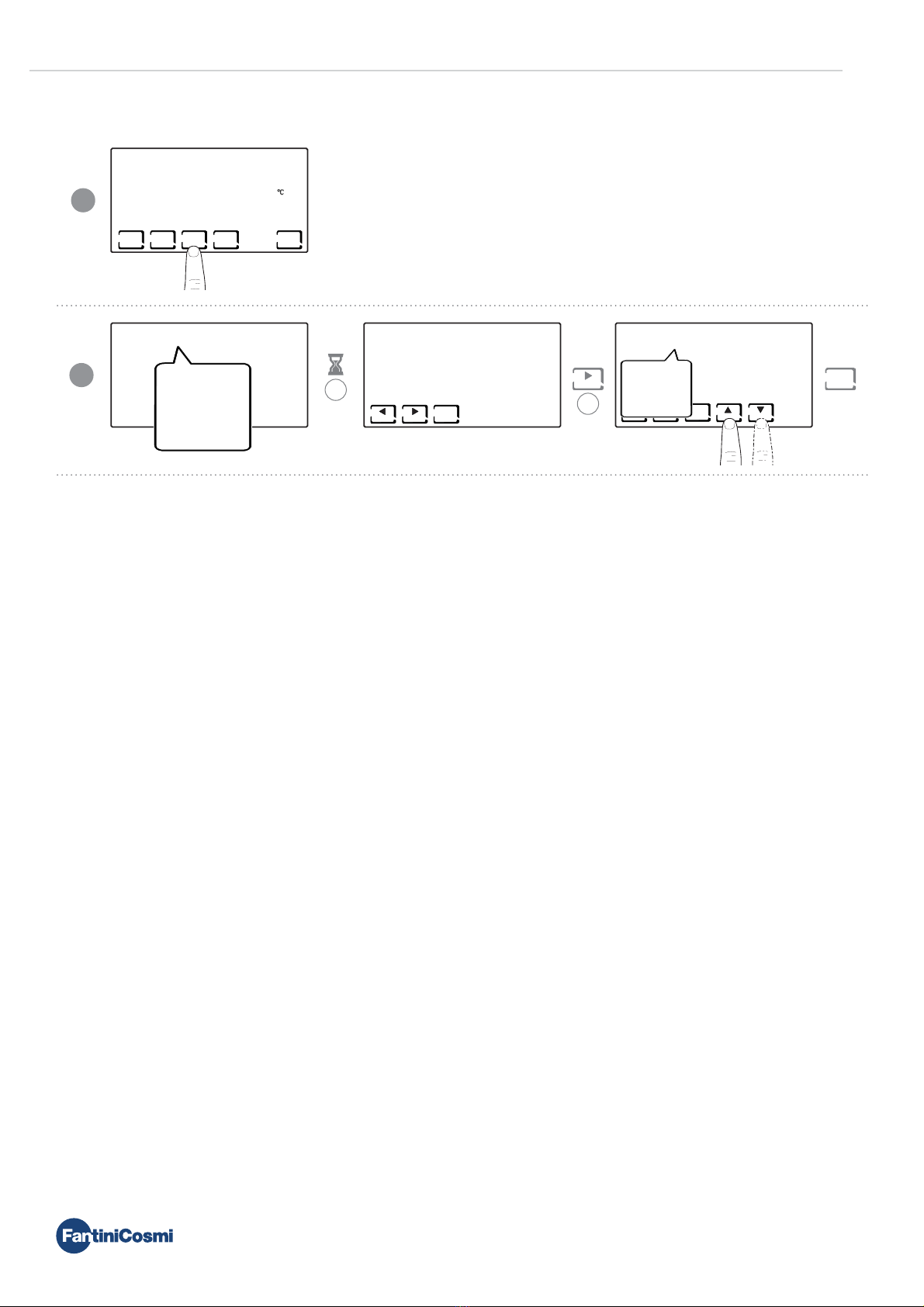

5.1 - SERIAL NUMBER
12:01 01-01-18
24.2
SEL TEMP PROG DISP OFF
3
DAY
[ AUTO ]
1
2
SN 90000100
ENTER
PRESS
x3
12:01 01-01-18
ENTER
SN ---
HOURS OF USE

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
16

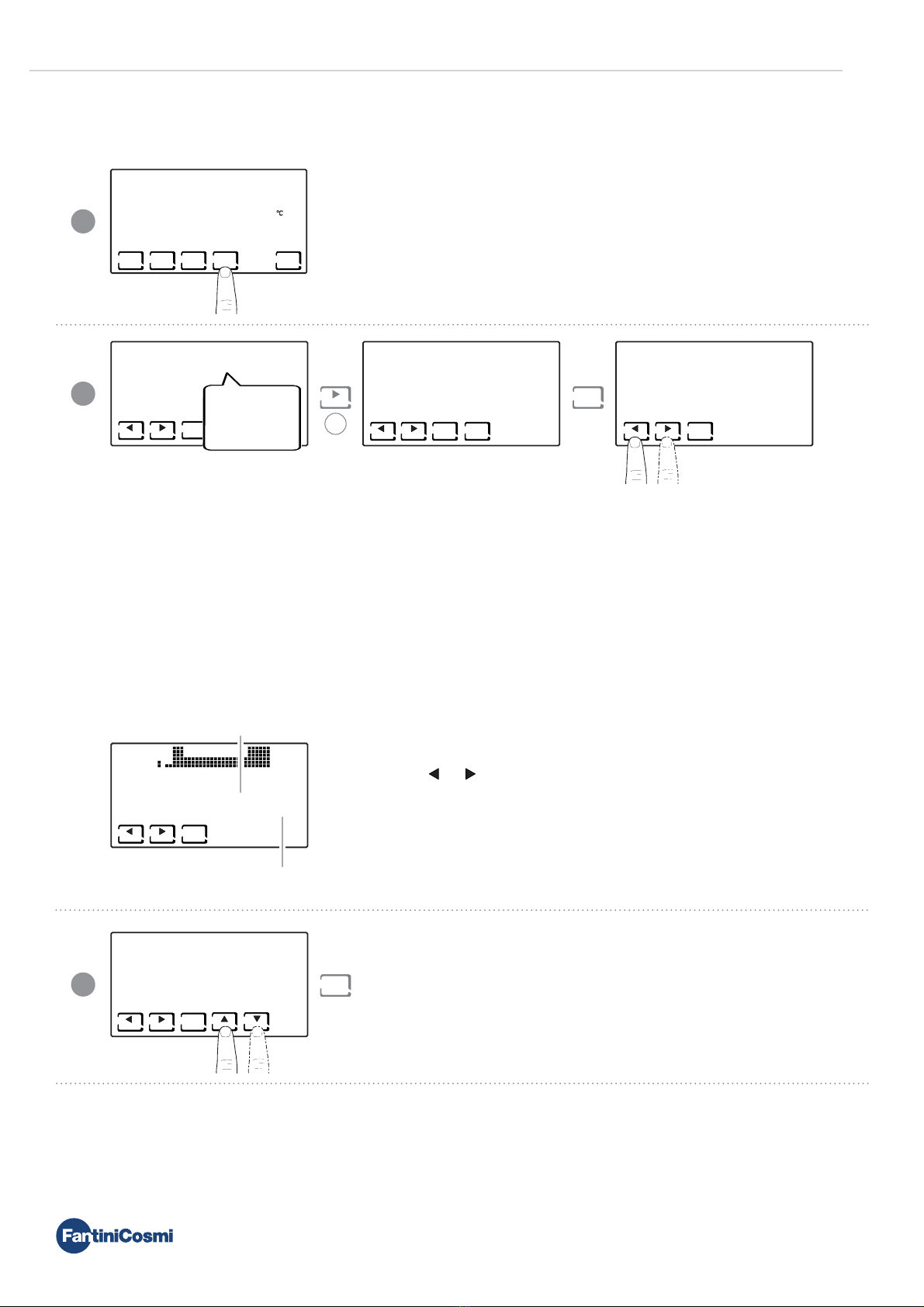

5.2 - HOURS OF USE
The programmable thermostat records the total consumption of the heating and cooling hours.
Note: you can display the user statistics for
■PREVIOUS DAY = total operating hours in the previous day
■CURRENT MONTH = total operating hours in the current month
■PREVIOUS MONTH = total operating hours in the previous month
■CURRENT YEAR = total operating hours in the current year
■TMAX = maximum room temperature measured the previous day
■TMIN = minimum room temperature measured the previous day
■RESET
Pressing DISP on the CURRENT MONTH, PREVIOUS MONTH, and CURRENT YEAR screens displays a graph with
details on use (shown below).
display day or
month or year
hours of use
Pressing or allows you to scroll through and display the day of the
month (or the month or year, depending on the page being displayed) and
the hours of use.
Note: select RESET YES to reset the use statistics.
1
2
HOURS OF USE
ENTER
DISP
PRESS
DISP
PRESS
x1
PREV. DAY
ENTER
024
003
ENTER
12:01 01-01-18
24.2
SEL TEMP PROG DISP OFF
3
DAY
[ AUTO ]
12:01 01-01-18
ENTER
SN ---
HOURS OF USE
RESET NO
ENTER
3
PRESS
ENTER

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
17
6 - ADVANCED FUNCTIONS (PROG)
To access ADVANCED PROGRAMMING, hold down the PROG key for a few seconds.
6.1 - SECONDS DISPLAY STAYS ON
Allows you to adjust the display’s backlight (sky blue light) with a duration that can be programmed between 5 and 30
seconds.
6.2 - DISPLAY LIGHTING INTENSITY
Allows you to modify the luminous intensity of the display, at 10 levels + 0 Off.
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
2s
2
1
ADV. PROGR LIGHT ON 5S
ENTER
PRESS
ENTER
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO
2s
2
1
LIGHT ON 5S
ENTER
PRESS
x1
LIGHT INT 5
ENTER
PRESS
ENTER
3s
3s
ADV. PROGR
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
18

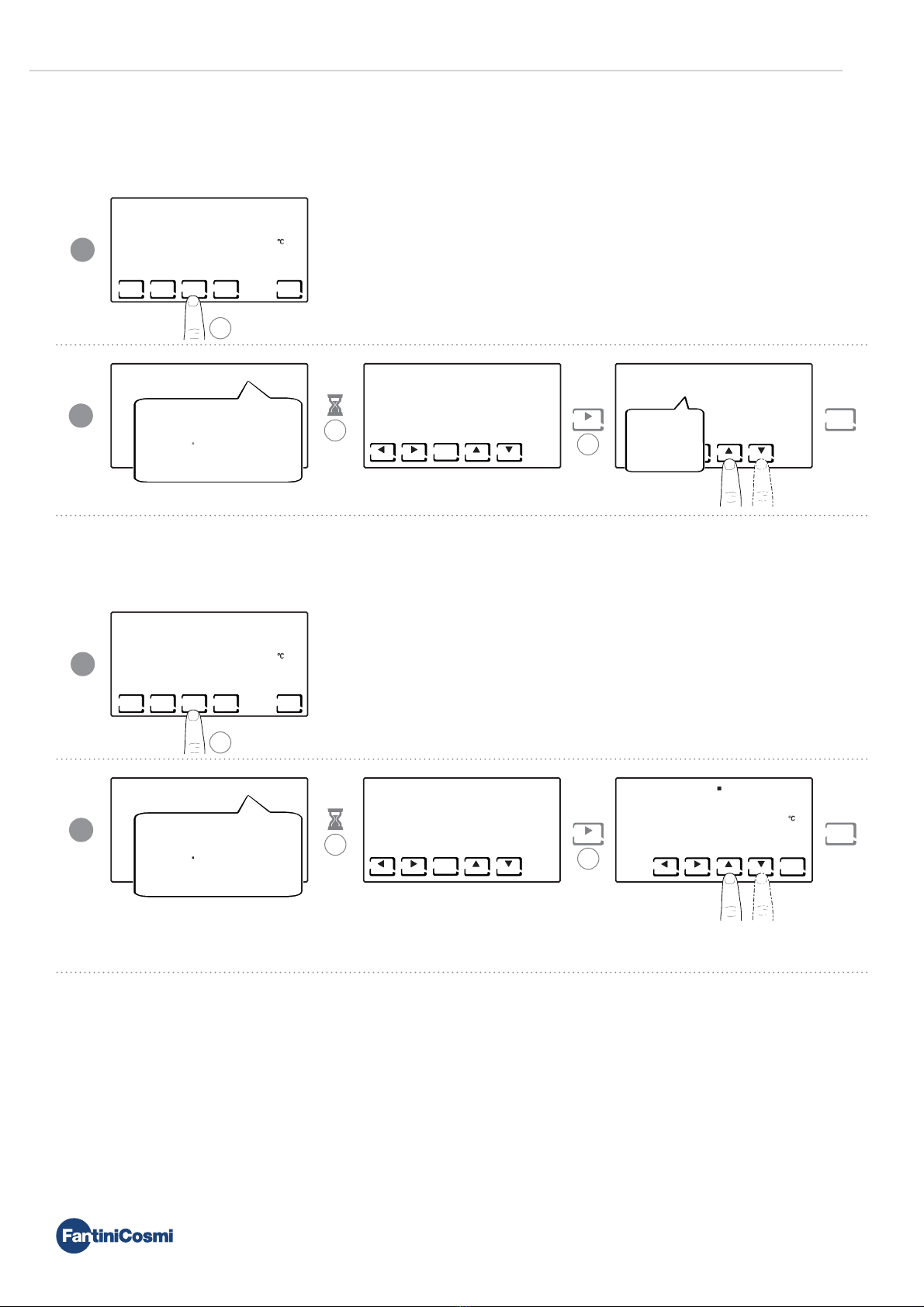

6.3 - DAYLIGHT SAVING TIME
Automatically selects daylight saving time, applicable in Europe and some other countries. This set-up automatically
updates the time when it changes (March and October) (default = YES).
6.4 - ANTIFREEZE TEMPERATURE
Note:
■the tA that can be set is between 2.0 and 7.0°C or OFF.
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
2s
2
1
PRESS
x2
DAY SAV YES
PRESS
ENTER
DAY SAV YES
DAY SAV NO
2s
2
1
LIGHT ON 5S
ENTER
PRESS
x3
TA = 5.0
23.0
ESC
PRESS
ENTER
3s
3s
ADV. PROGR LIGHT ON 5S
ENTER
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO
ADV. PROGR
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
19
6.5 - ROOM TEMPERATURE CORRECTION
This allows you to modify the read temperature, which, due to the recessed wall installation or perhaps a non-ideal
height, might not indicate the true temperature perceived.
Note:
■the tA that can be set is between 2.0 and 7.0°C or OFF.
6.6 - DIFFERENTIAL MANAGEMENT
It allows the temperature difference between the OFF and ON status to be managed.
Note: the differential value that can be set is between 0.3 and 5.0, or STD (default = STD).
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
2s
2
1
LIGHT ON 5S
ENTER
PRESS
x4
CORRECTION
ENTER
26.0 PRESS
ENTER
3s
ADV. PROGR
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
2s
2
1
LIGHT ON 5S
ENTER
PRESS
x5
DIFF: STD
ENTER
PRESS
ENTER
3s
ADV. PROGR
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO

TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180WIFI LITE
20

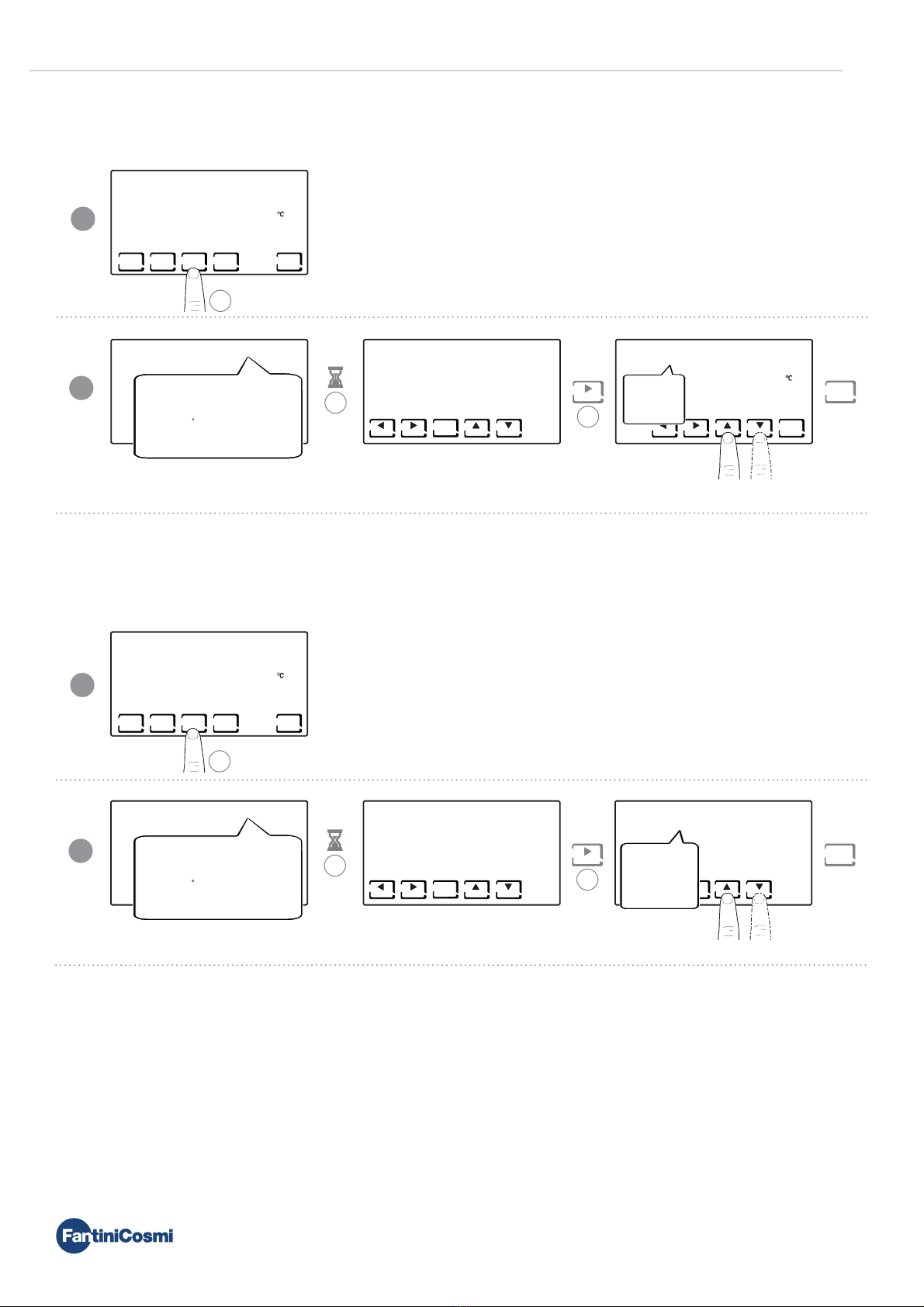

6.7 - CELSIUS / FAHRENHEIT
This allows you to choose the temperature display scale between Celsius and Fahrenheit degrees.
6.8 - LANGUAGE SELECTION
Allows you to change the language used during programming.
Note: the default setting is Italian.
Note: the default setting is Celsius.
ITALIAN
ENTER
LIGHT ON 5S
ENTER
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
LIGHT ON 5S
ENTER
12:01 01-01-18
23.0
SEL TEMP PROG DISP OFF
OFF
1
DAY
CELSIUS
ESC
26.0
2s
2
1
PRESS
x6
PRESS
ENTER
CELSIUS
FAHRENHEIT
2s
2
1
PRESS
x7
PRESS
ENTER
ITALIANO
INGLESE
RUSSO
FRANCESE
SPAGNOLO
TEDESCO
3s
3s
ADV. PROGR
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO
ADV. PROGR
LIGHT ON 5S
LIGHT INT 5
DAY SAV YES
TA = 5.0
CORRECTION
DIFF: STD
CELSIUS
ITALIAN
WIFI: NORM
CH180WIFI V1.0
RESET NO
ITALIAN
ENGLISH
FRANCAIS
ESPAÑOL
DEUTSCH
РУССКИИ
