Fantini Cosmi CH150TS Series User manual

WEEKLY PROGRAMMABLE THERMOSTAT
BACKLIGHTED TOUCH SCREEN
CH150TS

2
separate probe ................................................15

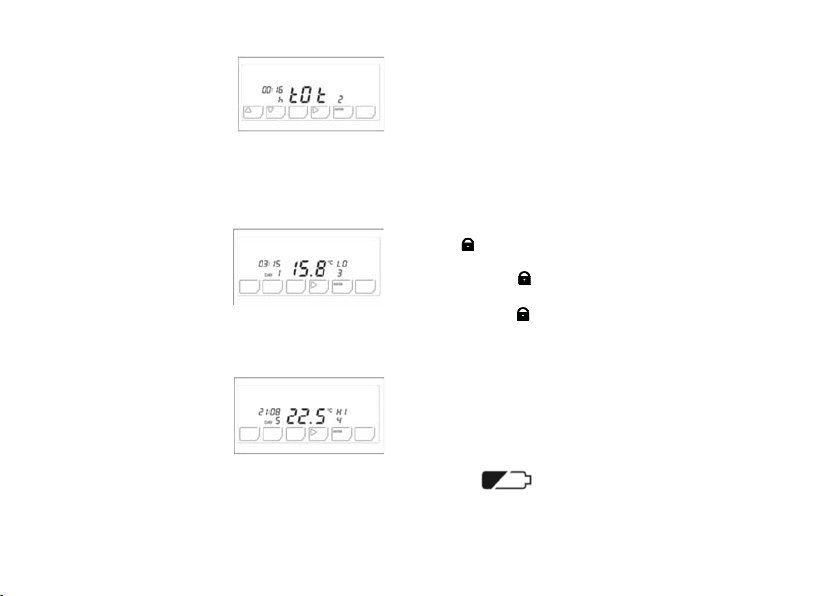

Statistical data .................................................15
Maintenance ..........................................................16
Keyboard lock ..................................................16
Touch Screen ..................................................16
Replacing the batteries ....................................16
Installation .............................................................18

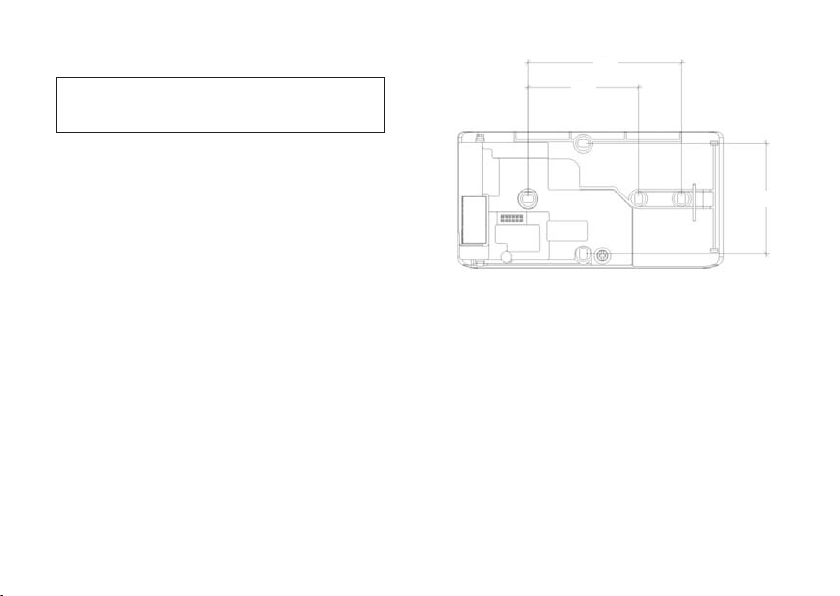

Fastening the base ..........................................18

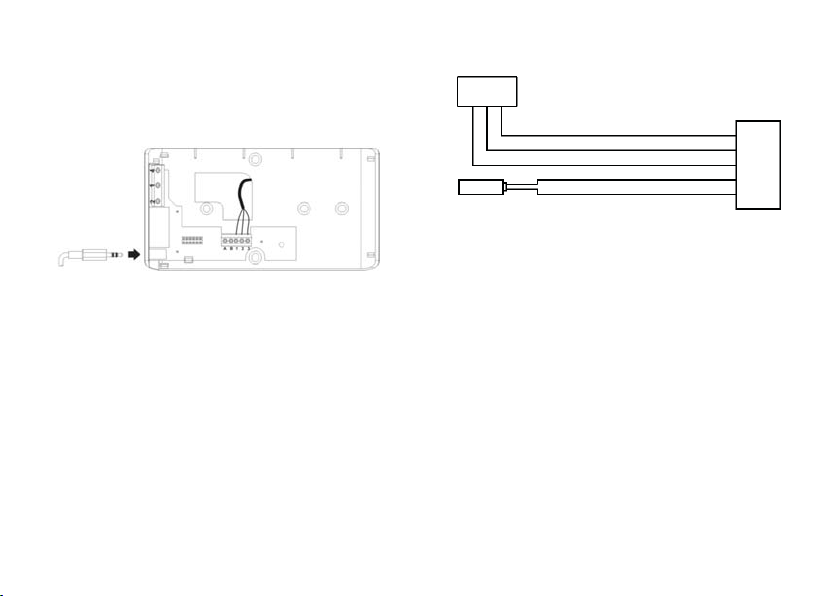

Electric connections ........................................19
Fitting the batteries ..........................................20
Fastening the chronothermostat onto the base
.........................................................................20
Configuring the chronothermostat ...................21
Technical data ........................................................25
INDEX
Introduction ..............................................................3
Controls and indications ..........................................4
Controls .............................................................4
Indications .........................................................5
User manual ............................................................6
Setting the date and time ..................................6
Summer/Winter selection ..................................7
Operating modes ...............................................7
“Manual” operating mode ..................................7
“Automatic” operating mode ..............................8
“Holiday” operating mode ................................10
“Jolly” operating mode .....................................10
“OFF” function .................................................12
Preset programs ..............................................13
Chronothermostat programming .....................13
Displaying the temperature detected by the

3
Introduction
Chronothermostat CH150TS/151TS/152TS is
suitable to measure the ambient temperature
and to control the heating and air conditioning
system to which it is connected. The operat-
ing mode can be chosen between the preset
ones or can be customized according to user’s
needs.
The wide display shows the temperature pro-
file — i.e.: the relationship between the time ta-
ble and the temperature to be kept —, as well
as the measured temperature, relative humid-
ity, calculated perceived temperature, time and
day of the week.
The chronothermostat is battery powered. Both
settings and data are stored in a non-volatile
memory capable of retaining them even when
batteries are down.
The chronothermostat is available in the fol-
lowing version:
• CH150TS Chronothermostat with 5 A relay
The following external interfaces are available
for CH150TS chronothermostat:
• Separate temperature probe;
• Telephone activator with GSM modem, for re-
mote management via SMS messages.
The telephone activator enables the following:
• remote communication with the chronother-
mostat to know the ambient temperature or
the status of the heating or air conditioning
system;
• remote management of the chronothermostat
operating modes.
The chronothermostat comes in three colours:
white, silver (CH151TS series) and anthracite
black (CH152TS series).
Unless otherwise specified, the instruc-
tions contained in this manual apply to every
chronothermostat model.

4
6. Button used for the “Programming” or “Copy”
or “Statistical data displaying” functions *
7. Rotary selector for temperature correction:
T1, Manual temperature, Jolly temperature,
and
Antifreeze temperature *
8. Rotary selector for correcting temperature
T2 or the Jolly operating mode duration *
9. Rotary selector for correcting temperature
T3 or the Jolly operating mode duration
10. Summer/Winter switching key and key-
board lock
11. Chronothermostat reset button
12. Backlighted area
* The function associated with the button or se-
lector depends on the current operating mode.
It is highlighted by the icon placed above.

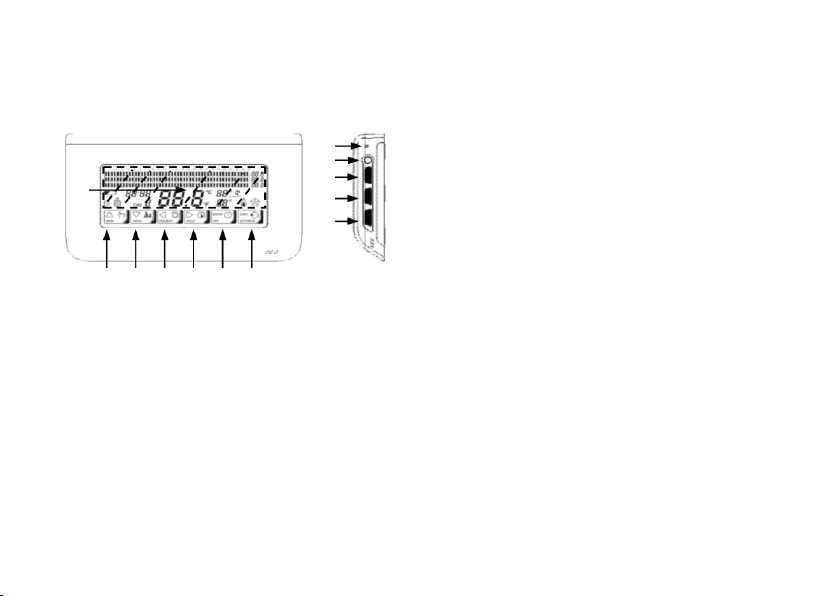

Controls and indications
Controls
1 2 3 4 5 6
12
1. Button used to select the “Manual” operating
mode or increase a value (▲) *
2. Button used to select the “Automatic” oper-
ating mode or decrease a value (▼) *
3. Button used to select the “Holiday” operat-
ing mode or go back to the previous data item
(◄) *
4. Button used to select the “Jolly” operating
mode or go to the next data item (►) *
5. Button used for the “OFF” or “Enter” func-
tions *
11
10
9
8
7

5
Indications
14 1215 3 4
67
5
9810
11
13 12
1. Time
2. Temperature profile
3. Temperature value T1 or “Jolly” operating
mode duration (days)
4. Temperature value T2 or “Jolly” operating
mode duration (hours)
5. Temperature value T3
6. System ON in Summer operation
7. System ON in Winter operation
8. Relative humidity percentage
9. Perceived temperature (displayed by the
degree)
10. Ambient/external temperature
11. Current day (1 = Monday … 7 = Sunday;
8 = Holiday)
12. Winter operation
13. Summer operation
14. Battery charge level
15. keyboard lock
Note: Pressing of a key is signalled by a short
acoustic signal.
When ON, backlighting will stay on for about
three seconds after pressing a key

6
User manual
To operate the chronothermostat after it has
been installed, proceed as follows:
1. Set the date and time.
2. Select the Summer/Winter operation.
3. Select the operating mode.

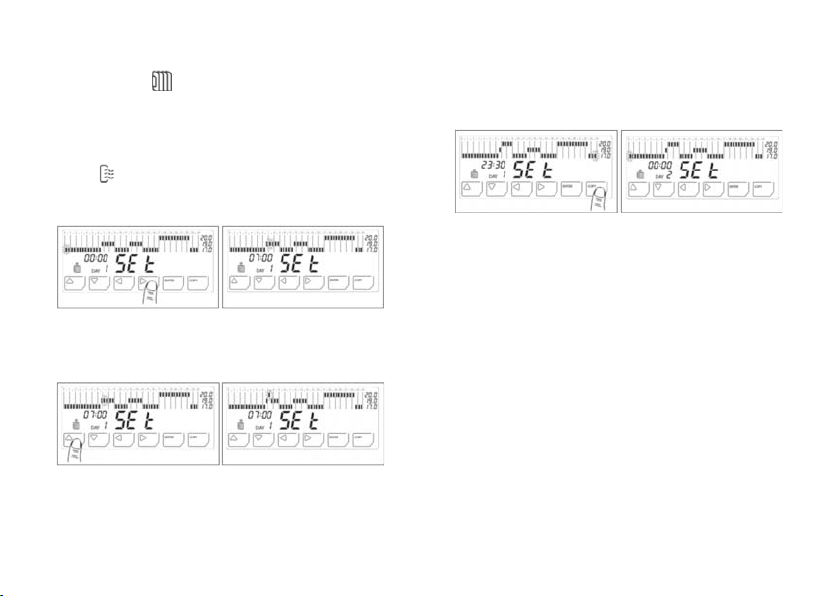

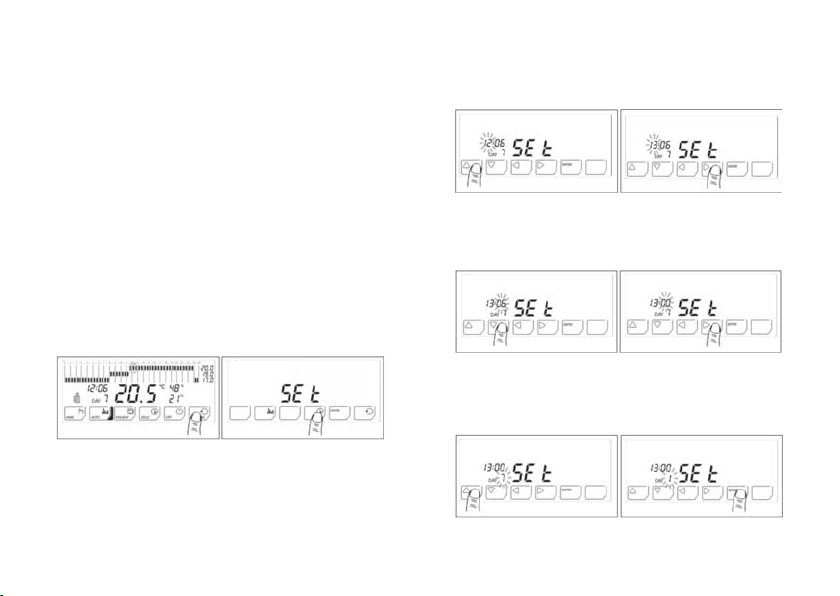

Setting the date and time
To set the current time and date, proceed as
follows:
1. Enter the programming menu main page.
The operating mode currently used will be in-
terrupted temporarily. Choose the time setting
function.
2. Modify the hour setting by means of the ▲
and ▼buttons, then go to the minute setting
by means of the ►button.
3. Modify the minute setting by means of the
▲and ▼buttons, then go to the day setting
by means of the ►button.
4.Modify the day setting by means of the ▲
button, then press ENTER to go back to the
main page of the programming menu.

7
5. Press ENTER again to exit the programming
menu. The chronothermostat operating mode
previously interrupted will be resumed.

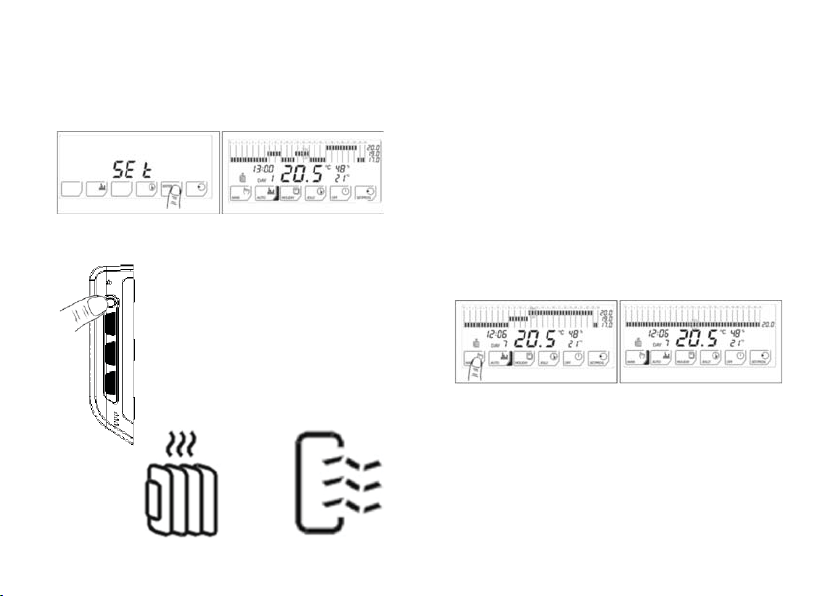

Summer/Winter selection
To shift from the Summer opera-
tion (heating system) to the Sum-
mer operation (cooling system),
and vice versa, keep the Sum-
mer/Winter button depressed for
at least 4 seconds. The selected
operation will be shown on the
display by means of the “Winter”
or “Summer” icons.
Winter Summer
Operating modes
The CH150/151/152 chronothermostat fea-
tures four different operating modes: Manual,
Automatic, Holiday and Jolly (in addition to the
OFF function).
“Manual” operating mode
With the Manual operating mode, the chrono-
thermostat adjusts the operation of the heating
or cooling system in order to always keep the
same temperature. To select “Manual”, press
MAN.

8
The temperature level can be modified during
operation by means of the lower rotary selec-
tor located on the right side of the chronother-
mostat. The temperature can be changed from
2°C to 40 °C by 0.1°C increments.
“Automatic” operating mode
With the “Automatic” operating mode, the
chronothermostat adjusts the operation of the
heating or cooling system by following the pro-
files defined for the various days of the week.
To select “Automatic”, press AUTO.

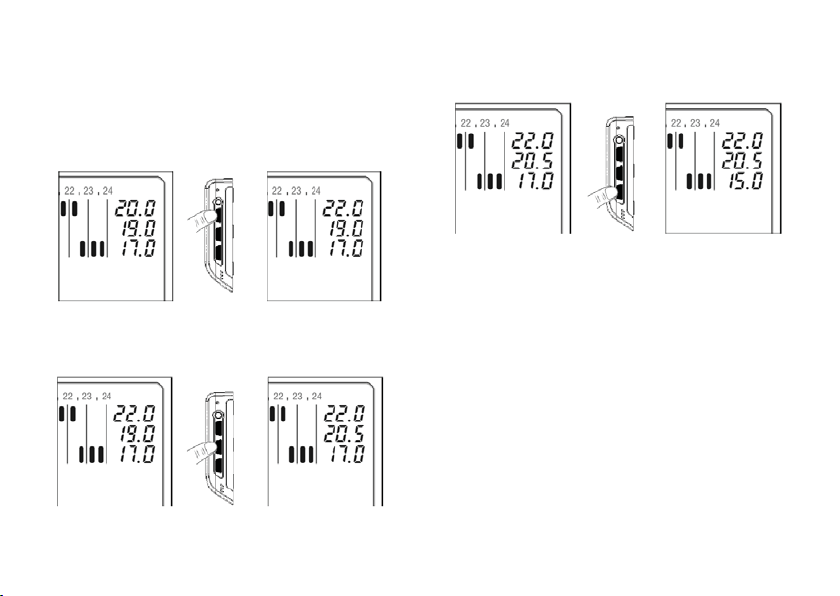

The three temperature levels used can be
modified during operation by means of the ro-
tary selectors located on the right side of the
chronothermostat.

9
Temperature T3 cannot be lower than tem-
perature T2 or higher than 40 °C.
During Summer operation, temperature
T3 features an upper limit of 30°C. When this
value is exceeded, T3 will take the OFF value,
which will involve switching the system off.
Temperature T2 cannot be higher than tem-
perature T3 or lower than temperature T1.
Temperature T1 cannot be higher than tem-
perature T2 or lower than 2 °C.
If no customization has been made, the au-
tomatic operating mode will function with the
stored temperature profiles, i.e. the preset
ones (refer to «Preset programs»). To custom-
ize the profiles, refer to «Chronothermostat
programming».

10
To modify the temperature levels, refer to
the description of the “Automatic” operating
mode.
When the preset programs are used (refer to
«Preset programs»), the “Holiday” mode will
follow the profile envisaged for Saturdays and
Sundays. To create a customized “Holiday”
program, refer to «Chronothermostat program-
ming».
“Jolly” operating mode
With the “Jolly” operating mode, the CH150
chronothermostat interrupts the current oper-
ating mode and adjusts the operation of the
heating or cooling system to keep the “Jolly”
temperature during the entire time set (1 hour
to 99 days and 23 hours, by 1 hour incre-
ments). After this time – which is displayed like
a countdown – has elapsed, the previous oper-
ation of the chronothermostat will be resumed.
To select “Jolly”, press JOLLY.
The “Jolly” temperature value and the operat-
ing mode duration can be modified by means
of the rotary selectors located on the right side
of the chronothermostat.
“Holiday” operating mode
With the “Holiday” operating mode, the CH150
chronothermostat CH150 adjusts the opera-
tion of the heating or cooling system by fol-
lowing one single temperature profile, which
is valid for all days. To select “Holiday”, press
HOLIDAY.

11
Use the lower rotary selector to modify the
temperature level.
The temperature can be modified from 2°C to
40 °C, by 0.1 °C increments.
To set the “Jolly” operating mode duration, i.e.
hours («h»), use the central rotary selector.
The hours can range from 0 to 23.
To set the “Jolly” operating mode duration, i.e.
days («d»), use the upper rotary selector.
The days can range from 0 to 99.
You can interrupt the “Jolly” mode at any time,
by selecting any other operating mode.
The “Jolly” operating mode can be used, for
instance, to:
• save energy by lowering the temperature
when the house is not inhabited at the week-
ends or winter vacation, while being sure that
a comfortable temperature will exist when the
house is inhabited again);
• extend the night heating or cooling beyond
the usual time, i.e. when you stay up in the
company of your guests.

12
“OFF” function
The “OFF” function can be activated by press-
ing OFF.
Winter operation
The system will be fully turned off and the
“OFF” message will appear on the display,
without any temperature profile.
The chronothermostat adjusts the operation
of the heating system to keep the “Antifreeze”
temperature, in order to reduce the energy
consumption and, at the same time, avoid any
damage caused by extremely low tempera-
tures.
The “Antifreeze” temperature can be modified
from 2°C to 7°C (by 0.1°C increments), by us-
ing the lower rotary selector. If a temperature
of less than 2°C is set, the system will be fully
turned off and the antifreeze protection will be
lost.
Summer operation

13
Preset programs
The CH150 chronothermostat features two
preset programs (i.e. “Winter” and “Summer”)
for quicker start-up.
Chronothermostat programming
You can customize the temperature profiles for
the “Automatic” and “Holiday” operating modes,
so as to adapt them to your own needs. To set
new temperature profiles, proceed as follows:
1. Enter the programming menu main page.
The operating mode currently used will be in-
terrupted temporarily.
Choose the temperature profile customization
function.
“Winter” program – working days (Mon-
days through Fridays)
“Winter” program – public holidays (Satur-
days, Sundays and “Holiday” program)
“Summer” program (All days of the week,
plus “Holiday” program)

14
2. The Monday profile (DAY 1) for “Winter” op-
eration (icon ) will be displayed. Use the ◄
and ►buttons to move the bar chart blinking
segment to the time at which the temperature
is to be modified. Each segment equals half an
hour. To modify the “Summer” operation profile
(icon ), press the “Summer/Winter” button
on the left side of the chronothermostat.
3. Use the ▲and ▼buttons to modify the tem-
perature level (T1, T2 or T3).
4.To directly duplicate the temperature profile
by going to the next day, press COPY (to cus-
tomize every single day separately, refer to
step 5 below).
5. Press ENTER to go to the next day, then
repeat the operations described starting from
step 2 for the other days of the week (the “Holi-
day” profile will be indicated as DAY 8). To go
back to the programming menu main page, use
the ENTER button to scroll through the eight
days or keep the ENTER button depressed for
3 seconds.
If no button is pressed within the next three
minutes, the chronothermostat operating mode
previously used will be resumed.

15
Preset parameter reset
To resume the preset temperature profiles and
values (T1-T2-T3-Temperature used with the
Manual mode, Temperature used with the Jolly
mode, Antifreeze temperature, OFF function),
keep the ▲and ▼buttons depressed simulta-
neously when you are in the temperature pro-
file programming mode.
Displaying the temperature detected by
the separate probe
To display the temperature detected by the
separate probe (only if the latter has been con-
figured as an external probe or floor-mounted
probe), the chronothermostat must be config-
ured (refer to <<chronothermostat configura-
tion>>) and the probe must be connected.
To display the temperature value read by the
separate probe, press the button of the operat-
ing mode currently used (the temperature will
blink).
To display again the temperature detected by
the chronothermostat, press again the button
of the operating mode currently used (the tem-
perature will not blink any longer).
Statistical data
The CH150 chronothermostat provides a set of
statistical data concerning the system opera-
tion. To access this data, proceed as follows:

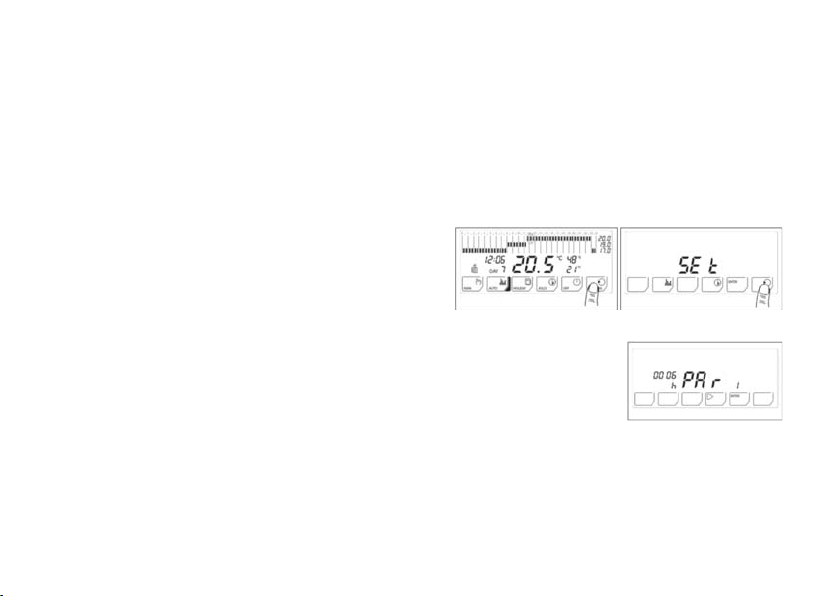

1.Enter the programming menu main page.
The operating mode currently used will be
interrupted temporarily. Choose the statistical
data function.
2. Page 1: number of
hours during which the
system was operated
on the previous day (6
hours in the image).
Use the ►button to go
to the next page.

16
3. Page 2: total number
of hours during which
the system has been
switched on and operat-
ing since its first start-up
(16 hours in the image).
5. Page 4: maximum
temperature reached
on the current day, and
time at which such maxi-
mum temperature was
reached (22.5°C at 09.08
p.m. in the image).
4.Page 3: minimum
temperature reached
on the current day, and
time at which such mini-
mum temperature was
reached (15.8°C at 03.15
a.m. in the image). Use
the ►button to go to the
next page.
Use the ►button to go to the next page.
Press the ▲and ▼buttons simultaneously to
reset the total system switch-on hours.
Maintenance
To clean the chronothermostat use a soft cot-
ton cloth and no detergent. Do not use paper
handkerchiefs to clean the touch screen.
Keyboard lock
To clean the chronothermostat without chang-
ing accidentally its settings, press the Summer/
Winter key in order to activate the keyboard
lock. When the keyboard lock is ON, symbol
on the display will turn on. The display can
now be cleaned, each time a key is pressed
symbol will flash. To restore keyboard op-
eration, press again the Summer/Winter key,
symbol will turn off.
Touch Screen
The touch screen surface is highly scratchable.
Only use your fingers to touch the screen. Nev-
er use pens, pencils or other pointed objects.
Replacing the batteries
When the battery charge starts to lower, sym-
bol on the display will start flashing.
If the “bAtt” parameter is set to “On” or to “Off”
(see paragraph <<configuring the chrono-
6. Press the ENTER button twice to go back to
the operating mode previously used.

17
Important: Standard battery life is approx. 1
year. You are recommended to replace bat-
teries at the beginning of system operating
season to prevent batteries from running down
when you are away from home, e.g. during
Christmas holidays.
The batteries shall be properly disposed of in
special containers.
thermostat>>) and batteries are not replaced
within 15 days, the chronothermostat will turn
off automatically and the display will show the
message “OFF” or “On” instead of the tem-
perature value.
Settings and data are however stored in the
non-volatile memory.
To remove the chronothermostat from the base
proceed as follows:
• remove the jack plug from the telephone ac-
tivator, if any;
• pull the left and right sides of the chronother-
mostat, without applying force to selectors.
If after replacing the batteries, the display only
shows the message OFF or On, press the icon
key with ENTER after refitting the chronother-
mostat on the base.
With the “bAtt” parameter off (see paragraph
<<configuring the chronothermostat>>), and
symbol flashing, batteries shall be
changed as soon as possible to prevent that
battery charge becomes insufficient for regular
chronothermostat operation.

18
Installation
Chronothermostat installation involves the fol-
lowing operations:
• Fastening the base.
• Electric connections.
• Fitting the batteries.
• Fastening the chronothermostats onto the
base.
• Configuring chronothermostat parameters.
Fastening the base
The chronothermostat comes with a base suit-
able for wall mounting or for flush-mounting in
three-module rectangular or round boxes.
Caution: The chronothermostat shall be in-
stalled by qualified personnel only, in compli-
ance with the current regulations in force.
83
60
60
SPACING DIMENSIONS FOR FIXING THE BASE
Separate the base from the chronothermostat
levering on the slot located at the bottom of the
base by means of a proper tool.
Make sure that the base is properly secured
and it is not deformed. Check that the chrono-
thermostat multi-pole connector is placed at
the bottom left corner.
To ensure correct operation the base shall be
installed at about 1.5 metres above the floor
level and far from heat sources (heating radia-
tors, direct sunlight, etc.), doors and windows.

19
Electric connections
Before making connections, remove the termi-
nal protection guard (keep it together with the
fastening cross-slotted screw).
Connecting the heating or air-conditioning
system
Connect the two wires of the heating or air-
conditioning system to the terminals 1 and 2,
as shown in the figure.
Terminals are suitable for flexible cables with
Warning: Make sure the relay load value is not
exceeding the values specified in «Technical
data».
Connecting the separate temperature
probe
Protection guard fastening screw
2.5 mm2 max section.
Terminal 4 is free and may be used for signal-
ling or other use, as necessary.
Chronothermostat relay
terminal block
LOAD
Neutral Phase
4
1
2
LOAD = burner - circulation pump

20
CTx terminal block
CH150
terminal block
1 2 3
Separate
temperature
probe
Connect the two wires of the separate tem-
perature probe to terminals A and B, as shown
in the figure.
Connecting the telephone activator
Connect the three wires of the telephone acti-
vator to terminals 1, 2 and 3, as shown in the
figure.
As an alternative, the activator may be con-
nected through the 3.5 mm jack plug set on the
left side. Once connections are over, refit the
terminal protection guard removed previously.
Fitting the batteries
Fit two long-life 1.5 V AA alkaline batteries into
the back of the chronothermostat, observe the
specified polarity. After fitting the batteries the
chronothermostat will turn on automatically.
Fastening the chronothermostat onto the
base
Press by hand the chronothermostat onto the
base, make sure the multi-pole connector fits
properly. The chronothermostat will click into
position.
3
2
1
B
A
