6' Wide Premium Greenhouse Benches
Premium Greenhouse Bench with Stationary Top
STK# DIMENSIONS
112416S6X08 6' W x 3' H x 8' L
112416S6X10 6' W x 3' H x 10' L
112416S6X12 6' W x 3' H x 12' L
*Actual bench may differ from example shown.

2Revision date: 08.26.15
READ THIS DOCUMENT BEFORE YOU BEGIN
Thank you for purchasing this premium greenhouse bench. When properly assembled and maintained, this product will provide years of reliable service. These
instructions include helpful hints and important information needed to safely assemble and properly maintain the bench. Please read these instructions before
you begin. If you have any questions during the assembly, contact Customer Service at 1.800.245.9881 for assistance.
ASSEMBLY PROCEDURE
Following the instructions as presented will help
ensure proper assembly. The steps outlining the
assembly process are as follows:
1. Verify that all parts are included in the shipment.
Notify customer service for questions or
concerns.
2. Read these instructions and all additional
documentation included with the shipment before
you begin.
3. Gather the tools and assistants.
4. For best results, assemble the components on a
flat, level surface in the order they are presented
in these instructions.
5. Read the care and maintenance information.
CARE AND MAINTENANCE
Proper care and maintenance is important.
Check the following items periodically to
properly maintain your bench.
• Check connections and all fasteners to
verify that they remain tight.
• Do not climb or stand on the frame at
anytime.
• Verify that all weight on the bench top is
evenly distributed.
• Promptly repair or replace all damaged
parts and frame members.
• If the bench is disassembled and moved,
inspect all parts and connections before
reassembling and use.
• For replacement parts, call 800.245.9881
for assistance.
Important Information
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear gloves when handling metal pipes and top.
• Use a portable GFCI (Ground Fault Circuit
Interrupter) when working with power tools and
cords.
UNPACK AND IDENTIFY PARTS
The following steps will ensure that you have all the
necessary parts before you begin assembly.
1. Unpack the contents of the shipment and place
where you can easily inventory the parts. Refer
to the Bill of Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/
Spec Sheets are present. If anything is missing
or you have questions, consult the Pictorial
Parts Guide and all diagrams for clarification, or
contact Customer Service.
NOTE: At this time, you do not need to open
the plastic bags containing smaller parts such
as fasteners or washers (if equipped).
REQUIRED TOOLS
The following list identifies the main tools needed to
assemble the bench. Additional tools may be needed.
• Tape measure and marker
• Variable speed drill (cordless with extra batteries
works best)
• Small hammer and gloves
• Level (1' to 2')
• Carpenter's square or similar tool to square frame
• Adjustable and needle-nosed pliers
• Ratchet and socket set
• 7/16" and 1/2" wrench
• Drill bit set to predrill 108553 screw holes
(optional)
WARNING: Evenly distribute weight
when in use. Never stand on bench
top.

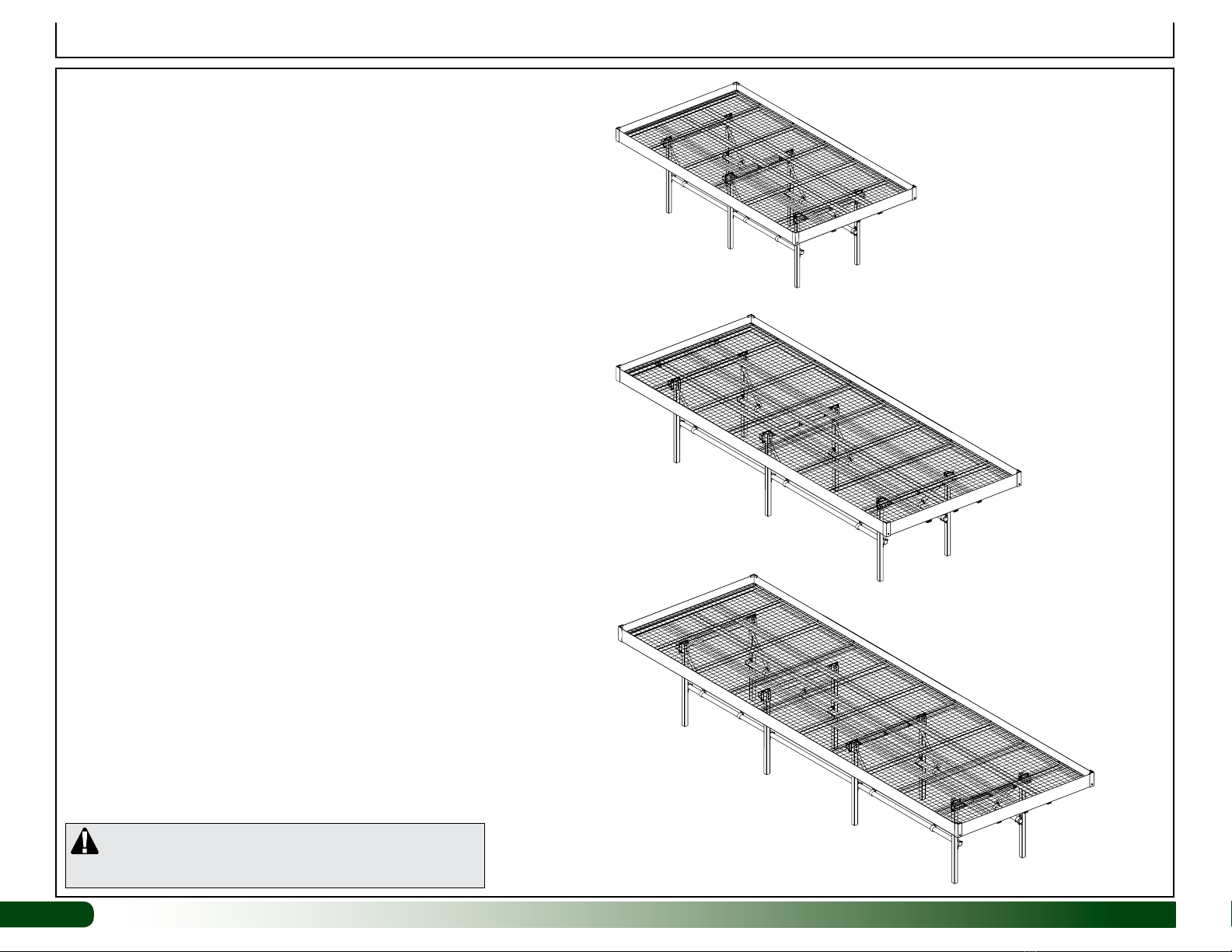

QUICK START GUIDE
For an overview of each bench length with
connection details, consult the Quick Start
Guide near the back of this guide.

3
Revision date: 08.26.15
Important Information

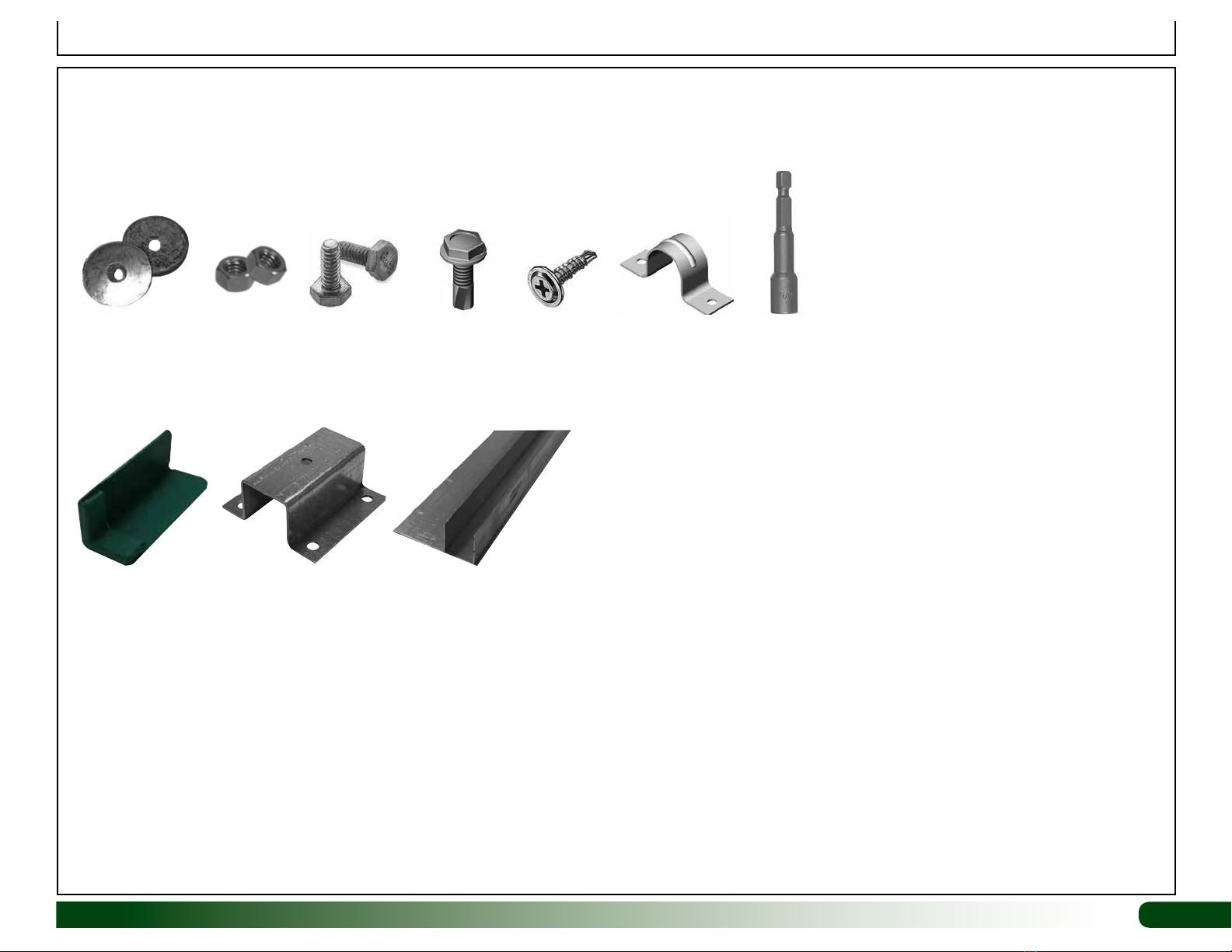

PICTORIAL GUIDE
The following graphics and photos will help identify the different parts of your bench. (Some parts may not be shown.)
FA4482B
Tek Screw
108553 Wafer
Head Screw
FAG102B
1/4" x 3/4" Bolt
FALB10B
1/4" Nut
102921B
Neo-Bonded
Washer
QH1070 Pipe
Strap
112391
112815 Poly Corners
for bench top.
112399Lxxxxxx
End and Side Rails
(Length depends on bench.)
100442 (1)
Nut Setter

4
4Revision date: 08.26.15
1
Assembly Instructions

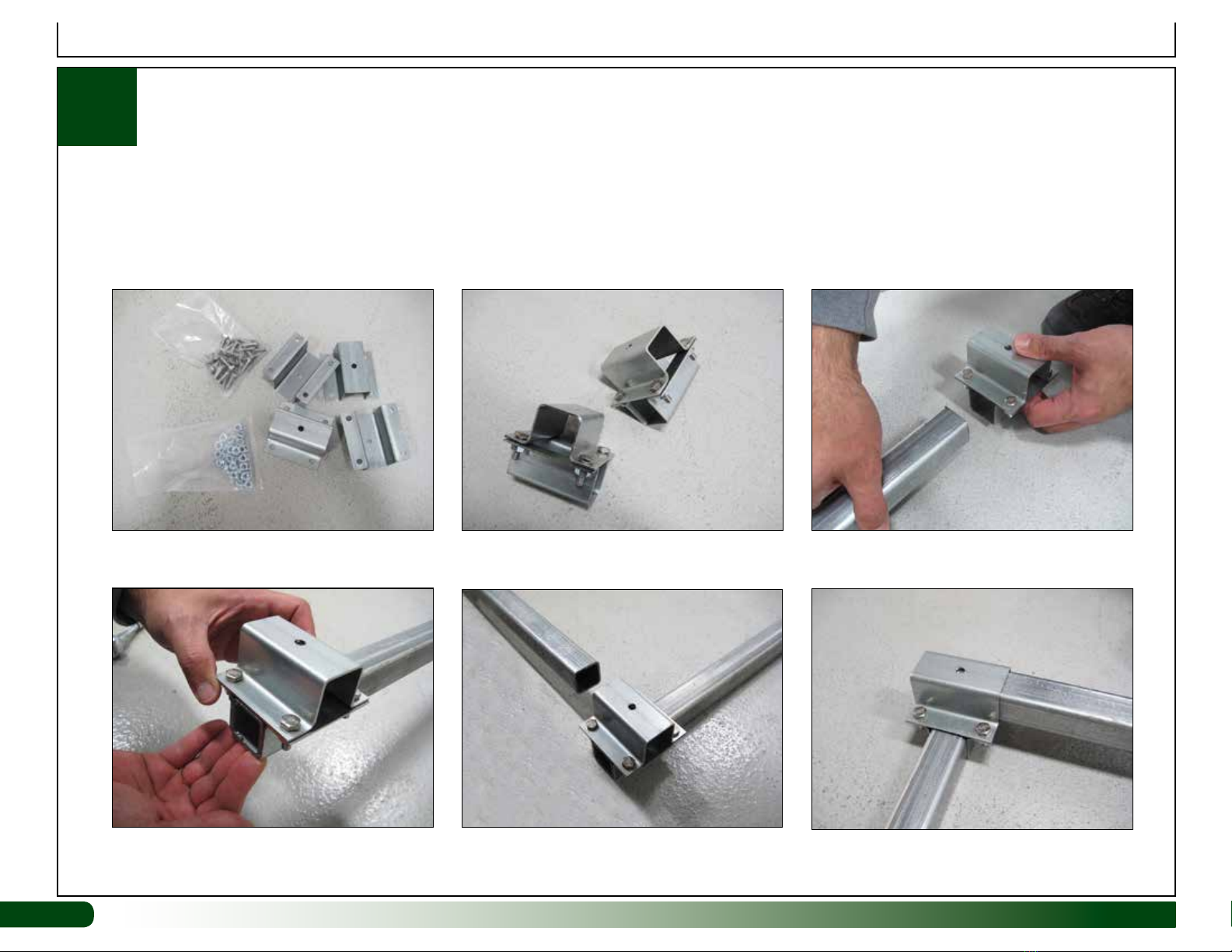

ASSEMBLE BENCH TOP SUPPORTS
Use the photos and information that follows to construct the bench top frame supports. The 12' bench has four (4) support assemblies. The 8' and
10' benches each have three (3) supports. Gather the parts required to complete one (1) support assembly:
• (2) S125P03175 square tube for legs
• (1) S125P057G14 square tube crossbar
• (4) 112391 four-bolt clamps
• (8) FAG102B (1/4" x 3/4" hex bolts)
• (8) FALB10B (1/4" nuts)
• (12) FA4482B Tek screws
1. Gather the parts. 2. Construct two bracket assemblies. Do not
tighten the bolts at this time.
3. Slide the assembly onto one S125P03175
square tube leg pipe.
4. Set assembly flush with the end of the
square tube.
5. Slide the S125P057G14 crossbar square
tube into the bracket assembly.
IMPORTANT: Set tubes flush with the
ends of the bracket assembly.

5
Revision date: 08.26.15
1
Assembly Instructions
6. Tighten 1/4" bolts. 7. Check square tube position.
9. Check assembly for square. 10. Secure bracket in place using two (2)
more Tek screws.
8. Install one FA4482B Tek screw in center.
11. Flip assembly over and repeat Steps 8-10
to secure remaining tube to brackets.
12. Repeat steps to install remaining bracket. 13. Assemble remaining bench top supports. NOTE: Photo shows assembled support.
The 12' bench has four
support assemblies. The 8'
and 10' benches each have
three supports.
S125P057G14

6
6Revision date: 08.26.15
Assembly Instructions
2
1. Measure 15-3/4" from the bottom of each leg
and mark the location on the inside edge.
4. Start drilling the mounting hole using an
FA4482B Tek screw if desired, or continue with
Step 5.
2. Have an assistant hold the assembly and
center the pipe strap at the mark. Position the
strap on the inside of the leg pipe. See photo
in Step 4 for location.
5. Secure pipe strap to the leg tube. Do not
overtighten. Doing so will strip threads.
3. Mark one hole position on the leg pipe.
6. Repeat steps to attach all remaining pipe
straps to the inside surface of the frame legs.

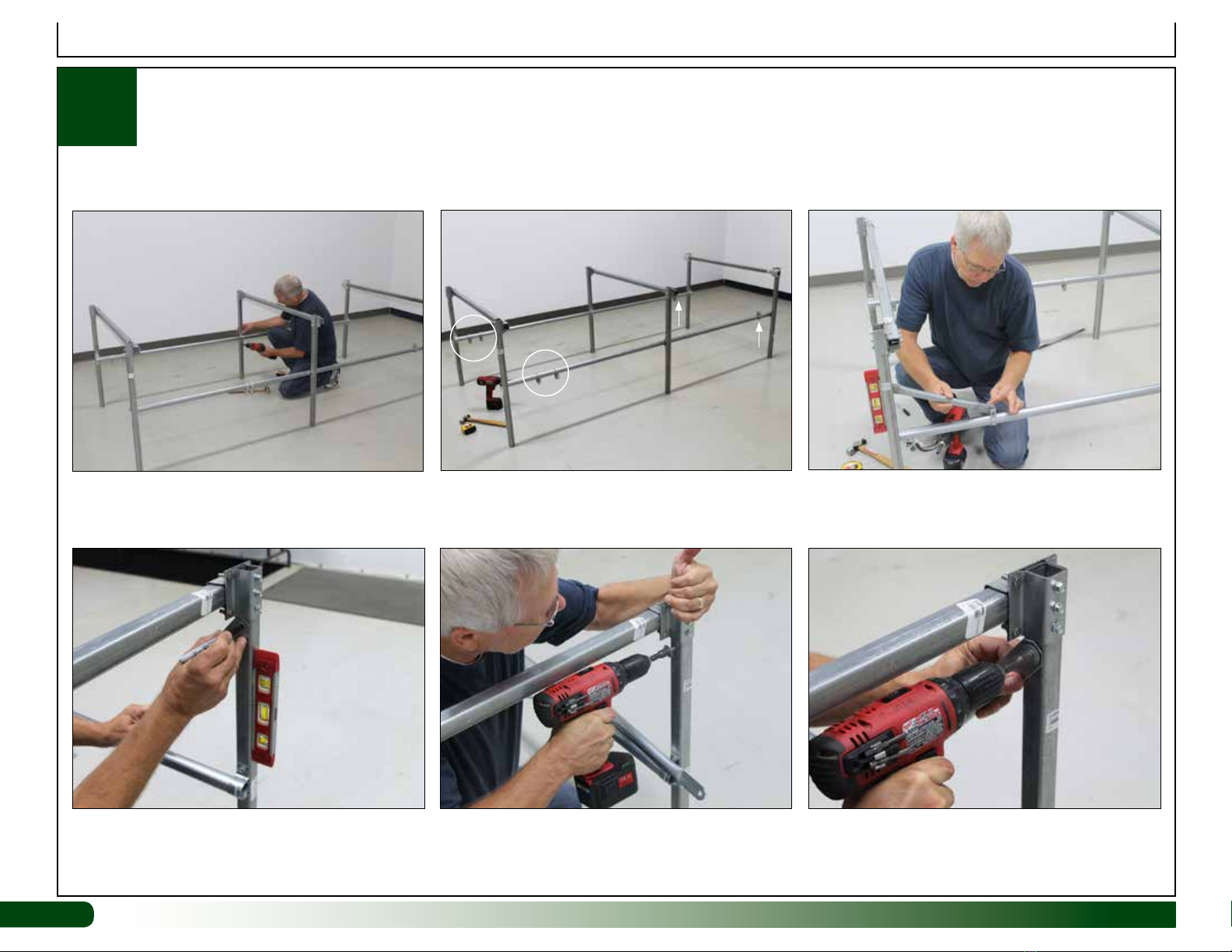

ATTACH PIPE STRAPS
Use the photos and information that follows to attach the QH1070 straps. Attach two QH1070 straps to each bench top support assembly.
QH1070

7
Revision date: 08.26.15
Assembly Instructions

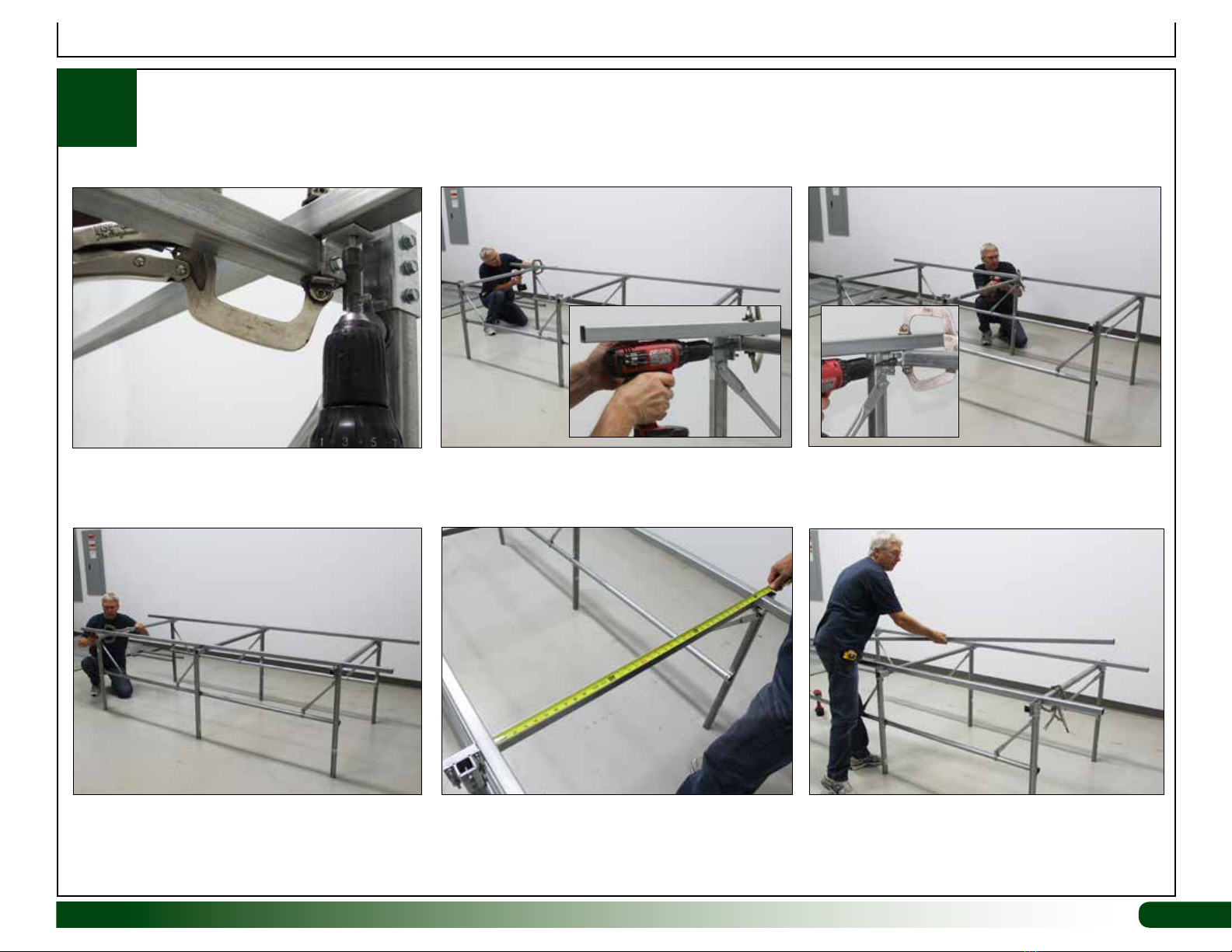

3ASSEMBLE SUPPORT FRAME FOR BENCH TOP
For best results, assemble the support frame on a flat, level surface. Gather the parts for the support frame:
1. Take the mid support assembly and insert the
round pipe into the pipe straps attached to the
inside of each vertical frame leg.
NOTE: The 12' frame has two mid supports.
2. At one end of the frame, slide two QH1400
band clamps onto each of the round pipes.
3. Slide the pipes into the end support assembly.
4. Tighten the mounting screws for each of the
pipe clamps. Do not overtighten! Screws
should be snug. Position pipes flush with the
outer edge of each QH1070 pipe strap.
5. Move to the opposite end and slide one band
clamp onto each round pipe. (Slide two clamps
onto each pipe for the 12' long frame.) Attach
the remaining end support to the pipes.
End Support Mid Support
• (6) ST01500D706G19 struts; eight (8) for the 12' bench.
• (6) QH1400 band clamps; eight (8) for the 12' bench.
• (2) 1.315" diameter round pipes. (See Quick Start diagrams for pipe length/ID.)
• FA4482B Tek screws and 102921B neo-bonded washers
6. Locate and mark the middle of each horizontal
pipe. Align mid support assembly with marks.
For the 12' long frame evenly space the two
mid supports between the end supports.

8
8Revision date: 08.26.15
Assembly Instructions
3ASSEMBLE SUPPORT FRAME FOR BENCH TOP—continued
7. Tighten the pipe strap mounting bolts of
the mid support. Tighten until snug. Do not
overtighten. Doing so will strip the threads.
10. Mark the mounting hole position on the inside
of the vertical frame leg.
8. Check that six (6) band clamps are in position
on the horizontal pipes–eight (8) for the 12'
long bench. See circled clamps above.
11. Start drilling the mounting hole using an
FA4482B Tek screw if desired, or skip to the
next step.
9. Take one strut and attach it to one band clamp.
12. Attach the strut to the tube using the Tek screw
and a 102921B neo-bonded washer.

9
Revision date: 08.26.15
Assembly Instructions
3ASSEMBLE SUPPORT FRAME FOR BENCH TOP—continued
13. Move to the lower strut connection and
reposition band clamp as needed.
16. Move to the mid support and check its position.
Attach the struts to secure that support in
place. Verify that legs are plumb.
17. Repeat for remaining mid support(s).
14. Using a level, verify that the support leg is
plumb/vertical. Adjust support assembly and
strut as needed and tighten band clamp bolt.
18. Move to the final end support assembly and
attach those struts. Verify that round pipe is
flush with the outside edge of pipe straps.
15. Repeat to attach the remaining strut for the
first end support assembly.
19. Return to each pipe strap and install an
FA4482B Tek screw through the strap and into
the pipe.
20. Continue with the next procedure.

10
10 Revision date: 08.26.15
INSTALL LONG BENCH TOP SUPPORT TUBES
Assembly Instructions
4
1. Set one long 1.25" x 1.25" square tube on the
crossbars tight against the brackets.
NOTE: See diagrams in the Quick Start
section near the back of this guide for pipe
identification for your bench.
4. Take a 112431 angle clip and place it in
position against the crossbar and under the
support.
2. Verify that the pipe extends an equal length
beyond crossbar at each end of the frame.
ATTENTION: Actual dimension depends on
the length of the bench. Measure distances
and length and adjust as needed.
5. Use a piece of tape (not included) to hold the
clip in place. To prevent injury, do not hold
with fingers when installing the Tek screw.
3. Clamp the tube to the crossbar. Verify that tube
is tight against the crossbar brackets.
Actual length may differ.
Measure and adjust as needed.
• (3) 1.25" x 1.25" square tubes (See Quick Start section for ID.)
• 112431 aluminum angle clips (Bench length determines quantity.)
6. Take a Tek screw and secure the clip to the
crossbar. Remove the tape.

11
Revision date: 08.26.15
INSTALL LONG BENCH TOP SUPPORT TUBES—CONTINUED
Assembly Instructions
4
10. Install the remaining outer bench top support
tube.
NOTE: Verify that each square tube is secured
to each crossbar of the frame.
8. Remove the clamp and move to the opposite
end of the frame and repeat the steps to install
that clip.
11. After installing the two outer tubes, measure
to find the center of each crossbar. Mark the
location.
9. Next, move to the mid support assembly and
install a clip at that location. (The 12' long
frame has two mid supports.)
12. Place the middle support in place on the
frame.
7. Take another Tek screw and secure the clip
to the long support tube. Tighten screw until
snug.

12
12 Revision date: 08.26.15
INSTALL LONG BENCH TOP SUPPORT TUBES—CONTINUED
Assembly Instructions
4
16. Move to the remaining end and the mid
support(s) and secure the tube to the
crossbar(s). (The 12' long bench has two (2)
mid supports.)
14. At one end, align the center of the tube with
the center mark made in Step 11 and clamp
the tube in place.
17. Check all support tubes to ensure each is
properly secured. Tubes should extend beyond
the crossbars equally at both ends.
15. Install angle clip and Tek screws to secure the
tube to the crossbar.
18. Install one 112675 end plug in each end of
each long support tube.
19. Continue with the assembly of the bench top.
13. Measure to center tube end-to-end.
NOTE: All tubes should extend equally past
the end crossbars.

13
Revision date: 08.26.15
5ASSEMBLE BENCH TOP
For best results, assemble the bench top frame with an assistant on a flat, level surface. Gather the parts for the support frame:
• (2) 112399L072375 frame end rails–short
• (2) 112399Lxxxxxx frame side rails–long
See Quick Start section for part numbers.
• 125P072G14 bench top supports
• (1) Expanded metal top
• FA4482B Tek screws
• 102921B Neo-bonded washers
1. Select the two end rails and two bench top
support tubes.
4. Position the end rails and marked side rails as
shown.
2. Carefully press one support tube into each of
the end rails and center the tube in the end
rail.
5. Take the remaining support tubes and place in
position as shown.
3. Move to the side rails and mark the on-center
locations of the support tubes for your bench.
Evenly space the remaining support tubes.
6. With assistance, carefully slide each end of
each tube into the side rail channels. Align
with the on-center marks.
Assembly Instructions

14
14 Revision date: 08.26.15
7. Move to the end rails and attach side rails as
shown. Position the channel edges of the side
rail on top of the upper and lower edges of the
end rail channel. See photo above.

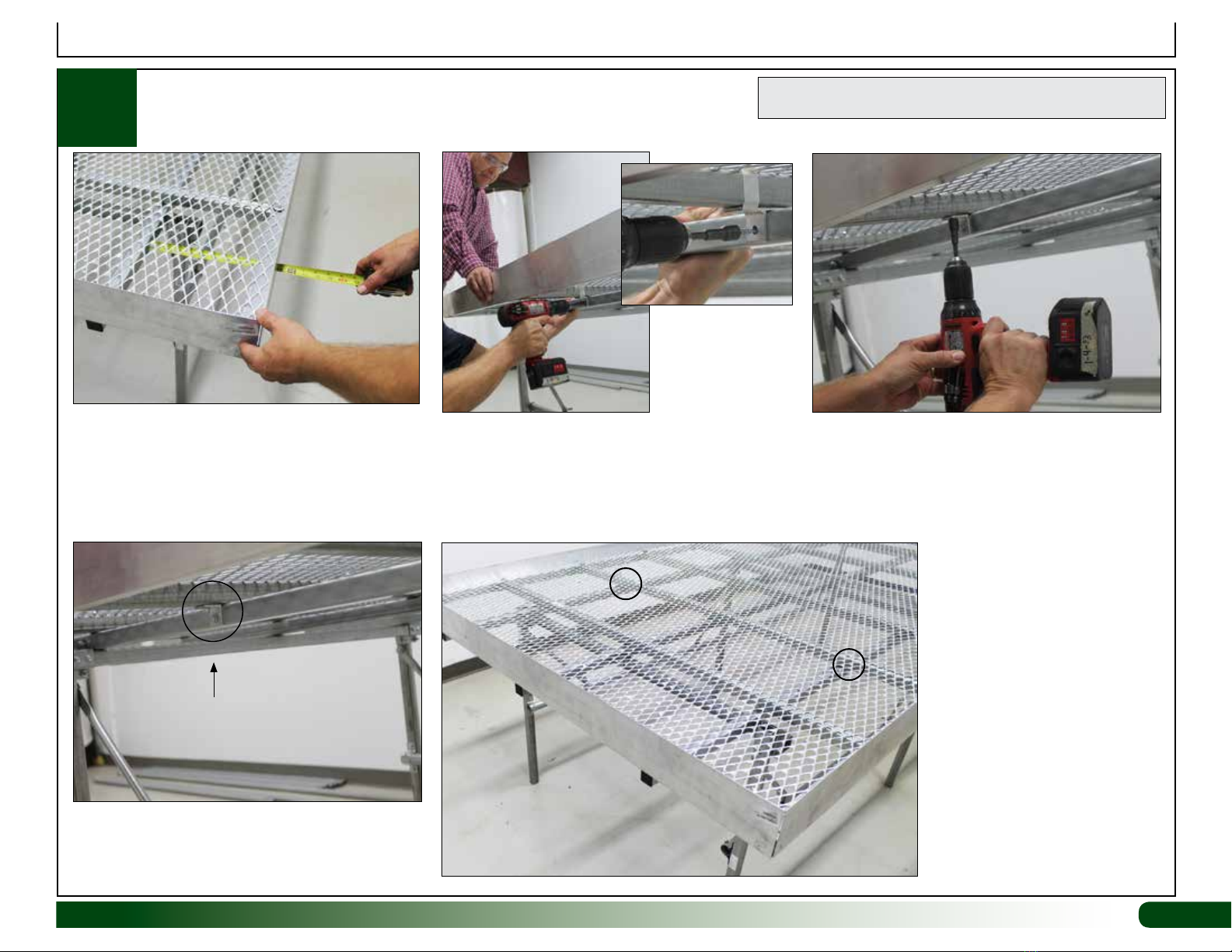

10. Move to the side rail, brace one side, and
gently tap the side rail at each support tube to
seat the tubes to the side rails.
8. With assistance, gently tap the rails to seat
the ends at the corner. Verify that the rails are
aligned as shown. Repeat at each corner.
11. Check the support tubes for square and verify
that each is aligned with the on-center marks
on each side rail. Do not install Tek screws at
this time.
9. Using a carpenter's square, square all corners.
Slide the entire frame assembly as needed to
square the frame.
NOTE: Sample frame is shown above. Size
and number of support tubes may differ
from your frame. See diagrams for your
frame near the back of this guide.
5ASSEMBLE BENCH TOP—continued
Assembly Instructions
Side Rail–Long
End Rail–Short
Side Rail–Long
End Rail–Short

15
Revision date: 08.26.15
5
Assembly Instructions
12. With assistance, carefully lift the expanded
metal top and carry it to the assembled frame.
CAUTION: Metal is sharp! Wear gloves to
protect hands.
14. Measure diagonally and adjust frame as
needed until dimensions are similar. Expanded
metal top will sit tight to the tops of frame rails.
13. Lower the expanded metal top into the frame.
Gently tap the frame rails as needed to allow
the top to drop into position. Do not force the
top into place or pound on the expaned metal.
15. Measure to find the center of each end rail and
mark the location.
NOTE: Use a block of wood or small hammer
if needed to lightly tap the frame rails apart to
allow the top to drop into place.
16. Take an FA4482B Tek screw and 102921B
neo-bonded washer and secure expanded
metal top to the end rail. Fastener should be
snug. Do not strip threads.
FA4482B
Tek Screw
102921B
Neo-Bonded
Washer
ATTENTION: Actual bench may differ from what is shown.
Consult the Quick Start Guide for your bench details.
ASSEMBLE BENCH TOP—continued

16
16 Revision date: 08.26.15
17. Continue to install Tek screws and washers
along the side rail at each support tube.
NOTE: Install screws in a position that best
secures both the expanded metal top and the
support tube to the side rails.
Photo shows a Tek screw and washer installed
through the side rail and into the support tube.
18. Move bench top and frame to the place where
final assembly can occur.
FA4482B
Tek Screw
102921B
Neo-Bonded
Washer
5
Assembly Instructions

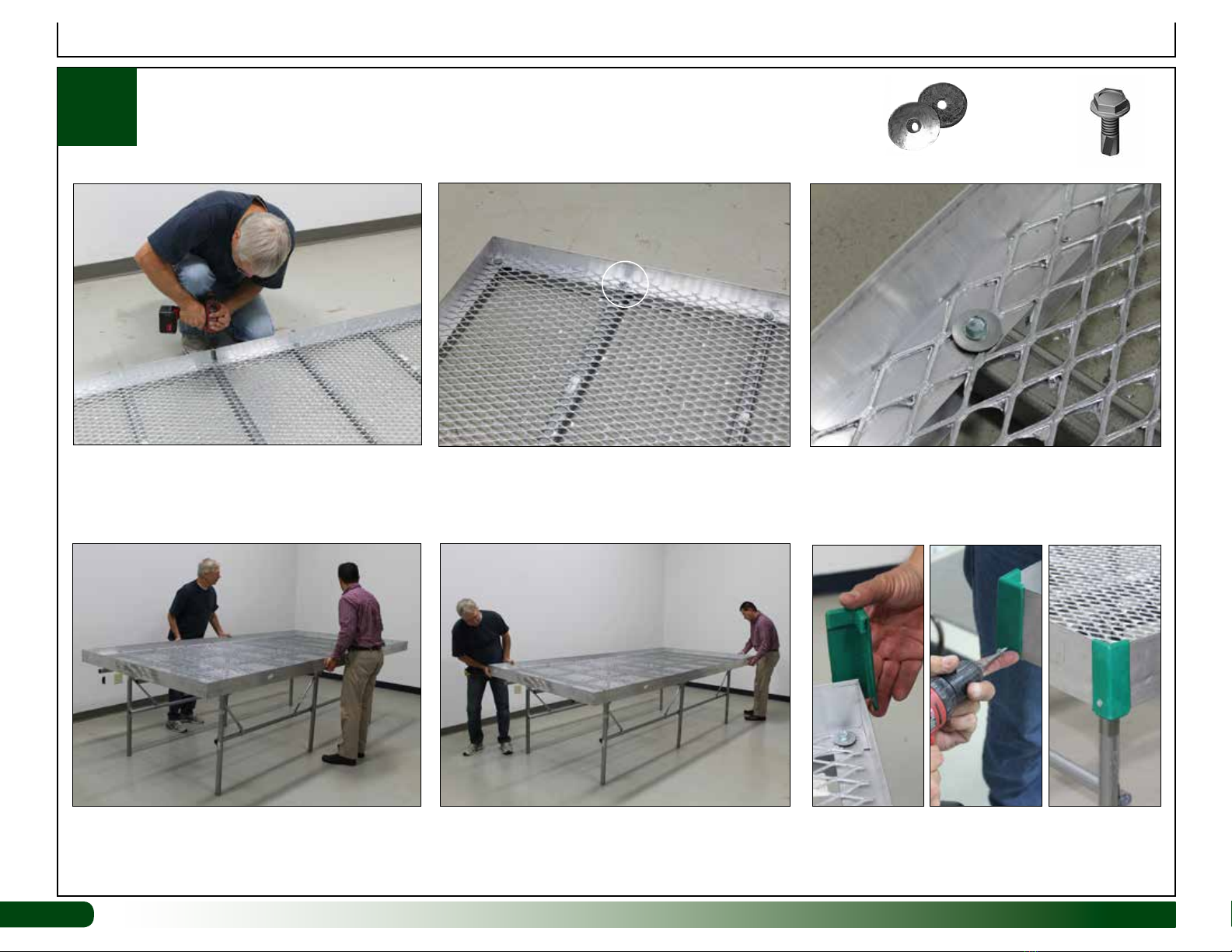

19. With assistance, carefully lift the assembled
bench top and set it in place on the support
frame. Frame is heavy!
20. Center bench top on support tubes with
each bench top side equal distance from the
support tube.
ASSEMBLE BENCH TOP—continued
21. Install 112815 poly corners using 108553
screws. Predrill holes through poly corners and
metal for best results using a 1/16" drill bit.

17
Revision date: 08.26.15
6SECURE TOP TO THE MAIN SUPPORT FRAME
Assembly Instructions
ATTENTION: Actual bench may differ from what is shown.
Consult the Quick Start Guide for your bench details.
1. Square the bench top on the support frame.
ATTENTION: Verify that each side is equal
distance from the 1.25" x 1.25" support tube.
Ends of top will rest on the ends of all long
support tubes.
4. Repeat Steps 2-3 to install a clip at each of the
remaining corners of the bench top to secure
top to the support tubes. See next photo for
location of clips.
2. Move to a bench top support closest to the
bench legs near one end and attach a 112431
clip to the outer support tube.
NOTE: Use a piece of tape to hold clip for
easier installation.
ATTENTION: Install a total
of four (4) clips to secure
the top. Actual location may
differ from what is shown.
Install two near each end on
the underside of the bench
top to secure top to the long
support tubes.
5. Inspect the bench to ensure
that all fasteners are installed
and tight.
6. Assembly is complete. Use
the bench.
3. Once the clip is attached to the support tube,
install another Tek screw to secure the clip to
the tube. Actual frame may differ slightly.
NOTE: Screw should be snug. Do not over-
tighten. Doing so can strip threads.
Install clips on
the underside of
the frame.

18 Revision date: 08.26.15
Quick Start Guide
6' x 8'
Premium Bench – Stationary Top
112416S6X08
6' x 10'
Premium Bench – Stationary Top
112416S6X10
6' x 12'
Premium Bench – Stationary Top
112416S6X12
WARNING: Evenly distribute weight when using
bench. Never stand on bench top or allow anyone
to stand on bench.

19
Revision date: 08.26.15
6' x 8' (112416S6X08) Premium Bench – Stationary Top
See next page for 6' x 8' bench top parts.
131P072
S125P057G14
112391
Bolt Clamp
AB
S125P03175
S125P096G14
112431
Angle Clip
B
FA4482B
Tek Screw
QH1070
Pipe Strap
A
FAG102B
Bolt
FALB10B
Nut
112391
Bolt
Clamp
S125P096G14
Diagram above shows the 112431 clip connection.
Actual frame may include additional square pipes.
QH1070
Pipe Strap

20 Revision date: 08.26.15
6' x 8' (112416S6X08) Bench Top – Exploded View
112399L096375
Side Rail
112399L072375
End Rail
Expanded Metal Top
S125P072G14
Support Tube
S125P072G14 Tube
112815 Poly
Bench Corner
108553
Waferhead
Screw
FA4482B Tek Screw
and 102921B Neo-
Bonded Washer
ATTENTION: Evenly space the S125P072G14
support tubes during assembly. Install one
support tube in the channel of each end rail.
See Procedure 5 for details.
FA4482B
Tek Screw
108553 Wafer
Head Screw
102921B
Neo-Bonded
Washer
6' x 8'
Bench Top
112416S6X08
S125P072G14 Tube
S125P072G14 Tube
