Federal Signal Corporation QL43 Quick guide

25500352
Rev. A2 0320
Printed in U.S.A.
© Copyright 2019-2020 Federal Signal Corporation
QuadraFlare
®
Installation and
Service Instructions
Para ver este manual en
español, visite www.fedsig.com

Limited Warranty
This product is subject to and covered by a limited warranty,
a copy of which can be found at www.fedsig.com/SSG-Warranty.
A copy of this limited warranty can also be obtained by written
request to Federal Signal Corporation, 2645 Federal Signal Drive,
University Park, IL 60484, email to [email protected] or
call [phone].
This limited warranty is in lieu of all other warranties, express or
implied, contractual or statutory, including, but not limited to the
warranty of merchantability, warranty of tness for a particular
purpose and any warranty against failure of its essential purpose.
2645 Federal Signal Drive
University Park, Illinois 60484
www.fedsig.com
Customer Support
Police/Fire-EMS: 800-264-3578 • [phone]
Work Truck: 800-824-0254 • [phone]
Technical Support 800-433-9132 • [phone]
All trademarks are property of their respective owners.

3
Installation and Service Instructions
Federal Signal www.fedsig.
Figures
Figure 1 Exploded Assembly View ...............................................11
Figure 2 Mounting Hole Locations.................................................12
Figure 3 QL64 Base.........................................................................13
Tables
Table 1 Table 1 Kit Contents List ....................................................5
Table 2 Hole Patterns .......................................................................7
Table 3 QuadraFlare Models.......................................................... 11
Table 4 Table 2 Replacement Parts...............................................15
Contents
Safety Message to Installers ............................................................4
Overview of the QuadraFlare............................................................5
Unpacking the QuadraFlare..............................................................5
Kit Contents List................................................................................5
Installing the QuadraFlare ................................................................6
Wiring the QuadraFlare...................................................................10
Selecting a Flash Pattern................................................................10
Safety Message to Operators.........................................................12
Cleaning the QuadraFlare...............................................................13
Getting Technical Support and Service.........................................14
Getting Repair Service....................................................................14
Ordering Replacement Parts..........................................................15
Replacement Parts ..........................................................................15

4
Safety Message to Installers
QuadraFlare®
Federal Signal www.fedsig.com
Safety Message to Installers
People’s lives depend on your proper installation of our
products. It is important to read, understand and follow all
instructions shipped with the products. Listed below are some
other important safety instructions and precautions you should
follow:
• To properly install this light, you must have a good
understanding of automotive electrical procedures and
systems, along with proficiency in the installation and use of
safety warning equipment.
• DO NOT install equipment or route wiring or cord in the
deployment path of an airbag.
• If a vehicle seat is temporarily removed, verify with the
vehicle manufacturer if the seat needs to be recalibrated for
proper airbag deployment.
• When drilling into a vehicle structure, be sure that both sides
of the surface are clear of anything that could be damaged.
• Locate the light control so the VEHICLE and CONTROL can
be operated safely under all driving conditions.
• Do not attempt to activate or deactivate light control while
driving in a hazardous situation.
• This product contains high intensity LED devices. To prevent
eye damage, DO NOT stare into the light beam at close
range.
• Frequently inspect the light to ensure that it is operating
properly and that it is securely attached to the vehicle.
• File these instructions in a safe place and refer to them when
maintaining and/or reinstalling the product.
Failure to follow all safety precautions and instructions may
result in property damage, serious injury, or death to you or
others.

5
Kit Contents List
Installation and Service Instructions
Federal Signal www.fedsig.
Overview of the QuadraFlare
The Federal Signal QuadraFlare Warning Light is a self-
contained, high intensity, LED light designed for mounting to
the exterior of a vehicle. All models are available in a variety of
colors and have an internal flasher. The internal flasher has 26
selectable flash patterns. All units are designed to work with
Federal Signal flashers. However, before they can operate with
a Federal Signal flasher, put internal flashers into pattern 20 or
21. Refer to the particular flasher instructions for proper wiring.
Additionally, all units have a Dim Mode (low power) that allows
the user to reduce the light brightness for nighttime use. The
QuadraFlare Warning Light is designed for operation on 12 Vdc
at 2.0A. The models can have one side switched o while the
opposite side continues to operate.
NOTE: All units should NOT be considered for steady burn
applications.
Unpacking the QuadraFlare
After unpacking the light, inspect it for damage that may have
occurred in transit. If the unit has been damaged, file a claim
immediately with the carrier, stating the extent of damage.
Carefully check all envelopes, shipping labels, and tags before
removing or destroying them. If installing a permanent mounted
beacon, ensure that the parts listed in Table 1 are included in the
package.
Kit Contents List
Table 1 Kit Contents List
Qty. Description Part No.
4 #6 x 2-inch Stainless Steel Screw 7000A404-32
4 #6-32 Rubber Rivet Nut 70900417

6
Installing the QuadraFlare
QuadraFlare®
Federal Signal www.fedsig.com
Installing the QuadraFlare
INSTALL IN RECOMMENDED AREAS: When installing equipment
inside airbag equipped vehicles, the installer MUST ensure that
the equipment is installed ONLY in areas recommended by the
vehicle manufacturer.
Failure to observe this warning reduces the eectiveness of the
airbag, damage the airbag, or potentially damage or dislodge the
equipment, causing serious injury or death to you or others.
AIRBAG DEPLOYMENT: Do not install equipment or route wiring
in the deployment path of an airbag. Failure to observe this
warning will reduce the eectiveness of the airbag or potentially
dislodge the equipment, causing serious injury or death.
NOTE: For maximum coverage and eectiveness, mount the
light assembly in a horizontal orientation. See Figure1.
Before proceeding with installation, determine the approximate
location of the light assembly and plan all cable/wire routing.
To install the QuadraFlare:
1. Position the QuadraFlare Warning Light assembly on the
desired mounting surface. Ensure that the unit is level side
to side. Using the dimensions provided in Figure1, scribe
the four mounting hole locations and a wiring routing hole
location on the mounting surface.

7
Installing the QuadraFlare
Installation and Service Instructions
Federal Signal www.fedsig.
Figure 1 Mounting hole locations
290A5511-02
Ø 0.25" (4) PLCS
Ø 1.00"
B/2 (2X)
B (2X)
A
A/2 (2X)
Table 2 Hole Patterns
Nominal size A A/2 B B/2
4 x 3 4.200 2.100 2.375 1.188
6 x 4 5.750 2.875 3.250 1.625
7 x 3 6.562 3.281 2.375 1.188
9 x 7 7.250 3.625 5.250 2.625
DAMAGE TO LIGHT: When installing the QuadraFlare light on a
vehicle, you MUST use the manufacturer’s supplied screws and
screw grommets. Do not use an impact drill or an electric screw
gun when installing the light. Torque the mounting screws to
the manufacturer’s recommended specication of 12 in-lb +/-10
percent.

8
Installing the QuadraFlare
QuadraFlare®
Federal Signal www.fedsig.com
Failure to observe these precautions damages the light and void
any warranty claims for the light.
DRILLING PRECAUTIONS: When drilling holes, check the area
you are drilling into to ensure that you do not damage vehicle
components while drilling. All drilled holes should be de-burred,
and all sharp edges should be smoothed. All wire routings going
through drilled holes should be protected by a grommet or
convolute/split loom tubing.
2. Drill four 1/4-inch mounting holes and a one-inch wire routing
hole at the previously scribed locations.
3. Install the four supplied rubber rivet nuts into the four
1/4-inch mounting holes.
NOTE: When removing the QuadraFlare Warning Lights, inspect
the mounting grommets for wear and replace them as needed.
4. The QuadraFlare Warning Light assembly has five 12-inch
long lead wires, which exit out the back of the unit, for
making electrical connections.
5. Complete the electrical connections as described in the
Electrical Connections section.
6. Align the QuadraFlare Warning Light assembly with the
previously inserted rubber rivet nuts and secure with the
provided #6 by 2-inch screws. See FIgure 2.

9
Installing the QuadraFlare
Installation and Service Instructions
Federal Signal www.fedsig.

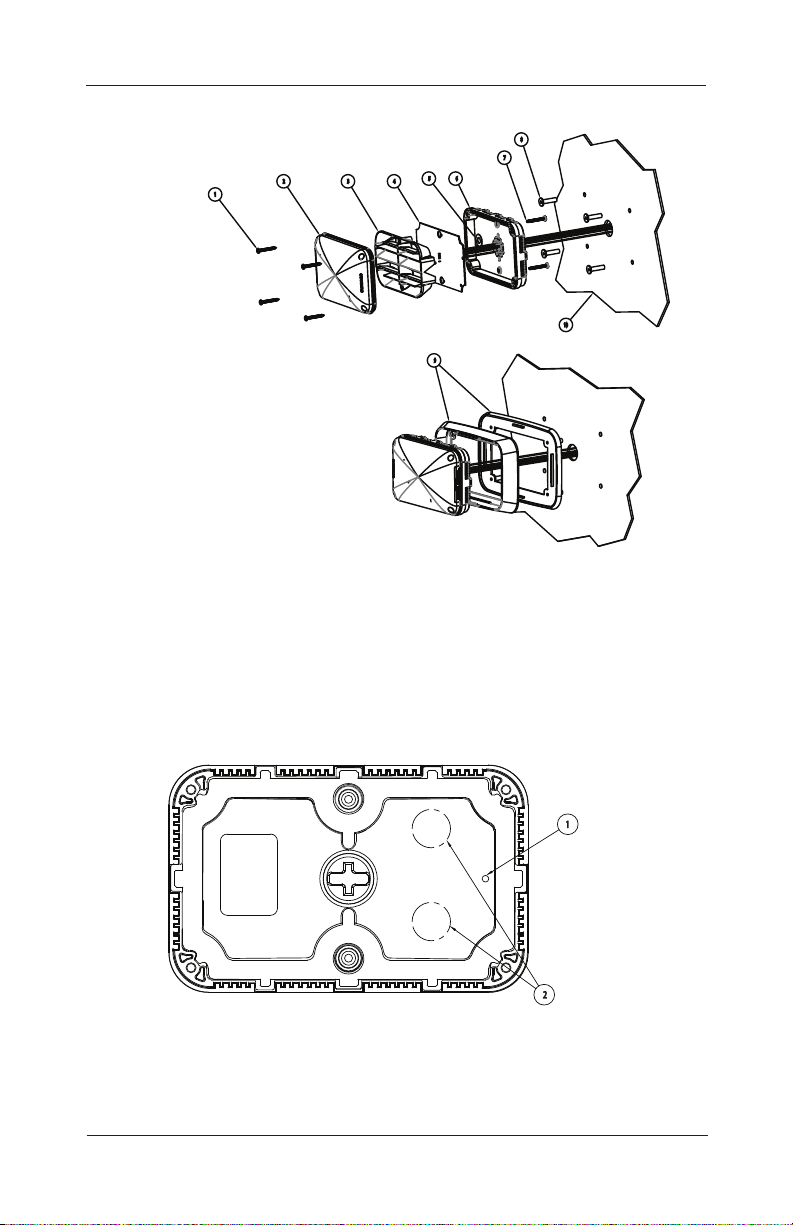

Figure 2 Exploded Assembly View
9
1
2 3 4
10
8
7
5 6
Legend
1. Mounting Screw
2. Lens
3. Reflector
4. LED PC Board Assembly
5. Vent
6. Base
7. Assembly Screws (4)
8. Screw Grommet
9. Bezel w/ Gasket (Optional)
10. Vehicle Body
NOTE: QuadraFlare models have identifiable color-coded
sticker dots on the back of the light assembly. The color-coded
sticker dots correspond to the LED color on the PC board. Note
these dots prior to any final assembly mounting to obtain proper
light assembly orientation. See FIgure 3.
Figure 3 QL64 Base
1
2
Legend
1. Vent Hole
2. 3/4-inch Color Coded Sticker Dots
to be Applied to Identify the
Corresponding PC Board
Assembly LED Color on Each
Side

10
Selecting a Flash Pattern
QuadraFlare®
Federal Signal www.fedsig.com
Looking at the back of the unit with the vent hole on your
right, the top of the light is controlled with the red wire and the
bottom is controlled with the white wire. See Figure 3. If the light
has one side with red LEDs, the red wire controls that side and
the white controls the other side (amber, blue, white, green, or
red).
Wiring the QuadraFlare
The Model QuadraFlare Warning Light assembly operates on
12 Vdc. Five 12-inch long lead wires are supplied for making
electrical connections to the QuadraFlare Warning Light
assembly. Ensure that all wires are properly connected and
insulated appropriately.
To make electrical connections:
1. Using 18 AWG (minimum) wire, connect the red (+) lead to
the positive power source terminal and the black (–) lead to
the negative power source terminal.
2. On the QuadraFlare, connect the white (+) lead to the same
positive power source terminal as the red (+) lead to operate
or switch to power up independently of each other.
3. On all models, the violet wire (low power, dimming) is
connected to +12 V power source. Removing the power
restores the unit back to full power.
4. Apply power and test the QuadraFlare Warning Light
assembly for proper operation.
Selecting a Flash Pattern
The QuadraFlare has 26 selectable flash patterns with Pattern 1
as the default. See Table 2 for a description of each pattern and
the order in which it is stored in memory.
To select flash patterns:
1. Remove and retain the four #6 by 2-inch. mounting screws.
2. Apply power to the light.
