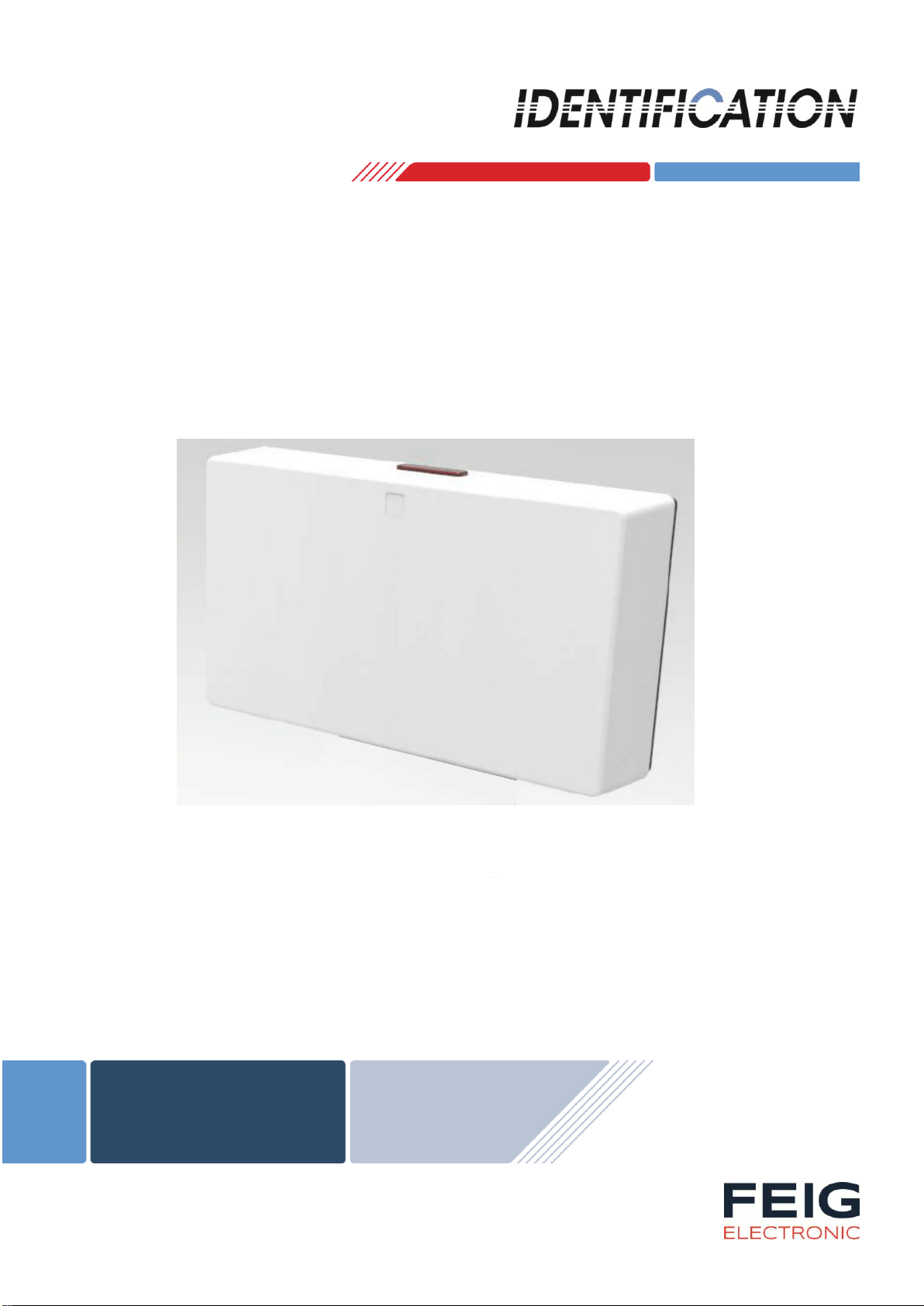

Feig Electronic ID ISC.ANT.U500/270-DM User manual

MANUAL
final –public (B)
2018-09-18 –H71011-0e-ID-B.docx
ID ISC.ANT.U500/270-DM (EU: 4923.000; FCC: 4922.000)
UHF DM (Direction Detection)

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 2 of 117
H71011-0e-ID-B.docx
Note
Copyright 2018 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With this edition of the document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 3 of 117
H71011-0e-ID-B.docx
General information's regarding this document
The sign "" indicates extensions or changes of this manual compared with the former issue.
If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or
for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this
may cause faulty operation of the reader.
The following figure formats are used:
0...9: for decimal figures
0x00...0xFF: for hexadecimal figures,
b0...1 for binary figures.
The hexadecimal value in brackets "[ ]" marks a control byte (command).

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 4 of 117
H71011-0e-ID-B.docx
Contents
1. Safety Instructions / Warning - Read before start-up ! 7
2. Revision History of Document 8
3. Abbreviations 9
4. Introduction 10
4.1. The UHF Gate ID ISC.ANT.U500/270 - DM .....................................................................10
5. Data Transmission between ID ISC.ANT.U500/270-DM and Host 11
5.1. Configuration Commands and Control Commands...................................................... 12
5.2. Buffered Read Mode........................................................................................................ 13
5.3. Notification Mode ............................................................................................................ 14
6. Interface 15
6.1. Characteristics of TCP/IP protocol................................................................................. 16
6.2. Serial Data Format and Protocol Frames....................................................................... 17
6.3. CRC16 Calculation Algorithm......................................................................................... 20
7. Configuration Parameters 21
7.1. CFG0: Passwords............................................................................................................ 23
7.2. CFG1: Interface and Mode .............................................................................................. 25
7.3. CFG2: Inputs / Outputs ...................................................................................................27
7.4. CFG3: RF-Interface.......................................................................................................... 29
7.5. CFG4 .. 5: Not used .........................................................................................................36
7.6. CFG6 .. 7: Reserved.........................................................................................................37
7.7. CFG8: Read Mode –Miscellaneous Settings................................................................. 38
7.8. CFG10: Trigger ................................................................................................................ 39

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 5 of 117
H71011-0e-ID-B.docx
7.9. CFG11: Read Mode –Read Data .................................................................................... 42
7.10. CFG12 .. 13: Not used.................................................................................................... 47
7.11. CFG14: Reserved...........................................................................................................48
7.12. CFG15 .. 16: Not used.................................................................................................... 49
7.13. CFG17 .. 20: Reserved................................................................................................... 50
7.14. CFG21 .. 27: Reserved................................................................................................... 51
7.15. CFG28 .. 32: Reserved................................................................................................... 52
7.16. CFG33 .. 34: LAN-Hostname.........................................................................................53
7.17. CFG35 .. 39: Reserved................................................................................................... 54
7.18. CFG40: LAN Settings, Part 1......................................................................................... 55
7.19. CFG41: LAN Settings, Part 2......................................................................................... 56
7.20. CFG47: Summer Winter Time ....................................................................................... 58
7.21. CFG49: Notification Channel........................................................................................ 61
7.22. CFG63: Customer Parameter........................................................................................63
8. Protocols for Reader Configuration 64
8.1. [0x87] Set System Time and Date...................................................................................65
8.2. [0x88] Get System Time and Date .................................................................................. 66
8.3. [0x80] Read Configuration.............................................................................................. 67
8.4. [0x81] Write Configuration.............................................................................................. 68
8.5. [0x83] Reset Configuration............................................................................................. 69
9. Protocols for Reader Control 70
9.1. [0x63] RF Controller Reset..............................................................................................70
9.2. [0x64] System Reset........................................................................................................71
9.3. [0x66] Get Reader Info.....................................................................................................72
9.4. [0x6A] RF Output ON/OFF...............................................................................................82

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 6 of 117
H71011-0e-ID-B.docx
9.5. [0x6E] Reader Diagnostic ...............................................................................................83
9.6. [0x72] Set Output.............................................................................................................87
9.7. [0x74] Get Input ...............................................................................................................90
9.8. [0x8D] Lock Region......................................................................................................... 91
9.9. [0xA0] Reader-Login .......................................................................................................92
10. Reader Protocols for Peripheral Devices 93
10.1. [0x9F] Piggyback Command for Peripheral Devices................................................... 94
11. UPC Commands (Packed in Piggyback protocol frame) 96
11.1. [0x63] UPC Reset........................................................................................................... 96
11.2. [0x66] Get UPC Info....................................................................................................... 97
11.3. [0x6E] UPC Diagnostic................................................................................................ 101
11.4. [0x72] Set UPC output................................................................................................. 102
12. Protocols for Buffered Read Mode and Notification Mode 104
12.1. The Buffered Read Mode Procedure.......................................................................... 104
12.2. The Notification Mode Procedure............................................................................... 105
12.3. Transponder Access in the Buffered Read Mode and Notification Mode................ 106
12.4. [0x22] Read Buffer....................................................................................................... 107
12.5. [0x31] Read Data Buffer Info....................................................................................... 112
12.6. [0x32] Clear Data Buffer.............................................................................................. 113
12.7. [0x33] Initialize Buffer.................................................................................................. 114
ANNEX 115
ANNEX A: Codes of Transponder Types............................................................................ 115
ANNEX C: Index of Status Bytes......................................................................................... 116

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 7 of 117
H71011-0e-ID-B.docx
1.
Safety Instructions / Warning - Read before start-up !
The device may only be used for the intended purpose designed by for the manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
When working on devices the valid safety regulations must be observed.
Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in
an immediate proximity of the device respective the antenna for some time.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 8 of 117
H71011-0e-ID-B.docx
2.
Revision History of Document
Revision
Date
Page
Description
0e
2017-10-20
Initial version

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 9 of 117
H71011-0e-ID-B.docx
3.
Abbreviations
ADR
Address
ASK
Amplitude Shift Keying
CB
Config Block
CFG
Configuration Parameter Block
CRC
Cyclic Redundancy Check
DB
Data Block
DIP
Dual Inline Plastic
DRM
Dense Reader Mode
FIFO
First in First out
frq
Frequency
FSK
Frequency Shift Keying
h
Hour
Hz
Hertz
ID
Identification
IDD
Identifier Data
IN
Input
LEN
Length
LOC
Location
LSB
Least Significant Byte
min
Minutes
ms
Milliseconds
MSB
Most Significant Byte
N
Number
OUT
Output
R/W
Read / Write Access
RD
Read
REL
Relay
RF
Radio Frequency
RSSI
Received Signal Strength Indicator
RTC
Real Time Clock
TAB
Table
TR
Transponder
TS
Timeslot
UID
Unique Identifier (read only Serial Number)
WO
Write Only Access
WR
Write

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 10 of 117
H71011-0e-ID-B.docx
4.
Introduction
4.1.
The UHF Gate ID ISC.ANT.U500/270 - DM
The ID ISC.ANT.U500/270 –DM contains the ID ISC.LRU1002 Long Range Reader. The ID
ISC.ANT.U500/270 –DM is a combined reader/ antenna UHF RFID system. The ID
ISC.ANT.U500/270 –DM is able to detect the moving direction of a transponder. In comparison to
the ID ISC.LRU1002 the ID ISC.ANT.U500/270 - DM has a total different firmware. On the one
hand the ID ISC.ANT.U500/270 - DM has some new features which are not supported by the cur-
rent ID ISC.LRU1002, on the other hand the ISC.ANT.U500/270 - DM does not support all features
of the ID ISC.LRU1002. Therefore the system does not support all register settings which are
known from the ID ISC.LRU1002. The new register settings of the ID ISC.ANT.U500/270 - DM can
be found in Configuration 8.
The base set of commands and features are compatible with the commands used throughout the
product line. The configuration possibilities of the ISC.ANT.U500/270 - DM make it easy to adapt
the reader to a wide range of applications by software and hardware configurations.
The reader has two hardware interface ports: Ethernet and USB.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 11 of 117
H71011-0e-ID-B.docx
5.
Data Transmission between ID ISC.ANT.U500/270-DM and Host
Four different ways of data transmission between ®Readers and host (terminal, PC) are possible.
The, Buffered Read Mode and Notification Mode are used for the data exchange between Tran-
sponder and host, whereas the Configuration Commands and the Reader Control Commands
serves for adapting the Reader parameters to the individual range of applications. The following
chart shows which method of data transmission is supported by which interface:
Interface
USB
LAN
Configuration Commands


Reader Control Commands


Buffered Read Mode


Notification Mode
-


UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 12 of 117
H71011-0e-ID-B.docx
5.1.
Configuration Commands and Control Commands
This method of data transmission is used for Reader configuration and the diagnosis via the differ-
ent Hardware Interfaces of the Reader.
The Reader-configuration parameters will be stored in the Reader memory. To store the current
configuration during a power down of the Reader the Reader-Configuration has to be stored in the
EEPROM. After power up the Reader reads the configuration out of the EEPROM.
The Reader control is immediately processed and the response from the Reader contains status or
data information of the control command.
Host (Terminal / PC / ....)
Reader
parameter- / control command

parameter received and stored / control
command processed
yes
no

status /
data
error status


UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 13 of 117
H71011-0e-ID-B.docx
5.2.
Buffered Read Mode
The Buffered Read Mode is a high level operating mode to detect Transponders which are within
the detection range of the Reader. This operation mode processes all Transponder read data and
filter operations to make the user interface transparent to Transponder data and to minimize data
transfers between Reader and host. There are only three commands used to control Buffered
Read Mode.
In this operating mode the Reader automatically selects Transponders which are within the detec-
tion range of the Reader and reads their requested data. The read Transponder data is stored in a
‘FIFO’ organized data buffer.
The sampled Transponder data can be read with the 12.4. [0x22] Read Buffer command. This
command always reads the first available data sets from the data buffer. However data already
read have to be deleted with the 12.6. [0x32] Clear Data Buffer command before the next data sets
in the data buffer can be reached with the read command.
If the Buffered Read Mode is enabled in the 7.2. CFG1: Interface and Mode configuration block the
Reader immediately starts sampling Transponder data after power up. The Buffered Read Mode
can be reinitialized with the 12.7. [0x33] Initialize Buffer command.
If turned to Buffered Read Mode the Reader answers every valid message with data- or status-
protocol. The answer includes the control byte which has been received by the Reader.
Host (Terminal / PC / ....)
Reader
read data

Transponder data in data buffer?
Yes
No

status /
data protocol
status = no valid
data

clear data

Transponder data read?
Yes
No

OK status
status = no valid
data

NOTE:
Only read operations are available with the Buffered Read Mode.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 14 of 117
H71011-0e-ID-B.docx
5.3.
Notification Mode
The Notification Mode is an extended option of the Buffered Read Mode: queued Transponder
data and optionally Input / Status events are notified automatically and asynchronously to a host
with the 12. Protocols for Buffered Read Mode and Notification Mode response protocol. The des-
tination address and the notification conditions can be set in 7.21. CFG49: Notification Channel
configuration block. In general, the notification channel can be used simultaneously with the host
interface.
In difference to the Buffered Read Mode procedure, a notification is normally not acknowledged by
the host. Thus, the deletion of the transferred data with the 12.6. [0x32] Clear Data Buffer com-
mand is not necessary. As an option, the acknowledgement can be enabled to synchronize the
notifications with the host to prevent notification overflow in the host application.
The notification message format depends and settings for the read mode in 7.9. CFG11: Read
Mode –Read Data as well as settings for the notification trigger in7.21. CFG49: Notification Chan-
nel.
An additional option of the Notification Mode is the Keepalive message, which can be sent periodi-
cally to the host. The Keepalive message transports valuable information about the reader hard-
ware and antenna tuning status. Keepalive messages are always never acknowledged by the host.
The Keepalive message should not be mistaken with the keepalive option of a LAN connection
initiated by a host.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 15 of 117
H71011-0e-ID-B.docx
6.
Interface
The ID ISC.ANT.U500/270-DM has 2 interface ports. The protocol frame of these ports can be
different. On the whole protocol frame is described in 6.2. Serial Data Format and Protocol Fra-
mes. The TCP/IP protocol frame is described below.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 16 of 117
H71011-0e-ID-B.docx
6.1.
Characteristics of TCP/IP protocol
If the Reader uses the LAN interface the data is packaged in TCP/IP protocol frames. This means
the whole data format and protocol frame which is described in 6.2. Serial Data Format and Proto-
col Frames is packaged as the data of TCP/IP protocol frames.
If you use the TCP/IP protocol please be aware that the data packaged in the TCP/IP frame is
transferred with Protocol frame: Advanced Protocol-Length as describe below.
The LAN socket on the reader side uses the keepalive option for detecting interrupted connec-
tions. The default parameters for keepalive are initialized as listed in the table:
Parameter
Value
Note
idle time
5 seconds
The reader sends every 5 seconds a keepalive probe which has to be
acknowledged by the client
repeat count
2
If a keepalive probe is not acknowledged, the reader repeats the
probe only two times with an interval of 5 seconds.
interval
5 second
If the 15 second time span is expired and no keepalive probe response is obtained from the client
the connection is closed and the client application must enable a new connection. The keepalive
parameters can be modified in the configuration pages for LAN. This keepalive option should not
be mistake with the Keepalive message for notification mode.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 17 of 117
H71011-0e-ID-B.docx
6.2.
Serial Data Format and Protocol Frames
The ID ISC.ANT.U500/270-DM can be configured by different interfaces and data may be written
on Transponders or read from Transponders. The communication between Reader and connected
host (terminal, PC, etc.) is executed by means of fixed protocols. The used protocol is intended for
data bus use and is equipped with a bus address.
During data transfer via the asynchronous interface the Reader supplies the required data or a
status byte. The reply contains the transmitted control byte.
There is no reply from the Reader if there is a protocol frame failure.

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 18 of 117
H71011-0e-ID-B.docx
Protocol frame: Advanced Protocol-Length
Reader Host
1
2
3
4
5
(6...n-2)
STX
(0x02)
MSB
ALENGTH
LSB
ALENGTH
COM-ADR
CONTROL-
BYTE
(DATA)

n-1
n

LSB
CRC16
MSB
CRC16
Host Reader
1
2
3
4
5
6
(7...n-2)
STX
(0x02)
MSB
ALENGTH
LSB
ALENGTH
COM-ADR
CONTROL-
BYTE
STATUS1
(DATA)

n-1
n

LSB
CRC16
MSB
CRC16
NOTE:
The Reader supports the advanced protocol frame only.
STX: The STX sign (0x02) defines that the protocol can be more than 255 Byte. The
protocol length is defined by the 2 Byte Parameter ALENGTH.
ALENGTH (n = 8...65535):
Number of protocol bytes including STX, ALENGTH and CRC16
COM-ADR:
The device bus address has to be 0 or 255
1
see ANNEX C: Index of Status Bytes

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 19 of 117
H71011-0e-ID-B.docx
CONTROL-BYTE:
Defines the command which the Reader should operate.
STATUS:
Includes the status message or protocol data from or to the Reader.
DATA: Is an optional data field with variable length. The number of DATA bytes depends
on the command. The data will be sent always as MSB first if the Reader is in the
Host Command Mode.
CRC16: Cyclic redundancy check of the protocol bytes from 1 to n-2, as specified by
CCITT-CRC16
Polynomial: x16 + x12 + x5+ 1 (0x8408)
Start Value: 0xFFFF
Direction: Backward

UHF-Reader
Manual
ID ISC.ANT.U500/270 - DM
FEIG ELECTRONIC GmbH
Page 20 of 117
H71011-0e-ID-B.docx
6.3.
CRC16 Calculation Algorithm
Polynomial: x16 + x12 + x5+ 1 CRC_POLYNOM = 0x8408;
Start Value: 0xFFFF CRC_PRESET = 0xFFFF;
C-Example:
unsigned int crc = CRC_PRESET;
for (i = 0; i < cnt; i++) /* cnt = number of protocol bytes without CRC */
{
crc ^= DATA[i];
for (j = 0; j < 8; j++)
{
if (crc & 0x0001)
crc = (crc >> 1) ^ CRC_POLYNOM;
else
crc = (crc >> 1);
}
}
