Feig Electronic ID CPR60 User manual

INSTALLATION
final –public (B)
2020-05-04 –M91210-1e-ID-B.docx
ID CPR60
RFID Reader Module
Model
Article No.
ID CPR60-A
5491.000.00

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 2 of 21
M91210-1e-ID-B.docx
Note
Copyright by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization is prohibited. Offenders will be held liable for the payment of damages.
All rights reserved in the event of the grant of a patent, utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH
does not convey any license under its patent rights nor the rights of others.
All brand names, trademarks or logos are property of their respective owners.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 3 of 21
M91210-1e-ID-B.docx
Content
1. Safety Instructions / Warning - Read before start-up ! 4
2. Characterization ID CPR60 5
2.1. Available Accessories.......................................................................................................5
2.2. Available Software Tools, USB Driver and Firmware...................................................... 6
2.3. Development Board...........................................................................................................6
3. Dimensions 7
4. Installation and wiring 8
4.1. Connector X1.....................................................................................................................8
4.2. Connector ANT................................................................................................................ 10
5. Standby / Low Power Card Detection 11
6. Technical Data 12
7. Approvals 14
7.1. Europa (CE)...................................................................................................................... 14
7.2. USA (FCC) and Canada (IC)............................................................................................ 15
ANNEX 15
Annex A: ID CPR60-DevBoard Reference Design................................................................ 17

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 4 of 21
M91210-1e-ID-B.docx
1.
Safety Instructions / Warning - Read before start-up !
The device may only be used for the intended purpose designed by for the
manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorised changes and the use of spare parts and additional devices which have not
been sold or recommended by the manufacturer may cause fire, electric shocks or
injuries. Such unauthorised measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase
are valid for the device. The manufacturer shall not be held legally responsible for
inaccuracies, errors, or omissions in the manual or automatically set parameters for a
device or for an incorrect application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by
qualified personnel.
Use of the device and its installation must be in accordance with national legal
requirements and local electrical codes .
When working on devices the valid safety regulations must be observed.
The reader module is a limited module. The HF Reader IC has no internal shielding. The
module is designed for installation in electronic devices. (e.g. printers, terminals, hand
scanners, etc.) Care must be taken to ensure that no switching power supply, oscillator
or high current lines are routed directly along the module or located under the module.
Only the antennas, mentioned in the manual, may be used. The cable length to the an-
tenna is limited to 1,0 m. Take care that the PCB design in the host environments is EMC
compliant.
Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you
should keep a minimum distance of 25 cm between the external antenna and your cardi-
ac pacemaker and not stay in an immediate proximity of the device respective the an-
tenna for some time.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 5 of 21
M91210-1e-ID-B.docx
2.
Characterization ID CPR60
The ID CPR60 is a RFID reader which supports ISO/IEC 14443 A/B and ISO 15693 contactless
smart cards and transponders. It also offers 4 interfaces to connect ISO 7816 smart cards with
contacts.
The reader is designed to connect an external individual RFID antenna to the 50 Ohm antenna
output. For operation in USA and Canada approved antennas are permitted only (see 7.2. USA
(FCC) and Canada (IC)).
Optional the RFID interface can support the contactless standards ISO18000-3M3 and NFC Peer-
to-Peer (P2P; Passive Initiator Mode) in accordance with ISO/IEC 18092. This support is available
on request only.
For host communication ID CPR60 offers an USB device full speed interface, an RS232-LVTTL
interface (COM Interface) and an SPI interface. For data transfer with a host computer the ISOHost
mode (polling) is available via the USB, COM and SPI interface.
The functionality of the ID CPR60 is based on the well known CPR-family, like the reader module
ID CPR74 or the wall-mount reader ID CPR50.10 and is compatible with them mainly.
The use of ISOHost commands guarantees an easy creation of user software as well as the com-
patibility with all other FEIG RFID readers.
Beside the CPRStart software for demonstration and configuration of the reader capabilities and
the Firmware Update Tool a lot of different Software Development Kits (SDK) and drivers are
available to support an easy integration into the customer's application.
2.1.
Available Accessories
Tab. 1 Available Accessories and spare parts
Part Number
Part name
Description
5604.000.00
ID CPR60-DevBoard
Development Board for the ID CPR60
incl. Power Supply with European plug
3674.000.00
ID ISC.ANT40/30-U.FL-A
50 Ohm Antenna with U.FL-connector for the connection
to the ID CPR60
Dimensions: 40 mm x 30 mm
3673.000.00
ID ISC.ANT100/100-U.FL-A
50 Ohm Antenna with U.FL-connector for the connection
to the ID CPR60
Dimensions: 100 mm x 100 mm
3540.000.00
ID ISC.ANT.C05-A
50 Ohm antenna cable with U.FL connector on both sides
for the connection of an external antenna to the ID CPR60
Dimension : 500 mm; Color: black

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 6 of 21
M91210-1e-ID-B.docx
2.2.
Available Software Tools, USB Driver and Firmware
The USB driver and the test and configuration tool “CPRStart” are available on our FEIG download
area:
https://www.feig.de/en/login
Username: CPR60
Password : cpr_reader
For firmware updates we are providing the “FirmwareUpdateTool” and a external firmware xml-file.
2.3.
Development Board
For demonstration and development purposes a special PCB with connectors, smart card con-
nectors, power supply and antenna is available on request (see 2.1. Available Accessories).
The ID CPR60-DevBoard offers 3 SAM sockets for ID-000 smart cards, 1 smart card connector for
full size ID 1 cards and different connectors for the USB, COM and SPI interface. The integrated
antenna can be used in combination with the CPR60 to communicate with transponders.
Different multi-pin connectors offer the possibility to measure and analyse signals on the different
interfaces and connectors.
The DevBoard will be delivered including a power supply. A suitable reader ID CPR60 must be
ordered separately.
Further information about the ID CPR60-DevBoard can be found in Annex A: ID CPR60-DevBoard
Reference Design.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 7 of 21
M91210-1e-ID-B.docx
3.
Dimensions
The ID CPR60 reader module has been designed for the integration into terminals, printers or
handheld devices and so on.

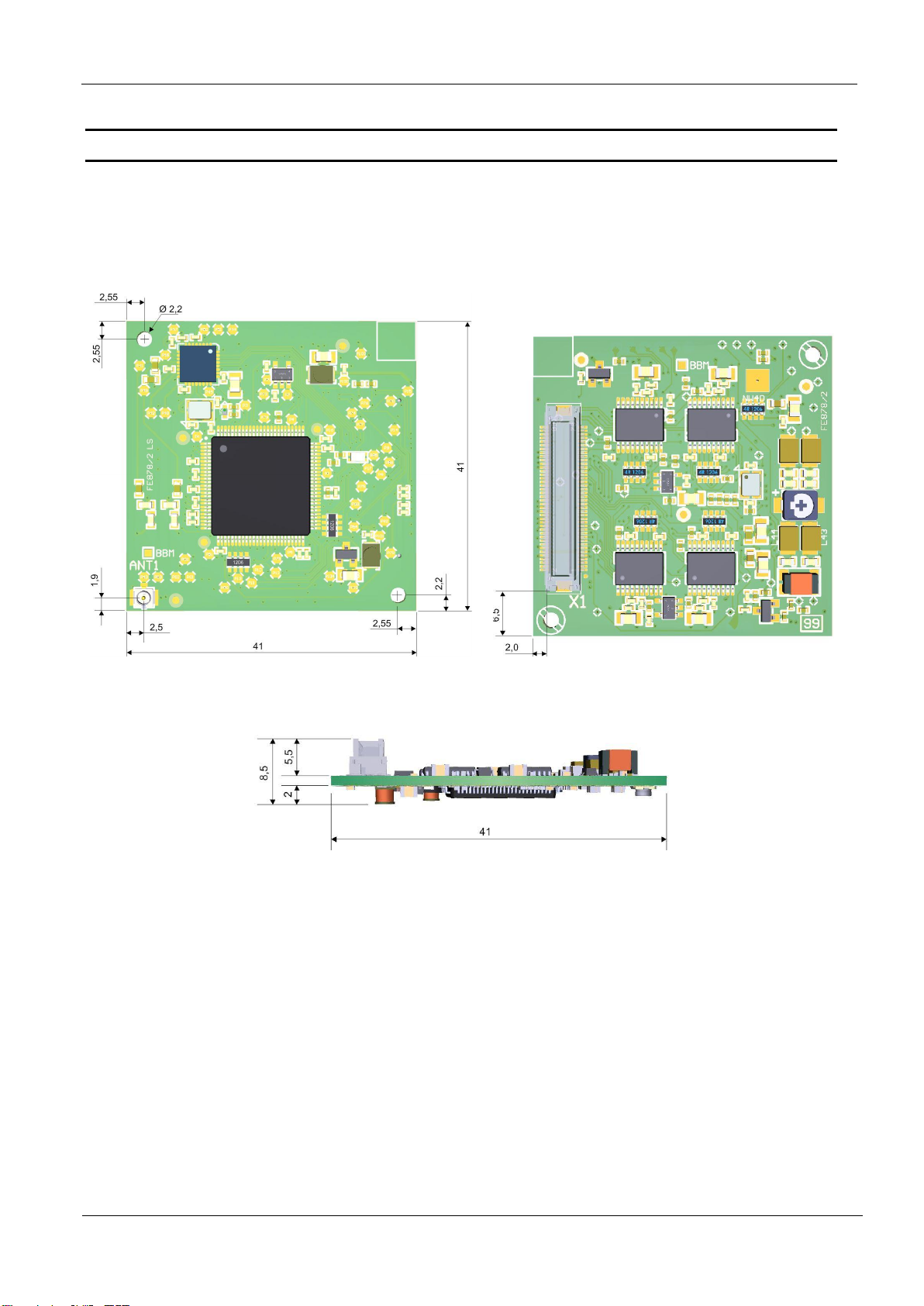

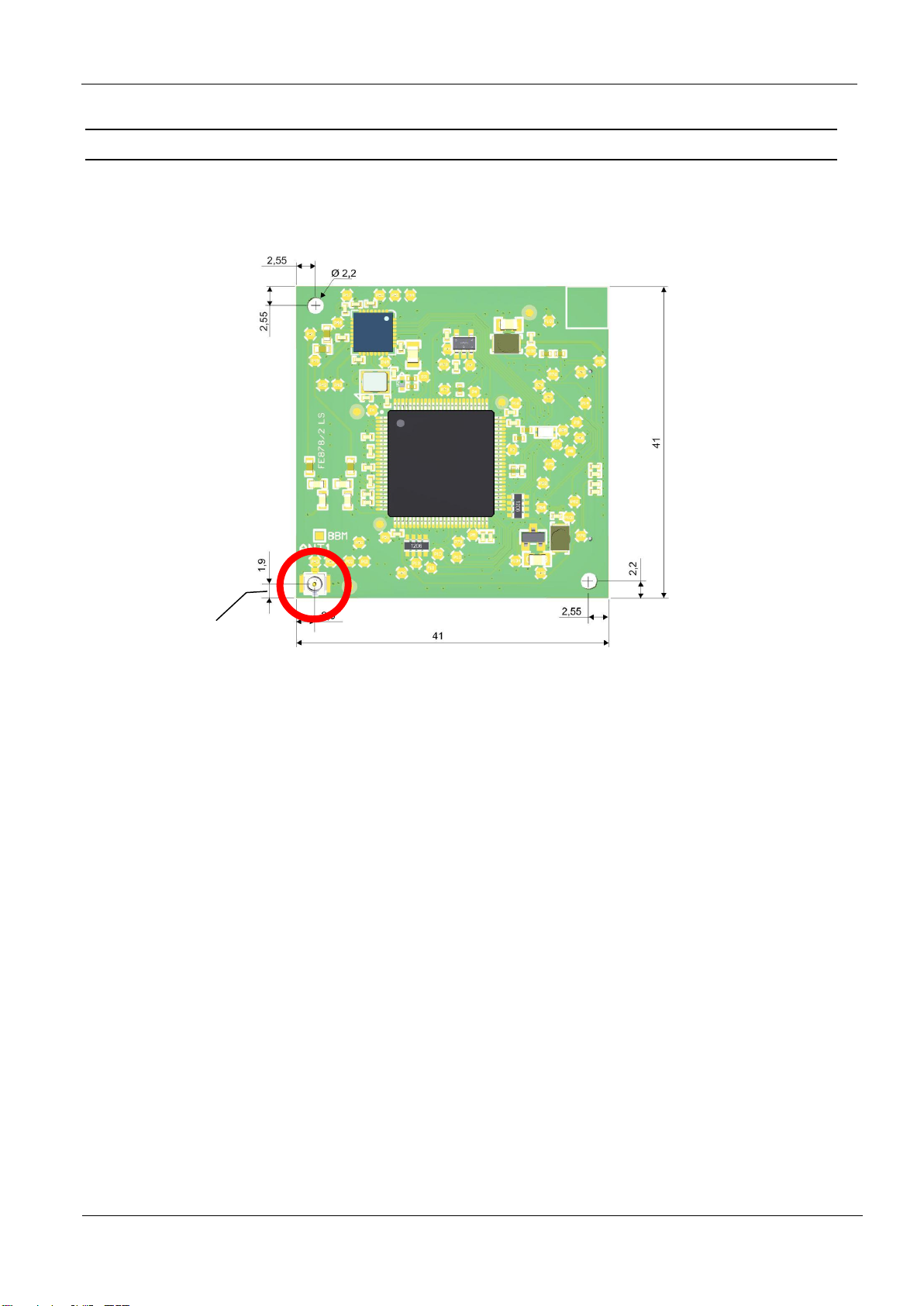

Figure 1: Dimension (Top View)
Figure 2: Dimension (Side View)

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 8 of 21
M91210-1e-ID-B.docx
4.
Installation and wiring
4.1.
Connector X1
X1 (Connector Type: Hirose DF17(2.5)-80DP-0.5V(57)) is the main connector for power supply,
interfaces and control signals. The following table shows the pin-assignment of the connector. In-
terfaces and functions are described from the ID CPR60 view (an input must be connected to one
output or vice versa).

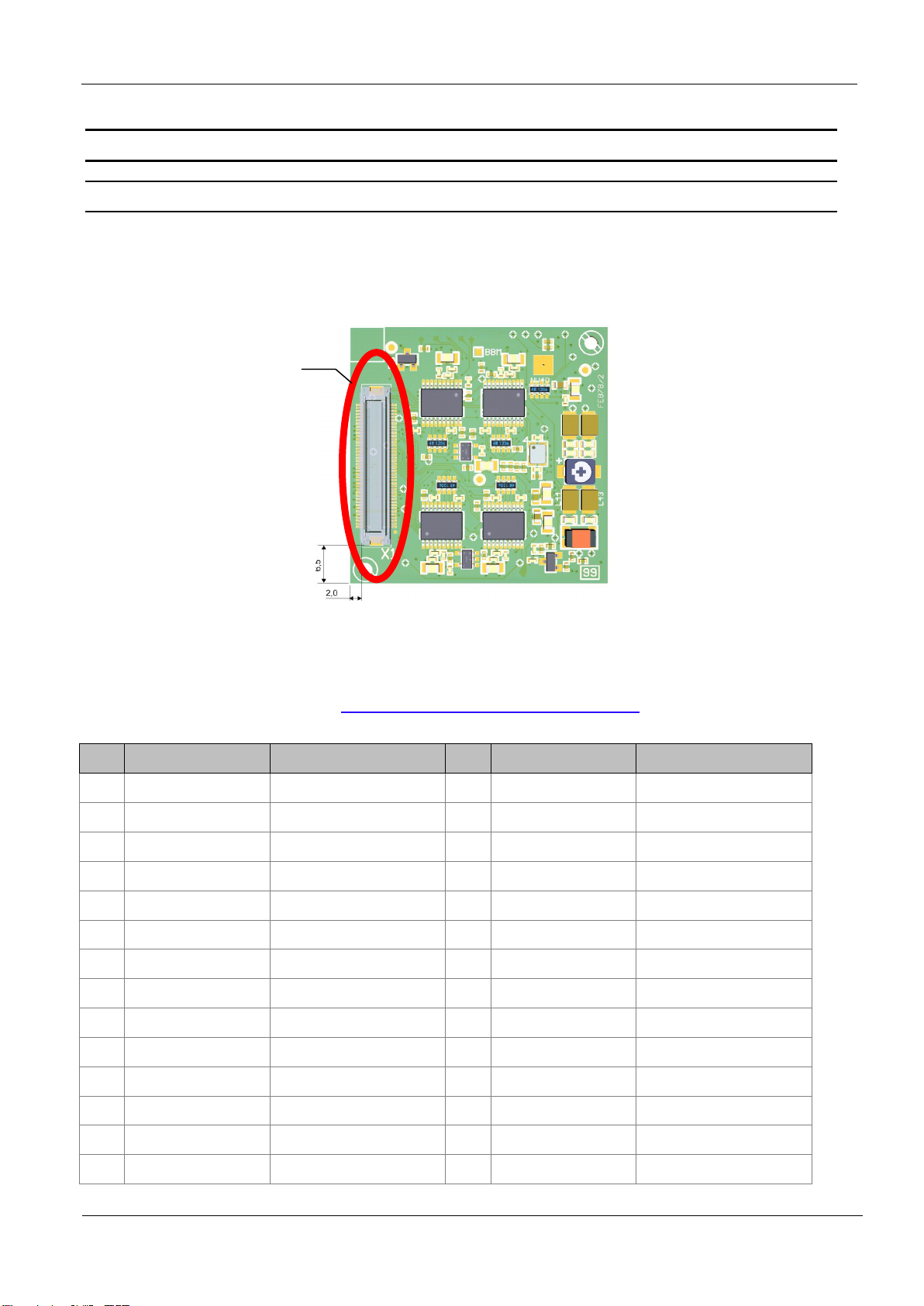

Figure 3: Connector X1
At connector X1 four external smart card connectors can be connected. SAM1, SAM2, SAM3 and
KCC whereas only KCC supports a card presence signal, which also can used to awake the
CPR60 form standby mode (see: 5. Standby / Low Power Card Detection).
PIN
Function
Remark
PIN
Function
Remark
1
n.c.
2
n.c.
3
n.c.
4
n.c.
5
n.c.
6
n.c.
7
n.c.
8
n.c.
9
GND
10
GND
11
3,3 V DC Supply
12
3,3 V DC Supply
13
3,3 V DC Supply
14
GND
15
SAM3_ CLK
16
n.c.
17
KCC_CLK (SAM4)
18
n.c.
19
SAM1_I/O
20
n.c.
21
SAM2_I/O
22
n.c.
23
SAM3_I/O
24
n.c.
25
KCC_I/O (SAM4)
26
SAM1_VCC
27
n.c.
28
SAM2_VCC
X1

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 9 of 21
M91210-1e-ID-B.docx
PIN
Function
Remark
PIN
Function
Remark
29
n.c.
30
SAM3_VCC
31
n.c.
32
GND
33
n.c.
34
KCC_VCC (SAM 4)
35
GND
36
SAM1_CLK
37
SPI_MISO*
CPR60 is Slave
38
SAM2_CLK
39
SPI_MOSI*
CPR60 is Slave
40
USB DP*
41
SPI_nCS**
CPR60 Input
42
USB DM*
43
SPI_CLK**
CPR60 Input
44
n.c.
45
n.c.
46
n.c.
47
SAM1_ RST
48
n.c.
49
SAM2_ RST
50
nKCC_DET (SAM 4)
Smartcard present con-
nector input
0: Card preset
1: Card no present
51
SAM3_RST
52
nLOW_PWR
Control input for low
power card detection
0: low power mod low
1: normal mode
53
KCC_RST (SAM 4)
54
n.c.
55
GND
56
n.c.
57
n.c.
58
GND
59
n.c.
60
5 V DC Supply
61
n.c.
62
n.c.
63
n.c.
64
nRESET
Reset Input
65
RS232_TxD
reader TxD, host RxD
66
RS232_RxD*
Reader RxD, Host TxD
67
n.c.
68
n.c.
69
n.c.
70
n.c.
71
n.c.
72
SPI_INT
IRQ output with double
function:
SPI-IRQ
Low power card
detection: Card de-
tected
73
n.c.
74
n.c.
75
GND
76
GND
77
n.c.
78
n.c.
79
n.c.
80
n.c.
* 5 V tolerant Input
** 3,3 V tolerant Input

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 10 of 21
M91210-1e-ID-B.docx
4.2.
Connector ANT
The ID CPR60 module is equipped with an connector for an external 50 -antenna.
The connection of the external antenna is possible via the U.FL connector „ANT“.
Figure 4: Connection of an external antenna
The technical description and hints for building external 50 -antennas can be taken from
the application note N20901-#d-ID-B.pdf.
NOTICE:
Only for use with 50 matched external antennas. The permanent usage of unmatched
antennas can damage the reader electronic.
The antenna output is neither permanent short circuit protected nor permanent no-load
protected.
The antenna cable should be no longer than 1m. The use of other cable length are pos-
sible after consulting the manufacturer.
ANT:
(U.FL)

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 11 of 21
M91210-1e-ID-B.docx
5.
Standby / Low Power Card Detection
The ID CPR60 offers a standby mode to reduce the power consumption to a minimum. The
standby mode can be controlled by the host via input nLOW_PWR (see: 4.1. Connector X1).
The standby mode is activated if input nLOW_PWR is set to low. In this mode the reader wakes up
if:
- a contactless card is detected in front of the RFID antenna or
- if the Input nKCC_DET is set to 0
The reader remains active for a configurable time. Even if nLOW_PWR is set to high during this
time the reader remains active as long as nLOW_PWR is set to high.
The host can switch the reader at any time back into the standby mode with command [0x64] Sys-
tem Reset.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 12 of 21
M91210-1e-ID-B.docx
6.
Technical Data
Tab. 2: Technical data
ID CPR60
Dimension (W x H x D)
max. 41 mm x 41 mm x 6,5 mm
Weight
approx. 10 g
Temperature Range
Operating
-25 °C up to +70 °C (-13 °F up to +158 °F)
Storage
-40 °C up to +85 °C (-40 °F up to +185 °F)
Humidity
max. 95 % (not condensing)
Power Supply1
for digital circuit:
3,3 V DC ± 5 %
max power consumption: 100 mA
for analog circuit:
5 V DC ± 5 %
Ripple: 0...250 kHz < 10 mVpp
up from 250 kHz < 0,1 mVpp
max power consumption peak (excl. SAM): 300 mA
typ. power consumption with RFID (excl. SAM): 200 mA
Current Consumption
< 400 mA (without SAM)
< 25mA Standby mode
< 50mA Standby Mode with Wake-Up-by-Card
Interfaces
USB
Full-Speed (12 Mbit/s), Self-Powered Device
SPI
Slave Device (up to 16 Mbit/s)
RS232-LVTTL
4 800 –921 600 Baud
Driver
USB Driver, PC/SC-Driver (WHQL)
Windows 7, 8 and 10 32/64 Bit
Windows Server 2012 and 2016
Connector (Vcc, USB , SPI, Smart Card)
80 pole Board-to-Board (see: 4.1. Connector X1)
Software Development Kits
Windows (C++, .NET, Java), Linux (C++, Java), Raspberry Pi
RFID Interface
ISO/IEC 14443-A/-B
(ISO-Mode: 106, 212, 424, 848 kbit/s;
EMVCo Mode: 106 kBit/s)
ISO 15693
Operating Frequency
13,56 MHz
Output Power
typ. 450 mW
Antenna Connection
U.FL-Socket for external 50 Ohm antenna
Contact Interface (ISO 7816)
4 SAM card interfaces
T=0 and T=1 Protocol, Power Class A, B & C
Operating Modes
ISOHost Mode (Polling Mode)
1
The device has to be supplied by a limited power supply according IEC EN 60950-1 chap-
ter 2.5, only.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 13 of 21
M91210-1e-ID-B.docx
Radio Approval
Europe
EN 300 330
USA
FCC - Title 47 CFR Part 15
Canada
RSS-210 Issue 10
RSS-Gen Issue 5 incl. Amendment 1
EMV
EN 301 489
Safety and Health
EN 60950
EN 50364
Waste and Hazardous Substances
WEEE - 2002/96/EC
RoHS - 2011/65/EC

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 14 of 21
M91210-1e-ID-B.docx
7.
Approvals
7.1.
Europa (CE)
Hereby, FEIG ELECTRONIC GmbH declares that the radio equipment type ID CPR60 is in com-
pliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.feig.de/en/downloads-support/declarations-of-conformity.html
Performance Classification according to ETSI EN 301 489: Class 2

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 15 of 21
M91210-1e-ID-B.docx
7.2.
USA (FCC) and Canada (IC)
Product name:
ID CPR60
FCC ID:
IC:
PJMCPR60
6633A-CPR60
Notice for USA
and Canada
This device complies with Part 15 of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Unauthorized modifications may void the authority granted under Federal
communications Commission Rules permitting the operation of this device.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux condi-
tions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Warning: Changes or modification made to this equipment not expressly approved by
FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment.
Installation with FCC / IC Approval:
The reader module was tested according to the standard FCC - Title 47 CFR Part 15 §207, $209
and §225 and the ISED standard RSS 210 Issue 10 and RSS Gen Issue 5 . The module is con-
form to the listed limits in the standards.
In normal operation the RF exposure is far below the limits of OET Bulletin 65.
This module is approved for installation into fixed and/or mobile host platforms and must not be co-
located or operating in conjunction with any other antenna or transmitter except in accordance with
FCC/ISED multi-transmitter guidelines. End users must be provided with transmitter operating
conditions for satisfying RF Exposure compliance.
The manufacturer is obliged to include a notice "Contains FCC ID: PJMCPR60 and IC: 6633A-
CPR60" at the user manual and on the product label.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 16 of 21
M91210-1e-ID-B.docx
The manufacturer is obliged to test the terminal device together with the reader module according
to the national FCC requirements according to 47 CFR Part15 §209 and §225 For this purpose the
reader module must be set to normal operation, ScanMode. The Scan mode is switched on by SW
command: Transparent Command - Extended Inventory (all Antenna) HEX: 02 00 0A FF B0 01 40
FF.
The manufacturer is obliged to test the terminal equipment without RF transmitter, according to
the national FCC requirements according to 47 CFR Part 15 Subpart B. For this purpose, the HF
transmitter of the reader module must be switched off. The HF transmitter is switched off by the
SW command: Transparent Command - HF Off HEX: 06 FF 6A 00
FCC-/IC-NOTICE: To comply with FCC Part 15 Rules in the United States / with IC Radio Stand-
ards in Canada, the system must be professionally installed to ensure compliance with the Part 15
certification / IC certification. It is the responsibility of the operator and professional installer to en-
sure that only certified systems are deployed in the United States / Canada.
Antennas Approved in the USA (FCC) and Canada (IC)
Following antennas are approved by FCC according FCC Part 15 and IC Canada according RS210:
ID ISC.ANT100/100 (100 mm x 100mm)
ID ISC.ANT40/30 (40 mm x 30mm)
RFID Antenna Board 445-100302 (30 mm x 30mm)
A coaxial cable, U.FL-LP-088, is used to connect the antenna. The antenna cable should be no
longer than 1,0 m. The use of other cable length are possible after consulting the manufacturer.

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 17 of 21
M91210-1e-ID-B.docx
ANNEX
Annex A: ID CPR60-DevBoard Reference Design

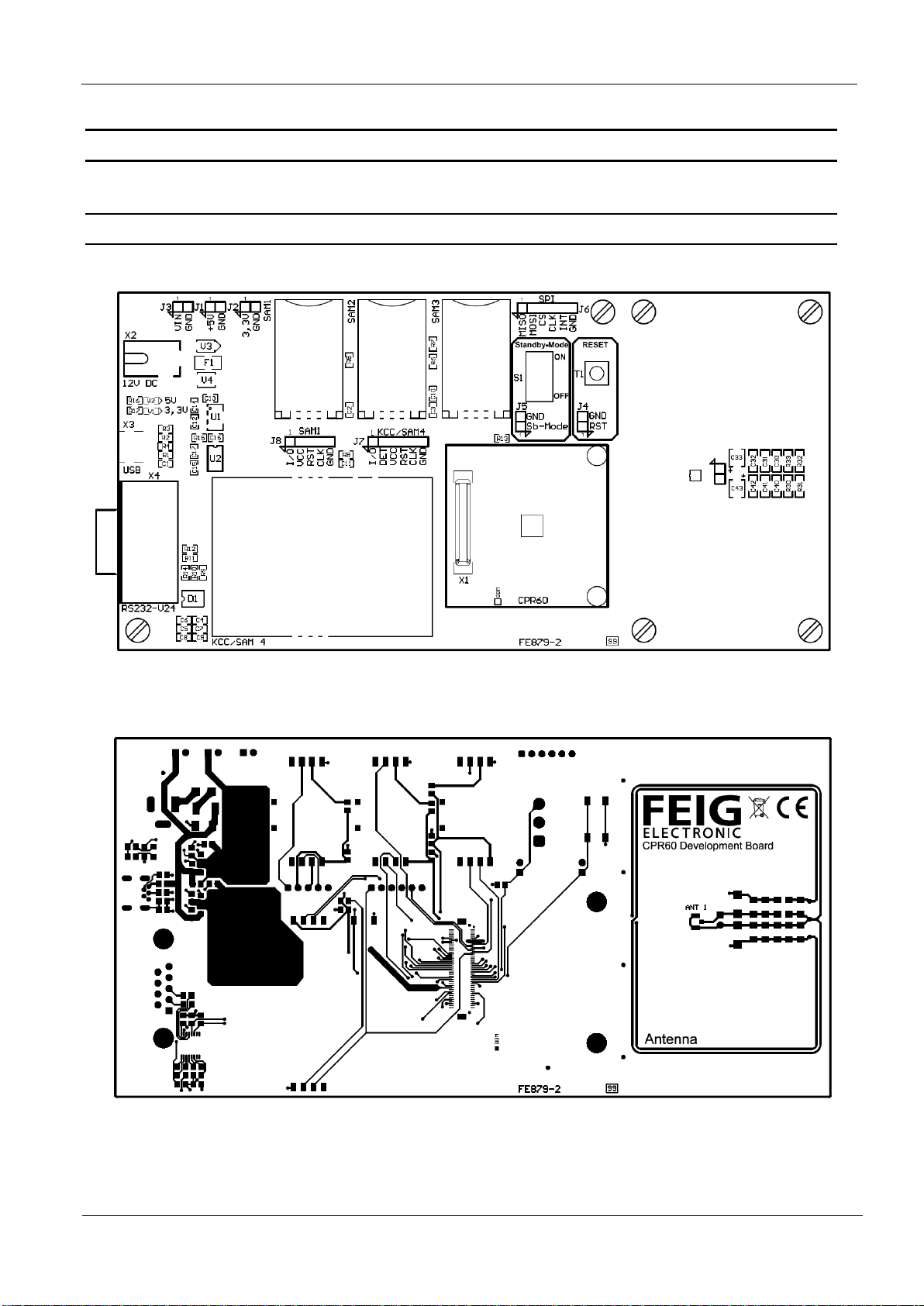

Figure 5: Top Overlay Print
Figure 6: Top Layer

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 18 of 21
M91210-1e-ID-B.docx

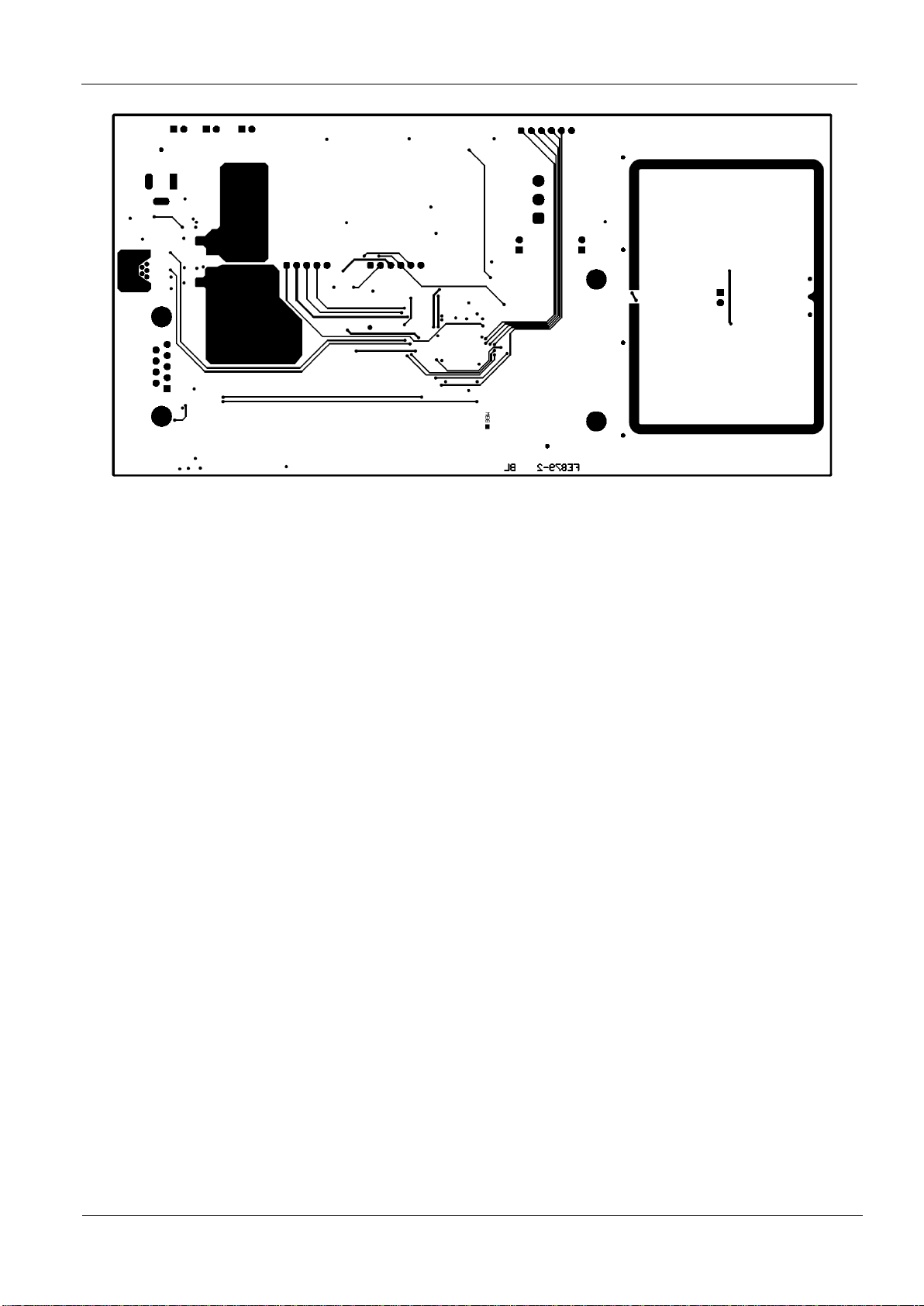

Figure 7: Bottom Layer

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 19 of 21
M91210-1e-ID-B.docx

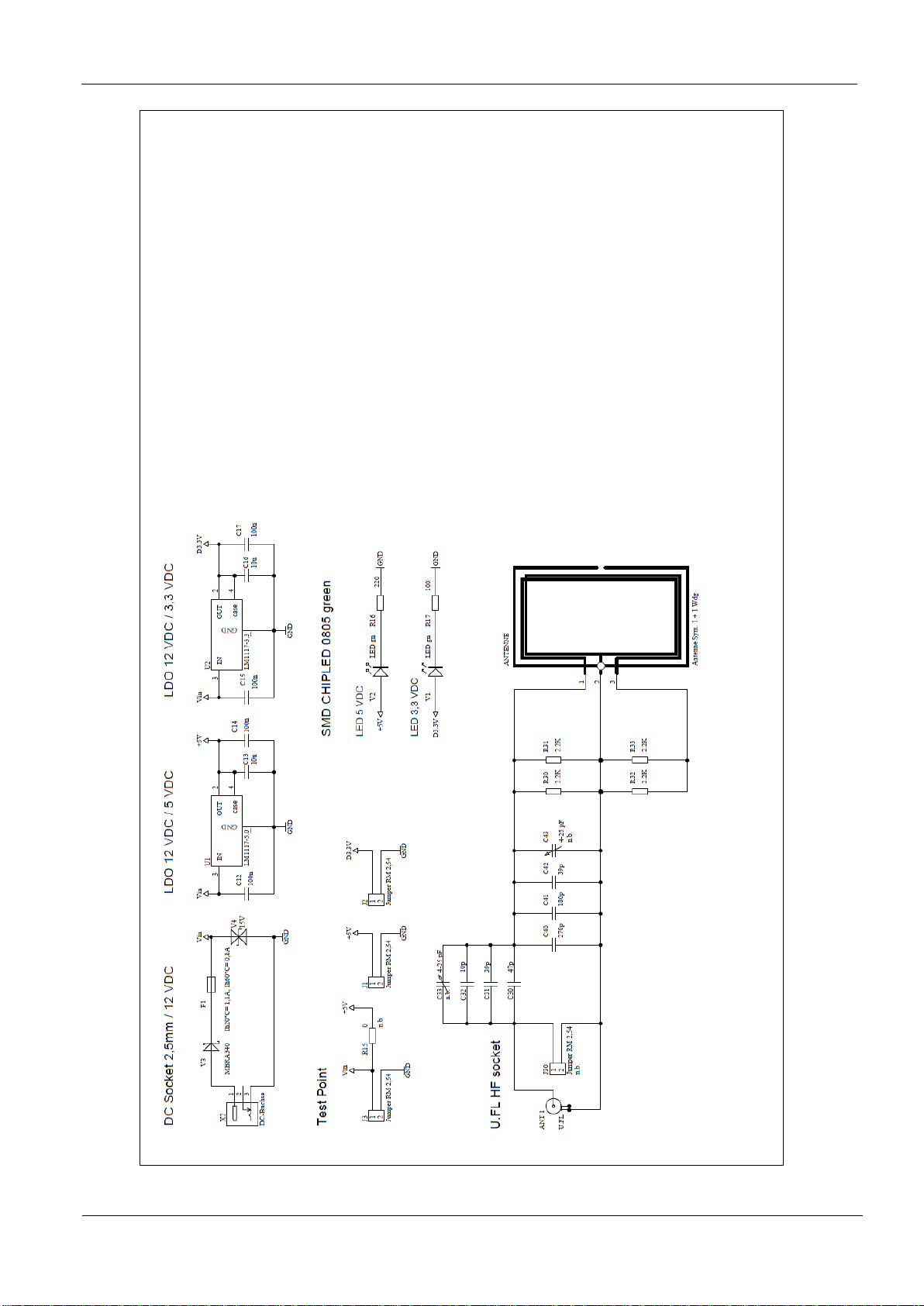

Figure 8: CPR60-DevBoard Schematic Part 1

IDENTIFICATION
Installation
ID CPR60
FEIG ELECTRONIC GmbH
Page 20 of 21
M91210-1e-ID-B.docx
Figure 9: CPR60-DevBoard Schematic Part 2
