Feig Electronic ID ISC.LRU3500 User manual

INSTALLATION
final – public (B)
2013-01-17 – M21016-1e-ID-B.docx
ID ISC.LRU3000 / ID ISC.LRU3500
UHF Long Range Reader

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 2 of 32 M21016-1e-ID-B.docx
Note
Copyright 2013 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
Use Exclusion in Transportation Market: Devices which are subject of this document may NOT be sold,
used, leased, offer for sale, or otherwise transferred, exported, and imported by anyone in the Transportation
Market. “Transportation Market” means (i) Electronic Toll and Traffic Management (ETTM), (ii) Public Sector
Vehicle Registration, Inspection and Licensing Programs, (iii) Railroad Locomotive and Wagon tracking, (iv)
airport based ground transportation management systems (GTMS) and taxi dispatch, (v) revenue based
parking, and (vi) vehicle initiated mobile payment applications, where the RFID sticker/tag is initially attached
to the vehicle but not incorporated at the point of vehicle manufacture.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 3 of 32 M21016-1e-ID-B.docx
General information's regarding this document
•The sign "" indicates extensions or changes of this manual compared with the former issue.
•If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or
for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this
may cause faulty operation of the reader.
•The following figure formats are used:
0...9: for decimal figures
0x00...0xFF: for hexadecimal figures,
b0...1 for binary figures.
•The hexadecimal value in brackets "[ ]" marks a control byte (command).

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 4 of 32 M21016-1e-ID-B.docx
Contents
1. Safety Instructions / Warning - Read before start-up ! 6
2. Performance Features of Reader Family ID ISC.LRU3000 7
2.1. Performance features........................................................................................................7
2.2. Available Reader types .....................................................................................................7
2.3. Available Accessories.......................................................................................................7
3. Installation 8
4. Terminals 9
4.1. Antenna Connection .......................................................................................................10
4.2. Power Supply...................................................................................................................11
4.2.1. Power Supply via connection X1................................................................................11
4.2.2. Power Supply via Power over Ethernet (PoE)............................................................12
4.3. Interfaces .........................................................................................................................13
4.3.1. Ethernet Interface on connector X2............................................................................13
4.3.2. USB Interface on connector X3..................................................................................13
4.3.3. USB Interface on connector X4 (WLAN) ....................................................................14
4.3.4. RS232 Interface on connector X6 ..............................................................................14
4.3.5. RS485 Interface on connector X6..............................................................................15
4.3.5.1. Address assignment of RS485 for bus operation ...........................................16
4.3.6. Data-Clock Interface on connector X5........................................................................16
4.4. Digital Inputs on connector X5.......................................................................................18
4.5. Outputs on connector X5................................................................................................19
4.5.1. Digital outputs on connector X5 .................................................................................19
4.5.2. Relay outputs on connector X5..................................................................................20
5. Operating and Display Elements 22
5.1. Status LEDs.....................................................................................................................22

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 5 of 32 M21016-1e-ID-B.docx
5.2. Reset Push Buttons ........................................................................................................23
5.3. Reader Power adjustment...............................................................................................24
5.3.1. EU-Reader according to EN302 208..........................................................................24
5.3.2. FCC-Reader according to FCC 47 Part 15.................................................................25
6. Technical Data 26
7. Radio Approvals 29
7.1. Europe (CE)......................................................................................................................29
7.2. Declaration of Conformity (Directive 1999/5/EC - R&TTE)............................................30
7.3. USA (FCC) and Canada (IC)............................................................................................31
7.3.1. USA (FCC) and Canada (IC) warning notices............................................................31
7.3.2. Label Information.......................................................................................................32
7.3.3. Installation with FCC / IC Approval.............................................................................32
7.3.4. USA (FCC) and Canada (IC) approved antennas ......................................................32

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 6 of 32 M21016-1e-ID-B.docx
1. Safety Instructions / Warning - Read before start-up !
•The device may only be used for the intended purpose designed by for the manufacturer.
•The operation manual should be conveniently kept available at all times for each user.
•Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
•Repairs may only be executed by the manufacturer.
•Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
•Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
•When working on devices the valid safety regulations must be observed.
•Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in
an immediate proximity of the device respective the antenna for some time.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 7 of 32 M21016-1e-ID-B.docx
2. Performance Features of Reader Family ID ISC.LRU3000
2.1. Performance features
The Reader has been developed for reading passive data carriers, so-called „Smart Labels“, using
an operating frequency in the UHF range.
2.2. Available Reader types
The following Readers are available:
Table 1: Available Reader Types
Reader type Description
ID ISC.LRU3500-EU Device version for Europe with PoE (max. 4Watt)
ID ISC.LRU3000-EU Device version for Europe without PoE (max. 2Watt)
ID ISC.LRU3500-FCC Device version for USA with PoE (max. 4Watt)
ID ISC.LRU3000-FCC Device version for USA without PoE (max. 2Watt)
2.3. Available Accessories
The following optional accessories are currently available:
Table 2: Optional Reader Accessories
Reader type
Description
ID ISC.LR.CSC-IP64 Connector
Sealing Cap
Protection cap for IP 64
Art.No.: 3558.000.00
ID ISC.LRU3x00-MS Mounting
Rail Set
Rail Mounting Set for ID ISC.LRU3000/3500
Art.No.: 3831.000.00

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 8 of 32 M21016-1e-ID-B.docx

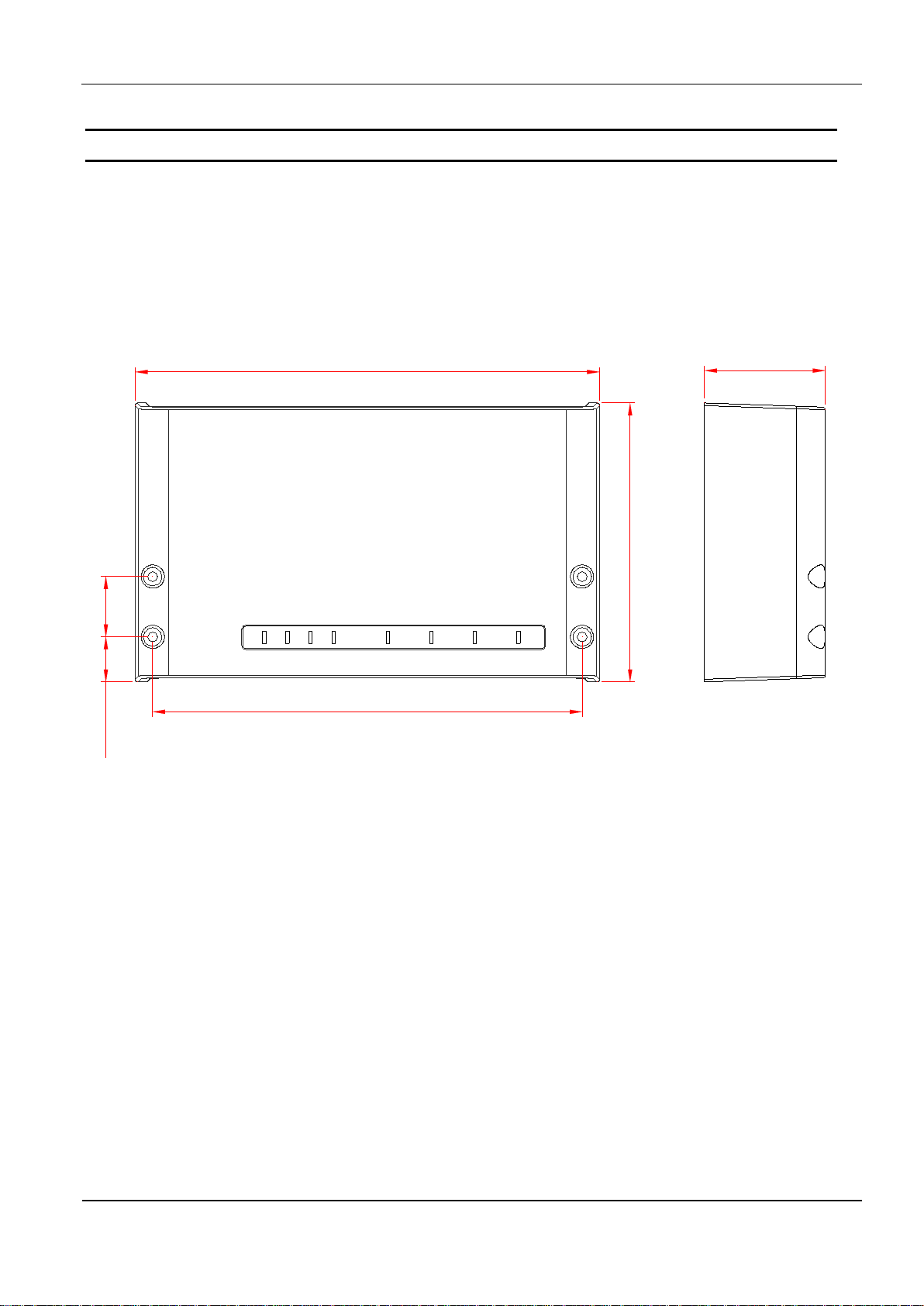

3. Installation
The Reader is designed for wall-mount, including outdoors. Holes for mounting on a wall are
provided in the housing.
It is not necessary to open the reader housing mounting.
261,3 (10.29)
157,3 (6.19)
241,7 (9.52)
34 (1.34)25,5 (1.00)
68 (2.68)
Figure 1: Installation Drawing

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 9 of 32 M21016-1e-ID-B.docx
4. Terminals
On the lower side of the reader housing the different cable connectors are positioned. Figure 2:
Connection Overview shows the arrangement of the connectors and Table 3: Connection terminals
shows which connection for the different cables are used for. Table 4: Push button function shows
the available push buttons.
X2 X3 X4
X5
X6
T1 T2
X1 ANT1 ANT2 ANT3 ANT4
Figure 2: Connection Overview
Table 3: Connection terminals
Connector Description
ANT 1-4 Connection of the external antennas (Impedance 50Ω)
X1 Power supply 24VDC +-5%
X2 10/100Tbase network connection with RJ-45 (with PoE)
X3 USB interface for host communication
X4 USB interface for WLAN-Sticks
X5 Digital input and output and relay output
X6 RS232 / 485 interface
Table 4: Push button function
Push button Description
T1 Internal push button for complete configuration reset
T2 External push button for CPU-Reset

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 10 of 32 M21016-1e-ID-B.docx
4.1. Antenna Connection
The external SMA antenna connectors are positioned on the lower side of the reader.
The maximum tightening torque for the SMA sockets is 0.45 Nm (4.0 lbf in).
CAUTION:
Exceeding the tightening torque will destroy the plug.
Table 5: External antenna connection
Terminal Description
ANT 1 - 4 Connection for external antennas (input impedance 50Ω)
Figure 3: External antenna connection ANT1-4 and X1 for the power supply
CAUTION:
A direct connection of an antenna to an antenna output with activated DC Voltage (24 VDC,
500 mA) may damage the antenna.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 11 of 32 M21016-1e-ID-B.docx
4.2. Power Supply
4.2.1. Power Supply via connection X1
The supply voltage of 24 V DC has to be connected to Terminal X1.
Table 6: Pin assignment for power supply
Terminal Abbreviation Description
X1 / Pin 1 VDC Vcc – supply voltage 24VDC +-5%
X1 / Pin 2 GND Ground – supply voltage
Figure 4: Connection for the power supply
CAUTION:
The reader has to be supplied by a limited power supply (e.g. NEC Class 2/LPS power sup-
ply) according IEC EN 60950-1 chapter 2.5, only.
Reversing the polarity of the supply voltage may destroy the device.
Each reader has to be supplied by a separate external power supply.
An operation of an ID ISC.LRU3500 via an external power supply and Power over Ethernet
(PoE) at the same time is not recommended and can cause interferences during operation.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 12 of 32 M21016-1e-ID-B.docx
4.2.2. Power Supply via Power over Ethernet (PoE)
Optional the reader (only LRU3500) can be powered via the LAN connector on X2 with the use of a
PoE „Power over Ethernet“ power supply according to IEEE802.3at*, Class4 (30/25,5Watt). The
DC supply can be achieved via the free pin’s 4,5 and 7,8 (Midspan-Power). Also a “Phantom Po-
wering” (Inline-Power) via the signal pin’s 1,2,3,and 6 is possible. Depending on the cable cross-
section the following cable distances can be used.
Table 7: Maximum cable length if PoE is used
cable cross-section (CAT5...7)
Maximum cable length for PoE
0,4mm ≈ 30m
0,6mm ≈ 70m
* For detailed technical information regarding the 802.3at standard, please refer to the most
recent edition of the corresponding IEEE specification.
Figure 5: LAN and PoE connection
CAUTION:
Take care if PoE is used the maximum reader output power of the reader must be limited to
1Watt.
It must be ensured that the reader is supplied with 42,5 V DC (48 V DC – cable losses) at
least.
This functionality is only available with the reader models ID ISC.LRU3500-EU and ID
ISC.LRU3500-FCC.
An operation of an ID ISC.LRU3500 via an external power supply and Power over Ethernet
(PoE) at the same time is not recommended and can cause interferences during operation.
If Power over Ethernet is used WLAN is not available.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 13 of 32 M21016-1e-ID-B.docx
4.3. Interfaces
4.3.1. Ethernet Interface on connector X2
The Reader has an integrated 10 / 100 base-T network port for an RJ-45. Connection is made on
X2 and has an automatic “Crossover Detection” according to the 100BASE-T Standard.
With structured cabling CAT 5 cables should be used. This ensures a reliable operation at 10 Mbps
or 100 Mbps.
The prerequisite for using TCP/IP protocol is that each device has a unique address on the net-
work. All Readers have a factory set IP address.
Table 8: Standard factory configuration of the Ethernet connection
Network Address
IP-Adresse 192.168.10.10
Subnet-Mask 255.255.255.0
Port 10001
DHCP OFF
NOTE:
The reader is equipped with a DHCP ready Ethernet Interface.
4.3.2. USB Interface on connector X3
The USB socket on the board is terminal X3. The pinout is standardized. The data rate is reduced
to 12 Mbit (USB full speed). A standard USB-cable can be used.
Figure 6: USB-Interface for host communication
NOTE:
The length of the USB-cable can have a max. of 5m (20 inch). It is not allowed to use longer
cables.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 14 of 32 M21016-1e-ID-B.docx
4.3.3. USB Interface on connector X4 (WLAN)
The USB-Port X4 can be used for a standard WLAN-USB-Stick
Figure 7: USB-Interface for external WLAN stick
NOTE:
WLAN shall not be used when the reader is powered via Power over Ethernet (PoE)
The following table gives an overview about successfully tested Wireless LAN Sticks
Table 9: Successfully tested WLAN Sticks
Manufacturer Description Model
Buffalo Wireless-N NFiniti High Power WLI-UC-G300HP
Buffalo Wireless –N NFiniti WLI-UC-G300N
Cisco / Linksys Wireless Network USB Adapter WUSB100
Netgear Wireless-G 54 USB Adapter WG111 v3
4.3.4. RS232 Interface on connector X6
The RS232 interface is connected on X6. The transmission parameters can be configured by
means of software protocol.
Figure 8: RS232 interface pin-outs on X6

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 15 of 32 M21016-1e-ID-B.docx
Figure 9: Wiring example for connecting the RS232 interface RS485-Schnittstelle X6
4.3.5. RS485 Interface on connector X6
The connection of the RS485 interface take place via the X6 connector as well. The interface pa-
rameter can be configured via software protocols.
Figure 10: RS485 interface pin-outs on X6 (RS485-Interface):
Table 10: RS485 interface pin-outs
Abbreviation Description
GND RS485 – GND
A- RS485 – (A -)
B+ RS485 – (B +)

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 16 of 32 M21016-1e-ID-B.docx
4.3.5.1. Address assignment of RS485 for bus operation
For bus operation the Reader can be assigned the required bus address via software.
The address is assigned by the host computer. The software is used to assign addresses “0”
through “254” to the Reader.
A potential termination of the interface bus can be configured by the software as well.
NOTE:
Since all Readers are factory set with address „0“, they must be connected and configured
one after the other.
4.3.6. Data-Clock Interface on connector X5
The connection of the data-clock interface take place via the digital Outputs OUT1 and OUT2 at
connector X5. The wire for the clock needs to be connected to connector OUT1-C, the wire for the
data needs to be connected to connector OUT2-C.
Figure 11: Data-Clock Interface on connector X5

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 17 of 32 M21016-1e-ID-B.docx
NOTE:
The data-clock interface is only available in Scan-Mode.
The data-clock interface cannot be used to configure the reader.
The digital outputs OUT1 and OUT2 are not available, if the data-clock interface is activated.
The data as well as the clock need to be supplied with an external voltage. The output is
configured for max. 24 V DC / 30 mA.
Figure 12: Wiring Example
NOTE:
Please consider possible limitations of the Wiegand Controller regarding the used supply
voltage.
In dependency on the inner circuit of the used Wiegand Controller it is necessary to use
external serial resistors to limit the current on the data and clock wires.
The necessity of the external pull down resistor is depending on the inner circuit of the
used Wiegand Controller

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 18 of 32 M21016-1e-ID-B.docx
4.4. Digital Inputs on connector X5
The optocouplers on Terminal X5 are galvanically isolated from the Reader electronics and must
therefore be externally supplied.

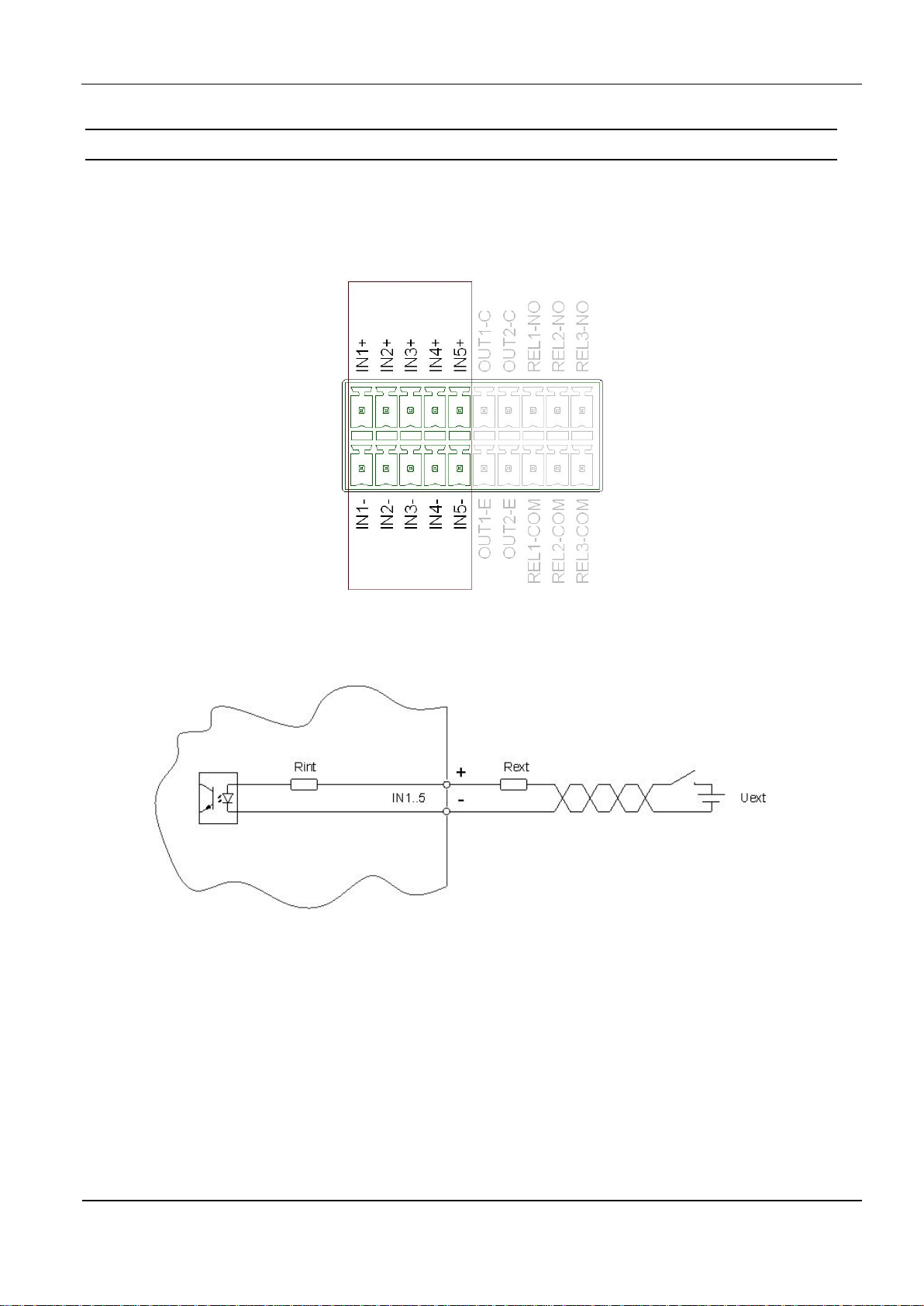

Figure 13: Optocoupler pin-outs IN1 – IN5
Figure 14: Internal and possible external wiring of the optocoupler inputs
Optocoupler input (X5/1-5):
The input LED associated with the optocoupler is connected internally to a series resistor of 500 Ω.
For supply voltages of greater than 10V the input current must be limited to max. 20 mA by means
of an additional series resistor (see Table 11).
Table 11 shows the necessary external resistors for various external voltages Uext.

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 19 of 32 M21016-1e-ID-B.docx
Table 11: Required external series resistor Rext
External voltage Uext Required external series resistor Rext
5 V ... 10 V ---
11 V ... 15 V 270 Ω
16 V ... 20 V 560 Ω
21 V ... 24 V 820 Ω
NOTE:
The input is configured for a maximum input voltage of 5-10 V DC and an input current of
max. 20 mA.
Polarity reversal or overload on the input will destroy it.
4.5. Outputs on connector X5
4.5.1. Digital outputs on connector X5
Optocoupler output (X5/1-2):
The transistor connections, collector and emitter, of the optocoupler output are galvanically isolated
from the Reader electronics and are carried to the outside without any internal ancillary circuitry on
Terminal X5. The output must therefore be powered by an external power supply.
Figure 15: Optocoupler -Outputs OUT1-2

OBID
i-scan
®
UHF
Installation
ID ISC.LRU3000/3500
FEIG ELECTRONIC GmbH Page 20 of 32 M21016-1e-ID-B.docx

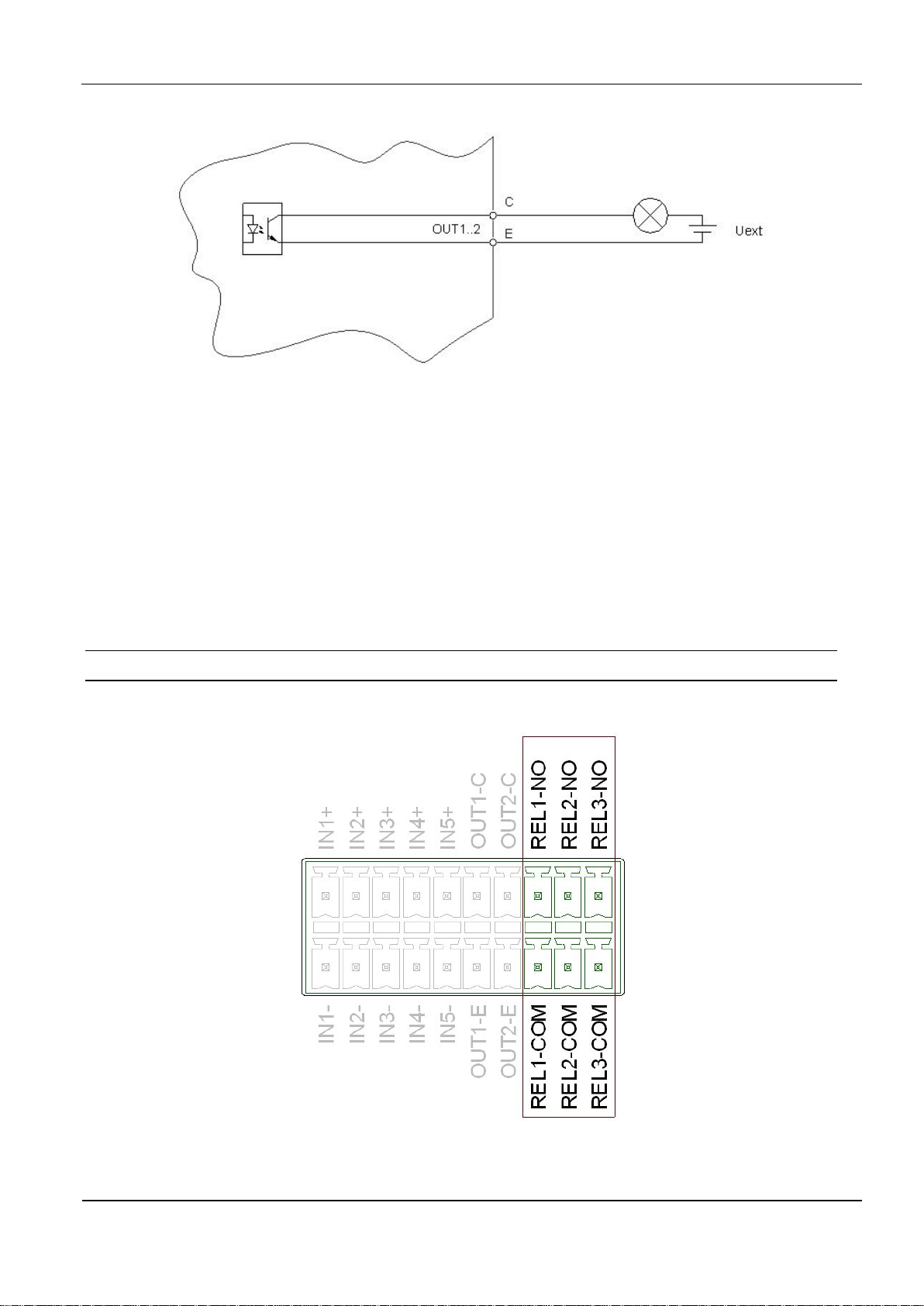

Figure 16: Internal and possible external wiring of the optocoupler-outputs OUT1-2
CAUTION:
The output is configured for max. 24 V DC / 30 mA.
Polarity reversal or overload on the output will destroy it.
The output is intended for switching resistive loads only.
4.5.2. Relay outputs on connector X5
There are 3 relay outputs available on connector X5.
Figure 17: Relay output pin-outs REL1-3
