1 Safety Instructions
Installation
Page 5 of 35
1 Safety Instructions
Safety Instructions
►The device may only be used for the intended purpose designed by the manufacturer.
►The manual should be conveniently kept available at all times for each user.
►Unauthorized changes and the use of spare parts and additional devices which have not been sold or
recommended by the manufacturer may cause fire, electric shocks or injuries. Such unauthorized
measures shall exclude any liability by the manufacturer.
►The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the
device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in
the manual or automatically set parameters for a device or for an incorrect application of a device.
►Repairs may only be executed by the manufacturer.
►Installation, operation and maintenance procedures should only be carried out by qualified personnel.
►Use of the device and its installation must be in accordance with national legal requirements and local
electrical codes.
►When working on devices the valid safety regulations must be observed.
►This device is not suitable to be used in places where children are present. Prevent children access to
the device.
►Equipment is intended for use only in restricted access area.
►Special advice for carriers of cardiac pacemakers:
Although this device doesn’t exceed the valid limits for electromagnetic fields you should keep a
minimum distance of 25 cm between the device or the antenna and your cardiac pacemaker.

IDENTIFICATION
ID LRU500i
2 Performance Features
Installation
Page 6 of 35
2 Performance Features of ID LRU500i
Perf ormanc e F eatures
2.1 Performance Features
With its compact size, its weather-resistant housing, a read range of 8 to 10 m and the circular-polarized
antenna supporting any transponder orientation, the UHF Compact Reader ID LRU500i is ideally suited to
provide efficient and secure vehicle access control.
The Compact Reader can be easily installed on a VESA mount next to a barrier, gate or bollard due to its
mechanical construction. The ID LRU500i can be easily integrated into existing access control systems via
the Wiegand or RS485 interface. A version with Power-over-Ethernet (PoE) and USB is also available. To
install the compact reader one cable is required for each interface and power supply; for PoE only the
network cable is required.
2.2 Available Reader Types
The following readers are available:
Order Number
Reader Type
Description
5117.001.00 ID LRU500i-PoE-EU Device version with Power-over-Ethernet and USB for Europe
5117.001.10 ID LRU500i-PoE-FCC Device version with Power-over-Ethernet and USB for North America
5117.000.00 ID LRU500i-BD-EU Device version with Wiegand interface, RS485 and USB for Europe
5117.000.10 ID LRU500i-BD-FCC Device version with Wiegand interface, RS485 and USB for North America

IDENTIFICATION
ID LRU500i
3 Scope of Delivery
Installation
Page 7 of 35
3 Scope of Delivery
Scope of Delivery
3.1 ID LRU500i-BD
The scope of delivery includes following components:
•1 x ID LRU500i-BD
•1 x ESKV 20 M20 cable gland for cable ∅6–13 mm; for USB
•1 x RDE 20 M20 reduction sealing insert for cable ∅4–8 mm
•1 x MFD 20/02/040 M20 multiple sealing insert for 2 cables; cable ∅2–4 mm
•1 x MFD 20/03/045 M20 multiple sealing insert for 3 cables; cable ∅2.5–4.5 mm
•2 x ID CTF-U UHF Windshield Transponder
3.2 ID LRU500i-PoE
The scope of delivery includes following components:
•1 x ID LRU500i-PoE
•1 x MFD 25/01/065 M25 multiple sealing insert for 1 cable; cable ∅4–6.5 mm
•1 x ESKV 20 M20 cable gland for cable ∅6–13 mm; for USB
•1 x RDE 20 M20 reduction sealing insert for cable ∅4–8 mm
•1 x MFD 20/02/040 M20 multiple sealing insert for 2 cables; cable ∅2–4 mm
•1 x MFD 20/04/040 M20 multiple sealing insert for 4 cables; cable ∅2–4 mm
•1 x MFD 16/02/040 M16 multiple sealing insert for 2 cables; cable ∅2–4 mm
•2 x ID CTF-U UHF Windshield Transponder

IDENTIFICATION
ID LRU500i
4 Installation
Installation
Page 8 of 35
4 Installation
Installation
The ID LRU500i is designed to be mounted outdoors on a VESA bracket. The reader should be mounted
with the connections facing downwards to ensure tightness as shown below. Four holes for M5 screws are
provided on the backside of the housing for mounting on the VESA bracket. The screws used should have a
screw-in depth of maximum 8 mm. The housing can be opened by means of a hinge Therefore loosen the
screws marked blue in Fig. 1and swing away the front part of the reader. During installation, the dimensions
of the reader when opened should be taken into account (see Fig. 3). For secondary protection the reader
should be secured by means of an eye bolt (see Fig. 4), that should be fixed with screw locking varnish, and
e.g. a wire rope. The suitable accessory ID ANT.UEB-A can be purchased from FEIG ELECTRONIC.
Fig. 1: Dimensional drawing – back view

IDENTIFICATION
ID LRU500i
4 Installation
Installation
Page 9 of 35
Fig. 2: Dimensional drawing – side view

IDENTIFICATION
ID LRU500i
4 Installation
Installation
Page 10 of 35
Fig. 3: Dimensional drawing – top view: opened housing

IDENTIFICATION
ID LRU500i
4 Installation
Installation
Page 11 of 35
NOTE:
FEIG ELECTRONIC GmbH strongly recommends to secure the reader against falling by means of an
eye bolt to prevent damage.
Fig. 4: Secondary protection via eye bolt

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 12 of 35
5 Terminals
Terminals

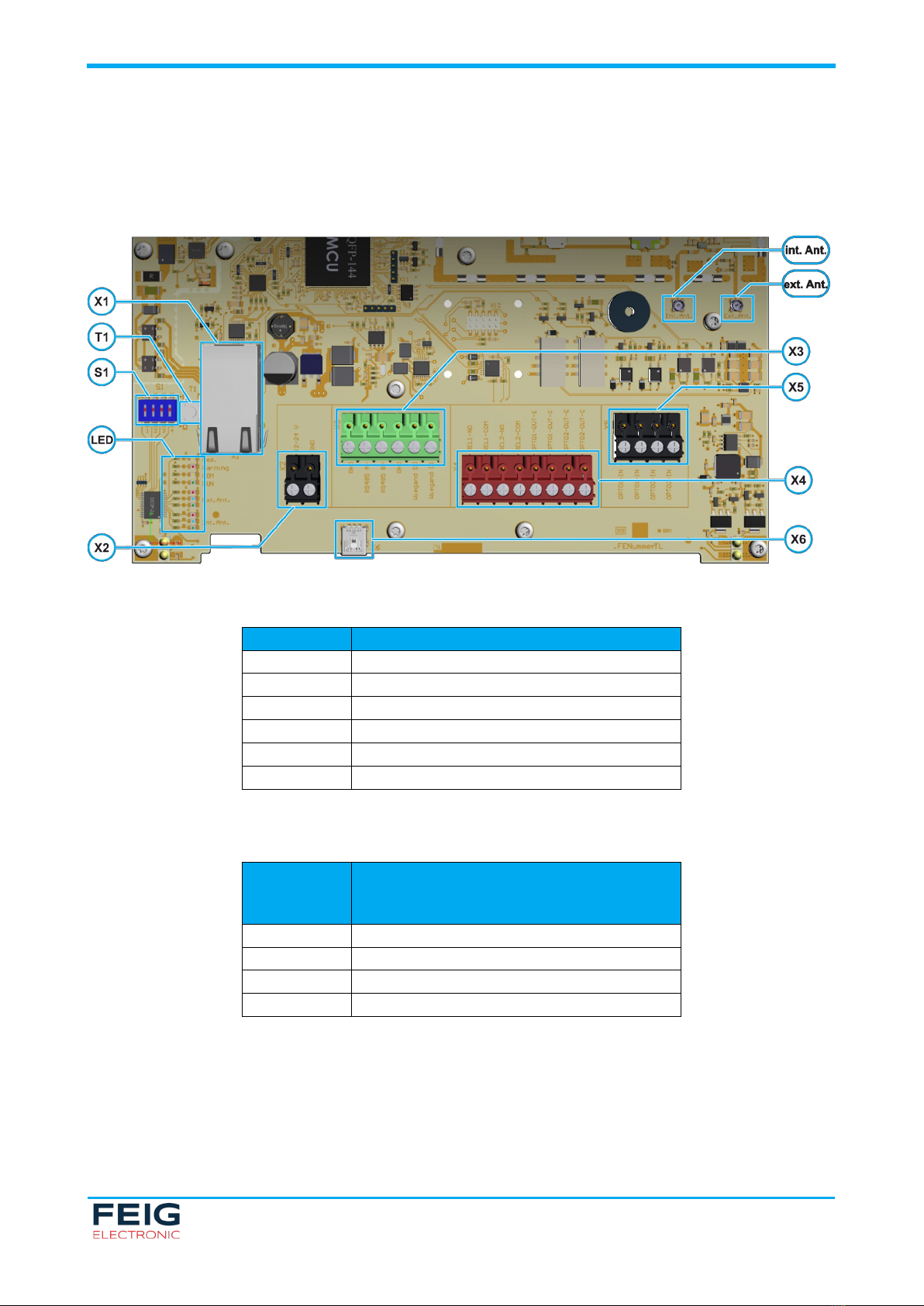

The cable connections are located on the lower side of the reader. Fig. 5shows the arrangement of the
connectors and Table 1gives an overview on the available connectors and interfaces. Table 2lists the
available operating and display elements.
Fig. 5: Connection Overview
Connector Description
X1 10/100 Base-T Ethernet with RJ45
X2 Power Supply 12–24 V DC ±1 0 %
X3 RS485 & Data/Clock (Wiegand)
X4 Relay Outputs & Digital Outputs
X5 Digital Inputs
X6 USB Mini Interface
Table 1: Connection Terminals
Operating /
Display
Element
Description
T1 Push Button for configuration reset
S1 DIP switches to set pre-configured options
LED Status LEDs for service & maintenance
1 Buzzer
Table 2: Operating and Display Elements

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 13 of 35
5.1 Antenna Connection
The TNC socket for connecting the external antenna is located on the lower side of the reader.
The maximum tightening torque for the TNC sockets is 0.69 Nm (6.11 lbf in).
For the power supply of external components, e.g. the UHF antenna multiplexer ID ISC.ANT.UMUX, it is
possible to apply the VCC voltage of the reader (24 V DC / max. 500 mA) directly to the antenna cable. The
antenna port must be configured accordingly in the reader. This option is not possible when powering the
reader via PoE.
Fig. 6: External antenna connection
CAUTION:
•Exceeding the tightening torque will destroy the antenna connection.
•The activation of the supply voltage on the antenna cable can damage the antennas from other
manufacturers. It is recommended to use high-resistance UHF antennas. For any further
questions please contact the FEIG technical support.

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 14 of 35
5.2 Power Supply
5.2.1 Power Supply via Connector X2
The supply voltage of 12–24 V DC has to be connected to terminal X2.
Pin Number at
Connector X2
Abbreviation
Description
1 GND Ground – suppy voltage
2 12–24 V Supply voltage 12–24 V DC ±10 %
Table 3: Pin assignment for power supply
CAUTION:
•The reader has to be supplied by a limited power supply according EN 62368-1 Chapter Q.1, or
with a NEC Class 2/LPS certified power supply.
•Each reader has to be supplied by a separate external power supply.
•Reversing the polarity of the supply voltage on X2 may destroy the device.
•External wiring for the power supply must fulfil the following norms/validation procedures:
Conductor Cross Section
Validation Procedure
from 0,5 mm² or bigger IEC 60332-1-2 and IEC 60332-1-3
smaller than 0,5 mm² IEC 60332-2-1 and IEC 60332-2-2
Table 4: Validation procedures for external wiring of the power supply
Fig. 7: Connector X2 pin assignment for power supply

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 15 of 35
5.2.2 Power Supply via PoE (Power over Ethernet)
Optional the reader (only ID LRU500i-PoE) can be powered via the Ethernet interface on X1 with the use of
a PoE „Power over Ethernet“ power supply according to IEEE802.3at*, Class4 (30/25,5Watt). The DC supply
can be achieved via the free pins 4, 5 and 7, 8 (Midspan-Power). Also a “Phantom Powering” (Inline-Power)
via the signal pins 1, 2, 3 and 6 is possible. Depending on the conductor cross-section the following cable
distances can be used:
Conductor Cross Section
(CAT5…7)
Max. Cable Length for PoE
0,4 mm² ~ 30 m
0,6 mm² ~ 70 m
Table 5: Max. cable length depending on the conductor cross section
* For detailed technical information regarding the 802.3at standard, please refer to the most recent edition of the
corresponding IEEE specification.
NOTE:
•This functionality is only available with the reader model ID LRU500i-PoE.
•It must be ensured that the reader is supplied with 42.5 V (48 V DC – cable losses) at least.
•An operation of an ID LRU500i-PoE via an external power supply and PoE at the same time is not
recommended and can cause interferences during operation.
•If the reader is supplied via PoE, no DC voltage can be provided at the connection for the external
antenna.
Fig. 8: LAN and PoE Connection

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 16 of 35
5.3 Ethernet Interface on Connector X1
The reader has an integrated 10/100 base-T network port for an RJ-45. Connection is made on X1 and has
an automatic “Crossover Detection” according to the 100BASE-T Standard.
With structured cabling STP CAT5 cables should be used. This ensures a reliable operation at 10 Mbps or
100 Mbps. The prerequisite for using TCP/IP protocol is that each device has a unique IP address on the
network. All readers have a factory set IP address. The transmission parameters can be configured as
required.
Network
Address
IP Address 192.168.10.10
Subnet Mask 255.255.0.0
Port 10001
DHCP OFF
Table 6: Standard factory configuration of the Ethernet connection
NOTE
The reader is equipped with a DHCP ready Ethernet interface.
Fig. 9: Ethernet connector

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 17 of 35
5.4 RS485 Interface on Connector X3
The RS485 interface is connected on X3. The transmission parameters can be configured via software
protocol.
Pin Number at
Connector X3
Pin Assignment
4 RS485 B+
5 RS485 A–
6 GND
Table 7: Pin Assignment X3 (RS485 Interface)
NOTE:
The RS485 interface is only available in the reader version ID LRU500i-BD.
Fig. 10: RS485 interface pin assignment on X3

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 18 of 35
5.5 Data-Clock Interface on Connector X3
The data-clock (Wiegand) interface is connected via terminal X3.
Pin Number at
Connector X4
Pin Assignment
1 Wiegand D1
2 Wiegand D0
3 GND
Table 8: Pin Assignment Data-Clock (Wiegand) Interface
NOTE:
•The data-clock interface is only available in Scan Mode in the reader version ID LRU500i-BD.
•The data-clock (Wiegand) interface cannot be used to configure the reader.
•For access control applications it is possible to connect the reader to two inputs of a Wiegand
controller in parallel via an ID ISC.LR.WS-A Wiegand Switch and thus monitor two lanes (e.g.
entrance and exit) simultaneously.
Fig. 11: Pin assignment Data-Clock (Wiegand) interface on X3

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 19 of 35
5.6 Digital Outputs on Connector X4
There are 2 digital outputs available on terminal X4 (type LRU500i-BD none). The transistor connection,
collector and emitter, of the optocoupler output is galvanically isolated from the reader electronic and routed
to the outside at terminal X4 without internal additional circuitry. The output must therefore be supplied with
an external voltage. Each output is linked fixed with an antenna. Reading of a valid transponder on the
internal antenna will affect the digital output OPTO1-OUT, a valid reading on the external antenna will affect
the digital output OPTO2-OUT.
Pin Number at
Connector X4
Pin Assignment
1 OPTO2-OUT-C
2 OPTO2-OUT-E
3 OPTO1-OUT-C
4 OPTO1-OUT-E
Table 9: Pin Assignment X4 (Digital Outputs)
Fig. 12: Connector X4 pin assignment for digital outputs
Fig. 13: internal and external wiring of the digital outputs

IDENTIFICATION
ID LRU500i
5 Terminals
Installation
Page 20 of 35
CAUTION:
•The outputs are designed for an input voltage of 12-24 V DC and an input current of max. 20 mA.
•Polarity reversal or overload of the outputs leads to their destruction!
•The output is only intended for switching resistive loads.
5.7 Relay Outputs on Connector X4
There are 2 relay outputs (type LRU500i-BD only 1) available at terminal X4 as normally open contacts. With
the LRU500i-PoE, each output is fixed with an antenna. Reading a valid transponder on the internal antenna
affects the relay REL1, reading a valid transponder on the external antenna affects the relay REL2.
Pin Number at
Connector X4
Pin Assignment
5 REL2-COM
6 REL2-NO
7 REL1-COM
8 REL1-NO
Table 10: Pin Assignment Relay Outputs REL1/REL2
Fig. 14: Connector X4 pin assignment for relay outputs (version LRU500i-PoE)
Fig. 15: External wiring of the relay outputs
