Feig Electronic ID ISC.ANT.U500/270 User manual

INSTALLATION
Draft - public (B)
2017-11-29 –M71060-1e-ID-B
ID ISC.ANT.U500/270
Type GA and GB UHF-Gate

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 2 of 54
M71060-1e-ID-B
Note
Copyright 2017 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.
my-d®is a registered trademark of Infineon Technologies AG
I-CODE®is a registered trademark of Philips Electronics N.V.
Tag-itTM is a registered trademark of Texas Instruments Incorporated.
General information's regarding this document
The sign "" indicates extensions or changes of this manual compared with the former issue.
If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or for internal
testing- and manufacturing-functions. These bit spaces must not be changed, as this may cause faulty
operation of the reader.
The following figure formats are used:
0...9: for decimal figures
0x00...0xFF:for hexadecimal figures,
b0...1 for binary figures.
The hexadecimal value in brackets "[ ]" marks a control byte (command).

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 3 of 54
M71060-1e-ID-B
Contents
ID ISC.ANT.U500/270 1
Type GA and GB UHF-Gate 1
1Safety Instructions / Warning - Read before Start-Up ! 5
2Maintenance 6
3Performance Features 7
3.1 Scope of delivery........................................................................................................ 7
3.1.1 Antenna ID ISC.ANT.U500/270 Type GA.................................................................7
3.1.2 Antenna ID ISC.ANT.U500/270 Type GB.................................................................7
3.2 Performance Features of the ID ISC.ANT.U500/270 Antennas ................................8
3.3 Performance Features of the People Counter (ID ISC.UPC) ....................................8
3.4 Available Antenna Types ......................................................................................... 10
4Installation and Wiring 10
4.1 Mounting Preparation.............................................................................................. 11
4.2 Installing the antenna............................................................................................... 12
4.2.1 Dimensions of antenna...........................................................................................12
4.2.2 Drilling the Mounting Holes ....................................................................................13
4.2.3 Installing the Antenna on the floor..........................................................................14
4.2.4 Disassembly of the Antenna from the Antenna foot (for replacement/repair)..........19
5Typical Antenna Configuration (Gate with two Antennas) 23
5.1 Project Notes Antenna .............................................................................................23
5.2 Gate Configuration and Setup using Antennas...................................................... 24
5.2.1 Required Components ...........................................................................................24
5.2.2 Configuration of the Gate Antennas ....................................................................... 25
5.2.3 Interface Connections ............................................................................................26
5.2.3.1 LAN / TCP/IP................................................................................................26
5.2.3.1 USB Mini Interface on connector X3.............................................................27
5.2.4 Reader/Antenna Configuration...............................................................................28
5.3 Testing the Gate Antenna.........................................................................................32
5.3.1 Reading a Serial Number.......................................................................................32
5.3.2 Testing the performance ........................................................................................33

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 4 of 54
M71060-1e-ID-B
5.4 Setting the Alarm Indicators (Alarm buzzer and Alarm LED lights)......................35
5.4.1 Reader Setting for Alarm Indicators........................................................................35
5.4.2 Reader Setting for Alarm conditions.......................................................................36
5.4.3 Reducing false Alarms ...........................................................................................37
5.4.4 Programming a Transponder with the AFI or Alarm Byte........................................39
5.5 Activating the Automatic Mode................................................................................40
5.5.1 Testing the Gate in Buffered Read Mode ............................................................... 41
5.5.2 Testing the People Counter in Buffered Read Mode .............................................42
5.5.3 Configuration and Test in Notification Mode...........................................................44
5.6 Reader Diagnostic .................................................................................................... 46
6Configure the reader in accordance with national RF regulations 48
6.1.1 EU reader according to EN 302 208.......................................................................49
6.1.2 FCC Reader according to FCC 47 Part 15............................................................. 50
6.1.3 USA (FCC)............................................................................................................. 51
6.1.3.1 Antenna ID ISC.ANTU500/270 GA/GB......................................................... 51
7Technical Data 52
7.1 Antenna ID ISC.ANT.U500/270 Type GA and GB .................................................... 52

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 5 of 54
M71060-1e-ID-B
1 Safety Instructions / Warning - Read before Start-Up !
The device may only be used for the intended purpose designed by for the manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
When working on devices the valid safety regulations must be observed.
Please observe that some parts of the device may heat severely.
Before touching the device, the power supply must always be interrupted. Make sure that the
device is without voltage by measuring. The fading of an operation control (LED) is no indicator
for an interrupted power supply or the device being out of voltage!
For installation and dismantling you should wear suitable safety gloves, because parts of an-
tenna housing could be sharp-edged.
The Antenna is not water proof and should not be exposed to rain or humidity.
Under extreme circumstances water could seep into the antenna and damage the electronic
circuits.
Special advice for wearers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should
keep a minimum distance of 25 cm between the device and your cardiac pacemaker and
not stay in an immediate proximity of the reader’s antennas for any length of time.
CAUTION! Do not look directly into the Alarm LED light. There is a danger of
injury of the eyes!

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 6 of 54
M71060-1e-ID-B
2 Maintenance
The antenna ID ISC.ANT.U500/270 is a design product with high quality surfaces, and should al-
ways be handled with caution. The antenna was designed to work reliably and flawlessly for years
without special maintenance.
Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a
dishwashing liquid –water solution. The use of alcohol, spirit, thinners, glass clean-
ers or other harsh cleaning liquids is prohibited and will damage the surface.
To improve the durability and the appearance, please follow the instructions below:
Keep the antenna clean and take care the antenna is not scratched. Also regularly apply spe-
cific antistatic products for acrylic surfaces.
Regularly remove dust and other impurities with a soft cloth and a solution of water with a little
dishwashing liquid.
Keep the antenna dry. All kinds of moisture should be avoided during operation and storage.
Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and
damaging transparent plastic parts.
Protect the antenna from high temperatures. Mount the antenna away from heaters and other
heat sources. Operation under direct sunlight can cause extreme high temperatures and a fad-
ing cause of the surface.
Avoid storing or operating the antenna at dirty or wet locations. The surfaces or electronic
components may be-damaging.
Handle the device with care. Shocks may break internal circuit boards.
Do not try to open the antenna during operation or outside maintenance periods. Non-
professional management can result in damage to the device.
If any device not working properly, please contact the appropriate representative.

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 7 of 54
M71060-1e-ID-B
3 Performance Features
3.1 Scope of delivery

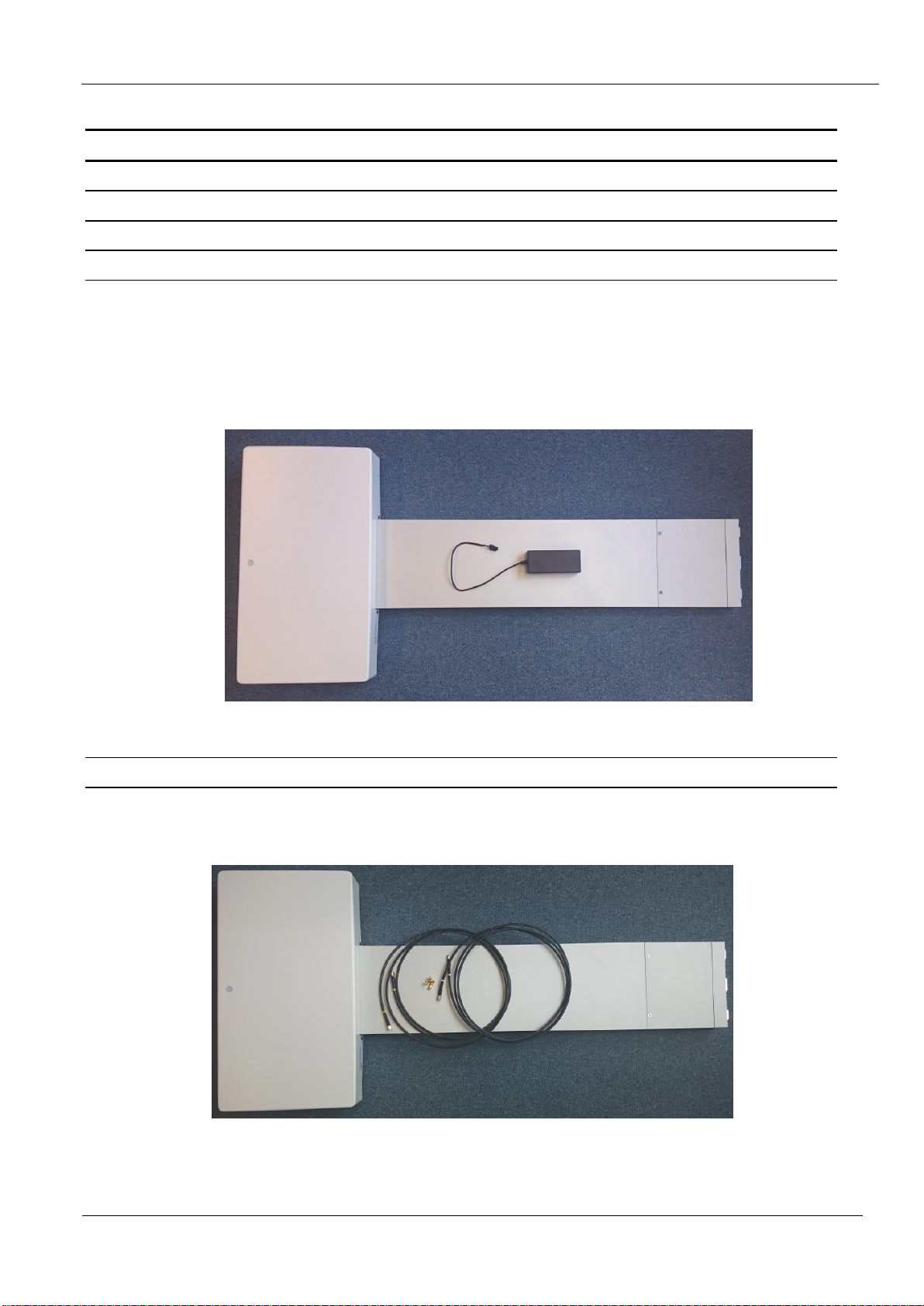

3.1.1 Antenna ID ISC.ANT.U500/270 Type GA
Antenna ID ISC.ANT.U500/270 incl. UHF Reader Module and People Counter with alarm
LED and Buzzer.
Wide range power supply ID ISC.NET24V-B 100-240V/ 24V
(without power cable with IEC plug)
Mounting Instruction
3.1.2 Antenna ID ISC.ANT.U500/270 Type GB
Antenna ID ISC.ANT.U500/270 incl. LED
2 Antenna connector cable H155 Low loss, about 3m long

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 8 of 54
M71060-1e-ID-B
3.2 Performance Features of the ID ISC.ANT.U500/270 Antennas
The ID ISC.ANT.U500/270-GA antenna is a version with integrated Long Range Reader ID
ISC.LRU1002 additional Alarm LED light, Alarm buzzer and People Counter UPC .
The ID ISC.ANT.U500/270-GB antenna is a version with integrated Alarm LED light mounted.
Depending on the antenna configuration, one, two or all three read orientations of the Smart Tags
and various aisle widths (gate widths) are possible.
The antennas can be used for detecting both product and persons. It is for indoors use, only.
3.3 Performance Features of the People Counter (ID ISC.UPC)
A Gate People Counter consist of a People Counter board (PC) and one Infra red sensor.
The People Counter has one counters per aisle. The values of the incoming and outgoing persons
will be separately captured.
Fig. 1: Gate People Counter Structure
A change of the counter values will be stored in the EEPROM of the People Counter board. By
sending the command “0x78 Set People Counter” the values could be set/reset to the needed
value.
The capacity of the counter is 0..4 294 967 295 for each direction.
People
Counter
Infra Red
Sensor
Gate antenna
ID ISC.ANT.UPC
Reader

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 9 of 54
M71060-1e-ID-B

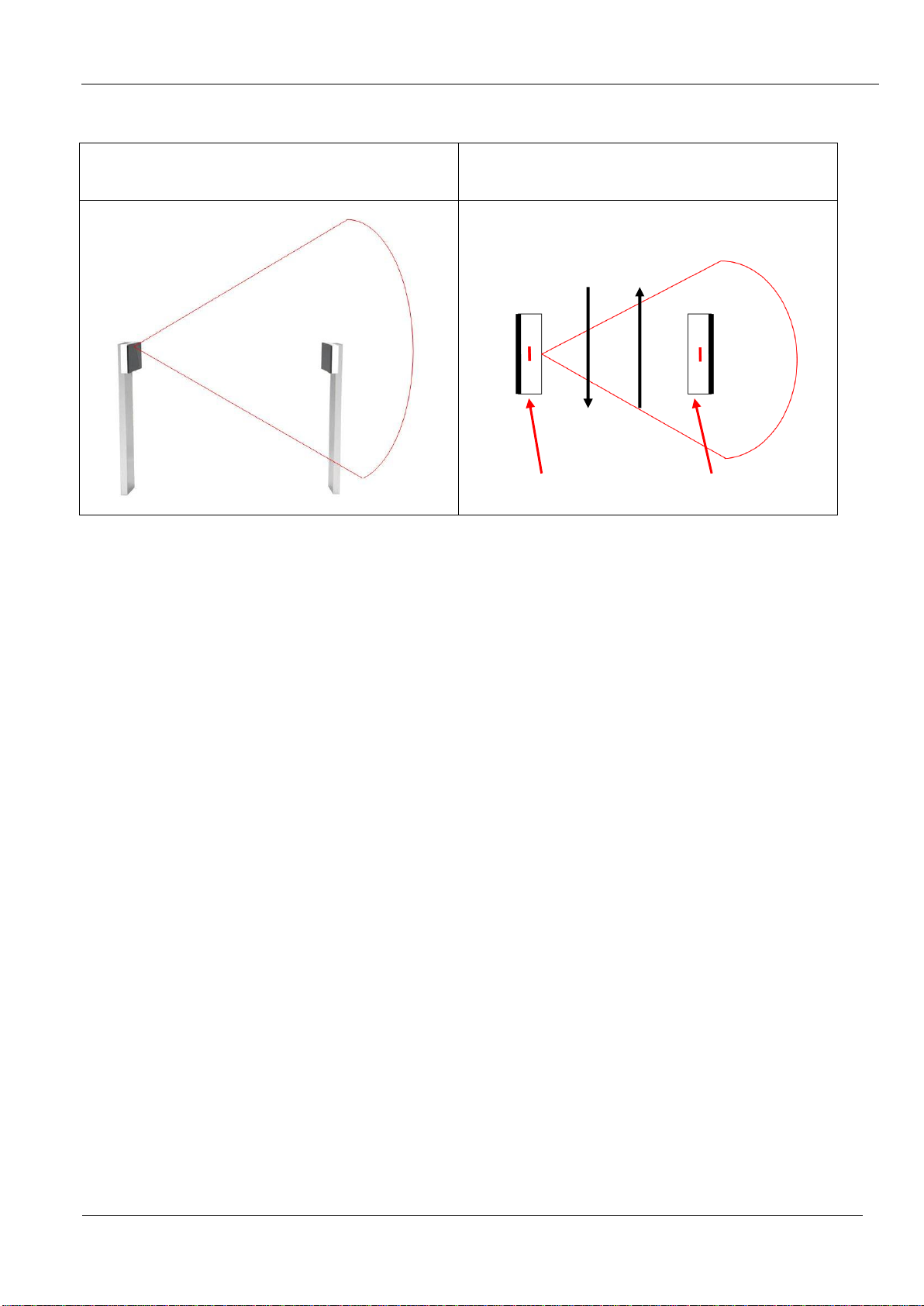

Infra red detection zone of a single gate
(side view)
Infra red detection zone of a single gate
(top view)
Fig. 2: Views of the detection area
The People Counter board and the Infra red Sensor is mounted in the housing of the antenna type
ID ISC.ANT.U500/270-GA.
There is no need of a direct connection from the UPC to the Host. All commands from the Host to
the People Counters are embedded in the Pickyback command of the reader.
Generally, there are two possibilities to get the actual people counter values. Either the Host poll
the People Counter periodically or in the Notification Mode of the reader, the reader send a notifi-
cation protocol at every change.
In Buffered Read Mode, the host poll the UPC by sending protocols. Only, in the Notification Mode,
the reader poll the counter values, automatically, and send data according the reader configuration
to the host.
ISC.ANT.U500/270-GA ISC.ANT.U500/270-GB

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 10 of 54
M71060-1e-ID-B
3.4 Available Antenna Types
The following products are currently available:
Antenna Type
Description
ID ISC.ANT.U.500/270-GA
FCC
Order No. 4884.000.00
Antenna with Reader, Multiplexer , Alarm LED light, Alarm Sounder,
people counter and 24 VDC power supply.
ID ISC.ANT.U500/270-GB
FCC
Order No. 4885.000.00
Antenna with Alarm LED light
ID ISC.ANT.U500/270-GA
EU
Order No. 4888.000.00
Antenna with Reader, Multiplexer , Alarm LED light, Alarm Sounder,
people counter and 24 VDC power supply.
ID ISC.ANT.U500270-GB
EU
Order No. 4887.000.00
Antenna with Alarm LED light
Table 1: Available Antenna Types and Accessories
4 Installation and Wiring
Notes:
Before installing the antennas please read 5.1 Project Notes Antenna.The gate is designed for a
gate width of about 1.6m.

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 11 of 54
M71060-1e-ID-B
4.1 Mounting Preparation
For the assembly of the antenna it has to be carefully unpacked and the antenna base to be
opened. This is done as described in the following steps:
1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and
then remove the antenna.
Fig. 3: Packed Antenna
2. Afterwards, the antenna has to be placed carefully on the floor again. Now, the two fastening
screws (hexagon socket width AF 2,5) have to remove of the antenna base cover. By moving
the cover upwards, carefully, remove the cover from the antenna base. Fig. 4
Step 1
Step 2
Fig. 4: Opening the antenna base

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 12 of 54
M71060-1e-ID-B
4.2 Installing the antenna
4.2.1Dimensions of antenna
The overall dimensions of the antenna are shown in Fig. 5
Fig. 5: Antenna outside dimensions
All dimensions are in mm with general tolerance according to ISO 2768 m (mean).

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 13 of 54
M71060-1e-ID-B
4.2.2Drilling the Mounting Holes
If the position of the antennas has been marked or determined, the mounting holes and the holes
for the cable entry, can be marked and drilled for the antenna foot.
The dimensions are shown in Fig. 6:
Adjustable feet
Mounting holes (max. M10)
Fig. 6: Floor plate dimensions
All dimensions are in mm with general tolerance to ISO 2768 m (middle).
The size and type of the anchors depends considerably on the strength of the base or floor. The
anchors should be capable of withstanding a permissible load of at least 5 kN per anchor for all
load directions (e.g. for concrete floor Hilti HVA anchors with HAS-(E) M8 threaded rod or Hilti HIS-
N M8 (5/16”) threaded inserts). The size of the mounting holes in the antenna is 10 mm (.39”). The
length of the anchors or bolts should be selected such so they just look out at least 35 mm (1.4”)
and maximum of 40 mm (1.6”) of the floor.
Please follow the mounting instructions of the anchor manufacturer!
A cable opening is provided for the necessary connection cable (see Fig. 6).
cable opening

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 14 of 54
M71060-1e-ID-B
4.2.3Installing the Antenna on the floor
The antenna will be mounted on the floor. Please note, the open side of the steel foot should face
towards the middle of the aisle.

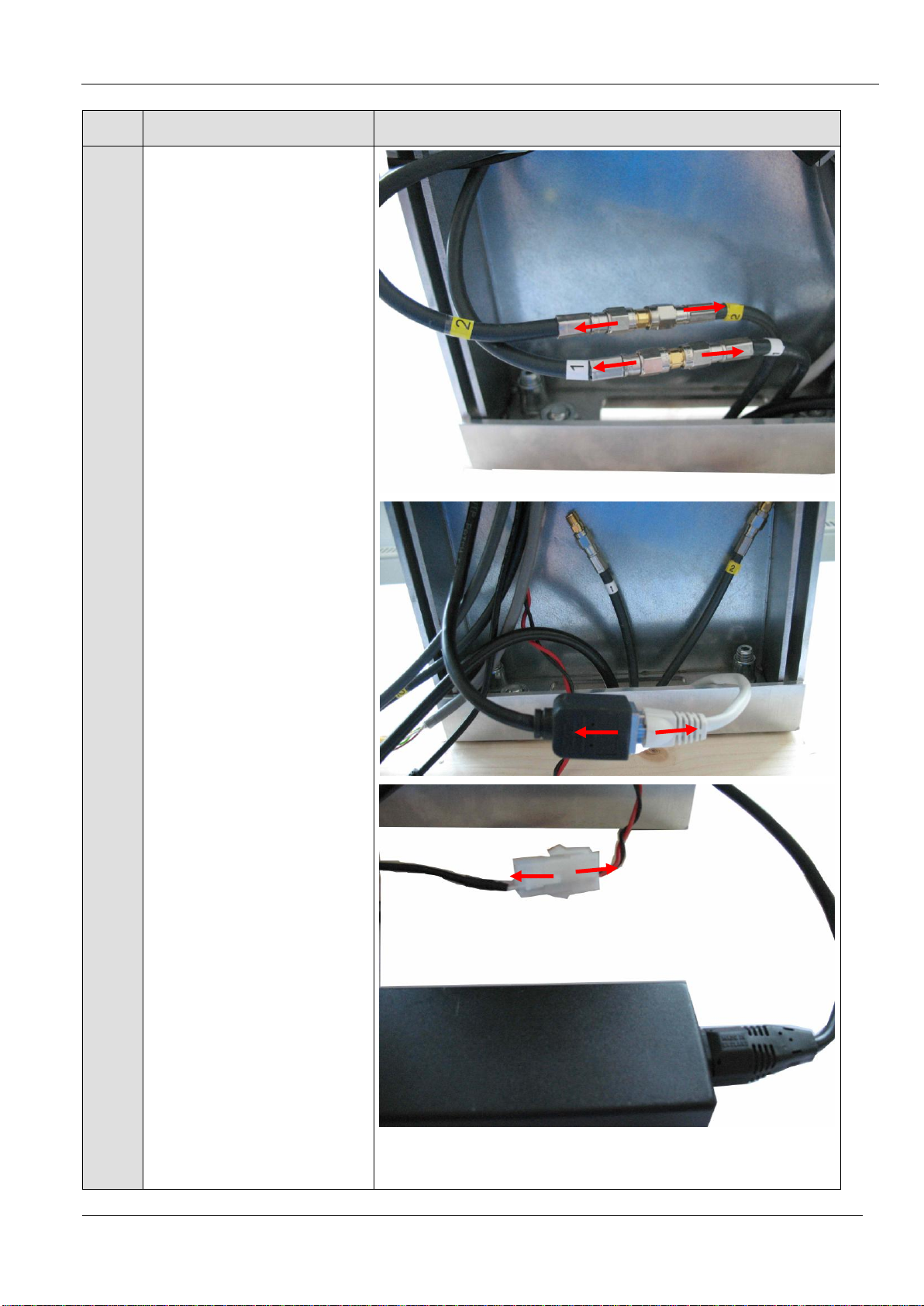

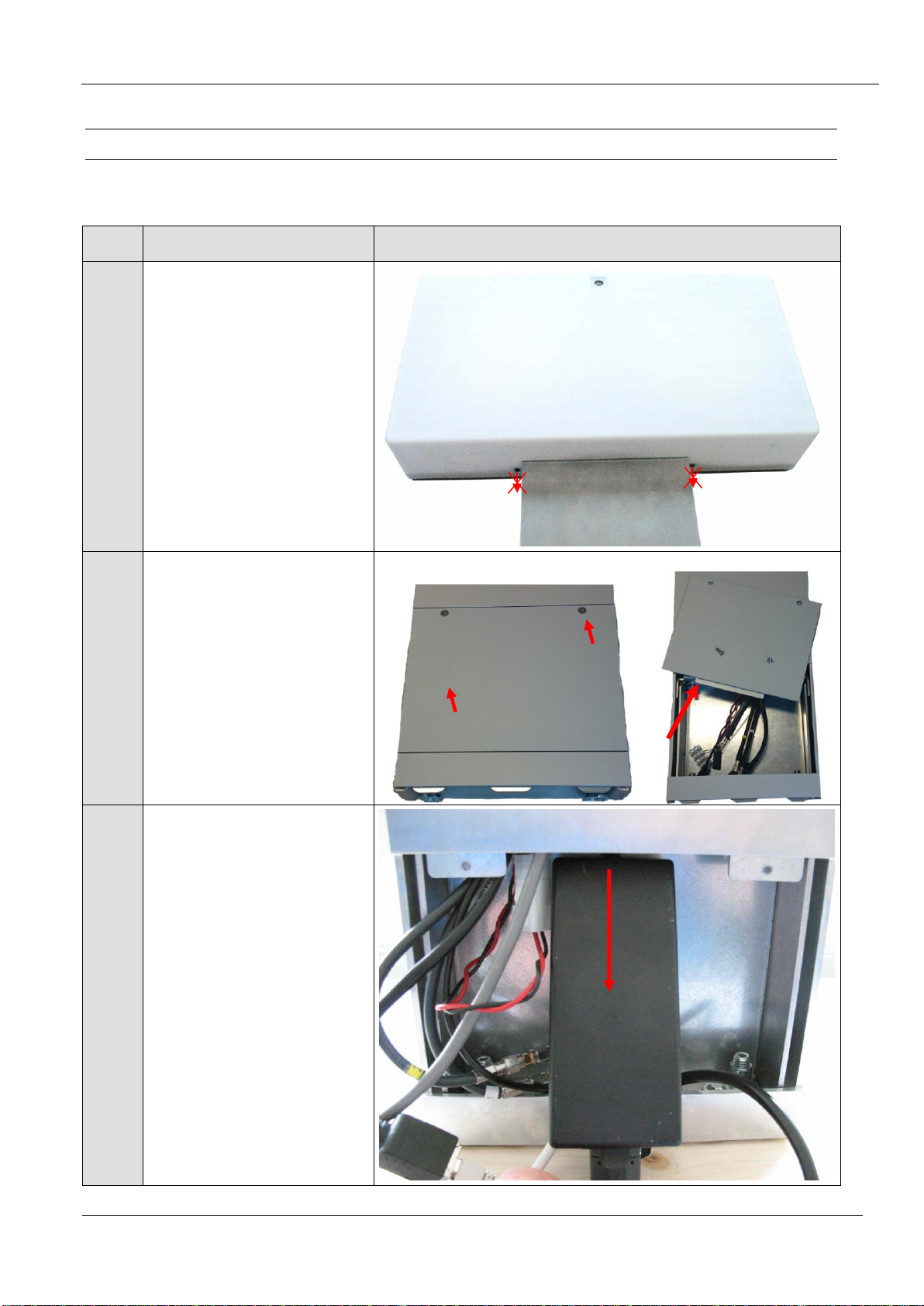

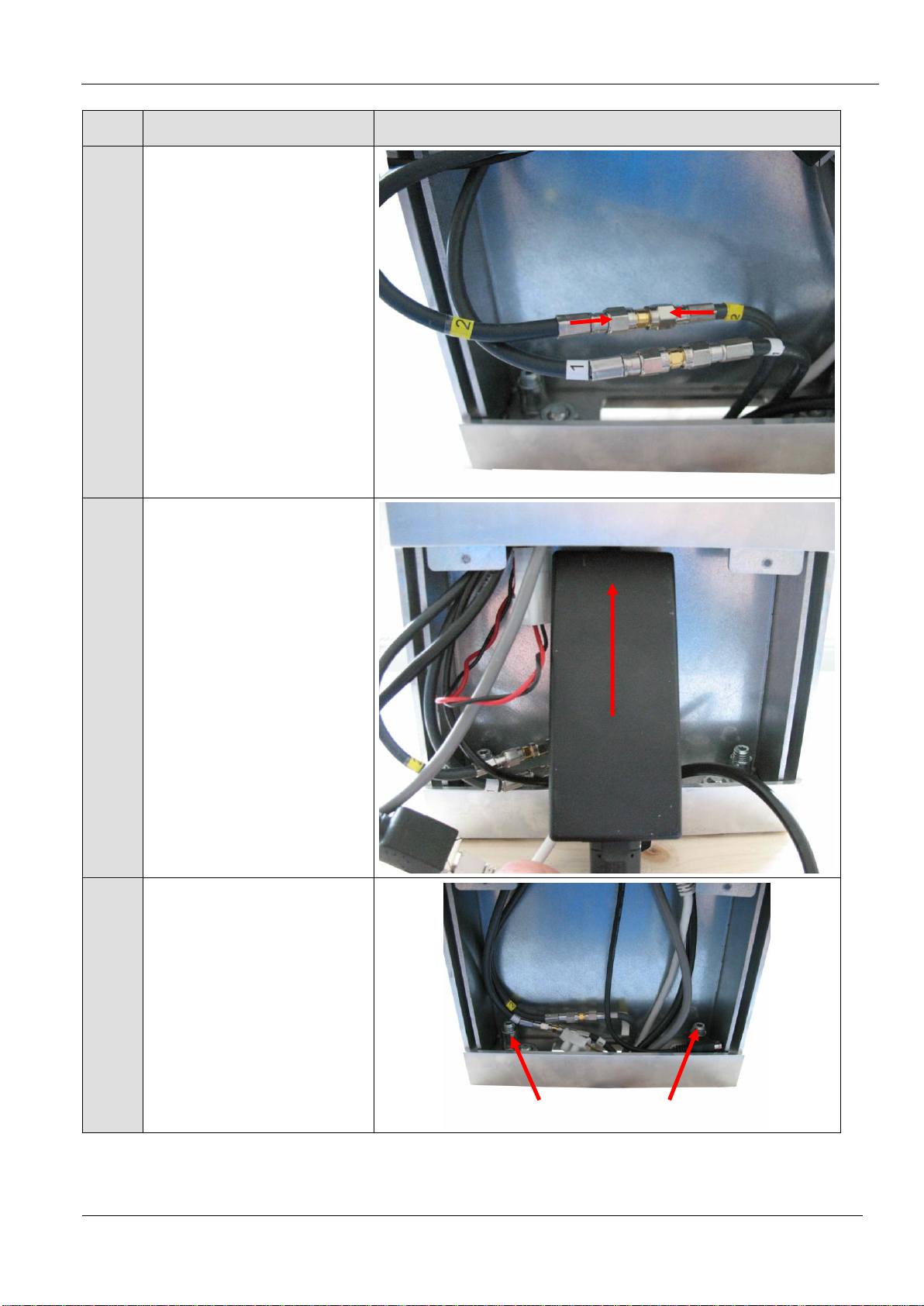

Step
Action
Note
1
Do not open the antenna
body ! Open and remove the
antenna cover at the
antenna foot.
2
Open and remove the an-
tenna cover at the antenna
foot.
3
Place the antenna carefully
with the cable opening in the
foot beside the cables and
the mounting anchors.
Do not remove !

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 15 of 54
M71060-1e-ID-B
Step
Action
Note

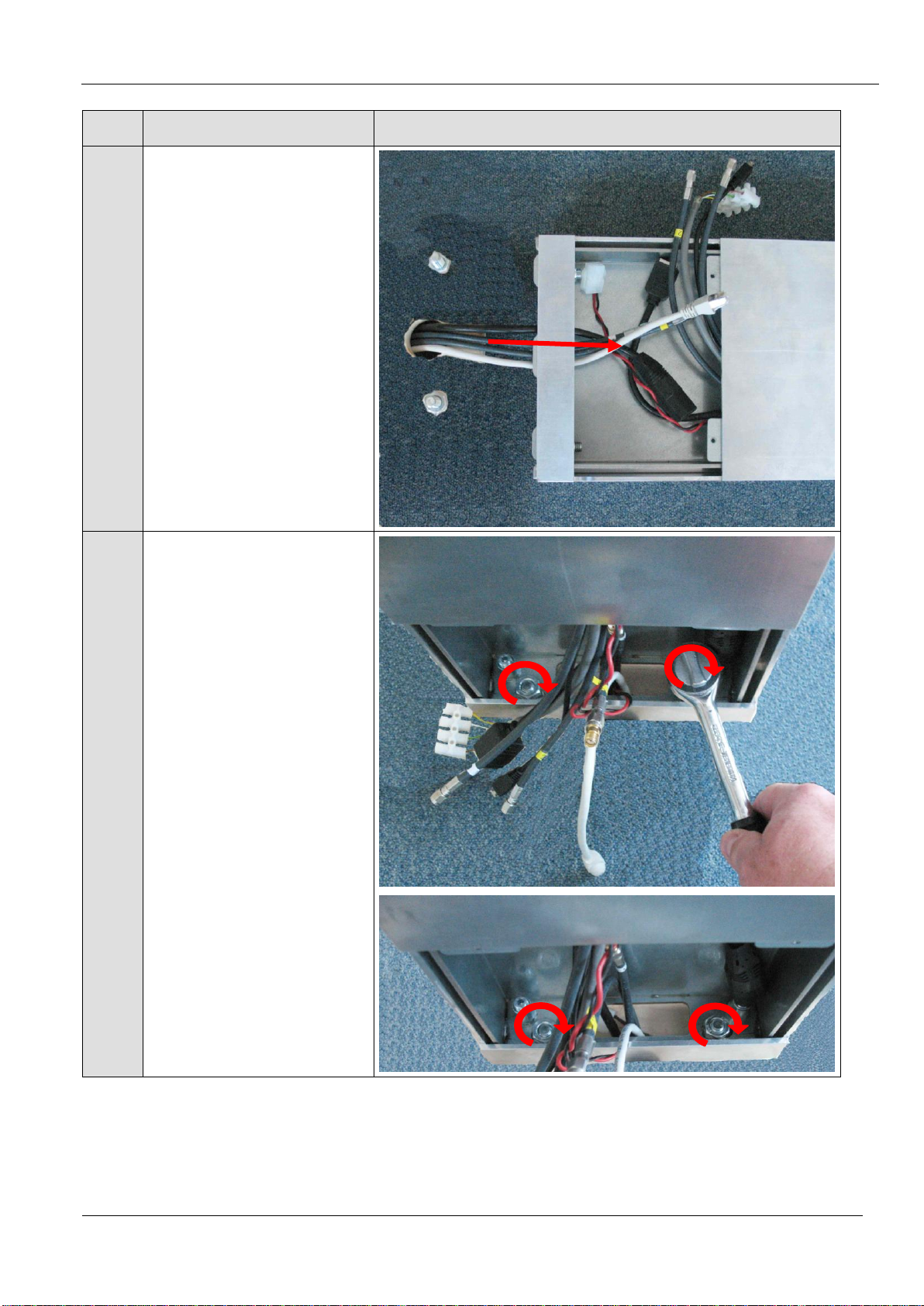

4
Put the cables through the
cable opening.
5
Put the antenna with the
mounting holes on the
anchors and screw it tight.

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 16 of 54
M71060-1e-ID-B
Step
Action
Note
6
Connect the cables of the
interface and the power
supply.
7
Connect the antenna cables
to the corresponding
antenna cables of antenna B
1 with 1
2 with 2

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 17 of 54
M71060-1e-ID-B
Step
Action
Note
8
Put the power supply into
the antenna foot.
9
If needed the antenna could
be adjusted vertically with
the adjustable feet.

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 18 of 54
M71060-1e-ID-B
Step
Action
Note
10
Close the antenna with the
antenna cover.

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 19 of 54
M71060-1e-ID-B
4.2.4 Disassembly of the Antenna from the Antenna foot (for replacement/repair)
The antenna will be mounted on the floor. Please note, the open side of the steel foot should face
towards the middle of the aisle.
Step
Action
Note
1
Do not open the antenna
body !
2
Open and remove the an-
tenna cover at the antenna
foot.
3
Pull out the power supply of
the aluminium foot.
Do not remove !

Identification
Installation
ID ISC.ANT.U500/270–GA/-GB UHF-Gate
FEIG ELECTRONIC GmbH
Page 20 of 54
M71060-1e-ID-B
Step
Action
Note
3
Disconnect all cables in the
antenna foot.
