Important instructions for safety and the environment

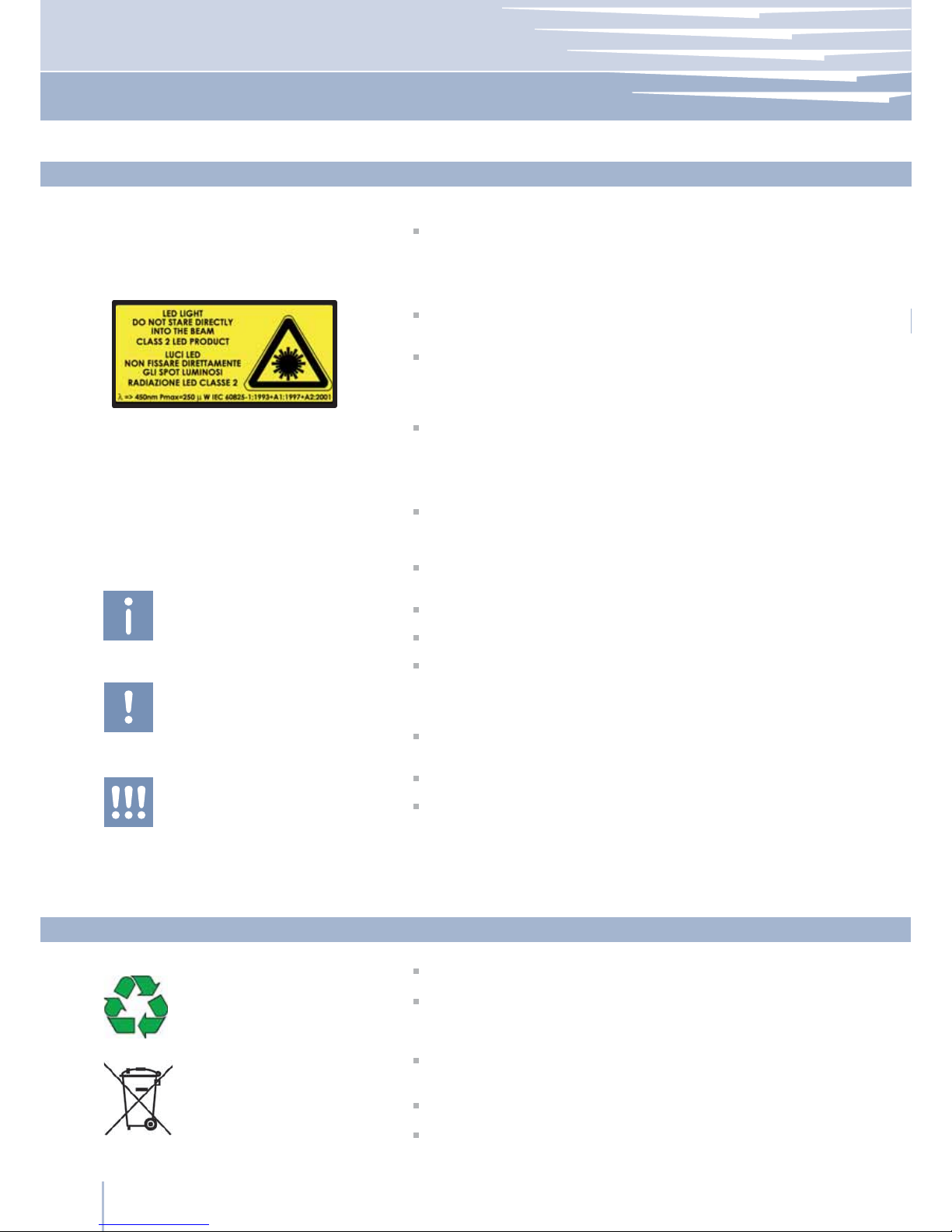

For your safety
Respect for the environment
Installation
Installation
Connection to the electrical mains
Before starting
Getting to know the appliance
Main features
Main components
Electronic Control
Main control panel
Turning the appliance on and off
Turning on and off
How to adjust the temperature to suit various needs
Information and malfunction signals on the display
Settings and Special Functions
Customization and Language Settings
Special functions activated through the Menu
Basic settings of the Menu
Internal Layout
Internal Layout (positioning, adjustment, removal)
Lighting
Lighting
Use of the TriMode compartment
Use of the TriMode compartment
TriMode compartment
Conservation of wines
General directions
Wine conservation temperature
Time of conservation
Consumption temperature
Position of bottles
Food Conservation
Recommendations for conserving fresh food
Recommendations for conserving frozen food
Recommended times for food conservation
Care and Cleaning
Care and Cleaning
Condenser cleaning
Internal cleaning
Troubleshooting guide
Troubleshooting guide
Malfunction indications appearing on the display
Prior to calling Service
Prior to calling Service
Fhiaba Access Menu Map
Functions
Settings
1
1.1
1.2
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
4.3
5
5.1
5.2
5.3
6
6.1
7
7.1
8
8.1
8.2
9
9.1
9.2
9.3
9.4
9.5
10
10.1
10.2
11
12
12.1
12.2
12.3
13
13.1
13.2
14
14.1
15
15.1
15.2
Page 2
3
4
8
10
15
16
17
18
21
22
23
24
26
27

2
1
1.1
1.2
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Make sure you dispose properly of all packing materials.
The appliance must not be disposed of with urban waste.
Contact local waste disposal authorities for information on the disposal
of recyclable waste.
For disposal, cut the power supply cord and make it impossible to
close the door.
During disposal, avoid damage to the refrigeration circuit.
Neither the refrigeration circuit nor the insulation contain substances
that are hazardous to the ozone layer
Notes
Suggestions for proper use
of the appliance
For your safety
Respect for the environment
Important
Instruction to prevent damage
to the appliance
Warning
Instructions for preventing
personal injury
If this Appliance is to replace an existing appliance which in turn is to
be removed or disposed of, make sure that it does not become a dan-
gerous trap for children by cutting its power supply cable and making it
impossible to close the door. Take the same precautions at the end of
the life cycle of the new appliance.
This appliance is designed to refrigerate beverages and foods and is
destined for household use.
The appliance must be installed in compliance with the instructions in
the installation guide.
In particular, keep free of obstructions the ventilation openings in the
appliance or in the cabinet into which it is inset.
The appliance is equipped with a concentrated-light illumination sys-
tem with LED lamps. Do not stare into these lamps when they are on to
avoid possible eyesight damage.
This warning is also contained on the label attached to the inside of the
refrigerator door.
When the freezer is in operation, do not touch the stainless steel inner
surfaces with wet or damp hands, since skin may stick to the very cold
surfaces.
Do not use any type of electrical equipment inside of the food con-
servation compartments.
When positioning the shelves, do not place fingers in the shelf slide guides.
Do not position containers of flammable liquids near the appliance.
Shut the appliance down completely and unplug the power supply
cable when cleaning it. If the plug is not easily accessible, it is advisable
to turn off the omnipolar switch for the socket where the appliance is
plugged in.
The packaging may be dangerous to children. Do not allow children
to play with the plastic bags, plastic film or polystyrene.
Any repairs must be performed by a qualified technician.
This appliance is not intended by persons with limited physical, sen-
sorial or mental ability, including children, or who do not have proper
experience and knowledge, unless they are supervised or instructed on
the use of the appliance by a person who is responsible for their safety.
Children must be supervised to ensure that they do not play with the
appliance.
Important instructions for safety and the environment

3
2
2.1
2.2
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Make sure that installation is performed correctly, adhering to all of
the instructions in the specific installation guide provided with the
appliance.
Installation
Connection to the electrical mains

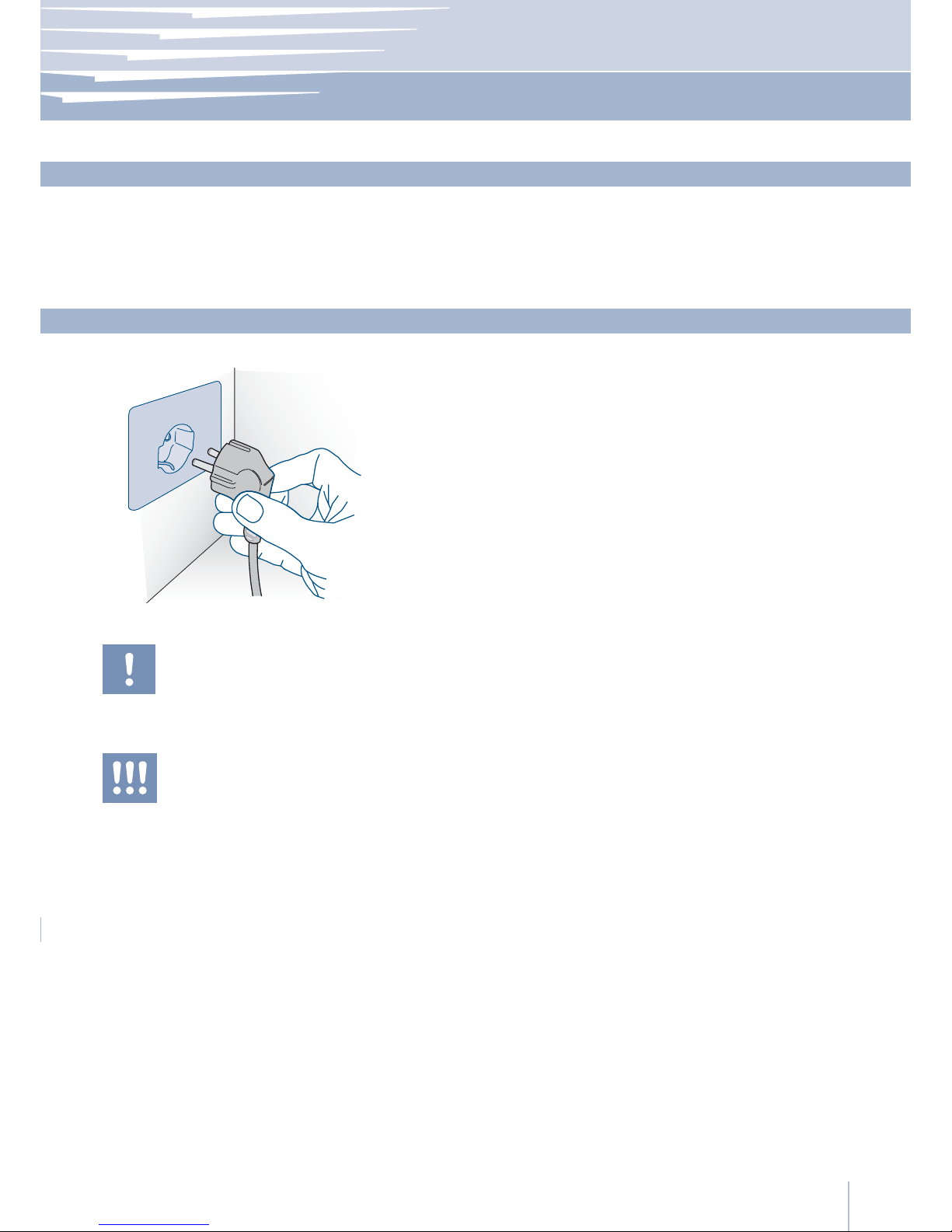

The appliance is equipped with a Schuko type 16A plug.
It must be connected to the electrical mains by means of a corre-
sponding Schuko socket.
Do not use extension cords and/or multiple adapters for connection.
Do not use extension cords and/or multiple
adapters for connection.
Installation
If energy is supplied through an alternative ener-
gy power source (solar, geothermal, etc..) or if
home automation systems are installed, it is ne-
cessary to install the Alternative Energy Kit to in-
tegrate the unit into the power grid.

4
3
3.1
3.2
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Before starting
Getting to know the appliance
Exclusive design by Giugiaro
The Fhiaba triple refrigeration system and the separa-
tion of internal compartments ensure perfect conditions
for conservation of various types of wines
The electronic control guarantees constant temperature
and humidity levels set by the user
The double compressor allows separate management
of the set temperature and humidity for the Cantina, Wine
Cellar and TriMode compartments
The TriMode compartment may operate in three differ-
ent modes: as a freezer, as a refrigerator or as a cooler
compartment
Free-standing or built-in installation
Main features
An interactive menu (Menu) permits personalized man-
agement of appliance functions and the display of mes-
sages on operation
Optimization of consumption during vacation periods
Surfaces in stainless steel both inside and outside, with
fine aluminium trim
Patented hinge system that permits automatic door closing
TriMode drawers with Soft self-closing system
Localized lighting system with LEDS
Anti-tipping system with brackets for wall mounting.
Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation sys-
tem, which will allow you to keep all of your food in the
best way possible.
This manual will answer most of your questions about the
product’s features. Should you require further information,
please check our website
www.fhiaba.com
or write us an e-mail at
[email protected].
Before calling, write down the model type and serial number
which are available on the warranty certificate and on the
rating plate located on the bottom left-hand corner of the
appliance, behind the bottom drawer and any messages
which may have appeared on the display.
[phone]

5
3
3.3
Cantina
TriMode
TriMode
1
1
7
8
8
9
9
10
10
11
11
12
12
2
2
3
3
5
4
5
6
6
7
Wine Cellar
Wine Cellar
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Before starting

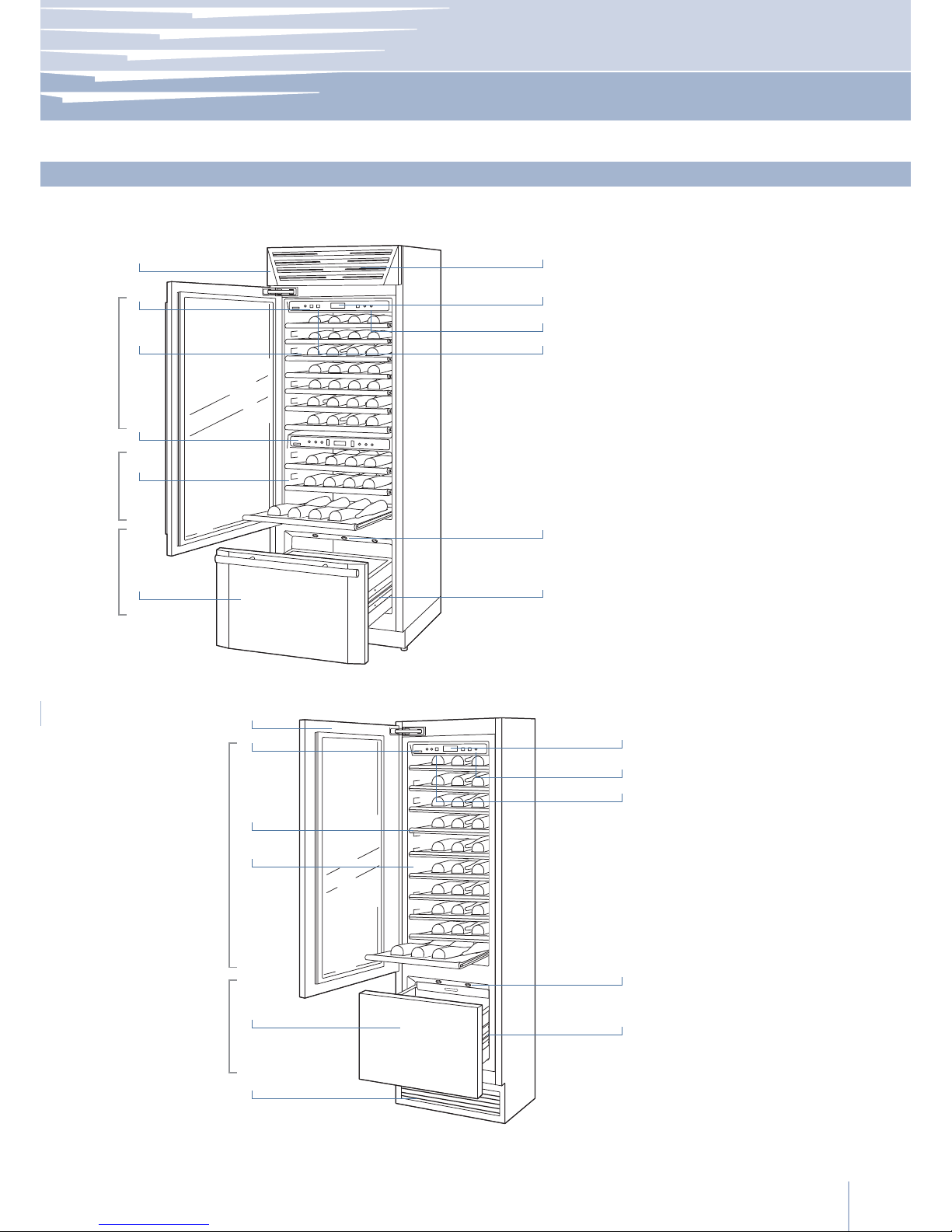

Main components
One drawer Wine Cellar
1Structure in stainless steel
with aluminium trim
2Wine Cellar and TriMode
control panels with Menu
3Sliding bottle shelfs,
mounted on wheels for
easy extraction
4Cantina area control panel
5Wine Cellar
6 Frezer compartment that
can be transformed into a
refrigerator or Crisper-Fresco
compartment
(TriMode function)
7Double refrigeration system
8Temperature display
9Acoustic signals
10 Vacation function
(in Menu)
11 Innovative lighting
12 Automatic door and
drawer closure
1T Models
0T Models

6
3
3.3
1
7
6
8
9
10
2
3
4
5
TriMode
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Before starting
Main components
Two drawer Wine Cellar
1Structure in stainless steel
with aluminium trim
2Wine Cellar and TriMode
control panels with Menu
3Sliding bottle shelfs,
mounted on wheels for
easy extraction
4TriMode drawers, may be
used as freezer, refrigerator
or cooler
5 Double refrigeration system
6Temperature display
7Acoustic signals
8Vacation function
(in Menu)
9Innovative lighting
10 Automatic door and
drawer closure
0H Models
FridgeTriMode

7
3
3.3
3.3
Componenti principali
Componenti principali
3.5
3.4
12 34 5 67 98
ALARM
ENTER
WINE CELLAR
UNIT LIGHT
1Unit
2Wine cellar
3Menu
4Up/down
Wine Cellar
5Display
6Up/Down
(TriMode)
7Enter
8Alarm
9Light
10 11 12 13
CANTINA HUMIDITY
10 Display
12
13
Cantina
Humidity
11 Up/Down
Cantina
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Before starting
Main control panel
Electronic Control
Allows complete shutdown and start-up of the appliance
(press for three seconds).
Allows access to the appliance functions menu.
Displays the temperature of the Wine Cellar and TriMode compart-
ments, the date and time, Menu functions and visual messages.
Allows illumination of the Wine Cellar and Cantina compartments also
when the door is closed
Shows the temperature of the Cantina compartment.
Allows switching on and off only the Cantina compartment on or off
(press for three seconds).
Allows adjustment of humidity in the Wine Cellar and Cantina com-
partments to three levels: High (HI), Medium (A) and Low (LO).
Using the Up and Down keys, it is possible to change the set tempera-
ture for the Cantina compartment.
The innovative electronic control system designed by Fhiaba maintains constant temperature on the three compart-
ments and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings
of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.
Allows switching on and off only the Wine Cellar compartment (press
for three seconds).
By selecting Up/Down the preset temperature can be changed ac-
cording to the selected function mode (freezer, refrigerator, Crisper-
Fresco).
Confirms activation or deactivation of the selections made in the
Menu.
Allows activating or deactivating the automatic ice production.
Using the Up and Down buttons, it is possible to change the set tem-
perature of the refrigerator and scroll through the interactive menu.

8
4
4.1
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Turning the appliance on and off
To prevent accidental modification of settings,
the keypad locks automatically after a certain
period of time and the display shows the mes-
sage “keypad locked”. To re-activate it, simul-
taneously press the keys Menu and Up/Down
(Down) for three seconds.
At the first start-up, if the message Standby does
not appear, it means that the appliance has al-
ready started the cooling process. If this is the
case, deactivate any possible acoustic signals
by pressing the Alarm key , close the door and
wait until the set temperature is reached.
During the first start-up, you will not be able to use
the Menu to modify factory settings until the de-
fault temperature has been reached. It is howev-
er possible to set the time and date immediately;
these parameters are required to activate some
of the special functions.
If only the Cantina or Wine Cellar compartment
is turned off, the corresponding fan will continue
to run independently to prevent the formation of
unpleasant odours and mould.
First start-up
Once you have turned on all of the compartments of the appliance,
you can turn off only the wine cellar compartment by pressing the
relevant key for three seconds.
The TriMode compartment is always on and cannot be turned off
except by completely turning off the appliance.
To shut down the unit completely for cleaning or maintenance, press
the Unit key for three seconds.
Also take the plug out of the socket and turn off the omnipolar switch
that powers it.
Turning off the Wine Cellar compartment
Turning the Wine Cellar compartment on
again
Complete shutdown
Lengthy shutdown periods
Turning on and off
Press again for three seconds the relevant key.
When the appliance is connected to the electrical power supply but
has not yet been turned on, the display shows the message
This is a safety message to warn that power is supplied to the appli-
ance, while all of the keys on the panel are off.
To switch on all the appliance compartments, press the Unit button
for three seconds.
After you have completely shut down the appliance and unplugged
it, empty it of all its contents, clean it and dry it. Leave the doors and
the drawers ajar to prevent the formation of unpleasant odours.

9
4
4.4
4.2
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
An integrated control system provides information through luminous
signals or text messages shown on the display.
The information signal is always displayed with a fixed text message,
while a malfunction signal is shown with blinking text.
The acoustic signal that accompanies some malfunction signals can be
deactivated by pressing the Alarm key on the main control panel.
The list of malfunction signals is located in the back of this manual.
Turning on the appliance
To adjust the temperature in the various compartments, use the up/
down key for that compartment (see chapter 3.5).
If the “keypad locked” message appear, simultaneously press the keys
Menu and Up/Down (Down) for 3 seconds.
Wines compartment
TriMode compartment
Each model has been carefully tested before leaving the factory and
is adjusted so as to ensure high performance and low consumption.
The ideal temperature for wine conservation does however depend
on the types of wine you want to conserve, the method of conserva-
tion (Wine Cellar for conservation and consumption, or Cantina for the
conservation and aging of prized bottles).
It also varies according to personal taste.
Please refer to the guide on wine conservation included further ahead
in this manual.
As needed, you can reset the temperatures as follows:
Cantina Compartment:
from +10° C to +18° C (from 50° F to 53.6° F).
The default temperature is +12° C (53.6° F).
Wine Cellar compartment:
from +4° C to +12° C (from 39.2° F to 53.6° F).
The default temperature is +10° C (50° F).
The TriMode compartment is default set to freezer mode but it can also
be set to run as a refrigerator or cooler compartment.
Instructions for conversion are provided in the paragraph on special
functions and settings.
As needed, you can reset the temperatures as follows:
Freezer compartment: from -15° C to -22° C (from 5° F to -7.6° F).
The default temperature, which is recommended, is -18° (0° F)
Refrigerator compartment: from +2° C to +8° C (from 35.6° F to 46.4° F).
The default temperature, which is recommended, is +5° C (41° F).
Cooler compartment: from -2° C to +2° C (from 28.4° F to 35.6° F),
The default temperature, which is recommended, is 0° C (32° F).
The displayed temperature may vary slightly
with respect to the set temperature if the doors
are continuously opened or insertion of room
temperature food or large quantities of food.
It takes 6 to 12 hours to reach the selected tem-
perature.
Information and malfunction signals on the display
How to adjust the temperature for suit various needs
If the “keypad locked” message appear, simul-
taneously press the keys Menu and Up/Down
(Down) for 3 seconds.

10
5
5.1
5.2
FRIDGE
UNIT
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Settings and Special Functions
To prevent accidental modification of settings,
the keypad locks automatically after a certain
period of time and the display shows the mes-
sage “keypad locked”.
To re-activate it, simultaneously press the keys
Menu and Up/Down (Down) for at least
three seconds.
Customization and Language Settings
Special functions activated through the Menu
It is possible to customized the functions of your Fhiaba to adapt it to di-
verse usage needs, resetting the main parameters (Settings) or activating
special functions (Functions).
Functions are visualized on the main display by pressing the Menu button
.
The Up/Down buttons permit scrolling the available functions, which can
be selected by pressing the Enter button . The display visualizes the cur-
rent functioning status.
Using the Up/Down buttons , it is also possible to scroll through the select-
ed function, activating or deactivating by pressing the Enter button .
Once the function is confirmed, the display will automatically visualize the
main menu to select other functions.
At any time it is possible to return to the previous selection through
the Menu button .
The language of the messages appearing on the display can be changed
by operating as follows:
Enter the Menu by pressing the Menu button select Settings via the Up/
Down buttons and confirm via Enter .
Then select the Language function and the desired language.
This function can be activated only on models featuring a wine cellar
without internal separator. It allows to differentiate the temperature in
the upper part of the cellar (warmer and therefore better suited to keep
red wines) from the temperature in the lower part (colder and therefore
better suited to keep white wines).
This function must be activated at least 24 hours before inserting room
temperature items into the freezer, or several hours before placing into
the freezer previously frozen items which have been subject to a slight
temperature rise. This function is automatically deactivated when the
programmed time period expires.
It is possible o program timed activation of the function.
After a prolonged interruption of the electrical power, it is necessary to
reactivate the function.
To use special functions, select the Menu key and use the Up/Down
key to access the menu, confirming the selection
.
How to activate
How to activate
How to deactivate
How to deactivate
How to program timed activation

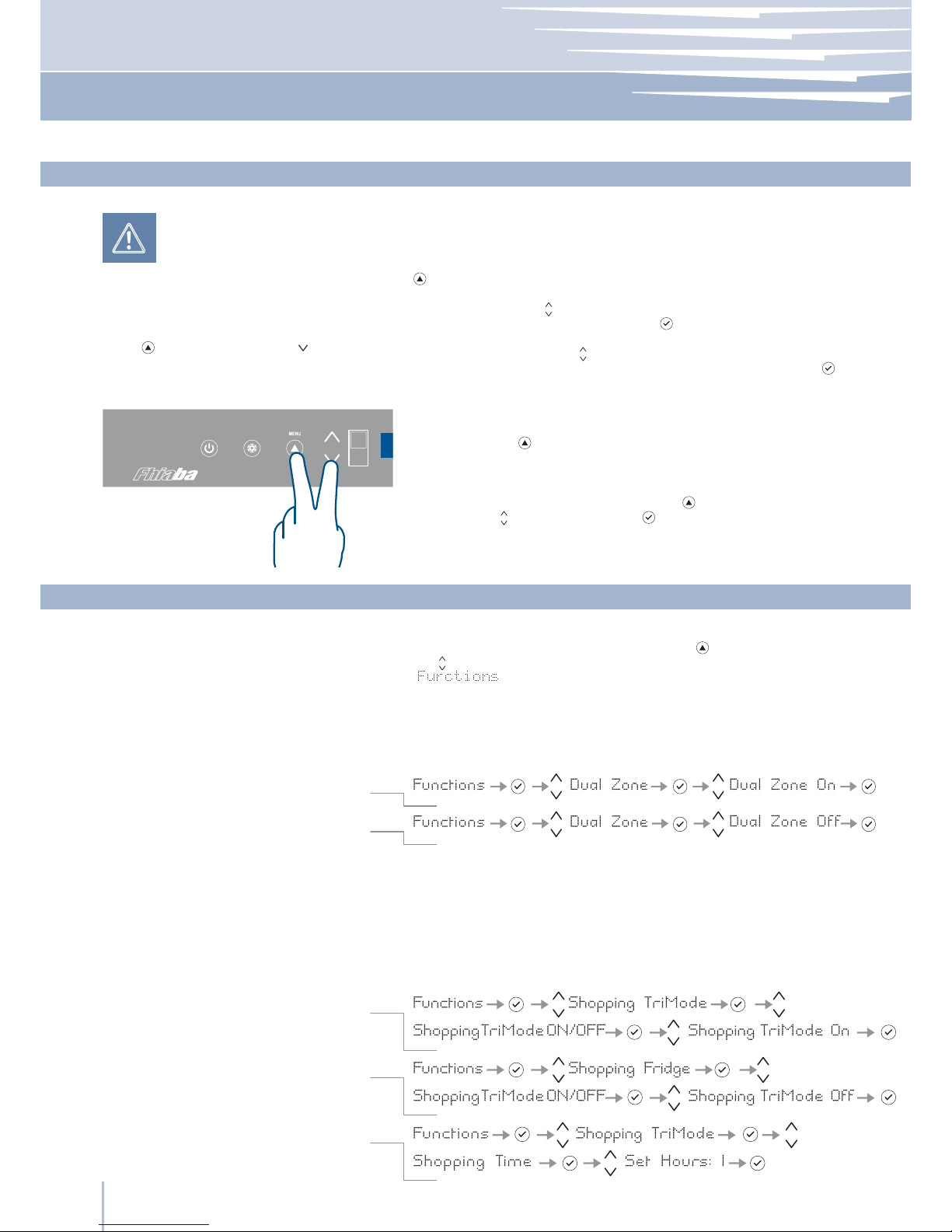

Shopping TriMode
Dual Zone

11
5
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Settings and Special Functions
This function (recommended in case of prolonged absences since it
allows considerable energy savings) brings the Tri-Mode compartment
temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be manually deacti-
vated upon re-entry after a period of absence.
This function remains active even if during the period of absence there
is a prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
This function can be activated when it is necessary to cool off bever-
ages quickly, by placing them inside the freezer compartment.
It is possible to select a duration of 1 to 45 minutes. A sound signal will
indicated when the optimal temperature has been reached.
After removing the beverages, deactivate the sound signal by press-
ing the Alarm button .

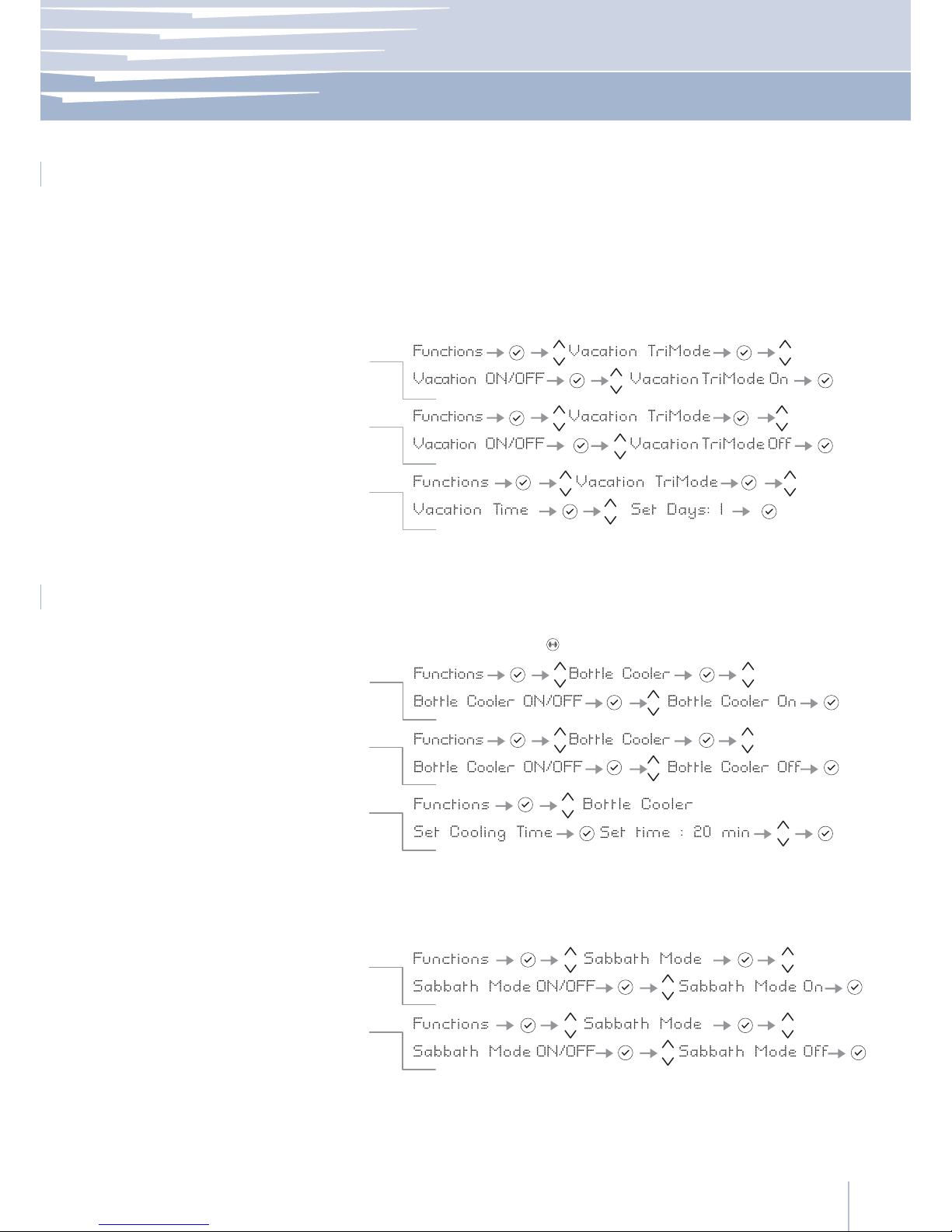

Bottle Cooler
How to activate
How to deactivate upon re-entry
How to program the duration
How to activate
How to deactivate
How to program the duration
Vacation TriMode
The function makes it possible to comply to certain religious observ-
ances requiring that the operation of the appliance is not affected by
the opening or closing of the doors (the thermostatic control, the inner
lighting and the ice maker are deactivated).
Sabbath Mode (Optional)
How to activate
How to deactivate

12
5
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Settings and Special Functions

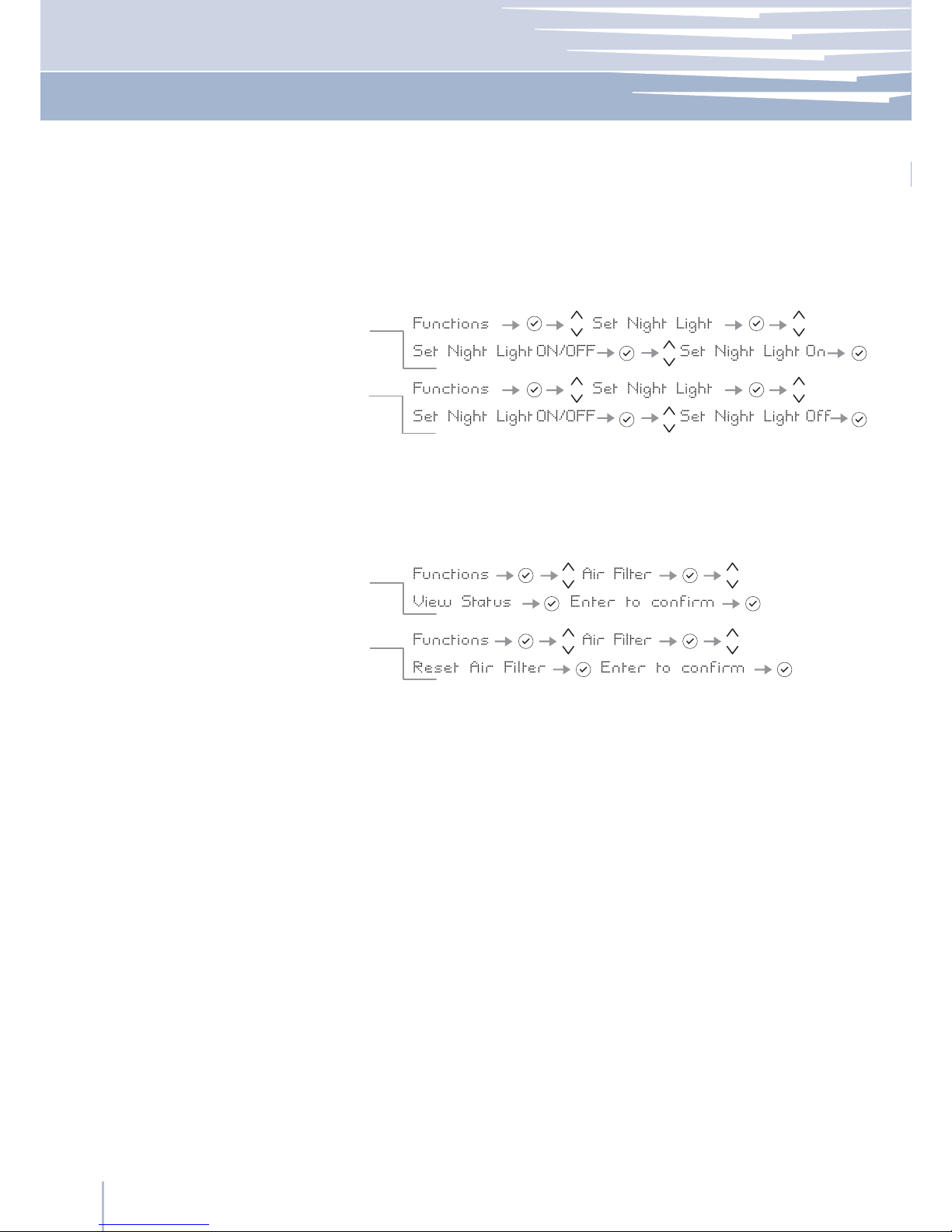

This function activates a courtesy light to illuminated the refrigerator
area in the dark.
Night Light (Optional)
How to activate the Night Light function
How to deactivate the Night Light function
The View Status function permits visualizing the exact quantity of filtered
air in liters and the time left before the filter needs to be replaced.
The Reset Filter function sets to zero the quantity of air filtered and the
time left before the filter needs to be replaced.
It is necessary to set the meter to zero each time the cartridge is replaced.
Air Filter (Optional)
How to check the status of the filter
How to set the filtered air meter to zero

13
5
5.3
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Settings and Special Functions
Basic settings of the Menu
This offers the possibility to reset default factory settings and cancels
any previous changes.
Default Setting
How to reset default settings
Using this function it is possible to deactivate/activate the date visuali-
zation on the display.
Show Date
How to activate the date
How to deactivate the date
The display will visualize the date in the format dd:mm:yy (day:month:year),
the day will blink. Use the Up/Down buttons to modify the setting, con-
firm with Enter to go on to the next setting; once the year is confirmed
the date will be set.
Date
Set Date
How to set the date
Select the Menu button and used the Up/Down button
to select .

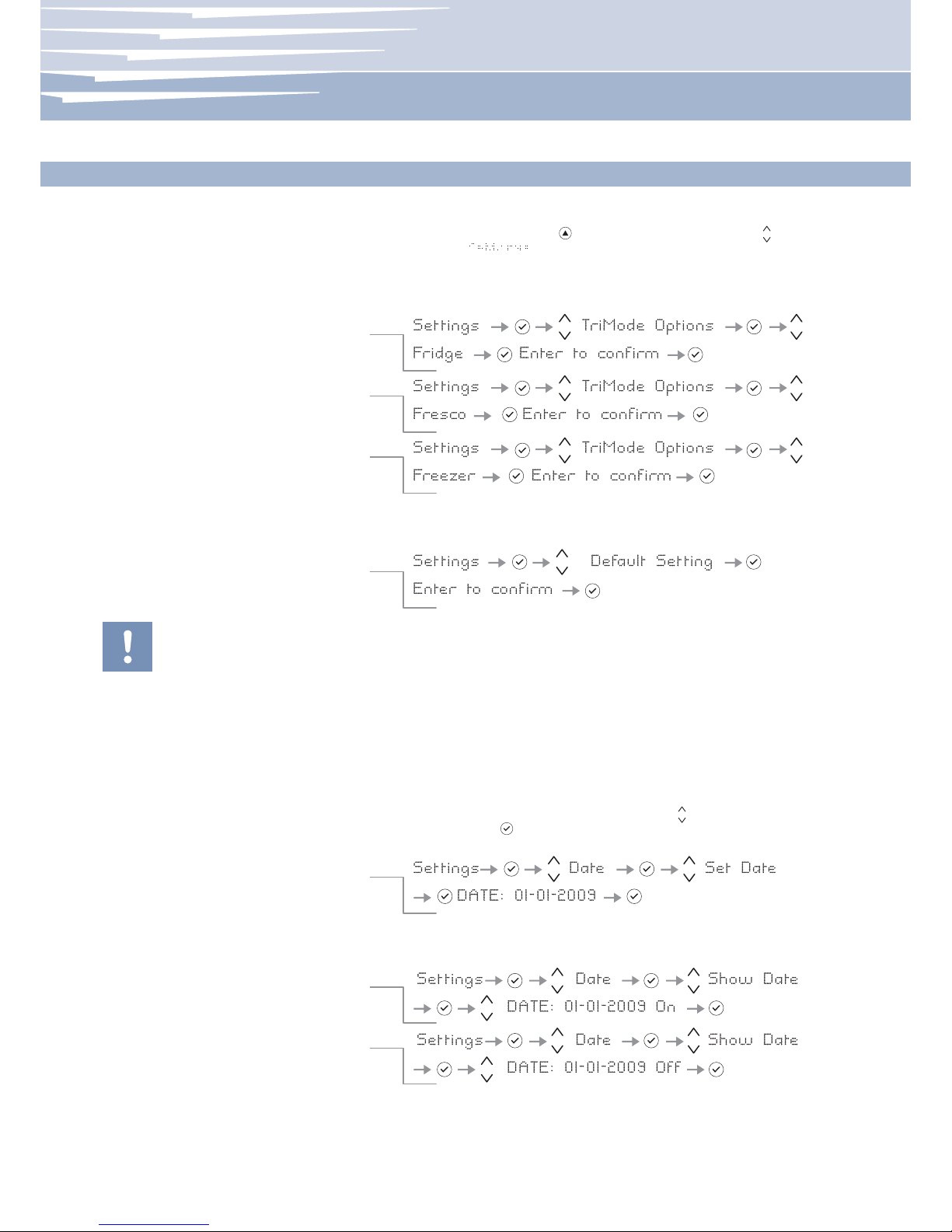

The freezer compartment can, if required, be converted to the refrig-
eration o Crisper-Fresco operating mode.
TriMode Options
How to set the Fridge function
How to set the Crisper-Fresco function
How to revert to the Freezer function
ATTENTION: If the default settings are restored, it is
necessary to reactivate the choice of operation of
the TriMode compartment in case it was previously
set as Fridge or Fresco.

14
5
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Settings and Special Functions

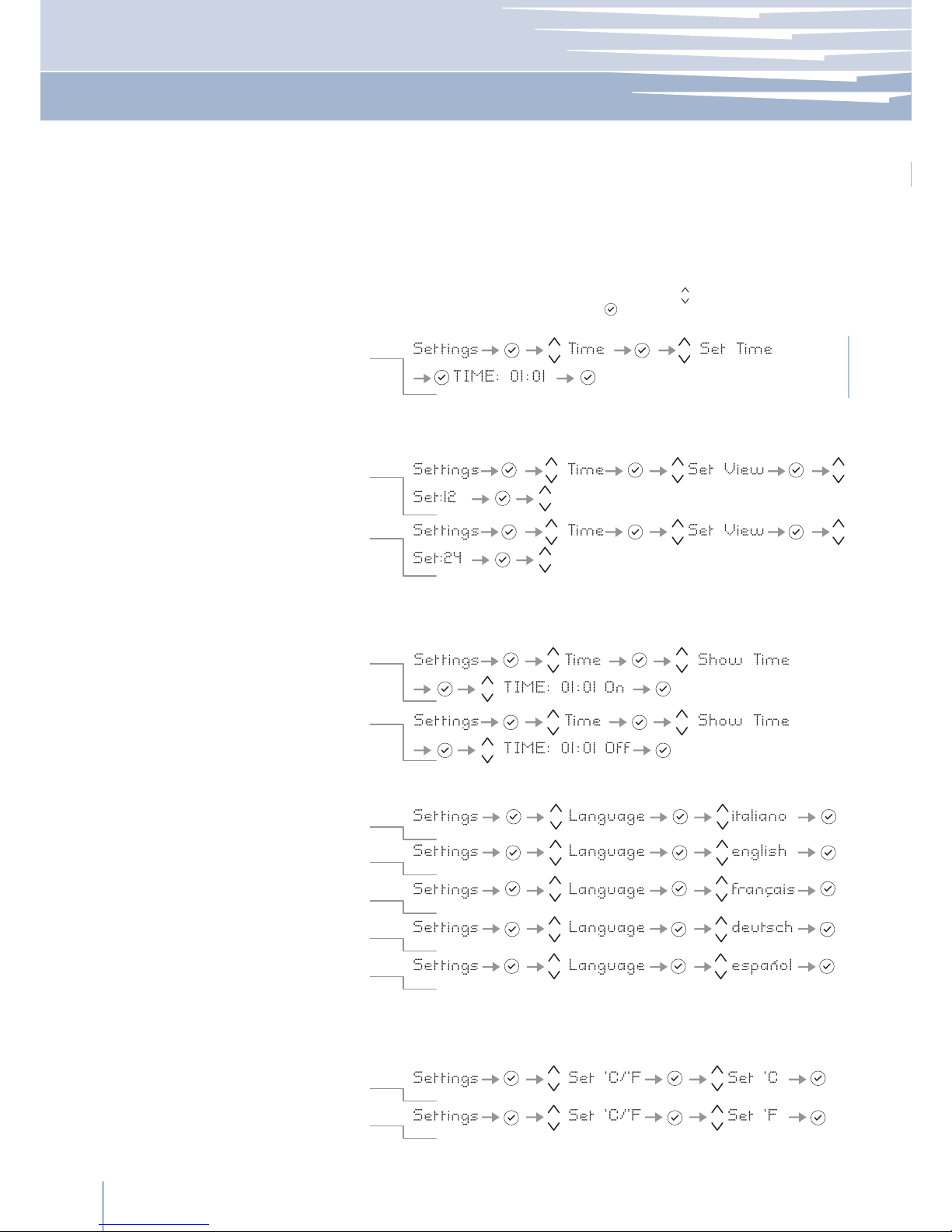

This function selects the display at 12 or 24 h.Set 12/24
How to set the display to 12 h
How to set the display to 24 h
This function permits visualizing the temperature in Centigrade or Fahr-
enheit degrees. Normally, the appliance is set for visualization in cen-
tigrade degrees.
Set °C/°F
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
Through this function it is possible to activate/deactivate the constant
visualization of the time.
The function allows selection of the language for the display messages.
Show Time
How to activate the permanent time
How to deactivate
Language
Italian
English
French
German
Spanish
The display visualizes the hours and minutes in the format hh:mm and
with hh: blinking. Use the Up/Down buttons to modify the setting and
then confirm by pressing Enter to go on to the next setting.
Once the minutes are confirmed, the time will be set.
Time
Set Time
How to set the time

15
6
6.1
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Internal Layout
The shelves can be easily removed for cleaning.
Remove the bottles, completely extract the shelf, tilt it upward
until the wheels are free of their seat and extract it.
Wine shelf
TriMode drawer
Internal Layout (positioning, adjustment, removal)
Located in the upper drawer of the freezer compartment
after removal, make sure to reposition it correctly.

16
7
7.1
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Lighting
Lighting
To provide optimum interior lighting, LED strips illuminate the refrigera-
tor compartment from the top and sets of LED lights directly illuminate
different areas of the refrigerator compartment, of the Crisper-Fresco
drawers and the freezer drawer.
In case of malfunction and/or failure of the lighting system, you
should contact an authorized Fhiaba Service Agent.
Once activated, the light of the top compartment
will automatically shut off after 6 hours.

17
8
8.1
8.2
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
Use of the TriMode compartment
Use of the TriMode compartment
The TriMode compartment, used in conjunction with the Wine Cellar
and Cantina compartment, allows great flexibility in the use of the ap-
pliance.
Some possible uses:
Liquors, such as vodka, gin, tequila, schnapps, limoncello and the
glasses to serve them
Rapid cooling of beverages, by activating the bottle cooler function
Storage of large amounts of ice.
As expansion of the Wine Cellar or of the Cantina
For refrigeration of beer and soft drinks
For storage of cold dishes and snacks.
For conservation of ham, salmon
gourmet preparations.
It comes without saying that, the compartment can be used in a tra-
ditional manner. Suggestions and instructions are provided to offer
you best conservation of your food over time in complete safety.
Freezer mode
Refrigerator mode
Cooler mode
To fully use the capacity of the TriMode compartment:
remove the drawer
remove the top drawer
install the supports delivered with the units
TriMode compartment

18
9
9.1
9.2
Cantina
Wine Cellar
Wine Cellar
TriMode
TriMode
www.fhiaba.com ∙[email protected] ∙Info Line 800-344222 ∙Tel [phone] ∙Fax [phone]
As is known, wine can be stored for long periods of time if this is done
under the following conditions:
Suitable temperature without appreciable variations over time
Controlled level of humidity
Protection from light
Absence of noise and vibrations
Absence of odours
Bottle kept horizontal.
All of these conditions are fully met in the Fhiaba Wine Cellar.
The space offered by the Wine Cellar and Cantina compartments,
which can be expanded as necessary by using the TriMode compart-
ment as a wine cellar, allows conservation of your best wines at three
different temperatures.
The three compartments are initially set to the following temperatures:
Cantina compartment
+12° C (53.6° F) - adjustable from +10° C to +18° C (from 50° F to 53.6° F)
Wine Cellar compartment
+10° C (50° F) - adjustable from +4° C to +12° C (from 39.2° F to 53.6° F)
TriMode drawer
-18° (0° F) - adjustable from -15° C to -22° C (from 5° F to -7.6° F)
(freezer mode)
To transform the TriMode compartment into a wine cellar space, you
must access the Menu, set it as a refrigerator compartment, and ad-
just it to a temperature between +4° C and +8° C (from 39.2° F to 46.4°
F).
All the temperatures can be modified according to the characteristics
of the wines and personal preferences. However, you should attempt
to keep the temperature as constant as possible over time.
Rapid and large-scale temperature variations can in fact cause dila-
tion of the liquid and early aging of the wine.
You should also avoid very low temperatures (below 4° C - 39.2° F )
which may lead to the formation of deposits and damage the aes-
thetic qualities of the wine.
All the compartments offer optimal conditions and take into account
all these needs. It should however be noted that the Cantina com-
partment, in particular, is thermostatically controlled in a very precise
manner and ensures the utmost care and attention over time of your
most prized bottles.
General directions
Conservation temperature
Conservation of wines
Models with Cantina and Wine Cellar
Models with Wine Cellar
