Fhiaba Integrated Series User manual

USER MANUAL
Wines Cellars

1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Index
Important instructions for safety and the environment
For your safety
Respect for the environment
Installation
Installation
Connection to the electrical mains
Before starting
Getting to know the appliance
Main features
Main components
Electronic Control
Main control panel and Riserva panel
Turning the appliance on and off
Turning on and off
How to adjust the temperature to suit various needs
Information and malfunction signals on the display
Settings and Special Functions
Customization and Language Settings
Special functions activated through the Fhiaba Access Menu
Basic settings of the Fhiaba Access Menu
Internal Layout
Internal Layout (positioning, adjustment, removal)
Lighting
Lighting
Use of the TriMode compartment
Use of the TriMode compartment
Conservation of wines
General directions
Wine conservation temperature
Time of conservation
Consumption temperature
Position of bottles
Food Conservation
Recommendations for conserving fresh food
Recommendations for conserving frozen food
Recommended times for food conservation
Care and Cleaning
Care and Cleaning
Condenser cleaning
Internal cleaning
Troubleshooting guide
Troubleshooting guide
Malfunction indications appearing on the display
Prior to calling Service
Prior to calling Service
Fhiaba Access Menu Map
Functions
Settings
1
1.1
1.2
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
4.3
5
5.1
5.2
5.3
6
6.1
7
7.1
8
8.1
9
9.1
9.2
9.3
9.4
9.5
10
10.1
10.2
11
12
12.1
12.2
12.3
13
13.1
13.2
14
14.1
15
15.1
15.2
Page
2
3
4
8
10
15
16
17
18
21
22
23
24
26
27

2
1
1.1
1.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Make sure you dispose properly of all packing materials.
The appliance must not be disposed of with urban waste. Contact
local waste disposal authorities for information on the disposal of
recyclable waste.
For disposal, cut the power supply cord and make it impossible to
close the door.
During disposal, avoid damage to the refrigeration circuit.
Neither the refrigeration circuit nor the insulation contain
substances that are hazardous to the ozone layer
Notes
Suggestions for proper use
of the appliance
For your safety
Respect for the environment
Important
Instruction to prevent damage
to the appliance
Warning
Instructions for preventing
personal injury
If this Appliance is to replace an existing appliance which in turn
is to be removed or disposed of, make sure that it does not become
a dangerous trap for children by cutting its power supply cable and
making it impossible to close the door.
Take the same precautions at the end of the life cycle of the new
appliance.
This appliance is designed to refrigerate beverages and foods and
is destined for household use.
The appliance must be installed in compliance with the instructions
in the installation guide. In particular, keep free of obstructions the
ventilation openings in the appliance or in the cabinet into which it is
inset.

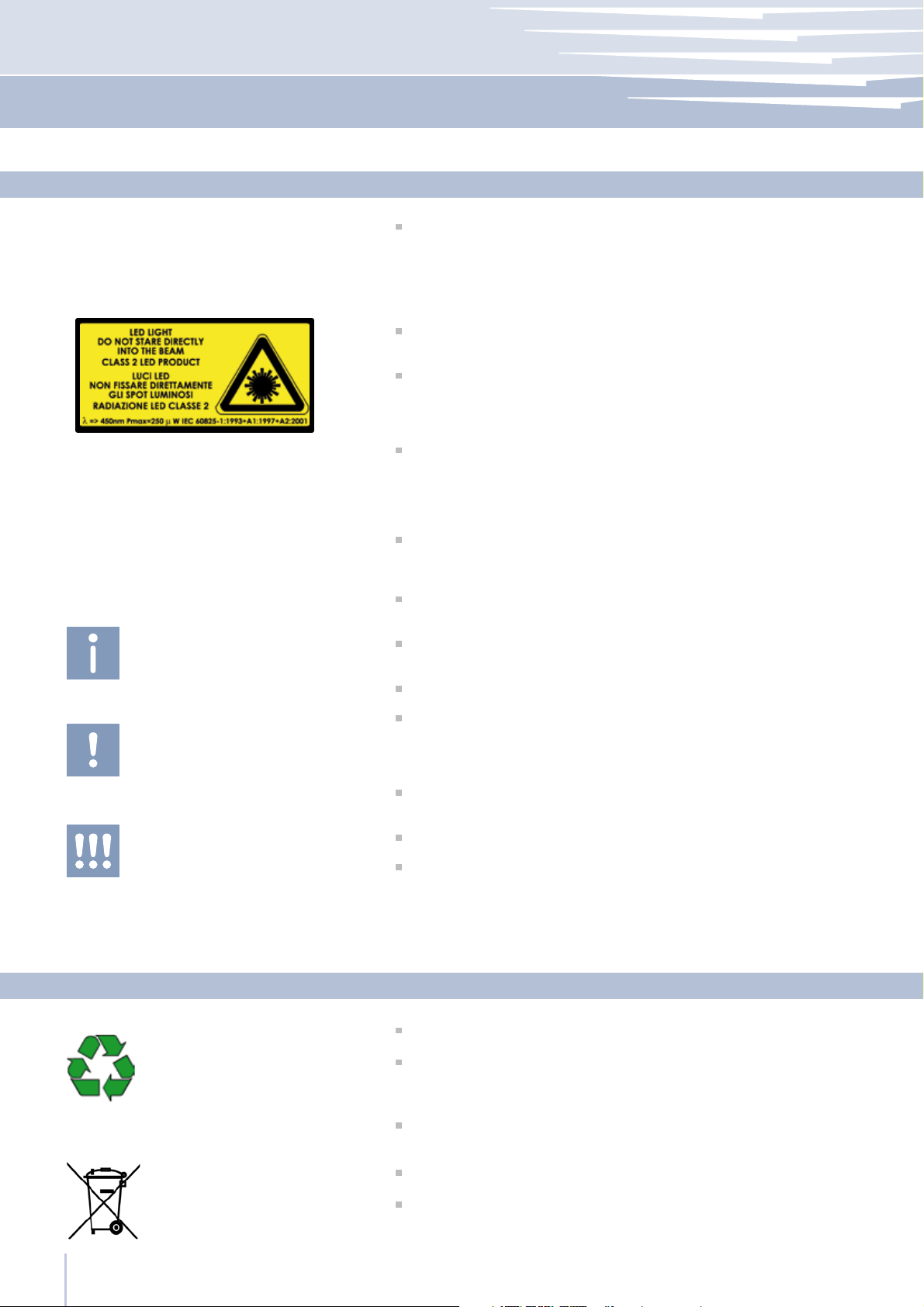

The appliance is equipped with a concentrated-light illumination
system with LED lamps. Do not look into these lamps when they are
on to avoid possible eyesight damage.
This warning is also contained on the label attached to the inside of
the refrigerator door.
When the freezer is in operation, do not touch the stainless steel
inner surfaces with wet or damp hands, since skin may stick to the
very cold surfaces.
Do not use any type of electrical equipment inside of the food
conservation compartments.
When positioning the shelves, do not place fingers in the shelf slide
guides.
Do not position containers of flammable liquids near the appliance.
Shut the appliance down completely and unplug the power
supply cable when cleaning it. If the plug is not easily accessible, it
is advisable to turn off the omnipolar switch for the socket where the
appliance is plugged in.
The packaging may be dangerous to children. Do not allow
children to play with the plastic bags, plastic film or polystyrene.
Any repairs must be performed by a qualified technician.
This appliance is not intended by persons with limited physical,
sensorial or mental ability, including children, or who do not have
proper experience and knowledge, unless they are supervised or
instructed on the use of the appliance by a person who is responsible
for their safety. Children must be supervised to ensure that they do
not play with the appliance.
Important instructions for safety and the environment

3
2
2.1
2.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Make sure that installation is performed correctly, adhering to all of
the instructions in the specific installation guide provided with the
appliance.
Installation

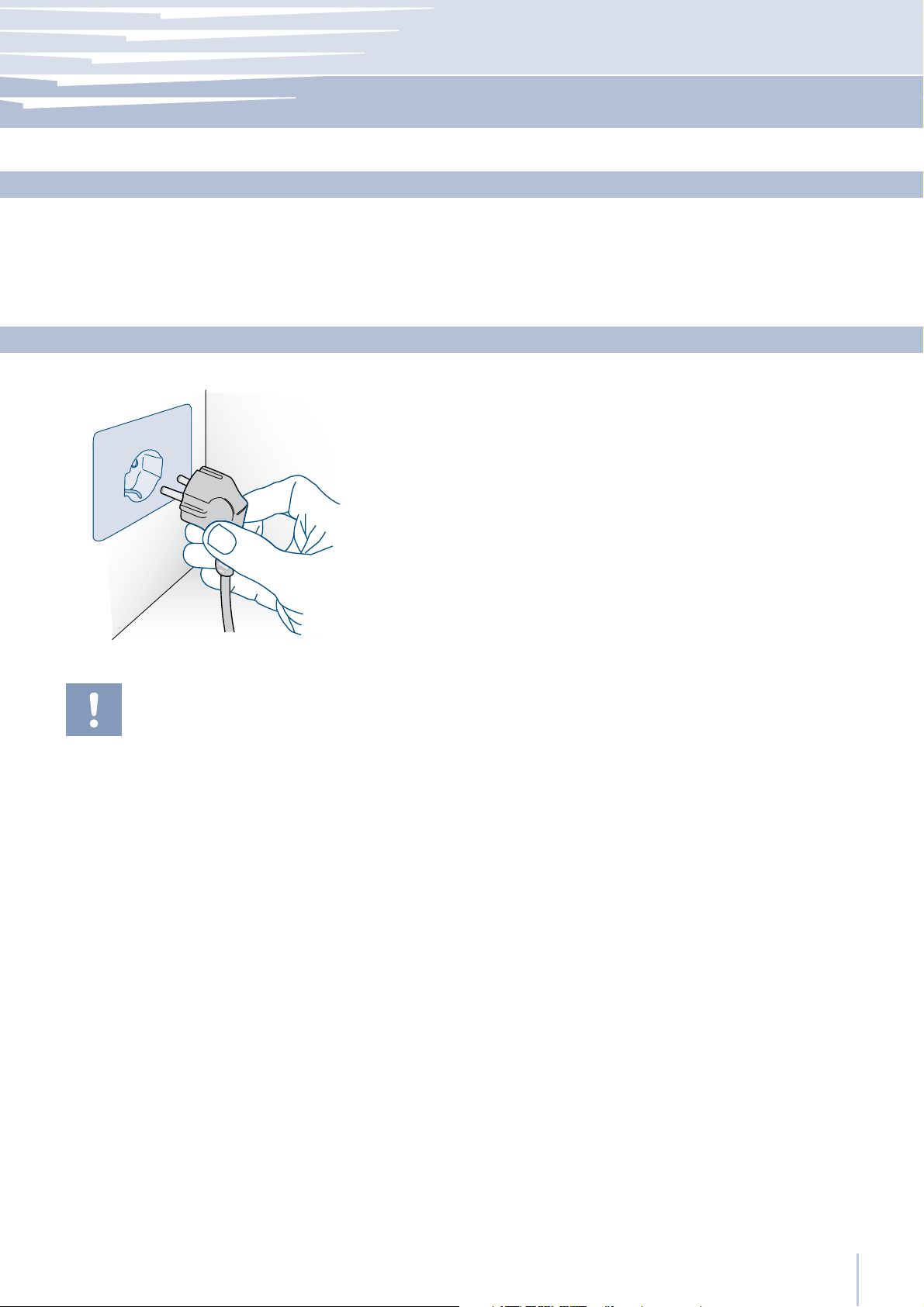

Connection to the electrical mains
The appliance is equipped with a Schuko type 16A plug. It must be
connected to the electrical mains by means of a corresponding
Schuko socket.
Do not use extension cords and/or multiple adapters for connection.
Do not use extension cords and/or multiple
adapters for connection.
Installation

4
3
3.1
3.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Before starting
Getting to know the appliance
Exclusive design by Giugiaro
The Fhiaba triple refrigeration system and the separation
of internal compartments ensure perfect conditions for
conservation of various types of wines
The electronic control guarantees constant temperature
and humidity levels set by the user
The double compressor allows separate management of
the set temperature and humidity for the Riserva, Cantina
and TriMode compartments
The TriMode compartment may operate in three different
modes: as a freezer, as a refrigerator or as a cooler
compartment
Free-standing or built-in installation
Main features
An interactive menu (Fhiaba Access) permits personalized
management of appliance functions and the display of
messages on operation
Optimization of consumption during vacation periods
Surfaces in stainless steel both inside and outside, with fine
aluminium trim
Patented hinge system that permits automatic door closing
TriMode drawers with Soft self-closing system
Localized lighting system with LED
Anti-tipping system with brackets for wall mounting.
Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation
system, which will allow you to keep all of your food
in the best way possible.
This manual will answer most of your questions about the
product’s features. Should you require further information,
please check our website
www.fhiaba.com
or write us an e-mail at
[email protected].
Before calling, write down the model type and serial
number which are available on the warranty certificate and
on the rating plate located on the bottom left-hand corner
of the appliance, behind the bottom drawer and any
messages which may have appeared on the display.

5
3
3.3
RiservaRiserva
Riserva
CantinaCantina
Cantina
Cantina
TriModeTriMode
TriMode
TriMode
17
8
8
8
8
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
12
2
2
2
2
3
3
3
3
4
4
4
5
5
5
6
6
7
6
6
6
6
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Before starting

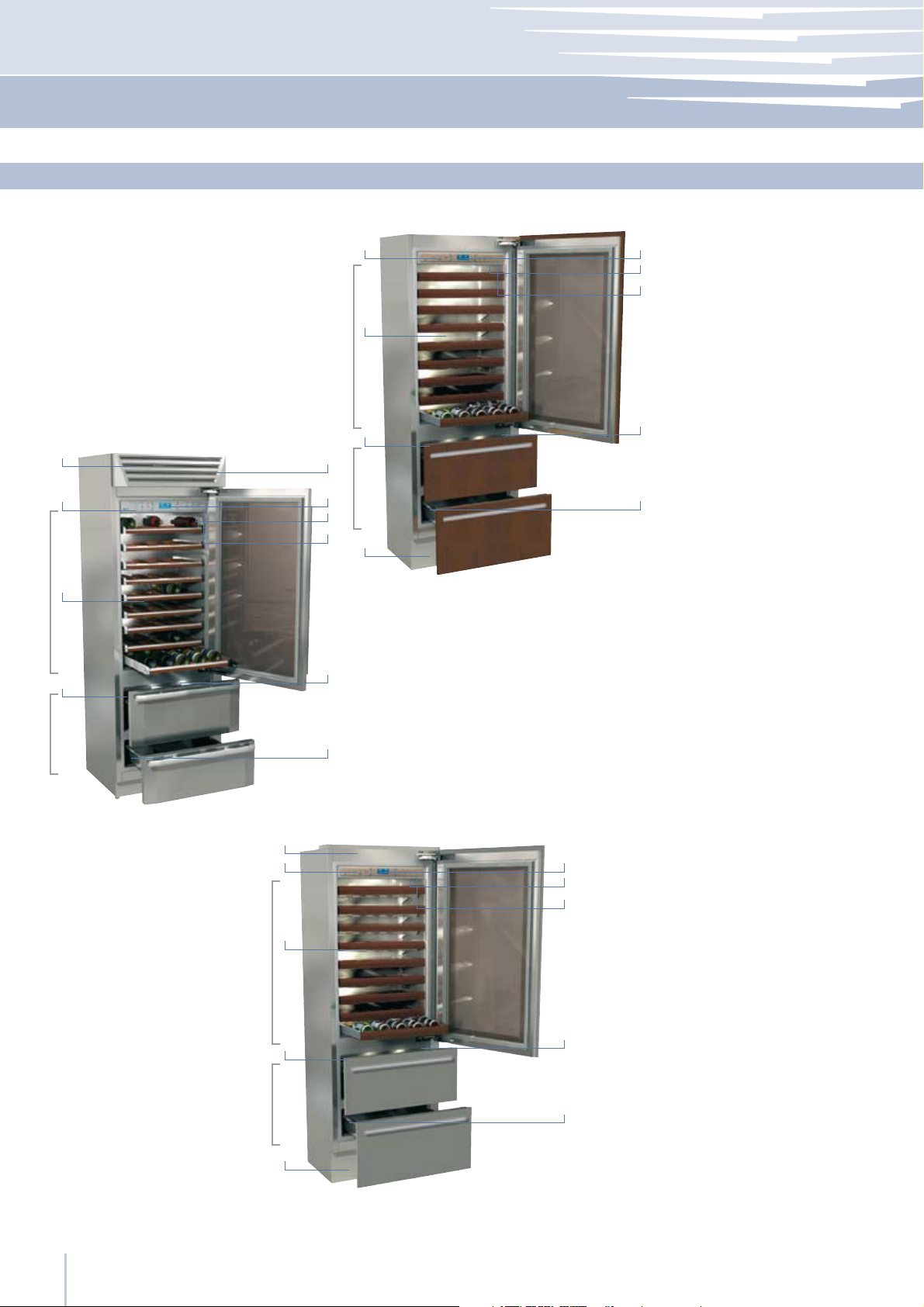

Main components
Integrated Series
StandPlus Series
Professional Series
Classic Series
One drawer model
1Structure in stainless steel
with aluminium trim
2Cantina and TriMode
control panels with Fhiaba
Access
3Sliding bottle shelfs,
mounted on wheels for
easy extraction
4Riserva area control panel
5Wine Cellar
6TriMode drawer, may be
used as freezer, refrigerator
or cooler
7Double refrigeration system
8Temperature display
9Acoustic signals
10 Vacation function
(in Fhiaba Access Menu)
11 Innovative lighting
12 Automatic door and
drawer closure

6
3
3.3
15
6
6
6
7
7
7
8
8
8
9
9
9
10
10
10
2
2
2
1
3
3
3
4
4
4
5
5
CantinaTriMode
CantinaTriMode
CantinaTriMode
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Before starting
Main components
integrated Series
StandPlus Series
Professional Series
Two drawer model
1Structure in stainless steel
with aluminium trim
2Cantina and TriMode
control panels with Fhiaba
Access
3Sliding bottle shelfs,
mounted on wheels for
easy extraction
4TriMode drawers, may be
used as freezer, refrigerator
or cooler
5 Double refrigeration system
6Temperature display
7Acoustic signals
8Vacation function
(in Fhiaba Access Menu)
9Innovative lighting
10 Automatic door and
drawer closure

7
3
3.3
3.3
Componenti principali
Componenti principali
3.5
3.4
12 34 5 67 98
1Unit
2Cantina
3Fhiaba
Access
4Up/down
Cantina
5Display
6Up/Down
(TriMode)
7Enter
8Alarm
9Light
10 11 12 13
10 Display
12
13
Riserva
Humidity
11 Up/Down
Riserva
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Before starting
The innovative system of electronic control designed by Fhiaba keeps
a constant temperature in the three compartments and displays it on
the control panel. It also lets the user interact with the control system
through personalized setting of the various function and by sending
sound and/or visual signals should there be any operating anomalies
with the appliance.
Main control panel and Riserva control
Electronic Control
Allows complete shutdown and start-up of the appliance (press for
three seconds).
Lets you turn only the Cantina compartment on or off (press for three
seconds).
Allows access to the appliance functions menu
Displays the temperature of the Cantina and TriMode compartments,
the date and time, Fhiaba Access functions and visual messages.
By touching the Up/Down keys, you can vary the preset temperature
according to the selections for use of the TriMode compartment
(freezer, refrigerator or cooler).
Allows confirmation of selections made using Fhiaba Access.
Blinks to signal possible malfunctioning, also through an acoustic
signal which can be deactivated by pressing the key.
Allows illumination of the Cantina and Riserva compartments also
when the door is closed
Using the Up and Down keys, you can change the set temperature of
the Cantina compartment and scroll through the interactive menu.
Visualizes the temperature of the Riserva compartment.
Lets you turn only the Cantina compartment on or off (press for three
seconds).
Allows adjustment of humidity in the Cantina and Riserva
compartments to three levels: High (HI), Medium (A) and Low (LO).
Using the Up and Down keys, you can change the set temperature
for the Riserva compartment.

8
4
4.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Turning the appliance on and off
To prevent accidental modification of settings,
the keypad locks automatically after a certain
period of time and the display shows the
message “keypad locked”. To re-activate it,
simultaneously press the keys Fhiaba Access and
Up/Down (Down) for three seconds.
At the first start-up, if the message Standby does
not appear, it means that the appliance has
already started the cooling process.
If this is the case, deactivate any possible
acoustic signals by pressing the Alarm key ,
close the door and wait until the set temperature
is reached.
During the first start-up, you will not be able to
use the Fhiaba Access Menu to modify factory
settings until the default temperature has been
reached.
It is however possible to set the time and date
immediately; these parameters are required to
activate some of the special functions.
If only the Riserva or Cantina compartment is
turned off, the corresponding fan will continue
to run independently to prevent the formation of
unpleasant odours and mould.
When the appliance is connected to the electrical power supply but
has not yet been turned on, the display shows the message
(safety message to warn that power is supplied to the appliance),
while all of the keys on the panel are off.
To turn on all of the appliance compartments, press the Unit button
or three seconds.
Keep in mind that each time the appliance is turned on, it runs a self-
diagnosis procedure of three minutes, and then starts up fully.
First start-up
Once you have turned on all of the compartments of the appliance,
you can turn off only the wine cellar compartment by pressing the
relevant key for three seconds.
The TriMode compartment is always on and cannot be turned off
except by completely turning off the appliance.
To shut down the unit completely for cleaning or maintenance, press
the Unit key for three seconds.
Also take the plug out of the socket and turn off the omnipolar switch
that powers it.
After you have completely shut down the appliance and unplugged
it, empty it of all its contents empty the appliance of all its contents,
clean it and dry it. Leave the doors and the drawers ajar to prevent
the formation of unpleasant odours.
Turning off the Wine Cellar compartment
Turning the Wine Cellar compartment on
again
Complete shutdown
Lengthy shutdown periods
Turning on and off
Press again for three seconds the relevant key.

9
4
4.4
4.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
An integrated control system provides information through luminous
signals or text messages shown on the display.
The information signal is always displayed with a steady text
message, while a malfunction signal is shown with blinking text.
The acoustic signal that accompanies some malfunction signals can
be deactivated by pressing the Alarm key on the main control
panel.
The list of malfunction signals is located in the back of this manual.
Turning on the appliance
To adjust the temperature in the various compartments, use the up/
down key for that compartment (see chapter 3.5).
If the “keypad locked” message appear, simultaneously press the
keys Fhiaba Access and Up/Down (Down) for 3 seconds.
Wines compartment
TriMode compartment
Each model has been carefully tested before leaving the factory and
is adjusted so as to ensure high performance and low consumption.
The ideal temperature for wine conservation does however
depend on the types of wine you want to conserve, the method
of conservation (Cantina for conservation and consumption, or
Riserva for the conservation and aging of prized bottles). It also varies
according to personal taste.
Please refer to the guide on wine conservation included further
ahead in this manual.
As needed, you can reset the temperatures as follows:
Riserva Compartment:
from +8° C to +18° C (from 46.4° F to 53.6° F).
The default temperature is +12° C (53.6° F).
Cantina compartment:
from +4° C to +18° C (from 39.2° F to 53.6° F).
The default temperature is +10° C (50° F).
The TriMode compartment is default set to freezer mode but it can
also be set to run as a refrigerator or cooler compartment.
Instructions for conversion are provided in the paragraph on special
functions and settings.
As needed, you can reset the temperatures as follows:
Freezer compartment: from -15° C to -22° C (from 5° F to -7.6° F).
The default temperature, which is recommended, is -18° (0° F)
Refrigerator compartment: from +2° C to +8° C (from 35.6° F to
46.4° F).
The default temperature, which is recommended, is +5° C (41° F).
Cooler compartment: from -2° C to +2° C (from 28.4° F to 35.6° F),
The default temperature, which is recommended, is 0° C (32° F).
The displayed temperature may vary slightly
with respect to the set temperature if the doors
are continuously opened or insertion of room
temperature food or large quantities of food.
It takes 6 to 12 hours to reach the selected
temperature.
Information and malfunction signals on the display
How to adjust the temperature for suit various needs

10
5
5.1
5.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]

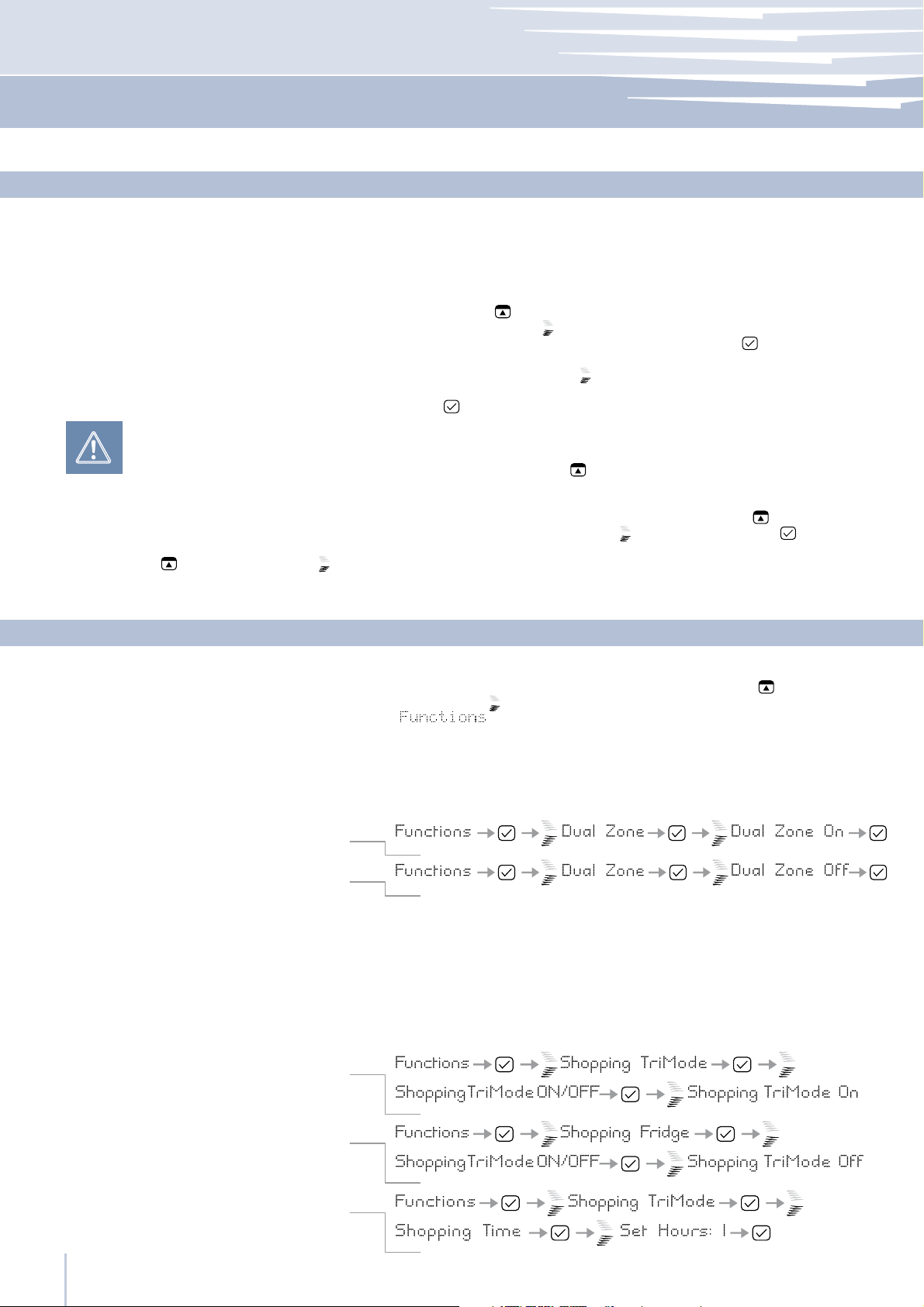

Settings and Special Functions
To prevent accidental modification of settings,
the keypad locks automatically after a certain
period of time and the display shows the
message “keypad locked”.
To re-activate it, simultaneously press the keys
Fhiaba Access and Up/Down (Down) for at
least three seconds.
Customization and Language Settings
Special functions activated through the Fhiaba Access Menu
It is possible to customized the functions of your Fhiaba to adapt
it to diverse usage needs, resetting the main parameters (Settings)
or activating special functions (Functions).
Functions are visualized on the main display by pressing the Fhiaba
Access button .
The Up/Down buttons permit scrolling the available functions,
which can be selected by pressing the Enter button . The display
visualizes the current functioning status.
Using the Up/Down buttons , it is also possible to scroll through the
selected function, activating or deactivating by pressing the Enter
button .
Once the function is confirmed, the display will automatically
visualize the main menu to select other functions.
At any time it is possible to return to the previous selection through
the Fhiaba Access button .
The language of the messages appearing on the display can be
changed by operating as follows:
Enter the Menu by pressing the Fhiaba Access button select
Settings via the Up/Down buttons and confirm via Enter .
Then select the Language function and the desired language.
This function can be activated only on models featuring a wine cellar
without internal separator. It allows to differentiate the temperature in
the upper part of the cellar (warmer and therefore better suited to keep
red wines) from the temperature in the lower part (colder and therefore
better suited to keep white wines).
This function must be activated at least 24 hours before inserting room
temperature items into the freezer, or several hours before placing into
the freezer previously frozen items which have been subject to a slight
temperature rise. This function is automatically deactivated when the
programmed time period expires.
It is possible o program timed activation of the function. After a pro-
longed interruption of the electrical power, it is necessary to reactivate
the function.
To use special functions, select the Fhiaba Access key and use the
Up/Down key to access the menu, confirming the selection
.
How to activate
How to activate
How to deactivate
How to deactivate
How to program timed activation
Shopping TriMode
Dual Zone

11
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Settings and Special Functions
This function (recommended in case of prolonged absences since it
allows considerable energy savings) brings the Tri-Mode compartment
temperature to - 18°C (46.4°F). It is possible to program the duration, or it
can be manually deactivated upon re-entry after a period of absence.
This function remains active even if during the period of absence there
is a prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
This function can be activated when it is necessary to cool off bever-
ages quickly, by placing them inside the freezer compartment.
It is possible to select a duration of 1 to 45 minutes. A sound signal will
indicated when the optimal temperature has been reached.
After removing the beverages, deactivate the sound signal by press-
ing the Alarm button .
Bottle Cooler
How to activate
How to deactivate upon re-entry
How to program the duration
How to activate
How to deactivate
How to program the duration
Vacation TriMode
The function makes it possible to comply to certain religious observances
requiring that the operation of the appliance is not affected by the open-
ing or closing of the doors (the thermostatic control, the inner lighting and
the ice maker are deactivated).
Sabbath Mode (Optional)
How to activate
How to deactivate

12
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Settings and Special Functions

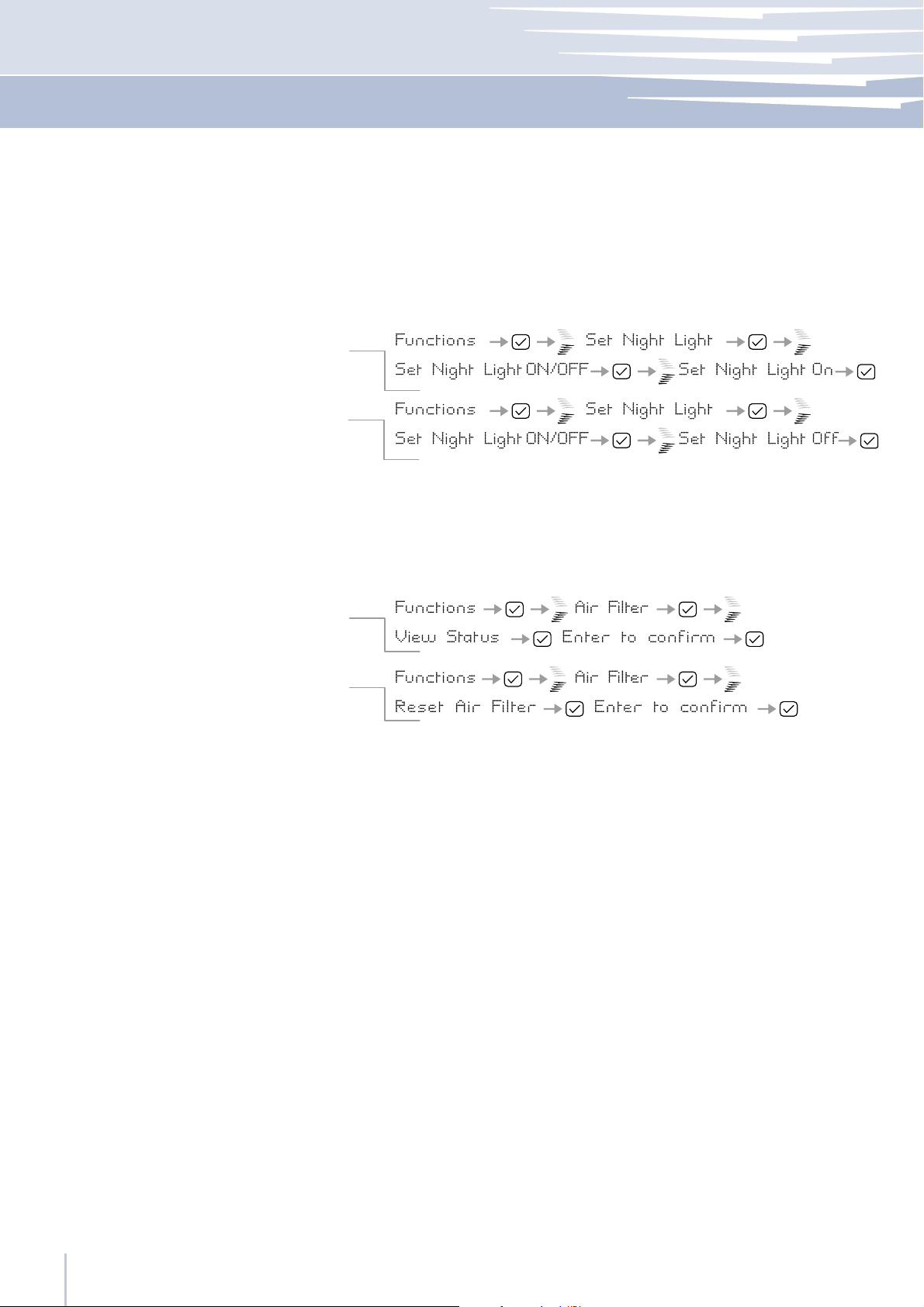

This function activates a courtesy light to illuminated the refrigerator area
in the dark.
Night Light
How to activate the Night Light function
How to deactivate the Night Light function
The View Status function permits visualizing the exact quantity of filtered
air in liters and the time left before the filter needs to be replaced.
The Reset Filter function sets to zero the quantity of air filtered and the
time left before the filter needs to be replaced. It is necessary to set the
meter to zero each time the cartridge is replaced.
Air Filter
How to check the status of the filter
How to set the filtered air meter to zero

13
5
5.3
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Settings and Special Functions
Basic settings of the Fhiaba Access Menu
The display visualizes the hours and minutes in the format hh:mm and with
hh: blinking. Use the Up/Down buttons to modify the setting and then
confirm by pressing Enter to go on to the next setting.
Once the minutes are confirmed, the time will be set.
Time
Set Time
How to set the time
This offers the possibility to reset default factory settings and cancels any
previous changes.
Default Setting
How to reset default settings
Using this function it is possible to deactivate/activate the date visualiza-
tion on the display.
Show Date
How to activate the date
How to deactivate the date
The display will visualize the date in the format dd:mm:yy (day:month:year),
the day will blink. Use the Up/Down buttons to modify the setting, con-
firm with Enter to go on to the next setting; once the year is confirmed
the date will be set.
Date
Set Date
How to set the date
Select the Fhiaba Access button and used the Up/Down button
to select .
The freezer compartment can, if required, be converted to the refrigera-
tion o Fresco operating mode.
TriMode Options
How to set the Fridge function
How to set the Fresco function
How to revert to the Freezer function

14
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Settings and Special Functions
This function selects the display at 12 or 24 h.Set 12/24
How to set the display to 12 h
How to set the display to 24 h
This function permits visualizing the temperature in Centigrade or Fahren-
heit degrees. Normally, the appliance is set for visualization in centigrade
degrees.
Set °C/°F
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
Through this function it is possible to activate/deactivate the constant
visualization of the time.
The function allows selection of the language for the display messages.
Show Time
How to activate the permanent time
How to deactivate
Language
Italian
English
French
German
Spanish

15
6
6.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Internal Layout
The shelves can be easily removed for cleaning.
Remove the bottles, completely extract the shelf, tilt it upward
until the wheels are free of their seat and extract it.
Wine shelf
TriMode drawer
Internal Layout (positioning, adjustment, removal)
Located in the upper drawer of the freezer compartment
after removal, make sure to reposition it correctly.

16
7
7.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Lighting
Lighting
To provide optimum interior lighting, LED strips illuminate the refrigera-
tor compartment from the top and sets of LED lights directly illuminate
different areas of the refrigerator compartment, of the Fresco drawers
and the freezer drawer.
In case of malfunction and/or failure of the lighting system, you should
contact an authorized Fhiaba Service Agent.

17
8
8.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
Use of the TriMode compartment
Use of the TriMode compartment
The TriMode compartment, used in conjunction with the Cantina and Ris-
erva compartment, allows great flexibility in the use of the appliance.
Some possible uses:
Liquors, such as vodka, gin, tequila, schnapps, limoncello and the
glasses to serve them
Rapid cooling of beverages, by activating the bottle cooler function
Storage of large amounts of ice.
As expansion of the Cantina or of the Riserva
For refrigeration of beer and soft drinks
For storage of cold dishes and snacks.
For conservation of ham, salmon
gourmet preparations.
It comes without saying that, the compartment can be used in a
traditional manner. Suggestions and instructions are provided to offer
you best conservation of your food over time in complete safety.
Freezer mode
Refrigerator mode
Cooler mode

18
9
9.1
9.2
Riserva
Cantina
Cantina
TriMode
TriMode
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel [phone] ∙ Fax [phone]
As is known, wine can be stored for long periods of time if this is done
under the following conditions:
Suitable temperature without appreciable variations over time
Controlled level of humidity
Protection from light
Absence of noise and vibrations
Absence of odours
Bottle kept horizontal.
All of these conditions are fully met in the Fhiaba Wine Cellar.
The space offered by the Cantina and Riserva compartments, which
can be expanded as necessary by using the TriMode compartment as
a wine cellar, allows conservation at three different temperatures of
your best wines.
The three compartments are initially set to the following tempera-
tures:
Riserva compartment
+12° C (53.6° F) - adjustable from +8° C to +18° C (from 46.4° F to 53.6°
F)
Cantina compartment
+10° C (50° F) - adjustable from +4° C to +18° C (from 39.2° F to 53.6°
F)
TriMode drawer
-18° (0° F) - adjustable from -15° C to -22° C (from 5° F to -7.6° F)
(freezer mode)
To transform the TriMode compartment into a wine cellar space, you
must access the Fhiaba Access menu, set it as a refrigerator compart-
ment, and adjust it to a temperature between +4° C and +8° C (from
39.2° F to 46.4° F).
All of the temperatures can be modified according to the character-
istics of the wines and personal preferences. However, you should at-
tempt to keep the temperature as constant as possible over time.
Rapid and large-scale temperature variations can in fact cause dila-
tion of the liquid and early aging of the wine.
You should also avoid very low temperatures (below 4° C - 39.2° F )
which may lead to the formation of deposits and damage the aes-
thetic qualities of the wine.
All of the compartments offer optimal conditions and take into ac-
count all of these needs. It should however be noted that the Riserva
compartment, in particular, is thermostatically controlled in a very pre-
cise manner and ensures the utmost care and attention over time of
your most prized bottles.
General directions
Conservation temperature
Conservation of wines
Models with Riserva and Cantina
Models with Cantina
