Fiilex FLXMXG2 User manual

180723A
User Manual
FLXMXG2
TUNABLE WHITE

Mode
Intensity PWR
DMX
CCT
DMX
Color
Temperature
Hue HUE
Description
Screen
Indicator
Basic Operation (refer to Parts Diagramon following page)
• The Matrix II Tunable White has been designed for professional studio and location applications
and may only be operated by qualified persons.
• Please read the following operating instructions very carefully before using this fixture.
• For your own safety, please follow all safety instructions and warnings.
• Keep these operating instructions for future reference.
• For further information, contact Fiilex ([e-mail]) or your retailer.
• Powering on the Matrix II Tunable White
The Matrix II Tunable White power adapter includes an AC plug for power input and a 3-Pin XLR
connector for output. To supply the Matrix II Tunable White with power, insert the XLR
connector into the Power Input (19), then connect the AC plug into an active wall socket. The
fixture’s OLED Display (9) will turn on once it is receiving power. The On/Off Switch (12) can
toggle the fixture’s output on and off. Settings can still be adjusted while the switch is set to o
• Mounting the Matrix II Tunable White
The Matrix II Tunable White Baby/Junior Spigot (5) can be mounted to baby pins or junior
receivers. Secure the fixture to baby pins with the Spigot Tightening Knob (6). Remove Spigot
Tightening Knob when mounting to juinor receivers.
• Adjusting the Matrix II Tunable White Fixture
Use the Yoke Tightening Handle (8) to lock the fixture’s tilt position. Tighten the handle to secure.
• DMX Interface
The Matrix II Tunable White receives DMX signals via its 5-Pin XLR ports. When a DMX signal is
detected the fixture will automatically enter DMX Mode and manual controls will be deactivated.
To indicate DMX Mode, the OLED Display (9) will replace the word “LOCAL” with the DMX
address.
• DMX / RDM Support
The Matrix II Tunable White is compatible with DMX/RDM
(Remote Device Management) protocol. With RDM, the DMX address
of the fixture can be changed remotely via the DMX signal.
• USB Interface
The Matrix II Tunable White is equipped with a Mini USB Port (11) for updating firmware. The
standard USB Port (17) provides 5V 1A power for wireless DMX antennas. Please register your
product at www.fiilex.com to be informed when firmware updates are available.
General Notes:
To adjust the brightness of the fixture, simply turn the Light
Intensity / DMX Address Knob (7).
To adjust the color temperature of the fixture, simply turn the
CCT / Hue Tuning Knob (11).
To adjust the hue of the fixture, double click the CCT / Hue
Tuning Knob (11) and turn the knob.
Control via DMX. Manual control knobs disabled. Mode
activates automatically when DMX signal detected.
1

Adjusting the Matrix II
Compatible Accessories
Parts Diagram
1. Top Handle
2. Heat Exhaust Vent
3. Top Accessory Latch
4. Bottom Accessory Latch
5. Baby/Junior Spigot
6. Spigot Tightening Knob
7. Yoke
8. Yoke Tightening Handle
9. OLED Display
10. DMX Address Dial
11. Mini USB Port (firmware upd.)
12. On/Off Switch
13. Intensity Dial
14. Green / Saturation Dial
15. CCT / Hue Dial
16. Fan Intake Vent
17. USB Port (5V 1A power)
18. DMX Output (5-Pin XLR-Female)
19. Power Input Port (XLR 3-Pin)
20. DMX Input (5-Pin XLR-Male)
21. Power Adapter
Mounting Points
Use the Yoke
Tightening Handle (8)
to lock the fixture’s
tilt position.
The Matrix II is
equipped with a Mini
USB Port (11) for
updating firmware, as
well as a standard
USB Port (17) with
5V 1A power for
wireless DMX
antennas.
Insert the XLR 3-Pin
connector into the
Power Input (19).
Plug the AC connec-
tor into a wall socket.
Barndoor and Speed
Ring accessories
mount by hanging
upper indent over
Top Accessory Latch
(3) then pushing
lower indent into
Bottom Accessory
Latch (4).
Fresnel accessory
mounts by placing
lower indent into
Bottom Accessory
Latch (4), then
pushing top of
Fresnel into Top
Accessory Latch (3).
2
4
5
1 2 3
8
7
6
9
11
10
12
13
14
15
16
17
18
19
20
21
Turning the Light On Outer Bracket
Mounting
Inner Bracket
Mounting
USB Interface
8
5V 1A
11
17 19
3
4
3
4
Matrix
Barndoor
Matrix
Speed Ring
Matrix
Softbox
Matrix
Pop-up Softbox
Grid for Matrix SoftboxMatrix
Fresnel

3

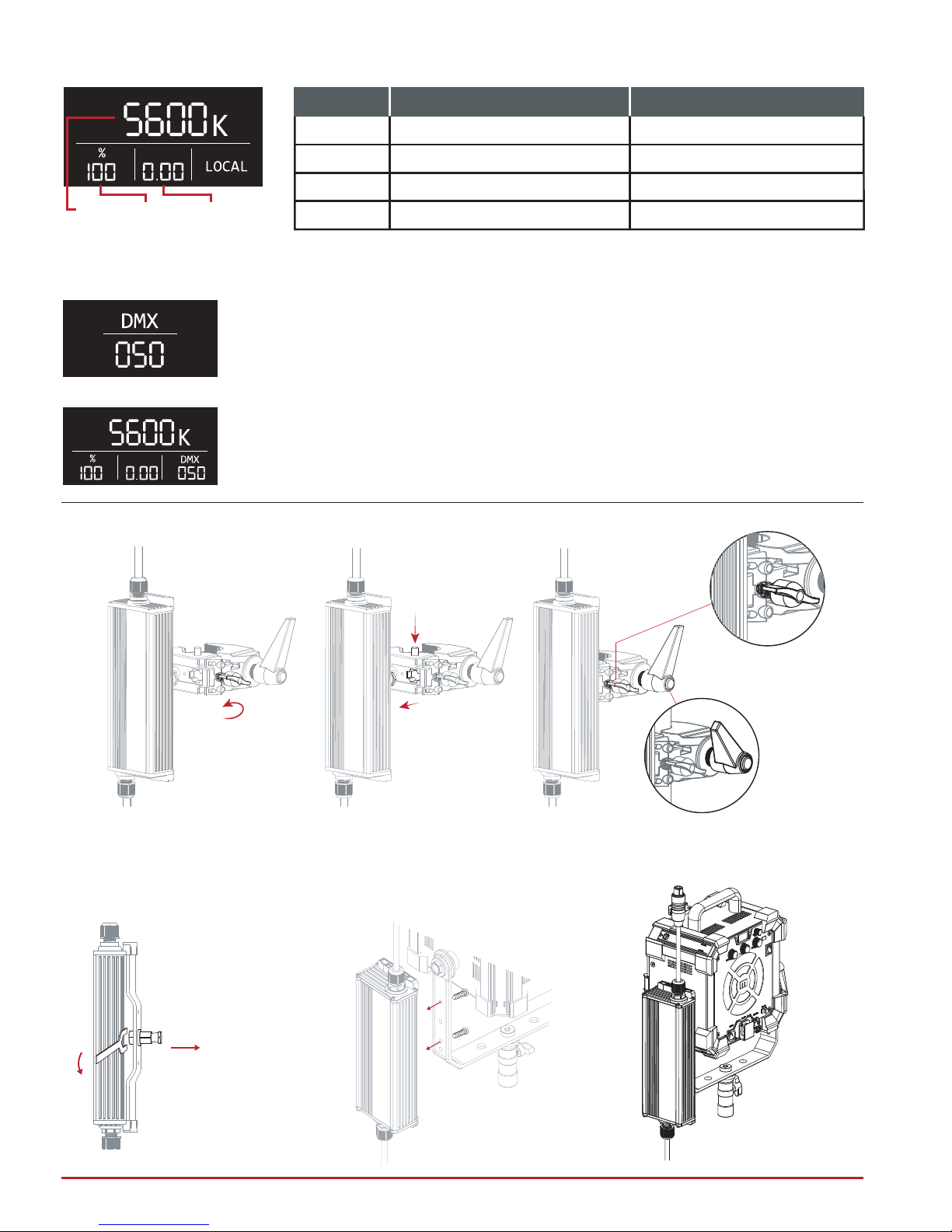

Rear Panel Interface Operation
Assigning DMX Address:
DMX Address Setting Screen
Main Screen w/ DMX Mode Active
1. Loosen the lock knob on the
Super Clamp.
2. Hold down the release button and
slide the Super Clamp onto the
Power Adapter mounting pin.
3. Tighten the lock knob on the
Super Clamp.
Hold
Slide
Loosen
Loosen
Remove
4. Use clamp adjustment knob to affix Super
Clamp and Power Adapter to light stand.
Setup Clamp Mount and Power Adapter
Attach Power Adapter to the Yoke
Dial
CCT
PWR
HUE
DMX
Range
2800K - 6500K
100% - 0.1%
± .25 Magenta / Green
1 - 510
Function
Set color temperature
Set intensity
Set HUE value
Set DMX address
CCT PWR HUE
1. Double click the DMX Address Dial (10) to unlock DMX address
setting screen on the OLED Display (9).
2. Rotate the knob to select desired base address (1-510).
3. Lock in setting by clicking knob once. Alternatively, the address will
automatically lock in after 1 second of inactivity.
4. The Matrix II Tunable white occupies three consecutive DMX
channels for operation. With a base DMX address 50, the controls
for intensity, CCT, and hue will correspond to DMX channels 50,
51, and 52 respectively.
• For adjusting fixture’s DMX address via RDM, consult operating instructions
for DMX/RDM control system.
Remove mounting pin by
loosening 11/16” nut under
Power Adapter mounting plate.
Mount the power adapter onto
the Power Adapter Mounting
Holes (23) on the Yoke (9) with
two 1/4” - 20 screws.
Removal requires 11/16” wrench
that is thin enough to fit under
mounting plate.
Maximum wrench thickness: 8mm

4
Specifications
Weight: Fixture
Weight: Power Adapter
Light Source
Thermal Design
CCT Range
Dimming
CRI
Power Consumption
Power Connection
Input Voltage
Operating Temperature
Beam Angle
Mounting
Tilt Angle
DMX Type
DMX Ports
USB Power
Mini USB Interface
Housing Color
IP Rating
LED Lifetime
Certifications
9.7 lbs / 4.4 kg
5.6 lbs / 2.6 kg
4x 75W DiCon Dense Matrix LED
Advanced Vapor Cooling System (fan cooled)
2800-6500K Continuous Tuning
0-100% (0.1% increments at low power range)
97 Avg.
340W Max AC | 300W Max DC
Detachable XLR 3-Pin Cable
AC Power: 100-250VAC. 50-60Hz
DC Power: 46-54VDC
32-104°F / 0-40°C
99° (31° w/ Matrix Fresnel accessory)
Accepts Baby Pin (5/8”, 16mm) / Junior Receiver (1 1/8”, 28mm)
±90°
DMX 512/RDM
2x 5-Pin XLR Ports (male/female)
5V 1A (USB Type-A)
Used for firmware update
Black
IP-24
42,000 hours
CE, UL, FCC
Connect AC Power Adapter to AC Cable (For regions outside of the U.S)
320W / 48V Power Adapter
XLR 3-Pin Connector (DC out)
AC Cable (Plug head varies by region: EU, UK, AU, ZA, CH)
Pull lock
unlock
-Pull back release clip before joining connectors. Rotate
connectors clockwise to secure connection.
-To disconnect, pull back release clip and rotate connec-
tors counterclockwise.

5
Safety
Warranty
Unless otherwise stated, your product is covered by a one year parts and labor limited warranty.
Fiilex guarantees, to the original buyer, that this product is to be free of defects in both workman-
ship and material for a period of one year from the date of shipment. This warranty extends to all
products which have proved defective through normal use but excludes products that have been
disassembled, modified or misused by the buyer or any other person. This warranty is in lieu of all
other warranties, and disclaims all warranties expressed or implied, including any warranty of mer-
chantability, fitness for a particular purpose, or arising from the course of dealing between the
parties or usage of trade.
Returning an Item Under Warranty for Repair
It is necessary to obtain a Return Authorization Number (RA#) from your dealer/ point of purchase
BEFORE any units are returned for repair. Fiilex will make the final determination as to whether or
not the unit is covered by warranty. Fiilex will replace or repair to proper working condition any
products that are returned under warranty. Products repaired or replaced under warranty are
under warranty only for the remaining unexpired period of time of the original warranty.
Any Product unit or part returned to Fiilex must be packaged in a suitable manner to ensure the
protection of such Product unit or parts. The package must be clearly and prominently marked to
indicate that the package contains returned product units or parts with a Return Authorization
(RA#) number. All returned product units or parts must be accompanied by a written explanation of
the alleged problem or malfunction.
• CAUTION! High intensity output! - Do NOT look directly into light source.
• DO NOT point the light at combustible or flammable materials.
• DO NOT attempt to disassemble the body of the Matrix II Tunable White. Doing so will void
warranty.
• DO NOT cover/block fixture’s air vents.
• Use only a soft, dry towel to gently clean the exterior of the light.
• DO NOT lift or suspend the light by the power cable.
• DO NOT use the Matrix II Tunable White or accessories if they display any physical damage.
• BEFORE first use, make sure to remove all protective membranes.
• DO NOT mount the Matrix II Tunable White in a hanging position without a separate safety
cable.
• Only use Fiilex approved accessorie for the Matrix II Tunable White.
