Instruction Manual for the
MS-4012/4024 and CMS-4012/4024
Fire Alarm Control Panels
R
12 Clintonville Road, Northford, CT 06472
Phone: [phone] FAX: [phone]
Document 15586
5/11/93 Revision:E
P/N 15586:E ECN 93-119
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

WARNING: This equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instruction manual, may
cause interference to radio communications. It has been tested and found to comply
with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC
Rules, which is designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user will be required
to correct the interference at his own expense.
Installation Precautions - Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING - Several different sources of power can be connected to the fire alarm
control panel. Disconnect all sources of power before servicing. Control unit and
associated equipment may be damaged by removing and/or inserting cards,
modules, or interconnecting cables while the unit is energized. Do not attempt to
install, service, or operate this unit until this manual is read and understood.
CAUTION - System Reacceptance Test after Software Changes: To ensure
proper system operation, this product must be tested in accordance with NFPA 72-
1993 Chapter 7 after any programming operation or change in site-specific software.
Reacceptance testing is required after any change, addition or deletion of system
components, or after any modification, repair or adjustment to system hardware or
wiring.
All components, circuits, system operations, or software functions known to be
affected by a change must be 100% tested. In addition, to ensure that other
operations are not inadvertently affected, at least 10% of initiating devices that are
not directly affected by the change, up to a maximum of 50 devices, must also be
tested and proper system operation verified.
This system meets NFPA requirements for operation at 0-49OC/32-120OF
and at a relative humidity of 85% RH (non-condensing) at 30O C/86OF.
However, the useful life of the system's standby batteries and the electronic
components may be adversely affected by extreme temperature ranges and
humidity. Therefore, it is recommended that this system and its peripherals be
installed in an environment with a nominal room temperature of 15-27OC/60-80O
F.
Verify that wire sizes are adequate for all initiating and indicating device loops.
Most devices cannot tolerate more than a 10% I.R. drop from the specified device
voltage.
Like all solid state electronic devices, this system may operate erratically or can
be damaged when subjected to lightning induced transients. Although no system is
completely immune from lightning transients and interferences, proper grounding will
reduce susceptibility. Overhead or outside aerial wiring is not recommended, due to
an increased susceptibility to nearby lightning strikes. Consult with the Technical
Services Department if any problems are anticipated or encountered.
Disconnect AC power and batteries prior to removing or inserting circuit boards.
Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing, reaming, or punching
of the enclosure. When possible, make all cable entries from the sides or rear.
Before making modifications, verify that they will not interfere with battery,
transformer, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs. Over tightening may damage
threads, resulting in reduced terminal contact pressure and difficulty with screw
terminal removal.
This system contains static-sensitive components. Always ground yourself with a
proper wrist strap before handling any circuits so that static charges are removed
from the body. Use static suppressive packaging to protect electronic assemblies
removed from the unit.
Follow the instructions in the installation, operating, and programming manuals.
These instructions must be followed to avoid damage to the control panel and
associated equipment. FACP operation and reliability depend upon proper
installation.
Fire Alarm System Limitations
While installing a fire alarm system may make lower insurance
rates possible, it is not a substitute for fire insurance!
An automatic fire alarm system - typically made up of smoke detectors, heat
detectors, manual pull stations, audible warning devices, and a fire alarm control
with remote notification capability can provide early warning of a developing fire.
Such a system, however, does not assure protection against property damage or
loss of life resulting from a fire.
Any fire alarm system may fail for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot reach the detectors such
as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke
detectors also may not sense a fire on another level or floor of a building. A second
floor detector, for example, may not sense a first floor or basement fire. Further-
more, all types of smoke detectors - both ionization and photoelectric types, have
sensing limitations. No type of smoke detector can sense every kind of fire caused
by carelessness and safety hazards like smoking in bed, violent explosions,
escaping gas, improper storage of flammable materials, overloaded electrical
circuits, children playing with matches, or arson.
IMPORTANT! Smoke detectors must be installed in the same room as the
control panel and in rooms used by the system for the connection of alarm
transmission wiring, communications, signaling, and/or power. If detectors are
not so located, a developing fire may damage the alarm system, crippling its
ability to report a fire.
Audible warning devices such as bells may not alert people if these devices are
located on the other side of closed or partly open doors or are located on another
floor of a building.
A fire alarm system will not operate without any electrical power. If AC power fails,
the system will operate from standby batteries only for a specified time.
Rate-of-Rise heat detectors may be subject to reduced sensitivity over time. For
this reason, the rate-of-rise feature of each detector should be tested at least once
per year by a qualified fire protection specialist.
Equipment used in the system may not be technically compatible with the control.
It is essential to use only equipment listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a premise to a central
monitoring station may be out of service or temporarily disabled.
The most common cause of fire alarm malfunctions, however, is inadequate
maintenance. All devices and system wiring should be tested and maintained by
professional fire alarm installers following written procedures supplied with each
device. System inspection and testing should be scheduled monthly or as required
by National and/or local fire codes. Adequate written records of all inspections should
be kept.
FCC Warning
Canadian Requirements
This digital apparatus does not exceed the Class A limits for radiation noise
emissions from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques depassant les
limites applicables aux appareils numeriques de la classe A prescrites dans le
Reglement sur le brouillage radioelectrique edicte par le ministere des Communica-
tions du Canada.
Technical Publishing Document PRECAULG.P65 12/31/96
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

15586 Rev E 5/14/93 P/N 15586:E 3
Table of Contents
Note: Thisinstructionmanual coverspanelslisted byUL(MS-4012 andMS-4024)and byULC(CMS-4012 and
CMS-4024).Forsimplicity,thisdocumentrefers tothesepanelsas the"4012"(forthe 12-voltMS-4012andCMS-
4012 control panels)and the "4024" (for the24-volt MS-4024 and CMS-4024 controlpanels).
Inside Back Cover
Page
Table of Figures 4
1.0 Fire Alarm Control System 7
1.1 Standard Features 7
1.2 Optional Features 7
2.0 Controls and Indicators 8
2.1 Control Switches 8
2.2 Status Indicators 9
3.0 Installation Instructions 10
3.1 General 10
3.2 Initiating Circuits 10
3.3 Output Circuits 11
3.4 Power 12
3.5 Optional Modules 13
4.0 Periodic Testing 20
4.1 Notification 20
4.2 System Test 20
4.3 Zone Test 20
4.4 Initiating Device Test 20
4.5 Supervisory Test 20
4.6 Trouble Test 21
4.7 Battery Test 21
4.8 Test Completion 21
5.0 Troubleshooting Guide 22
5.1 Control Panel Checkup 23
Appendix A: Specifications 26
Appendix B: Power Calculations 28
Quick Reference Sheets
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

415586 Rev E 5/14/93 P/N 15586:E
Table of Figures
Page
2A Dress Panel 8

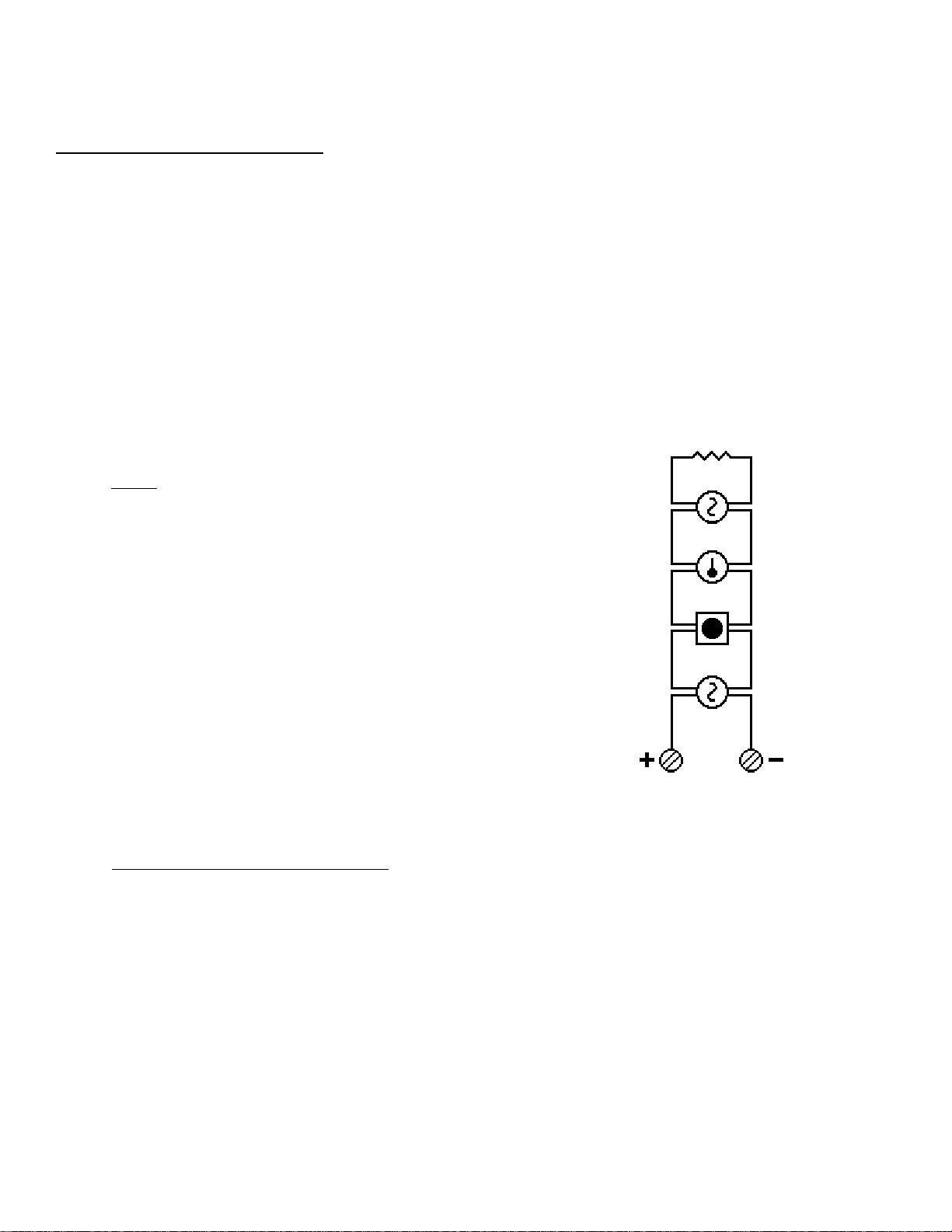

3A Zone Wiring 10
3B Dress Panel Terminal Guide 11
3C Indicating Circuit Wiring Diagram 11
3D Typical End of Line Relay Connection 12
3E AC Connections 12
3F Battery and Meter Connections 13

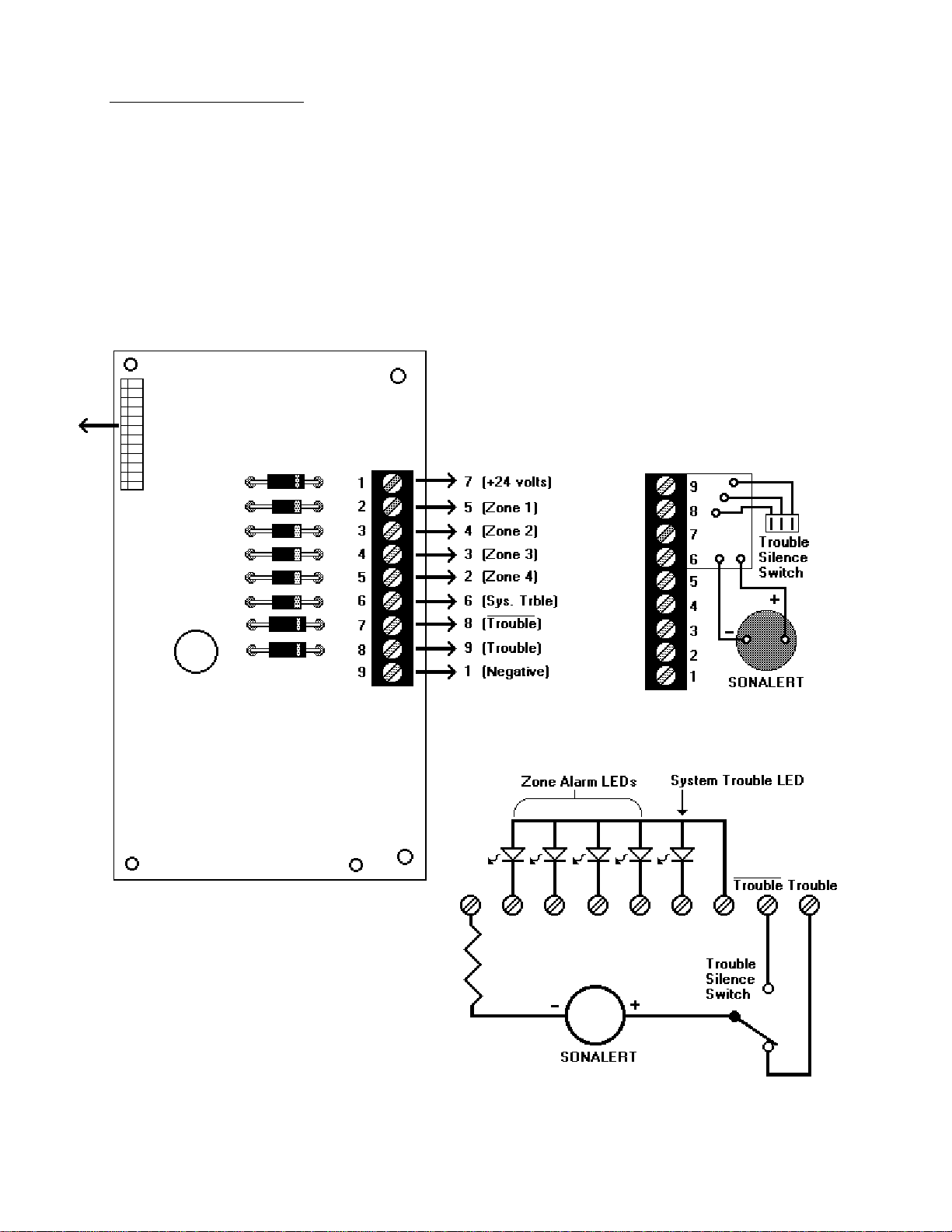

3G Remote Zone Annunciator Installation 14
3H Zone Relay Module Connections 15
3I General Alarm and Trouble Module Connections 16
3J Transmitter Module Connections 17
3K McCulloh-Type Transmitter Connection 18
3L Basic System Wiring Diagram 19
3M Battery Charger Check Procedure 24
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

15586 Rev E 5/14/93 P/N 15586:E 5
National Fire Protection Association (NFPA) Standards:
71 Signaling Systems for Central Station Service
72 Local Protective Signaling Systems
72 Auxiliary Protective Signaling Systems
72 Remote Station Protective Signaling Systems
72 Proprietary Protective Signaling Systems
Underwriter's Laboratories (UL) listed as a
Fire Protective Signaling System - Standard 864
Underwriter's Laboratories of Canada (ULC) listed
Standard CAN/ULC - S527 - M87
California State Fire Marshall (CSFM) listed
CSFM File Number: 7165-075:130
Bureau of Standards and Appeals listed
MEA Resolution Number: 578-81-SA
MEAMEA
MEAMEA
MEA
The MS-4012/4024 and CMS-4012/4024 Fire Alarm Control Panels are suitable for service
under the following standards:
For Compatible Notification Appliances, 2 and 4-wire smoke detectors and door holders, refer to the
Fire Lite Device Compatibility Document, 15384.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

615586 Rev E 5/14/93 P/N 15586:E
Eachoptionalmodulelistedinthismanualas"40xx"isofferedin12and24-voltversions.The"XX"represents
either "12" or "24" volts DC.
Each module is further distinguished by its respective two letter abbreviation (such as TM for Transmitter
Module).
When received, the actual module boards will be marked as "MS4000 - 40xx" followed by a one letter
abbreviation and the letter "B" ( for board ).
For instance:
To order a 24-volt General Alarm and Trouble Module, order a "4024AT".
The module received will be marked "MS4000 - 40xxAB."
The voltage of a particular module is inked
on the bottom side of the PC board
A Packaging Note
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

15586 Rev E 5/14/93 P/N 15586:E 7
1.0 Fire Alarm Control System
The MS-4012/4024 and CMS-4012/4024 are 4-zone fire alarm control panels designed for use in
commercial,industrial, and institutionalapplications.The4012isdesigned for12-volt(nominal)devices.
The4024 is designedfor24-volt(nominal)devices.Activation ofanycompatibletwowiredetector or any
normally open initiating device will sound audible devices, annunciate a fire zone, trip a municipal box,
notify a remote station and activate supplementary relay(s).
1.1 Standard features include:
✓✓
✓✓
✓4 Class B (Style B) initiating zones
✓✓
✓✓
✓2 Class B (Style Y) indicating circuits
✓✓
✓✓
✓Normally closed supervisory zone
✓✓
✓✓
✓Power limited initiating and indicating loops
✓✓
✓✓
✓Walk test feature with indicator
✓✓
✓✓
✓Disable switches per initiating zone
✓✓
✓✓
✓Resettable regulated power for 4-wire smoke detectors
✓✓
✓✓
✓Current limited float type charger for sealed batteries
✓✓
✓✓
✓Battery supervision
✓✓
✓✓
✓Ground fault indicator
✓✓
✓✓
✓Extensive transient protection
✓✓
✓✓
✓Single Form-C general alarm contact
✓✓
✓✓
✓Supervision of option boards
✓✓
✓✓
✓Conversion of Zone 4 to a N.O. sprinkler supervisory
✓✓
✓✓
✓Waterflow Alarm Service, including two zone waterflow plates (4000 WF) that
mechanically lock the disable switch on waterflow zones.
1.2 Optional features include:
✓✓
✓✓
✓
✓✓
✓✓
✓
✓✓
✓✓
✓
✓✓
✓✓
✓
Transmitter Module (40xxTM) with reverse polarity alarm and trouble outputs, supervised
output for local energy municipal box, and transmitter disable switch with indicator.
General Alarm and Trouble Module (40xxAT) that provides one Form-C general alarm
contact with disable switch and one Form-C dry trouble contact with visual trouble indicator.
Zone Relay Module (40xxZR) that provides a Form-C alarm contact by zone, Form-A
general alarm contact and Form-C trouble contact.
LED Annunciator Interface Module (40xxLI) forusewith a remotezone annunciator (type
RZA-4).
