Fire-Lite Alarms MS-5210UD User manual

Fire Alarm Control Panel
MS-5210UD/MS-5210UDE
PN: 50193:E ECN 01-685
E
Document #50193
01/30/02 Rev.

Precau-Lg.p65 01/18/2000
An automatic fire alarm system–typically made up of smoke
detectors, heat detectors, manual pull stations, audible warn-
ing devices, and a fire alarm control with remote notification
capability–can provide early warning of a developing fire.
Such a system, however, does not assure protection against
property damage or loss of life resulting from a fire.
The Manufacturer recommends that smoke and/or heat detec-
tors be located throughout a protected premise following the
recommendations of the current edition of the National Fire
Protection Association Standard 72 (NFPA 72),
manufacturer's recommendations, State and local codes, and
the recommendations contained in the Guide for Proper Use
of System Smoke Detectors, which is made available at no
charge to all installing dealers. A study by the Federal Emer-
gency Management Agency (an agency of the United States
government) indicated that smoke detectors may not go off in
as many as 35% of all fires. While fire alarm systems are de-
signed to provide early warning against fire, they do not guar-
antee warning or protection against fire. A fire alarm system
may not provide timely or adequate warning, or simply may not
function, for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot
reach the detectors such as in chimneys, in or behind walls, on
roofs, or on the other side of closed doors. Smoke detectors
also may not sense a fire on another level or floor of a build-
ing. A second-floor detector, for example, may not sense a
first-floor or basement fire.
Particles of combustion or "smoke" from a developing fire
may not reach the sensing chambers of smoke detectors be-
cause:
• Barriers such as closed or partially closed doors, walls, or
chimneys may inhibit particle or smoke flow.
• Smoke particles may become "cold," stratify, and not reach
the ceiling or upper walls where detectors are located.
• Smoke particles may be blown away from detectors by air
outlets.
• Smoke particles may be drawn into air returns before reach-
ing the detector.
The amount of "smoke" present may be insufficient to alarm
smoke detectors. Smoke detectors are designed to alarm at
various levels of smoke density. If such density levels are not
created by a developing fire at the location of detectors, the
detectors will not go into alarm.
Smoke detectors, even when working properly, have sensing
limitations. Detectors that have photoelectronic sensing
chambers tend to detect smoldering fires better than flaming
fires, which have little visible smoke. Detectors that have ion-
izing-type sensing chambers tend to detect fast-flaming fires
better than smoldering fires. Because fires develop in differ-
ent ways and are often unpredictable in their growth, neither
type of detector is necessarily best and a given type of detec-
tor may not provide adequate warning of a fire.
Smoke detectors cannot be expected to provide adequate
warning of fires caused by arson, children playing with
matches (especially in bedrooms), smoking in bed, and violent
explosions (caused by escaping gas, improper storage of
flammable materials, etc.).
Heat detectors do not sense particles of combustion and
alarm only when heat on their sensors increases at a prede-
termined rate or reaches a predetermined level. Rate-of-rise
heat detectors may be subject to reduced sensitivity over time.
For this reason, the rate-of-rise feature of each detector
should be tested at least once per year by a qualified fire pro-
tection specialist. Heat detectors are designed to protect
property, not life.
IMPORTANT! Smoke detectors must be installed in the
same room as the control panel and in rooms used by the sys-
tem for the connection of alarm transmission wiring, communi-
cations, signaling, and/or power. If detectors are not so lo-
cated, a developing fire may damage the alarm system, crip-
pling its ability to report a fire.
Audible warning devices such as bells may not alert people
if these devices are located on the other side of closed or
partly open doors or are located on another floor of a building.
Any warning device may fail to alert people with a disability or
those who have recently consumed drugs, alcohol or medica-
tion. Please note that:
• Strobes can, under certain circumstances, cause seizures
in people with conditions such as epilepsy.
• Studies have shown that certain people, even when they
hear a fire alarm signal, do not respond or comprehend the
meaning of the signal. It is the property owner's responsibil-
ity to conduct fire drills and other training exercise to make
people aware of fire alarm signals and instruct them on the
proper reaction to alarm signals.
• In rare instances, the sounding of a warning device can
cause temporary or permanent hearing loss.
A fire alarm system will not operate without any electrical
power. If AC power fails, the system will operate from standby
batteries only for a specified time and only if the batteries
have been properly maintained and replaced regularly.
Equipment used in the system may not be technically com-
patible with the control. It is essential to use only equipment
listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a
premise to a central monitoring station may be out of service
or temporarily disabled. For added protection against tele-
phone line failure, backup radio transmission systems are rec-
ommended.
The most common cause of fire alarm malfunction is inade-
quate maintenance. To keep the entire fire alarm system in
excellent working order, ongoing maintenance is required per
the manufacturer's recommendations, and UL and NFPA stan-
dards. At a minimum, the requirements of Chapter 7 of NFPA
72 shall be followed. Environments with large amounts of
dust, dirt or high air velocity require more frequent mainte-
nance. A maintenance agreement should be arranged
through the local manufacturer's representative. Maintenance
should be scheduled monthly or as required by National and/
or local fire codes and should be performed by authorized pro-
fessional fire alarm installers only. Adequate written records
of all inspections should be kept.
While a fire alarm system may lower insurance
rates, it is not a substitute for fire insurance!
Fire Alarm System Limitations

Precau-Lg.p65 01/18/2000
WARNING - Several different sources of power can be con-
nected to the fire alarm control panel. Disconnect all sources
of power before servicing. Control unit and associated equip-
ment may be damaged by removing and/or inserting cards,
modules, or interconnecting cables while the unit is energized.
Do not attempt to install, service, or operate this unit until this
manual is read and understood.
CAUTION - System Reacceptance Test after Software
Changes. To ensure proper system operation, this product
must be tested in accordance with NFPA 72 Chapter 7 after
any programming operation or change in site-specific soft-
ware. Reacceptance testing is required after any change, ad-
dition or deletion of system components, or after any modifica-
tion, repair or adjustment to system hardware or wiring.
All components, circuits, system operations, or software func-
tions known to be affected by a change must be 100% tested.
In addition, to ensure that other operations are not inadvert-
ently affected, at least 10% of initiating devices that are not
directly affected by the change, up to a maximum of 50 de-
vices, must also be tested and proper system operation veri-
fied.
This system meets NFPA requirements for operation at
0-49° C/32-120° F and at a relative humidity of 85% RH (non-
condensing) at 30° C/86° F. However, the useful life of the
system's standby batteries and the electronic components
may be adversely affected by extreme temperature ranges
and humidity. Therefore, it is recommended that this system
and all peripherals be installed in an environment with a nomi-
nal room temperature of 15-27° C/60-80° F.
Verify that wire sizes are adequate for all initiating and
indicating device loops. Most devices cannot tolerate more
than a 10% I.R. drop from the specified device voltage.
Like all solid state electronic devices, this system may
operate erratically or can be damaged when subjected to light-
ning-induced transients. Although no system is completely
immune from lightning transients and interferences, proper
grounding will reduce susceptibility. Overhead or outside
aerial wiring is not recommended, due to an increased sus-
ceptibility to nearby lightning strikes. Consult with the Techni-
cal Services Department if any problems are anticipated or
encountered.
Disconnect AC power and batteries prior to removing or in-
serting circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing,
reaming, or punching of the enclosure. When possible, make
all cable entries from the sides or rear. Before making modifi-
cations, verify that they will not interfere with battery, trans-
former, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs.
Over-tightening may damage threads, resulting in reduced
terminal contact pressure and difficulty with screw terminal
removal.
Though designed to last many years, system components
can fail at any time. This system contains static-sensitive
components. Always ground yourself with a proper wrist strap
before handling any circuits so that static charges are re-
moved from the body. Use static-suppressive packaging
to protect electronic assemblies removed from the unit.
Follow the instructions in the installation, operating, and
programming manuals. These instructions must be followed
to avoid damage to the control panel and associated
equipment. FACP operation and reliability depend upon
proper installation by authorized personnel.
Adherence to the following will aid in problem-free
installation with long-term reliability:
WARNING: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause interference to radio communications. It has been tested and
found to comply with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC Rules, which
is designed to provide reasonable protection against such interference when operated in a commercial environ-
ment.
Operation of this equipment in a residential area is likely to cause interference, in which case the user will be re-
quired to correct the interference at his own expense.
FCC Warning
Installation Precautions

Notes
4Document #50193 Rev.E 01/30/02 P/N 50193:E

Document 50193 Rev. E 01/30/02 P/N: 50193:E 5
CHAPTER 1: Product Description .........................................................................................................................11
1.1: Product Features..........................................................................................................................................11

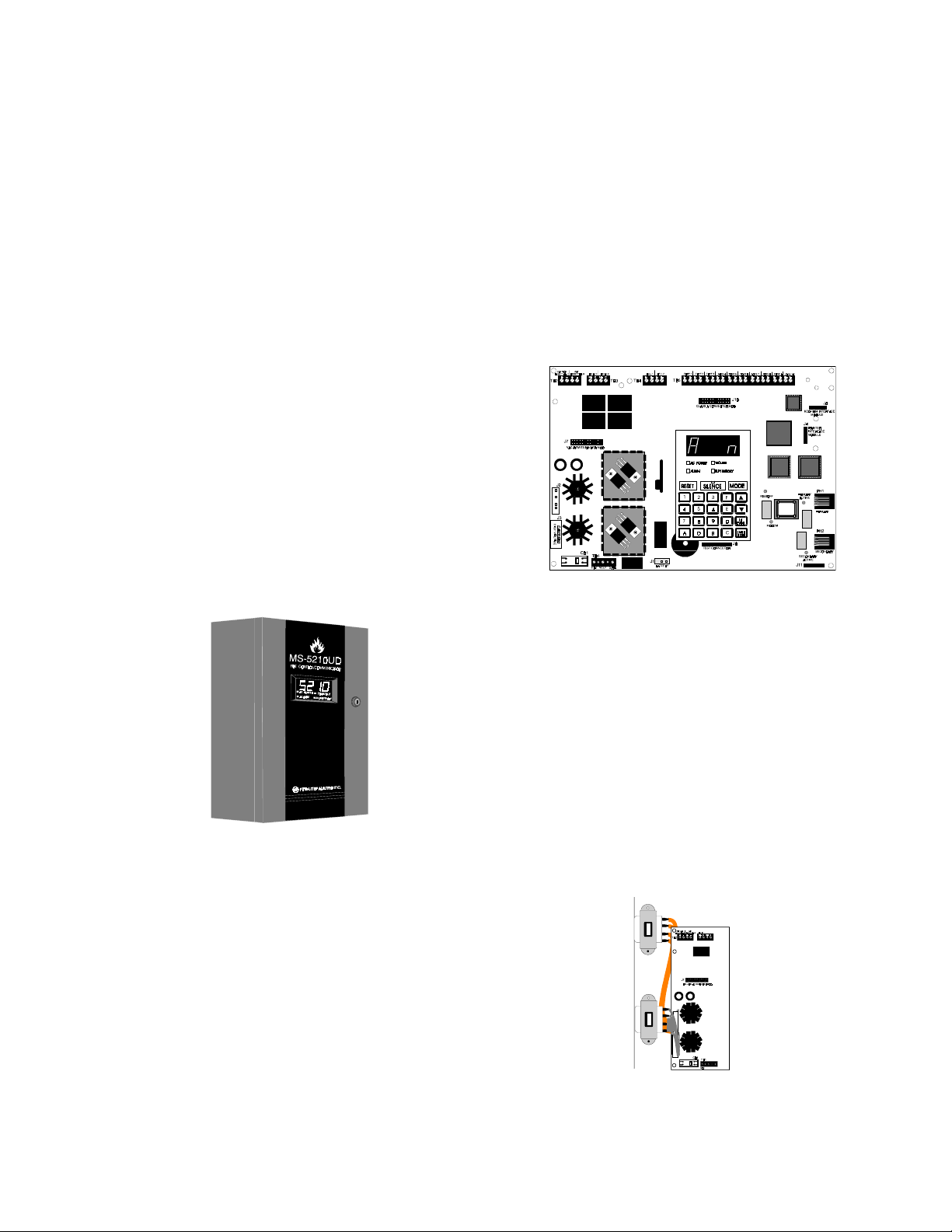

FIGURE 1-1: Optional DP-5210UD.................................................................................................... 12
FIGURE 1-2: MS-5210UD Panel ........................................................................................................13
1.2: Specifications ..............................................................................................................................................14
1.3: Controls and Indicators ...............................................................................................................................15

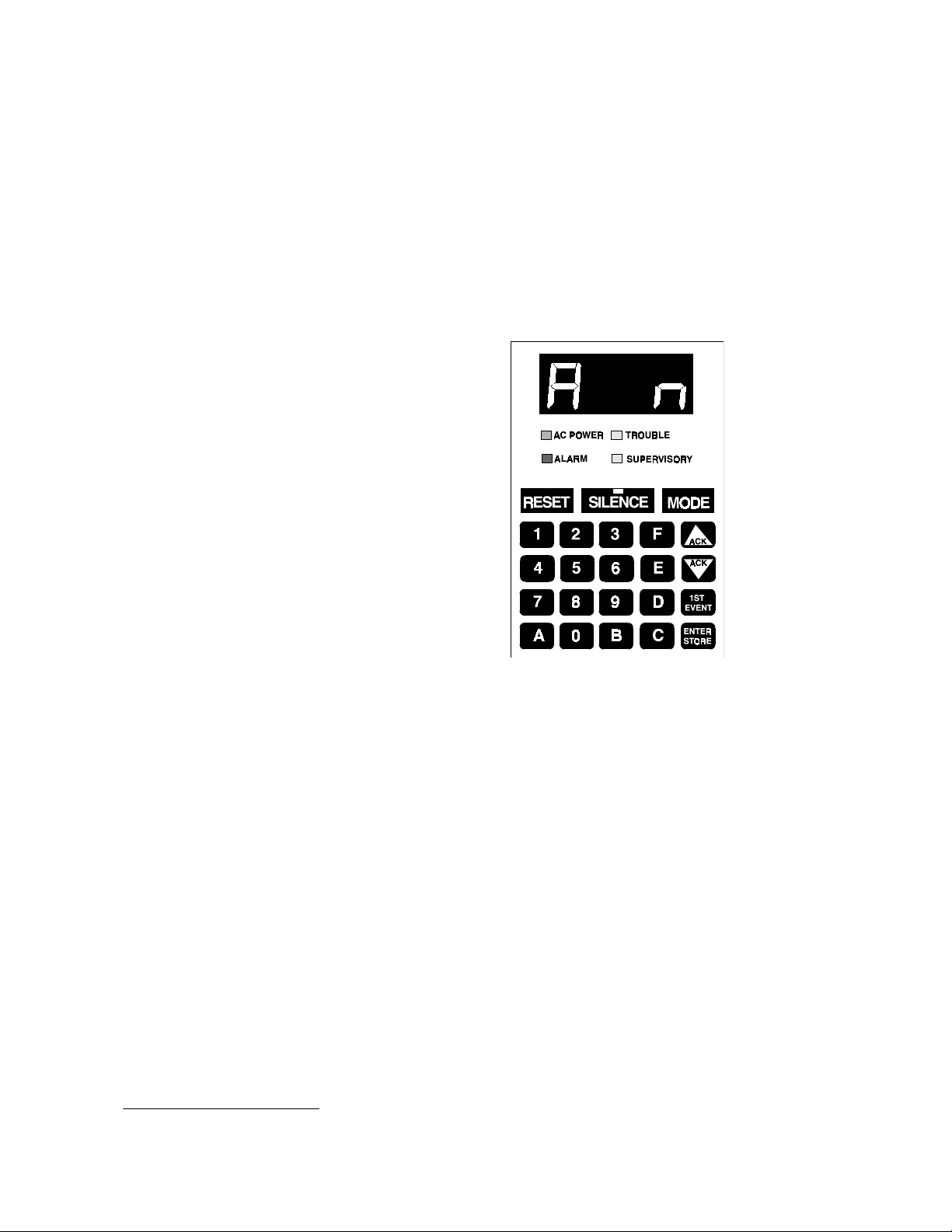

FIGURE 1-3: Display and Keypad ......................................................................................................15
1.4: Circuits ........................................................................................................................................................15
1.5: Digital Communicator.................................................................................................................................16
1.6: Components.................................................................................................................................................17
FIGURE 1-4: Transformer Assemblies ...............................................................................................17
1.7: Optional Modules........................................................................................................................................18
1.8: Optional Accessories...................................................................................................................................18
FIGURE 1-5: BB-17F Battery Box .....................................................................................................18
FIGURE 1-6: LED-10 Series Annunciator..........................................................................................19
FIGURE 1-7: ACM-16ATF.................................................................................................................19
FIGURE 1-8: AFM-16ATF .................................................................................................................20
FIGURE 1-9: AFM-16AF....................................................................................................................20
FIGURE 1-10: LDM-32F Module.......................................................................................................20
FIGURE 1-11: FCPS-24F(E)...............................................................................................................21
1.9: Telephone Requirements and Warnings ......................................................................................................22
1.9.1: Telephone Circuitry:..........................................................................................................................22
1.9.2: Digital Communicator: .....................................................................................................................22
1.9.3: Telephone Company Rights and Warnings: ......................................................................................22
CHAPTER 2: Installation.........................................................................................................................................23
2.1: Mounting Options .......................................................................................................................................23
2.2: Backbox Mounting......................................................................................................................................23
FIGURE 2-1: Cabinet Dimensions and Knockout Locations..............................................................24
FIGURE 2-2: FACP Backbox and Battery Box ..................................................................................25
2.3: Operating Power..........................................................................................................................................26
FIGURE 2-3: Operating Power Connections.......................................................................................26
2.4: Input Circuits...............................................................................................................................................27
FIGURE 2-4: Style B Initiating Device Circuit Connections..............................................................28
2.5: Output Circuits ............................................................................................................................................28
FIGURE 2-5: Auxiliary Power Connections .......................................................................................28
FIGURE 2-6: Notification Appliance Circuit Connections.................................................................29
FIGURE 2-7: Programmable Relay Terminals....................................................................................29
2.6: Digital Communicator.................................................................................................................................30
FIGURE 2-8: Wiring Phone Jacks.......................................................................................................30
2.7: UL Power-limited Wiring Requirements ....................................................................................................31
FIGURE 2-9: Typical Wiring Diagram for UL Power-limited Requirements ....................................31
2.8: Installation of Optional Modules.................................................................................................................32
FIGURE 2-10: Installation of CAC-10F Module ................................................................................32
FIGURE 2-11: Wiring NACs and IDCs for Class A Operation ..........................................................32
FIGURE 2-12: Installation & Wiring of NAC-REM Module .............................................................33
FIGURE 2-13: Remote Printer Connections .......................................................................................34
TABLE 2-1: Printer Settings................................................................................................................34
FIGURE 2-14: LED-10IM Installation................................................................................................35
FIGURE 2-15: Wiring LED-10IM to LED-10 Series .........................................................................35
FIGURE 2-16: ABS-8R Enclosure......................................................................................................36
FIGURE 2-17: Wiring LED-10IM to ACM-8RF................................................................................36
FIGURE 2-18: Wiring LED-10IM to LDM-32F.................................................................................37
Table of Contents

Table of Contents
6Document 50193 Rev. E 01/30/02 P/N: 50193:E
FIGURE 2-19: Wiring LED-10IM to ACM-16ATF ...........................................................................38
CHAPTER 3: Programming Instructions...............................................................................................................39
3.1: Entering Program Mode ..............................................................................................................................39
3.2: Switch Functions .........................................................................................................................................40
FIGURE 3-1: Control Panel Keypad ...................................................................................................40
3.3: Program Options..........................................................................................................................................40
3.3.1: Level 1 - Main Panel Options ...........................................................................................................40
TABLE 3-1: Zone Functions ...............................................................................................................44
TABLE 3-2: Event Code Changes for ID Contact Format ..................................................................46
FIGURE 3-2: Verification Timing Diagram........................................................................................47
3.3.2: Level Two - Event Codes/Transmission Formats .............................................................................49
TABLE 3-3: Event Codes, Primary Central Station Number ..............................................................50
TABLE 3-4: Event Codes, Primary Central Station Number ..............................................................52
TABLE 3-5: Event Codes, Primary Central Station Number ..............................................................54
TABLE 3-6: Event Codes, Secondary Central Station Number ..........................................................55
TABLE 3-7: Event Codes, Secondary Central Station Number ..........................................................57
TABLE 3-8: Event Codes, Secondary Central Station Number ..........................................................59
3.3.3: Level Three - Option Module Selections ..........................................................................................60
3.3.4: Level Four - Upload/Download Option ............................................................................................62
3.3.5: Default Programming........................................................................................................................64
CHAPTER 4: Operating Instructions .....................................................................................................................65
FIGURE 4-1: New and Old Keypad/Display.......................................................................................65
4.1: Switch Functions in Normal Mode..............................................................................................................65
4.2: LED Display and Status LEDs ....................................................................................................................67
FIGURE 4-2: Phone Connectors and LEDs.........................................................................................68
4.3: Operation .....................................................................................................................................................69
4.3.1: Fire Alarm Response.........................................................................................................................69
4.3.2: Fire Alarm Restoral...........................................................................................................................70
4.3.3: System Supervisory Condition Response .........................................................................................70
4.3.4: System Supervisory Restoral Response ............................................................................................70
4.3.5: Trouble Condition Response .............................................................................................................71
4.3.6: Trouble Condition Restoral ...............................................................................................................71
4.3.7: Process Monitored Alarm Response .................................................................................................72
4.3.8: Process Monitored Alarm Restoral ...................................................................................................72
4.3.9: OFF Normal Reporting .....................................................................................................................72
4.3.10: Zone Disable/Enable .......................................................................................................................72
4.3.11: NAC (bell) Disable/Enable .............................................................................................................73
4.3.12: Fire Drill..........................................................................................................................................73
4.4: Central Station Communications.................................................................................................................74
TABLE 4-1: Format Selection Addresses (16+42) Programming Level 1..........................................75
TABLE 4-2: Format Selection Address Explanation...........................................................................76
4.4.1: Transmittal Priorities .........................................................................................................................77
TABLE 4-3: Compatible UL Listed Receivers....................................................................................78
CHAPTER 5: Servicing............................................................................................................................................79
5.1: Walk Test Mode...........................................................................................................................................79
5.2: History Mode...............................................................................................................................................80
TABLE 5-1: History Mode Messages..................................................................................................81
5.3: Troubleshoot Mode......................................................................................................................................82
5.3.1: Zones .................................................................................................................................................82
5.3.2: AC Line .............................................................................................................................................83
5.3.3: Battery ...............................................................................................................................................83
5.3.4: Telephone Lines ................................................................................................................................83

Document 50193 Rev. E 01/30/02 P/N: 50193:E 7
Table of Contents
FIGURE 5-1: Handset/Speaker Connection ........................................................................................83
5.3.5: NACs 1, 2, 3 and 4 ............................................................................................................................84
5.3.6: Resettable Power...............................................................................................................................84
5.4: Lamp Test ....................................................................................................................................................84
5.5: Print Mode...................................................................................................................................................84
5.6: Printer Output..............................................................................................................................................85
CHAPTER 6: Remote Site Upload/Download .......................................................................................................86
6.1: Downloading Program: General..................................................................................................................86
6.1.1: Security Features...............................................................................................................................87
6.2: Downloading Initiated at Control Panel......................................................................................................88
6.3: Downloading Initiated at a Service Terminal..............................................................................................89
6.4: Uploading Initiated at a Service Terminal...................................................................................................89
6.5: Simultaneous Data Transfers.......................................................................................................................90
Appendix A: Battery Calculations .......................................................................................................................91
TABLE A-1: Battery Calculation .......................................................................................................91
A.1: Main Power Supply ...................................................................................................................................92
TABLE A-2: Regulated Load in Standby @24 VDC . .............................................................................92
TABLE A-3: Regulated Load in Alarm @24 VDC . ................................................................................93
Appendix B: Main Panel Options Program Sheets ............................................................................................94
Appendix C: Event Codes/Transmission Format Programming Sheets ..........................................................99
Appendix D: Ademco Contact ID Format Event Code Descriptions ...............................................................109
Appendix E: Option Modules Programming Sheets ..........................................................................................114
Appendix F: Upload/Download Program Sheets ................................................................................................116
Appendix G: Wire Requirements ........................................................................................................................117
TABLE 6-1: Wire Requirements .........................................................................................................117
Appendix H: Operation and Function Modes ....................................................................................................118
TABLE 6-2: OPERATION MODES...................................................................................................118
TABLE 6-3: FUNCTION MODES .....................................................................................................118

Notes
8Document #50193 Rev.E 01/30/02 P/N 50193:E

This control panel has been designed to comply with standards set forth by the following regulatory agencies:
• Underwriters Laboratories Standard UL 864
• NFPA 72 National Fire Alarm Code
NFPA Standards
This Fire Alarm Control Panel complies with the following NFPA Standards:
NFPA 72 National Fire Alarm Code for Central Station Signaling Systems Protected Premises Unit
(Automatic, Manual and Waterflow), Local Fire Alarm Systems and Remote Station Fire Alarm
Systems.
Underwriters Laboratories Documents:
UL 38 Manually Actuated Signaling Boxes
UL 217 Smoke Detectors, Single and Multiple Station
UL 228 Door Closers–Holders for Fire Protective Signaling Systems
UL 268 Smoke Detectors for Fire Protective Signaling Systems
UL 268A Smoke Detectors for Duct Applications
UL 346 Waterflow Indicators for Fire Protective Signaling Systems
UL 464 Audible Signaling Appliances
UL 521 Heat Detectors for Fire Protective Signaling Systems
UL 864 Standard for Control Units for Fire Protective Signaling Systems
UL 1481 Power Supplies for Fire Protective Signaling Systems
UL 1638 Visual Signaling Appliances
UL 1971 Signaling Devices for Hearing Impaired
Other:
NEC Article 250 Grounding
NEC Article 300 Wiring Methods
NEC Article 760 Fire Protective Signaling Systems
Applicable Local and State Building Codes
Requirements of the Local Authority Having Jurisdiction (LAHJ)
Fire•Lite Documents
Fire•Lite Device Compatibility Document Document #15384
Annunciator Modules Document #15390
AFM-16ATF Annunciator Document #15970
AFM-16AF Annunciator Document #15210
FCPS-24F Field Charger/Power Supply Document #50079
LDM Series Lamp Driver Modules Document #50055
LED-10 Annunciator Document #50400
ACM-8RF Annunciator Control Relay Module Document #50362
PK-5210UD Manual Document #50363
Before proceeding, the installer should be familiar with the following documents.
Document #50193 Rev. E 01/30/02 P/N 50193:E 9

10 Document #50193 Rev.E 01/30/02 P/N 50193:E

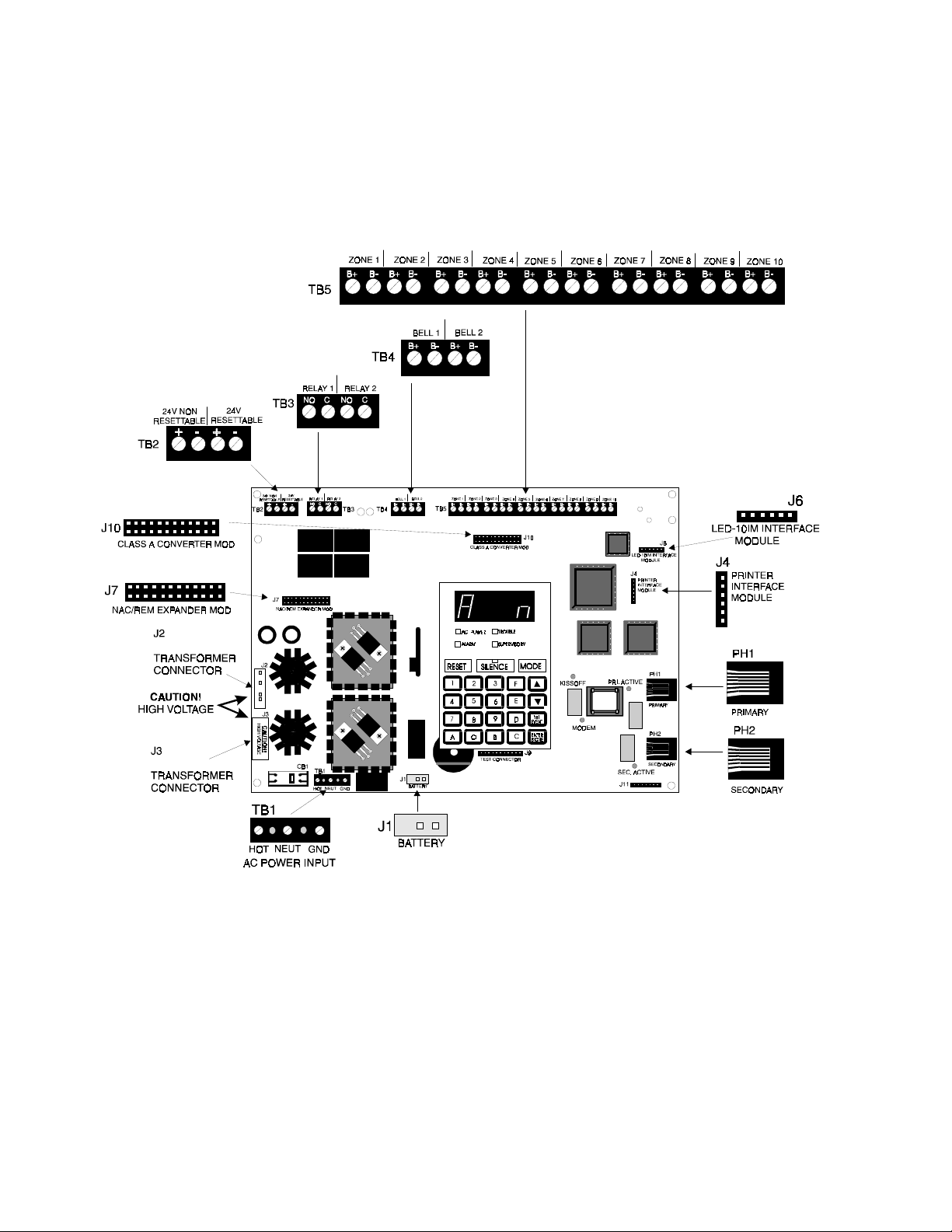

MS-5210UD Terminals and Connectors

Document #50193 Rev. E 01/30/02 P/N 50193:E 11
Product Description
CHAPTER 1 Product Description
The MS-5210UD is a combination control panel and digital communicator all on one circuit board. It is a 10-zone
panel, which uses conventional input devices. The panel accepts waterflow devices, two-wire smoke detectors,
four-wire smoke detectors, pull stations and other normally-open contact devices. Outputs include two Notification
Appliance Circuits (NACs) expandable to four, two programmable Form-A relays (option module with two Form-C
relays can be added), EIA-485 port to interface with remote annunciators and optional remote relay modules plus a
printer port.
The integral communicator transmits system status (alarms, troubles, AC loss, others) to UL-listed central stations via
the public switched telephone network. The control panel has a built-in programmer. It also supervises all wiring,
AC voltage, telephone line input voltage/current and battery level.
The control panel may be programmed or interrogated off site via the public switched telephone network. Any IBM
compatible personal computer with Windows™ 3.1 or greater, with a 1200 baud Hayes™ compatible modem and
Fire•Lite Upload/Download software P/N PK-5210UD, may serve as a Service Terminal. This allows downloading
of any portion or all of the program and upload of any portion or all of the program, history file, walktest data, current
status and system voltages. The MS-5210UDE offers the same features as the MS-5210UD but allows connection to
220/240 VAC input.
Note that unless otherwise specified, the term MS-5210UD shall be used in this manual to refer to both the
MS-5210UD and the MS-5210UDE Fire Control Communicators.
1.1 Product Features
• Selectable as Local Fire Panel or Fire Panel/Communicator
• Programmable Zone ID: 2-Wire Smoke; Pull Station; Normally-Open Contact; Supervisory; Supervisory
Auto-resettable; Waterflow (silenceable); Waterflow (nonsilenceable); Remote Switch for Reset, Silence,
Acknowledge and Drill; Standard and Auto-reset Critical and Noncritical Process Monitoring
• 10 Style B (Class B) Initiating Device Circuits (IDCs)
• Two NFPA Style Y (Class B) Notification Appliance Circuits (NACs)
• CAC-10F Option Module to convert all 10 IDCs to Style D (Class A) and convert two Style Y (Class B) NACs
to Style Z (Class A)
• 3.6 amps of system power expandable to 6.6 amps
• Remote Relay Option Module (ACM-8RF) providing one 5.0 amp relay per zone
• Built-in Programmer
• Built-in Voltmeter
• Telephone Line Active LED Indicators
• Communication Confirmation (Kissoff) LED
• Disable report by event
• Programmable Event Codes
• 24 Volt Operation
• Real Time Clock and Calendar
• Trouble Reminder
• Alarm Verification

Product Features
12 Document #50193 Rev.E 01/30/02 P/N 50193:E
• Interfaces with Fire•Lite annunciators (requires LED-10IM Option Module)
LED-10 Series Remote Annunciator provides one red alarm and one yellow trouble LED per zone
LDM-32F Graphic Annunciator
ACS Series LED Annunciators
• Small Size 16.900" (42.9 cm) X 14.500" (36.8 cm) X 4.625" (11.8 cm)
• History File with 256 Event Storage
• Silence Inhibit per Notification Appliance Circuit
• Auto-Silence per Notification Appliance Circuit
• Touchtone/Rotary Dialing per telephone line
• Programmable Make/Break Ratio
• Fuseless Design
• Printer Interface Module (PRT-24)
• NAC-REM Option Module adds two Form-C relays and two Style Z (Class A) NACs
• Print Real-time System Status
• Print History, Walktest Files, Program Contents and Troubleshoot mode voltages
• PK-5210UD Upload/Download Software Kit
• Number of dial attempts (5 minimum, 10 maximum)
• Programmable Zone Delay (waterflow only)
• Low AC Voltage Sense
• One-man silent or audible Walktest
• Optional Dress Panel Coverplate (DP-5210UD)
FIGURE 1-1: Optional DP-5210UD

Document #50193 Rev. E 01/30/02 P/N 50193:E 13
Product Features
1Software for the Fire Control Communicator is located in a PROM inserted in the IC socket labeled U14. The
MS-5210UD and MS-5210UDE each contain unique software. For specific panel software information, refer to the
MS-5210UD/MS-5210UDE Field Software Change Procedure Document #50479.
Transformer
Transformer
Four Character
7-Segment LED
Display
Keypad
NAC-REM
Expander
Module
24 VDC
Power
Programmable
Relays
Notification
Appliance
Circuits
Class A
Converter
Module
10 Input
Zones LED-10IM
Interface
Module
Connector
Printer
Interface
Module
Connector
PROM (U14)1
Primary &
Secondary
Phone Lines
Holds up to 12 AH Batteries,
Up to 60 Hrs. of Standby
FIGURE 1-2:MS-5210UD Panel

Specifications
14 Document #50193 Rev.E 01/30/02 P/N 50193:E
1.2 Specifications
AC Power - TB1
MS-5210UD: 120 VAC, 60 Hz, 2.3 amps
MS-5210UDE: 220/240 VAC, 50 Hz, 1.2 amps
Wire size: minimum #14 AWG (2.0 mm2) with 600V insulation
Battery (lead acid only) - J1
Maximum Charging Circuit: Normal Flat Charge—27.6V @ 0.8 amp
Maximum Charger Capacity: 18 Amp Hour battery (MS-5210UD cabinet holds maximum 12 Amp Hour battery.
Larger batteries require Fire•Lite BB-17F or other UL listed battery cabinet)
Initiating Device Circuits TB5 and CAC-10F Option Module
Detector Zones 1 through 10
Power-limited Circuitry
Operation: All zones NFPA Style B - Convert to Style D using CAC-10F Class A Converter Module
Normal Operating Voltage: 24 VDC (ripple = 100 mV maximum)
Alarm Current: 15 mA
Short Circuit Current: 42 mA maximum
Maximum Loop Resistance: 100 ohms
End-of-Line Resistor: 4.7K, ½ watt (Part #27072 UL listed)
Detector Loop Current is sufficient to ensure operation of one alarmed detector per zone
Standby Current: 7.26 mA (includes ELR and 2 mA maximum detector current)
Smoke Detector Identifier A
Refer to Fire•Lite Device Compatibility Chart for listed compatible devices.
Notification Appliance Circuits - TB4 & NAC-REM Option Module (TB2 & TB3)
Nonregulated special purpose power, Styles Y & Z supported
Power-limited circuitry
Operating Voltage Nominal 24 volts
Current for all external devices: 3.0 amps expandable to 6.0 amps
Current Limit: TB4 via electronic protection, NAC-REM option module (TB2 & TB3) via PTC
Maximum signaling current/circuit: TB4 = 3.0 amps. NAC-REM = 1.5 amps.
End-of-Line resistor: 4.7K, ½ watt (Part #71252 UL listed) for Notification Appliance Circuits
Refer to Fire•Lite Device Compatibility Chart for listed compatible devices
Form-A Relays - TB3
TB3 contact rating: 2.0 amps @ 30 VDC (resistive), 5.0 amps @ 125 VAC (resistive)
NAC-REM Form-C contact rating: 2.0 amps @ 30 VDC, 0.6 amps @ 125 VAC (resistive)
Four-wire Smoke Detector Power - TB2 Terminals 3(+) &4(-)
Maximum ripple voltage: 10 mVRMS Operating Voltage nominal 24 volts
Up to 500 mA is available for powering 4-wire smoke detectors
Power-limited Circuitry. Recommended maximum Standby current is 50 mA1
Refer to Fire•Lite Device Compatibility Chart for compatible listed devices
1. For power supply and battery calculations, refer to Appendix A.

Document #50193 Rev. E 01/30/02 P/N 50193:E 15
Controls and Indicators
Nonresettable Regulated 24 VDC Power - TB2 Terminals 1(+) & 2(-)
Maximum ripple voltage: 10 mVRMS Operating Voltage nominal 24 volts
Total DC current available from this output is up to 500 mA
Power-limited Circuitry. Recommended maximum Standby current is 150 mA1
Refer to Fire•Lite Device Compatibility Chart for compatible listed devices
1.3 Controls and Indicators
Front Panel Switches
RESET
SILENCE
MODE
Up Arrow (ACK)
Down Arrow (ACK)
1st EVENT
ENTER/STORE
Digits 0 through 9
Letters A through F
Displays
Alarm - red LED
Trouble - yellow LED
Supervisory - yellow LED
AC Power - green LED
Four, Seven Segment Displays - red
Primary Phone Line Active - red LED
Secondary Phone Line Active - red LED
'Kissoff' Signal from Central Station - green LED
Silence - yellow LED
Modem - green LED
Local Sounder
A piezo sounder provides separate and distinct sounds for alarm, trouble, supervisory and critical process monitor-
ing conditions
1.4 Circuits
Input Circuits
Ten input circuits provide Style B (Class B) configuration standard and may be converted to Style D (Class A) by
installing the CAC-10F module. Input circuits may be used as standard fire control panel zones, remote input
switches (Acknowledge, Silence, Drill, Reset) or as standard or auto-resettable critical and noncritical process
monitoring. All ten Initiating Device Circuits accept Normally-Open contact devices and two-wire smoke
detectors.
1. Total current for nonresettable power, four-wire smoke power, and four Notification Appliance Circuits must not exceed 6.0
amps. Total system current in excess of 3.6 amps requires the XRM-24 Transformer (XRM-24E for 220/240 VAC applica-
tions) and 12 Amp Hour or 18 Amp Hour batteries.
FIGURE 1-3:Display and Keypad

Digital Communicator
16 Document #50193 Rev.E 01/30/02 P/N 50193:E
Output Circuits
• 24 Volt Resettable Power Output 500 mA
• 24 Volt Nonresettable Power Output 500 mA
• Primary Telephone Line
• Secondary Telephone Line
• 24 Volt Battery Charger (up to 18 AH batteries)
•PrinterPort
• EIA-485 Port (interfaces to LED-10 Annunciator, AFM Series and LDM Graphic Series Annunciators and
ACM-8RF Remote Relay Module)
Notification Appliance Circuits
Two Notification Appliance Circuits Style Y (Class B) configurable for Style Z (Class A) using the CAC-10F
option module.
Relays
Two dry Form-A relay contacts programmable for system alarm, system trouble, system supervisory (standard
and autoresettable), standard and autoresettable process monitoring or communications failure are provided.
Contacts are rated 2.0 amps @ 30 VDC (resistive). Two additional Form-C relay contacts programmable for
alarm, trouble, standard and autoresettable supervisory, standard and autoresettable process monitoring or com-
munications fail are available using the NAC-REM (NAC/Relay) option module. Contacts are rated 2.0 amps @
30 VDC and 0.6 amps at 125 VAC (resistive).
Printer Port
EIA-232 compatible, fully supervised and programmable for 2400, 4800 and 9600 Baud. Only one printer may
be connected to the port. Consult the factory for recommended printers.
EIA-485 Port
EIA-485 compatible port on the LED-10IM option module supports up to 32 LED-10 Remote Annunciators or 32
sets of ACM-8RF Relay Modules or 32 AFM Series Annunciators or 32 LDM Series Annunciators or any combi-
nation of the four devices totalling 32.
Tele phone Lines
Fully supervised at all times, voltage is sensed to 4 volts and current is sensed to 5 mA.
Battery Charger
Battery Charger will charge up to 18 AH batteries. The MS-5210UD cabinet holds a maximum of 12 AH batter-
ies. The Fire•Lite BB-17F is required to hold 18 AH batteries. The charger is rated for 850 mA maximum cur-
rent.
1.5 Digital Communicator
Two modular phone jacks allow easy connection to telephone lines. Modular jacks are labeled PH1 and PH2 for the
Primary and Secondary phone lines. Telephone line 'Active' red LEDs are provided as well as a green 'Kissoff' LED.
The integral digital communicator provides the following functions:
• Line Seizure - takes control of the phone lines disconnecting any premises phones
• Off/On Hook - perform on and off-hook status to the phone network
• Listen for dial tone - 440 hertz tone typical in most networks
• Dialing the Central Station(s) number - default is Touch-Tone©, programmable to rotary
• For tone burst or touchtone type formats: discern proper 'Ack' and 'Kissoff' tone(s) - the frequency and time
duration of the tone(s) varies with the transmission format. The control panel will adjust accordingly

Document #50193 Rev. E 01/30/02 P/N 50193:E 17
Components
• Communicate in the following formats:
✓12 Tone Burst Type: 20 pps
(3+1, 4+1, 4+2, 3+1 Exp., 4+1 Exp., 4+2 Exp.)
✓3 Touchtone Types:
4 + 1 Ademco Express
4 + 2 Ademco Express
Ademco Contact ID (Refer to Table 4-3 on page 78).
1.6 Components
Main Circuit Board
The main circuit board contains the system's CPU, power
supply, other primary components and wiring interface con-
nectors. Optional modules plug in and are mounted to the
main circuit board. The main circuit board is delivered pre-
mounted in the cabinet.
Cabinet
The cabinet is red with an attractive navy blue front overlay.
The backbox measures 16.900" (42.9 cm) X 14.500"
(36.8 cm) X 4.625"(11.8 cm) and provides space for two bat-
teries (up to 12 Amp Hours). Also available is an optional
dress panel, DP-5210UD, which mounts inside the cabinet.
Transformer Assembly
One 100VA transformer is provided standard
with the panel. An optional 100VA trans-
former, XRM-24 (XRM-24E for the
MS-5210UDE), is available to provide max-
imum accessory power.
Batteries
The cabinet provides space for 12 Amp Hour
batteries (larger batteries up to 18 Amp Hour
batteries, use the listed Fire•Lite BB-17F
battery box). Batteries must be ordered sep-
arately
Standard
Optional
XRM-24(E)
FIGURE 1-4:Transformer Assemblies

Optional Modules
18 Document #50193 Rev.E 01/30/02 P/N 50193:E
1.7 Optional Modules
LED-10IM
The LED-10IM Interface Module provides an EIA-485 port to support the LED-10 Series Remote Annunciator,
LDM Series Annunciator, ACS Series Annunciator and ACM-8RF Relay Modules. EIA-485 wiring is supervised
for open circuits by this module. The LED-10IM mounts to connector J6 in the upper right corner of the main
board. Refer to Figure 2-14, “LED-10IM Installation,” on page 35.
ACM-8RF Relay Module
The ACM-8RF option module provides eight Form-C relays rated a 5.0 amps each. The Relay Module connects
to the EIA-485 port off of the LED-10IM option module. Relays are assigned to each of the 10 Initiating Device
Circuits. Refer to Figure 2-17, “Wiring LED-10IM to ACM-8RF,” on page 36, for additional information.
PRT-24 Printer Interface Module
The Printer Interface Module may be used to connect a printer to the control panel for the purpose of printing a
history report, walktest file, troubleshoot report, program entries or current system status. Printers require sepa-
rate external primary power. Connect the PRT-24 module (with cable) to the serial EIA-232 port on the printer.
The module mounts to the J4 connector on the main circuit board.
Note that an EDP listed printer must be used if printer will be permanently attached (Refer to Figure 2-13,
“Remote Printer Connections,” on page 34). The Baud rate is programmable (“Program Options” on page 40).
CAC-10F Module
The CAC-10F Module can be used to convert the 10 Style B (Class B) Initiating Device Circuits to 10 Style D
(Class A) IDCs and the two Style Y (Class B) Notification Appliance Circuits to two Style Z (Class A) NACs.
The CAC-10F module connects to J10 on the main circuit board. (Refer to Figure 2-10 on page 32).
NAC-REM Module
The NAC-REM (NAC/Relay) Module can be used to add two Style Z (Class A) NACs and two Form-C relays.
The module connects to J7 on the main circuit board. (Refer to Figure 2-12 on page 33).
1.8 Optional Accessories
Dress Panel
A red dead-front dress panel (DP-5210UD) is available as an option. The dress panel restricts access to the sys-
tem wiring while allowing access to the membrane switch panel.
Battery Box
The Fire•Lite BB-17F battery box may be used to house
two batteries greater than 12 Amp Hour to a maximum of
18 Amp Hour. The battery box mounts directly below the
cabinet, centered to the main circuit board (Refer to Figure
2-2, “FACP Backbox and Battery Box,” on page 25). The
BB-17F is red and is provided with knockouts.
PK-5210UD Program Kit
The PK-5210UD Program Kit includes three 3½" diskettes plus Instruction Manual P/N 50363. When the soft-
ware is loaded into an IBM compatible computer, it creates an off-line Service Terminal that allows any
MS-5210UD panel to be uploaded or downloaded over standard telephone lines. Requires panel firmware P/N:
MS52102.0 or greater.
FIGURE 1-5:BB-17F Battery Box

Document #50193 Rev. E 01/30/02 P/N 50193:E 19
Optional Accessories
LED-10 Series Annunciator (LED Zone Type Annunciator)
The LED-10 Series is a 10 zone LED annunciator which mounts on a 3-gang electrical box and provides LED
indication of the following:
• Alarm Zones 1 through 10
• Trouble Zones 1 through 10
• AC Power (green)
• System Alarm (red)
• System Trouble (yellow)
• System Supervisory (yellow)
• Alarm Silence (yellow)
A local trouble sounder and switches for remote Acknowl-
edge, Silence, Drill and Reset are also provided. Wiring is
inherently supervised by the FACP. Slide-in paper labels
permit an easy change of zone information. DIP switches
allow the enabling and disabling of the local piezo sounder
(with approval of local AHJ), enabling and disabling of the
mechanical keyswitch which may be used to prevent unau-
thorized use of the function switches and selection of
annunciator receive/transmit mode (Refer to Figure 2-15 on
page 35).
Note that the LED-10 Series Remote Annunciator requires the use of the LED-10IM Interface Module.
ACS Series Annunciators (LED Zone Type)
The ACS Series Annunciators remotely display system status. The annunciators display zone alarm and trouble
status. In addition, they provide remote Acknowledge, Silence, Reset and Drill functions. The ACS Series
Annunciators require the use of the LED-10IM Interface Module. For more detailed information, refer to the
appropriate annunciator manual.
✓ACM-16ATF - The Annunciator Control Module-16ATF
contains 16 red alarm and 16 yellow trouble LEDs, a system trou-
ble LED, an ON LINE/POWER LED and a local piezo sounder
with switches for Acknowledge, Silence, Reset and Drill. The
ACM-16ATF has rotary address switches and will accept up to 3
AEM-16ATF Expanders. The ACM-16ATF can be mounted in a
Fire•Lite ABS-1F or ABF-1F backbox. Refer to the
ACM-16ATF Manual for detailed information. Note that only
one ACM-16ATF is required to annunciate 10 zones of alarm and
trouble, provided '8 Point Shift' function is selected. Refer to
Annunciator Manual P/N 51480 for additional information.
✓AEM-16ATF - The Annunciator Expander Module-16ATF con-
nects to the ACM-16ATF and adds 16 sets of red alarm LEDs and
yellow trouble LEDs. Up to three AEM-16ATFs may be added to
an ACM-16ATF but only one is required. Note that one
AEM-16ATF is required with an ACM-16ATF to annunciate 10
zones of alarm and trouble as well as general system status pro-
vided '8 Point Shift' function is not selected. Refer to Annunciator
Manual P/N 51480 for additional information.
FIGURE 1-6:LED-10 Series Annunciator
FIGURE 1-7:ACM-16ATF

Optional Accessories
20 Document #50193 Rev.E 01/30/02 P/N 50193:E
✓AFM-16ATF - The Annunciator Fixed Module-16ATF
contains 16 red alarm and 16 yellow trouble LEDs, a
system trouble LED, an ON LINE/POWER LED and a
local piezo sounder with switches for Acknowledge,
Silence, Reset and Drill. The AFM-16ATF is fixed at
address '1' and communication is via the EIA-485 data
line. The AFM-16ATF can be mounted in a Fire•Lite
ABS-1F or ABF-1F backbox. Refer to the AFM-16AT
Manual for detailed information.
✓AFM-16AF - The Annunciator Fixed Mod-
ule-16AF has 16 red alarm LEDs. Multiple
annunciators may be used by setting all annunci-
ators to Receive Only, except the last AFM-16AF
in line. Each annunciator's address is internally
fixed at '1' and communication is via the EIA-485
data line. The Local Silence/Acknowledge
switch functions as local lamp test and silence for
annunciator piezo. LEDs include On-Line and
System Trouble indicators. The AFM-16AF
Annunciator can be mounted in a standard 4-
gang electrical box. Refer to the AFM-16AF
Manual for detailed information.
LDM Series Lamp Driver Modules (Graphic Annunciator)
The LDM Series Lamp Driver Modules, which consist of the LDM-32F master and LDM-E32F expander mod-
ules, are used to provide an interface to a custom graphic LED annunciator. The master module provides power
and control for a maximum of three expander modules (expander modules are not required when interfacing to the
MS-5210UD). The LDM-32F and LDM-E32F have output connectors which are used to drive lamps or LEDs
and input connectors which are used for remote switch functions. The LDM Series requires the use of the
LED-10IM Interface Module. Refer to the LDM Series Lamp Driver Modules Manual for a complete description.
Refer to Figure 2-18, “Wiring LED-10IM to LDM-32F,” on page 37 for wiring details.
✓LDM-32F - The Lamp Driver Module has 32
alarm lamp/LED driver outputs which sink cur-
rent to system common (-) on activation. A sin-
gle positive (+) voltage is required to supply total
operating power for all lamps or LEDs when all
drivers are activated. The LDM-32F provides a
separate driver for system trouble and inputs for
a local lamp test switch. A maximum of 16
external control switches may be wired to the
LDM-32F. DIP switch SW3 is used to enable or
disable the onboard piezo sounder, enable remote
switch functions, select a flashing LED function
for new alarms and troubles and other functions.
Switch SW4 is used to configure the module to
annunciate 32 alarms or 16 alarms and 16 trou-
bles. A green ON-LINE LED flashes to indicate
ongoing communications with the host FACP.
One LDM-32F supports up to three LDM-E32F
modules. The LDM-32F is supplied with four
standoffs and screws for mounting to a CHS-4L
chassis or custom backbox.
FIGURE 1-8:AFM-16ATF
FIGURE 1-9:AFM-16AF
FIGURE 1-10:LDM-32F Module
