Fisher & Paykel OR90SDBGFX3 User manual

Care And Cleaning
Before you start cleaning your cooker, please:
• Read these cleaning instructions and the ‘Safety and warnings’ section at the start of this user
guide.
• Turn the cooker off at the wall.
• Make sure the cooker is a safe temperature to touch.
• Do not use a steam cleaner.
• Do not keep flammable substances in the oven or drawer.
General Advice
• Wipe down the cooktop and wipe out the oven after every use.
• Wipe up spills. Avoid leaving alkaline or acidic substances (such as lemon juice or vinegar) on the surfaces.
• Do not use cleaning products with a chlorine or acidic base.
Cleaning the utside of the Cooker
• Do not use abrasive cleaners, cloths or pads on the outside surfaces.
• Immediately wipe off any caustic cleaners if they are spilled onto the oven door handle.
Wipe the outside surfaces often, using warm water and a mild household detergent. The stainless steel may also be
cleaned with a suitable cleaner and polish.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
1

If you choose to use a commercial stainless steel cleaner, please read the label to make
sure it does not contain chlorine compounds as these are corrosive and may damage the
appearance of your cooker.
Cleaning the Gas Cooktop
Contact your local authorised gas Service Agent to perform a thorough check on all gas components on the gas cooker.
Maintenance
Period Description
Daily
• Clean gas cooktop as per following instructions.
Monthly
• Remove all burner parts, and clean using a non-abrasive detergent. Rinse in cold water, dry
thoroughly, and replace.
• Clean the ignitor and probe carefully, using a toothbrush and methylated spirits.
Every 3-4
years • Contact your local authorised gas Service Agent to perform a thorough check on all gas
components on the gas cooker.
Burner Parts and Pan Supports
• You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly
before they become burnt on. Do not wash these parts in a dishwasher.
• After cleaning, check that the burners and their flame spreaders are dry before replacing correctly.
• It is very important to check that the burner flame spreader and the cap have been correctly positioned. Failure
to do so can cause serious problems.
To avoid damage to the electronic ignition, do not try to light a burner without all burner parts in
place.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
2

Replacing the Semi-Rapid Burners
• Carefully replace the burner parts as per the following Figs. 28-29.
• Check that:
◦ the ignitor is always clean to ensure trouble-free sparking.
◦ the probe is always clean to ensure correct operation of the safety valves (some models only)
Both the ignitor and probe must be very carefully cleaned using a toothbrush and methylated spirits
(see Fig. 24).
Fig. 28 Correct line-up of semi-rapid
burner parts
Fig. 29 Replacing the
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
3

semi-rapid burner caps
Replacing the Triple-Ring Wok and Dual Burners
• Carefully replace the burner parts as per the following Figs. 30a-32.
• Fit the flame spreader to the housing as shown by the arrow in the Figs. 30a-30b. Make sure the burner is not
able to rotate (Fig. 31).
• Check that:
◦ the ignitor is always clean to ensure trouble-free sparking.
◦ the probe is always clean to ensure correct operation of the safety valves (some models only).
Both the ignitor and probe must be very carefully cleaned using a toothbrush and
methylated spirits (see Fig. 24).
Fig. 30a Correct positioning of the flame
spreader-triple ring wok burner
Fig. 30b Correct positioning of
flame spreader- dual burner
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
4

Fig. 31 Correct Positioning of cap and
ring - tripe-ring and dual burner
Fig. 32 Incorrect and correct positioning of
cap and ring - triple-ring wok and dual burner
Cleaning the Inside of Your ven
• Do not use oven cleaner on catalytic panels. Remove the catalytic panels if additional oven cavity cleaning is
required. See ‘Fitting and Removing Catalytic Panels’
• Do not use abrasive cleaners, cloths or pads to clean the enamel.
• To make cleaning easier, you can remove the side racks, the oven door, and the fat filter.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
5

Fig. 33 Removing the side racks
Drop-Down Grill Element
• To lower the grill element: use a flat-head screwdriver or a small coin to loosen the element fixing screws.
• When you have finished cleaning the oven ceiling, raise the grill element and screw the element fixing screws
back onto the studs. Make sure that the fixing screws are tightened and the element is held securely in place.
The grill element itself is self-cleaning.
Fig. 34 Drop-down grill element
Cleaning the Enamel Cavity
Clean the enamel on the inside of the oven when it has cooled down, using household detergents. You may use ‘off the
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
6

shelf’ oven cleaners, if you carefully follow the manufacturers’ instructions.
Do not use oven cleaner on catalytic panels.
Cleaning the Fat Filter
• Clean the fat filter after every use. If the filter is not
cleaned, it will block and shorten the life of the fan
element.
• If the filter is lightly soiled, place it in a dishwasher
on normal wash.
• If the filter is very dirty, place in a saucepan with
either two tablespoons of clothes washing powder,
or one tablespoon of dishwashing powder. Bring to
the boil and leave to soak for at least 30 minutes.
• Rinse the filter in clean water and dry. Fig. 35 Fat filter
Cleaning the Grill Tray and
Shelves
• Clean these in hot, soapy water.
After cleaning, slide in the shelves, making sure that:
• they are between the two wires of a shelf position;
the stop notches point down;
• the guard rail is at the back.
The grill tray should be
positioned between the two
wires of a shelf position and
orientated as shown.
Fig. 36 Oven shelves and grill tray
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
7

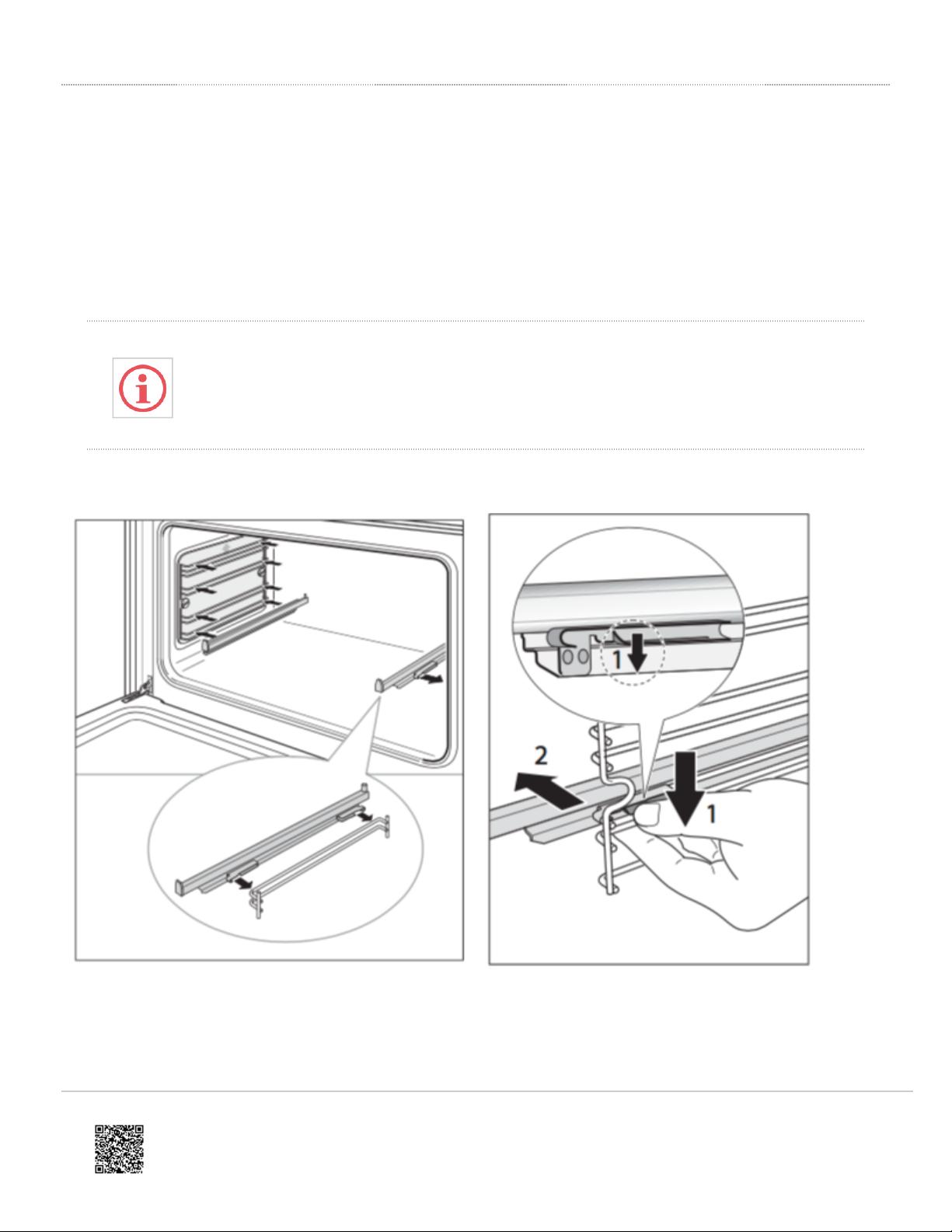

Fitting and Removing the Sliding Shelf Supports
When fitting the sliding shelf supports, make sure that you fit:
• the catalytic panels first. See ‘Fitting the Catalytic Panels’ .
• the side racks.
• the slides to the top wire of a shelf position.
• both sides of each pair of slides.
• both slides on the same level.
Remove the side racks first to make removing the sliding shelf supports easier.
Fig. 37 Fitting the sliding shelf support Fig. 38 Removing the sliding shelf supports
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
8

Storage Drawer
• The drawer opens like a normal drawer. The drawer slides stop the drawer from sliding all the way out.
To Remove the Drawer
1. pen the drawer fully.
2. Press the lever on the left guide rail down and the right guide rail up.
3. Holding the levers, disengage and remove the drawer. Do not use excessive force or you may damage the
drawer slides.
Fig. 39 Removing the drawer
Replace the Drawer
1. Insert the drawer rails into the guide rails.
2. Gently push the drawer in completely, the catches will automatically hook.
Fig. 40 Replacing the drawer
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
9

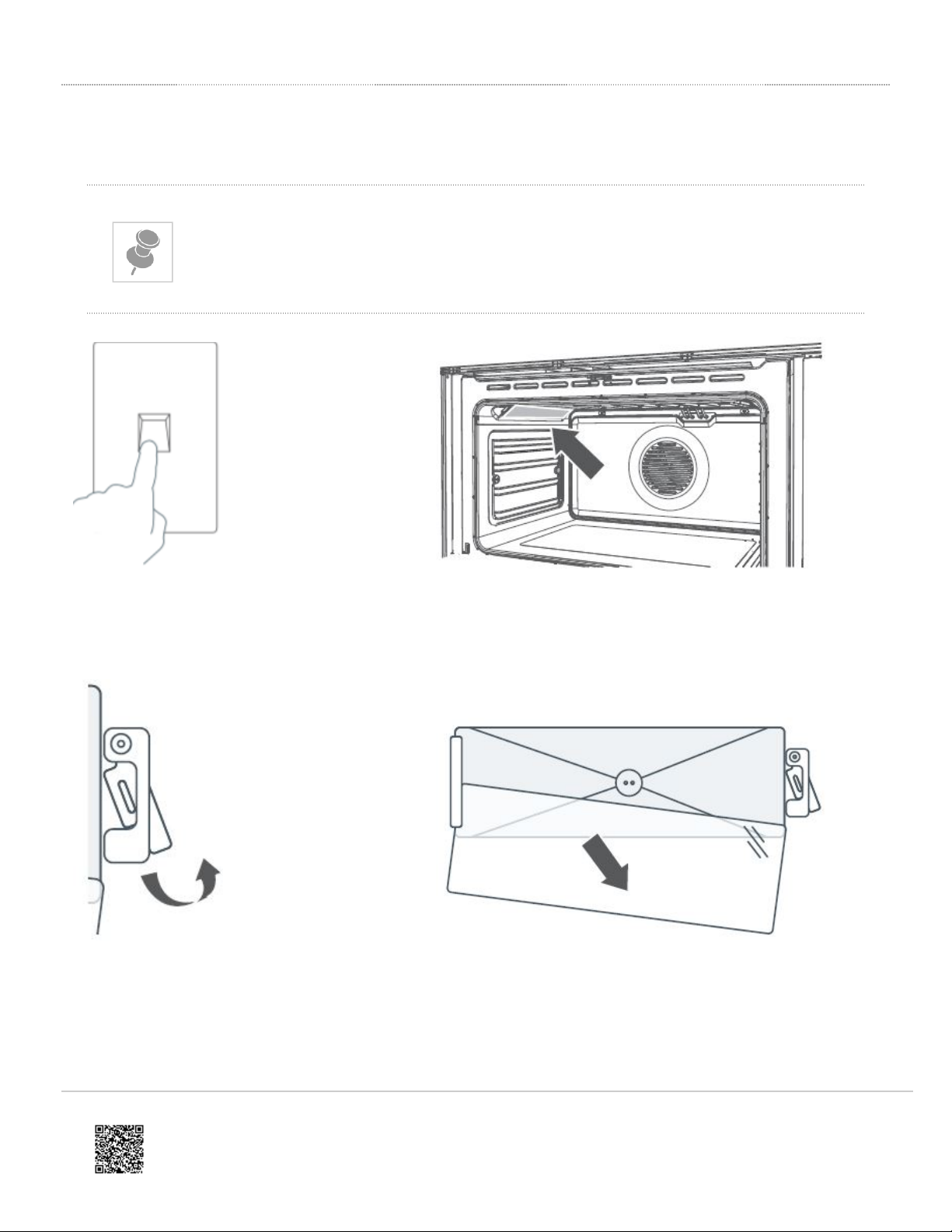

Replacing the ven Light Bulbs
The oven light bulbs (12V/20 W halogen) have a very long life, but if you should need to replace one, use only a
replacement bulb purchased from your nearest Fisher & Paykel dealer and follow these steps.
ven bulb replacement is not covered by your warranty.
1. Allow the oven to cool down, then turn
it off at the mains power supply (wall switch). 2. Remove any oven shelves
that may get in the way.
3. Using a flat-head screwdriver, twist and
lift the retainer clip upwards to release the glass
cover.
Hold the glass cover to prevent it falling.
4. Carefully lift the glass cover out of the retaining
bracket in the back and pull out the faulty bulb.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
10

5. Hold the replacement bulb in a soft cloth or
tissue (touching the bulb will reduce its life span)
and insert it into the socket.
6a. Reposition the glass cover and twist the retainer clip back in
place.
6b. Turn the oven back on at the mains power supply (wall
switch).
Removing and Replacing the Door Glass Panes for Cleaning
Make sure you follow the precautions and instructions below very carefully. Replacing the glass panes and the door
incorrectly may result in damage to the oven and may void your warranty.
Your oven door has 3 panes of glass. The inner and middle panes may be removed for cleaning.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
11

• Switch the oven off at the wall before removing the door.
• Take care, the oven door is heavy. If you have any doubts, do not attempt to remove the door.
• Make sure the oven and all its parts have cooled down. Do not attempt to handle the parts of a
hot oven.
• Take extreme care when handling the glass panes. Avoid the edges of the glass bumping
against any surface. This may result in the glass shattering.
• Don’t use oven cleaners or any other harsh/abrasive cleaners, cloths, scouring pads, steel wool
or sharp metal scrapers to clean the glass surfaces. These scratch the glass and may damage
its special coating, which in turn could result in the glass cracking or shattering.
• If you notice any sign of damage on any of the glass panes (such as chipping or cracks), do not
use the oven. Call your Authorised Repairer or Customer Care.
• Make sure you replace all the glass panes correctly. Do not use the oven without all glass panes
correctly in place.
• If the glass panes feel difficult to remove or replace, do not force them. Call your Authorised
Repairer or Customer Care for help.
Service visits providing assistance with using or maintaining the oven are not covered by
your warranty.
Removing the Door
1a. Turn the oven off at the wall. Make sure you have
prepared
enough space for resting the door and its glass panes
2. pen the levers on the left and right
hinges to their full extent, as shown.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
12

on a clean, flat surface.
1b. pen the door to its full extent.
3. Gently close the door until the left and
right hinge levers are hooked to the door.
4. Hold the door firmly, as shown.
5a. Lift the door and disengage the hinges.
5b. Rest the door on a soft surface. Ensure
you lay it with the handle side down.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
13

Remove the Inner and Middle Glass Pane
1. Press down on both tabs (1) to release the glass
retainer (2). 2. Lift the inner pane (C) slightly (1), then gently slide out
(2). 3. Slide the middle pane (
yourself (
After Cleaning, Replace the Glass Panes
When replacing the glass panes, make sure that:
• you replace all panes correctly, as shown. Each pane must be in the position described below in order to fit into
the door and to ensure that the oven operates safely and correctly.
• you take extra care not to bump the edges of the glass against any object or surface.
• you do not force any of the panes into place. If you are experiencing difficulties replacing the panes, remove
them and start the process again from the beginning. If this still does not help, call Customer Care.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
14

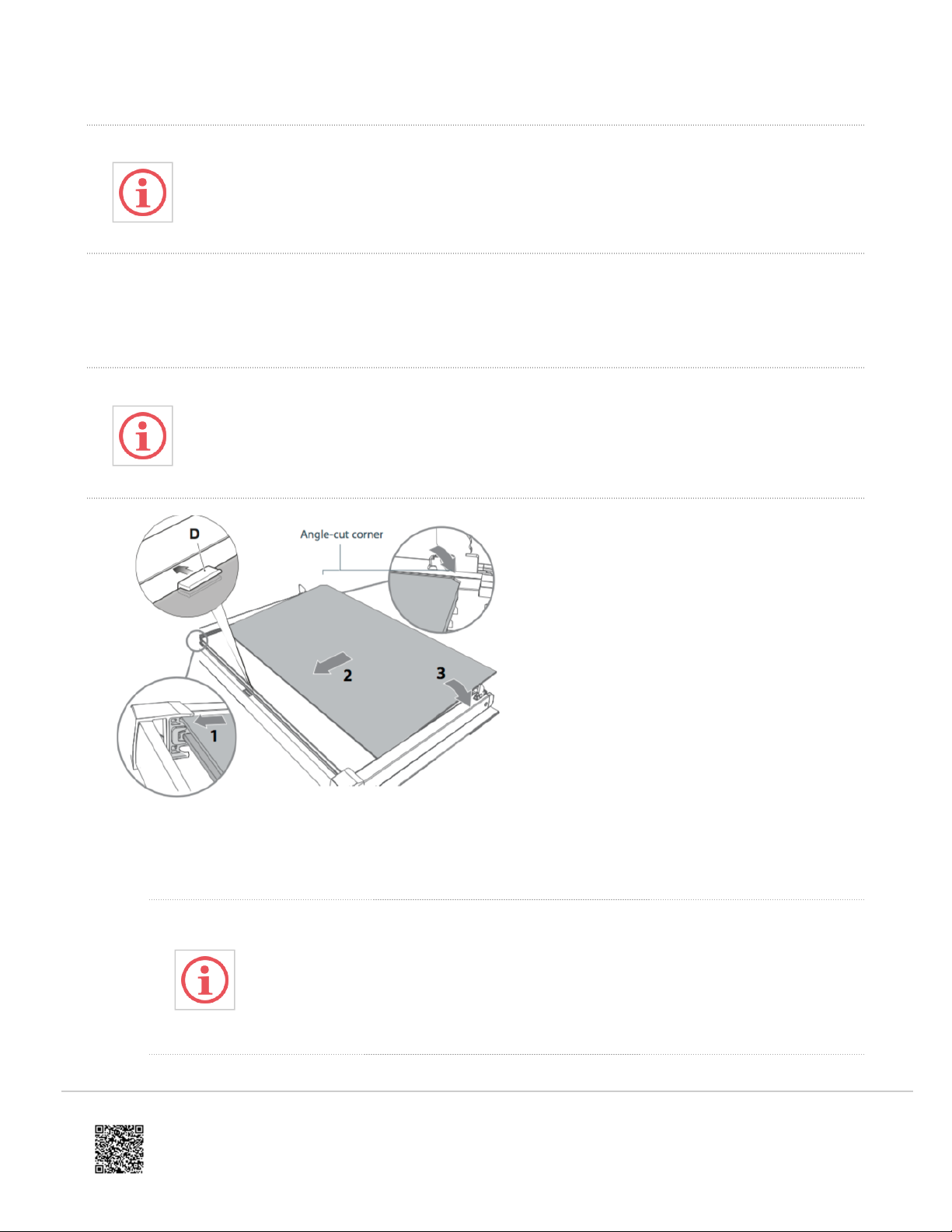

1. Take the middle pane (B) and hold it firmly.
Check you are holding the pane the correct way. You should be able to read the wording on it as it
faces you.
2. Insert the pane into the middle pair of grooves (1), push it slightly towards yourself (2) and gently lower into
place (3).
Use the middle pair of grooves. The pair of grooves closest to the outer pane must remain
empty.
3. Take the inner pane (C), holding it with the angle-cut corner orientated as shown. Insert it in the uppermost pair
of grooves (1), push it slightly towards yourself (2) and gently lower into place (3).
◦ Make sure that the angle-cut corner of the inner pane (C) is at the bottom of the oven
door, on the left-hand side. It has to be in this position for the door to function correctly.
◦ Check that the gasket (D) is in place. It should sit on the inner pane of glass in the
centre as shown.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
15

4. Position the glass retainer, as shown. It should sit on the bottom edge of the outer glass (A). Check that the
clamps of the glass retainer are not deformed or damaged.
5. Gently push the glass retainer back into place. You should be able to hear the tabs on both sides click as they
lock the glass retainer in.
Make sure the glass retainer is correctly and firmly in place and that the glass panes are
secure.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
16

Refit the Door
1. Hold the door
2. Insert the hinge tongues into the slots,
making sure that the notches on both
sides drop into place as shown.
3. pen the door to its full extent 4a. Fully close the levers on the left and right hinges, as
shown.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
17

4b. Close the door, turn the power supply to the oven on
at the wall.
https://producthelp.fisherpaykel.com/eu/Cook/Freestanding_Cookers/Dual_Fuel/ R90SDBGFX3/User_Guide_ R90SDBGFX…
Updated: Thu, 20 Feb 2020 06:37:43 GMT
Powered by
18
