Fisher & Paykel CG365DLPX1 User manual

US CA
User guide
Gas cooktop
CG365D models
Guide de l’utilisateur
Surface de cuisson
Modèles de série
CG365D

Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
NEVER use this appliance as a space heater
to heat or warm the room. Doing so may
result in carbon monoxide poisoning and
overheating of the appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WARNING!
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.

1
Contents
Safety and warnings 2
Introduction 6
Using your cooktop 7
Cooking guidelines and cookware 10
Care and cleaning 11
Troubleshooting 15
Warranty and service 18
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
US
CA

2Safety and warningsSafety and warnings

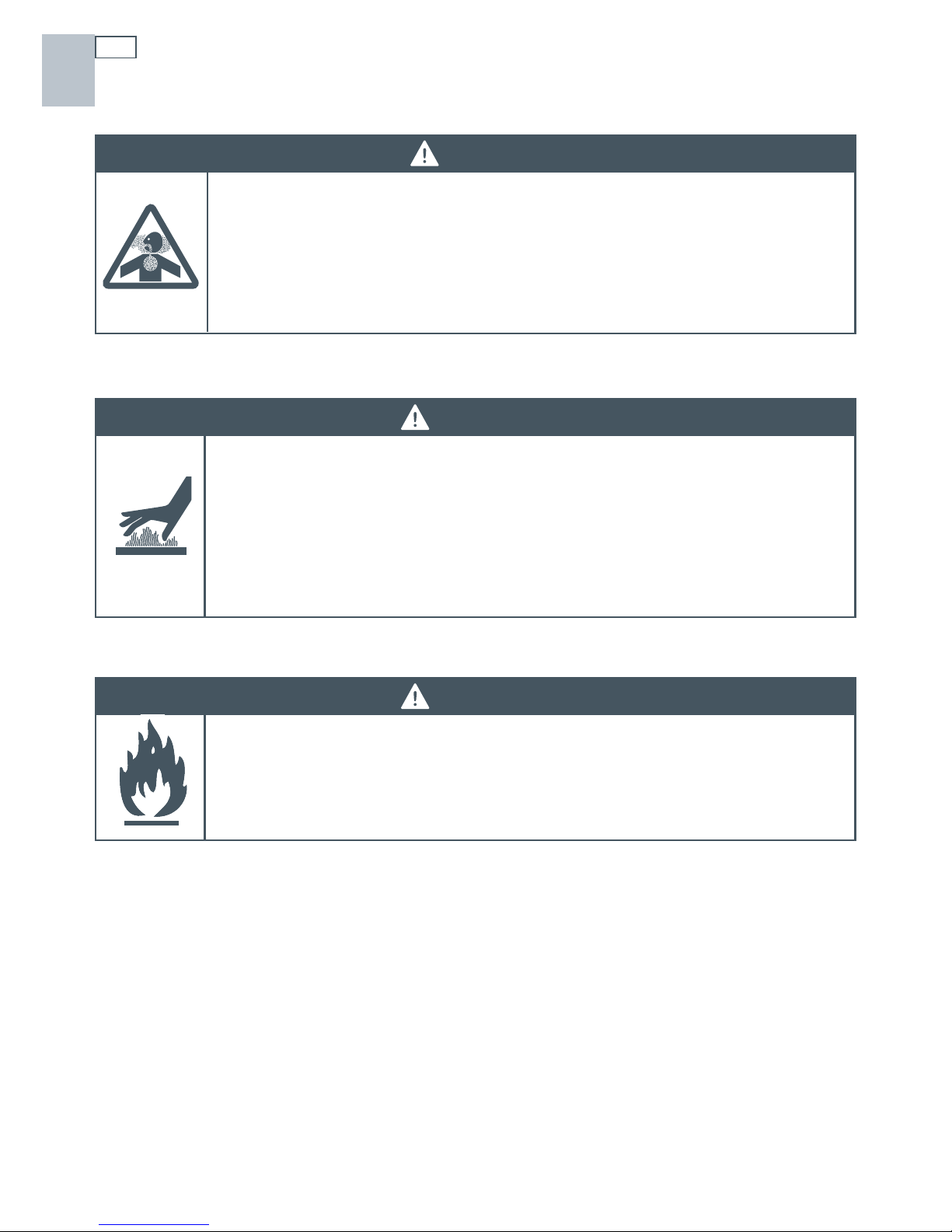

WARNING!
WARNING!
Hot Surface Hazard
This appliance becomes hot during use.
Do not touch the cooktop components, burners, pan supports or the stainless
steel surfaces when hot.
Before cleaning, turn the burners o and make sure the whole cooktop is cool.
Failure to follow this advice may result in serious injury.
Fire Hazard
Never leave the appliance unattended when in use. Boilover causes smoking
and greasy spillovers that may ignite.
Failure to follow this advice may result in serious injury.
Operation
WARNING!
Poisoning Hazard
Never use this appliance as a space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning and overheating of the
appliance.
Failure to follow this advice may result in poisoning or death.
US
CA

3
Safety and warningsSafety and warnings
WARNING!
Electrical Shock Hazard
Switch the power to the cooktop o at the wall before cleaning or
maintenance.
Failure to follow this advice may result in death or electrical shock.
WARNING!
Explosion Hazard
Do not use or store ammable materials such as gasoline near this
appliance.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Failure to follow this advice may result in death or serious injury.
US
CA

4Safety and warnings
IMPORTANT SAFETY INSTRUCTIONS!
Operation
Keep children away from the cooktop when it is in use.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should
have a responsible person to instruct them in its use. The instructor should be satisfied that
they can use the appliance without danger to themselves or their surroundings.
If the electrical supply cable is damaged, it must only be replaced by an authorized person.
If the appliance is connected to the gas supply with a flexible hose, make sure that the hose
cannot come in contact with the bottom of the appliance or any sharp edges.
Ensure that the electrical connection plug is accessible after installation.
This appliance should be connected to a circuit that incorporates an isolating switch
providing full disconnection from the electricity supply.
Do not use an asbestos mat or decorative covers between the flame and the saucepan as
this may cause serious damage to your cooktop.
Do not place aluminium foil or plastic dishes on the cooktop burners.
Do not let large saucepans, frying pans or woks push any other pans aside. This could make
them unstable or deflect heat onto your countertop and damage the surface.
Do not use a steam cleaner for cleaning this cooktop.
Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang other
gas burners that are on. Keep handles out of reach of children.
Do not stand or place heavy objects on this appliance.
After use, ensure that the control dials are in the ‘OFF’ position.
Where this appliance is installed in marine craft or in caravans, it shall not be used as a
space heater.
The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation
holes open or install a mechanical ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example
opening of a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
Packing elements (eg plastic bags, polystyrene foam, nails, packing straps, etc.) should not be
left around within easy reach of children, as these may cause serious injuries.
Do not modify this appliance.
Safety and warnings
US
CA

5
Safety and warnings
IMPORTANT SAFETY INSTRUCTIONS!
Operation
Some products are supplied with protective film on steel and aluminium parts. This film
must be removed before using the appliance.
Ensure the area around the gas cooktop is always clear of combustible materials, gasoline
and other flammable vapors and liquids.
Do not stand on this gas appliance.
For safety reasons, do not store items of interest to children above or at the back of the
appliance - children climbing on the appliance to reach items could be seriously injured.
When deep-frying in fat, be sure the pan is large enough to avoid boiling over from
bubbling of the fat. Do not deep-fry foods with a high moisture content or food covered
with frost.
Do not let cooking grease or other flammable materials accumulate near the appliance.
Do not repair or replace any part of the appliance unless specifically recommended in this
user guide.
This appliance is to be serviced only by an authorized person.
The Governor of California is required to publish a list of substances known to the state of
California to cause cancer or reproductive harm and requires businesses to warn customers of
potential exposures to such substances.
WARNING! Gas appliances contain or produce substances which can cause death or serious
illness and which are known to the State of California to cause cancer, birth defects or other
reproductive harm. To reduce the risk from substances in fuel or from fuel combustion, make
sure this appliance is installed, operated, and maintained according to the manufacturer’s
instructions.
Safety and warnings US
CA

6
About your new cooktop
Thank you for buying a Fisher & Paykel gas cooktop. We recommend you read the whole guide
before using your new cooktop, for both safety and cooking success. For more information, visit
our local website listed on the back cover.
Safety feature: Auto-reignition
Auto-reignition is for your convenience and safety. The auto-reignition feature causes the
ignitors to spark automatically and the burner to relight if a flame blows out or if the flame is
severely distorted by a draft or a cooktop ventilation system.
Before using the cooktop for the first time
Read this user guide, taking special notice of the ‘Safety and Warnings’ section.
Check that the pan supports are all in place and stable, and the flame spreaders, burner caps and
rings are all seated correctly.
Check that the installer has completed the ‘Final checklist’ in the Installation instructions.
Ensure the power supply to the cooktop is turned on.
1 Semi-rapid burner
2 Rapid burner
3 Dual Wok burner
4 Auxiliary burner
5 Control dials

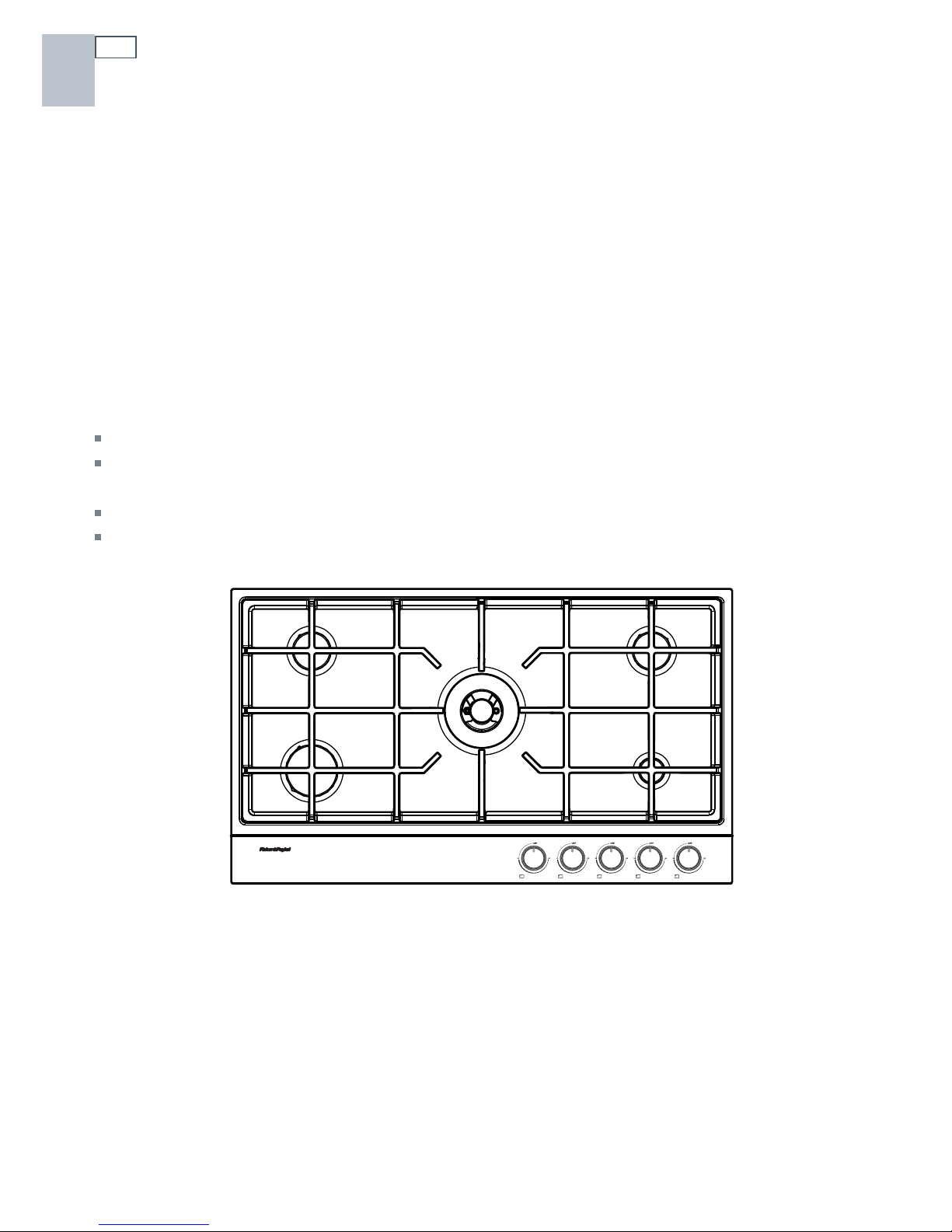

Cooktop layout - CG365D
5
11
2
3
4
Introduction
US
CA

7

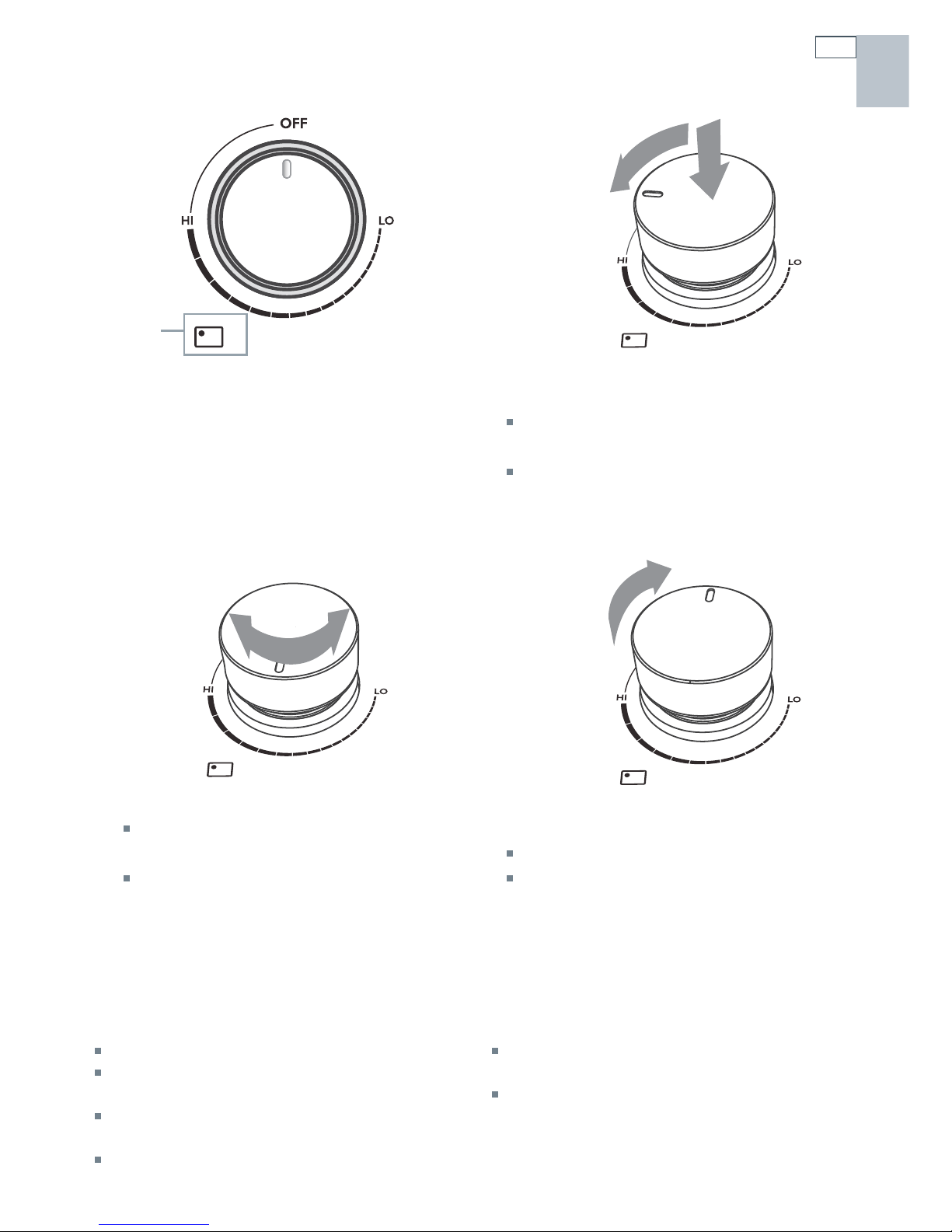

Using your cooktop
a
b
1 Identify the dial of the burner you want to
use.
3 After the burner has lit,
Adjust the flame anywhere between
HI and LO.
Do not adjust or leave the dial
between HI and OFF.
Important!
Turn the burner OFF and see ‘Troubleshooting’ for what to do next if you experience any of the following:
There is a strong gas smell.
The flame has been blown out by a draft or
extinguished by a spill and does not re-ignite.
There is no clicking/sparking or there is clicking/
sparking, but a burner or burners won’t light.
The flames don’t burn all the way around a
burner, or some flames flicker.
The flame is yellow or yellowtipped rather
than blue.
The flames are too large, small, or irregular,
are noisy or lift away from the burner.
2 Press down (a) then turn counterclockwise
to HI (b).
The ignitors will start clicking as they
spark.
If there is no clicking, there is no spark
to light the burner. If the burner fails to
light turn the dial back to OFF and see
‘Troubleshooting’.
4 When you have finished cooking, turn the dial
clockwise back to OFF.
Check that the burner has gone out.
Before leaving the kitchen, check that all
burners have been turned off.
Burner
indicator
US
CA

8Using your cooktop

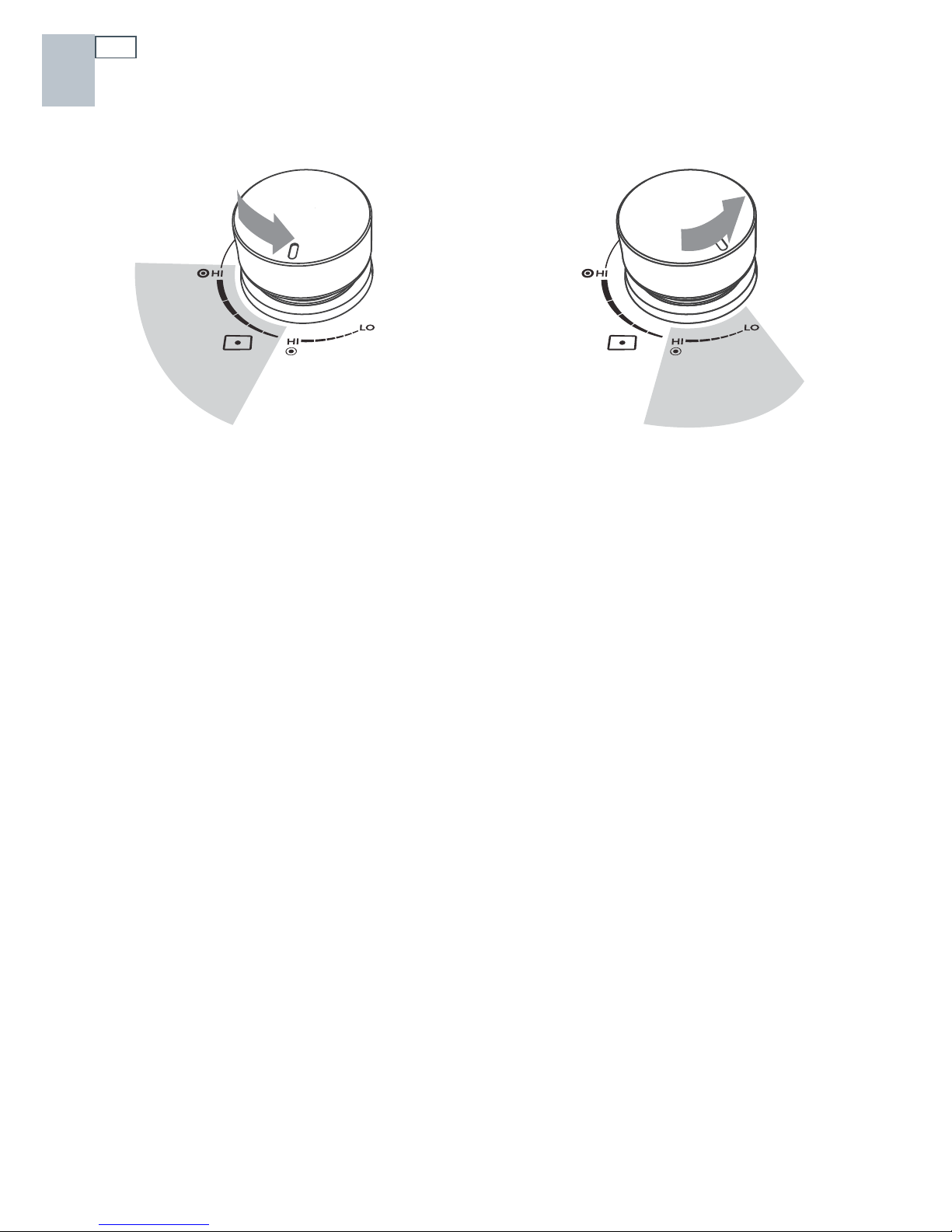

Adjusting the flame on the Dual Wok burner
1 Always start out on HI. Both rings of flame
will be on in the shaded setting range.
Note: when turned all the way down, the
flame on the outer ring may appear to come
and go. If this occurs, adjust the dial slightly
back towards HI for a stable outer ring.
2 To use the inner ring of flames only, continue
turning the dial towards LO. Only the inner
ring will be on in the shaded setting range.
Both rings
Inner ring only
US
CA

9
Wok cooking
Use your wok only on the wok burner and with the supplied wok stand in place, as shown.
Important!
Make sure that the wok stand is stable: its notches need to fit tightly over the pan supports, as
shown.
Make sure the wok does not push any other pans aside. This could make them unstable, or deflect
heat onto nearby walls or the countertop.
Small pan support
Use the supplied small pan support to keep small diameter pans stable.
Using your cooktop
Notch
CG365D Dual Wok burner illustrated
US
CA

10 Cooking guidelines and cookware
Cooking guidelines
Important!
Never leave the cooktop unattended when in use. Boilover causes smoking and greasy spills that
may ignite.
For safety reasons the flame size should be adjusted so that it does not extend beyond the edge
of the saucepan.
Take care when deep-frying: oil or fat can overheat very quickly, particularly on a high setting.
Start cooking on a high setting. When food comes to the boil, reduce the setting and maintain a
steady heat to cook your food thoroughly. Doing this will reduce the cooking time.
Using a lid will reduce cooking times through retaining the heat.
Minimize the amount of liquid to reduce cooking times.

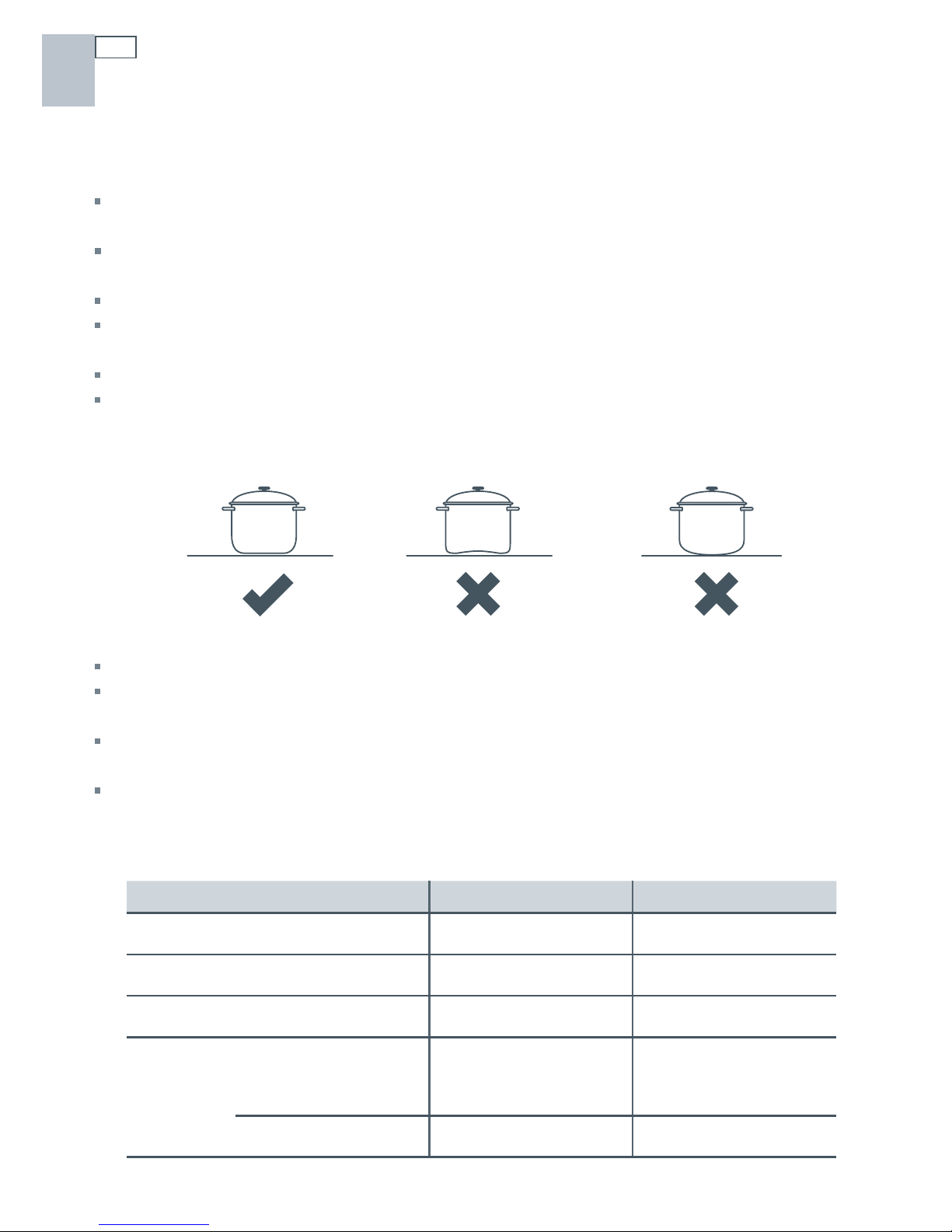

Cookware
Use saucepans with thick flat bases.
Do not let large saucepans or frying pans overlap the counter, as this can deflect heat onto your
countertop and damage its surface.
Always make sure saucepans are stable by centring them over the burner. When using a small
diameter pan on the wok burner, always use the small pan support provided.
Make sure the size of the pan matches the size of the burner. A small pot on a large burner is not
efficient.The following table shows the minimum and maximum saucepan base diameters that
may be used on each burner:
Burner Minimum ∅Maximum ∅
Auxiliary n/a 8 ½” (22 cm)
Semi-rapid n/a 8 ½” (22 cm)
Rapid n/a 8 ½” (22 cm)
Dual Wok regular pans
(without small pan
support)
7 ⁄” (20 cm) 15 ½” (40 cm)
woks (with wok stand) n/a 17 ½” (45 cm)
US
CA

11
Important!
Before any cleaning or maintenance, always:
turn all burners off
switch the power to the cooktop off at the wall
make sure that the cooktop and its parts are a safe temperature to touch.
General advice
Clean the cooktop regularly—do not let stains become burnt on, as they may become very
difficult to remove.
Do not use abrasive cleaners, cloths or pads to clean any part of your cooktop. Some nylon
scourers may also scratch. Check the label.
Clean up spillages as soon as possible. If left to dry on, food residue may clog the flame ports,
causing an uneven flame pattern.
Make sure that no cleaner residue is left on any cooktop part; when heated, these could stain the
cooktop.
See the following pages for instructions on replacing the pan supports and reassembling the
burners correctly after cleaning.
Do not clean cooktop parts in a self-cleaning oven.
Do not use a steam cleaner.

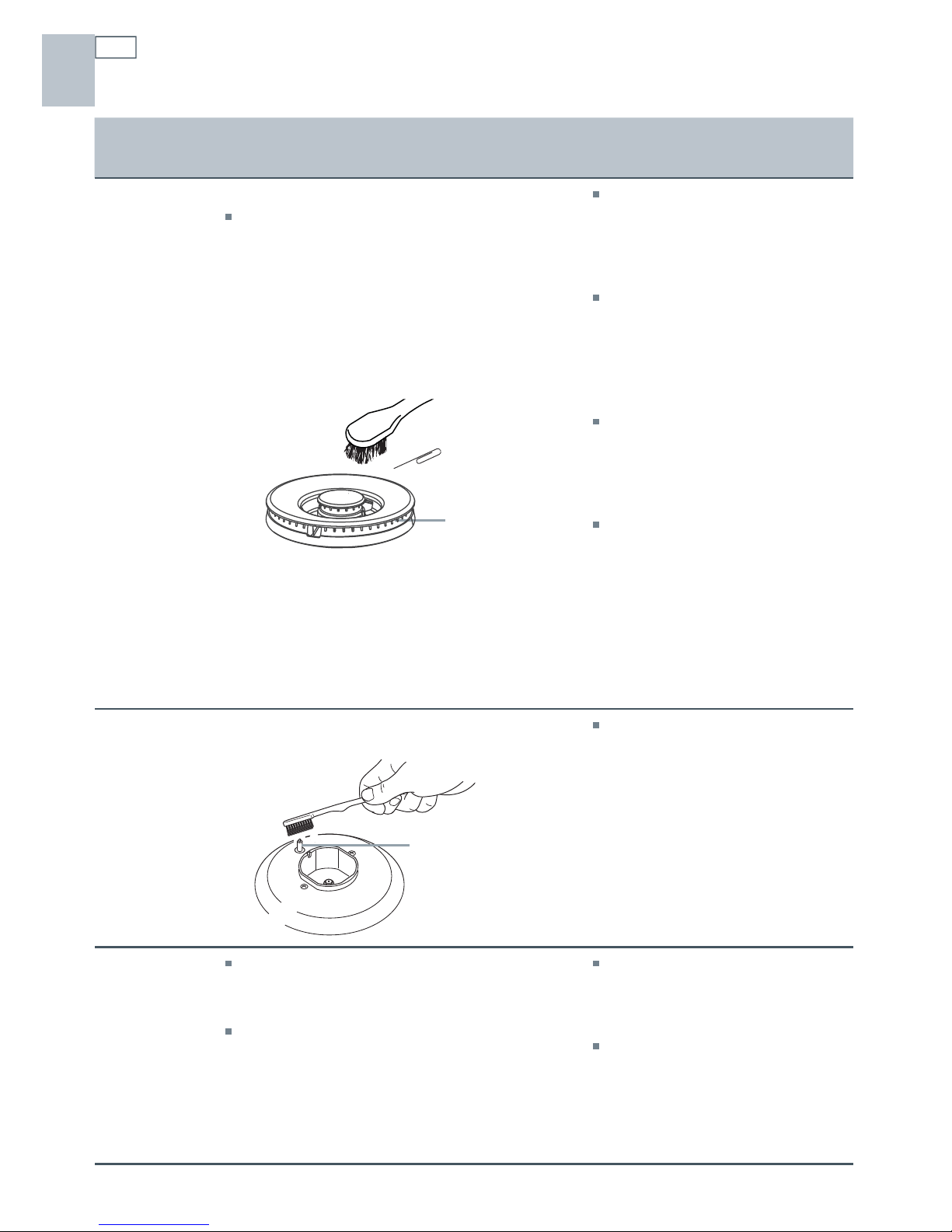

Care and cleaning
What?
How often?
How? Important!
Stainless
steel base
After every
use
1
Soak any stubborn stains under a hot
soapy cloth.
2
Wipe the soiling off with a cloth using
a mild household detergent or stainless
steel cleaner.
3
Wipe with a clean damp cloth.
4
Wipe the surface dry with a microfibre
cloth.
5
For extra shine, use a suitable stainless
steel polish.
Hard water spots can be removed with
household white vinegar.
Do not use abrasive cleaners,
citrus based cleaners, steel
soap pads or sharp objects on
stainless steel.
Always read the label to make
sure that your stainless steel
cleaner does not contain
chlorine compounds as these
are corrosive and may damage
the appearance of your
cooktop.
Always rub the stainless steel in
the direction of the grain.
Control dials
As needed
1
Wipe with a damp cloth and mild
detergent. Stainless steel cleaner can be
used on the top surface of the dials only.
2
Dry thoroughly with a soft cloth.
Do not use oven cleaner on the
dials, as doing so may damage
their coating.
US
CA

12
Ignitor
Care and cleaning
What?
How often?
How?
Important!
Burner
caps and
rings, flame
spreaders,
pan
supports,
wok stand
As needed,
but at least
once a month
1
Remove the parts that you wish to clean.
See the the illustrations following this
chart.
2
Soak stubborn stains in a solution of
biological clothes washing detergent or
dishwashing detergent.
3
Clean the parts in hot soapy water. Use a
stiff nylon brush or straight-ended paper
clip to clear the flame ports.
4
Rinse in warm water.
5
Dry thoroughly.
6
Replace the parts correctly, as shown in
the drawings following this chart.
Make sure you keep the flame
ports clear. Soiling from food
spillage may clog these and
cause ignition problems or
uneven flame patterns.
Remove stains left by food or
spillovers as soon as possible.
If left to burn on or cool, they
may be difficult to remove or
even permanently discolor
these parts.
Before replacing the burner
parts, make sure that they
are completely dry. Wet
burner parts may result in an
irregular flame.
Before lighting a burner you
have reassembled, check
that all of its parts have
been positioned correctly.
Incorrect assembly can cause
dangerous irregular flames
and ignition problems.
Ignitor
At least once
a month
Clean very carefully using a toothbrush
dipped into denatured alcohol.
A clean ignitor ensures
trouble-free sparking. Check
the ignitor regularly to make
sure it is clean.
All gas
components
of the
cooktop
Once every
3-4 years
Contact your local Authorized Repairer
to perform a thorough check on all gas
components of the cooktop.
For Authorized Repairer details, see
your Service & warranty book or contact
Customer Care.
All checking and
maintenance must be
performed by a suitably
qualified person.
If the gas is connected with
a flexible hose, checking
should include inspecting the
entire length of the flexible
hose assembly for any sign of
wear or damage.
Flame
ports
US
CA

13
Care and cleaning
Replacing the pan supports correctly
CG365D models
The two pan supports are interchangeable. Fit them as shown and so that the rounded corners
are to the outside, matching the cooktop base.
Fig.19 Correct positioning of pan supports
US
CA

14 Care and cleaning
Replacing the burner parts correctly
Semi-rapid, rapid, and auxiliary burners
Dual Wok burner
Cap
Cap
Ring
Ignitor
Ignitor
Flame
spreader
Flame
spreader
US
CA

15
Troubleshooting
Problem Possible causes and solutions
There is a strong gas
smell. The gas connection could be leaking because of incorrect
installation or damaged piping.
Important!
Do not use any electrical equipment or operate any electrical switches.
1 If any burners are on, turn all of them off immediately.
2 If you know how to shut off the gas supply to your cooktop
(either at the valve or the gas bottle), do so.
3 Open a window to let the gas out.
4 Contact your local Authorized Repairer as soon as possible.
Important!
Do not use the cooktop until it has been repaired.
There is a slight
rubbery or metallic
smell when I use the
cooktop for the first
time.
This is normal for first use and is caused by manufacturing
residues burning off. The smell will disappear with use.
There is a power failure. You can still use your cooktop, but will need to matchlight the
burner(s). To do so, press down and turn the dial counter
clockwise to HI while holding a lighted match close to the
side of the burner. Wait until the flame is burning
evenly before adjusting it.
There is no clicking/
sparking. There is a power failure. See entry ‘There is a power failure’
above.
The ignitor(s) may be dirty or wet. Clean them following the
instructions in ‘Care and cleaning’.
There is clicking/
sparking, but a burner
or burners won’t light
easily or at all.
Wait 1 minute, then try to relighting the burner
again, holding the dial for a few more seconds this time
around. If this doesn’t work and the burner still won’t light, see
the other possible causes and solutions below.
The gas supply may not be turned on at the valve or gas bottle.
Turn all the burners off, and check whether the gas supply to
the cooktop is turned on.
The gas supply to the house may not be working. You should
hear the gas when you turn a burner on.
If you use bottled gas, this may indicate you are getting near
the end of the bottle and need to replace it.
Burner parts may be clogged or wet. Make sure that they are
clean and dry. See ‘Care and cleaning’ for instructions.
Burner parts may not have been replaced correctly. Check the
assembly and make sure the burner cap is sitting flat. See ‘Care
and cleaning’ for illustrations.
US
CA

16 Troubleshooting
Problem Possible causes and solutions
The flame has been
blown out by a draft or
extinguished by a spill.
The auto-reignition feature will recognise this. The ignitors will
spark and attempt to relight the burner. If the burner fails to
relight, turn the burner off, then wait for at least 1 minute before
attempting to relight. This is to allow for any small amount of gas
that may have escaped to disperse.
The flame goes out at
low settings. The gas supply pressure may be low. Check this with your
service person or installer.
If you use bottled gas, this may indicate you are getting near
the end of the bottle
The flames are yellow
or yellow‐tipped
rather than blue.
Burner parts (especially the flame ports) may be clogged or
wet. Check that they are clean and dry.
The cooktop may have been connected to the wrong type of
gas or the gas pressure is not correct. Contact Customer Care
and do not use your cooktop until it has been checked by a
qualified technician.
If you use bottled gas, this may indicate that you are getting near
the end of the bottle.

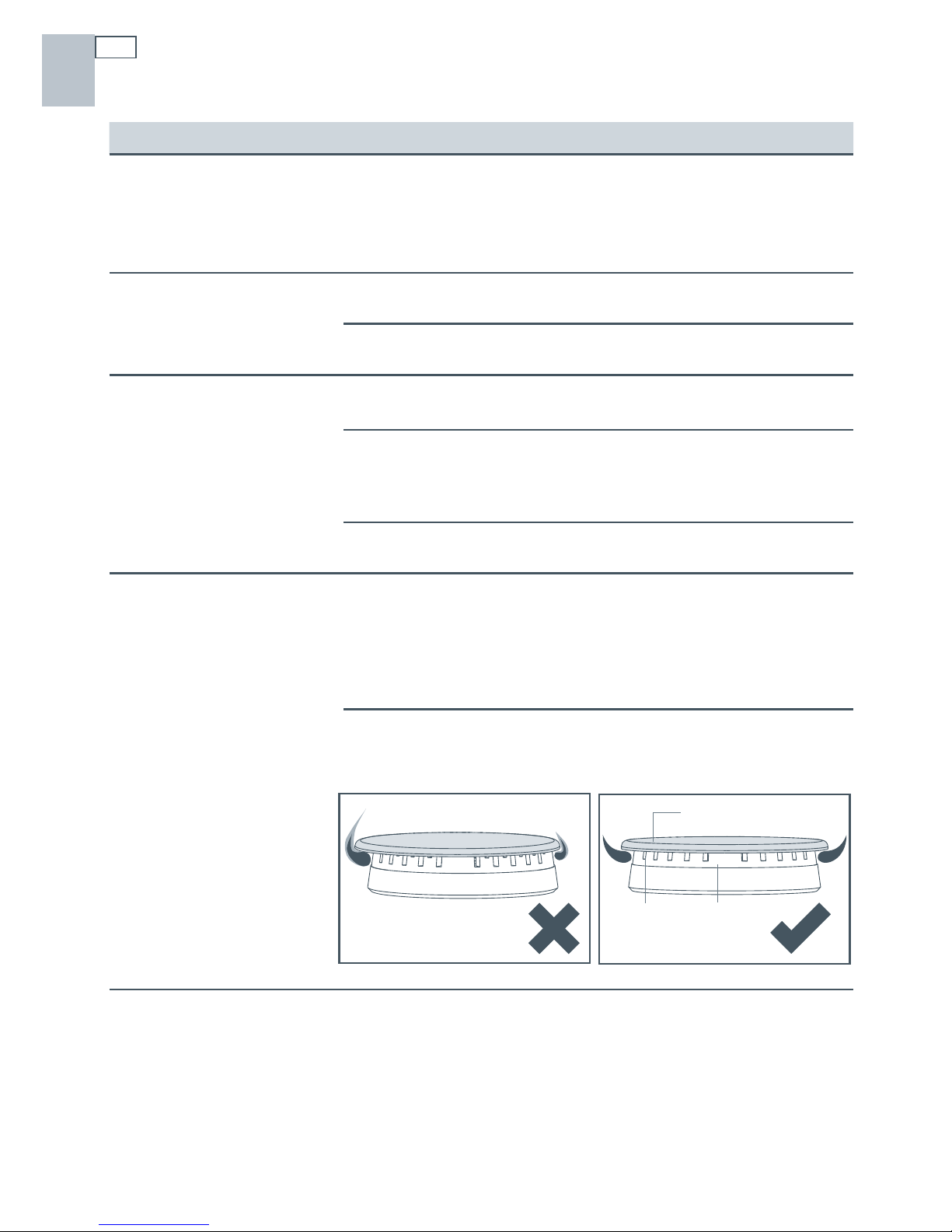

The flame pattern is
uneven around the
burner.
Burner parts (especially the flame ports) may be clogged or
wet. Check that they are clean and dry. See ‘Care and cleaning’
for instructions and illustrations on clearing clogged flame
ports. After cleaning, check that there is flame coming out of
each port.
Burner parts may not have been replaced correctly. Check the
assembly and make sure the burner cap and/or ring is sitting
flat on the flame spreader. See ‘Care and cleaning’ for illustrations.
Flame spreader
Burner cap
Flame ports
US
CA

17
Problem Possible causes and solutions
The flames are too
large, or too small. The cooktop may have been connected to the wrong type of
gas. Contact Customer Care and do not use your cooktop until
it has been checked by a qualified technician.
The flames are noisy.
The flames lift away
from the burner.
Troubleshooting US
CA

18 Warranty and service
Before you call for service or assistance ...
Check the things you can do yourself. Refer to the installation instructions and your user guide
and check that:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to the Service &
Warranty book for warranty details and your nearest Authorized Repairers, Customer Care, or
contact us through our local website listed on the back cover.
Contact details
A Service Summary is attached to the underside of the product.
For replacement parts or if further help is needed concerning this appliance call:
Toll Free 1 888 9 FNP USA (1 888 936 7872)
or write to:
Fisher & Paykel Appliances Inc.
5900 Skylab Road
Huntington Beach, CA 92647
USA
or contact us through our web site, www.fisherpaykel.com
Fisher & Paykel Appliances
Model no Serial no.
Copy these from the serial label on the underside of
the cooktop (right rear) or from the duplicate data
label.
Date of purchase
Contact details Dealer name
US
CA
