Fisher & Paykel FREESTANDING COOKER OR120 Operating and maintenance manual

NZ AU
Installation instructions
and User guide
Freestanding cooker
OR120 double oven models

1
Safety and warnings 2
Installation instructions 6
Introducing your cooker 20
Using your gas cooktop 21
Cooktop troubleshooting 25
Using your ovens for the first time 26
Oven controls and setting the clock 27
Cooking functions 28
Using the electronic timer 30
Automatic cooking 31
Using your warmer drawer 32
Care and cleaning 33
Warranty and service 47
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please go to our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Contents

2Safety and warnings
Installation
WARNING!
Electrical Shock Hazard
Always disconnect the cooker from the mains electricity supply before
carrying out any maintenance operations or repairs.
Failure to follow this advice may result in death or electrical shock.
Important safety precautions
General
To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce
your installation costs.
These products are registered:
in New Zealand at www.energysafety.govt.nz
in Australia with AGA at www.aga.asn.au
This appliance must be installed in accordance with these installation instructions, local
gas fitting regulations, municipal building codes, water supply regulations, electrical wiring
regulations, AS/NZS 5601.1 - Gas Installations and any other relevant statutory regulations.
Failure to install the cooker correctly could invalidate any warranty or liability claims.
Some appliances have a protective film. Remove this film before using the cooker.
Do not modify this appliance.
This appliance is to be installed and serviced only by an authorised person.
Electrical
This cooker is to be installed and connected to the electricity supply only by an authorised person.
If the installation requires alterations to the domestic electrical system, call a qualified
electrician. The electrician should also check that the electrical system is suitable for the
electricity drawn by the cooker.
The appliance must be connected to the mains electricity supply, checking that the voltage
corresponds to the value given in the rating plate and that the electrical cable sections can
withstand the load specified on the plate.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.

3
Safety and warnings
A suitable disconnection switch must be incorporated in the permanent wiring, mounted and
positioned to comply with the local wiring rules and regulations. The switch must be of an
approved type installed in the fixed wiring and provide a 3 mm air gap contact separation in all
poles in accordance with the local wiring rules.
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must be
installed in the active (phase) conductor of the fixed wiring.
The switch must always be accessible.
The power supply cable must not touch any hot parts and must be positioned so that it does not
exceed 75
O
C at any point.
To connect the cooker to the mains electricity supply, do not use adapters, reducers or branching
devices as they can cause overheating and burning.
This cooker must be connected to a suitable double pole control unit adjacent to the cooker. No
diversity can be applied to this control unit.
If the electrical supply cord is damaged, it must only be replaced by an authorised person.
This cooker must be connected to the electrical supply using V105 insulated cable.
The cooker must be earthed.
Do not operate your appliance by means of an external timer or separate remote-control system.

4Safety and warnings
Operation
Your freestanding cooker has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using it:
WARNING!
Hot Surface Hazard
Accessible parts may become hot when this cooker is in use.
To avoid burns and scalds keep children away.
Do not touch hot surfaces inside the ovens or warmer drawer.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Take care when opening the oven doors.
Let hot air or steam escape before removing or replacing food.
Do not touch the cooktop components, burners, trivets/pan supports or the
base when hot.
Before cleaning, turn the cooker off and make sure it is cool.
Failure to follow this advice could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Switch the power to the cooker off at the wall before replacing fuses or oven
lamps.
Failure to do so may result in death or electrical shock.
WARNING!
Explosion Hazard
Do not store flammable materials such as gasoline near the cooktop.
Do not store flammable material in the ovens or in the drawers.
Do not spray aerosols near the cooktop during use.
Failure to follow this advice may result in death or serious injury.

5
Safety and warnings
Important safety precautions
Isolating switch: make sure this cooker is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not line the walls with aluminium foil.
Do not stand on the doors, or place heavy objects on it.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven doors’ glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the cooker.
Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may
cause serious damage to your cooktop.
Do not place aluminium foil or plastic dishes on the cooktop burners.
Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto your
benchtop and damage the surface.
Do not let large saucepans, frying pans or woks push any other pans aside. This could make them
unstable or deflect heat onto your benchtop and damage the surface.
Saucepan handles may be hot to touch. Ensure saucepan handles do not
overhang other gas burners that are on. Keep handles out of reach of children.
If the electrical supply cord is damaged, it must only be replaced by an authorised person.
This cooker is not to be used as a space heater, especially if it is installed in marine craft or in a
caravan.
The use of a gas cooking appliance results in the production of heat and moisture in the room in
which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation holes open or
install a mechanical ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example opening
of a window, or more effective ventilation, for example increasing the level of mechanical
ventilation where present.

6Installation instructions
600 mm
1195 mm
MAX 927 mm
MIN 915 mm
120 mm
Fig. 1 Product dimensions
Fixing the backguard
Position the backguard as shown in Fig. 2
and fix it by screwing the five screws “A”.
Important!
Installing the backguard is MANDATORY.
Product dimensions
A
Fig. 2 Fixing the backguard

7
Installation instructions
450 mm
minimum
minimum
650 mm
0 mm
0 mm
500 mm minimum
200 mm minimum
Fig. 3 Clearances
Clearances
Installation clearances and protection of combustible surfaces shall comply with the current
local regulations eg. AS/NZS 5601.1 Gas Installations code. Installation shall comply with the
dimensions in Fig. 3, bearing in mind the following requirements:
Overhead Clearances
In no case shall the clearance above the highest part of the cooker be less than 650 mm or, for
an overhead exhaust fan, 750 mm. AII other downward-facing combustible surfaces less than
600 mm above the cooker surface shall be protected for the full width of the cooking surface in
accordance with the standards noted above. In no case shall the clearance be less than 450 mm.
Rear and Side Clearances
Where the distance from the periphery of the nearest burner to any vertical combustible surface
is less than 200 mm, the surface shall be protected in accordance with the standards to a height
of not less than 150 mm above the cooking surface for the full width or depth of the cooking
surface.
Where the distance from the periphery of the nearest burner to any horizontal combustible
surface is less than 200 mm, the horizontal surface shall be more than 10 mm below the surface
of the cooking surface, or the horizontal surface shall be above the trivet (see requirements for
vertical combustible surfaces above).
Protection of combustible surfaces
The standards above specify that, where required, protection shall ensure that the surface
temperature of combustible surfaces does not exceed 65°C above room temperature.
Do not install the cooker near flammable materials (eg curtains).
If you stand the cooker on a pedestal, make sure you provide safety measures to keep it in place.
Cooker overall dimensions [mm]
• height: min 915 - max 927
• product width: 1195
• depth: 600
• cavity width 1200

8Installation instructions
+ 8 mm
+ 8 mm
0 mm
+ 12 mm

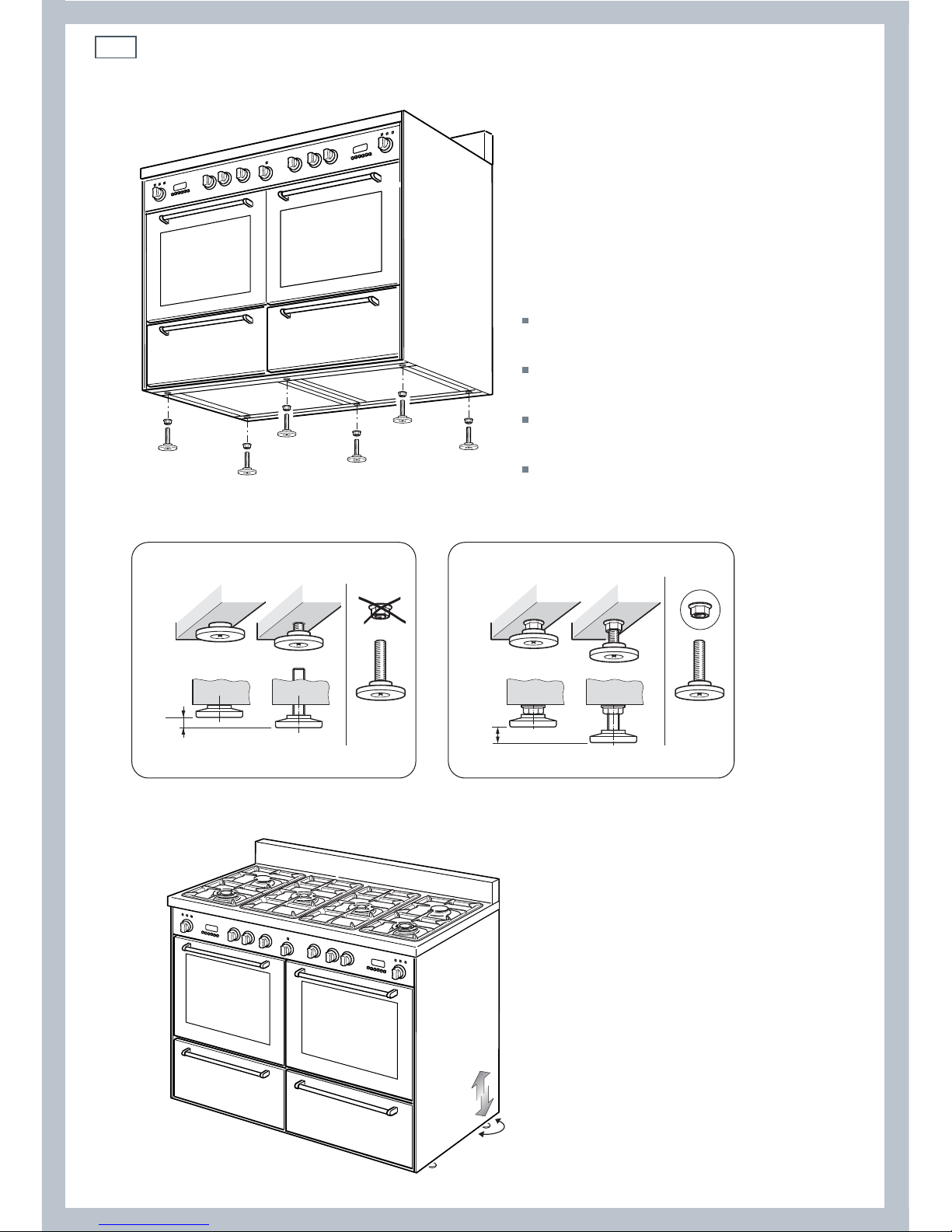

Levelling the cooker
Important!
Using the supplied adjustable feet is
MANDATORY. For safety reasons and to
ensure adequate ventilation, the cooker
chassis MUST NOT sit directly on the floor, a
plinth, or other support surface.
The cooker is already fitted with six
levelling feet.
Level the cooker by screwing or
unscrewing the feet (Fig. 4d).
Make sure you follow the instructions in
Figs. 4a, 4b, and 4c.
Note: nuts are supplied with the cooker
in a separate kit.
Fig. 4a
Fig. 4b Do not use the supplied nuts for height
adjustments between 0 and 8 mm
Fig. 4c Use the supplied nuts for
height adjustments between 8 and 12 mm
Fig. 4d Screw/unscrew the
feet to get the required height

9
==
Dotted line showing the position
of the cooker when installed
Rear central
foot of cooker
Anti-tilt
bracket

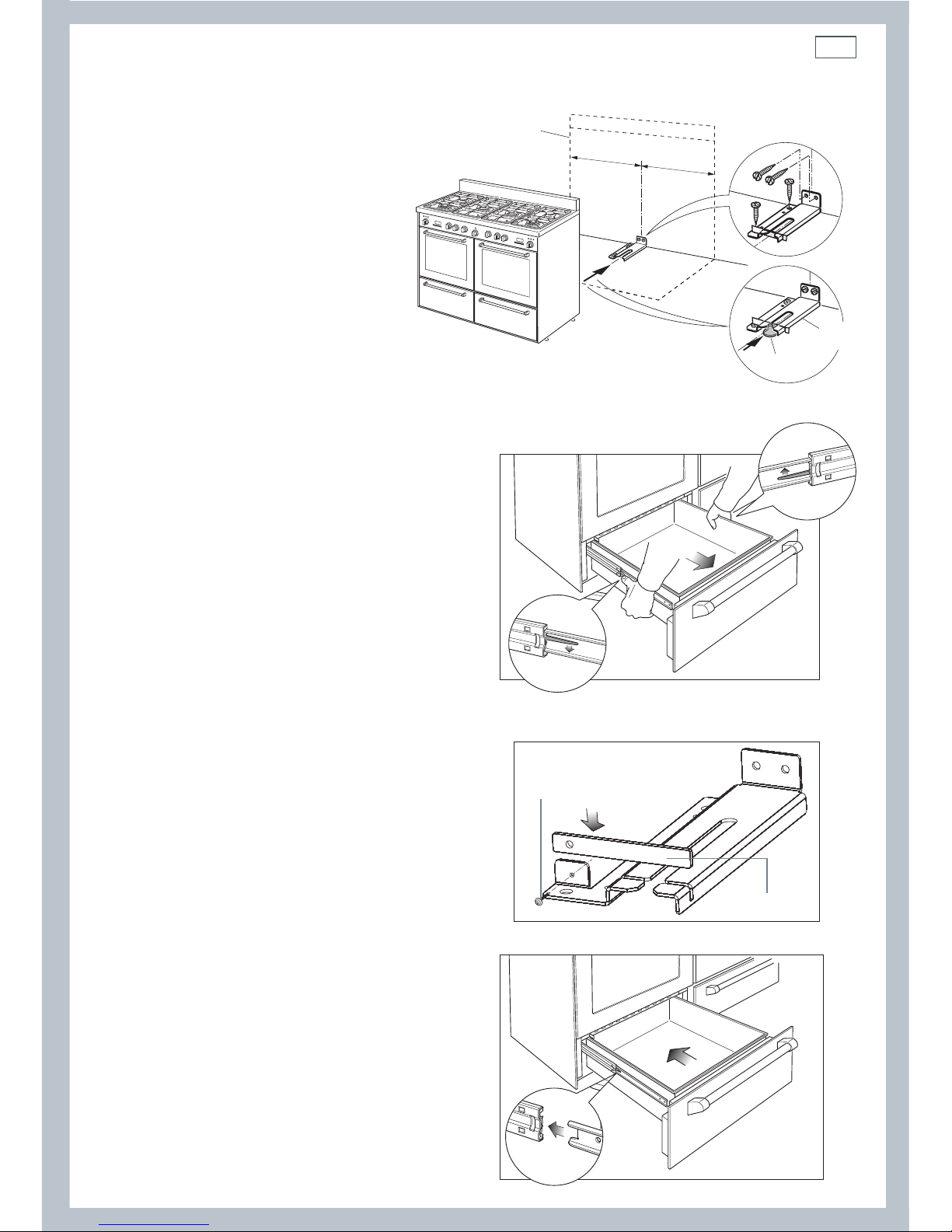

Fitting the anti-tilt bracket
Important!
To restrain the appliance and prevent
it tipping accidentally, the anti-
tilt bracket and restraining plate
supplied must be fitted according to
the instructions below.
1 Drill four 8mm diameter holes for
the fixing screws (two in the wall
and two in the floor-see Fig.5) and
insert the plastic plugs supplied.
Important!
Before drilling the holes, check that you will not
damage any pipes or electrical wires.
2 Attach the anti-tilt bracket to the floor and
rear wall using the four screws supplied, as
shown in Fig. 5.
3 After attaching the anti-tilt bracket securely,
slide the cooker into place. Ensure that the
rear central foot slides under the bracket, as
shown in Fig.5.
4 Access the bracket by removing the left
drawer (Fig. 6):
a Slide out the left drawer completely.
b Press the lever of the left guide rail
down and pull the lever of the right
guide rail up.
c Holding the levers, disengage and
remove the drawer.
5 Fix the restraining plate by sliding it into
place and securing it with the fixing screw
and washer supplied. See Fig. 7.
6 Replace the left drawer (Fig. 8):
a Insert the drawer rails into the guide
rails.
b Gently push the drawer in
completely; the safety catches will
automatically hook.
Important!
Beware of sharp edges when removing or
replacing the drawer.
Installation instructions
Fig. 5 Attaching the anti-tilt bracket and
sliding the cooker into place
Fig. 6 Accessing the anti-tilt bracket
by removing the left drawer
Fig. 8 Replacing the left drawer
Fig. 7 Fixing the restraining plate
Restraining plate
Screw & Washer

10 Installation instructions
Moving the cooker
Important!
To prevent damaging the adjustable feet,
ensure the cooker is always lifted by two
people.
Do not lift the cooker by the door handles.
DO NOT DRAG the cooker. Lift the feet clear
of the floor.

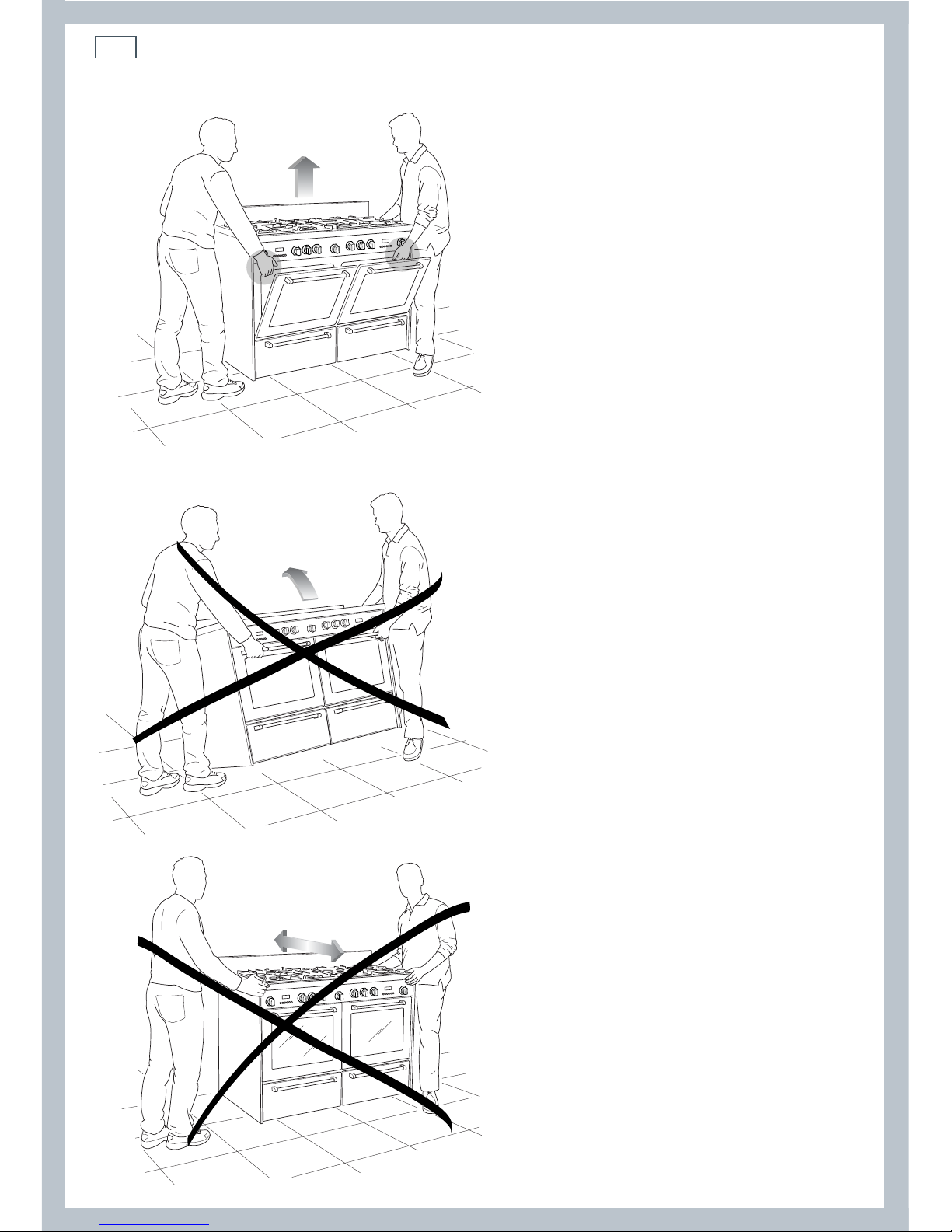

Fig. 9a Correctly lifting the cooker
Fig. 9c Incorrectly lifting the cooker
Fig. 9b Incorrectly lifting the cooker

11
Installation instructions
~
~
Locating the area for gas and electrical connection
Fig. 10 Locating the area for gas and electrical connection
Area for GAS and
ELECTRCIAL connection
Dotted line showing the
position of the cooker
when installed
Dimension Length (mm)

12
Connecting the cooker to the gas
supply
The gas connection must be carried out by an
authorised person according to the relevant
standards.
Before connecting the appliance to the gas
main, mount the brass conical adaptor onto
the gas inlet extension pipe, upon which
the washer has been placed (see Fig. 12
following).
Conical adaptor and washer are supplied with
the appliance (packed with conversion kit for
use with Natural gas or LPG).
This appliance is suitable for use with Natural
gas or LPG gas. (Check the “gas type” sticker
attached to the appliance).
For Natural gas, connect the gas supply to
the gas pressure regulator which is supplied
with the appliance (Fig.12). Adjust the
regulator to obtain a test point pressure of
1 kPa with the two triple-ring wok burners
operating at the maximum.
For LPG, connect the gas supply to the test
point adaptor which is supplied with the
appliance (Fig.12). Ensure that the supply
pressure is regulated to 2.75 kPa.
The connection must be made at the rear of
appliance; the pipe is not to cross the cooker.
If the connection pipe does cross the cooker,
it must be positioned under the cooker’s back
panel, as shown (Fig.11).
Important!
Use two spanners to tighten or loosen the
connecting pipe and the gas components (Fig.13).
Installation instructions
Gas connection for
NATURAL GAS
Gas inlet pipe
Test point
Nipple
Washer
Extension pipe
Brass conical
adaptor
(Thread tight:
use suitable seal)
Gas pressure
regulator
Test point
Nipple
Nut
Washer interposed
between nipple and nut
Gas connection for
LPG
Gas inlet pipe
Nipple
Washer
Extension pipe
Brass conical
adaptor
(Thread tight:
use suitable seal)
Test point adaptor
Test point
Test point
Nipple
Nut
Washer interposed
between nipple and nut
Back
panel
Fig. 13 Adjusting the connecting pipe
Fig. 12 Gas connection options

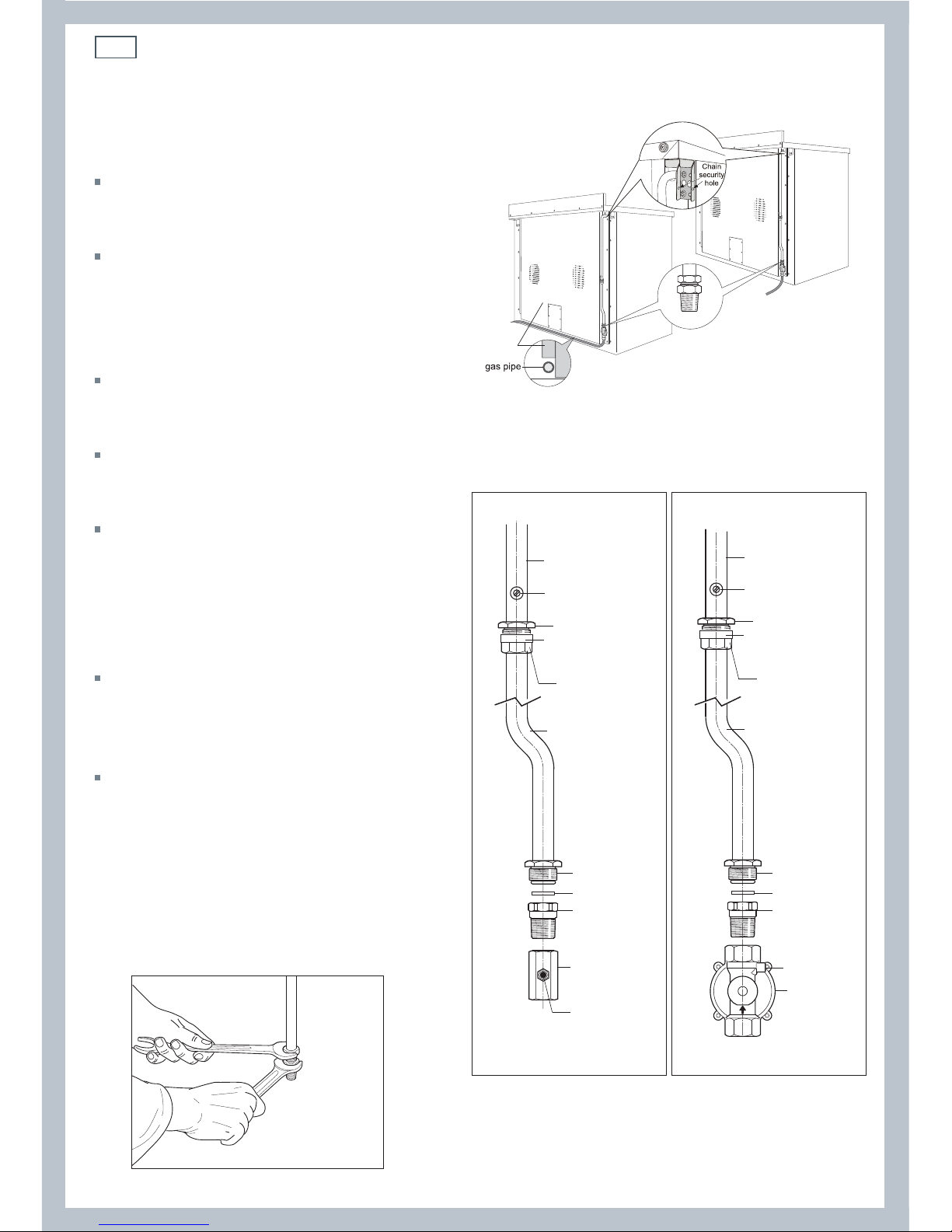

Fig. 11 Gas pipe positioning options

13
Installation instructions
Installation with a flexible hose assembly
If this appliance has to be installed with a hose assembly, the installer shall refer to the network
operator or gas supplier for confirmation of the gas type, if in doubt.
When used with a flexible hose, the connector on the wall should be between 450 mm to 500
mm from the floor and 200 mm to 300 mm from the left-hand side of the appliance as viewed
from the front. The hose connection on the appliance shall face downwards.
It is important that the hose does not come in contact with the metal of the appliance and is
secured as per appropriate gas installation codes. A chain 80% of the length of the flexible gas
hose must be used to prevent stress being applied to the hose. The chain should be attached
securely to the product where shown, and on the wall.
Flexible hose assemblies should be AS/NZS 1869 Class B or Class D certified. The thread
connection shall be Rp 1/2” (ISO 7-1) male.
Important!
After connection the installer must check that the hose is not kinked, subjected to abrasion or permanently
deformed. The installer must check also that the hose is not near (or in contact) with any hot surfaces.
The hose assembly shall be as short as practicable and comply with relevant AS5601 / NZS5261
requirements.
Leak-testing and flame-testing the cooker
After installing the freestanding cooker and connecting the gas supply:
1 Using a suitable leak detection fluid solution, check each gas connection one at a time by
brushing the solution over the connection.
The presence of bubbles will indicate a leak. If there is a leak, tighten the fitting and then
recheck for leaks.
Important!
Do not use a naked flame to test for leaks.
2 Adjust the test point pressure or supply pressure to the value that is appropriate for the gas
type.
3 Test the operation of the appliance:
Turn on the appliance gas controls and light each burner individually and in combination.
Check for a well-defined blue flame without any yellow tipping. If any abnormality is
evident, then check that the burner cap is located properly and the injector nipple is
aligned correctly.
Check the minimum burner setting by quickly rotating the gas control knob from the
maximum to the minimum position. The flame must not go out. If you need to adjust the
setting, see section ‘Adjusting the minimum burner setting’.
4 If satisfacfory performance cannot be obtained, the installer shall check the installation and
notify the local gas supply authority for a gas supply problem, or if it is an appliance problem,
our Customer Service Centre should be called to obtain the nearest authorized Service Agent.

14 Installation instructions
Converting to a different gas type
This appliance is suitable for use with Natural gas or LPG (check the “gas type” sticker attached
to the appliance). To convert from one gas type to another, you need to replace the injectors,
and then adjust the minimum burning setting. See instructions on pages following.
Important!
If you are converting the cooker from Natural gas to LPG, remove the gas pressure regulator
before connecting the cooker to the gas supply and replace with the test point adaptor supplied
with the conversion kit.
If you are converting the cooker from LPG to Natural gas, remove the test point adaptor before
connecting the cooker to the gas supply and replace with the gas pressure regulator supplied
with the conversion kit.

15
Installation instructions
Replacing the injectors
If the injectors are not supplied, contact
your nearest Fisher & Paykel Authorised
Service Centre.
To replace the injectors:
1 Remove the trivets and burners from
the cooktop.
2 Using a spanner, remove the injectors
(Figs.14a,14b,14c) and replace them
with the ones according to the gas
type (see the ‘Table for the choice of
injectors’).
3 Fix the warning label (supplied with the
conversion kit) at the back of the cooker,
near the gas inlet connections. This label
states that the gas cooktop has been
converted for use with LPG/Natural gas.
The burners are designed so that
adjustment of primary air is not
required.
Injector
Injector
Dual burner
Triple ring wok
burner
Semi-rapid
burner
Injector for inner crown
Injectors for
outer crowns

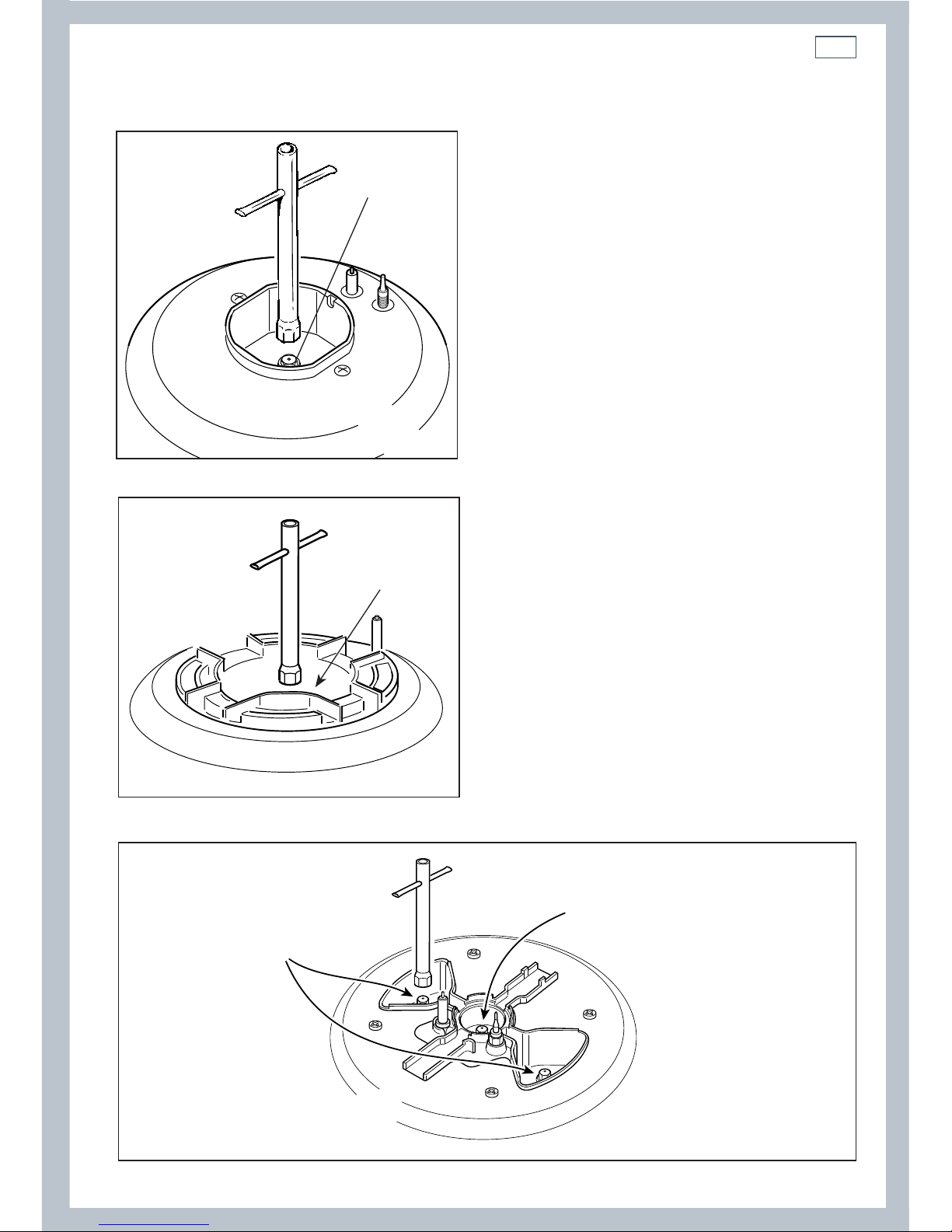

Fig. 14a
Fig. 14b
Fig. 14c

16 Installation instructions
regulation screw
G
H
Adjusting the minimum burner
setting
Check whether the flame spreads to all
burner ports when the burner is lit with
the gas valve set to the minimum position.
If some ports do not light, increase the
minimum gas rate setting.
Check whether the burner remains lit even
when the gas valve is turned quickly from
the maximum to the minimum position. If
the burner does not remain lit, increase the
minimum gas rate setting.
To adjust the minimum gas rate setting:
Semi-rapid and triple-ring wok burners
1 Light the burner.
2 Set the gas valve to the position.
3 Remove the knob.
4 Using a small flat screwdriver, turn the screw
(see Fig.15a) to the correct regulation.
Inside crown of dual burner
1 Light the dual burner.
2 Set the gas valve to the position.
3 Remove the knob.
4 Using a small flat screwdriver, turn the screw
“H” (see Fig.15b) to the correct regulation.
Outside crowns of dual burner
1 Light the dual burner.
2 Set the gas valve to the position.
3 Remove the knob.
4 Using a screwdriver, turn the screw “G” (see
Fig.15b) to the correct regulation.
For LPG gas, tighten the adjustment screws
completely.
Fig. 15a Adjusting the minimum burner setting-semi-
rapid and triple-ring wok burners
Fig. 15b Adjusting the minimum
burner setting-Dual burner

17
Installation instructions
Table for the choice of injectors
(*): Power calculated with inner crown operating.
(#): Power calculated with inner and outer crowns operating.
Lubrication of the gas valves
The gas valves should only be lubricated by a qualified technician.
Important!
All installation, maintenance and conversion of the appliance must be done using original factory parts.
The manufacturer declines any liability if these correct parts are not used.
Natural gas LPG
Test Point Pressure
[kPa] 1.0 2.75
BURNER Injector Orifice
Dia. (mm)
Gas
Consumption
[MJ/h]
Injector Orifice
Dia. (mm)
Gas
Consumption
[MJ/h]
Semi-rapid 1.12 6.30 0.70 6.30
Triple-ring wok 1.60 12.70 0.95 11.90
Dual
inner crown 0.85 (no.1 central) 3.60 (*) 0.50 (no.1 central) 3.20 (*)
outer crowns 1.15 (no.2 outer) 16.00 (#) 0.62 (no.2 outer) 13.00 (#)

18 Installation instructions
C
DA
B
Power supply
220 - 240V ~5300W 50Hz
PE
12345
N (L2)L1
220-240 V
Red or
Brown
(Live)
Black or
Blue
(Neutral)
Green
and
Yellow
(Earth)
23451
N(L2) PE
L1
PE Earth
N Neutral
L Live
Connecting the power supply cable
To connect the power supply cable to the
cooker:
1 Remove the four screws that hold shield “A”
behind the cooker.
2 Open the cable clamp “D” completely.
3 Check the position of the U bolts on the
terminal block “B” (Fig. 16a) corresponds to
the connection diagrams in Fig. 16b and
Fig. 16c.
4 Insert the power supply cable into the cable
clamp “D” and into the cable protector
“C”. The supply cable must be of a suitable
size for the current requirements of the
appliance.
This cooker must be connected to the
power supply using V105 insulated cable.
This cooker must be earthed.
5 Connect the phase and earth cables to
terminal “B” according to Figs. 16b and 16c.
6 Tighten the power supply cable and fix it
with the cable clamp “D”.
7 Re-mount shield “A”, securing it tightly with
the four screws.
Note: the earth conductor must be left
about 30 mm longer than the others.
Fig. 16a Accessing the terminal block
Fig. 16b Electrical connection
Fig. 16c Connection diagram
Green
and
Yellow
(Earth)
Black
or Blue
(Neutral)
Red or
Brown
(Live)
