Fisher & Paykel RS2484VL2K1 User manual

USER GUIDE
US CA
INTEGRATED
WINE CABINET
24" INTEGRATED
RS2484VL2K1 & RS2484VR2K1

3
CONTENTS
Safety and warnings 4
Integrated wine cabinet 8
Storage features 9
Control panel 10
ActiveSmart™ special features 11
Wifi connection 12
Using your appliance 13
Loading your wine bottles 16
Wine care 17
Replacing carbon filter 18
Cleaning care — exterior 19
Cleaning care — interior 20
User warnings and sounds 22
Troubleshooting 23
Service & warranty 25
Registration
To register your product visit our website: fisherpaykel.com/register

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to do so can result in death, electric
shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating this
appliance.
!WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).
R600a

5
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage. When using this appliance always exercise basic safety precautions
including thefollowing:
General Use
zThis product has been designed for use in a normal domestic (residential) environment.
zChildren should be supervised to ensure that they do not play with the appliance.
zCleaning and user maintenance shall not be undertaken by children without supervision.
zThis appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
zThe manufacturer’s installation instructions for product and cabinetry ventilation must
be followed when installing the appliance.
zTo avoid hazard due to instability of the appliance, it must be fixed in accordance with
installation instructions.
zKeep ventilation openings, in the appliance enclosure or the built-in structure, clear of
obstruction.
zDo not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
zDo not damage the refrigerant circuit.
zIn case of damage to the refrigerant circuit, ventilate the area by opening all windows.
zDo not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
zIt is hazardous for anyone other than a Fisher & Paykel trained and supported service
technician to service this appliance.
zConnect to potable water supply only.
zThis refrigerating appliance is intended to be used at ambient temperatures ranging
from 61 °F (16 °C) to 100 °F (38 °C).
zFor optimum performance, it is recommended to control the ambient temperature
betwen 61 °F (16°C) and 77 °F (25°C).
Electrical
zThis appliance must be installed in accordance with the installation instructions before
use.
zTo allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
zNever unplug your Wine Cabinet by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
zDo not plug in any other appliance at the same power point as your Wine cabinet or
use extension cords or double adapters.
zRepair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.
zIf the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
trained and supported service technician because special purpose tools are required.

6
SAFETY AND WARNINGS
zWhen moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
zWARNING: Do not use electrical appliances inside your appliance, unless they are of the
type recommended by the manufacturer.
zWhen positioning the appliance, ensure the power cord is not trapped or damaged.
zDo not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Food safety
zThis appliance is intended to be used exclusively for the storage of wine.
zDo not store food and milk products in the Wine Cabinet. The interior temperature may
not be cool enough to prevent spoilage in food, and the expiry dates stated on the
food packaging may be invalid.
Storage
zDo not store explosive substances such as aerosol cans with a flammable propellant
inthis appliance.
zNever store volatile or flammable materials in your appliance as they may explode.
Servicing
zYour refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
zThe LED light cannot be serviced by the user. Contact your Fisher & Paykel Dealer or
Fisher & Paykel trained and supported service technician.
Cleaning
zUse only soap based cleaning products.
zUse a clean microfiber cloth for cleaning the wooden racks. Do not use liquid/water on
oak racks. Ensure the racks are not too wet.
zAvoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
Disposal
zExtreme care must be taken when disposing of your old appliance to avoid hazards:
zThe flammable refrigerant gas must be safely removed by a qualified service technician.
zThe thermal insulation foam in this appliance may contain flammable insulation blowing
gases, any exposed foam may be highly flammable and must be carefully treated
during disposal.
zWARNING: Risk of child entrapment. Before you throw away your old appliance, the
doors and panels should be removed and the racks left in place so that children may
not easily climb inside.
zConsult your local energy authority or local codes as to the best way to dispose of your
old appliance.

7
SAFETY AND WARNINGS
WARNING!
To reduce the risk associated with choking:
zDO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
Power failure
zIn the event of a power interruption, the Wine Cabinet will automatically save the
current temperature settings. When power is recovered, the Wine Cabinet will revert to
the current temperature settings only.
zMost power failures are corrected within a short period of time. 1 – 2 hours loss of
power will not affect the Wine Cabinet’s temperatures.
zTo avoid sudden change of temperature while power is off, you should avoid opening
the door. For longer periods of power failure, do take steps to protect your wine.
IMPORTANT!
This device complies with part 15 of the FCC Rules. Operation is subject to the following
conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received, including interference that may
cause undesired operation.
Do not change or modify the wireless communication device in any way. Changes or
modifications not expressly approved by Fisher & Paykel could void the user’s authority
to operate the equipment.
WARNING: The incorporated Wi-Fi module in this appliance is to operate only from
channel 1 to channel 11 as per FCC rules.
This device contains licence-exempt transmitter /receiver that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
zThis device may not cause interference.
zThis device must accept any interference, including interference that may cause
undesired operation of the device.

8
24" Wine Cabinet
RS2484VL2K1
Left hinge
24" Wine Cabinet
RS2484VR2K1
Right Hinge
INTEGRATED WINE CABINET

9
STORAGE FEATURES
Integrated Wine Cabinet
Easy-clean design with evenly distributed lighting and aluminum trims.
WINE CABINET COMPONENTS
Bottle racks Removable bottle racks (white oak)*
Accessories Wine display kit
Wine label kit
* Racks may be different sizes. Ensure you have the correct dimensions when replacing racks,
Cabinet features
1 UV tempered glass door
2 Display handle
3 Interchangeable Lower
bottle racks
4 Bulk storage rack
5 Wine bottle labels
6 Interchangeable Upper
bottle racks
7 Display cradles
8 Display rack
1
4 5
2
3
6
7
8

10
CONTROL PANEL
Low
O
High
Display
1 2 3 64 75
1Allows you to unlock the control panel and enable compartment selection. Press
for 4seconds to activate your appliance for the first time.
The control panel will automatically lock when inactive for more than 10seconds
or when the door is closed. To unlock, press for twoseconds.
2Allows you to select the wine mode for the selected compartment.
3Illuminates to show wireless remote mode is enabled.
IIluminates to indicate that Sabbath mode is activated.
Illuminates to indicate that the keys on the control panel are locked. When the
door is closed the display is automatically locked.
Illuminates to indicate that carbon filter replacement is required.
4Displays the set temperature of the compartments.
To change between Celsius and Fahrenheit on the display:
zPress and together for fourseconds.
5Allows you to adjust the temperature of the selected compartment.
6Allows you to select the light mode for the selected compartment.
7Deactivates the door alarm for 20minutes.

11
ACTIVESMART™ SPECIAL FEATURES
Variable temperature zones
The serving temperature of your wine is crucial for your taste and enjoyment, therefore
‘Wine Modes’ have been carefully designed to both care for your wine and provide the ideal
serving temperature for all wine varieties.
The separate modes allow you to adjust the temperature in both compartments
independently.
Not all wines will improve over time. Check with your wine merchant for more information
regarding the best storage conditions for your wine.
WINE MODES TYPES OF WINE TO STORE
Red
(16°C/61°F)
‘Red Mode’ is suitable for short
term storage of light, fruity and full-
bodied reds at serving temperature.
Pinot Noir, Merlot, Malbec,
Shiraz/Syrah, Chianti,
Cabernet Sauvignon,
Vintage Port.
Cellar
(12°C/54°F)
For longer term storage of all wine
varieties, ‘Cellar Mode’ provides
conditions suitable for aging wines.
All varieties.
White
(8°C/46°F)
‘White Mode’ is suitable for
short term storage of aromatic
white wines and Rose at serving
temperature.
Sauvignon Blanc,
Chardonnay, Riesling, Pinot
Gris, Viognier, Chablis,
Gewürztraminer, Rosé.
Sparkling
(7°C/45°F)
‘Sparkling Mode’ is suitable for short
term storage of all sparkling wines at
serving temperature.
Sparkling wines (eg Méthode
Champenoise, Metodo
Classico) Champagne,
Cava, Prosecco.
Light modes
Four Light Modes are available to choose from. Select a Light Mode that suits the desired
illumination of bottles as well as the surrounding environment.
WINE MODES
Off Select “Off” to turn off all compartment lights.
Low The dimmest setting available; softly illuminating the interior of your
Integrated Wine Cabinet while allowing it to blend into the surrounding
environment.
Display Brightly illuminates bottles on the display rack while all other racks
remain dimly lit, bringing emphasis to those extra special bottles.
High Turns all compartment lights to full brightness; the perfect mode for
showcasing your wine collection.

12
WIFI CONNECTION
Your appliance can be connected to your home wireless network and operated remotely
using the app.
Getting started
zEnsure your home WiFi network is turned on.
zYou will be given step by step guidance on both your appliance and mobile device.
zIt may take up to 10 minutes to connect your appliance.
On your mobile device:
1 Download the app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the WiFi connection.

13
USING YOUR APPLIANCE
Temperature control
At initial startup, each WINE MODE will automatically default to the recommended
temperature setting. Once you have selected the compartment and required WINE MODE,
the temperature can be adjusted as desired. The selected setting will be saved for future
use.
1

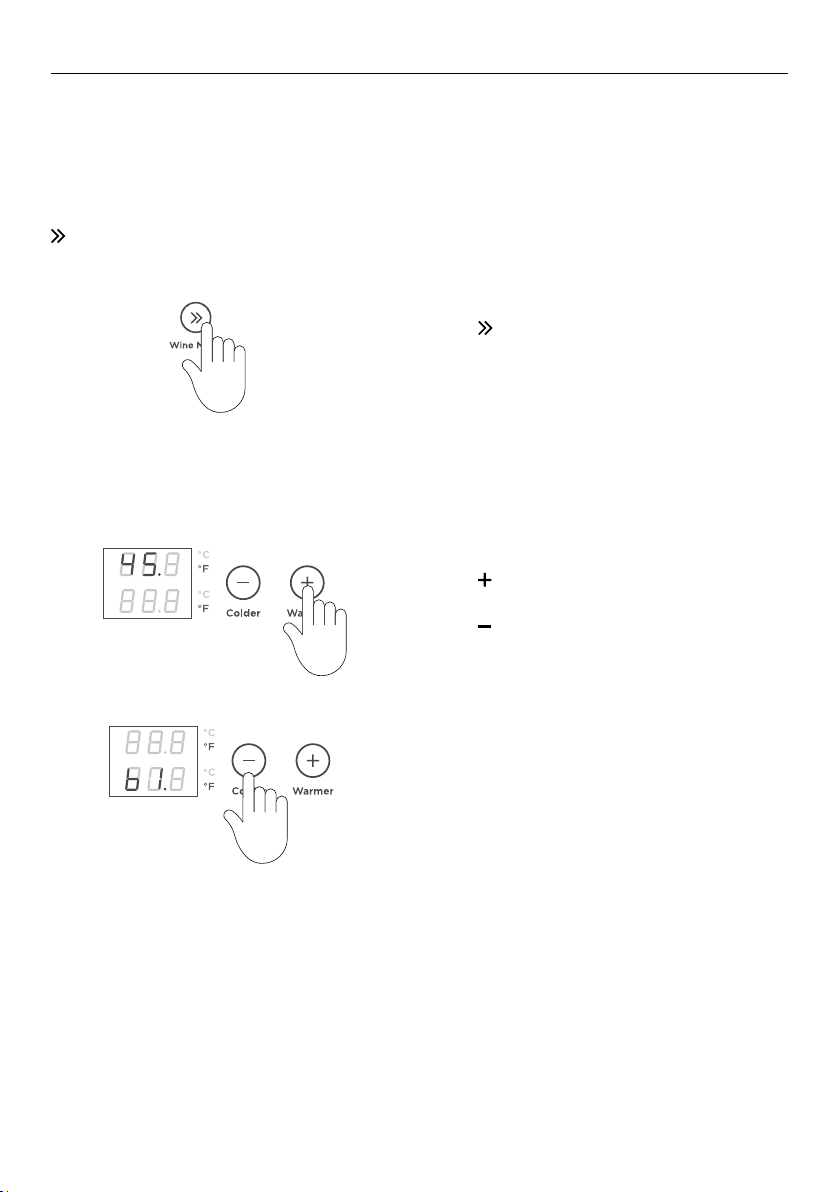

Selecting the Wine Mode
Select the desired compartment.
Press to scroll through the available
modes. The light next to the name ofthe
WINE MODE will illuminate as you scroll to
indicate which mode is selected.
Press to increase the temperature of the
selected food mode.
Press to decrease the temperature of the
selected food mode.
Adjusting the temperature

14
USING YOUR APPLIANCE
1
2
Allows you to disable the buttons on the control panel. Suitable when cleaning your
appliance.
Key lock
To deactivate:
Press for twoseconds. The icon will dim.
To activate:
Press for twoseconds. The icon on the
control panel will illuminate.
1
Selecting the Light Mode
To activate a Light Mode:
Press repeatedly to scroll through the
available LIGHT MODE settings and select
your preferred mode.
Press for two seconds to activate.
A blinking light indicates the current
position when scrolling through the list.
To deactivate a Light Mode:
Press for two seconds to deactivate.
When opening the door of your product, all internal lights will illuminate to full brightness.
Upon closing the door, your appliance will remember the previously selected LIGHT MODE
Note: ‘Display’ and ‘High’ modes will default to ‘Low’ after a set duration. For longer term
storage, we recommend turning your lights to OFF.

15
USING YOUR APPLIANCE

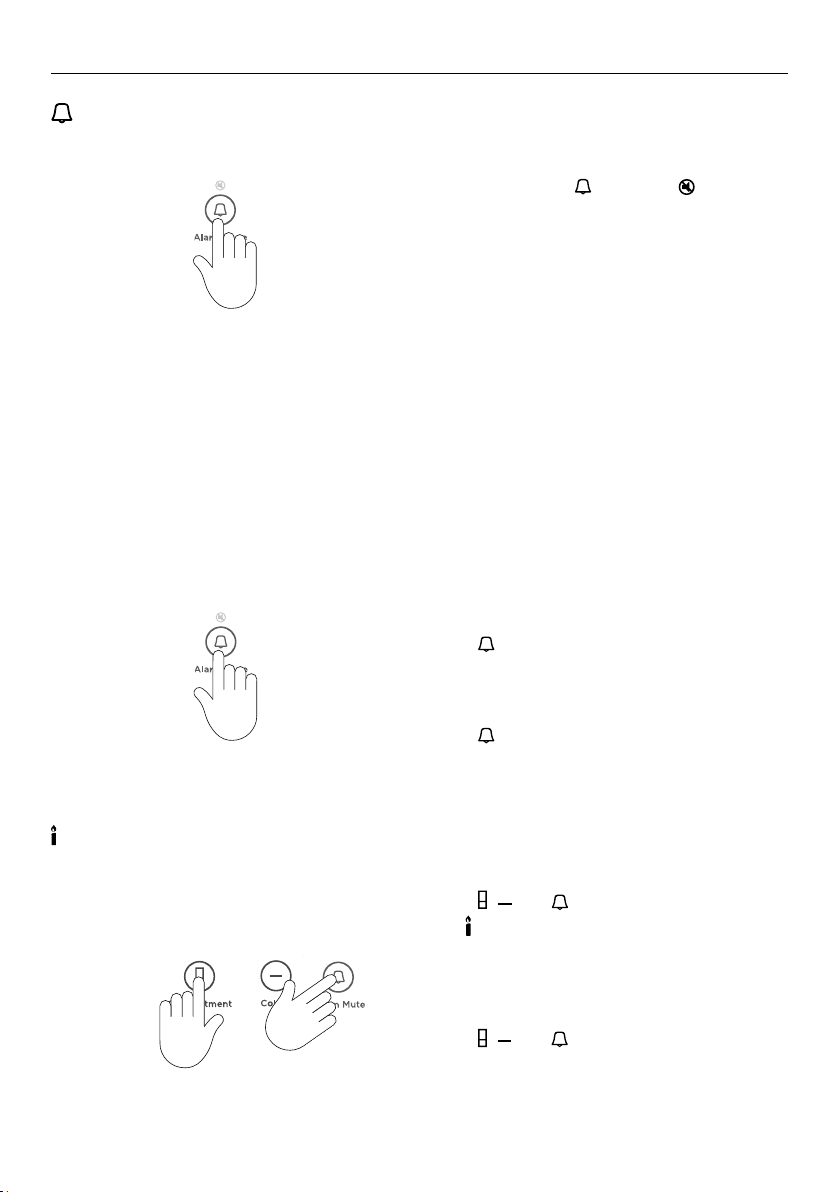

Door alarm
zIf the door is left open, the alarm will beep after 90 seconds.
zIf the door remains open, subsequent beeps will sound every 30 seconds for five minutes.
zIf the door remains open for five minutes or longer, an alarm will sound continuously and
the interior compartment light(s) will turn off.
1
To activate:
Press , and together for four seconds.
The icon on the control panel will
illuminate. When activated, the display, all
alarms and lights are deactivated for 80
hours.
To deactivate manually:
Press , and together for fourseconds.
Note: If you turn off your appliance
while in Sabbath mode, it will resume
automaticallyonce the appliance is switched
on again.
Sabbath mode
1
To activate:
To activate, press once. The will
illuminate to indicate the refrigerator is
muted.
ALARM MUTE will deactivate after
20minutes. Press To deactivate manually,
Closing the door also deactivates the
ALARM MUTE.
Alarm mute
1
To activate:
Press for twoseconds, a single beep will
sound to indicate key mute is activated. All
key sounds are now muted.
To deactivate:
Press for twoseconds, a single beep will
sound.
Key mute

16

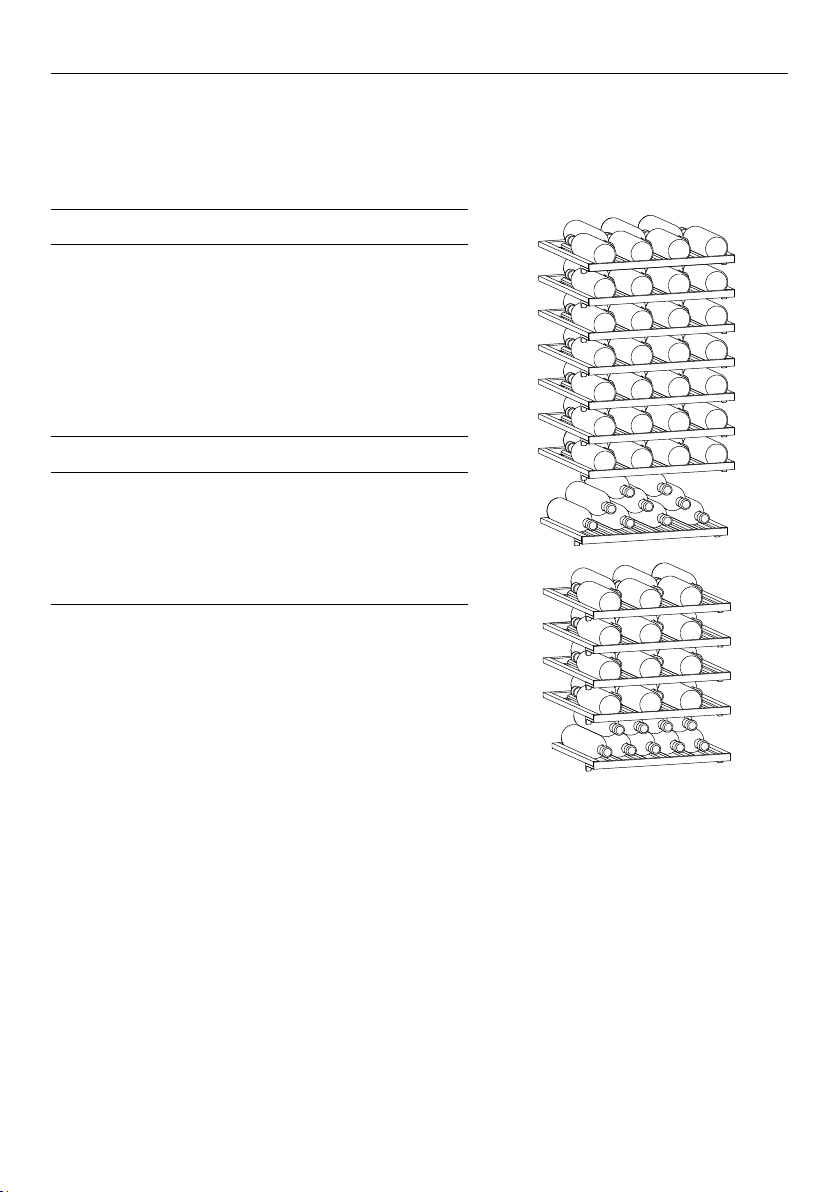

The Integrated Wine Cabinet has a recommended maximum storage capacity of 91
standard 750ml bottles. The loading arrangement outlined is recommended when using
the wine cabinet at full capacity. Racks may be removed to store larger sized bottles, for
example Magnums.
DOs
zBefore loading wine into the cabinet confirm
that all racks are secured and stable.
zStack wine bottles of same sizes to enable easy
access if required.
zOnly interlock wine bottles of the same size.
This ensures the first tier is stable to allow
stacking.
zFollow the recommended loading arrangement
outlined for each rack.
DON’Ts
zDo not load more than the recommended
number of wine bottles on each rack.
zDo not interlock wine bottles of different sizes
that do not fit well together on a rack.
zDo not stack Magnums or larger sized wine
bottles.
LOADING YOUR WINE BOTTLES
IMPORTANT!
zWhen stacking bottles, take extra care to
avoid breakages.
zA net or vented mat can be used between
bottles in a stack to minimise risk of
breakage. Alternatively, net sleeves can be
used to protect individual bottles.
zEnsure the protector sleeve or mat you use
allows sufficient air flow and is odour free.

17
WINE CARE
Having purchased our dual-zone Integrated Wine Cabinet, you can rest assured that
your wines are well cared for. Your Integrated Wine Cabinet model has been designed to
carefully consider both the maturation and ideal drinking temperature of all wine varieties.
Our Wine Modes have been created to offer guidance for the perfect storage conditions for
your wine, whilst allowing you adjustability to suit your personal needs.
Temperature
Temperature control is critical for the maturation of wines, as significant daily or weekly
temperature fluctuations can denature wines. If storage temperatures are excessively high
this can reduce the wines aromatic potential and can speed up maturation. This can cause
some wines to take on a ‘spoiled fruit’ flavouring. If storage temperatures are excessively
low, this can have the opposite effect and stunt a wine’s natural maturation process. This
can prevent a wine’s flavours from developing to their full potential.
Humidity
Optimum humidity levels are also important for the storage of cork enclosed wines,
especially for long term storage. Dry environments can lead to dried out corks encouraging
wine evaporation as well as oxygen permeation leading to oxidised wine. As for extremely
humid conditions, there is potential for mould growth on bottles and labels.
UV-Tempered Glass Door
Light is known to be damaging to wines, particularly UV light. Light can react with wine,
creating hydrogen sulphide compounds affecting the tannins and colour. Your Integrated
Wine Cabinet has been designed to eliminate this threat by incorporating a double
UV-tempered glass door, dark interiors and dimmed LED lighting.
Vibration
Your Integrated Wine Cabinet model has been designed to have minimal vibrations,
important for optimal wine care.
Ventilation
Wine should be stored in an odour-free environment. You Integrated Wine Cabinet model
comes with an activated carbon air filter to assist with removing taint and odour inside each
compartment.
Helpful tips:
zFollow our pre-set Wine Modes as a guideline for optimal storage and the perfect
drinking temperature.
zFor entertaining, choose from one of our four Light Modes. Light Modes will default to
Low after a certain duration to ensure the best wine care.
zIf storing wine for long durations we recommend turning the Light Mode to Off.
zStore bottles lying flat on their sides to keep the liquid up against the cork which should
keep the corks from drying out.
zAllow red wine to breathe. We suggest opening the bottle at least 1 hour before serving.
Alternatively, decant red wine into a decanter.

18
REPLACING CARBON FILTER

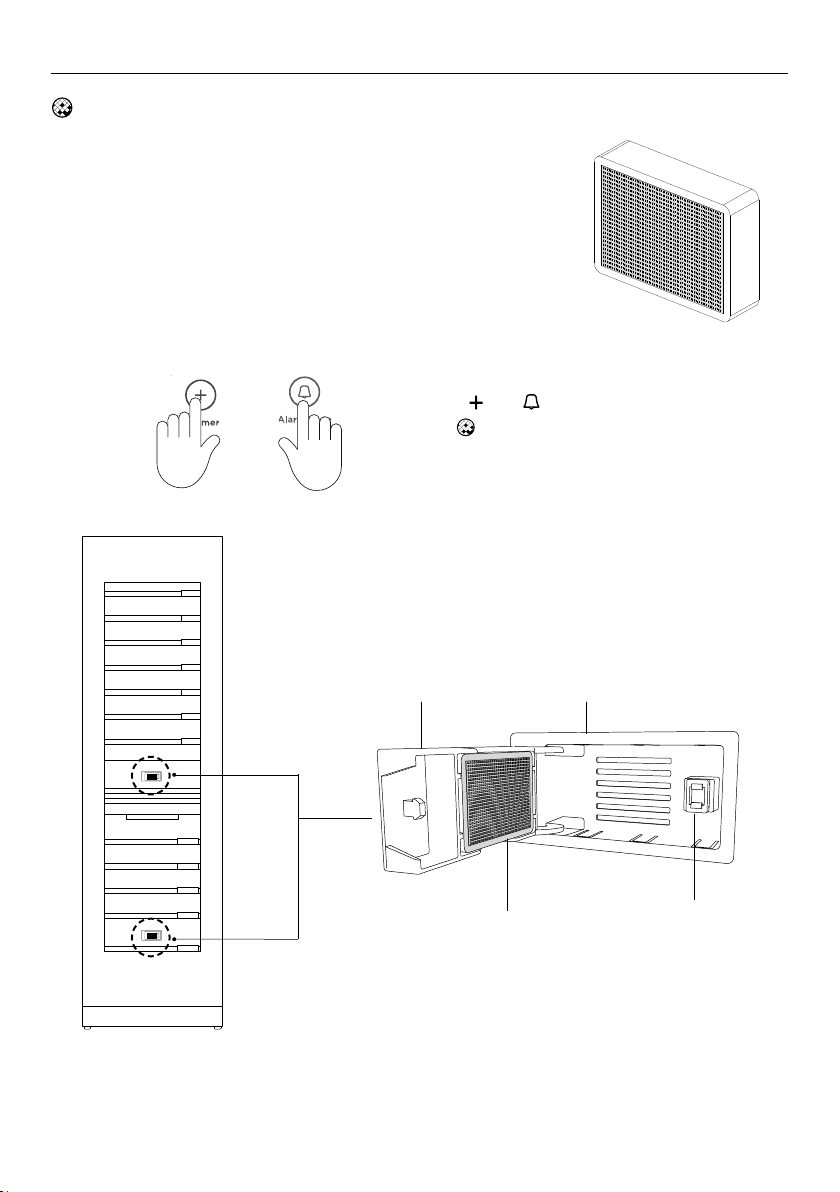

Activated carbon filters
Air quality is critical for preserving wine. Your product is
fitted with two activated carbon filters that help remove
stale, unwanted odours and replenishes with fresh air. The
filters are located internally at the bottom rear of each
compartment.
We recommend replacing the activated carbon filter every
6 months. A replacement indicator icon on the control panel
illuminates when the carbon filters needs to be replaced.
Carbon filter
To reset the filter indicator:
1
Press and together for fourseconds.
The on the control panel will turn off when
reset.
+
Carbon filter Push-open latch
Hatch Housing
Replacement filters can be purchased online from fisherpaykel.com or by calling
Fisher & Paykel Customer Care. Refer to Wine column installation guide for instructions on
replacing the filters.

19
CLEANING CARE — EXTERIOR
Glass door
Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with clean
water and dry with a clean, lint-free cloth.
Stainless steel door panel
Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with clean
water and dry with a clean, lint-free cloth.
Toe kick grilles and filter
Your Integrated Wine Cabinet is fitted with a toe kick grille to protect the internal working
components. We recommend cleaning the grille.
zThe condenser coils of your Integrated Wine Cabinet require periodic cleaning by a
Fisher&Paykel trained service technician.
zTo maximize operating efficiency, keep ventilation openings clear of obstructions by
regularly vacuuming the flooring in front of your appliance.
zMore frequent cleaning may be necessary for dusty homes or those with pets sheddinghair.
Other exterior surfaces
zWe recommend to clean the magnetic door gasket every three months with a brush (eg
old toothbrush) and liquid dishwashing agent dissolved in warm water.
IMPORTANT!
zMany commercially available cleaning products contain solvents which may attack
plastic components of your Integrated Wine Cabinet and cause them to crack.
zAvoid using anti-bacterial cleaning products on the interior or exterior of the Wine
Cabinet, as they may cause rusting of metal components and cracking of plastic
components.

20
CLEANING CARE — INTERIOR
IMPORTANT!
Remove all wooden racks prior to cleaning.
zDo not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated
detergents, solvents or abrasive scouring pads on any part of your appliance.
Some of these chemicals may damage your appliance.
zWipe interior surfaces with a mild liquid detergent dissolved in warm water and a soft
cloth. Rinse with clean water and dry with a clean, lint-free cloth.
Wooden racks
Do not use water or cleaners for general (day-to-day) cleaning as they will damage the
wood. Wine spills should be immediately wiped up to avoid rack staining. If a wine stain
has appeared, it may be spot cleaned using mild liquid detergent dissolved in warm water
and a soft cloth. Only just dampen the cloth and dab the stain to keep the wood as dry as
possible. Follow up using a damp (water only), soft cloth and then dry thoroughly with a
clean, dry cloth. If racks are heavily stained, the color may darken over time.
Replacement racks can be purchased through Fisher & Paykel Customer Care Center, or
online at finsherpaykel.com (this service is available to selected markets only)
1
2
Remove the wine bottles from the racks.
Extend the rack outward from the slides. (A)
Removing the racks
B
C
A
Lift the front end of the rack. (B)
Pull the rack towards you to remove. (C)
