Fisher & Paykel OB30SP User manual

OB30SP & OB30DP
models
BUILT-IN OVEN
INSTALLATION GUIDE
US CA

2
WARNING!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
zSave these instructions for the local inspectors use.
zPlease make this information available to the person installing the appliance — doing so
could reduce your installation costs.
zThis oven is to be installed and connected to the electricity supply only by an
authorized person.
zIf the installation requires alterations to the domestic electrical system, call a qualified
electrician. The electrician should also check that the socket cable section is suitable
forthe electricity drawn by the oven.
zThe oven must be grounded.
zInstallation must comply with your local building and electricity regulations.
zThis appliance must be installed and connected to the mains power supply only by a
suitably qualified person according to these installation instructions and in compliance
with any applicable local building and electricity regulations. Failure to install the
appliance correctly could invalidate any warranty or liability claims.
zIf the power supply cable is damaged, it must be replaced by the manufacturer,
itsservice agent or similarly qualified person in order to avoid a hazard.
zA circuit breaker is recommended.
zDo not use adaptors, reducers or branching devices to connect the oven to the mains
electricity supply, as they can cause overheating and burning.
zEnsure the cavity is completely sealed with no gaps. This is to ensure the oven cooling
system functions correctly.
zThe appliance must not be installed behind a decorative door in order to avoid overheating.
Electrical requirements
zConnect oven with copper wire only.
zDo not cut the conduit.
zA U.L. listed conduit connector must be provided at the junction box.
zDo not ground to a gas pipe.
zDo not have a fuse in the grounding or neutral circuit.
zFuse both sides of the line.
zA time delay fuse or circuit breaker is recommended. If using a time delay fuse,
thenfuse both sides of the line.
zFlexible armored cable from the appliance should be connected directly to the junction box.
zConnect directly to the fused disconnect (or circuit breaker box) through flexible,
armored or non-metallic sheathed, copper cable (with grounding wire).
zIf codes permit and a separate grounding wire is used, it is recommended that
a qualified electrician determine that the grounding path and wire gauge are in
accordance with local codes.
SAFETY AND WARNINGS
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Before carrying out any work on the electrical
section of the appliance, it must be disconnected
from the mains electricity supply.
• Connection to a good earth wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
! WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Do not use adapters, reducers, or branching
devices to connect this appliance to the mains
power supply.
! WARNING!
409 lb
186 kg
242 lb
110 kg
Very Heavy
Failure to follow this advice may result in
serious injury.
• Do not attempt to lift this product unassisted.
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – some panel edges are sharp.

3
AFTER INSTALLATION
PARTS SUPPLIED
PRIOR TO INSTALLATION
Screws
Single oven models (2)
Double oven models (4)
Spacers
Single oven models (2)
Double oven models (4)
Long Trim (1)
To be fitted in
a flush installation.
IMPORTANT!
Some environmental factors and cooking habits can cause condensation in and around the oven during use. To protect surrounding cabinetry from possible damage caused by
frequent or excessive condensation, we recommend moisture-proofing the oven cavity.
zthe countertop and oven cavity are square and level, and are the required dimensions.
zthe installation will comply with all clearance requirements and applicable standards and regulations.
zthe isolating switch will be easily accessible to the customer with the oven installed.
zthe electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1.5 metres in front of the bottom edge of the opening.
zthe cable may enter the cavity from the side, top or bottom, but top entry must be at the rear of the cavity.
zthe oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall.
zthe oven will rest on a surface that can support its weight.
zthe height from the floor suits the customer.
zyou consult local building authorities and by-laws if in doubt regarding installation.
IMPORTANT!
Please take extra care not to damage the lower trim of the oven during installation. The trim is important for correct air circulation and allows the
door to open and close without obstruction. The manufacturer does not accept any responsibility for damage resulting from incorrect installation.
zthe oven door(s) can open fully without obstruction.
zdo not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher&Paykel will not cover the costs of
removing the oven, or of damage caused by this removal.
zthe power supply cable does not touch any hot metal parts.
zthe isolating switch is easily accessible to the customer with the oven installed.
zyou complete the ‘Final checklist’ at the end of the installation.
zif, after following the instructions given, correct performance cannot be achieved, please contact your nearest Fisher&Paykel Authorized Service
Center, Customer Care, or contact us through our local website listed at the end of this document.

4
PRODUCT DIMENSIONS — SINGLE OVENS
PLAN
PROFILEFRONT G
B
A
C
F
Ed
H
PRODUCT DIMENSIONS
OB30S
INCHES MM
A Overall height of product 27 1/8 689
B Overall width of product 29 13/16 757
C Overall depth of product (excl. handle and dials) 23 15/16 608
D Depth of oven front and control panel (excl. handle and dials) 1 9/16 39
E Depth of chassis (does not include oven front) 22 3/8 569
F Height of chassis 26 9/16 675
G Depth of door (open) (measured from front of door) 21 5/8 550
H Overall width of chassis 28 5/16 719

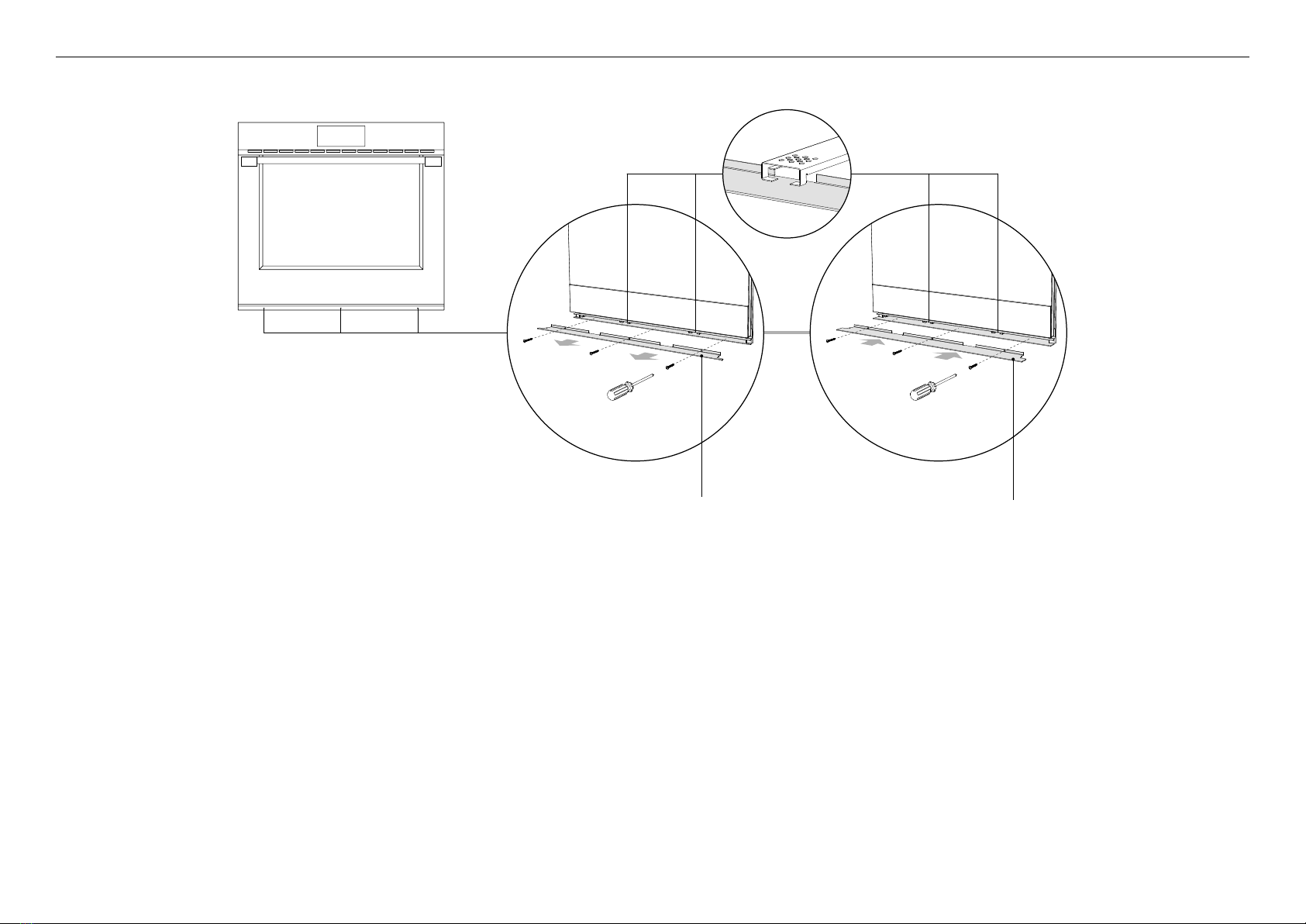

Note: If flush installing, you need to replace the lower trim with the supplied long trim at the base of the
oven, and the depth of the control panel Dwith the fitted spacer is larger than conventional ovens. Ensure
you have created a 1 5/8" (42mm) recess incabinetry.

5

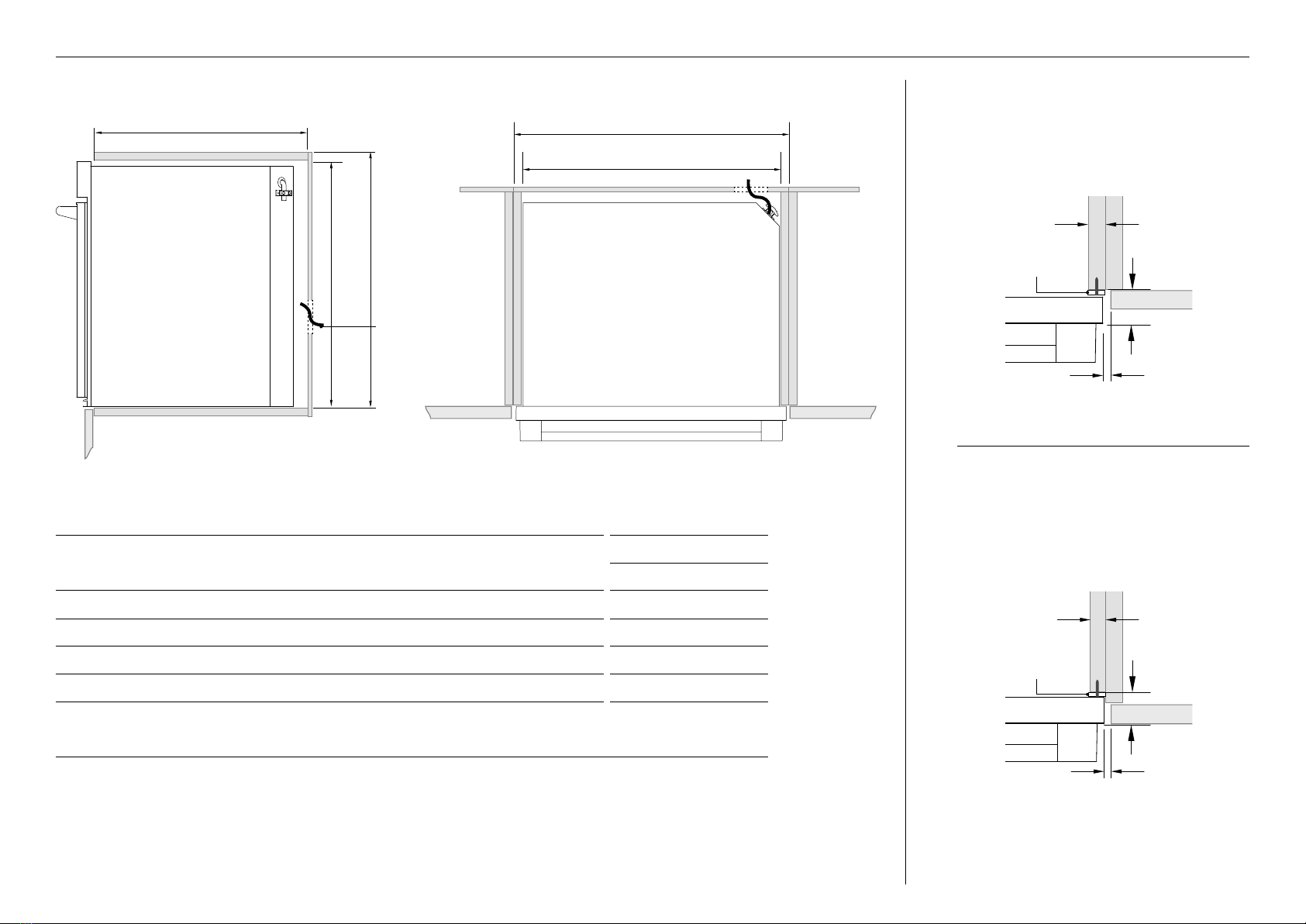

CABINETRY DIMENSIONS — SINGLE OVENS
PLANPROFILE
e b
a
c d
Electrical
Supply
CABINETRY DIMENSIONS OB30S
INCHES MM
A Minimum inside width of cavity 28 1/2 724
B Overall width of cabinetry 30 1/8 764
C Minimum inside height of cavity 26 13/16 681
D Overall height of cabinetry 27 3/8 693
E Minimum inside depth of cavity
zProud install
zFlush install
22 5/8
24 3/16
575
614
Notes:
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’sinstructions.
Ensure the cavity is completely sealed with no gaps. This is to ensure the oven cooling system functions correctly.
PROUD INSTALL
FLUSH INSTALL
5/8 – 13/16"
(16-20mm)
1 – 5/8"
(42mm)
min 1/16"
(2mm)
spacer
5/8 – 13/16"
(16-20mm)
1 – 5/8"
(42mm)
min 1/16"
(2mm)
spacer

6
PRODUCT DIMENSIONS — DOUBLE OVENS
PRODUCT DIMENSIONS OB30D
INCHES MM
A Overall height of product 48 1/2 1232
B Overall width of product 29 13/16 757
C Overall depth of product (excl. handle and dials) 23 15/16 608
D Depth of oven front and control panel (excl. handle and dials) 1 9/16 39
E Depth of chassis (does not include oven front) 22 7/16 569
F Height of chassis 47 15/16 1218
G Depth of upper door (open) (measured from front of door) 21 5/8 550
H Depth of lower door (open) (measured from front of door) 20 7/8 530
I Overall width of chassis 28 5/16 719
Note: If flush installing, you need to replace the lower trim with the supplied long trim at the base of the
oven, and the depth of the control panel Dwith the fitted spacer is larger than conventional ovens. Ensure
you have created a 1 5/8" (42mm) recess incabinetry.
PLAN
PROFILEFRONT
G
h
B
A
C
F
ED
i

7
CABINETRY DIMENSIONS — DOUBLE OVENS
CABINETRY DIMENSIONS OB30D
INCHES MM
A Minimum inside width of cavity 28 1/2 724
B Overall width of cabinetry 30 762
C Minimum inside height of cavity 48 3/16 1224
D Overall height of cabinetry 48 11/16 1236
E Minimum inside depth of cavity
zProud install
zFlush install
22 5/8
24 3/16
575
614
Notes:
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’sinstructions.
Ensure the cavity is completely sealed with no gaps. This is to ensure the oven cooling system functions correctly.
PROFILE PLAN
e
b
a
c d
Electrical
Supply
PROUD INSTALL
FLUSH INSTALL
5/8 – 13/16"
(16-20mm)
1 – 5/8"
(42mm)
min 1/16"
(2mm)
spacer
5/8 – 13/16"
(16-20mm)
1 – 5/8"
(42mm)
min 1/16"
(2mm)
spacer

8

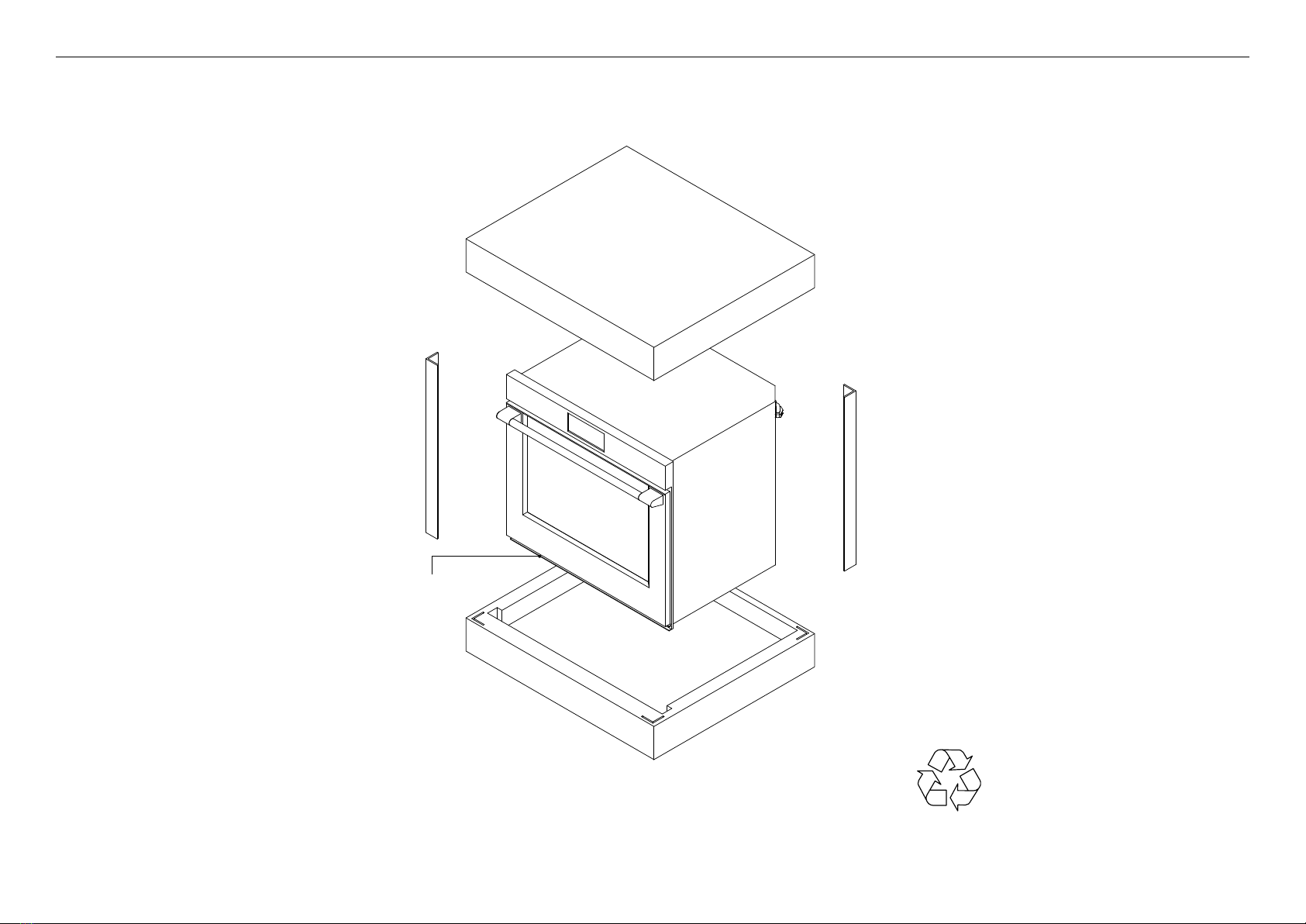

UNPACKING THE OVEN
Single model shown for illustration purposes only
IMPORTANT!
zWhen you remove the oven from the carton
be careful not to damage the lower trim.
Thetrimisimportant for both ventilation and to
ensure the door opens fully without obstruction.
zEnsure you remove the Long Trim
from thepackaging.
Remove the accessories box from
the top of the oven and set aside.
Recycle responsibly.
Lower trim

9
IMPORTANT!
zTake care, the oven door is heavy.
zDo not lift the oven door by its handle. Doing so may damage the door.
zEnsure the oven and the door are cool before you begin to remove the door.
zBefore removing the door, ensure there is a large enough clear, protected surface in the kitchen to rest the door on.
To remove the door(s) To refit the door(s)
Holding the door at 45°, carefully
align the hinge tongues with the
hinge slots. Push the door in until
you feel the latches locate into
position on each side.
Open the door completely and
ensure both hinges are secured
by the correct notches.
Rotate the locks up into the
closed position ensuring they rest
inside the slots completely. Note:
Incorrect installation will prevent
door from correctly sealing.
1
2
3
Open the door completely.
Open the hinge locks fully
on both sides
Holding the door on both
sides, lift door back up to 45°
and carefully pull the door out
and away from the hinges.
1
2
3
Close the oven door ensuring that
when closed, the door is vertical and
parallel to any surrounding cabinetry
4
REMOVING AND REFITTING THE DOOR(S)

10

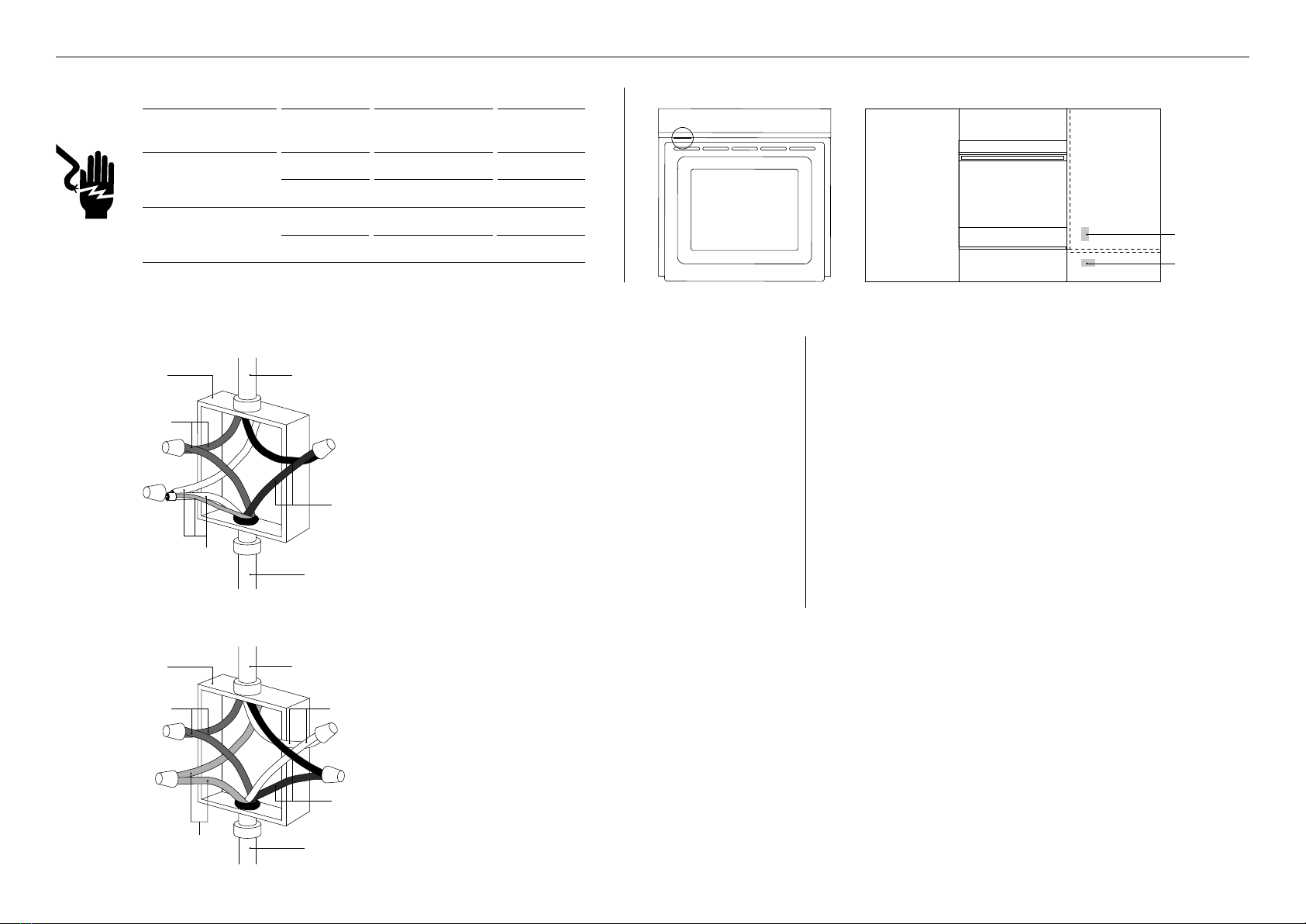

ELECTRICAL CONNECTION TO JUNCTION BOX
If local codes permit connecting the cabinet-grounding
conductor to the neutral (white) wire in the junction box:
1 Disconnect the power supply.
2 Remove the junction box cover.
3 Connect the oven cable to the junction box through
the U.L. listed conduitconnector.
4 Connect the two black wires together with
twist-on connectors.
5 Connect the two red wires together with twist-on
connectors.
6 Connect electrical connection according to local
codes andordinances.
7 Connect the factory-taped green and white oven cable
wires to the neutral (white) wire in the junction box.
8 Replace the junction box cover.
Four-wire electrical system
1 Disconnect the power supply.
2 Remove the junction box cover.
3 Connect the oven cable to the junction box through the U.L.-listed conduit connector.
4 Connect the two black wires together with twist-on connectors.
5 Connect the two red wires together with twist-on connectors.
6 Connect electrical connection according to local codes and ordinances.
7 Separate the green and white oven cablewires.
8 Connect the white oven cable wire to theneutral (white) wire in junction box.
9 Connect the green grounding oven cable wire to the (green) grounding wire in thejunction box.
Do not connect the green grounding wire to the neutral (white) wire in junction box.
!0 Replace the junction box cover.
If local codes DO NOT PERMIT connecting the cabinet-grounding
conductor to the neutral (white) wire in junction box:
1 Disconnect the power supply.
2 Remove the junction box cover.
3 Connect the oven cable to the junction box through the U.L.-
listed conduit connector.
4 Connect the two black wires together with twist-on connectors.
5 Connect the two red wires together with twist-on connectors.
6 Connect electrical connection according to local codes and
ordinances.
7 Separate the factory-taped green andwhite oven cable wires.
8 Connect the white oven cable wire to the neutral (white) wire
in junction box.
9 Connect the green grounding oven cable wire to a grounded
wire in the junctionbox.
!0 Replace the junction box cover.
Connection methods
MODEL VOLTAGE MAX CURRENT
DRAW MAX LOAD
OB30 Single 208 V 16.6 A 3.5 kW
240 V 19.4 A 4.6 kW
OB30 Double 208 V 33.2 A 7.0 kW
240 V 38.3 A 9.2 kW
a
B
cable from
power supply
Junction box locations
junction box
location for
undercounter
installation
junction box
location for
wall installation
cable from
power supply
box
black
wires
black
wires
red
wires
red
wires
green grounding
oven wires –
factory taped
white
wires
white and
green grounding
oven wires –
factory taped
U.L.-listed
conduit
connector
U.L.-listed
conduit
connector
Nameplate location
box

11
SECURE THE OVEN TO THE CABINETRY
IMPORTANT!
zDo not lift the oven by the door handle.
zDo not over-tighten the screws.
zDo not seal the oven into the cabinetry with silicone or glue.
This makes future servicing difficult. Fisher & Paykel will not
cover the costs of removing the oven, or of damage caused
by this removal.
1 Position the oven in the prepared cavity.
2 Open the oven door fully.
3 Mark and pre-drill the screw holes.
4 Use the supplied screws to secure the oven to the cabinetry.
Ensure supplied spacer is fitted between oven and cabinetry.
spacer

12
FLUSH INSTALLATION ONLY — REPLACE THE LOWER TRIM WITH THE SUPPLIED LONG TRIM
Unscrew and remove
the installed lower trim Replace with the
supplied long trim

13
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
 Ensure the oven is level and securely fitted to the cabinetry.
 Check the lower trim is undamaged.
 Open the oven door slowly until it is fully open and check there is
adequate clearance between the bottom of the door and the lower trim.
This is to ensure correct air circulation. Should the lower trim become damaged,
straighten the trim and ensure the oven door opens fully without obstruction.
 Ensure you remove all internal packaging (including the circular yellow packing
retainers holding the accessory box in place).
 Ensure all oven vents and openings are clear and free of any obstruction or damage.
IMPORTANT!
Failure to ensure all oven vents are clear may result in poor product performance.
 Ensure the isolating switch is accessible by the customer.
TEST OPERATION:
 Turn the power to the oven on. The display should light up.
 Set the clock following the instructions in the ‘User guide’.
 Set the oven to Bake at 120°F (50oC). The light should come on inside the oven cavity
and air should blow out of the vent at the top of the oven. After five minutes, open
the oven door: the air inside should feel warm. Turn the oven off.
 Have you demonstrated the basic operation to the customer?
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date

US CA
592096A 10.19
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this document apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You should
therefore check with your Dealer to ensure this booklet correctly describes the
product currently available.
