Fisher & Paykel OB60Series User manual

Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our
local website listed at the end of this document or contact your local Fisher & Paykel dealer.
SAFETY AND WARNINGS
1
WARNING!
Electrical shock hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Fire hazard
Do not use adapters, reducers, or branching devices to connect this appliance to
the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
Important safety instructions!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
Please make this information available to the person installing the appliance - doing so could reduce
your installation costs.
This appliance must be installed and connected to the mains power supply only by a suitably qualified
person according to these installation instructions and in compliance with any applicable local
building and electricity regulations. Failure to install the appliance correctly could invalidate any
warranty or liability claims.
If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Multifunction ovens
Installation instructions
OB60 models NZ AU GB IE SG
(1,1) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(1,1) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

2PRODUCT & CABINETRY DIMENSIONS
Product dimensions (mm)
OB60S
OB60N
Aoverall height* of product 597 450**
Boverall width of product 595 595
Coverall depth of product (excluding handle and knobs) 565 554
Dheight of chassis 582 436
Ewidth of chassis 556 536
Fdepth of chassis 545 534
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 20 20
Hdepth of oven door when fully open (measured from front of
control panel) 435 289
Iminimum inside width of cavity 560 560
IIoverall width of cavity 600 600
Jinside height of cavity 585 440**
JIoverall height of cavity 600 455**
Kminimum inside depth of cavity 550 550
Lflush fitting cabinetry clearance 20 20
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’s instructions.
*All height measurements include mounted feet.
** If tting the lower trim extension kit, the overall height of product (A) increases by 25 mm (to 475 mm).
The height of the cavity (J and Ji) therefore needs to be increased by 25 mm also (to 465 mm and 480 mm respectively).
Product dimensions (mm)
OB60B
OB60D
Aoverall height* of product 888 1077
Boverall width of product 595 595
Coverall depth of product (excluding handle and knobs) 565 565
Dheight of chassis 874 1057
Ewidth of chassis 556 556
Fdepth of chassis 545 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 20 20
Hdepth of upper oven door when fully open
(measured from front of control panel) 261 435
HIdepth of lower oven door when fully open
(measured from front of control panel) 435 450
Iminimum inside width of cavity 560 560
IIoverall width of cavity 600 600
Jinside height of cavity 877 1065
JIoverall height of cavity 893 1082
Kminimum inside depth of cavity 550 550
Lflush fitting cabinetry clearance 20 20
*All height measurements include mounted feet.

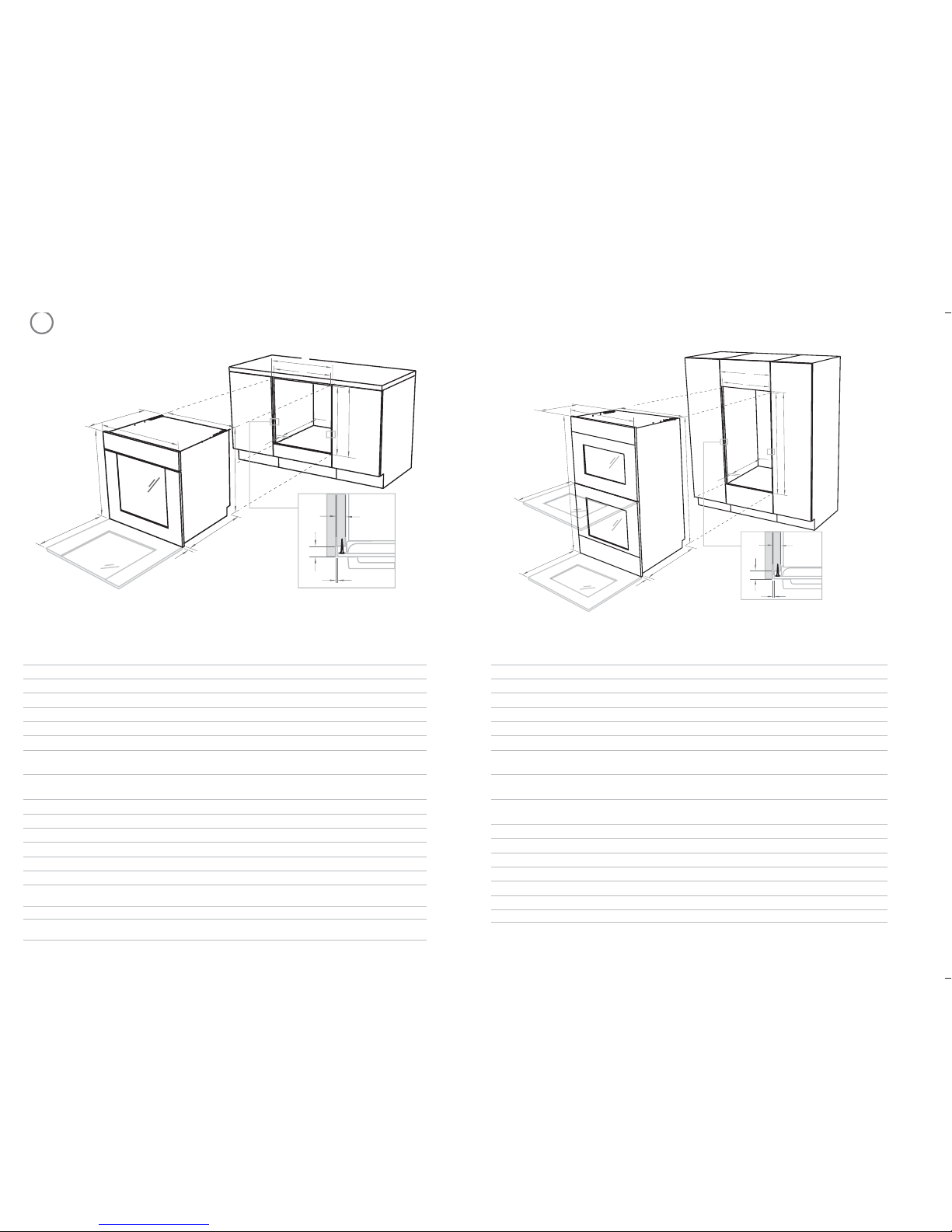

OB60S & OB60N MODELS
Installation diagrams for
illustration purposes only
2.5 mm
16-20 mm
A
CE
D
F
G
H
J
K
L
L
I
II
JI
B
2.5 mm
16-20 mm
L
A
CE
D
F
G
H
HI
J
K
L
I
II
JI
B
OB60B & OB60D MODELS
(1,2) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(1,2) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

LOWER TRIM
OVEN DOOR
LOWER TRIM
AIR FLOW
FEET
PRIOR TO INSTALLATION
UNPACKING THE OVEN
3
4
5ELECTRICAL CONNECTION
Before you install the oven, make sure that
the benchtop and oven cavity are square and level, and are the required dimensions
the installation will comply with all clearance requirements and applicable standards and regulations
a suitable isolating switch providing full disconnection from the mains power supply is incorporated in
the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap contact separation
in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the
requirements)
the isolating switch will be easily accessible to the customer with the oven installed
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the cavity for
ease of installation and servicing
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall
the oven will rest on a surface that can support its weight
the height from the floor suits the customer
you consult local building authorities and by-laws if in doubt regarding installation.
Important!
Some environmental factors and cooking habits can cause condensation in and around the oven during use.
To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation, we
recommend moisture-proofing the oven cavity.
Important!
This oven must be connected to the mains power supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power supply, check that
the domestic wiring system is suitable for the power drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value given on the rating plate.
Important!
Do not lift the oven by the door handle.
Remove all packaging and dispose of it responsibly. Recycle items that you can.
Place the unpacked oven onto wooden blocks or similar supports to prevent damaging the lower trim.
You may remove the feet, but ensure the oven does not sit on the lower trim
Important!
The lower trim ensures correct air circulation and allows the door to open and close without obstruction. The
manufacturer does not accept any responsibility for damage resulting from incorrect installation.
OB60B & OB60D MODELS
OB60S & OB60N MODELS
Model code Power Voltage
OB60SLC... 2350-2550 W 230 - 240 V~
OB60SLM... 3070 W 220-240 V~
OB60SCE... 3070 W 220-240 V~
OB60SCM... 3070 W 220-240 V~
OB60SCT... 3600 W 230 V~
OB60SDT... 3600 W 230 V~
OB60S9D... 3400 W 220-240 V~
OB60SV... 3070 W 220-240 V~
OB60NL... 2050 W 220-240 V~
OB60NC... 2800 W 220-240 V~
OB60ND... 2800 W 220-240 V~
Model code Power Voltage
OB60BC... 5800 W 220 - 240 V~
OB60BD... 5800 W 220 - 240 V~
OB60B77C... 5850 W 220 - 240 V~
OB60B77D... 5850 W 220 - 240 V~
OB60DD... 6120 W 220 - 240 V~
E
N
L
1 (L ) 2
Unhook to open cover
1
2
Unscrew to open
cable clamp
E
N
L1(L )2
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L
D
1
2
Unscrew to
remove cover
plate
Unscrew to remove
cable clamp
(2,1) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(2,1) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

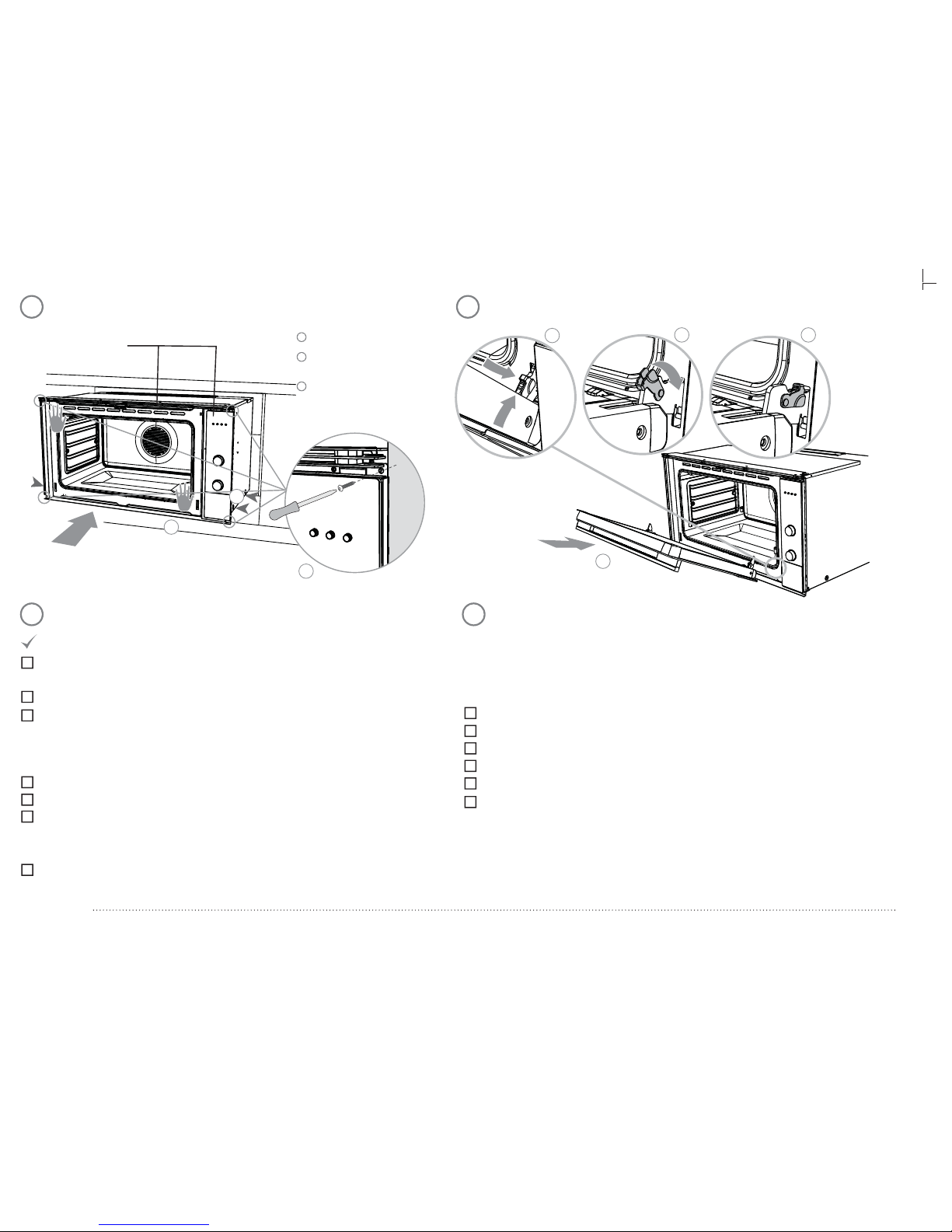

SECURING OVEN TO CABINETRY
6
1 Position the oven in the prepared cavity.
Important!
Do not lift the oven by the door handle.
2 Open the oven door fully.
3 Use the supplied screws to secure the oven to the cabinetry.
Important!
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult.
Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
2.5 mm
Make sure the oven is level and securely fitted to the cabinetry and the oven
door opens and closes freely.
Make sure all the internal packaging has been removed from the oven cavity.
Make sure all oven vents and openings are clear and are free of any
obstruction/damage.
Check the lower trim is still undamaged - open the oven door slowly to its fully
open position and check if there is adequate clearance between the bottom of
the door and the lower trim. This is to ensure correct air circulation. Should the
lower trim become damaged, straighten the trim and ensure the oven door
opens fully without obstruction.
Check that the power supply cable does not touch any metal parts that can
become hot during use.
Make sure that the isolating switch is easily accessible by the customer.
Turn the power to the oven on. On some models, the display should light up
and show 0:00.
Advise the customer to follow the instructions in their user guide in section
‘First use’.
7FINAL CHECKLIST
www.sherpaykel.com F&P Italy Part No. 1103268-ß6 599790F NZ AU GB IE 06.13
(2,2) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(2,2) -1- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

WARNING!
Electrical hazard
Always disconnect the oven from
the mains electricity supply
before carrying out any
maintenance operations or
repairs.
Failure to do so may result in
electrical shock or death.
Important safety instructions!
To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce your
installation costs.
This oven is to be installed and connected to the electricity supply only by an authorised person.
If the installation requires alterations to the domestic electrical system, call a qualified electrician. The
electrician should also check that the power supply cable section is suitable for the electricity drawn by the
oven.
The oven must be earthed.
Do not use adapters, reducers or branching devices to connect the oven to the mains electricity supply,
as they can cause overheating and burning.
Installation must comply with your local building and electricity regulations.
Failure to install the oven correctly could invalidate any warranty or liability claims.
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local
website listed at the end of this document or contact your local Fisher & Paykel dealer.
SAFETY AND WARNINGS
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
1
Before you install the oven, please make sure that
it will be lifted by two people.
the oven will rest on a flat surface that can support its weight.
the benchtop and oven cavity are square and level, and are the required dimensions.
the height from the floor suits the customer.
the oven door can open fully without obstruction.
a suitable isolating switch providing full disconnection from the mains power supply (under overvolta
g
category III conditions) is incorporated in the permanent wiring, mounted and positioned to comply
w
the local wiring rules and regulations. The isolating switch must be of an approved type and provide a
mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules a
for this variation of the requirements).
the electrician provides sufficient free length of power supply cable to reach from the bottom rear of t
cavity to at least 1.5 metres in front of the bottom edge of the opening. The cable may enter the cavit
y
from the side, top or bottom, but top entry must be at the rear of the cavity.
When you install the oven
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fish
e
Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
Use the supplied screws to secure the oven to the cabinetry. Do not over-tighten the screws.
Make sure that the power supply cable will not touch any hot metal parts.
Make sure that the isolating switch will be easily accessible by the customer.
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
Take extra care not to damage the lower trim of the oven. We suggest you place the unpacked oven o
n
wooden blocks or similiar supports.
When handling the oven, take care not to damage the door sensor lever
(near the top right corner of the oven seal).
Use easy-to-clean finishes for the wall surfaces surrounding the oven, so that cooking fume staining
resulting from using the oven is easy to remove.
124 lb
56 kg
WARNING!
Very Heavy
Do not attempt to lift this
product unassisted.
Lifting unassisted may
cause serious injury.
Multifunction ovens
Installation instructions
OB90 models NZ AU GB IE
(2,2) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(2,2) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

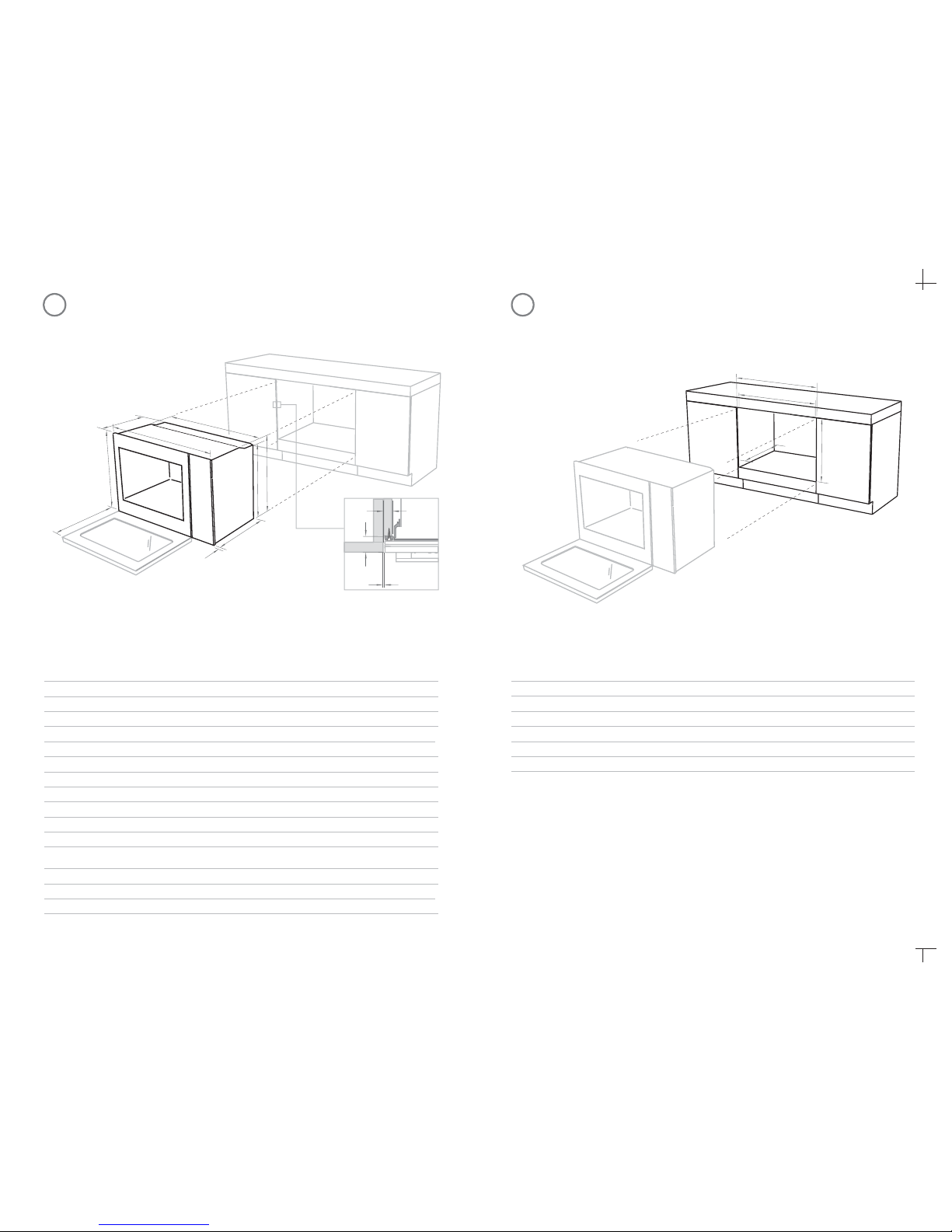

2PRODUCT DIMENSIONS
A
B
CE
F
G
H
Product dimensions (mm)
OB90
models
Aoverall height of product (including upper and lower vents) 478
Boverall width of product 895
Coverall depth of product (excludes handle and dials) 564
Dheight of chassis at the rear 464
DIoverall height of chassis 468
Emaximum width of chassis 853
Fdepth of chassis 544
Gdepth of oven frame and control panel (excludes handle and dials) 20
Hdepth of oven door (open) (measured from front of door) 418
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the
cooktop manufacturer’s instructions.
B
D
C
A
Installation diagrams for illustration purposes only
BI
DI
Ensure the cavity is completely sealed with no gaps
Cabinetry dimensions (mm)
OB90
models
Aminimum inside depth of cavity 550
Bminimum inside width of cavity 860
BIoverall width of cabinetry 900
Cheight of cavity 480
3CABINETRY DIMENSIONS
G
16-20 mm
2.5 mm
(2,1) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(2,1) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

EN
L1(L )2
1
2
4
12 3
g
e
w
ith
3
llow
he
y
e
r &
n
to
45
67
UNPACK THE OVEN REMOVE THE DOOR
ELECTRICAL CONNECTION HARD WIRING THE OVEN
Rating plate
Unhook to
open cover
Unhook to open
cable clamp
We recommend that the outlet for the power supply cable is located in the right rear corner of
the cabinet cavity. This allows the power supply cable to sit inside the right rear of the oven and
prevents it being jammed between the cabinet wall and the rear of the oven.
Connecting the oven to the
mains power supply
Important!
This oven must be connected to the
mains power supply only by a suitably
qualified person.
This oven must be earthed.
Before connecting the oven to the
mains power supply, check that
the domestic wiring system is suitable
for the power drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value
given on the rating plate.
OB90 - NZ AU GB IE
220-240 V 4400 W (19.1 A)
OB90 - IT
220-240 V 3500 W (15.2 A)
(1,2) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(1,2) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM

89
3
4
12 3
1
2
SECURE THE OVEN TO THE CABINETRY
Take care not to
damage the upper
trim of the oven or
the door sensor lever
1Lift from both sides placing
hands under the oven chassis
2Push oven in, ensuring you’re
not pushing on the vents or
control panel
3Secure oven to cabinetry using
supplied scews
x4
Make sure the appliance is level and securely fitted to the cabinetry and the
oven door opens and closes freely.
Make sure all the internal packaging has been removed from the oven cavity.
Make sure all oven vents and openings are clear and are free of any
obstruction/damage.
Important!
Failure to make sure all oven vents are unobstructed may result in poor product performance.
Make sure that the isolating switch is accessible by the customer.
Turn the power to the oven on. The display should light up and show 0:00.
Turn the oven function dial to ‘Bake’. Air should blow out of the vent at the top
of the oven. Inside the oven cavity, both oven lights should come on. After
five minutes, open the oven door: the air inside should feel warm.
Turn the oven function dial back to OFF.
TROUBLESHOOTING
If the appliance is not functioning correctly after installation, check the
following:
Check that the circuit breaker has not tripped or the fuse blown.
Make sure that the electrical connections have been correctly made.
Make sure that power is being supplied to the oven.
Make sure the voltage is correct across all phases.
If a problem occurs, consult the Troubleshooting section of the User Guide.
If after checking these points you still need assistance or parts, please refer to
the Service & Warranty book for warranty details and your nearest Authorised
Repairer, or contact us through our local website, listed below.
10 11
FINAL CHECKLIST
www.sherpaykel.com F&P Italy Part No. 1103268-ß6 599790F NZ AU GB IE 06.13
REFIT THE DOOR
(1,1) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
(1,1) -2- 599790F OB60&OB90 installA2 NZGB.indd 24/05/13 2:37 PM
