A NOTE TOYOU
SPECIAL TALENTS
OVEN SAFETY
GETTING TO KNOW YOUR AEROTECHTM OVEN
Location of Features_Accessories
USING YOUR OVEN
Setting the Clock 8
OvenModes 10
OptfleveF 13
Accessories 14
OvenOperation 16
User Select Options 23
Cooking Charts 25
CAREAND CLEANING
Cleaning YourOven 32
Self CleaningMode 33
TroubleShooting 35
WARRANTY
For USAand Canada 38
For New Zealand _Australia 40
Proof of Purchase 40
CUSTOMER CARE 41

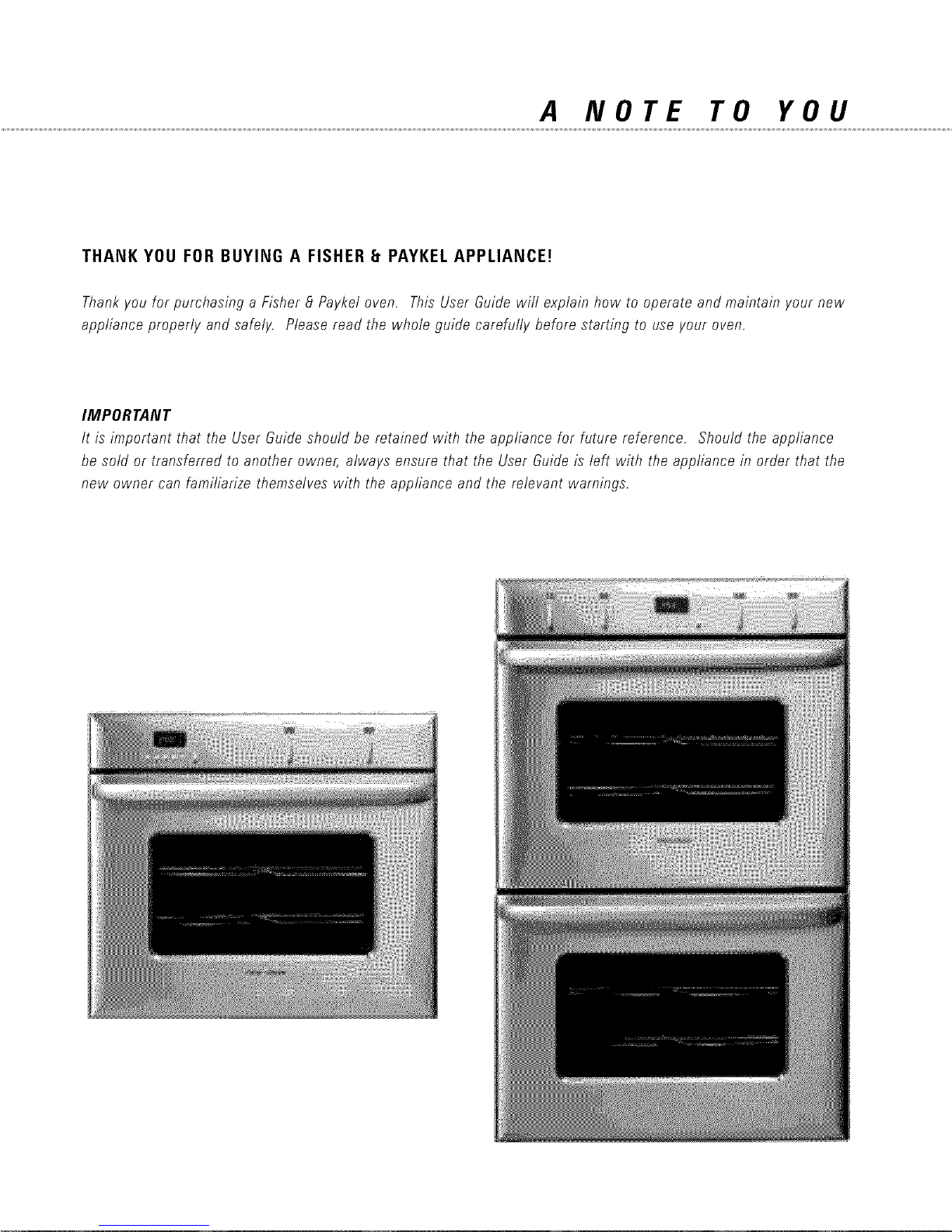

A IVOTE TO YOU
THANK YOU FOR BUYING A FISHER 8 PAYKEL APPLIANCE!
Thankyou for purchasing a Fisher _Payketoven. This User Guide wilt explain how to operate and maintain your new
appliance properly and safely. Pleaseread the whole guide carefully before starting to useyour oven.
IMPORTANT
It is important that the User Guideshould be retained with the appliance for future reference. Should the appliance
be sold or transferred to another owner, always ensurethat the User Guideis left with the appliance in order that the
new owner can familiarize themselveswith the appliance and the relevant warnings.

SPECIAL TALENTS
OPTILEVEL TM
Allows you to choose the optimum shelf position. With thirteen different positions
available OptitevetTM gives you the ultimate in cooking flexibility.
oerOY_©N TM
Dynamic true convection gives an even air temperature throughout the entire oven
providing you with excellent results every time.

BLUE DIAMOND TM PORCELAIN INTERIOR
Threehalogen lights and Blue Diamond_porcelain enamel teamed with crisp contours
and refined elegance make this oven a pleasure to use.
DIALTRONIC TM
Preciseelectronics teamed with individual displays and a familiar dial gives you
simplicity in control.

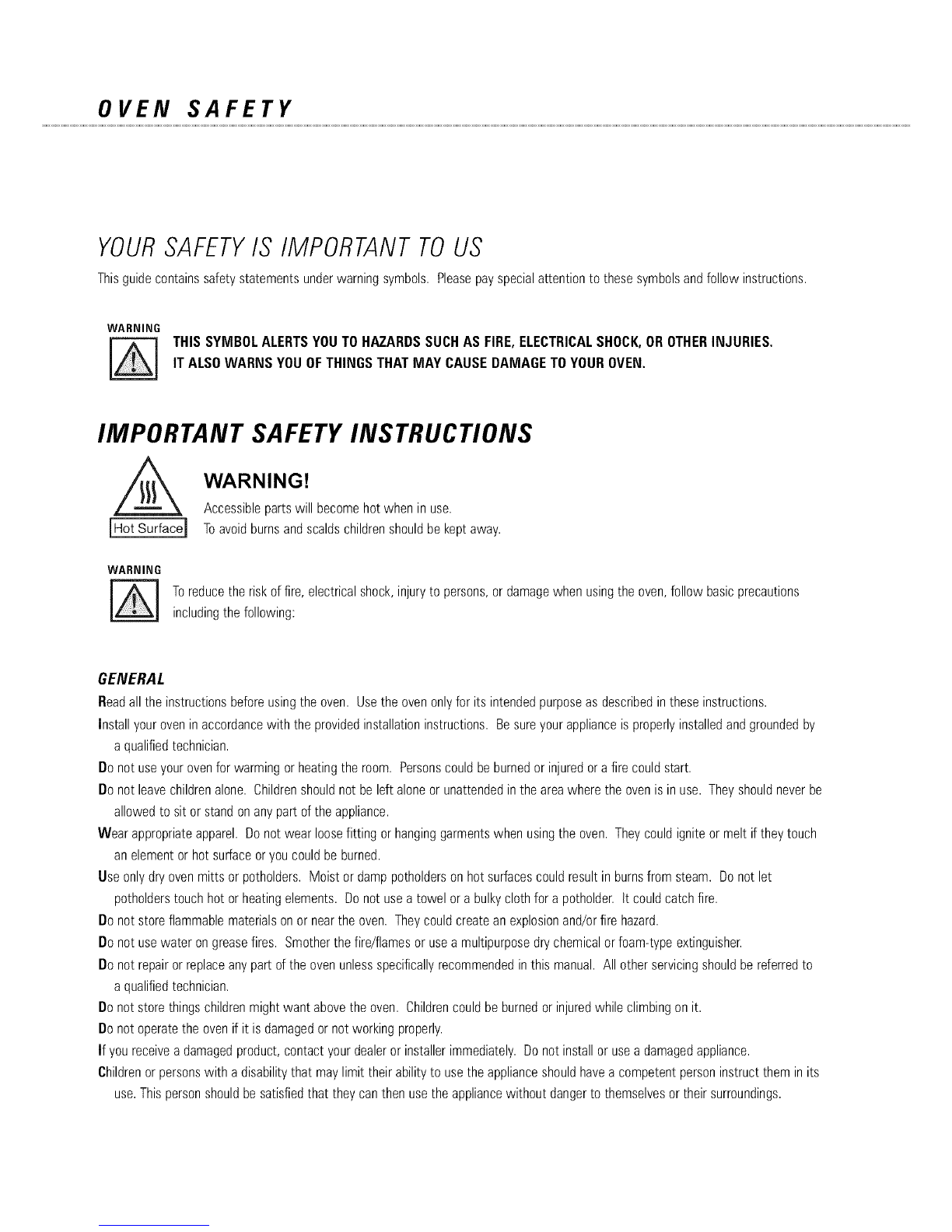

OVEN SAFETY
YOURSAFETYIS IMPORTANTTOUS
Thisguidecontainssafetystatementsunderwarningsymbols.Pleasepayspecialattentionto thesesymbolsandfollow instructions.
WARNING
THIS SYMBOL ALERTS YOU TO HAZARDS SUCH AS FIRE, ELECTRICAL SHOCK, OR OTHER INJURIES.
IT ALSO WARNS YOU OF THINGS THAT MAY CAUSE DAMAGE TO YOUR OVEN.
IMPORTANT SAFETYINSTRUCTIONS
A
[Hot SurfaceI
WARNING!
Accessiblepartswill becomehotwheninuse.
Toavoidburnsandscaldschildrenshouldbekeptaway.
WARNING
1_ o reduce the riskof fire, electrical shock, injury to persons, or damage when using the oven, follow basic precautions
including the following:
GENERAL
Readall theinstructionsbeforeusingtheoven. Usetheovenonlyfor itsintendedpurposeas describedintheseinstructions.
Installyourovenin accordancewith the providedinstallationinstructions.Besureyourapplianceis properlyinstalledandgroundedby
a qualifiedtechnician.
Donotuseyourovenfor warmingorheatingthe room. Personscouldbeburnedor injuredora firecouldstart.
Donotleavechildrenalone.Childrenshouldnotbe leftaloneor unattendedinthe areawherethe ovenis inuse. Theyshouldneverbe
allowedto sit or standonanypartoftheappliance.
Wearappropriateapparel.Donotwearloosefittingor hanginggarmentswhenusingtheoven. Theycouldigniteor melt iftheytouch
an elementor hotsurfaceoryoucouldbeburned.
Use onlydryovenmitts or potholders.Moistor damppotholderson hotsurfacescouldresultin burnsfrom steam. Donotlet
potholderstouchhotorheatingelements. Donotusea towel or a bulkyclothfor a potholder.It couldcatchfire.
Donotstoreflammablematerialsonor neartheoven. Theycouldcreateanexplosionand/orfirehazard.
Donotusewater ongreasefires. Smotherthefire/flamesor usea multipurposedrychemicalorfoam-typeextinguisher.
Donotrepairor replaceanypartoftheovenunlessspecificallyrecommendedinthis manual.All otherservicingshouldbe referredto
a qualifiedtechnician.
Donotstorethingschildrenmightwant abovethe oven. Childrencouldbe burnedorinjuredwhileclimbingonit.
Donotoperatethe ovenif it is damagedor notworkingproperly.
If youreceiveadamagedproduct,contactyourdealeror installerimmediately.Donotinstallor usea damagedappliance.
Childrenor personswith adisabilitythat maylimit theirabilityto usetheapplianceshouldhavea competentpersoninstructthemin its
use.Thispersonshouldbesatisfiedthat theycanthenusethe appliancewithoutdangerto themselvesor theirsurroundings.

WHEN USING THE OVEN
Donottouchheatingelementsorinteriorsurfacesoftheoven, Heatingelementsmaybe hoteventhoughthey
aredarkincolor. Interiorsurfacesofan ovenbecomehotenoughto causeburns. Duringandafterusedo not
touchorlet clothingor otherflammablematerialscontactheatingelementsorinteriorsurfacesoftheoven
untilthey havehadsufficienttime tocool. Othersurfacesofthe oven,suchasthe ovenvent openingandthe
ovendoorandwindowcouldalsobecomehotenoughto causeburns.
Alwayspositionovenshelvesinthe desiredlocationwhileoveniscool, If a shelfmustbe removedwhilethe
ovenishotdonotletthe potholdercontacthot heatingelementsintheovenorthe baseof theoven.
Usecarewhenopeningthe ovendoor. Lethotairor steamescapebeforeremovingor replacingfood.
Donotheatunopenedfoodcontainers.Theycanbuilduppressurethat maycausethecontainerto burstand
resultininjury.
Alwayskeepovenventductsunobstructed.
Useonlycookwareapprovedforovenuse. Followthecookwaremanufacturersinstructions.
Disconnecttheelectricalsupplybeforeservicingtheoven.
CARE AND CLEANING
Smallamountsofharmfulchemicalsaregivenoff inthe self-cleaningcyclefrom insulationandfood
decomposition.Significantexposureto thesesubstancescancausecancerorreproductiveharm. Ventingwith
a hoodoropenwindowandwipingoutexcessfoodspillspriorto self-cleaningcanminimizeexposure.
Do notuseovencleaners.Nocommercialovencleaner,ovenlinerorprotectivecoatingofanykindshouldbe
usedin oraroundanypartofthe oven.
Beforeself cleaningtheoven,removethethree-piecebroilingsystem,anycookwareandthe ovenshelves.Do
not useyourovento cleanmiscellaneousparts.
Do notcleanthedoororcavityseals(gaskets)or useanyovencleaningproductsonthe seals.Theyareessential
fora goodsealandefficientoperationoftheoven.
Careshouldbe takennotto rub,damageor movethe seals.
Donotusea steamcleanerto cleanyouroven,
Cleanonlypartsrecommendedin thisUserGuide.
Formoreinformation,seeCareandCleaning,page32.

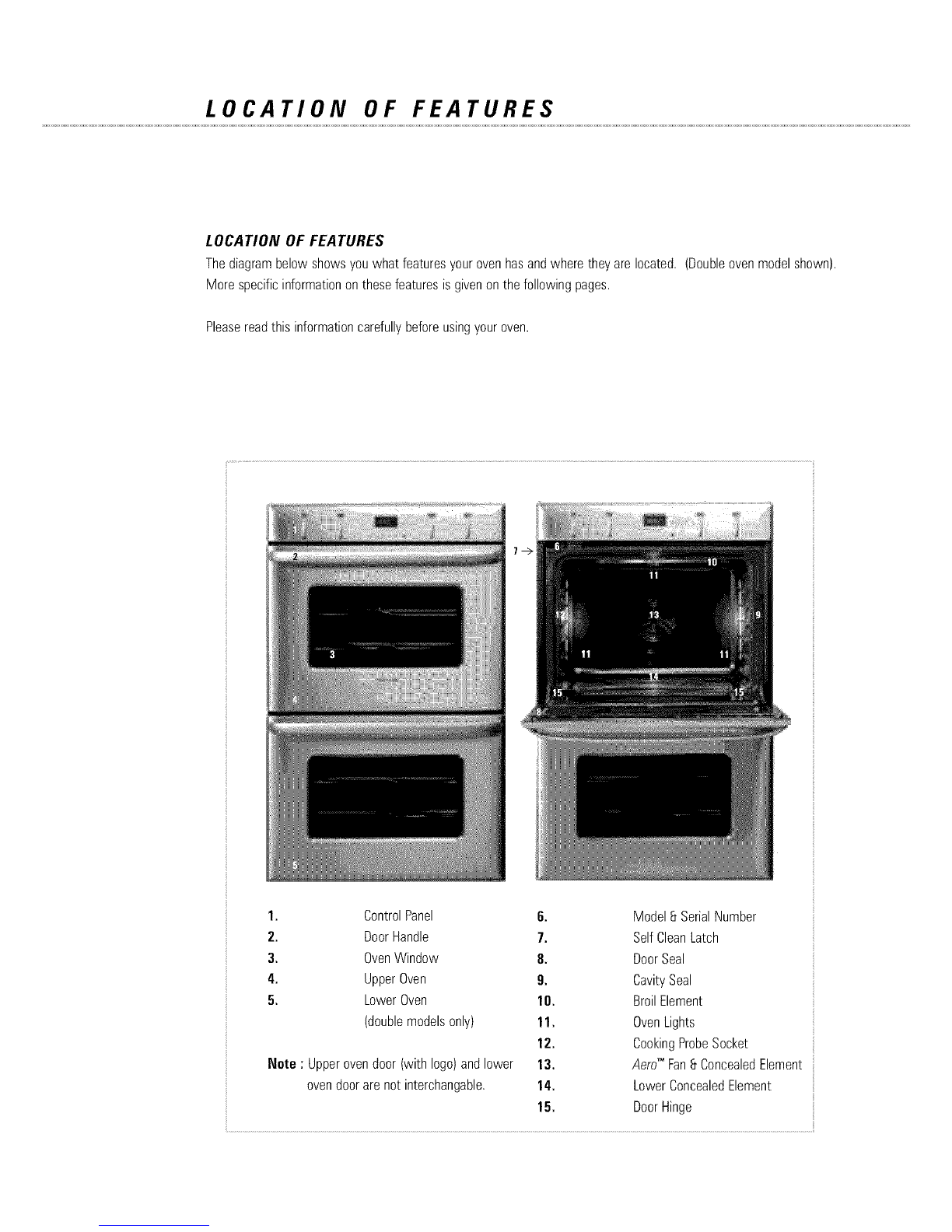

LOCATION OF FEATURES
LOCATION OF FEATURES
Thediagrambelow showsyouwhat featuresyourovenhasandwheretheyarelocated. (Doubleovenmodelshown).
Morespecificinformationonthesefeaturesisgivenonthefollowingpages.
Pleasereadthis informationcarefullybeforeusingyouroven.
I. ControlPanel
2. DoorHandle
3. OvenWindow
4. UpperOven
5. LowerOven
(doublemodelsonly)
Note : Upperovendoor (withlogo)andlower
ovendoorarenot interchangable,
6. Model8 SerialNumber
7. SelfCleanLatch
8. DoorSeal
9. CavitySeal
10. BroilElement
1I. OvenLights
12. CookingProbeSocket
13. AeroTM Fan8 ConcealedElement
14. LowerConcealedElement
15. DoorHinge

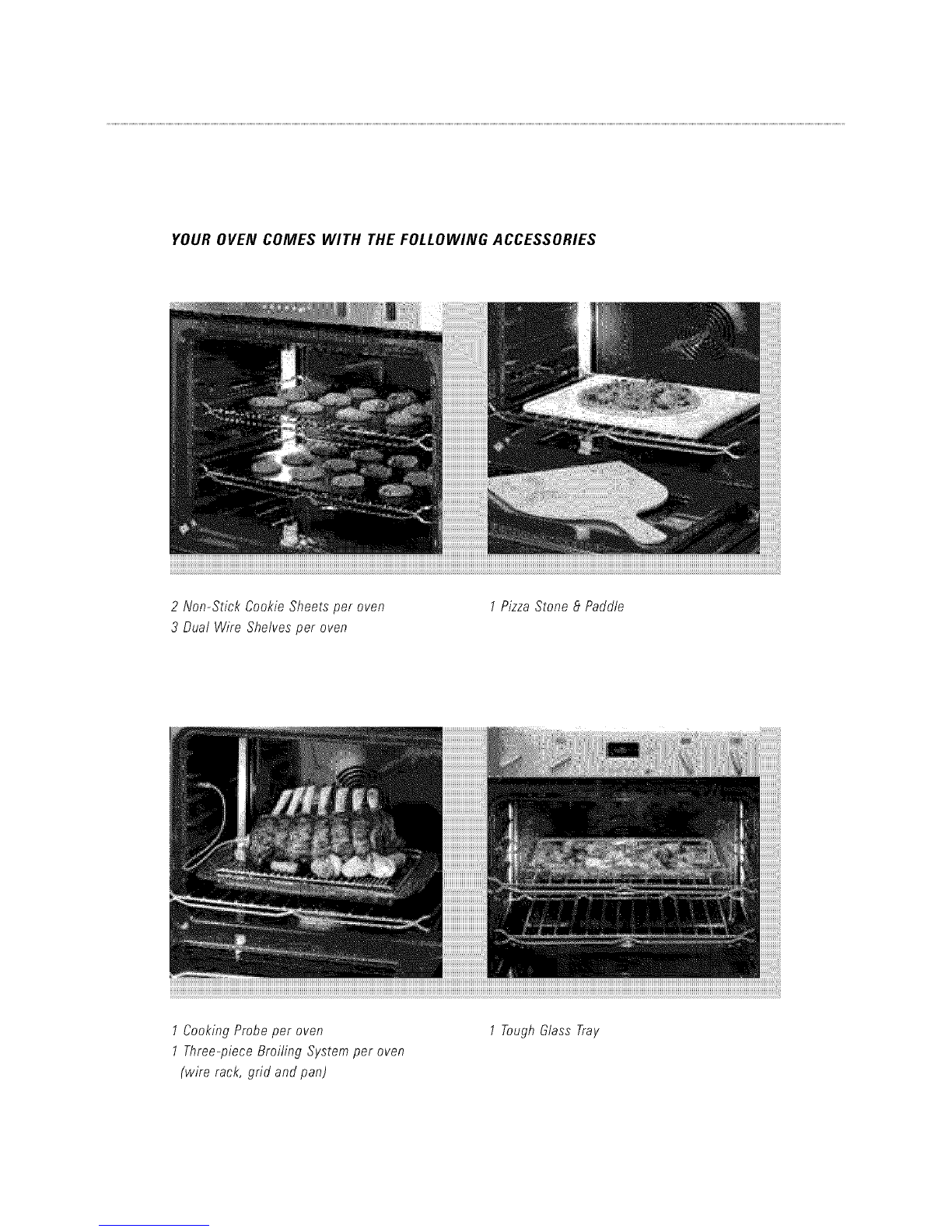

YOUR OVEN COMES WITH THE FOLLOWING ACCESSORIES
2 Non-Stick CookieSheets per oven
3Buat Wire Shelvesper oven
1PizzaStone BPaddle
1 Cooking Probe per oven
1 Three-piece Broiling System per oven
(wire rack, grid and pan)
1 ToughGlass Tray

SETTING THE CLOCK
Beforeyou beginusingyourAeroTechrMoven, pleasereadthe followingsectionstofamiliarizeyourselfwith
itsfeatures.
BEFORE YOU FIRST USE YOUR OVEN
As yourovenis connectedto a power supplyfor the first time, a tone will soundand the clock displaywill light up
momentarily.Theclockdisplaywill show,,,M12:00'andthecolon( : ) willflash. Next,setthe clock.
CLOCK MUST BE SET BEFORE OVEN CAN BE OPERATED

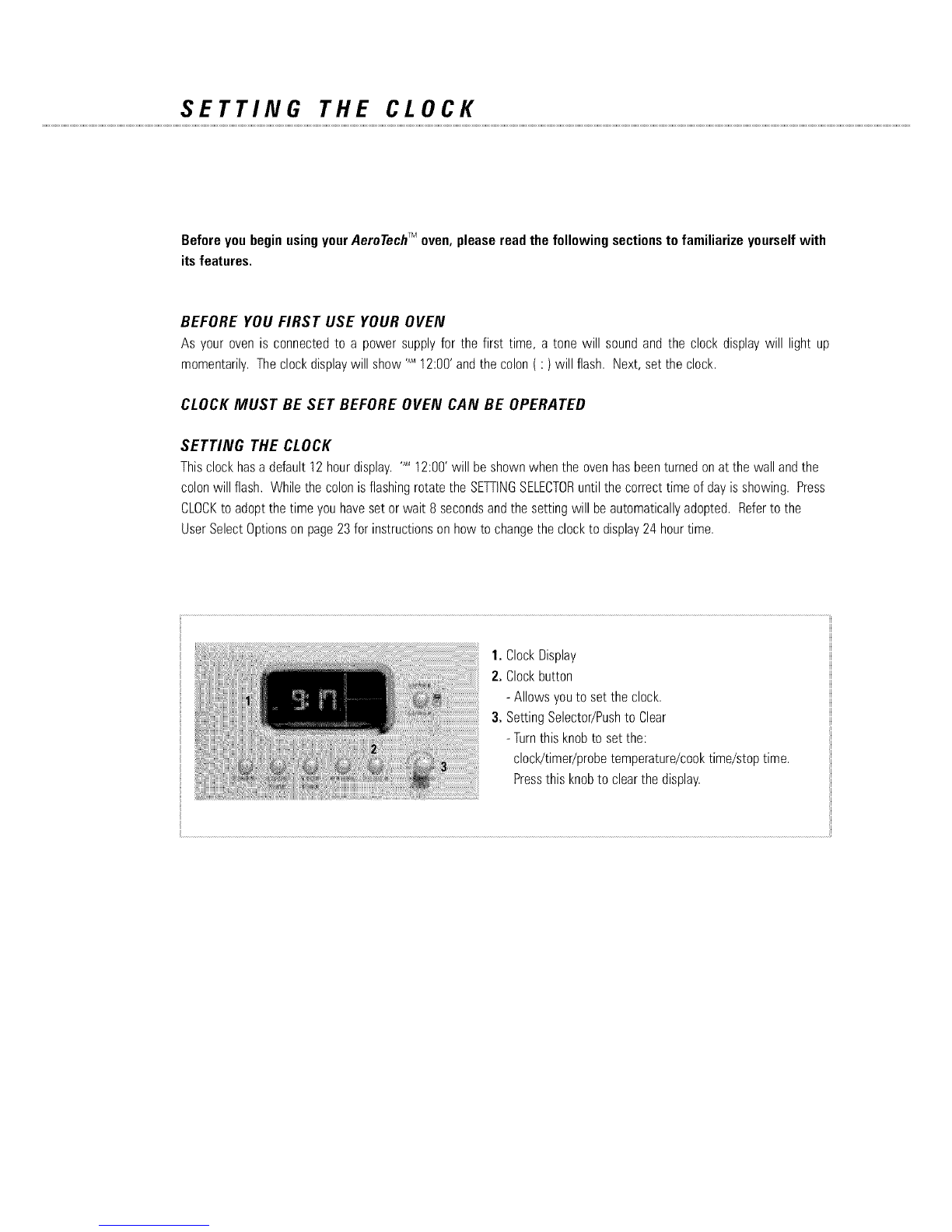

SETTING THE CLOCK
Thisclockhasadefault12 hourdisplay."_M12:00'will be shownwhenthe ovenhasbeenturnedonat thewall andthe
colonwill flash. WhilethecolonisflashingrotatetheSETTINGSELECTORuntilthecorrecttime ofdayis showing.Press
CLOCKtoadoptthetime youhavesetor wait 8 secondsandthe settingwill beautomaticallyadopted. Referto the
UserSelectOptionson page23forinstructionson howtochangetheclockto display24 hourtime.
I. ClockDisplay
2. Clockbutton
- Allowsyouto settheclock.
3. SettingSelector/Pushto Clear
- Turnthis knobto set the:
clocWtimeriprobetemperature/cooktime/stoptime.
Pressthis knobto clearthedisplay.
