Fisher-Price BLT72 User manual

BLT72
fisher-price.com
IMPORTANT! It is good practice to start training children very young
regarding the importance of helmet use. When children are older
and riding bicycles and faster vehicles, it is important that they use
a helmet each and every time they ride. For this reason, even while
riding a tricycle, it is a good idea to familiarize your child with helmet
use, so that it becomes a habit for life. In the United States, choose
a helmet that complies with requirements of the U.S. Consumer
Product Safety Commission (CPSC) Standard 16 CFR 1203. Outside
the U.S., choose a helmet that complies with the requirements of the
applicable certifying agency for bicycle helmets.
Product features and decorations may vary from the photograph.
• Please keep this instruction sheet for future reference,
as it contains important information.
• Adult assembly is required. Tools required for assembly:
Phillips Screwdriver, Hammer and Scrap Block of Wood
(not included).
• Requires three AA batteries (included).
• Batteries included are for demonstration purposes only.
• Age: 2-6 years.
• Weight limit: 60 lb (27 kg).
• Choose areas for riding that are free of obstacles.
• Learn to stop safely.
• Use with caution as this product requires skill to operate safely
to avoid falls, collisions, and injuries to yourself (the rider)
and others.

Consumer Information
WARNING
TO AVOID SERIOUS INJURY:
• Continuousadultsupervisionisrequired.
• Neverusenearcarsandothermotorvehicles,near
streets, steps, sloped driveways, hills, roadways,
alleys, swimming pools or other bodies of water.
• Alwayswearshoes.
• Neverallowmorethanonerider.
2
• Please save all packaging material until assembly is complete to
ensure that no parts are discarded.
• Please wipe each part with a clean, dry cloth before assembly.
• Some parts shown are assembled to both sides of the trike.
• Tighten assembled screws with a Phillips screwdriver.
Do not over-tighten the screws.
• Parts not shown: labels and assembly tool.
Seat
Frame
Pedal
2 Fork Covers
Front Wheel
Axle Assembly
Fork
Headlight Cover
Seat Retainer
Cap
Straight Axle
2 Rear Wheels
Handlebar
2 Hubcaps
2 Covers
4 Pedal Hubs
#8 x 3" (7,6 cm) Screw – 1
#8 x 3 / 4" (1,9 cm) Screw – 4
Cap Nut – 1
#6 x ½" (1,3 cm) Screw – 3
FASTENERS SHOWN ACTUAL SIZE

Adult assembly required. Choking hazard to
children under the age of 3 years – contains
small parts prior to assembly.
• Slideahubcap(peg side up) onto the straight axle.
• Slidearearwheel(indented side down) onto the
straight axle.
• Turntheframeupsidedown.
• Insertthestraightaxlethroughtheholesintherearof
the frame.
Rear Wheel
(Indented Side Down)
• Turntheframeonitssidewiththeexposedendofthestraight
axle up.
• Placethecapnutassemblytoolundertheassembledrearwheel
and onto the cap nut.
• Slidearearwheel(indented side up) onto the end of the
straight axle.
• Slideahubcap (peg side down) onto the straight axle.
• Placeacapnutontheendofthestraightaxle.Tapthe
cap nut with a hammer. Gently pull the rear wheel up
to be sure the cap nut is securely attached to the straight axle.
• Insert one of the tabs on a cover into a slot in the hubcap. Push
to snap the cover into place. Repeat this procedure to attach the
other cover to the other hubcap.
Cap Nut
Rear Wheel
(Indented Side Up)
Cap Nut
Assembly Tool
Assembled
Rear Wheel
Straight Axle
Hole Hole
Frame
Straight Axle
Hubcap
(Peg Side Up)
Hubcap
(Peg Side Down)
Frame
Straight Axle
Scrap Block
of Wood
• Fittwopedalhubsontothepedalaxletabs.Makesurethetabsfit
into the slot in each pedal hub.
Pedal Hub
Pedal Hub
Pedal Axle
Tabs
Slot
Assembly
3
Bottom View
Cover
Hubcap
1
2
3
4
WARNING

Assembly
• Whileholdingthepedalhubsonthepedalaxleassembly,insert
the pedal axle through the hole in the center of the front wheel.
• Pushthepedalhubsintothecenterofthefrontwheeluntilthey
are flush with the surface of the front wheel.
Pedal Axle
Assembly
Pedal Hubs
Front Wheel
• Fitthepedalonthepedalaxle.Tapthepedalwith
a hammer until it is secure.
• Pullthepedaluptobesureitissecure.Ifyoucanremove
it, you have not secured it properly. Tap it with the
hammer again.
Pedal Axle
Scrap Block
of Wood
Pedal
Pedal Hub
Pedal Hub
• Turnthefrontwheelassemblyover.
• Inserttheremainingpedalhubsontopofandbelowthepedalaxle
and into the hole in the center of the front wheel.
• Pushthepedalhubsintothecenterofthefrontwheeluntilthey
are flush with the surface of the front wheel.
• Placethefrontwheelassemblybetweentheforkarms.Makesure
the pedal axle fits into the groove at the bottom of each fork arm.
• Placeaforkcoveroverthepedalaxleononeforkarm.
• Inserttwo#8x3/4" (1,9 cm) screws into the fork cover
and tighten.
• Repeatthisproceduretoattachtheotherforkcovertotheother
fork arm.
Fork Arms
Pedal Axle
Groove
Fork Cover
Assembly
4
5
6
7
8

• Inserttheforkpostupthroughtheholeintheneckoftheframe.
Make sure the fork is positioned so that the fork covers face the
rear wheels.
• Placethehandlebarontotheforkpostandpushitdownontothe
frame.Makesurethehandlebarispositionedsothatthescrew
hole faces the rear wheels and aligns with the screw hole in the
fork post.
Hint: You may need to rotate the handlebar to align the holes.
• Insertthe#8x3"(7,6cm)screwthroughtheholeinthe
handlebar and into the fork post so that part of the screw
(about 3/4" - 1,9 cm) is still visible. Tighten the screw.
Handlebar
Frame
Neck
Fork
Post
Fork Cover
Rear of Trike
•Position the seat upside down.
• Fitthesmallpegsontheseatretainerintotheholesin
the seat.
• Insertand “snap” the cap into the hole in the frame.
Cap
Seat Retainer
Seat
Peg
• Fit the the headlight cover onto the front of the handlebar.
• Insertthree#6x1/2" (1,3 cm) screws into the headlight cover.
Tighten the screws.
Headlight Cover
Assembly
5
9
10
11
12

• At an angle, insert the tabs on the seat into any of the top three
sets of slots for the lower, middle or upper position.
• Lower the seat so that the seat retainer inserts and snaps into the
slots in the frame.
• Pull up on the seat to be sure it is secure.
Hint: The seat can be attached to the frame in any of three positions,
depending on the size of your child. Check your child’s fi t on the trike
by observing the seat to pedal distance, as it is being ridden. If the
pedals seem too far away or too close for your child, move the seat
up or down.
• Makesuretheareaswherethelabelswillbeappliedarecleanand
dry. Wipe your vehicle with a clean, soft, dry cloth to remove any
dust or oils.
• For best results, avoid applying a label more than once.
• Apply the labels as shown in the illustration above.
• After applying the label, rub the label firmly with a cloth to make
sure the label is adhered to your vehicle.
Lower Position Middle Position Upper Position
Label Decoration Attaching the Seat
6
16
(Label 15
opposite side)
10
(Label 10
opposite side)
23
(Label 14
opposite side)
17,18,19
(Labels 20,21,22
opposite side)
SIDE VIEW
DASH VIEW
2
3
4
5
1
6
7
(Label 9
opposite side)
13
8
Assembly
Tabs
Slots
Seat
Retainer
11
(Label 12
opposite side)

Note: For best performance, we recommend replacing the batteries
that came with this trike with three, new AA (LR6) alkaline batteries.
Headlight Cover
• Loosenandremovethescrewsfromtheheadlightcover.Remove
the headlight cover.
• Loosenthescrewinthebatterycompartmentdoor.Openthebat-
tery compartment door.
• InsertthreeAA(LR6) alkaline batteries.
• Closethebatterycompartmentdoorandtightenthescrew.
• Replacetheheadlightcover.Replacethescrews
and tighten.
• Whensoundorlightsbecomefaintorstop,it'stimeforanadult
to replace the batteries.
• Ifthisproductbeginstooperateerratically,youmayneedtoreset
the electronics. Slide the power switch off and then back on.
FCC Statement (United States Only)
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipment
and receiver.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Note:Changesormodificationsnotexpresslyapprovedbytheman
facturer responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that can cause
a chemical burn injury or ruin your product. To avoid battery leakage:
• Donotmixoldandnewbatteriesorbatteriesofdifferenttypes:
alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insertbatteriesasindicatedinsidethebatterycompartment.
• Removebatteriesduringlongperiodsofnon-use.Alwaysremove
exhausted batteries from the product. Dispose of batteries safely.
Do not dispose of this product in a fire.
The batteries inside may explode or leak.
• Nevershort-circuitthebatteryterminals.
• Useonlybatteriesofthesameorequivalenttype,
as recommended.
• Donotchargenon-rechargeablebatteries.
• Removerechargeablebatteriesfromtheproduct
before charging.
• Ifremovable,rechargeablebatteriesareused,theyare
only to be charged under adult supervision.
Battery Replacement
7
•Protecttheenvironmentbynotdisposingofthisproduct
with household waste (2002/96/EC). Check your local
authority for recycling advice and facilities.
1,5V x 3
AA (LR6)
1
2

©2013ViacomInternationalInc.AllRightsReserved.Nickelodeon,TeenageMutantNinjaTurtles,
andallrelatedtitles,logosandcharactersaretrademarksofViacomInternationalInc.
©2013Mattel.AllRightsReserved.®and™designateU.S.
trademarksofMattel,exceptasnoted.
PRINTED IN MEXICO BLT72pr-0920

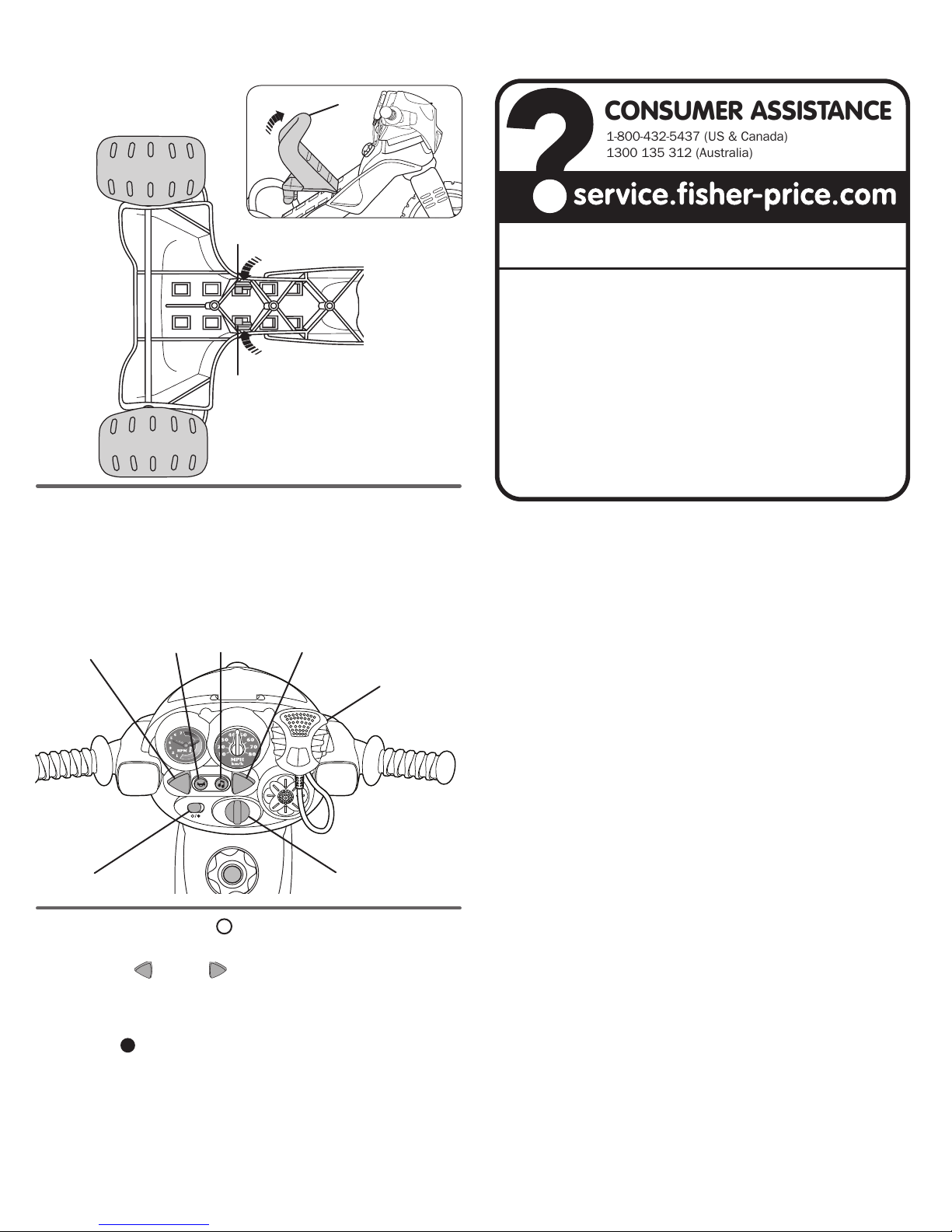

Seat Retainer Tab
• Turntheframeonitsside.
• Squeezetheseatretainertabstowardoneanotherandlifttheseat
from the frame.
Seat Retainer Tab
Seat
• SlidethepowerswitchON .
• Turntheignition,“VRROOOM!”
• Presstheleft or right turn signals for flashing blinkers.
• Pressanyofthesoundbuttonsformusic,ahornorother
funphrases!
• When you are finished playing with this toy, slide the power
switch OFF .
Power Switch
Horn Sounds
Ignition
Turn Signal
Turn Signal
Sounds
Removing the Seat
Let's Go!
Consumer Information
ICES-003
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
NMB-003
Cet appareil numérique de la classe B est conforme à la norme
NMB-003duCanada.L’utilisationdecedispositifestautorisée
seulement aux conditions suivantes : (1) il ne doit pas produire
de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter
tout brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.
Care
• Periodicallyinspectthisproductforwearordamage.Check
plastic parts regularly and if broken or cracked, dispose of
them properly. Replace worn or broken parts immediately.
• Checkallfastenersregularlytobesuretheyaretight.
If the fasteners are not tight, tighten them as necessary.
• Toclean,useamildsoapandwatersolutionandacleancloth.
Rinse clean with water to remove soap residue.
US Standard Product Packaging International Packaging & Instructions
& limited space US Packaging
US Instructions
CONSUMER ASSISTANCE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers: 1-800-382-7470.
Outside the United States:
Canada: Mattel Canada Inc., 6155 Freemont Blvd.,
Mississauga, Ontario L5R 3W2; www.service.mattel.com.
Great Britain: Mattel UK Ltd, Vanwall Business Park,
Maidenhead SL6 4UB. Helpline: 01628 500303.
www.service.mattel.com/uk
Mattel Europa B.V., Gondel 1, 1186MJ Amstelveen, Nederland.
Australia: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
New Zealand: 16-18 William Pickering Drive,
Albany 1331, Auckland.
CONSUMER ASSISTANCE
1-888-892-6123 (US & Canada)
1300 135 312 (Australia)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers: 1-800-382-7470.
Outside the United States:
Canada: Mattel Canada Inc., 6155 Freemont Blvd.,
Mississauga, Ontario L5R 3W2; www.service.mattel.com.
Great Britain: Mattel UK Ltd, Vanwall Business Park,
Maidenhead SL6 4UB. Helpline: 01628 500303.
www.service.mattel.com/uk
Mattel Europa B.V., Gondel 1, 1186MJ Amstelveen, Nederland.
Australia: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
New Zealand: 16-18 William Pickering Drive,
Albany 1331, Auckland.
CONSUMER ASSISTANCE
1-888-892-6123 (US & Canada)
1300 135 312 (Australia)
CONSUMER ASSISTANCE
1-888-892-6123 (US & Canada)
1300 135 312 (Australia)
CONSUMER ASSISTANCE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
CONSUMER ASSISTANCE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
CONSUMER ASSISTANCE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
CONSUMER ASSISTANCE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
US Tech Product Packaging
Domestic Power Wheels Packaging
& Instructions
Domestic/Canada/LAAM 3 Language
Power Wheels Packaging & Instructions
CONSUMER ASSISTANCE
1-800-348-0751 (US & Canada)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers: 1-800-382-7470.
US Tech Product Instructions
Baby Gear
Instructions
CONSUMER ASSISTANCE
AYUDA AL CONSUMIDOR
SERVICE À LA CLIENTÈLE
1-800-432-5437 (US & Canada)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers/Clientes con problemas auditivos/
Pour les malentendants : 1-800-382-7470.
Centro de Servicio en México:
59-05-51-00 Ext. 5206 ó 01-800-463-59-89
CONSUMER ASSISTANCE
AYUDA AL CONSUMIDOR
SERVICE À LA CLIENTÈLE
1-800-348-0751 (US & Canada)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers/Clientes con problemas auditivos/
Pour les malentendants : 1-800-382-7470.
Centro de Servicio en México:
59-05-51-00 Ext. 5206 ó 01-800-463-59-89
