Fisher Scientific SterilElite24 User manual

Page 1 of 25
User manual
SterilElite24TM , SterilElite16TM
AUTOMATIC STEAM STERILIZER

Page 2 of 25
CONTENTS
Please read this manual carefully prior to using your new SterilElite Autoclave. Following the
instructions contained in this manual will help ensure ease of use, trouble free operation and a
longer working life for your SterilElite autoclave.
--------------------------------------------------------------------------------------------------------------------------------------------------
CHAPTER 1. LOCATION......................................................................................... 3
CHAPTER 2. TECHNICAL DETAILS....................................................................... 4
CHAPTER 3. PREPARATION & INSTALLATION.................................................... 6
CHAPTER 4. OPERATION – CONTROL PANEL.................................................... 8
CHAPTER 4. BASIC STEP OF STERILIZATION .................................................. 11
CHAPTER 4. OPERATION.................................................................................... 12
CHAPTER 4. OPERATION – PROGRAMS........................................................... 15
CHAPTER 5. WARNING & CAUTION................................................................... 17
CHAPTER 5. WARNING & CAUTION................................................................... 19
CHAPTER 6. APPENDIX – A ................................................................................ 20
CHAPTER 6. APPENDIX – B ................................................................................ 22
CHAPTER 7. TROUBLE SHOOTING.................................................................... 23
CHAPTER 8. MAINTENANCE REQUIREMENTS................................................. 24

Page 3 of 25
CHAPTER 1. LOCATION
1. Water tank cover
2. Pressure gauge
3. Control display
4. Door handle
5. Feet
6. Air vent (back side)
7. Thermal overload
protection
8. Power cord
9. Drain for filter water
10. Water hose to indicate
water level, also used to
empty water tank
11. Main heater connector
cover
12. Front door cover
13. Control panel cover
FRONT
BACK
Underneath

Page 4 of 25
CHAPTER 2. TECHNICAL DETAILS
ITEM
SterilElite16
TM
SterilElite24
TM
Product description
Table top autoclave sterilizer
Table top autoclave sterilizer
Fill water system
Auto-Fill water system
Auto-Fill water system
Dry Function
Auto dry function
Auto dry function
Overall dimensions
580mm(D) x 510mm(W) x 410mm(H)
660mm(D) x 540mm(W) x 440mm(H)
Chamber Size
Ø230 x 410 mm (D)
Ø260 x 450 mm (D)
Chamber Diameter
Ø230 mm
Ø260 mm
Water capacity
per cycle
250ml
Approx. 300ml
Water capacity
of water tank
4200ml
Approx. 4200ml
Chamber capacity
Approx. 16 liter
Approx. 24 liter
Weight
48 kg
56 kg
Power supply
115V+/-10% 50/60 Hz
115V+/-10% 50/60 Hz
Temperature display
display by gauge
display by gauge
Pressure display
Analogue pressure gauge
Pressure gauge
Program (function)
display
LED display
LED display
Warning indications
Door Closed, Low water, Over heat
display
Door Closed, Low water, Over heat display
Max. Power consumption
1400W 1800W
Sterilization temperature
121°C / 135°C
121°C / 135°C

Page 5 of 25
ITEM
SterilElite16
TM
STERILELITE24
TM
Program for selection:
121°C 135°C, wrapped or
unwrapped dry or wet
, Liquid special
program selection
121°C 135°C, wrapped / unwrapped , dry /
undry , Liquid special program selection
1. Sterilization
temperature
121°C 135°C
121°C 135°C
2. Sterilization time
Liquid sterilization program
Liquid sterilization program
3. Dry function
30 minutes, fixed program
30 minutes, fixed program
Safety devices:
1. Pressure safety
valve 2.5 bar 2.5 bar
2. Over
temperature
protection Independent Temp. protection device. Independent Temp. protection device.
3. Electric overload
protection 15 A circuit breaker 15 A circuit breaker
4. Over pressure Pressure protection switch Pressure protection switch
5. Door lock
indication Micro-switch with integrated door lock sensor Micro-switch with integrated door lock sensor
6. Water tank,
water level
sensor
Low water level indication when when
water below minimum Low water level indication when when water below minimum
7. Chamber water
level sensor Chamber water level sensor active in "ADD-WATER" step Chamber water level sensor active in "ADD-WATER" step
8. Door auto-lock Pressure Lock. Pressure lock.
Optional Accessories
Sterilization tray set (3 trays,
Tray frame, tray holder,
spring holder)
Sterilization tray set (3 trays,
Tray frame, tray holder,
spring holder)
Warranty
2 Years, when individually registered
2 Years, when individually registered
manufacturer license
No.
CE 0434 CE 0434

Page 6 of 25
CHAPTER 3. PREPARATION & INSTALLATION
UNPACKING CHECKLIST
To unpack autoclave from box:
1. Cut any box binding material
2. Remove top cover of the carton as shown
3. Remove foam-packing pieces
4. Take the autoclave out from the base foam
BEFORE FIRST TIME USE CHECKLIST
1. Please make sure that all possible included accessories are accounted for and removed
from the autoclave chamber
2. Put autoclave on the dedicated workbench, allowing at least 2” to 3” distance between
the wall and the unit itself to allow sufficient airflow. It is important that the unit is set up in
level condition.
Make sure that the air vents at the back of the unit are free of any obstructions.
3. Check for correct power supply. Power source 115VAC

Page 7 of 25
4. Fill water (DISTILLED WATER ONLY) into the water reservoir until the
water level is near the max level sign in the water reservoir.
Please make sure that the water level is not outside these marks
Remark: After the sterilization process, condensate from the chamber
will be pressed back into the reservoir by the remaining chamber
pressure.
BEFORE FIRST TIME USE CHECKLIST - continued
5. Take the power cord out and plug the male end into a standard single and grounded AC
outlet.
CHECK: POWER SOCKET 115VAC 20A, only the original supplied power cord should
be used, it is imperative that the unit is appropriately grounded.
IMPORTANT:Before the plug is connected, the power switch must be in the OFF
position
6. Press the power switch. If the green light comes on, your unit is ready for operation.
max
min

Page 8 of 25

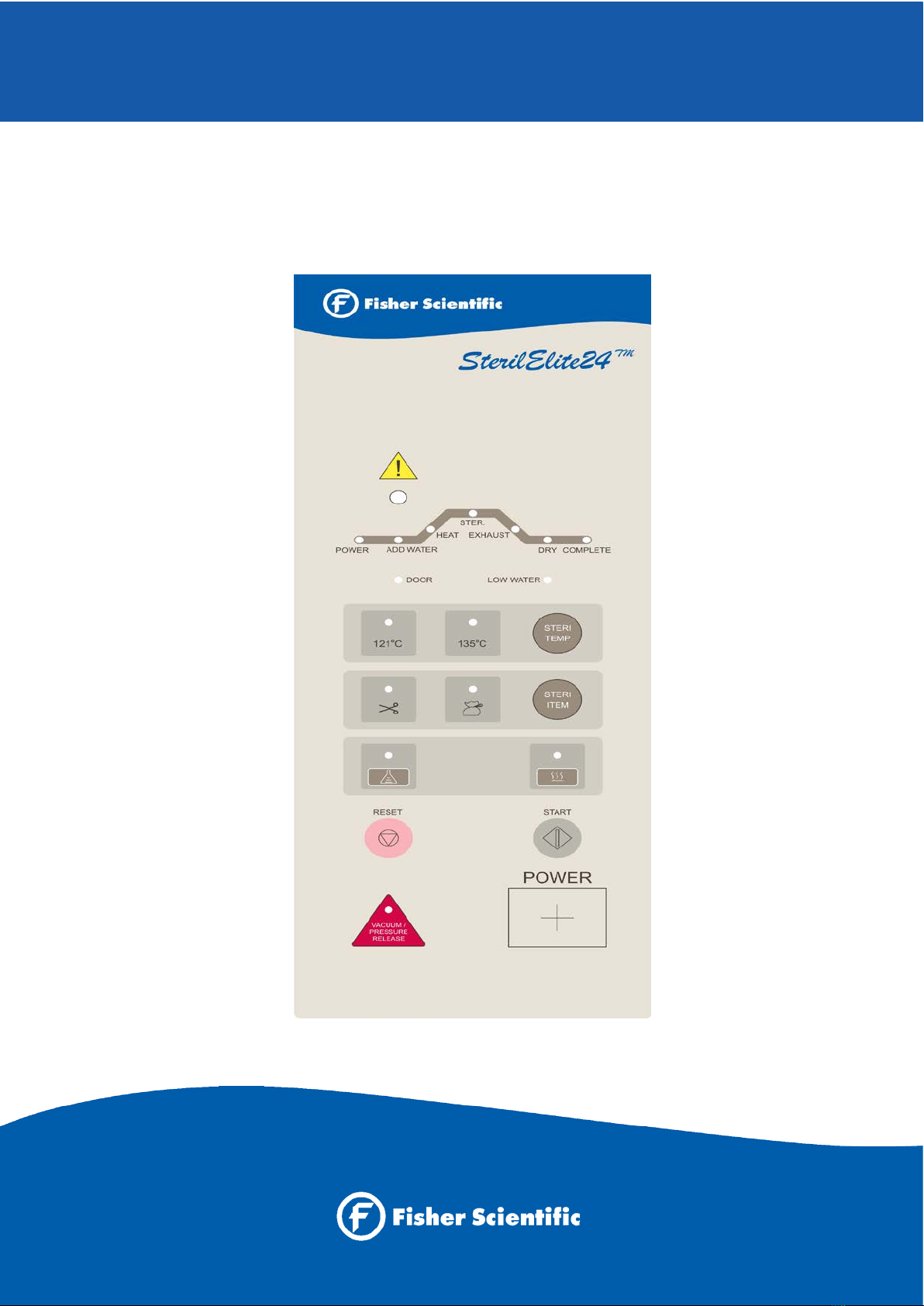

CHAPTER 4. CONTROL PANEL

Page 9 of 25
Reference and legend to the Control Panel
1. ! : Alarm for over temperature or over pressure.
2. POWER: Green light indicates that unit has power
3. ADD WATER: when light illuminates, water is being added into the sterilization
chamber
4. HEAT: when light illuminates, chamber is being heated up, this takes approx.
20 minutes
5. STERI: when light illuminates, the unit started the sterilization process
6. EXHAUST: when light illuminates, the sterilization step is complete and the air
lock valve is opening to release pressure and steam, water in the chamber is
being pressed back into the water reservoir
7. DRY: when light illuminates, drying cycle has started, only when drying step
was chosen
8. COMPLETE: when light illuminates the entire sterilization cycle is complete
and the unit goes in stand-by mode
9. DOOR: when light illuminates, the door is not properly locked, closed
10.LOW WATER: when light illuminates, the water tank has not enough water,
water needs to be added, but be careful to stay within the min/max indication
and consider the amount of water that will be returned from the chamber to the
tank after sterilization in order to prevent overflow. This light can also
illuminate when during the add water step there isn’t water getting into the
chamber after a delay of 5 minutes.

Page 10 of 25
11.STERI. TEMP KEY: Select sterilization temperature.
12.STERI. ITEM KEY: Select sterilization , “wrapped” or “unwrapped”, time.
13.LIQUID KEY: Single function for liquid program.
14.DRY TIMER KEY: Select dry time or un-dry time. The build in drying time is 30
minutes.
15.RESET KEY: Stops the program and sends the unit to stand by mode.
16.START KEY: Start program.
17.VACUUM RELEASE KEY: Releases air lock valve
18.POWER KEY: Power on machine.

Page 11 of 25
CHAPTER 4 BASIC STEPS OF STERILIZATION
CLOSE THE DOOR
THE DRY TIMER START WORKING after EXHAUST is
complete;
At THE SAME TIME THE DRY BUZZER reminds
the user TO OPEN THE DOOR in order to enable a
perfect drying result in the sterilization box.
SELECT THE STERILIZATION TEMPERATURE
(PRESSURE)
SELECT WRAPPED/ UNWRAPPED
AUTO-DRY FUNCTION, select YES/NO
WATER IS ADDED THEN MAIN HEATER ENGAGES
PRESS “START”
THE COMPLETE BUZZER Sounds. . AFTER finishing the drying phase the unit goes to stand by mode.
SELECT “ LIQUID” STERILIZATION PROGRAM
When desired temp/pressure is reached the STERILIZATION TIMER STARTS countdown
PRE HEATER ENGAGED
NO EXHAUST FUNCTION UNTIL THE
chamber PRESSURE reaches ambient
pressure

Page 12 of 25
THE DOOR CAN’T be OPENED IF THE CHAMBER is under VACUUM.
PLEASE PRESS THE “VACUUM RELEASE” button TO RELEASE THE CHAMBER VACUUM.
CHAPTER 4. OPERATION
PLEASE CHECK CHAPTER 3 FIRST (if not done already)
Remark:
At the end of a cycle, the unit emits two different acoustic signals:
1) Acoustic signal for DRYING PHASE is a row of beeps in short succession.
2) Acoustic signal for COMPLETION is a continuous beep of 40 seconds.
When the drying buzzer sounds, open door slightly in order to achieve a perfect drying result.
CAUTION
1. BEFORE OPENING THE DOOR ENSURE THAT the pressure gauge shows “zero”.
2. ALLOW THE UNIT TO COOL OFF FOR a minimum of AT LEAST 20 MINUTES in between
cycles.

Page 13 of 25
CHAPTER 4 OPERATION
1. Open the door and put the products to be sterilized on the trays or sterilization box, or
spring holder, etc. Then, push the power switch ON.
We recommend to put sterilization indicator stripes with the products to get an
additional confirmation of a good sterilization result.
2. Close the door and turn the door handle 90° to latch the door completely.
3. Set-up the programs as your protocol requires, i.e.
•121°C （1.2 bar) or 135°C（2.2 bar)
•WRAPPED or UNWRAPPED /DRY or UN-DRY
Please refer to APPENDIX A for more information on programs.
Reminder:
When choosing the “LIQUID” program, no other parameters can be set, this is a
fixed program for liquid sterilization use only.
•Sterilization temperature: 121°C
（
1.2 bar)
•Sterilization time: 40 minutes
•No Dry and Exhaust function in this program.
4. Push the START key, then the autoclave will start working and run the set program
automatically.
5. The autoclave will sound an acoustic alarm once the sterilization cycle is complete. Make
sure that the green light indicator above COMPLETE is illuminated. If not, the
sterilization cycle has failed and needs to be repeated.

Page 14 of 25
CAUTION 1: BEFORE OPENING THE DOOR ENSURE COMPLETE
DEPRESSURIZATION OF THE CHAMBER (ZERO INDICATED ON THE
PRESSURE GAUGE)
CAUTION 2: PLEASE DON’T FORGET TO CHECK THE STERILIZATION INDICATOR,
AFTER EVERY STERILIZATION CYCLE.
CAUTION 3: THE
“ VACUUM RELEASE” SWITCH, CAN BE PRESSED AT ANYTIME YOU
WANT TO STOP THE PROGRAM OR RELEASE THE VACUUM OR
PRESSURE FROM THE CHAMBER.

Page 15 of 25

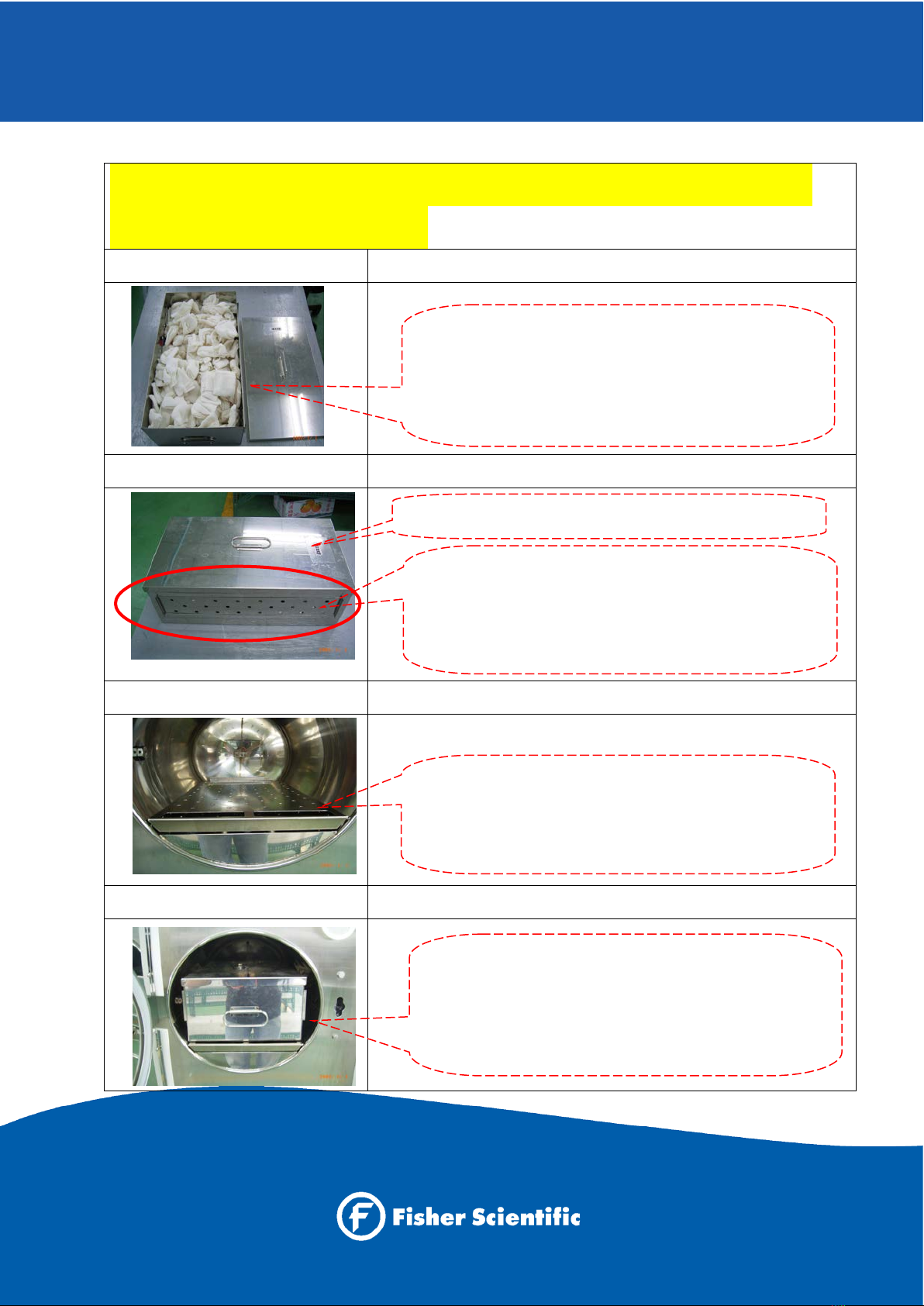

Important to remember when working with
the sterilization box
Figure 1：
Figure2：
Figure 3：
Figure 4
：
All Items need to be put into the sterilization box.
Make sure that items are level or below edges of
the sterilization box so that the lid can be properly
closed.
Please make sure that the heater cover is put in
place correctly to prevent damage to the heater
coil and assure proper performance
Please check the heater cover and sterilization box
are put in place as shown to ensure proper
operation of the autoclave
It is very important that side vents are opened
before sterilization for a proper steam penetration
and close them after sterilization to prevent
contamination
Close the sterilization box with the supplied lid

Page 16 of 25

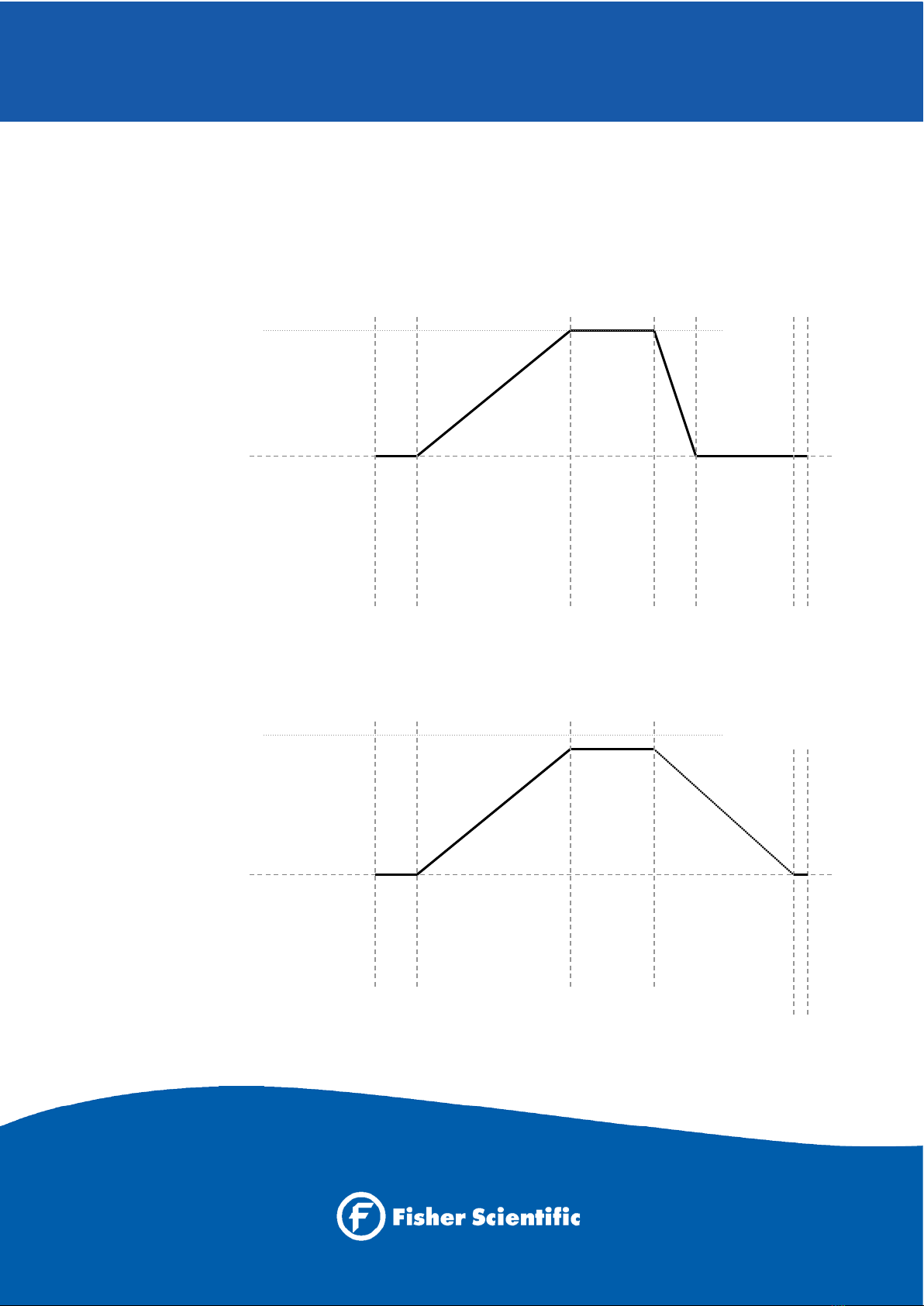

CHAPTER 4. OPERATION – PROGRAMS
Standard Programs （121°C / 135°C Wrapped / un-wrapped dry / un-dry）
121°C or 135°C
110°C
102°C
LIQUID Programs （121°C Sterilization time: 40 Minutes dry: 0 Minutes）
121°C

Page 17 of 25
CHAPTER 5. REMINDERS, WARNINGS & CAUTION
1. USE DEDICATED POWER ONLY. See technical data sheet
2. Please check the pressure gauge prior to opening the chamber door.
Don’t open the door if gauge indicates more than “ZERO” If you have a
vacuum indication, please use the Vacuum release key to equalize pressure
before attempting to open the door. This will prevent damaging the door
gasket.
3. USE ONLY DISTILLED WATER. Warranty is voided when other liquids such
as tap water are used.
4. When locking the door for operation, the door handle must be turned completely
to the stopping point.
5. Warning, during operation the top portion of the housing might be hot.
6. We recommend the use of biological indicator strips as a check for sterility. These
strips may also be kept as a record of sterilization.
7. In the event of an emergency or maintenance, please turn-off the main power
switch and disconnect the unit from power supply immediately.
8. Do not fill the water tank over its capacity, check indicators min/max
9. When the ADD WATER indicator light is on, the chamber is being supplied with
water. Please don’t confuse this with the low water indication.
10.If the “DOOR” Indicator light is on, the door has not been closed completely.
11.If the “LOW WATER” indicator light is on, the water level in the water reservoir
needs to be checked, please proceed as follows:

Page 18 of 25
CHAPTER 5. WARNING & CAUTION
a) If the level in the water reservoir is not sufficient, please add water. In order to prevent
overflow of the water reservoir, please consider the water amount already in the
chamber which will be pressed back into the reservoir after sterilization.
b) If the water level is OK then either the chamber level- or the reservoir level-sensor
might be dirty or has a contact problem. Please clean the surface of either sensor and
try again. If the indicator light is still on, please call our technical support to
troubleshoot.
13. If the !DANGER (OVER HEAT / PRESSURE ) indicator light is on, there is a
problem with the heater or pressure or both. The autoclave will shut down immediately. In
addition please pull out power plug and call technical support to check your unit.
14. Always keep chamber -collar and -gasket clean to prevent steam leaking from the unit
and jeopardizing the sterilization process.
15. Don’t forget to ensure that the sterilization stripes show SUCCESS after sterilization.
16. Reminder:.In order to assure a long life time of your SterilElite, read and make sure you
follow the check-list in CHAPTER 8. MAINTENANCE REQUIREMENTS.
17. If the necessity of moving your SterilElite arises, remember that the unit should always be
moved by at least two persons to prevent personal injury.
The filter inside the chamber should be cleaned once per month at least.

Page 19 of 25
CHAPTER 5. WARNING & CAUTION
18. CAUTION LABELS AND OTHER IMPORTANT INDICATION LABELS:
CAUTION: CAUTION: INDICATION: INDICATION: INDICATION:
Please check our Hot, Please don’t Ground POWER-OFF POWER-ON
Operation manual. Touch it.
19. STORAGE ENVIRONMENT: TEMPERATURE:-10ْC~+50ْC / HUMIDITY: ≤ 80%
20. WORKING ENVIRONMENT: TEMPERATURE: 1ْC~+40ْC / HUMIDITY: ≤ 80%
21. TRANSPORTATION ENVIRONMENT: TEMPERATURE: -10ْC~+60ْc / HUMIDITY: ≤ 80%
∫∫∫

Page 20 of 25
CHAPTER 6. APPENDIX – A
PROGRAM DETAILS AS FOLLOWS:
TEMPERATURE PROGRAM:
#121°C / 250℉ Approx. 1.2 bar
#135°C / 278℉ Approx. 2.2 bar
WRAPPED / UNWRAPPED PROGRAM:
# WRAPPED sterilization time 15 minutes for 135°C / 278℉
30 minutes for 121°C / 250℉
# UNWRAPPED sterilization time 04 minutes for 135°C / 278℉
22 minutes for 121°C / 250℉
# DRY / UNDRY PROGRAM:
THE DRY TIME IS ALREADY SET-UP FOR 30 MINUTES.
