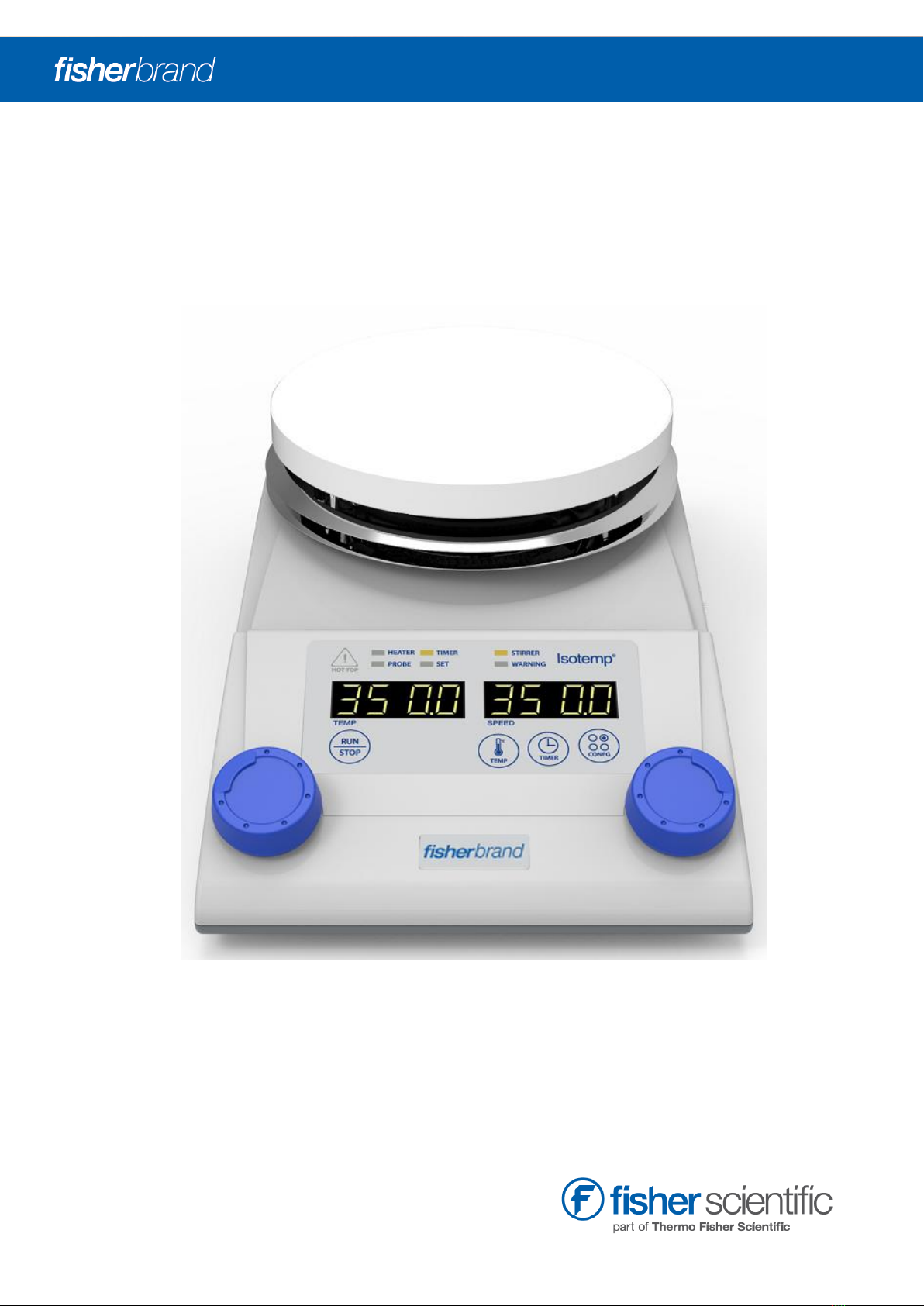

Fisher Scientific Fisherbrand Isotemp RT AVCD HPS Advanced User manual

Operation Manual
Isotemp RT AVCD HPS
Advanced Hotplate Stirrer
9240-11-012 V01 12/01/17

This manual cover the model is shown below
NA Model
EU Model
Voltage
Description
11676261
15326607
230V-EU, UK, ANZ/CN
Isotemp RTAVCD HPS230V
11676262
N/A
120V-US
Isotemp RTAVCD HPS120V

Preface
Important Before using this product, read this entire operation manual carefully.
Users should follow all of the operational guidelines contained in this manual and
take all necessary safety precautions while using this product. Failure to follow these
guidelines could result in potentially irreparable bodily harm and/or property damage.
Caution All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for information purposes only. Fisher Scientific is committed to a continuing
program of product development and improvement, and reserves the right to change information, such as
specifications, appearance, and dimensions, described in this document without notice. Fisher makes no
representations or warranties with respect to this manual. In no event shall Fisher be held liable for any
damages, direct or incidental, arising out of or related to the use of this manual.
No part of this manual may be reproduced or transmitted in any form or by any means, including
photocopying, recording, or using information storage and retrieval systems, for any purpose other than
the purchaser's own use, without the express written permission of the manufacturer.
Any other product names and services identified in this manual are trademarks or registered trademarks
of their respective owners. No such use, or the use of any trade name, is intended to convey
endorsement or other affiliation with Fisher Scientific.
©2017 Fisher Scientific. All rights reserved.
ⅰ

Preface
This manual contains important safety and operation information. You must carefully read, understand,
and follow all the instructions in this manual prior to operating this instrument. Keep this manual in a safe
place nearby for reference and make it easily available to all users.
1) This manual highlights DANGER/WARNING/CAUTION/NOTICE alerts to prevent injury or property
damage and also to achieve optimum performance of your instrument.
2) These alerts are classified into four types in this manual depending on the importance and the risk
levels as described below:
Symbols
Meaning
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
Ignoring this warning could cause serious injury or even
death.
Ignoring this caution could cause injury or property damage.
Ignoring this notice could cause operational problems.
3) The claim which is out of the quality guarantee published by the Manufacturer is out of Manufacturer’s
responsibility.
4) The damage which is from unexpected fault or damage of user by Acts of God is out of Manufacturer’s
responsibility.
ⅱ

Table of Contents
Section 1
Warning and Cautions --------------------------------------------------
1-1
Section 2
Functional Description --------------------------------------------------
2-1
Features -----------------------------------------------------------------------
2-1
Safety --------------------------------------------------------------------------
2-2
Convenience ------------------------------------------------------------------
2-3
Construction ------------------------------------------------------------------
2-5
Section 3
Unpacking and Installation ---------------------------------------------
3-1
Location Conditions ----------------------------------------------------------
3-1
Pre-startup Check ------------------------------------------------------------
3-2
Connecting to Power Supply ------------------------------------------------
3-2
Section 4

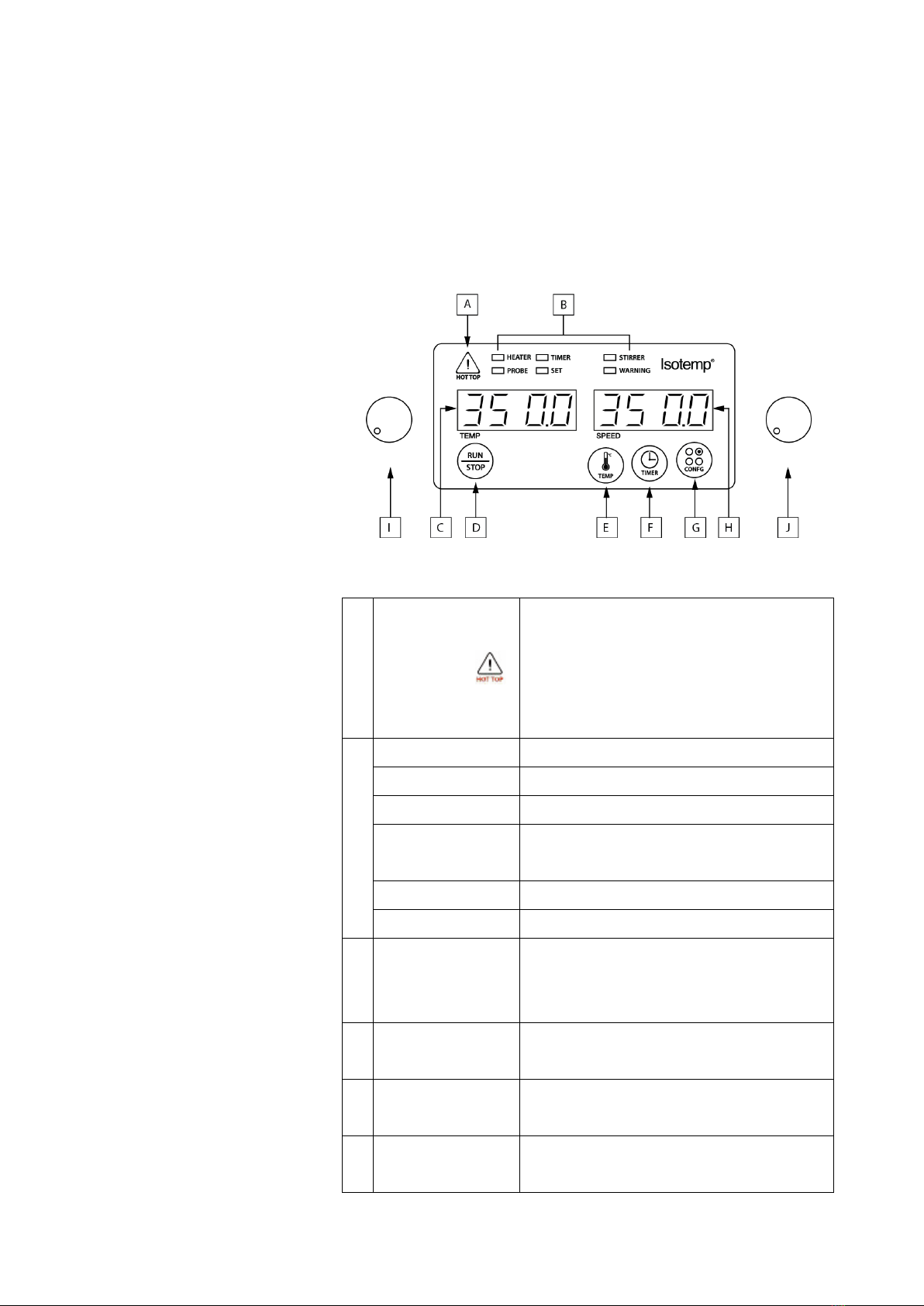

Control Panel ------------------------------------------------------------
4-1
Check Power Status ---------------------------------------------------------
4-3
Connecting the Temperature Probe ----------------------------------------
4-3
Stirrer Knob -------------------------------------------------------------------
4-5
Run/Stop Button -------------------------------------------------------------
4-5
Temperature Setting ----------------------------------------------------------
4-6
Temperature Setting During Operation -------------------------------------
4-7
Resetting Set Temp During Operation --------------------------------------
4-8
Maximum Heating Rate Setting ---------------------------------------------
4-9
Timer Setting -----------------------------------------------------------------
4-10
Timer Setting During Heating -----------------------------------------------
4-11
Check Remaining Run Time -------------------------------------------------
4-12
Temperature Probe Control Mode ------------------------------------------
4-12
Configuration Mode ----------------------------------------------------------
4-14
Temperature Unit Conversion(℃↔℉) --------------------------------------
4-14
Selection of the Timer Mode ------------------------------------------------
4-16
Temperature Offsetting(OFST/OFSP*) --------------------------------------
4-17
Maximum Heating Rate Setting(LIMt) --------------------------------------
4-19
Change the High Temp Limits(t-H) ------------------------------------------
4-20

Change the Low Temp Limits(t-L) ------------------------------------------
4-22
Check Configuration Settings(LISt) -----------------------------------------
4-23
Auto-tuning(PID Parameter Calibration) ------------------------------------
4-24
Coefficient(COEF) ------------------------------------------------------------
4-25
Default(DEFA) -----------------------------------------------------------------
4-27
Motor Minimum(Mmin) -------------------------------------------------------
4-28
Escape Mode(ESC) ----------------------------------------------------------
4-29
Section 5
Safety Device ------------------------------------------------------------
5-1
Section 6
Maintenance -------------------------------------------------------------
6-1
Cleaning Product -------------------------------------------------------------
6-1
Relocation ---------------------------------------------------------------------
6-2
Keeping Product -------------------------------------------------------------
6-2
Section 7
Trouble Shooting --------------------------------------------------------
7-1
Error Messages ---------------------------------------------------------------
7-3
Section 8
Accessories -------------------------------------------------------------
8-1
Assembly of Support Rod ---------------------------------------------------
8-1
Transparent Shield & Heating Bath Assembly -----------------------------
8-2
Section 9
Technical Specifications ------------------------------------------------
9-1
Disposing of the Unit ---------------------------------------------------------
9-2
Section 10
Warranty Information ----------------------------------------------------
10-1

Section 1 Warnings and Cautions
Ignoring the following warnings could cause serious injuries or
even fatal accidents.
Check and connect properly -the voltage, phase and capacity of power
supply on the ID plate before installation.
Power supply must be properly grounded. Abnormal grounded
connection causes serious damage. Grounded connection must not be
on the water pipe and gas pipe.
Use correct and provided power code
Do not install the product in the place that the gas could leak out. Do
not use in the place that has industrial oil smoke and/or metallic dust. It
causes fire or electric shock.
Do not use the machine near to places where explosion can occur due
to organic evaporating gases.
Explosive materials: Acid, Esther, Nitro compound.
Inflammable materials: salt peroxides, inorganic peroxide, salt acids.
Check equipment for permissible environmental condition. It can be the
cause fire or trouble by electricity, electronic, and damage of motor.
Permissible environmental condition - Temperature 2°C to 60°C,
Maximum relative humidity 80%.
Wear your personal protective equipment in accordance with the
hazard category of the medium to be processed; splashing liquids,
projectile parts, body parts, hair, clothing and jewelry getting caught.
Unplug, if there is strange sound, smell and smoke from the product.
Stop operating and request service.
Keep out of direct sunlight. It may influence product life and proper
operation.
Do not use the machine in places where moisture is high and flooding
can occur.
Do not assemble, repair, modify on your own. The product may not
work well and electric shock in the efficiency of the product. Also you
will void the warranty.
1-1
Section 1

Warnings and Cautions
Ignoring the following cautions could cause injuries or property
damages.
Indicates a hazardous situation which, if not avoided, may result in
minor or moderate injury.
Do not touch the top plate or any object near it even when the heater is
turned off. You may get burned due to residual heat.
After using this equipment, make sure to turn off the main power switch
and also to disconnect the power cord from the power outlet for the
safety of other users.
Do not place heavy objects, including this equipment, on top of the
power cord and do not strip, scratch, bend, twist, pull, or heat the power
cord. Adamaged power cord is a fire and electrical shock hazard.
Make sure to set up this equipment on a flat, stable, clean, non-slip,
dry, and fireproof surface inside a lab with proper safety measures.
Do not place any device which can be affected by the motor vibrations
near this equipment.
Do not touch the power outlet, power socket, or power cord with wet
hands. And make sure to connect the power cord directly and firmly to
the power outlet and power socket.
Do not put or insert any objects (especially if conductive or flammable)
inside this equipment.
Do not expose this equipment to any heat sources including direct
sunlight.
Beware that mechanical shock or vibration can damage this equipment
and pay extra attention while moving it. Damages caused by
mechanical shock or vibration may result in injury or fire.
Do not impact the top plate or heat sink. You can damage the
equipment or get injured.
Do not install this equipment near any device that generates high
frequency noise such as high frequency welding machines, high
frequency sewing machines, or SCR power controllers.
Before cleaning, make sure to unplug the power cord to avoid electric
shock or fire.
Do not use chlorine bleach, ammonia-based cleaners, abrasives,
ammonia, or metal scouring pads. Wipe with a soft damped cloth or a
sponge soaked in water or diluted neutral detergent.
1-2

Section 2 Functional Description
The Fisher Scientific Isotemp RT AVCD HPS model offers temperature
and control by external temperature probe. This unit also boasts quick
heat-up time thanks to ample heating capacity as well as the superb
heat transfer rate enabled by the tightly integrated structure of the
heater and the ceramic-coated aluminum alloy top plate. Also provides
a variety of temperature modes relating to temperature control, heat-up
time.
Features
•By adopting a special magnet with exceptionally strong magnetic
coupling power as well as smooth-start stirring mechanism. You will
experience virtually no decoupling of magnetic stir bars even with
viscous media or at high speeds (30~2000rpm, guaranteed). The
BLDC motor and the special magnet also provide big stirring power.
•Real-time stirring with quick operation or stop
•When the external temperature probe is coupled, it automatically
changes to external sensor mode. User can check media
temperature also control.
•Microprocessor PID Feedback Control
Fast and precise temperature control is provided by the
microprocessor PID controller.
•Selection of the Temperature Control Modes
Three user-selectable temperature control modes are provided for
your convenience; Optimum, Fast, and Slow.
•Auto-Tuning
Automatic tuning of the PID parameters provides more accurate
temperature control.
•Changing Temperature Limit
The top plate temperature control range can be changed to protect
media by changing over temperature limit value or low temperature
limit value.

2-1
Section 2
Functional Description
Features
•Offset
To use your own thermometer for temperature control in specific
applications, there can be some differences between the temperature
of your thermometer and the displayed temperature of this unit. If
needed, you can offset such temperature differences ranging from -
10°C to ±50°C at 0.1°C intervals.
•Selection of the Timer Mode
Immediate Activation (T1): The timer starts immediately after setting
the timer, Delayed Activation (T2): The timer is activated only when
the set temperature is reached.
•Quick Heat Up Time
Ample heating capacity and superb heat transfer rate of the tightly
integrated structure of heater and ceramic-coated aluminum alloy top
plate allow quick heat up time.
•The ceramic-coated top plate is highly resistant to heat and corrosion.
In addition, its white color is optimal for monitoring color changes of
the media during operation.
Safety
•Hot Top Warning Indicator
The top plate temperature can remain very hot for some time even
after the heater is turned off. To prevent injury or fire under such
circumstances, this instrument has a hot top warning indicator on the
control panel. This indicator will illuminate if the top plate temperature
is over 50°C. Even so, do not rely on this indicator alone for your
safety
•Overheating prevention device
Basically built in electronic overheating prevent device and
mechanical body overheating prevent device.
•Heating plate overheating prevention device
A heating plate overheating prevention device is particularly built-in.
•The devices overheat warning function
The devices WARNING LED will be lighted. In case of the devices
temperature goes over safe range.

2-2
Section 2
Functional Description
Safety
•Error indication regarding external temperature sensor
In case of Error message, the Probe does not contain enough in
media or on air.
•A transparent shield is also provided to allow you to monitor your
operations more safely by shielding you against decoupled stir bars
or liquid splashes. (optional)
•Heating Bath (optional)
A specially designed non-slip heating bath comes with the
instrument. To prevent unintentional slips of the bath during
operation, this bath has concavo-convex bottom shown below so that
it can sit stably on top of the top plate.
Figure 2-1. Heating Bath
Convenience
•Conveniently set indicating temperature and stirring speed by two
different knobs:
•In case of external temperature probe coupled, automatically change
to external sensor mode.
•The external temperature probe (sensor) is made by Pt material. So,
the probe (sensor) can be fix easily on lab ware.
•Showed on digital display- top plate temperature, Probe measuring
temperature, stirring speed, timer setting value, and remaining time
value.
•In case of the stirring media viscosity change, the feedback function
maintains regular speed.

2-3
Section 2
Functional Description
Convenience
• Smooth-start stirring system reduces magnetic bar decoupling.
• Two support rods are provided to hold various kinds of devices such
as temperature sensors, thermometers, laboratory glassware, etc.
(optional).
• User designation temperature range
Your own temperature limit can be easily set and protect simple from
controlling time or user mistake.
• User designation stirring speed range
User can set up the lowest stirring speed. So the device can be
stirring as quickly as possible time.

2-4
Section 2
Functional Description
Construction

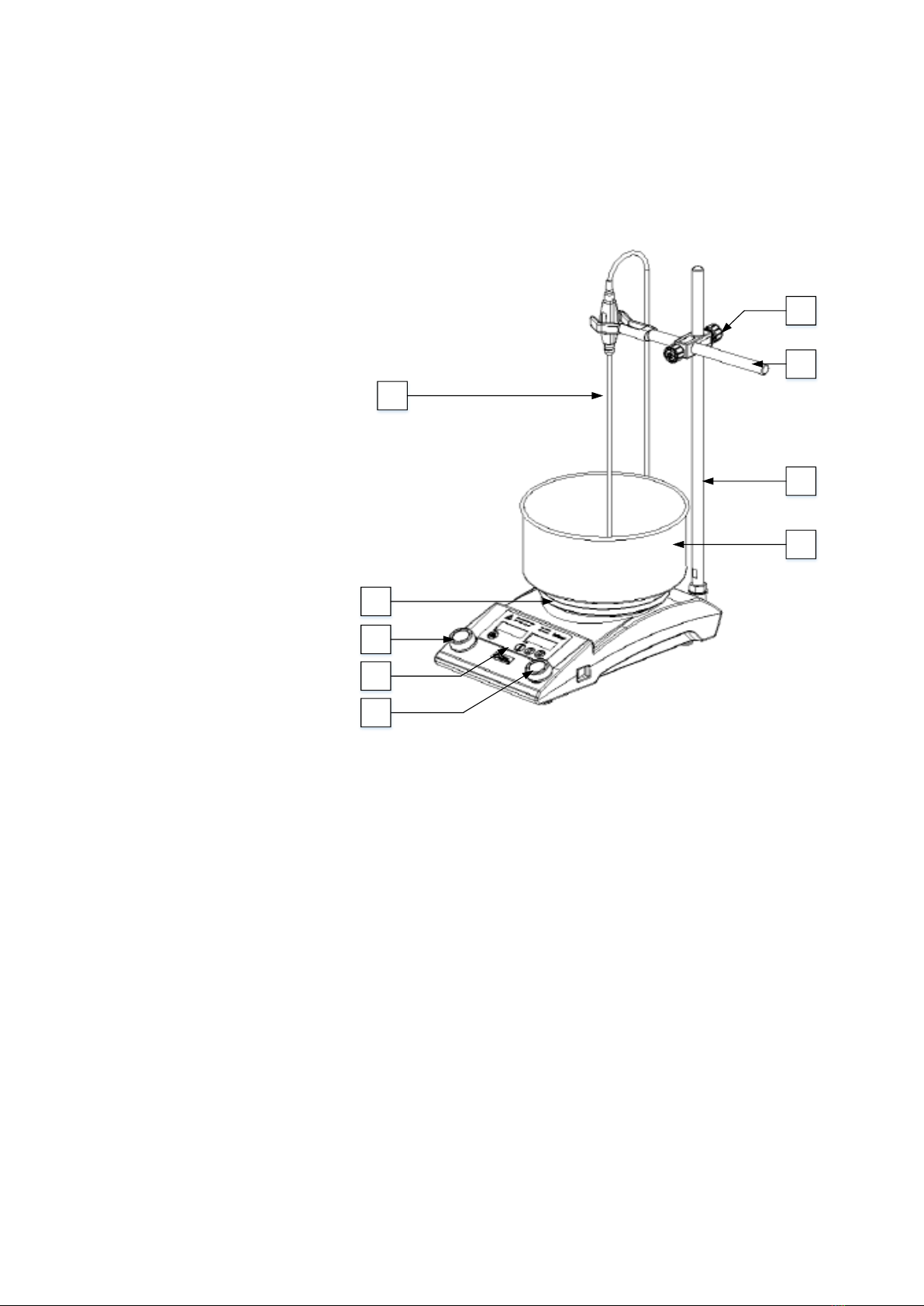

Figure 2-2. Front Components
(1) Temperature probe
This is PT100 sensor to check media temperature.
(optional 2 different temperature probe series. Refer to Accessories
list)
(2) Heat sink
(3) Heater knob
(4) Control panel
(5) Stirrer knob
(6) Clamp holder (optional)
(7) 3 Prong clamp (optional)
(8) Support rod (optional)
(9) Heating bath (optional)
1
2
3
4
5
7
8
9
6

2-5
Section 2
Functional Description
Construction

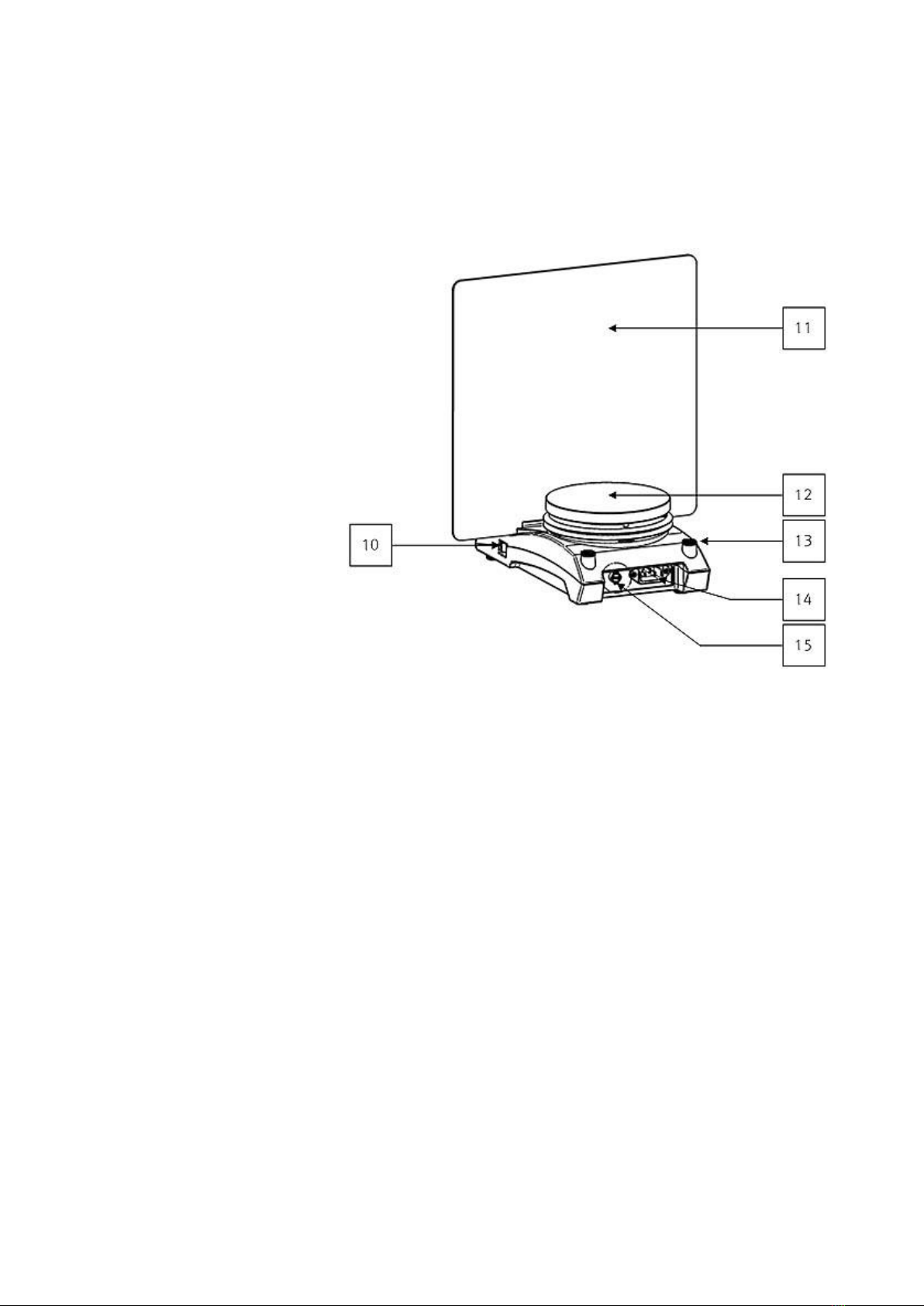

Figure 2-3. Back Components
(10) Power switch
(11) Transparent Shield (optional)
(12) Top plate
(13) Threaded hole
(14) Power socket
(15) Temperature probe cap

2-6
Section 3 Unpacking and Installation
Upon receiving the instrument, check to ensure that no damage has
occurred during shipment. It is important that any damage that occurred
during shipment must be detected before unpacking. If such damage is
found, notify the carrier immediately.
After unpacking, check to ensure that all the following parts and
accessories are included in the package. If not, contact your dealer or
Fisher Scientific immediately.
Item
Figure
Quantity
Description
Main body
1
--
Power cord
1
--
Operation
Manual
1
--
Magnetic bar
1
--
Temperature
probe
1
B class
Max 250℃
Location Conditions
Place the unit on the wrench, or table when in use, and observe
minimum distances in 30cm between the other devices.
The unit should be located away from naked flame sources, direct
sunlight. It can come with the malfunction or lower the function.

3-1
Section 3
Unpacking and Installation
Pre-startup Check
•Check the unit is balanced well.
•Never install or use this instrument with or near to hazardous or
flammable substances.
•Do not install this instrument near any device that generates high
frequency noise.
•Do not install with short circuit, water leak, and risk of flooding places.
•Do not install with industrial harmful gas, metal dirt environments.
Connecting to Power
Supply
When connecting power, use only the power cord that came with your
instrument. The power connection procedures are as follows:
(1) Before connecting the power cord, make sure that the main power
switch is turned off.
(2) Plug the power cord into the power socket at the back of your
instrument as shown in the diagram below.
(3) Plug the other end into a properly grounded and dedicated power
outlet nearby.
Figure 3-1. Connect Power Cord
Electrical Shock Hazard.
•Check voltage, phase and capacity of power supply and connect
properly.
•Do not insert damaged line cord or multiple plugs into outlet at the
same time.
•DO NOT use without safety PPE (working clothes, gloves, glasses)
•DO NOT handle or touch electrical cord or electrical parts with wet
hands.
•Make sure to connect this instrument only to properly grounded power
outlets to protect you and your instrument.

3-2
Section 4 Control Panel
Figure 4-1. Control Panel
Control Panel
A
HOT TOP
Although this instrument has a hot top
warning indicator, which is turned on when
the top plate temperature is over 50°C, do
not rely on this indicator alone for your
safety.
B
HEATER
During heater operation
TIMER
During timer operation
STIRRER
During stirrer operation
PROBE
During the Probe measurement
temperature indication.
SET
During temperature, Timer, Config. set
WARNING
Overheating warning
C
Temperature
indication display
Hot plate temperature, measurement
temperature , and setting temperature
showed
D
RUN/STOP button
Heater ON/OFF, End of Timer, Scope
function during button operation
E
TEMP button
Setting temperature confirmation of a
heating plate. Temperature setting.
F
TIMER button
Elapsed time, remaining time, and timer
settings.

4-1
Section 4
Control Panel
Control Panel
G
CONFIG
button
When this device is stop conduction, Configuration
Functions can be set. When user wants to change
mode, press the Config. Button with stirrer knob to
clockwise turning. Then the mode can be switching in
the following order.
Unit
Changing the temperature unit “Cels” -
Celsius, “Fahr” - Fahrenheit
Time
Changing timer mode
Offset
Changing Offset setting
Limit
Set maximum heater rate when used to
temperature control.
t-H
Highest temperature set top plate and
external temperature sensor
t-L
Lowest temperature set top plate and
external temperature sensor
List
Indicating the set value to turning stirrer
knob.
Calibration
Matching Auto tuning the device to
current situation or best condition.
Coefficient
Select to using control temperature
coefficient.
Default
Change all the settings to the default
values
Motor
Minimum
Minimum stirring speed set (range :
1~1000rpm)
Escape
Config. mode to be end
H
Speed display
STIRRER speed, timer
Knob –Set a value and select a function, turn knob left or right.
I
Heater knob
Temperature setting
J
Stirrer knob
STIRRER speed setting, value setting on
Config.

4-2
Section 4
Control Panel
Check Power Status
(1) The following displays will appear in sequence together with a beep
sound when the power cord is connected:
•Note that the following display will also appear momentarily if the main
power switch is off:
(2) If you turn on the main power switch, the following display will
appear in sequence:
Connecting the
Temperature Probe
When the external temperature probe connects with body, the
temperature display part shows Probe measuring temperature. If the
probe disconnect with body, the temperature display part shows top
plate temperature.
(1) Open the external temperature probe cap and turn right.
(2) Insert external temperature probe with body.
(3) When you connect with temperature probe, the LED lamp is
automatically turned on.

4-3
Section 4
Control Panel
Connecting the
Temperature Probe

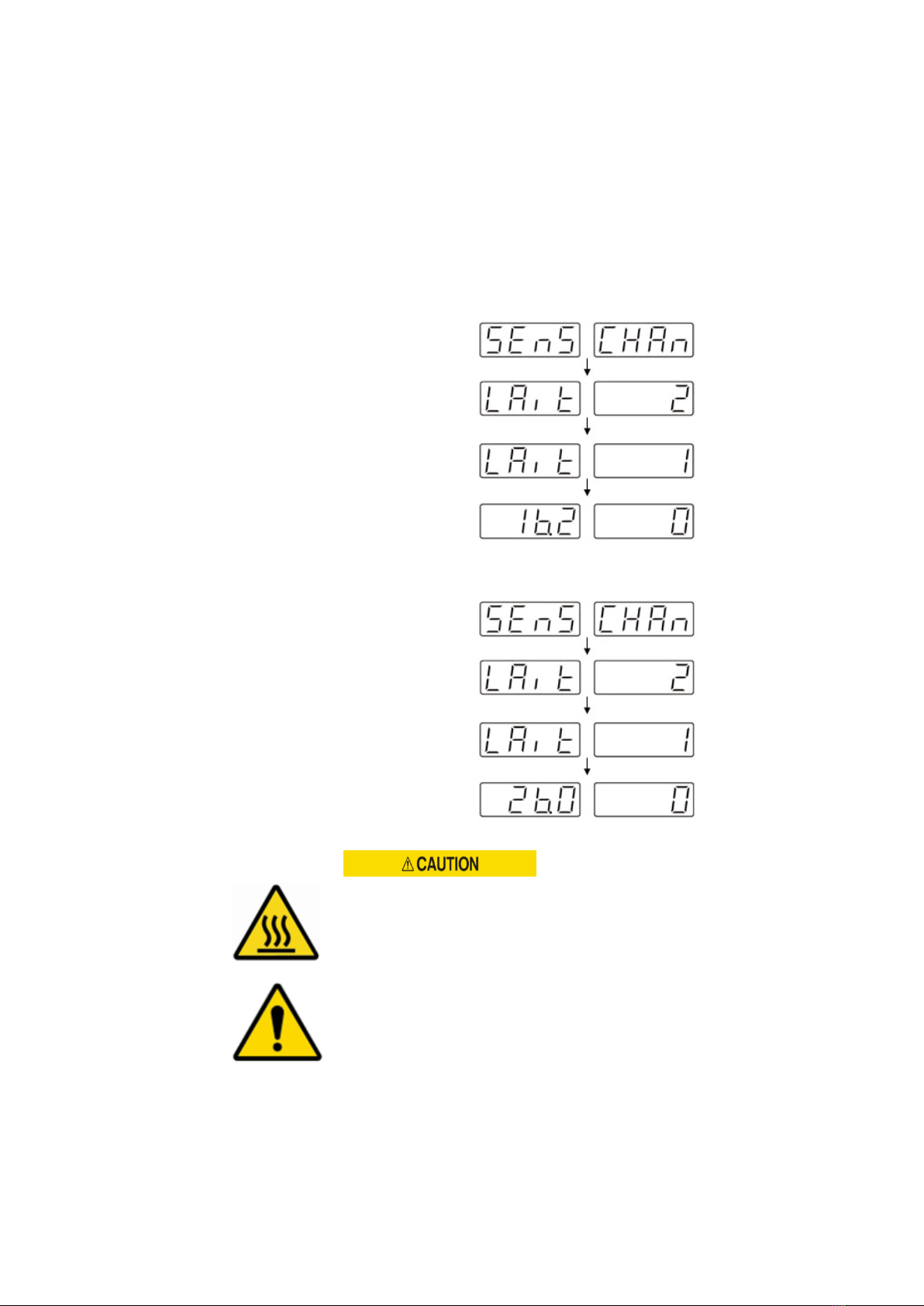

Temperature display windows are showed on “Sensor change”
message. After then, the display windows showed “Probe” measuring
temperature.
(4) In case of separating temperature probe from main body, the
temperature display windows are showed follow message;
•When you connect with temperature probe, check first hotplate
temperature.
•When you connect with temperature probe and hotplate temperature
is over 50°C, the “HOT TOP” LED will be lit.
•Pay attention to a high temperature.
•Set the Probe under 20mm from Media. If Probe is not set perfectly or
on air, the Probe will be “Error” or the hotplate will be overheating.
