Fisher Scientific 88861023 User manual

Microplate ShakerOperations Manual
V1 12/21/17

This manual covers the model shown below
1
NA Model Voltage Description
88861023
88861024 100~240V
100~240V Microplate Shaker US plug
Microplate Shaker Intl plug
EU Model
N/A
15504070

2
Caution all internal adjustments and maintenance must be performed by qualified
service personnel.
Material in this manual is for information purposes only. Fisher Scientific is
committed to a continuing program of product development and improvement, and
reserves the right to change information, such as specifications, appearance, and
dimensions, described in this document without notice. Fisher Scientific makes no
representations or warranties with respect to this manual. In no event shall Fisher
Scientific be held liable for any damages, direct or incidental, arising out of or
related to the use of this manual.
No part of this manual may be reproduced or transmitted in any form or by any
means, including photocopying, recording, or using information storage and
retrieval systems, for any purpose other than the purchaser's own use, without the
express written permission of the manufacturer.
Any other product names and services identified in this manual are trademarks or
registered trademarks of their respective owners. No such use, or the use of any
trade name, is intended to convey endorsement or other affiliation with Fisher
Scientific.
2017 Fisher Scientific. All rights reserved.
Before using this product, read this entire operation manual
carefully. Users should follow all of the operational guidelines
contained in this manual and take all necessary safety
precautions while using this product. Failure to follow these
guidelines could result in potentially irreparable bodily harm
and/or property damage.

3
Contents
Section 1 Inspection and Installation
Packing List
Connections
Structure Diagram
Section Overview
Specifications
Environmental Conditions
Safety Instructions
Capacity and Speed
Section 3 Operation
Control Panel
Settings
Installation of Accessories
Section 4 Safety Tips and Maintenance
Section 5 Troubleshooting
Section 6 Optional Accessories/Spare Parts
Section 7 Warranty
2
Installation
4
4
4
4
5
5
5
5
6
7
7
7
7
8
9
10
11
12

Section 1 Inspection and Installation
1. Inspect package and contents upon receipt of the instruments.
If the package is severely damaged or if there are any missing
pieces, please contact the manufacturer immediately.
2. Unpack the instrument, ensure all parts of the instrument and
accessories are not missing or damaged. Make sure to take out
*96-well microplate holder
General Power Adaptor
US Plug
CN Plug
EU Plug
UK Plug
Screw Driver
*Has been installed on the instrument

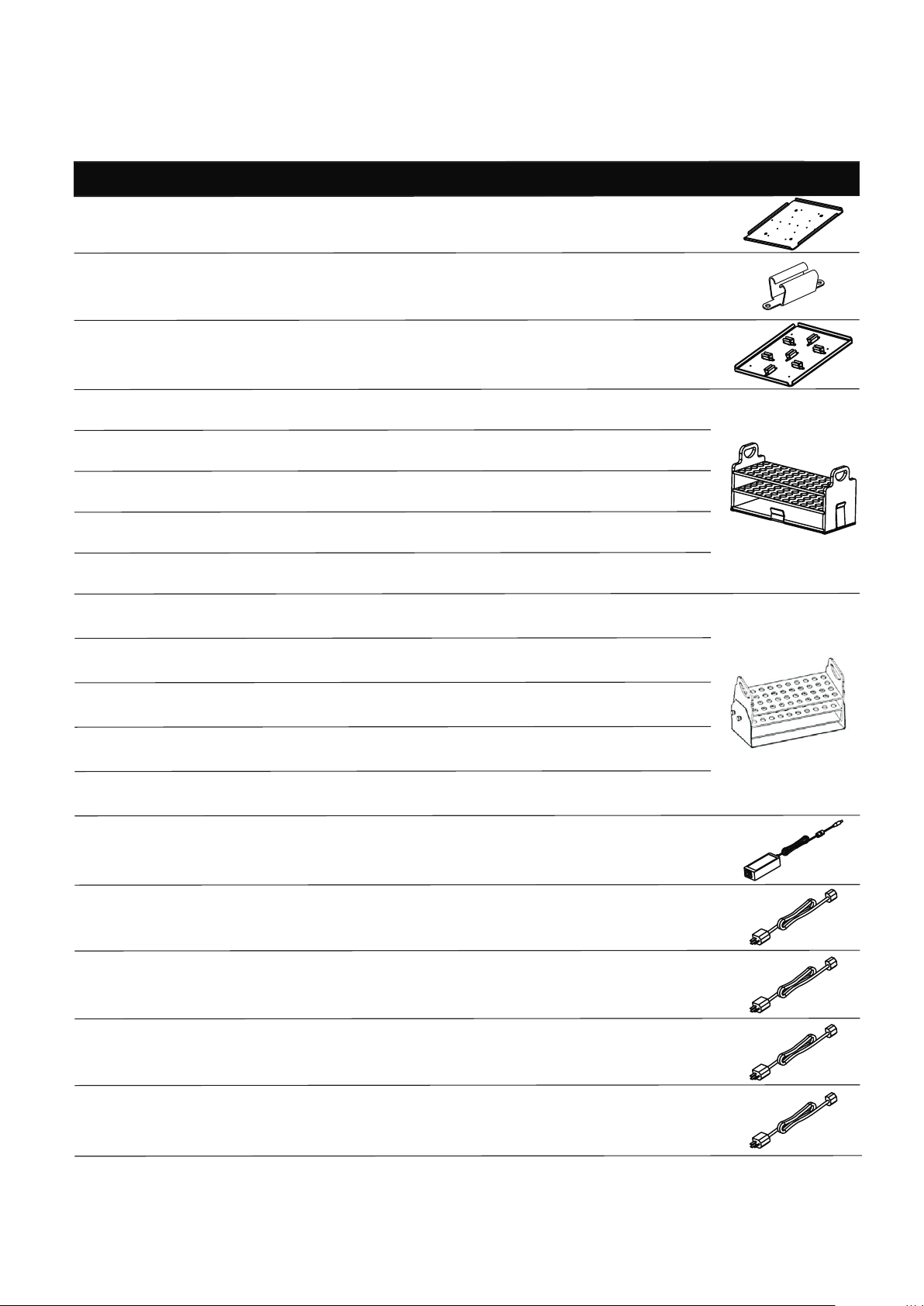

1.1 Packing List
Table -1 Packing List
6
12
N/A
N/A
N/A
Microplate Shaker
1
1
1
*M3 6 Screw× 12
6
N/A
1
1
1
1
1
Figure
1.2 Connections
Main Body
Power Cable
all the components before discarding the packing. If there are
any missing or damaged pieces, please contact the
manufacturer immediately.
3. Place the instrument on a level and firm surface to avoid
vibration and noise.
Power Adaptor
Tray
House
Control Panel
Foot (4)
96-well Microplate
Holder (6)
Screw
M3×6 (12)
1.3 Structure Diagram
4
(Assembly on
the )platform
NA Cat. No. NA/EU Cat. No.
Description
88861023
US plug
88861024
/15504070
Intl plug

2.4 Capacity and Speed
Warning: The rotation speed is inversely proportional to the load. When the instrument is running, it is recommended to
adjust the rotation speed from low to high step by step and run the instrument at an appropriate speed to avoid spillage
of liquids.
Note: These max. speeds are just for reference. We did the tests on the marble surface. Its friction coefficient is 0.32.
1000rpm
800rpm
Load Type
96-well Microplate
96-well Microplate
Liquid Capacity
1/2-well deep
2/3-well deep
Max Speed
Fixed Tube Rack 40×Φ16
Fixed Tube Rack 40×Φ14
Adjustable Tube Rack 40×Φ14
Adjustable Tube Rack 40×Φ16
500rpm
500rpm
450rpm
400rpm
6

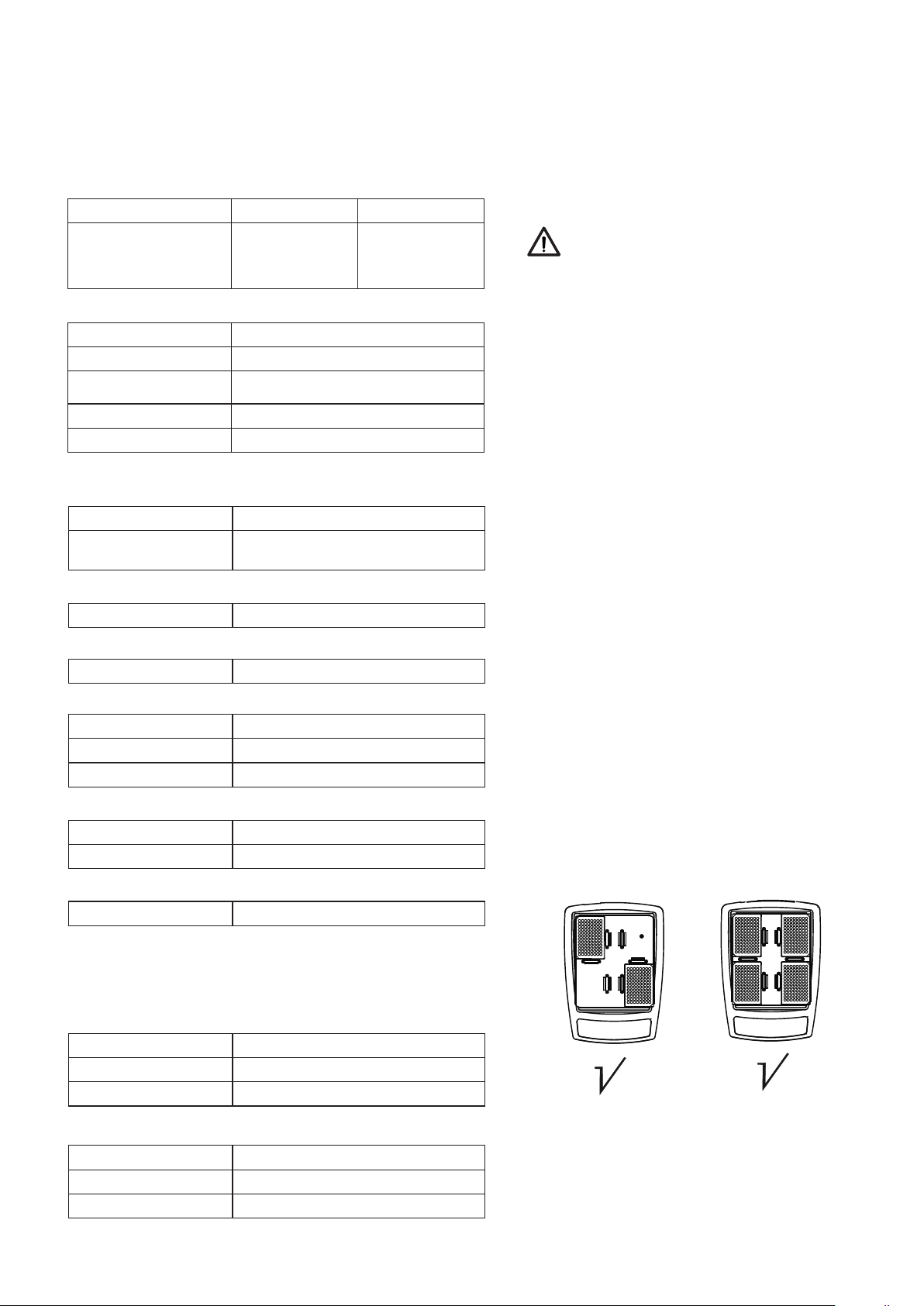

2.1 Specifications
Section 2 Overview
2.2 Environmental Conditions
Application Environmental Conditions: indoor use
Storage Environmental Conditions
Note: Maximum speed may vary with heavy or unbalanced loads.
Rotation Speed
150 1000to rpm
2.5mm
LED
1 rpm
±1% of set speed up to 299rpm
±2% 300 to 1000rpm
Range
Orbit Diameter
Speed Accuracy
Display
Display Accuracy
Load
Maximum Load
Maximum Capacity
(Centered on tray)
1 kg (Clamps included)
96-well Microplate-4 standard
6 with optional accessory
Power Supply
AC100-240V, 50Hz/60Hz, 72VA
Requirement
Time
Timing Range 0min to 99h59min
Size
415× × ×11.5×5.4in )293 137mm(16.3 ch
275× ×9.3in )235mm(10.8 ch
536× × ×19.7×13.6in )501 346mm(21.1 ch
Overall Dimensions
Tray Dimensions
Packaging Dimensions
Temperature
Humidity
Altitude ≤2,000 m
5 40℃ to ℃
20 85% to %
Temperature
Humidity
Altitude ≤2,000 m
20％ to 90％, non-condensing
0 60℃ to ℃
Weight
Net Weight 11.5 (25.3lb）Kg
14Kg(30.8lb)Gross Weight
Others
Certificate ROHS, WEEE, cCSAus, CE Mark
WARNING DO NOT use the
Shaker in a hazardous atmosphere or with
hazardous materials for which the unit was
not designed. Also, the user should be
aware that the protection provided by the
equipment may be impaired if accessories
used are no provided or recommended by
the manufacturer, or are used in a manner
not specified by the manufacturer.
CAUTION ! To avoid electrical shock,
completely cut off power to the unit by
disconnecting the power cord from the unit
or unplug from the wall outlet. Disconnect
unit from the power supply prior to
maintenance and service. Any spills should
be removed promptly. Bio hazard spills
should be cleaned using approved liquid
promptly. Solvent spills are a fire hazard.
Stop the unit immediately, and DO NOT
operate until clean up is complete and
vapors have dissipated.
Microplate
DO NOT immerse the unit for cleaning.
DO NOT operate the unit if it shows signs of
electrical or mechanical damage.
Please read the entire instruction manual before
operating the Microplate Shaker.
2.3 Safety Instructions
Placement of Loads
Please place loads symmetrically during operation.
Symmetrical placement
5
Microplate Shaker 88861023
US plug
88861024
/15504070
Intl plug
NA Cat.No. NA/EU Cat.No.
Description
Category Number

The front panel of the Microplate Shaker contains all the controls needed to operate the unit.
TIME
①
②
③④
⑤⑥
This chapter covers the control panel and its operation.
1. Start/Stop button: Start or stop the instrument.
2. RUN indicator light: The light is on when the instrument is
running and off when the instrument is in standby.
3. TIME display window: The window shows cumulative time
(in continuous mode) or remaining time (in timer mode). The
range of time displayed is 0 to 99 hours and 59 minutes. The
accuracy is 1 minute.
4. SPEED display window: The window shows set speed
(when the instrument is in standby) or current speed (when the
instrument is running).
5. Set Time Buttons: UP/DOWN Arrow buttons are used to
increase/decrease the set time of the instrument.
. Set Speed Buttons: UP/DOWN Arrow buttons are used to
increase/ decrease the set speed of the instrument.
6
1. Connect all the components according to the figures shown
on page 4 of this manual. Use grounded power outlet.
2. Press down the power switch on the back right side of the
instrument and put it to the “|” state and then the instrument is
in standby.
Section 3 Operation
3.1 Control Panel
3.2 Installation
3.3 Settings
Time Settings
1. Continuous mode
Press the “ ” or “ ” arrow button below the TIME display
window. When the number shown on the display window starts
flashing, press “ ” arrow button to decrease the time to 00:00
and then release the button. The time setting is finished after the
number shown on the display window has flashed twice.
2. Timer mode
window. When the number shown on the display window starts
flashing, press “ ” or “ ” arrow button to increase or
decrease the time value. Release the button when the time
shown on the display window reaches the set value. The time
setting is finished after the number shown on the display window
has flashed twice.
Speed Settings
Press the “ ” or “ ” arrow button below the SPEED display
window. When the number shown on the display window starts
flashing, press “ ” or “ ” arrow button to increase or
decrease the speed value. Release the button when the speed
shown on the display window reaches the set value. The speed
setting is finished after the number shown on the display window
has flashed twice
Note: press the “ ” or “ ” arrow button for a longer time to
accelerate the setting.
Run and Stop
1. Continuous Mode
Press button and the instrument will start running with the
specified settings and the RUN indicator light will be on. The
TIME display window will show the cumulative time and the
SPEED display window will show the current speed. Press “ ”
button again and the instrument will slow down until it stops.
The instrument will then be in standby and the two display
windows will show the set values.
“ ”
2. Timer Mode
Press button and the instrumentwill
The
TIME display window will show the remaining time and the
SPEED display window will show the current speed. Press
button again and the instrument will slow down until it stops.
The instrument will then be in standby and the two display
windows will show the set values.
“ ”
“ ”
start running with the
specified settings and the RUN indicator light will be on.
7
Press the “ ” or “ ” arrow button below the TIME display

1.
(figure 1), and r
Loosen the screws of the tray with a cross screwdriver
eplace the standard tray with platform
large (figure 2).

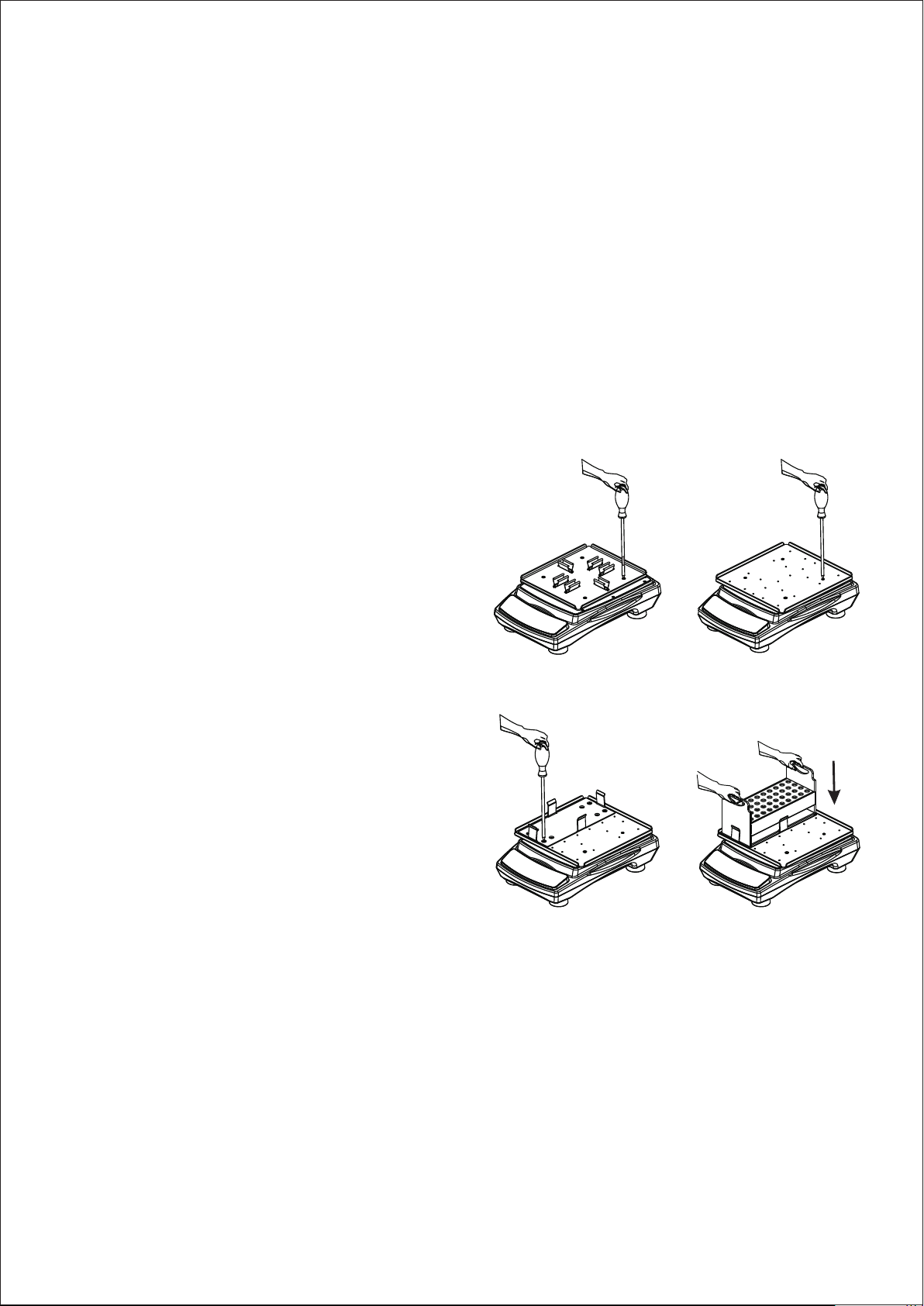

3.4 Installation of Accessories
figure 1
figure 3
figure 2
figure 4
Power Recovery
If the power supply is cut off suddenly while the
instrument is in operation, the unit will automatically run
at the previously set parameter upon power restoration.
The display window will flash. Press any button to stop
flashing.
1. If the actual speed of the instrument exceeds or is lower
than the set speed to reach alram range, alarm will be
trigered.
Alarm Instructions
2. After the instrument alarms, LED RUN indicator light
will go off, LED SPEED window will show “ERR1”, and the
machine will stop running, press any key to put the
instrument in standby.
3. After the timer goes off, the buzzer will alarm and the
instrument will stop running automatically.
Note:
To ensure shaking operation smooth and steady, it may take
1minute for the microprocessor control system to accelerate
the tray to the set speed.
Finish Operation
After the operation is finished, press the power switch at the
back right side the instrument and put it into the “O” state
Unplug the instrument and store the instrument according to
the storage guide.
8
2. Place the test tube rack holder onto the tray and fasten
the 4 sunk screws.
3. Vertically clip the test tube rack into the holder and make
sure there is no gap between the rack and the holder
.(figure 3)
4. Insert the test tube .(figure 4)
Note: When using single test tube, it is recommended not to
set the speed too high because of load imbalance.

Section 4 Safety Tips and Maintenance
Safety Tips
1. Use independent power supply.
2. Check if the local power supply voltage is suitable for use.
3. Do not drag the power supply cable when unplugging.
4. Do not use non-specified power cable or damage cable.
5. Service should only be performed by a qualified
professional.
6. The power supply must be unplugged under the following
situations:
a. When the unit is moved
b. When the electrical cabinet or the moving component is
opened
c. When the equipment is malfunctioning
d. When the equipment is not in use
Maintenance
a. This instrument uses brushless DC motor. It is
maintenance free and has a long service time, high
quality, and low noise level.
b. Surface can be cleaned with a mild detergent and water.
If accidental spillage of liquids caused by mishandling or
contained breakage occurs on the surface of the
instrument, please shut down the instrument and clean
up the liquid immediately.
If the liquid has already spilled into the unit, cut off the
power supply first and immediately clean up the liquid
at the surface of the instrument. Place the instrument in
a ventilated and dry environment for 24 hours before
reuse. If the instrument is not functioning after drying
for 24 hours, please contact the manufacturer.
Warning: Disassembling/Assembling without a
qualified professional's guidance may cause
malfunctioning of the instrument.
Clean Spill
9

Section 5 Troubleshooting
Error
Cannot start machine,
LED display window off
No shaking of the tray
Loud noise
Other
Cause
Power disconnected
Power switch off
Power adaptor failure
Over-weighted or unbalanced load
Electrical malfunction
Mechanical malfunction
Tray loose
Microplate loose
Please refer to the following table to troubleshoot if any malfunction occurs. If the problem still exists, contact your local
sales representative.
Keep record for maintenance
Solution
Connect the power
Turn power switch on
Replace power adaptor
Adjust the weight and position of load,
decrease rotation speed
Contact Fisher Scientific
Contact Fisher Scientific
Fasten screws
Adjust position of the microplate holder
10

Section 6 Optional Accessories/Spare Parts
6 well platform assembly
298 274mm×
Platform Large
298 274 21.5mm× ×
88861173
N/A
96-well microplate holder N/A 54×19×19mm (7pcs/pack)
*Only used on platform large ( ).15855911
Description NA Cat. No. EU Cat. No. Dimensions Figure
Max. Qty
1
7
1
11
15865911
15855911
15875911
General Power Adaptor
(Spare Part) AC 100 240V, 50/60HZ~
125VAC, 10A, 1.8m
250VAC, 10A, 1.8m
250VAC, 16A, 1.8m
250VAC, 13A, 1.8m
88861158
88861157
88861156
88861155
88861154
N/A
N/A
Power Cable
(Spare Part)
US Plug
Power Cable CN
(Spare Part)
Plug
Power Cable EU
(Spare Part)
Plug
Power Cable UK
(Spare Part)
Plug
1
1
1
1
1
15554120
15564120
15574120
*Fixed Tube Rack 40×Φ14
*Fixed Tube Rack 40×Φ18
*Fixed Tube Rack 27×Φ22
*Fixed Tube Rack 21×Φ30
88861148
N/A
N/A
N/A
88861149
88861150
88861151
N/A
N/A
N/A
262×112×140mm
262×112×140mm
262×112×140mm
262×112×140mm
2
2
2
2
2
2
2
262×112×140mm
262×112×171mm
262×112×171mm
262×112×171mm
262×112×171mm
262×112×171mm
*Fixed Tube Rack 40×Φ16
*Adjustable Tube Rack
40×Φ14
*Adjustable Tube Rack
40×Φ16
*Adjustable Tube Rack
40×Φ18
*Adjustable Tube Rack
27×Φ22
*Adjustable Tube Rack
21×Φ30
2
2
2
15594110
15504120
15783798
15793798
15703808
15514120
15524120
15713808
15723808
15733808

When used in laboratory conditions and according to these operation instructions and maintenance, this product is
warranted for 24 months against defective materials or workmanship. The 24 month warranty period begins from the
delivery date of this product.
For product quality or performance issues, contact Fisher Scientific Customer Service.
Section 7 Warranty
12

United States
1-800-766-7000
fishersci.com
Austria:
[phone]
at.fishersci.com
Belgium:
[phone]
be.fishersci.com
Denmark:
[phone]
fishersci.dk
Germany:
[phone]
de.fishersci.com
Ireland:
[phone]
ie.fishersci.com
Italy:
[phone]
it.fishersci.com
Finland:
[phone]
fishersci.fi
France:
[phone]
fishersci.fr
North America
Canada
1-800-234-7437
fishersci.ca
Netherlands:
[phone]
nl.fishersci.com
Norway:
[phone]
fishersci.no
Portugal:
[phone]
pt.fishersci.com
Spain:
[phone]
es.fishersci.com
Sweden:
[phone]
fishersci.se
Switzerland:
[phone]
ch.fishersci.com
UK:
[phone]
fisher.co.uk
Europe
Find out more at
fishersci.com
