Fitbit Zip Wireless Activity Tracker User manual

Product Manual
Wireless Activity Tracker

Fitbit Zip Product Manual
Getting Started
What's included
Setting Up Your Fitbit Zip (on a computer)
Installing the Software
Setting Up Your Fitbit Zip (on your iPhone4S)
Using your Fitbit Zip
Battery
Wearing your Zip
Display
When Your Zip Goes to Sleep
Using the Fitbit Software Menu
Uploading/Syncing Your Data
Updating Your Zip Firmware
Using the Fitbit Connect Application
Sync Now
Preferences (Mac) / Options (PC)
Open Main Menu
Fitbit.com Dashboard
Online Help
General Zip Information
Environmental Conditions
PC/Mac requirements
Browsers supported
Troubleshooting
Troubleshooting your Device
What if my Zip stops syncing?
What if my Zip display freezes?
1
2
3
6
9
9
9
12
12
13
13
15
16
16
16
16
17
17
17
18
18
18
Contents

1
Getting Started
Your Fitbit Zip Wireless Activity Tracker will contain:
• Fitbit Zip Wireless Activity Tracker
• USB Dongle
• Fitbit Zip Quick Start Guide
• Battery Door Tool
• 3V coin battery, CR2025
• Belt clip

2
Setting Up Your Fitbit Zip (on a computer)
• Remove your Zip from its packaging.
• Use the provided battery door tool to unlock the battery door. Insert the tool
into the slot on the back of the unit, and turn the door counterclockwise.
• Once the door has been removed, insert the provided battery into the back of
the unit, with the “+” sign facing up. The battery will rest in the center of the com-
partment.
• Once the battery is in place, align the arrow on the battery door with the ‘un-
lock’ icon on your Zip to put the battery door in place. Use the battery door tool
to ‘lock’ the battery door by turning it clockwise until the arrow on the door lines
up with the ‘lock’ icon.

3
• Once the display comes on, you will be ready to proceed with setup. The rmware version of
your Zip will appear on the display, followed by the Fitbit Smiley. The series of smiley faces are
used to represent your activity level. The display will remain on for 30 minutes after inserting
the battery.

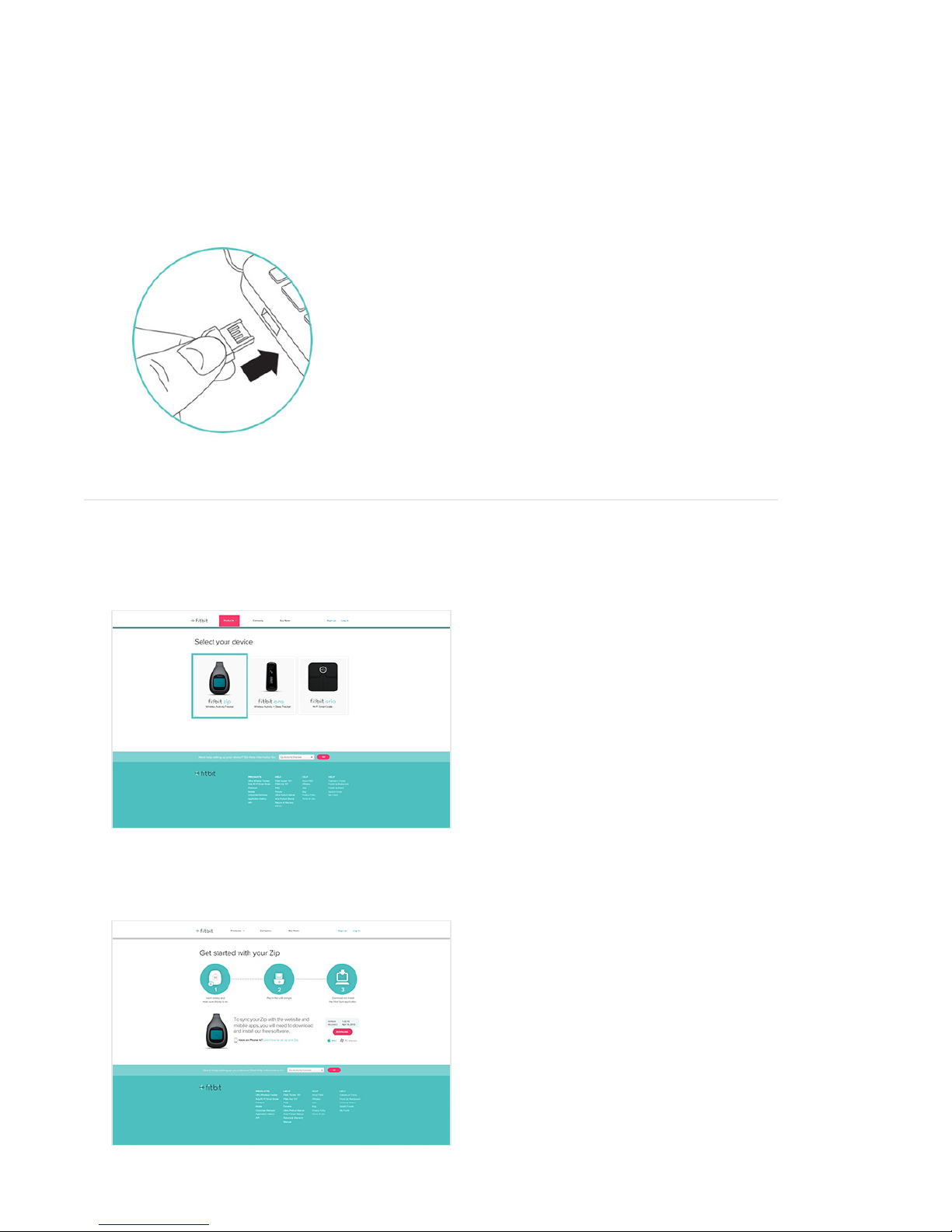

• Take the USB dongle from the box and plug it into a USB port on your computer.
• You are now ready to install the software.
Installing the Software
• Go to www.tbit.com/start and click the “Zip” tile. You will be directed to the
Fitbit Connect Application download page.
• Select the pink “Download” link to download the Fitbit Connect software. Open the
Fitbit Connect le and follow onscreen instructions.

4
• The rst time you open the Fitbit Connect Application, you will have the option to
create a new account if you are new to Fitbit or login to your account if you are an
existing user.
• On the account “Sign up” screen, you will then be given the option to sign up or
log in to an existing account
• If you already have a Fitbit.com account, and you want to use the Zip with your existing ac-
count, proceed with Zip setup using that email address.
• There can only be one Tracker per Fitbit.com account. If you already have an Ultra or Zip as-
sociated with Fitbit.com, linking a new device to it will unlink the previous device.
To monitor your Zip and your Ultra simultaneously, create a new Fitbit.com account with a new
email address.
• You will be prompted to tell us a few details about yourself: your name, gender, age, height,
weight, and time zone. This information helps personalize your experience with your Zip and
makes your calorie burn and distance data more accurate. We will not share your personal
information with any third party.
• Before selecting “Next,” ensure that your Zip is within 5 inches of the USB dongle plugged
into your computer. If another Zip is nearby, move it further away.

5
• After clicking “Next” the Fitbit software will search for nearby Zip Trackers.
• When your Zip has been discovered, you will be prompted to enter the number displayed on
your Zip screen.
• The number will display with the radio icon and begin with a 0. It may take up to 30 seconds
for this number to appear.
• If the number does not display, click “I don’t see a number.” You will then be prompted to:
• Make sure the battery is inserted and your Zip screen is on.
• Move nearby Trackers away from the dongle.
• Make sure that your Zip is removed from the clip case.
• After you enter the number displayed on the screen of your Zip, it will be linked to your Fitbit
account.

6
• Once your Zip has been linked with your Fitbit.com account, you will see an “All Set” screen,
which will allow you to click through to Fitbit.com, where you can access all of the information
synced from your Zip to your account.
Setting Up Your Fitbit Zip (on your iPhone 4S)
Only the iPhone 4S will sync with your Zip at this time. Syncing capabilities for additional mobile
devices with Bluetooth® Smart technology are coming soon. The Fitbit iPhone and Android apps
will work on other devices, but will not sync with your Zip.

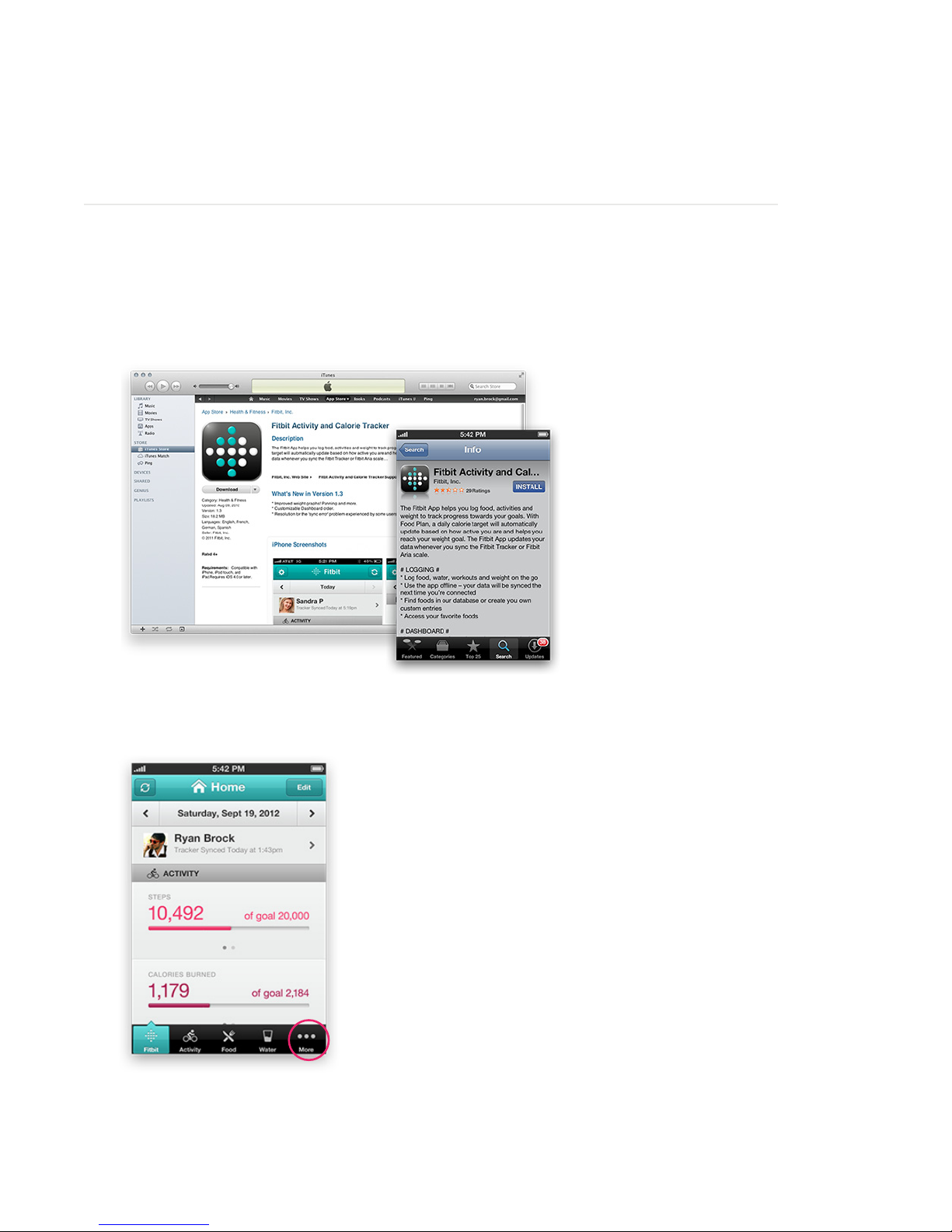

• Download the iPhone app from the Apple store. (insert link to apple store)
• Select the “More” icon on the main screen of the app. Then, select Devices >
Add a new device > Zip Tracker > Start Zip Setup

7
• On the “Set up” screen, select “Zip” option
• On the following screen, select “Next” after you have:
1. Inserted the battery and closed the battery door.
2. Make sure the display is active, and the screen is on.
3. Moved your Zip within 5 inches of the iPhone 4S.

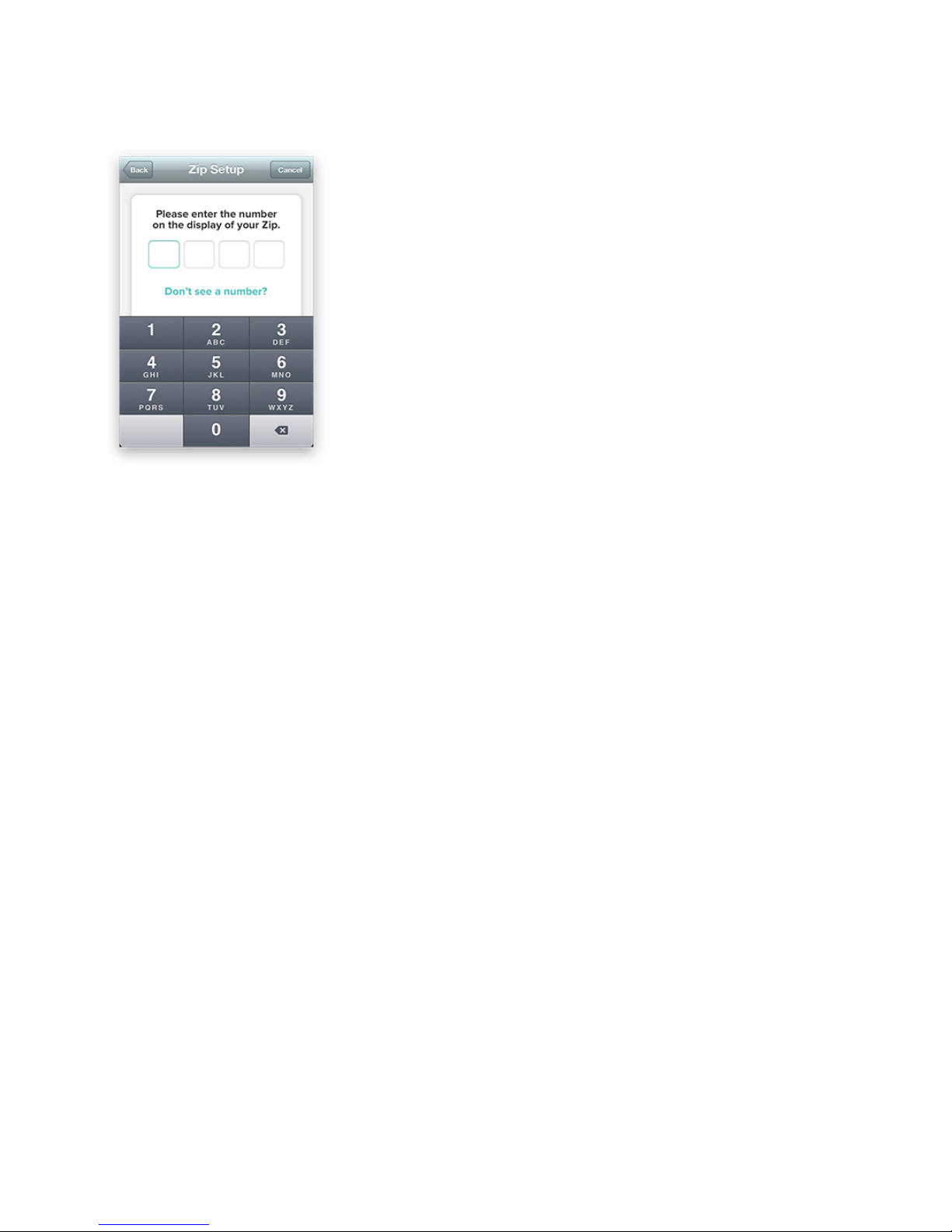

• When your Zip has been discovered, you will be prompted to enter the number displayed on
your Zip screen.
• The number will display with the radio icon and begin with a 0. It may take up to 30 sec-
onds to appear on your Zip display.
• If the number does not display, click “Try again.” You will then be prompted to:
• Make sure the battery is inserted and your Zip screen is active
• Plug the USB dongle into your computer.

8
Move nearby Zip Trackers further away.
2. Your Zip is will now be connected to your iPhone 4S.

9
Using your Fitbit Zip
Battery
• Your Zip runs on a replaceable 3V coin battery, CR2025.
• Your battery should last 4-6 months with regular use.
• A battery icon will appear on your Zip display when the battery has drained to 25%. A ash-
ing battery icon indicates that your Zip is very close to being completely out of battery life, and
that data could be lost if your Zip is not synced before replacing the battery.
• If your Zip battery dies, just purchase a new 3V coin battery, CR2025. Use the provided bat-
tery door tool to unlock the battery door compartment, located on the back of the Zip. Your
old battery can be recycled.
Wearing your Zip
• Your Zip is most accurate when worn on or very close to the body. A shirt pocket, bra, pants
pocket, belt, or waistband are all ideal places to wear your Zip. Try out a few different locations
to see what is most comfortable and secure for you.
• A belt clip is provided, designed to keep it clipped to your clothing.
• Your Zip is sweat, rain, and splash resistant, but not waterproof. It is not intended to be worn
swimming.
Display

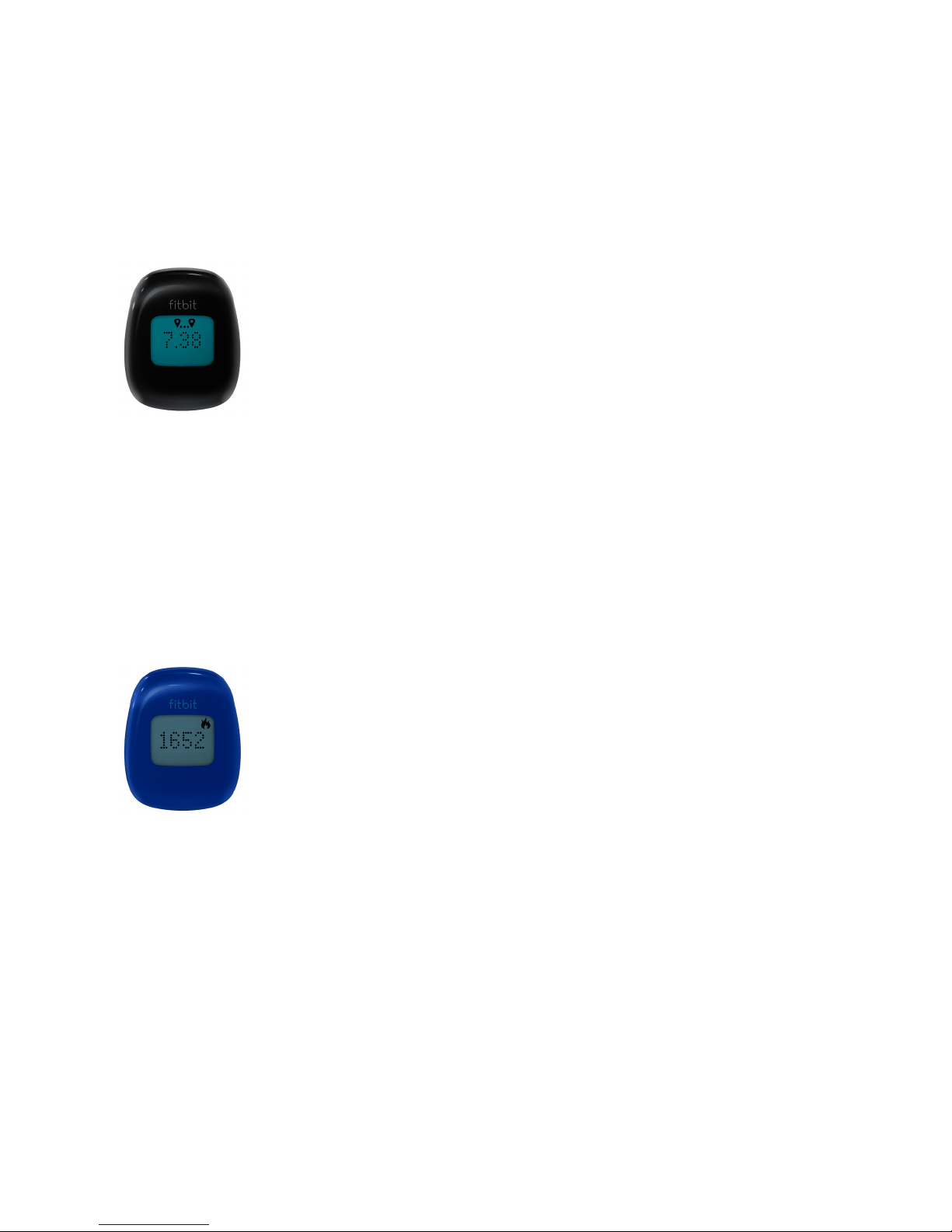

The display shows your stats, as well as the time. Tap your Zip to progress from one screen to
the next.
• Steps

10
• The steps displayed represent your daily total. Your Zip resets automatically each day at
midnight.
• Walking and running steps are displayed as a combined total.
• Going to your Fitbit.com Dashboard and clicking “Settings” can remove the step display.
tbit.com/settings/device/tracker
• Distance
• Zip calculates your distance based on your step count and stride length. Your stride
length is estimated based on your height, weight, age, and gender. You also have the op-
tion of entering your own stride length for more accuracy. (Link here to Calculating Stride
length)
• Distance can be viewed in either miles or kilometers by changing your settings.
tbit.com/user/prole/edit
• Going to your Fitbit.com Dashboard and clicking “Settings” can remove the distance
display. tbit.com/settings/device/tracker
• Calorie Burn
• Zip records how many calories you’ve burned based on your activities throughout the
day and your Basal Metabolic Rate (BMR). (link to BMR denition/explanation of BMR)
• When you manually log an activity on Fitbit.com, the calorie burn associated with it will
be added to your Zip the next time you sync.
• The total displayed is how many calories you have burned since midnight, including your
BMR.
• Going to your Fitbit.com Dashboard and clicking “Settings” can remove the calorie dis-
play. tbit.com/settings/device/tracker

11

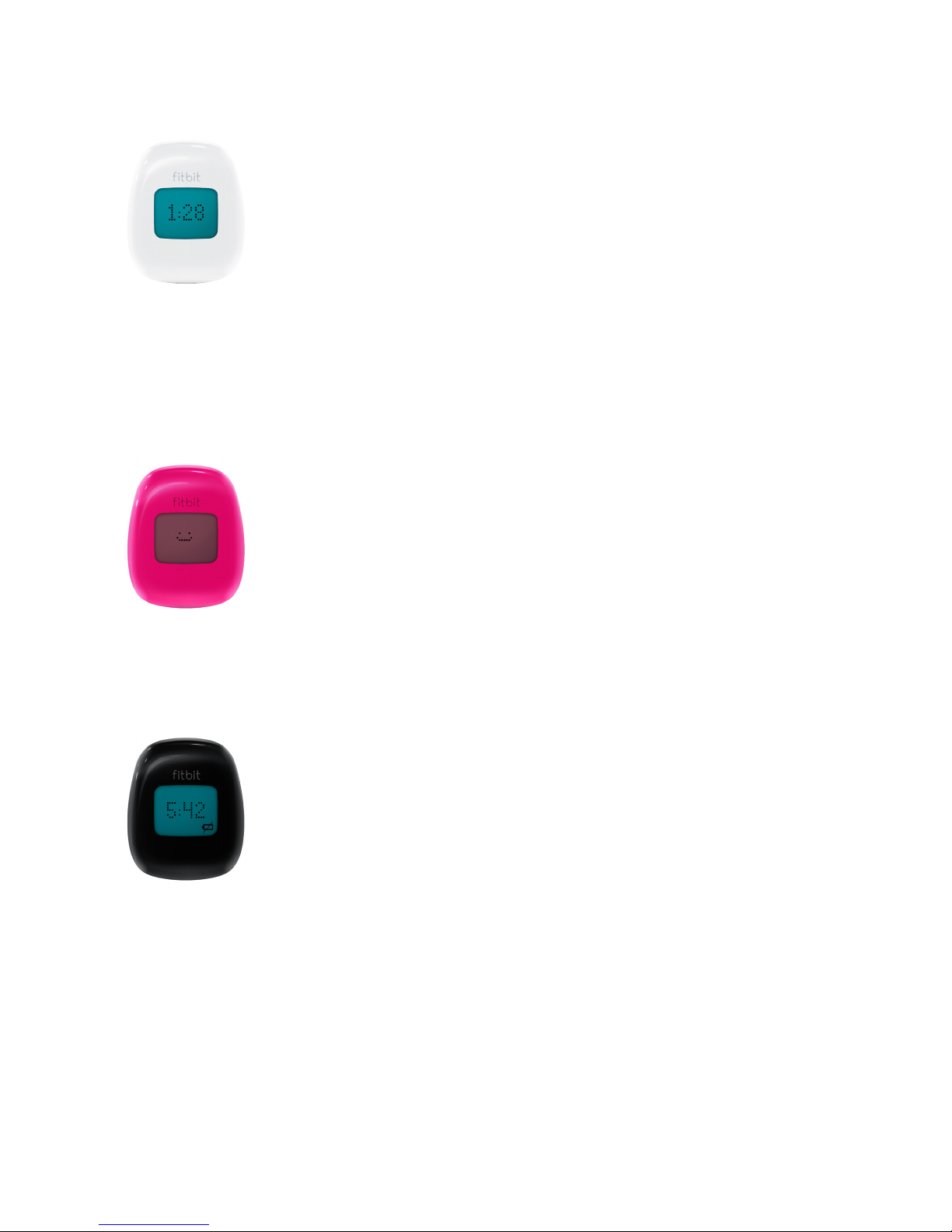

• Clock
• The clock shows the current time. If the time is not correct, please sync your Zip and
make sure that have selected the appropriate time zone in your Fitbit.com prole.
tbit.com/user/prole/edit
• Going to your Fitbit.com Dashboard and clicking “Settings” can remove the clock.
tbit.com/settings/device/tracker
• Fitbit Smiley
• These faces will change, depending on your activity level.
• Going to your Fitbit.com Dashboard and clicking “Settings” can remove the Fitbit Smiley
display. tbit.com/settings/device/tracker
• Low Battery Indicator
• When your battery drops below 25% a low battery indicator will show on the display of
your Zip, as well as on your Fitbit.com prole under “Devices.” A ashing battery indicates
that you need to replace the battery as soon as possible.

12
When Your Zip Goes to Sleep
To conserve battery life, your Zip sleeps during periods of inactivity.
• Zip will sleep after approximately 20 seconds if no steps are recorded, and 2 minutes after
activity.
• Once your Zip is asleep, the display on your Zip will remain off until moved, unless your Zip
has new data to sync to Fitbit.com.
Using the Fitbit Software Menu
When the Fitbit syncing software is running, a Fitbit icon will appear on your computer desktop.
• If you’re using a Mac, this icon will show up in your taskbar.
• If you’re using Windows, this icon will show up in your tray menu.
You can use the software menu to interact with the Fitbit software, including:
• Account Setup:
• This is where you’ll go if you’ve already downloaded the Fitbit software, and need to set up a
new device. To set up a new device, begin by following the instructions on pg. 3 (Installing the
Software)
• Updating your Firmware:
• You can update your device rmware if there is a new version available through this menu.
To update your rmware, begin by following the instructions on pg. 13 (Updating
your Zip rmware)

13
Uploading/Syncing Your Data
To a computer
Your Zip will upload any new data every 15 minutes provided you are within range of any plugged
in dongle (about 20 feet), the computer is on and not in sleep or hibernate mode, the software is
installed and running, you have an active internet connection and your Zip display is on.
To a smartphone
Your Zip uses three modes of syncing to your iPhone 4S to prolong battery life. In order for your
iPhone 4S to sync, you must have an active internet connection and Bluetooth® enabled.
1. Foreground Sync: When you are viewing the Fitbit App, your iPhone 4S will be actively
scanning for your Zip to sync new data if it is available. With new data, your Zip will sync ap-
proximately every 15 minutes if your Tracker is awake.
2. Background Sync: When the Fitbit App is open, but not currently being viewed, your iPhone
will scan less frequently to sync new data. With new data, you Zip may take up to 40 minutes
to sync.
3. Force Sync: This option instantaneously forces your Zip to sync any new data that may be
logged. Depending on the amount of data, your Zip may take up to 1 minute to sync. This op-
tion is more taxing on the iPhone 4S battery life. When using this option, make sure that the
display on your Zip is ON.
Updating your Zip rmware
• Firmware updates provide better functionality and features for your Zip. Your Zip should always
be updated to the latest release.
• Windows: Right click the Fitbit icon in the taskbar, then select “Open Main Menu.” The Fitbit
icon may be in the sub-menu in the taskbar.
• Mac: Click the Fitbit icon in the menu bar, then select “Open Main Menu.”

14
• Select “Check for Device Update” from the main menu options.
• You will need to enter your Fitbit account email address and password that is associated with
your Zip to proceed with the update. Make sure that your Zip is close to your USB dongle and that
the display is on before clicking “Next.” The Fitbit software will begin searching for nearby Zip
Trackers.
A radio icon and a uctuating progress bar will display on your Zip to indicate the update status.
The progress bar may take up to 30 seconds to display on the tracker once it is discovered.
• The rmware update can take up to 5 minutes to complete. When the update is halfway done,
the tracker will reboot and display the current rmware version. When the update has completed
successfully, your Zip will reboot and display the Fitbit smiley, followed by the rmware version.
Your Zip display will remain on for 30 minutes after a successful rmware update.
• If the update is unsuccessful, you will be prompted to make sure the USB dongle is plugged
in, your Zip is close to your dongle, and the display is on.

15
Using the Fitbit Connect Application
The Fitbit Connect Application allows you immediately sync your Zip, set up a device and
provides access to troubleshooting resources.
To use the application, click the Fitbit icon in the taskbar and select “Open Main Menu”
from the dropdown.
For Windows users only, right-click the Fitbit icon to access the menu items.
Sync Now
This option allows you to view your current stats by immediately sending any new information
gathered on your Zip to your Fitbit account. Although the Zip will sync every 15 minutes given the
appropriate conditions, use this feature when you want to see the most recent data from your Zip.

16
Open Main Menu
From the main menu, you have the following options:
• Sync Now: This option allows you to view your current stats by immediately sending any new in-
formation gathered on your Zip to your Fitbit account. Although the Zip will sync every 15 minutes
given the appropriate conditions, use this feature when you want to see the most recent data from
your Zip.
• Set up Device: Use this option here to set up your Zip if you have not already paired your Zip to
a Fitbit account (or if you have a replacement).
• Check for Device update: Select this option to check for updates that may be available for your
device.
• Troubleshooting: Online Help: Find online help via manuals, FAQs, community forums and direct
access to customer support.
• Export Logs: If you are having trouble with your Zip, support may ask you to export logs to pro-
vide more technical support.
Preferences (Mac) / Options (Windows):
Show menu bar icon: Gives you the option of hiding the Fitbit Connect App icon. from the menu
bar (Mac) and system tray (Windows)
Fitbit.com Dashboard
Takes you directly to your Dashboard.
Online help
Links to help.tbit.com for online support via manuals, FAQ’s, community forums and direct access
to customer support.

17
General Zip Information
Environmental Conditions
• Zip is not waterproof. It should not be worn while swimming. Zip is splash, rain
and sweat proof.
• Operating temperature: 32° to 104° F (0° to 40° C)
• Non-operating temperature: -0° to 130° F (-17.7° to 54.4° C)
• Relative Humidity: The device should not be submerged in more than 1 meter of water for
any amount of time.
• Maximum operating altitude: 30,000 feet (9,144 m)
• Non-operating temperature: -0° to 130° F (-17.7° to 54.4° C)
• c. Size and Weight
• Height: 1.5 inches (35.6 mm)
• Width: 1.1 inches (28.9 mm)
• Depth: 0.38 inch (9.6 mm)
• Weight: 0.282 (0.018 lb., 8 grams)
PC / Mac requirements
• Windows XP and up
• Mac OSX 10.5 and up
• USB Port
• Internet connection
Browsers supported
• Chrome 12 and up
• Firefox 3.6.18 and up
• Internet Explorer 7 and up
• Safari 5.0.5 and up

18
Troubleshooting
Troubleshooting your Device
What if my Zip stops syncing?
• If your Zip stops syncing to your computer, there’s a few steps you can take to get it to
sync again:
• remove the USB dongle from your computer, and re-insert it into a USB port.
• Check that the setup software has been installed, and is currently running. If it’s run-
ning, you’ll see a Fitbit icon …..
• Restart the Fitbit software. You can do this by clicking on the Fitbit icon you’ve just
located, selecting ‘Exit,’ and re-opening the Fitbit software from your Programs list
(PC) or Applications folder (Mac).
• If you are still unable to sync, update your Zip rmware by following these instruc-
tions. (Link to rmware upgrade instructions)
What if my Zip display freezes?
• If your display freezes, please remove and then reinsert your battery.
• If your tracker is still frozen after removing and reinserting your battery, please upgrade
your rmware by following these instructions. (Link to rmware upgrade instructions)
