Flavor Burst CTP 44SS-DLX User manual

©2016 Flavor Burst Company Printed in October Printed in
All Rights Reserved The United States of America
Flavor Burst ®
Deluxe Cabinet
- Operations Manual Supplement
Models: CTP 80SS-DLX
CTP 80BLD-DLX
CTP 80BEV-DLX
CTP 80FCB-DLX
CTP 44SS-DLX
CTP 44BLD-DLX
CTP 44BEV-DLX
CTP 44FCB-DLX
CTP 44SS/BEV-DLX
CTP 44SS/BLD-DLX
CTP 44SS/FCB-DLX
CTP 44BEV/BLD-DLX
CTP 44BEV/FCB-DLX
CTP 44BLD/FCB-DLX
SS-DLX
Manufactured by
Flavor Burst Company
499 Commerce Drive
Danville, IN 46122
For general information and to locate a
distributor near you, call or visit our
website:
Phone: [phone]
Toll Free Number: [phone]
Fax: [phone]
www.flavorburst.com
For pricing, ordering and support, please
contact one of our qualified distributors.
PLEASE READ FIRST!
This supplement is not a full operations manual. It does not contain complete
information on installing and maintaining your new system. The purpose of
this manual supplement is to provide you with additional information and
instruction, such as diagrams and part lists, which are either not included or
are different from what is shown in the standard manual. Read through these
installation and maintenance instructions first and then refer to your standard
manual for the rest of the instructions. Be sure to also refer to your standard
model to get complete information needed for your system. All manuals and
supplements are available on www.flavorburst.com

1
PAGE INTENTIONALLY LEFT BLANK

2
TABLE OF CONTENTS
FCC ID……………………………...………………………………………….………………...3
Introduction……………………………...………………………………………….………….4
Safety Precautions……………………………..…………….………..……..….…………....4
Environmental Notices………………...………………………………………….………….5
Parts Identification/Function……...……………………….……..…..……….……..….…..7
Equipment Setup – “80” Systems …………………………………………..….……..….44
Connecting the Unit Syrup Line and Pump Harness Cable…….………...…..… 44
Installing the Electronics Box and Power Connections……………….…….……..46
Filling the Sanitizer Tank………………………………………….…………….....…48
EQUIPMENT SETUP - Continued……………………………….…………….....…49
Daily Opening, Daily Closing, Scheduled Maintenance – Notes for “44” Systems……….50
For Models CTP 44SS, CTP 44BLD, CTP 44BEV, CTP 44FCB...……...….....…50
For Models CTP 44SS/FCB, CTP 44BLD/FCB, CTP 44BEV/FCB...…...….....…50
For Models CTP 44SS/BLD, CTP 44SS/BEV, CTP BEV/BLD......……...….....…50
Comparing the Injector and Blending Assemblies………….………...…………....51
Replacing the Syrup Flavors – Notes for “44” Systems……..…….………....……...54
Equipment Setup – “44” Systems.………………………………...…..……….……..….56
Installing the Spout Adapters – Notes……………..……………………....….....…56
Installing the Touch Panel and Mounting Bracket – Notes.……………...….....…57
Installing the Spigot Switches – Notes…………………….………...…………...…58
EQUIPMENT SETUP – Continued..………………………………………….......…58
Connecting the Unit Syrup Lines..…………………………………………..........…58
Filling the Sanitizer Tank………………………………………….…………….....…61
Installing the Electronics Box and Power Connections…………..…….…........…62
Installing Flavors and Priming Syrup Lines – Notes.……………...……...….....…65
Color Touch Panel Overview – Notes for “44” Systems ...…………….......……...…66
Color Touch Panel Setup – Notes………………..……..…..……...……………….66
Testing the Drive Motor and Switch Connections……..…..……...……………….67
Testing the Syrup Connections………………………………………………………68
Testing the Dual Series System – Notes...…….………………………….....….....68
Other Important Information.…………….…….…...…………………..……….........…..70
Ordering/Service Information…………….…….…...………………………...……....…..71

3
FCC ID 必须要加的警告语:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure and SAR Statements SAR Statement.
The Flavor 10* has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC
has established detailed SAR requirements and has established that these requirements. RF Exposure
Information. The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to
be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4)
addressing RF Exposure from radio frequency devices. This model meets the applicable government
requirements for exposure to radio frequency waves. The highest SAR level measured for this device
was 0.293W/kg.
*The Flavor 10 is also referred to as the Touch Panel throughout this manual.

4
Congratulations on your purchase of a CTP
Deluxe flavoring system! As a food and
beverage provider, your customers are your
greatest asset. Your primary concern must be
the health and welfare of your customers. This
manual supplement provides specialty
information on the parts of your equipment
model that differ from the standard model. Use
this supplement with your full standard
manual(s) for everyday operating guidelines
and procedures. We urge you to follow these
instructions carefully and maintain strict sanitary
practices in your daily operating routine. *Use
this manual supplement in conjunction with the
standard manual(s) included with your system.*
The CTP Deluxe series system is an add-on to
a soft serve freezer designed to inject
concentrated flavorings throughout soft serve
product as it is dispensed. Dispensing Flavor
Burst product is very simple. Select a flavor
from the Touch Panel and draw the product.
The Flavor Burst system will automatically
flavor the product at the spout. You can also
have multiple flavors per serving. Simply select
the flavors from the Touch Panel and draw the
product. The system will switch from one flavor
to the next in a smooth, continuous motion,
layering the serving with different, delicious
flavors.
Flavor Burst® syrup is stored within the
equipment cabinet in 1 gallon disposable bags.
Proper syrup injection rate is maintained by
adjusting the flavor level on the system Touch
Panel.
Components of the Flavor Burst system should
be cleaned daily to ensure the highest standard
of sanitation. When your equipment is
delivered or if it has been unused for more than
24 hours, follow the DAILY OPENING
PROCEDURES in your standard operations
manual(s).
NOTE: PARTS AND PART NUMBERS MAY
VARY FROM WHAT IS SHOWN AND LISTED.
CONSULT YOUR LOCAL DISTRIBUTOR IF
YOU HAVE ANY QUESTIONS CONCERNING
DIFFERENCES.
Always follow these safety precautions when
operating the Flavor Burst® system:
DO NOT operate the system without
reading this operator’s manual. Failure to follow
this instruction may result in equipment
damage, poor system performance, health
hazards, or personal injury.
DO NOT operate the system unless it is
properly grounded. Failure to follow this
instruction may result in electrocution.
DO NOT operate the system with larger
fuses than specified on the system data label.
Failure to follow this instruction may result in
electrocution or damage to the machine.
Consult your electrician.
DO NOT put objects or fingers in the
door spout. Failure to follow this instruction may
result in contaminated product or personal
injury from blade contact.
The INT cabinet system must be placed
on a level surface capable of supporting at least
220 lbs of weight. Failure to comply may result
in personal injury or equipment damage.
DO NOT place more than 25 lbs of
weight on top of the cabinet. Failure to comply
may result in personal injury or equipment
damage.
DO NOT install the unit in an area where
a water jet could be used, and do not use a
water jet to clean or rinse the system. Failure to
follow these instructions may result in serious
electrical shock.
SAFETY PRECAUTIONS
INTRODUCTION

5
HAZARD COMMUNICATION STANDARD
(HCS) – The procedure(s) in this manual
include the use of chemical products. These
chemical products will be highlighted in
bold-faced letters followed by the
abbreviation (HCS) in the text portion of the
procedure. See the Hazard Communication
Standard (HCS) manual for the appropriate
Material Safety Data Sheet(s) (MSDS).
NOISE LEVEL: Airborne noise emission
does not exceed 70 dB(A) when measured at a
distance of 1.0 meter from the surface of the
machine and at a height of 1.6 meters from the
floor.
NOTE: Operations Manual subject to
change. Contact your local distributor for most
recent updates concerning the CTP Deluxe
system.
NOTE: Access to the service area is
restricted to persons having safety / hygiene
knowledge and practical experience of the
appliance.
NOTE: This appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards
involved.
NOTE: Children shall not play with the
appliance.
NOTE: Cleaning and user maintenance
shall not be made by children without
supervision.
ENVIRONMENTAL NOTICES
If the crossed out wheeled bin symbol is affixed to this product, it signifies that this product
is compliant with the EU Directive for Waste Electric/Electronic Goods (WEEE) as well as
other similar legislation in affect after August 13, 2005. Therefore, it must be collected
separately after is use is completed, and cannot be disposed of as unsorted
municipal waste.
The user is responsible for returning the product to the appropriate collection facility, as specified by
your local codes. For additional information regarding applicable local laws, please contact the
municipal facility and/or local distributor.

6
PAGE INTENTIONALLY LEFT BLANK

7

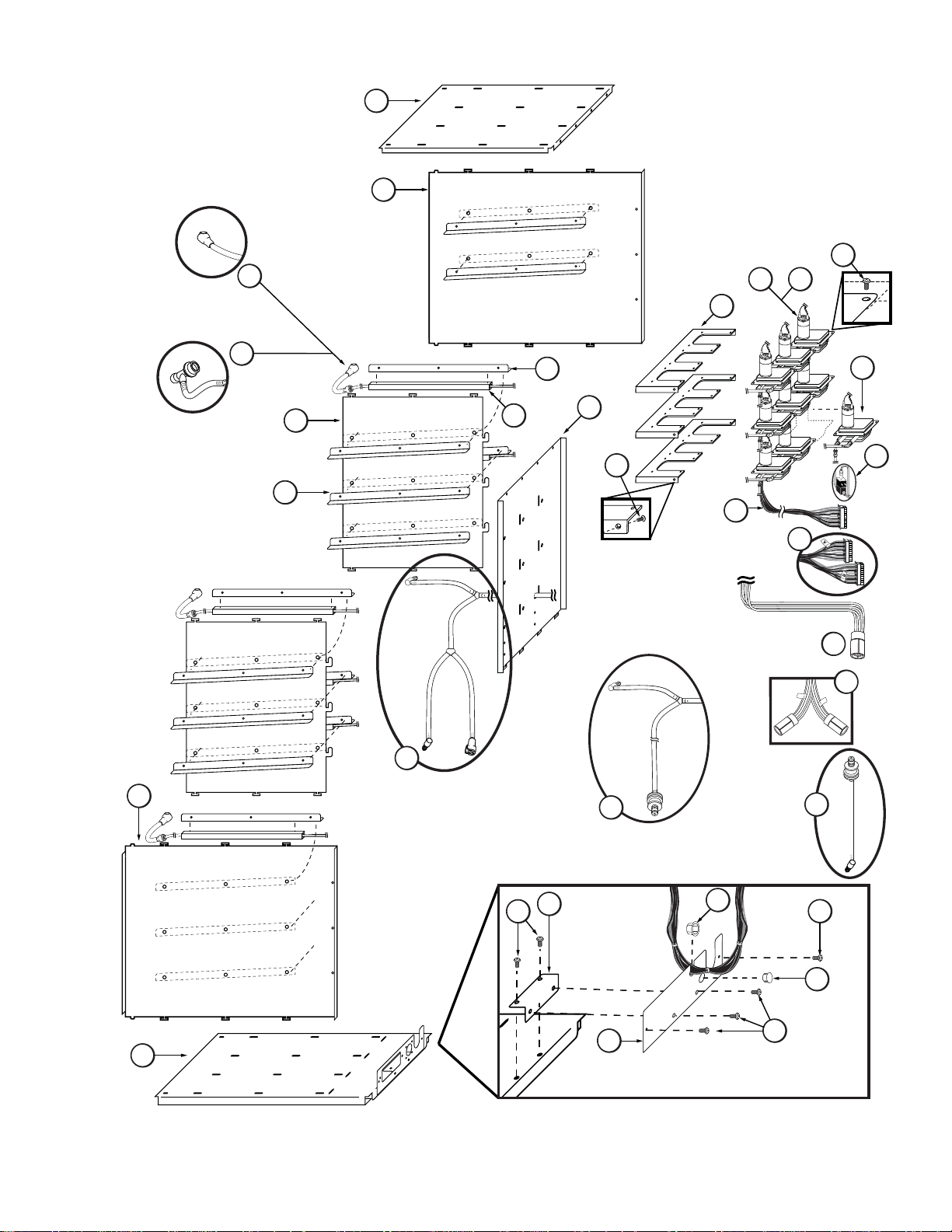

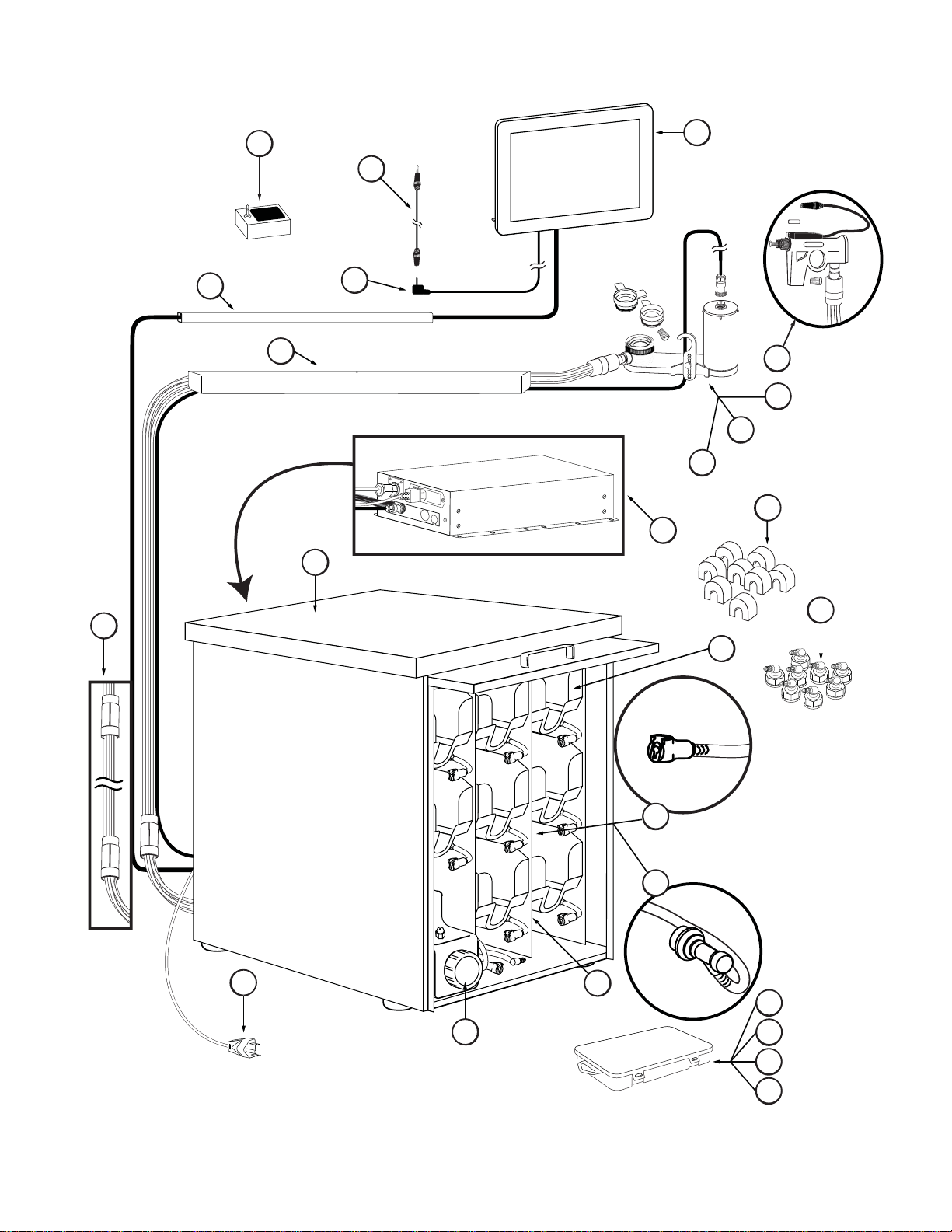

General Cabinet Overview (See Figure 1)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 ELE 905A TOUCH PANEL ASSEMBLY WITH
BRACKET 1 Flavor Burst unit command center.
2 ELE 434 POWER CABLE 1 Supplies the electronics board with power.
3-1 INJ 424TS INJECTOR ASSEMBLY
1*
2**
0***
FOR “SS” SYSTEMS: Injects syrups into the
product.
*1 for 80SS, 44SS/BLD, 44SS/BEV, &
44SS/FCB systems.
**2 for 44SS systems.
***0 for 80BLD, 80BEV, 80FCB, 44BLD,
44BEV, 44FCB, 44BEV/FCB, 44BLD/FCB, &
44BEV/BLD systems.
OR…
3-2 INJ 424BLD FLAVOR BLEND BLENDING
ASSEMBLY
1*
2**
0***
FOR “BLD” SYSTEMS: Blends syrups into
the product.
*1 for 80BLD, 44SS/BLD, 44BLD/FCB, &
44BEV/BLD systems.
**2 for 44BLD systems.
***0 for 80SS, 80BEV, 80FCB, 44SS,
44BEV, 44FCB, 44BEV/FCB, 44SS/FCB, &
44SS/BEV systems.
OR…
3-3 INJ 424VTS VERTICAL BLENDING ASSEMBLY
1*
2**
0***
FOR “BEV” SYSTEMS: Blends syrups into
the product.
*1 for 80BEV, 44SS/BEV, 44BEV/BLD, &
44BEV/FCB systems.
**2 for 44BEV systems.
***0 for 80SS, 80BLD, 80FCB, 44BLD, 44SS,
44FCB, 44SS/FCB, 44BLD/FCB, &
44SS/BLD systems.
OR…
3-4 ADPT
TY80S-FCB
MODIFIED FCB FREEZER SPOUT
ASSEMBLY
1*
2**
0***
FOR “FBC” SYSTEMS: Dispenses product
blended with syrups.
*1 for 80FCB, 44SS/FCB, 44BEV/FCB, &
44BLD/FCB systems.
**2 for 44FCB systems.
***0 for 80SS, 80BLD, 80BEV, 44BLD,
44BEV, 44SS, 44BEV/BLD, 44SS/BEV &
44SS/BLD systems.
4 MIS 3196 STAINLESS TUBE / CABLE CASING
ASSEMBLY
1*
2**
Attaches the flavor lines and/or cables to the
side of the freezer.
*1 for “80” systems.
**2 for “44” systems.
5 SAN 756 SANITIZER TANK ASSEMBLY 1 Houses sanitizer cleaning solution.
6 CAB 113 FLAVOR TRAY 8 Houses syrup bags.
PARTS IDENTIFICATION/FUNCTIONS

8
General Cabinet Overview (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
7 N/A FLAVOR BURST DELUXE
CABINET ASSEMBLY - OUTER 1 Houses inner cabinet assembly.
8 N/A FLAVOR BURST DELUXE
CABINET ASSEMBLY - INNER 1 Houses syrup trays and bags.
9 N/A CTP-DLX ELECTRONICS BOX 1 Protects the electronics board and connections.
10-1 SYR 945 SYRUP BAG CONNECTOR
ASSEMBLY
8*
4**
0***
FOR “SS” & “BLD” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for 80SS, 80BLD, 44SS, 44BLD, & 44SS/BLD
systems.
**4 for 44SS/FCB, 44SS/BEV, 44BLD/FCB, &
44BEV/BLD systems.
***0 for 80BEV, 80FCB, 44BEV, 44FCB, &
44BEV/FCB systems.
OR…
10-2 SYR 945SH SYRUP TUBE ASSEMBLY -
SHAKE
8*
4**
0***
FOR “BEV” & “FCB” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for 80BEV, 80FCB, 44BEV, 44FCB, &
44BEV/FCB systems.
**4 for 44SS/FCB, 44SS/BEV, 44BLD/FCB, &
44BEV/BLD systems.
***0 for 80SS, 80BLD, 44SS, 44BLD, &
44SS/BLD systems.
11 ELE 924 WIRELESS SPIGOT SWITCH
1*
2**
0***
FOR “SS” & “BLD” SYSTEMS: Sends a
wireless signal to the Touch Panel when the
freezer draw handle is activated.
*1 for 80SS, 80BLD, 44SS/FCB, 44SS/BEV,
44BLD/FCB, & 44BEV/BLD systems.
**2 for 44SS, 44BLD, & 44SS/BLD systems.
***0 for 44BEV, 44FCB, & 44BEV/FCB systems.
12 MIS 3026S TOUCH PANEL CABLE
CASING 1 Conceals and protects the Touch Panel cable,
as well as attaches it to the freezer.
13 ELE 525M MALE TO MALE 48” SWITCH
EXTENSION 1*
2**
Connects Touch Panel to the freezer switch.
*1 for “80” systems.
**2 for “44” systems.
14 SYR 946 SYRUP BAG LOCK
8*
4**
0***
FOR “SS” & “BLD” SYSTEMS: Secures the
syrup bag adapters to the bag fitments.
*8 for 80SS, 80BLD, 44SS, 44BLD, & 44SS/BLD
systems.
**4 for 44SS/FCB, 44SS/BEV, 44BLD/FCB, &
44BEV/BLD systems.
***0 for 80BEV, 80FCB, 44BEV, 44FCB, &
44BEV/FCB systems.

9
General Cabinet Overview (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
15 SYR 941A SYRUP BAG ADAPTER
8*
4**
0***
FOR “SS” & “BLD” SYSTEMS: Connects soft
serve flavor bag to syrup out tube.
*8 for 80SS, 80BLD, 44SS, 44BLD, & 44SS/BLD
systems.
**4 for 44SS/FCB, 44SS/BEV, 44BLD/FCB, &
44BEV/BLD systems.
***0 for 80BEV, 80FCB, 44BEV, 44FCB, &
44BEV/FCB systems.
16-1 SPR 5800A SPARE PARTS KIT 1*
0**
FOR “SS” SYSTEMS: Houses extra spare parts
and wear items.
*1 for 80SS, 44SS, 44SS/BLD, 44SS/BEV, &
44SS/FCB systems.
**0 for 80BLD, 80BEV, 80FCB, 44BLD, 44BEV,
44FCB, 44BEV/FCB, 44BLD/FCB, &
44BEV/BLD systems.
OR…
16-2 SPR
5800BLD
SPARE PARTS KIT
TOUCHSCREEN FLAVOR BLEND
1*
0**
FOR “BLD” SYSTEMS: Houses extra spare
parts and wear items.
*1 for 80BLD, 44BLD, 44SS/BLD, 44BLD/FCB,
& 44BEV/BLD systems.
**0 for 80SS, 80BEV, 80FCB, 44SS, 44BEV,
44FCB, 44BEV/FCB, 44SS/FCB, & 44SS/BEV
systems.
OR…
16-3 SPR
5800BEV
SPARE PARTS KIT
TOUCHSCREEN BEVERAGE
1*
0**
FOR “BEV” SYSTEMS: Houses extra spare
parts and wear items.
*1 for 80BEV, 44BEV, 44SS/BEV, 44BEV/BLD,
& 44BEV/FCB systems.
**0 for 80SS, 80BLD, 80FCB, 44BLD, 44SS,
44FCB, 44SS/FCB, 44BLD/FCB, & 44SS/BLD
systems.
OR…
16-4 SPR
5800FCB
SPARE PARTS KIT
TOUCHSCREEN FCB
1*
0**
FOR “FCB” SYSTEMS: Houses extra spare
parts and wear items.
*1 for 80FCB, 44FCB, 44SS/FCB, 44BEV/FCB,
& 44BLD/FCB systems.
**0 for 80SS, 80BLD, 80BEV, 44BLD, 44BEV,
44SS, 44BEV/BLD, 44SS/BEV & 44SS/BLD
systems.
17 ELE 525 36” SPIGOT SWITCH
EXTENSION
0*
1**
FOR “44” SYSTEMS: Adds length to the spigot
switch.
*0 for “80” systems.
**1 for “44” systems.
18 SYR 935 4’ 9-TUBE ASSEMBLY
EXTENSION
0*
1**
FOR “44” SYSTEMS: Adds length to the flavor
line assembly.
*0 for “80” systems.
**1 for “44” systems.

10
General Cabinet Overview
Figure 1
4
1
15
12 13
11
14
OR
“BEV” AND “FCB” SYSTEMS
“SS” AND “BLD” SYSTEMS
“SS” AND
“BLD”
SYSTEMS
“SS” AND
“BLD”
SYSTEMS
3-1
3-3
3-2
3-4
“SS” SYSTEMS
“BEV” SYSTEMS
“BLD” SYSTEMS
“FCB” SYSTEMS
OR
OR
OR
16-1
16-2
16-3
16-4
“BEV” SYSTEMS
“BLD” SYSTEMS
“SS” SYSTEMS
“FCB” SYSTEMS
OR
OR
OR
5
8
6
7
2
9
26000
17
10-2
10-1
18

11
Outer Cabinet (See Figure 2)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 CAB 237 CABINET TOP PANEL 1 Covers the top of the inner cabinet.
2 CAB 235L CABINET LEFT SIDE PANEL 1 Covers the left side of inner cabinet.
3 N/A INNER CABINET ASSEMBLY 1 Houses syrup trays and bags.
4 CAB 239 CABINET FRONT DOOR PANEL 1 Front door, allows access to flavor bags.
5 CAB 256 FRONT DOOR HANDLE 1 Allows grip for opening front panel.
6 FAS 2014 8-32 X 1/2 PAN HEAD SCREW 2 Fastens the handle to front door panel.
7 RUB 618 RUBBER BUMPER W/ WASHER 4 Provides spacing between cabinet base
and table.
8 FAS 2064 10-32 X 1/2" PAN HEAD SCREW 4 Fastens rubber bumpers to cabinet base.
9 MIS 3074 DUST CAP 4 Covers screw hole in rubber bumper.
10 CAB 236TS CABINET REAR PANEL 1 Allows access to pumps.
11 CAB 235R CABINET RIGHT SIDE PANEL 1 Covers right side of inner cabinet.
12 MIS 3150 FLAVOR BURST LOGO DECAL 1 Displays Flavor Burst trademark logo.
13 FAS 2024 8-32 X 1/4 PAN HEAD SCREW 2 Secures back panel to base.

12
Outer Cabinet
Figure 2
3
1
2
11
10
7
12
4
5
9
8
6
13
26001
See Figure 3
Inner Cabinet 14
See Figure 5
Electronics Parts
and Connections

13
Inner Cabinet (See Figure 3)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 CAB 201 SYRUP RACK COVER PANEL 1 Keeps side and inner panels stable.
2 CAB 204L SYRUP RACK LEFT PANEL 2 Holds outer syrup rails.
3-1 SYR 945 SYRUP BAG CONNECTOR
ASSEMBLY – SOFT SERVE
8*
4**
0***
FOR “SS” and “BLD” SYSTEMS:
Transports syrup from the bag to pumps.
*8 for 80SS, 80BLD, 44SS, 44BLD, &
44SS/BLD systems.
**4 for 44SS/FCB, 44SS/BEV,
44BLD/FCB, & 44BEV/BLD systems.
***0 for 80BEV, 80FCB, 44BEV, 44FCB,
& 44BEV/FCB systems.
OR…
3-2 SYR 945SH SYRUP TUBE ASSEMBLY -
SHAKE
8*
4**
0***
FOR “BEV” and “FCB” SYSTEMS:
Transports syrup from the bag to pumps.
*8 for 80BEV, 80FCB, 44BEV, 44FCB, &
44BEV/FCB systems.
**4 for 44SS/FCB, 44SS/BEV,
44BLD/FCB, & 44BEV/BLD systems.
***0 for 80SS, 80BLD, 44SS, 44BLD, &
44SS/BLD systems
4 CAB 245 SYRUP TRAY RAIL 16 Holds flavor trays in place.
5 CAB 145 TRAY SUPPORT BRACKET 8 Houses flavor line leading to syrup bag.
6 CAB 203 SYRUP RACK DIVIDER PANEL 2 Holds inner syrup rails.
7 CAB 202 SYRUP RACK BACK PANEL 1 Attaches the inner and side panels.
8-1 MIS 3028-80M SANITIZER FLUSH TUBE
ASSEMBLY – SOFT SERVE INT
1*
0**
FOR “SS” and “BLD” SYSTEMS:
Flushes flavor lines with sanitizer when
attached.
*1 for 80SS, 80BLD, 44SS, 44BLD,
44SS/BLD, 44SS/BEV, 44SS/FCB,
44BEV/BLD, & 44BLD/FCB systems.
**0 for 80BEV, 80FCB, 44FCB, 44BEV &
44BEV/FCB systems.
OR…
8-2 MIS 3028S-80M SANITIZER FLUSH TUBE
ASSEMBLY – FROZEN
BEVERAGE INT
1*
0**
FOR “BLD” SYSTEMS: Flushes flavor
lines with sanitizer when attached.
*1 for 80BEV, 44BEV, & 44BEV/FCB
systems.
**0 for 80SS, 80BLD, 80FCB, 44SS,
44BLD, 44FCB, 44SS/BLD, 44SS/BEV,
44SS/FCB, 44BEV/BLD, & 44BLD/FCB
systems.
OR…
8-3 MIS 3028S-X PUMP FLUSH ADAPTER
EXTENSION - SHAKE
1*
0**
FOR “FCB” & “BEV” SYSTEMS:
Flushes flavor lines with sanitizer when
attached.
*1 for 80FCB, 44FCB, 44SS/BEV,
44SS/FCB, 44BEV/BLD, & 44BLD/FCB
systems.
**0 for 80SS, 80BLD, 80BEV, 44SS,
44BLD, 44BEV, 44SS/BLD, &
44BEV/FCB systems.

14
Inner Cabinet (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 CAB 233 SYRUP RACK BASE PANEL 1 Attaches the bottom of the inner and side
panels.
10 CAB 204R SYRUP RACK RIGHT PANEL 1 Holds outer syrup rails.
11 FAS 2024 8-32 X 1/4" PAN HEAD SCREWS 48 Fastens pump brackets and pumps and
other cabinet parts.
12 CAB 205A ACCESSORY MOUNTING
BRACKET-A 1 Secures Accessory Mounting Bracket to
cabinet base.
13 CAB 205CTP ACCESSORY MOUNTING
BRACKET – CTP DLX 1 Secures pump cable to cabinet base.
14 MIS 3192 LOCKING HOLE PULUG 1 Closes up the extra opening in the
mounting plate.
15 MIS 3217 OPEN-CLOSE BUSHING 5/8” 1 Protects the pump harness cable.
16-1 ELE 932DLX PUMP & SANITIZER CABLE
HARNESS – CTP DLX
1*
0**
FOR “80” SYSTEMS: Provides power to
the syrup and sanitizer pumps. .
*1 for “80” systems.
**0 for “44” systems.
OR…
16-2 ELE 932DLX-MX PUMP & SANITIZER CABLE
HARNESS – CTP 44-DLX
1*
0**
FOR “44” SYSTEMS: Provides power to
the syrup and sanitizer pumps.
*1 for “44” systems.
**0 for “80” systems.
17 SAN 748 PERISTALTIC SANITIZER PUMP 1 Pumps sanitizer solution to flush tube and
sanitizer line.
18-1 SYR 307 PERISTALTIC SYRUP PUMP –
SOFT SERVE
8
(4*)
FOR SOFT-SERVE & “44” SOFT-
SERVE/BEVERAGE SYSTEMS: Pumps
syrup from flavor bags into flavor lines.
(*4 included with 44SS/BEV, 44BEV/BLD,
44SS/FCB, & 44BLD/FCB systems)
OR…
18-2 SYR 926 PERISTALTIC SYRUP PUMP -
BEVERAGE
8
(4*)
FOR BEVERAGE, FCB, & “44” SOFT-
SERVE/BEVERAGE SYSTEMS: Pumps
syrup from flavor bags into flavor lines.
(*4 included with 44SS/BEV, 44BEV/BLD,
44SS/FCB, & 44BLD/FCB systems)
19 CAB 255 PUMP BRACKET 3 Holds pumps.
20-1 SYR 927 INTERNAL 9-TUBE ASSEMBLY 1*
0**
FOR “80” SYSTEMS: Transports syrup
from bags to the 9-Tube Assembly.
*1 for “80” systems.
**0 for “44” systems.
OR…
20-2 SYR 938 MX SERIES INTERNAL 9-TUBE
ASSEMBLY
1*
0**
FOR “44” SYSTEMS: Transports syrup
from bags to the two
9-Tube Assembly.
*1 for “44” systems.
**0 for “80” systems.
21 VAL 210 MX SERIES VALVE ASSEMBLY 1*
0**
FOR “44” SYSTEMS: Splits and diverts
sanitizer from pump to each 9-Tube Lead
*1 for “44” systems.
**0 for “80” systems.

15
PAGE INTENTIONALLY LEFT BLANK

16
Inner Cabinet
Figure 3
26002
15 11
11
13
14
11 12
1
2
6
9
18-218-1
17
4
5
3-1
3-2
4
19
11
10
11
OR
“BEV” & “FCB”
SYSTEMS
“SS” & “BLD”
SYSTEMS
B
A
FOR 44 SYSTEMS
FOR 80 SYSTEMS
OR
OR
7
OR
20-1
8-2
8-1
20-2
16-1
16-2
“44” SYSTEMS
“80”
SYSTEMS OR
80BEV, 44BEV, &
44BEV/FCB MODELS
80SS, 80BLD, 44SS, 44BLD,
44SS/BLD, 44SS/BEV,
44SS/FCB, 44BEV/BLD, &
44BLD/FCB MODELS
80FCB, 44FCB,
44SS/BEV, 44SS/FCB,
44BEV/BLD, &
44BLD/FCB MODELS
21
8-3

17
“SS” Injector Assembly and Related Parts (See Figure 4A)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
A INJ 424TS INJECTOR ASSEMBLY WITH SYRUP
LINES, ADAPTER, & BRACKET
1*
2**
0***
FOR “SS” SYSTEMS: Injects syrups into the
product.
*1 for 80SS, 44SS/BLD, 44SS/BEV, &
44SS/FCB systems.
**2 for 44SS systems.
***0 for 80BEV, 80BLD, 80FCB, 44BLD,
44BEV, 44FCB, 44BEV/FCB, 44BLD/FCB, &
44BEV/BLD systems.
1 INJ 422 INJECTOR HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
1B RUB 651 INJECTOR HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
1C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2 INJ 321 GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup distribution.
3 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Injector Head from pumps.
3A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
3B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
3C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
3D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
3E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
3F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Injector Head.
3G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
3H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
4 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
5 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
6 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Injector Head.
7 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
8 MIS 3143 SUSPENSION BRACKET ASSEMBLY 1 Secures Injector Assembly to freezer door.
8A FAS 2107 INJECTOR BRACKET KNOB 1 ea. Secures the two bracket pieces.
8B MIS 3143A SUSPENSION BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Injector Assembly.
8C MIS 3143B SUSPENSION BRACKET PART B 1 ea. Secures Bracket Assembly to Injector
Assembly.
8D MIS 3144 NYLON SHOULDER WASHER 1 ea. Allows free horizontal movement for bracket
8E ROT 535 ROTOR BRACKET SPRING WASHER 1 ea. Allows space between hanging and base
brackets

18
“SS” Injector Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 INJ 323TS INJECTOR ASSEMBLY - NO HEAD 1 Powers Injector system.
9A INJ 330TS INJECTOR MOTOR ASSEMBLY 1 ea. Supplies power to Motor which turns gears.
9B INJ 331 INJECTOR GEARBOX ASSEMBLY 1 ea. Gears turn Gear Cartridge for even syrup
distribution.
9C FAS 2023 ACCESSORY MOUNTING
BRACKET KNOB 1 ea. Secures base Mounting Bracket to Gear Box.
10 ADPT 8750TA CROWN ADAPTER WITH TABS
AND O-RING 1 Attaches Injector Assembly to freezer door.
10A ADPT 8750T CROWN ADAPTER WITH TABS 1 ea. Attaches Injector Assembly to freezer door.
10B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure adapter to Injector
Head.
11 ADPT 101TA SPOUT ADAPTER WITH TAB AND
O-RING 1 Attaches Injector Assembly to freezer door.
11A ADPT 101T SPOUT ADAPTER 1 ea. Attaches Injector Assembly to freezer.
11B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure Adapter to Injector
Head.
Figure 4A
A
3H
1
3
2
3B
3G
3E
3D
3B 3F
1C
1B
9A
9C
3A
3A 3C
9B
4567
9
10
10A
10B
11
11A
11B
26003A
1A
8
8B
8A
8C
8D
8E
FOR “SS” SYSTEMS

19
“BLD” Blending Assembly and Related Parts (See Figure 4B)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
B INJ 424VBLD FLAVOR BLEND BLENDING
ASSEMBLY WITH SYRUP LINES,
ADAPTER, & BRACKET
1*
2**
0***
FOR “BLD” SYSTEMS: Blends syrups into
the product.
*1 for 80BLD, 44SS/BLD, 44BLD/FCB, &
44BEV/BLD systems.
**2 for 44BLD systems.
***0 for 80SS, 80BEV, 80FCB, 44SS,
44BEV, 44FCB, 44BEV/FCB, 44SS/FCB, &
44SS/BEV systems.
1 ADPT
101TA
SPOUT ADAPTER WITH TAB AND O-
RING 1 Attaches Blending Assembly to freezer door.
1A ADPT 101T SPOUT ADAPTER 1 ea. Attaches Blending Assembly to freezer.
1B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure Adapter to
Blending Head.
2 INJ 422C BLENDING HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
2A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2B RUB 651 BLENDING HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
2C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
3 INJ 321C GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup distribution.
4 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Blending Head from
pumps.
4A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
4B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
4C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
4D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
4E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
4F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Blending Head.
4G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
4H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
5 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
6 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
7 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Blending Head.
8 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
