INTRODUCTION
Congratulations on your purchase of an
FB 80D series flavoring system! As a food and
beverage provider, your customers are your
greatest asset. Your primary concern must be
the health and welfare of your customers. This
manual provides everyday operating guidelines
and procedures. Special functions have been
incorporated into the equipment to provide
simple and effective cleaning and sanitizing of
your unit. We urge you to follow these
instructions carefully and maintain strict sanitary
practices in your daily operating routine.
The FB 80D series system is an add-on to a
soft serve freezer designed to inject
concentrated flavorings throughout soft serve
product as it is dispensed. To dispense a
flavored product, the operator first selects the
flavor(s) from the system keypad. The draw-
handle must then be moved into the open
position while depressing the lever on the
spigot switch in a smooth continuous motion to
activate the FB 80D system and dispense
flavored product. Returning the draw-handle to
a closed position and releasing the draw handle
switch will stop product flow and the FB 80D
system.
Flavor Burst®syrup is stored within the
equipment cabinet in 1 gallon disposable bags.
Proper syrup injection rate is maintained by
adjusting the flavor level on the system keypad.
Components of the FB 80D system should be
cleaned daily to ensure the highest standard of
sanitation. When your equipment is delivered
or if it has been unused for more than 24 hours,
follow the DAILY OPENING PROCEDURES.
Always follow these safety precautions when
operating the Flavor Burst®system:
DO NOT operate the system without
reading this operator’s manual. Failure to follow
this instruction may result in equipment
damage, poor system performance, health
hazards, or personal injury.
DO NOT operate the system unless it is
properly grounded. Failure to follow this
instruction may result in electrocution.
DO NOT operate the system with larger
fuses than specified on the system data label.
Failure to follow this instruction may result in
electrocution or damage to the machine.
Consult your electrician.
DO NOT put objects or fingers in the
door spout. Failure to follow this instruction may
result in contaminated product or personal
injury from blade contact.
The FB 80D cabinet system must be
placed on a level surface capable of supporting
at least 220 lbs of weight. Failure to comply
may result in personal injury or equipment
damage.
SAFETY PRECAUTIONS

2
DO NOT install the unit in an area where
a water jet could be used, and do not use a
water jet to clean or rinse the system. Failure to
follow these instructions may result in serious
electrical shock.
NOISE LEVEL: Airborne noise emission does
not exceed 70 dB(A) when measured at a
distance of 1.0 meter from the surface of the
machine and at a height of 1.6 meters from the
floor.
NOTE: Operations Manual subject to
change. Contact your local distributor for most
recent updates concerning the FB 80D unit.

3

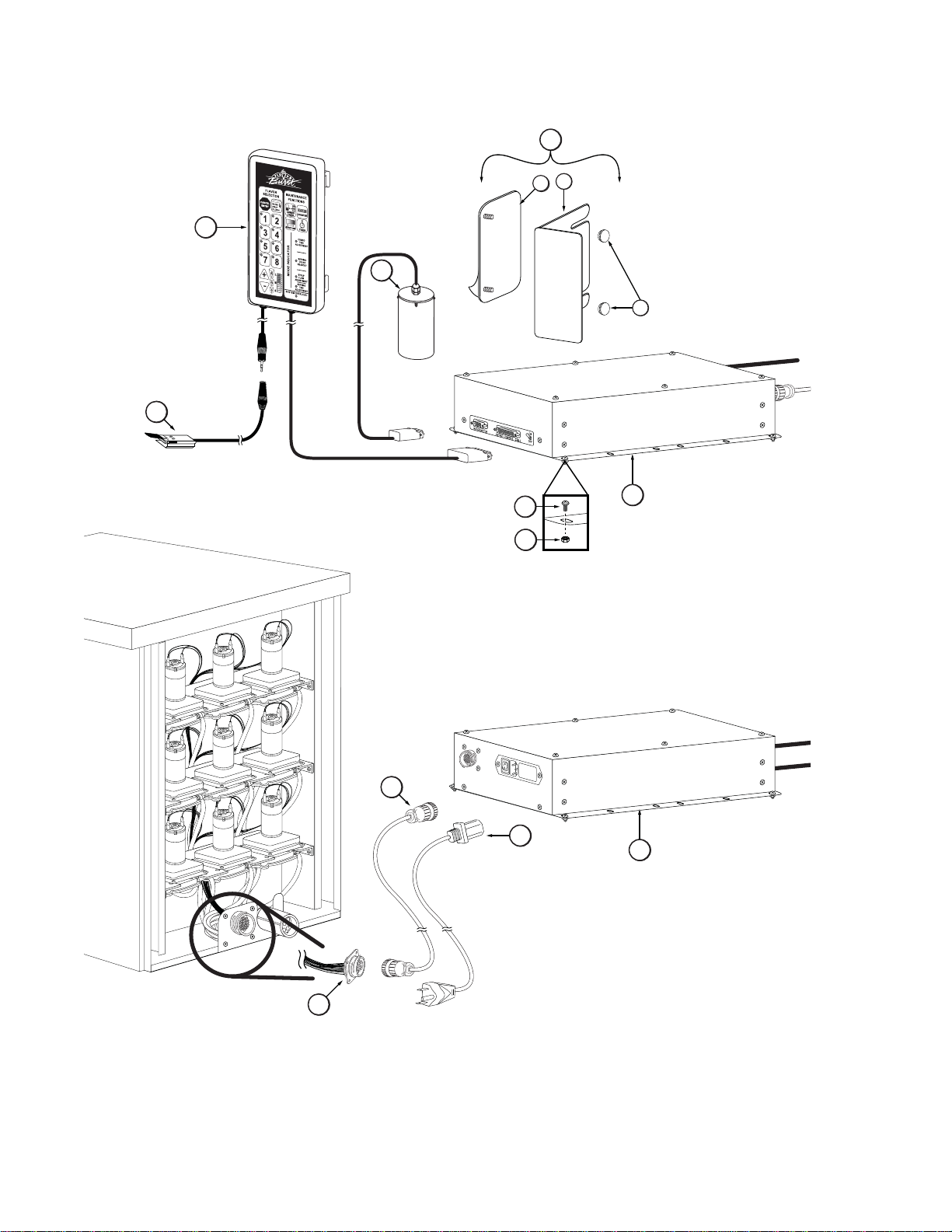

General System Overview (See Figure 1)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 ELE 430-RE-1 SPIGOT SWITCH ASSEMBLY 1 Activates Injector Assembly.
2 ELE 550 KEYPAD ASSEMBLY 1 Flavor Burst unit command center.
3 MIS 3109 KEYPAD BRACKET ASSEMBLY 1 Mounts the keypad to the freezer.
4 ADPT 101A INJECTOR ADAPTER W/ O-RINGS 1 Attaches Injector Assembly to freezer
door.
5 INJ 424 INJECTOR ASSEMBLY 1 Injects syrups into the product.
6 MIS 3151 ACCESSORY HANGING BRACKET 1 Stores flavor line and Injector Motor when
not in use.
7 MIS 3026 SURFACE RACEWAY 2 Attaches flavor lines to side of freezer.
8 N/A OUTER CABINET ASSEMBLY 1 Houses inner cabinet assembly.
9 CAB 113 FLAVOR TRAY 8 Houses syrup bags.
10 N/A INNER CABINET ASSEMBLY 1 Houses syrup trays and bags.
11 SAN 755 SANITIZER TANK ASSEMBLY 1 Houses sanitizer cleaning solution.
12 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY 8 Transports syrup from the bag to the pumps.
13 N/A REMOTE MICROPROCESSOR
MODULE 1 Main power supply.
14 ELE 603 PUMP CABLE (EXTERNAL) 1 Links electronics board to pumps.
15 ELE 434 POWER CABLE 1 Supplies the electronics board with power.
16 SYR 941-A FLAVOR BAG CONNECTOR 8 Connects flavor bag to syrup out tube.

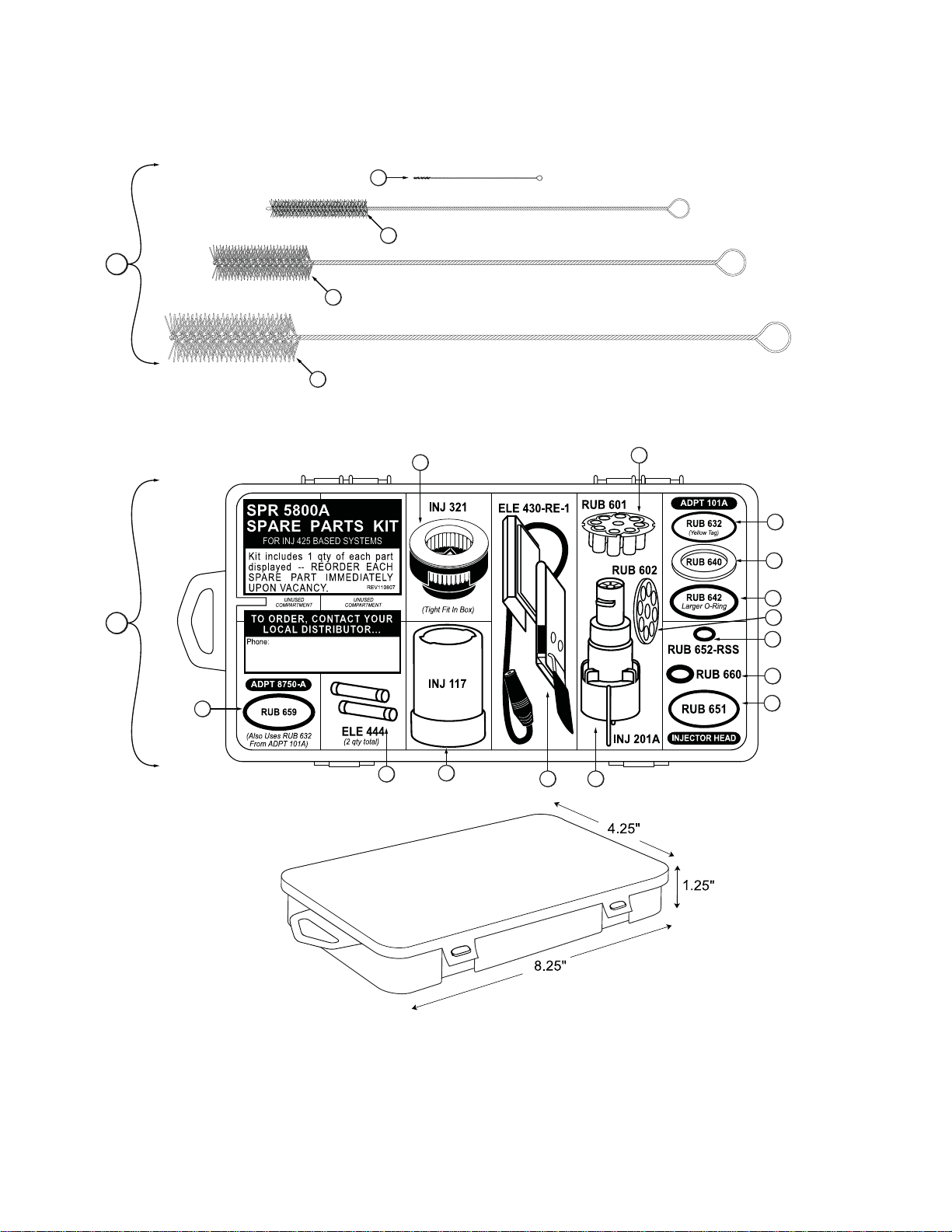

17 SPR 5800 SPARE PARTS KIT 1 Houses extra spare parts and wear items.
18 MIS 3154 DRAIN TRAY 1 Holds sanitized parts while they air dry.
PARTS IDENTIFICATION/FUNCTIONS

4
General System Overview
13
2
1
3
56
15
14
10
8
11 12
9
7
17
16
4
26000
Figure 1

5

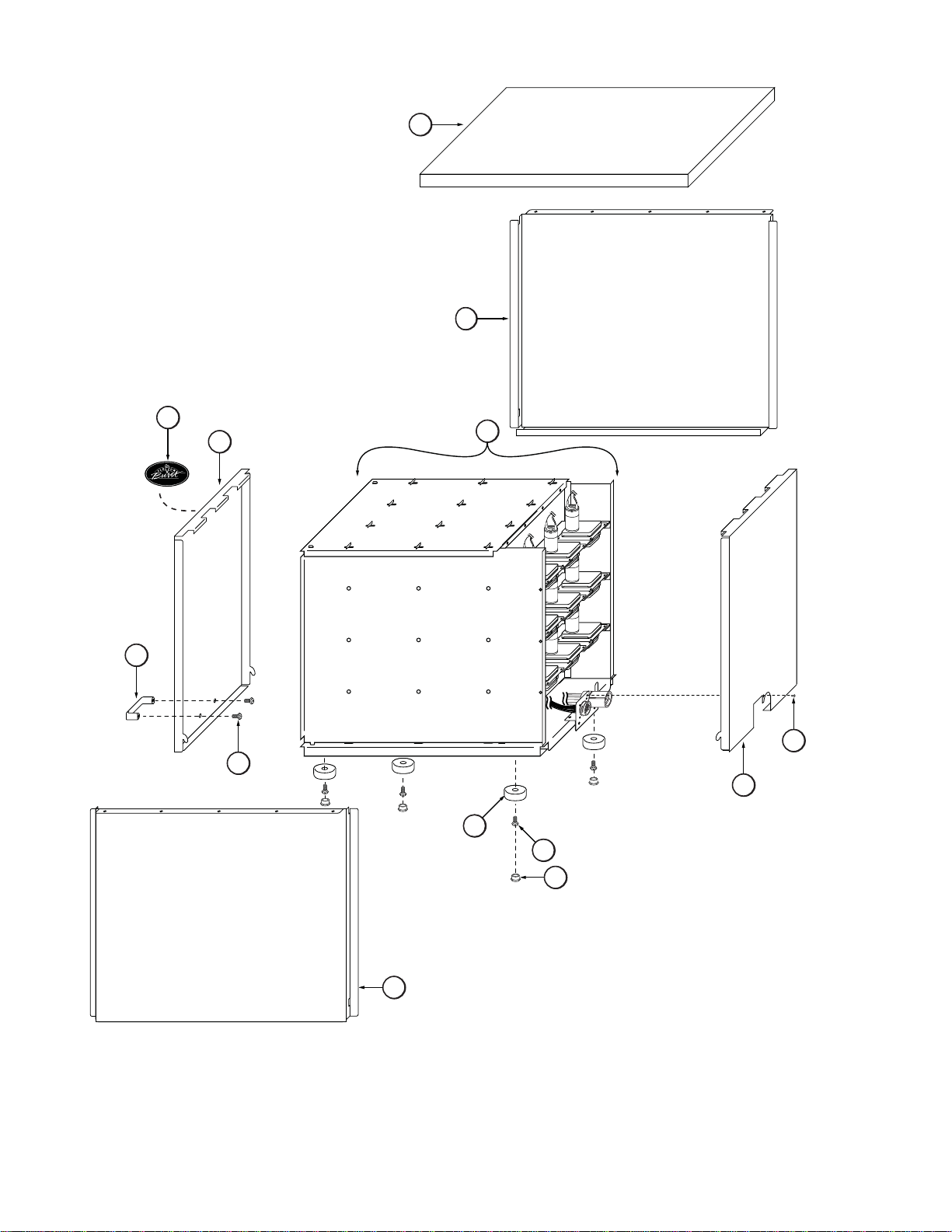

Outer Cabinet (See Figure 2)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 CAB 237 CABINET TOP PANEL 1 Covers the top of the inner cabinet.
2 CAB 235L CABINET LEFT SIDE PANEL 1 Covers the left side of inner cabinet.
3 N/A INNER CABINET ASSEMBLY 1 Houses syrup trays and bags.
4 CAB 239 CABINET FRONT DOOR PANEL 1 Front door, allows access to flavor bags.
5 CAB 256 FRONT DOOR HANDLE 1 Allows grip for opening front panel.
6 FAS 2024 SCREW 2 Fastens handle to front door panel.
7 RUB 618 RUBBER BUMPER W/ WASHER 4 Provides spacing between cabinet base
and table.
8 FAS 2014 8-32 X 1/2" PAN HEAD SCREW 4 Fastens rubber bumpers to cabinet base.
9 MIS 3074 DUST CAP 4 Covers screw hole in rubber bumper.
10 CAB 236 CABINET REAR PANEL 1 Allows access to pumps.
11 FAS 2024 8-32 X 1/4" PAN HEAD SCREWS 1 Secures back panel to base.
12 CAB 235R CABINET RIGHT SIDE PANEL 1 Covers right side of inner cabinet.
13 MIS 3150 FLAVOR BURST LOGO DECAL 1 Displays Flavor Burst trademark logo.

6
Outer Cabinet
3
1
2
12
10
7
13 4
5
9
8
611
26001
Figure 2

7

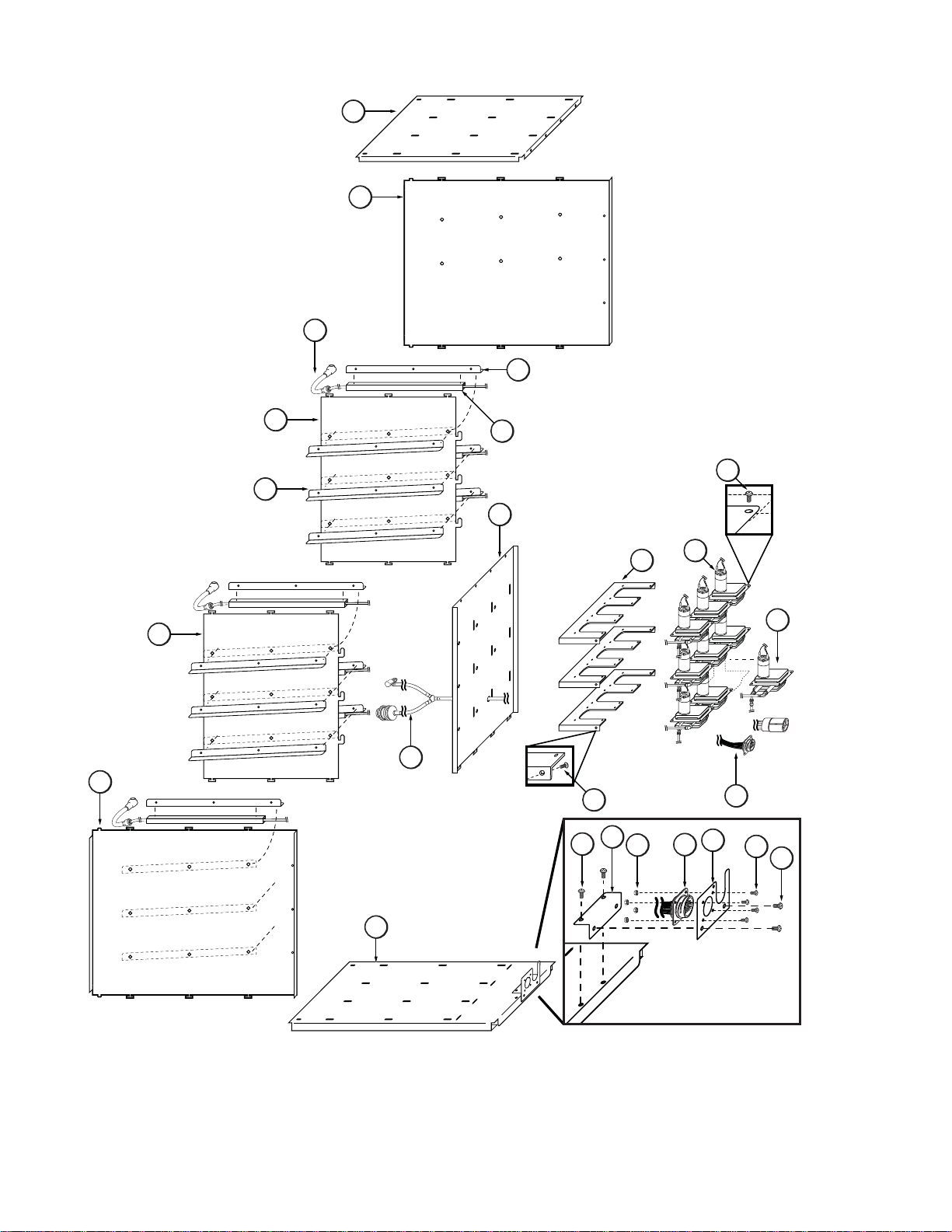

Inner Cabinet (See Figure 3)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 CAB 201 SYRUP RACK COVER PANEL 1 Keeps side and inner panels stable.
2 CAB 204L SYRUP RACK LEFT PANEL 2 Holds outer syrup rails.
3 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY 8 Transports syrup from the bag to the
pumps.
4 CAB 245 SYRUP TRAY RAIL 16 Holds flavor trays in place.
5 CAB 145 TRAY SUPPORT BRACKET 9 Houses flavor line leading to syrup bag.
6 CAB 203 SYRUP RACK DIVIDER PANEL 2 Holds inner syrup rails.
7 CAB 202 SYRUP RACK BACK PANEL 1 Attaches the rear of the inner and side
panels.
8 MIS 3158 SANITIZER FLUSH TUBE
ASSEMBLY 1 Flushes flavor lines with sanitizer when attached.
9 CAB 233 SYRUP RACK BASE PANEL 1 Attaches the bottom of the inner and side
panels.
10 FAS 2035 8-32 NUTS - EXT. LOCK WASHER 30 Secures screws to pump brackets and
pumps.
11 FAS 2024 8-32 X 1/4" PAN HEAD SCREWS 34 Fastens pump brackets and pumps.
12 CAB 205A ACCESSORY MOUNTING
BRACKET-A 1 Secures Accessory Mounting Bracket to
cabinet base.
13 CAB 205 ACCESSORY MOUNTING
BRACKET 1 Secures pump cable to cabinet base.
14 FAS 2042 4/40 LOCK NUTS 4 Secures screws to mount pump cable
face.
15 FAS 2008 4-40 X 3/8" PAN HEAD SCREWS 4 Attaches pump cable face to bracket.
16 ELE 602 SYRUP CABINET CABLE (INT.) 1 Supplies power to the pumps.
17 CAB 255 PUMP BRACKET 3 Holds pumps.
18 SYR 307 PERISTALTIC SYRUP PUMP 8 Pumps syrup from flavor bags into flavor
lines.
19 SAN 748 PERISTALTIC SANITIZER PUMP 1 Pumps sanitizer solution to flush tube and
sanitizer line.
20 CAB 204R SYRUP RACK RIGHT PANEL 1 Holds outer syrup rails.

8
Inner Cabinet
26002
15 11
13
16
14
11 12
1
9
2
6
6
11
18
19
16
4
5
3
4
17
11
8
10
7
Figure 3

9

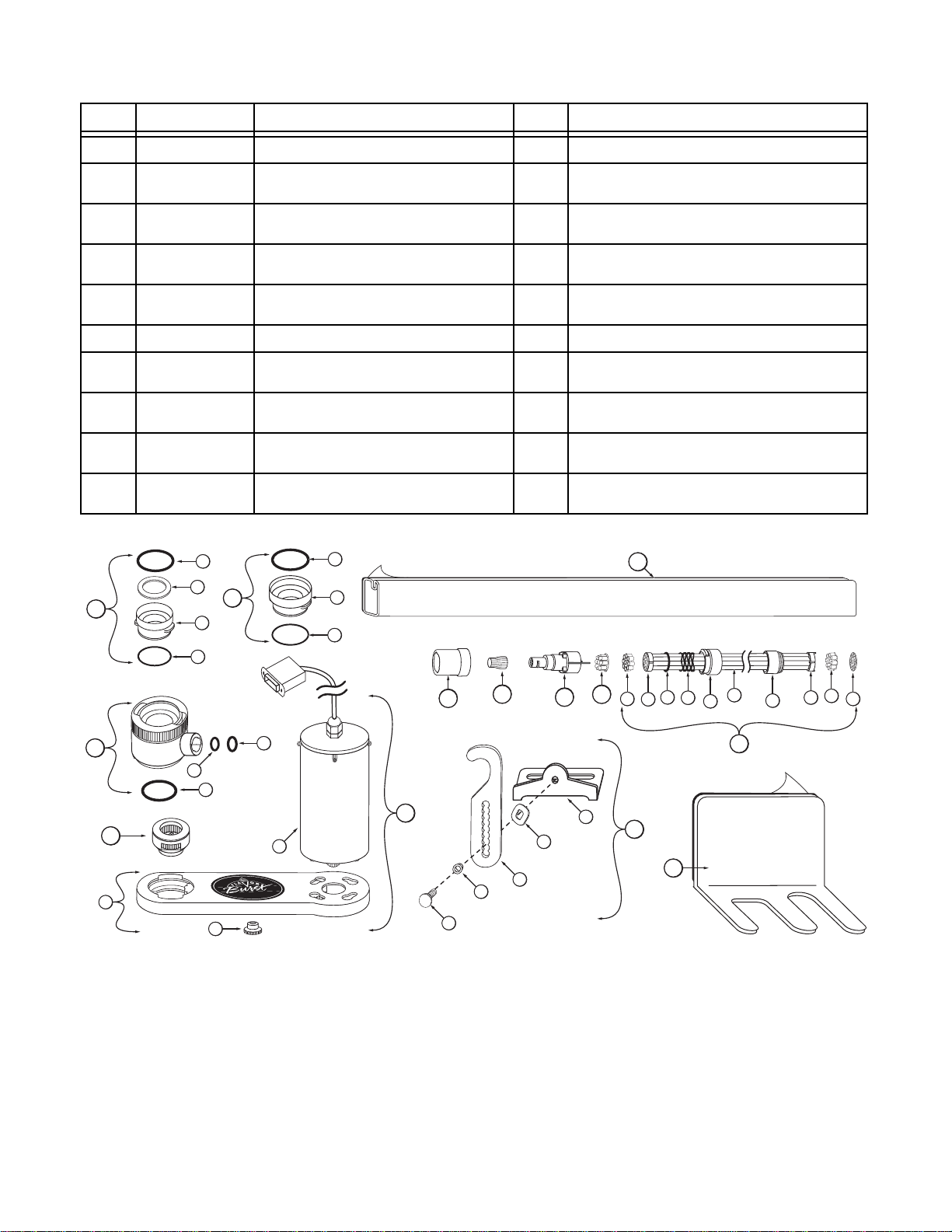

Injector Assembly and Related Parts (See Figure 4)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 ADPT 101A INJECTOR ADAPTER W/ O-RINGS 1 Attaches Injector Assembly to freezer
door.
1A RUB 642 ADAPTER O-RING 1 Creates tension to secure Adapter to
freezer door.
1B RUB 640 FLAT ADAPTER GASKET 1 Provides sealed cavity inside Adapter.
1C ADPT 101 INJECTOR ADAPTER 1 Attaches Injector Assembly to freezer.
1D RUB 632 INJECTOR ADAPTER O-RING 1 Creates tension to secure Adapter to
Injector Head.
2 INJ 422 INJECTOR HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
2A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 Provides sealed cavity inside syrup port.
2B RUB 651 INJECTOR HEAD O-RING 2-020 1 Provides a sealed cavity.
2C RUB 660 LARGER SYRUP PORT O-RING 1 Provides sealed cavity inside syrup port.
3 INJ 321 GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup
distribution.
4 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Injector Head from
pumps.
4A FAS 2051 ROLLED FLANGE EYELET 18 Provides tension in syrup line to affix to
line coupler.
4B ROT 510 LINE COUPLER 2 Holds flavor lines in place.
4C RUB 610 BAG CONNECTOR O-RINGS 1 Provides extra tension between tube
connectors.
4D ROT 515-A 9-TUBE ASSEMBLY WAVE
SPRING 1 Provides tension between tube connectors.
4E INJ 116 LINE COUPLER NUT - BLACK 1 Attaches flavor tubes to flavor manifold.
4F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 Brings syrup from pump to Injector Head.
4G ROT 511 LINE COUPLER NUT 1 Connects flavor lines to the internal 9-
Tube Assembly.
4H RUB 602 9-POS TUBE CONN. GASKET 1 Provides sealed cavity.
5 INJ 117 TUBE CONNECTOR BODY –
BLACK 1 Secures flavor line manifold to flavor lines.
6 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not
connected.
7 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Injector Head.
8 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
9A FAS 2107 INJECTOR BRACKET KNOB 1 Tightens positioning of Bracket.
9B MIS 3144 NYLON SHOULDER WASHER 1 Allows Bracket to move horizontally.
9C MIS 3143-A INJECTOR BRACKET PART A 1 Attaches to freezer door bolts to hang
Injector Assembly.
9D ROT 535 INJECTOR BRACKET SPRING
WASHER 1 Allows space between hanging and base
Brackets.
9E MIS 3143-B INJECTOR BRACKET PART B 1 Secures Bracket Assembly to Injector
Assembly.

10
Injector Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
10 INJ 323 INJECTOR ASSEMBLY - NO HEAD 1 Powers Injector system.
10A INJ 330 INJECTOR MOTOR ASSEMBLY 1 Supplies power to Motor which turns
gears.
10B INJ 331 INJECTOR GEARBOX ASSEMBLY 1 Gears turn Gear Cartridge for even syrup
distribution.
10C FAS 2023 ACCESSORY MOUNTING
BRACKET KNOB 1 Secures base Mounting Bracket to Gear
Box.
11 MIS 3151 ACCESSORY HANGING BRACKET 1 Stores flavor line and Injector Drive Motor
when not in use.
12 MIS 3026 SURFACE RACEWAY 2 Attaches flavor lines to side of freezer.
13 ADPT 8750-A CROWN ADAPTER WITH
O-RINGS 1 Attaches Injector Assembly to freezer door.
13A RUB 659 TAYLOR ADAPTER O-RING 8750 1 Creates tension to secure adapter to
freezer door.
13B ADPT 8750 CROWN ADAPTER WITOUT
O-RINGS 1 Attaches Injector Assembly to freezer door.
13C RUB 632 INJECTOR ADAPTER O-RING 1 Creates tension to secure adapter to
Injector Head.
4H
2
9
4
3
12
11
9B
4B
4G
4E
4D
4B 4F
2C
2B
10A
10C 9A
9C
9E
4A
4A 4C
9D
10B
5678
10
13
13A
13B
13C
1
1A
1B
1C
1D
26003
2A
Figure 4

11
Syrup Pump and Related Parts (See Figure 5)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 N/A SOFT SERVE SYRUP PUMP 8 Pumps syrup from flavor bags to flavor
lines.
1A SYR 307 PERISTALTIC SYRUP PUMP 1 ea. Pumps syrup from flavor bags to flavor
lines.
1B TUB 806 1/8” SYRUP PUMP REPL TUBE 1 ea. Transports syrup through pump.
1C FAS 2066 SYRUP PUMP TUBE WASHER-1/4 1 ea. Secures pump tube.
1D FAS 2067 SYRUP PUMP CLAMP-HOSE-1/4" 1 ea. Prevents pump tube from slipping.
1E FAS 2051 ROLLED FLANGE EYELET 1 ea. Creates tension for tighter fit.
1F FIX 1036 1/4" TO 1/4" OD UNION ELBOW 1 ea. Connects syrup in tube to pump.
1G FIX 1035 1/4 TO 3/16 OD REDUCING UNION 1 ea. Connects syrup pump to flavor line out.
2 SYR 944 SYRUP TUBE ASSEMBLY –
SOFT SERVE 8 Transports flavor from bag to pump.
2A FIX 1054 1/4” ID HOSE BARB SHUTOFF 1 ea. Connects flavor line to flavor bag.
2B SYR 902 FLAVOR-IN TUBE 1 ea. Carries syrup from syrup bag to pump.
2C TUB 811 TUBE-SILICONE .188X.375 PE
FB80 1 ea. Connects barb fitment to tube port.
2D FIX 1048 FITTING-1/4X1/4 BARB FB80 1 ea. Connects syrup tube to silicone tube.
3 SYR 901 6' 9-TUBE ASSEMBLY TUBE 9 Brings syrup from pump to Injector Head.
4 ROT 511 LINE COUPLER NUT 1 Connects flavor lines to the internal
9-Tube Assembly.
5 ROT 512 TUBE CONNECTOR BODY 1 Connects internal 9-Tube Assembly to
flavor lines.
6 ROT 510 LINE COUPLER 1 Holds flavor lines in place.
7 FAS 2051 ROLLED FLANGE EYELET 9 Secures flavor lines to line coupler.
8 MIS 3023 FLAVOR LINE DUST CAP 1 Cover to protect end of flavor lines.
9 SYR 941-A SYRUP BAG ADAPTER 8 Connects bag fitment to flavor lines.
9A SYR 940 SYRUP BAG ADAPTER CAP 1 ea. Attaches to flavor bag fitment.
9B SYR 939-B SYRUP BAG ADAPTER VALVE
ASSEMBLY 1 ea. Transports syrup to quick connect fitment.
9C RUB 632 SYRUP BAG ADAPTER O-RING 1 ea. Provides sealed cavity for Syrup Bag
Adapter.
10 CAB 113 FLAVORING TRAY 8 Houses syrup bags.
11 ELE 602 SYRUP CABINET CABLE (INT.) 1 Supplies power to the pumps.

12
Syrup Pump and Related Parts
26004
11
3
10
9A 9B
9
4568
7
9C
2
2A 2C 2D 2B
1
1D
1C
1A
1G
1B
1E
1F
Figure 5

13
Sanitizer Pump and Related Parts (See Figure 6)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 SAN 748 SANITIZER PUMP ASSEMBLY 1 Supplies sanitizer to flush tube.
2 TUB 807 SANITIZER TUBE REPLACEMENT 1 Transports sanitizer through pump.
3 MIS 3013 FLAVOR LINE DUST CAP 1 Cover to protect end of flavor lines.
4 FAS 2051 ROLLED FLANGE EYELET 9 Provides tension in syrup line to affix to
line coupler.
5 ROT 510 LINE COUPLER 1 Holds flavor lines in place.
6 ROT 512 TUBE CONNECTOR BODY 1 Connects internal 9-Tube Assembly to
flavor lines.
7 ROT 511 LINE COUPLER NUT 1 Connects flavor lines to the internal 9-
Tube Assembly.
8 ELE 602 SYRUP CABINET CABLE (INT.) 1 Supplies power to pumps.
9 FIX 1034 1/4 x 1/4 OD ELBOW 1 Connects sanitizer line to barb fitment.
10 MIS 3158 SANITIZER FLUSH LINE
ASSEMBLY 1 Connects sanitizer tank to flush lines.
10A FIX 1050 FLAVOR LINE FLUSH FITMENT 1 Connects to flavor in tube.
10B FIX 1051 SANITIZER TANK FITMENT 1 Connects flush tube to Sanitizer Tank.
10C SYR 931 CLEAR TUBING 3 Transports sanitizer to sanitizer / flush
tubes.
10D FIX 1046 FLUSH TUBE " Y " CONNECTOR 1 Splits sanitizer flush tube into two tubes.
11 SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 Transports sanitizer to Injector Assembly.
12 FIX 1035 1/4 TO 3/16 OD REDUCING UNION 1 Connects sanitizer line to barb fitment.
13 FIX 1043 1/4" ID X 1/8 90 DG BARB FITTING 3 Connects pump tubes to sanitizer lines to
pump out tube.
14 SAN 756 SANITIZER TANK ASSEMBLY 1 Houses sanitizer cleaning solution.
14A SAN 749 THREADED CHECK VALVE 1 Allows air to fill Sanitizer Tank.
14B SAN 750 SANITIZER TANK DOME NUTS 1 Mounts check valve to Sanitizer Tank.
14C FIX 1052 SANITIZER TANK QUICK
CONNECT 1 Connects sanitizer lines to Sanitizer Tank.
14D SAN 755 SANITIZER TANK CAP 1 Allows Sanitizer Tank to be refilled.
14E SAN 754 SANITIZER CAP O-RING 1 Seals the Sanitizer Tank opening to
prevent leakage.
14F SYR 931 CLEAR TUBING 1 Transports sanitizer to flush tubes.
14G SAN 752 SANITIZER TANK 1 Houses sanitizer cleaning solution.
15 MIS 3154 DRAIN TRAY 1 Holds drying sanitized parts.

14
Sanitizer Pump and Related Parts
1
2
2
9
13
12 11
8
3
4
5
6
7
15
14
14G
14B
14E
14C
14F
14A
14D
13
13
14H
14H
14H 14H
10
10C
10A
10B
10C 10C
10D
26005
Figure 6

15
Remote Module and Electronic Parts (See Figure 7)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 ELE 550 KEYPAD ASSEMBLY 1 Flavor Burst unit command center.
2 ELE 430-RE-1 SPIGOT SWITCH ASSEMBLY 1 Activates Injector Assembly.
3 INJ 330 INJECTOR MOTOR ASSEMBLY 1 Supplies power to motor which turns
gears.
4 MIS 3109 KEYPAD BRACKET ASSEMBLY 1 Mounts the Keypad to the freezer
4A MIS 3080 KEYPAD MOUNTING PLATE 1 Attaches to freezer to mount Keypad
Bracket.
4B MIS 3103 KEYPAD MOUNTING
BRACKET 1 Holds Keypad in place.
4C FAS 2023 ACCESSORY MOUNTING
BRACKET KNOB 2 Fastens Keypad Bracket to mounting
plate.
5 N/A REMOTE MICROPROCESSOR
MODULE 1 Main power supply.
6 ELE 434 POWER CABLE 1 Supplies the electronics board with power.
7 ELE 603 PUMP CABLE (EXTERNAL) 1 Links electronics board to pumps.
8 ELE 602 SYRUP CABINET CABLE (INT.) 1 Supplies power to pumps.

16
Remote Module and Electronic Parts
4A
4
4B
4C
1
2
3
5
5
6
7
8
(REVERSE SIDE)
9
10
26006
Figure 7

17
Maintenance Kit and Spare Parts Kit (See Figure 8)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 MIS 3160 MAINTENANCE KIT 1 Cleans Flavor Burst components.
1A 005162* DETAIL BRUSH –
0.0625" X 0.5" X 4" 1 Cleans small ports and openings.
1B 033059 SMALL BRUSH -
0.5" X 3" X 13" 1 Cleans smaller openings and parts.
1C 013073 MEDIUM BRUSH -
1" X 3" X 16.5" 1 Cleans medium-sized openings and parts.
1D 014753 LARGE BRUSH -
1.5" X 3.5" X 19.25" 1 Cleans large openings, parts and flat
areas.
2 SPR 5800 SPARE PARTS KIT 1 Houses extra spare parts and wear items.
2A INJ 321 GEAR CARTRIDGE 1 Rotates product for even syrup
distribution.
2B RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
2C RUB 632 INJECTOR ADAPTER O-RING 1 Creates tension to secure Adapter to
Injector Head.
2D RUB 640 FLAT ADAPTER GASKET 1 Provides sealed cavity inside Adapter.
2E RUB 642 ADAPTER O-RING 1 Creates tension to secure Adapter to
freezer door.
2F RUB 602 9-POS TUBE CONN. GASKET 1 Provides sealed cavity.
2G RUB 652-RSS SMALLER SYRUP PORT O-RING 1 Provides sealed cavity inside syrup port.
2H RUB 651 INJECTOR HEAD O-RING 2-020 1 Provides a sealed cavity.
2I INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Injector Head.
2J ELE 430-RE-1 SPIGOT SWITCH 1 Activates Injector Assembly.
2K INJ 117 TUBE CONNECTOR BODY –
BLACK 1 Secures flavor line manifold to flavor lines.
2L ELE 444 1 AMP, 1 1/4" SLOW BLOW FUSE 2 System overload protection.
2M RUB 660 LARGER SYRUP PORT O-RING 1 Provides sealed cavity inside syrup port.
*If the 005162 Detail Brush is not available for reordering, order the 050103 3-Brush Set. The Detail
Brush is the smallest brush in that set.

18
Maintenance Kit and Spare Parts Kit
1
2
1D
2I
2C
1A
2A 2B
2D
2E
2F
2H
2K 2J
2L
1C
1B
2M
2G
2N
26007
Figure 8

19
