Flavor Burst 2S Configuration guide

©2017 Flavor Burst Company Printed in October Printed in
All Rights Reserved The United States of America
Flavor Burst ®
Dual Spout Expansion Base-2S
- Operations Manual Supplement
Models: CTP BASE SS-2S
CTP BASE BLD-2S
CTP BASE BEV-2S
CTP BASE FCB-2S
Manufactured by
Flavor Burst Company
499 Commerce Drive
Danville, IN 46122
For general information and to locate a
distributor near you, call or visit our website:
Phone: [phone]
Toll Free Number: [phone]
Fax: [phone]
www.flavorburst.com
For pricing, ordering and support, contact one
of our qualified distributors.
PLEASE READ FIRST!
This supplement is not a full operations manual. It does not contain complete
information on installing and maintaining your new system. The purpose of this manual
supplement is to provide you with additional information and instruction, such as diagrams
and part lists, which are either not included or are different from what is shown in the standard
manual. Read through these installation and maintenance instructions first and then refer to
your standard manual for the rest of the instructions. Be sure to also refer to your standard
model to get complete information needed for your system.
In some cases, you may need to use two standard manuals along with this supplement
manual. If your existing system stripes soft serve product and this BASE-2S system blends
frozen beverage product with flavor, use both the CTP 80SS manual and the CTP 80BEV
manual for installation and maintenance instructions for each side of the system.
All manuals and supplements are available on www.flavorburst.com

1
PAGE INTENTIONALLY LEFT BLANK

2
TABLE OF CONTENTS
FCC ID……………………………...………………………………………….………………...3
Introduction……………………………...………………………………………….………….4
Safety Precautions……………………………..…………….………..……..….…………....4
Environmental Notices………………...………………………………………….………….5
Parts Identification/Function……...……………………….……..…..……….……..….…..7
Daily Opening, Daily Closing, Scheduled Maintenance – Notes…….………….…...36
Comparing the Injector and Blending Assemblies………….………...…………....37
Replacing the Syrup Flavors – Notes...…………………………..…….………...……...40
Equipment Setup……………………………………………………...…..……….……..….42
Installing the Spout Adapters – Notes……………..……………………....….....…42
Installing the Touch Panel and Mounting Bracket – Notes.……………...….....…43
Installing the Spigot Switches – Notes…………………….………...…………...…44
EQUIPMENT SETUP – Continued..………………………………………….......…44
Installing the Sanitizer Line – External Tank……………………………….........…44
Installing the Sanitizer Line – Internal Tank………………………………..........…45
Connecting the Pump Harness Cable & Internal Rotor Cable..…………......…...47
Connecting to a Standard Cabinet………………………….….…………....47
Connecting to a Deluxe Cabinet………………………….……….….……..49
Connecting to an Integrated Cabinet………………………….………....…51
Power Connections and Power Up……………………………………….…........…53
Installing Flavors and Priming Syrup Lines – Notes.……………...……...….....…53
Color Touch Panel Overview - Notes……………..…………………………....……...…56
Color Touch Panel Setup – Notes………………..……..…..……...……………….56
Testing the Drive Motor and Switch Connections……..…..……...……………….57
Testing the BASE-2S System – Notes...…….…..…………………………...….....57
Ordering/Service Information…………….…….…...…………………..……….........…..59

3
FCC ID 必须要加的警告语:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure and SAR Statements SAR Statement.
The Flavor 10* has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC
has established detailed SAR requirements and has established that these requirements. RF Exposure
Information. The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to
be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4)
addressing RF Exposure from radio frequency devices. This model meets the applicable government
requirements for exposure to radio frequency waves. The highest SAR level measured for this device
was 0.293W/kg.
*The Flavor 10 is also referred to as the Touch Panel throughout this manual.

4
Congratulations on your purchase of a Base-2S
series flavoring system! As a food and
beverage provider, your customers are your
greatest asset. Your primary concern must be
the health and welfare of your customers. This
manual supplement provides specialty
information on the parts of your equipment
model that differ from the standard model. Use
this supplement with your full standard
manual(s) for everyday operating guidelines
and procedures. We urge you to follow these
instructions carefully and maintain strict sanitary
practices in your daily operating routine. *Use
this manual supplement in conjunction with the
standard manual(s) included with your system.*
The CTP Base-2S unit is an add-on system that
uses your existing Flavor Burst Color Touch
Panel system to flavor another product with
eight flavors on a different freezer spout. Each
side injects or blends up to eight different
concentrated flavorings throughout the base
product as it is dispensed. Dispensing Flavor
Burst product is very simple. Select from the
screen which product you want, select the
flavor(s) and draw the product. The Flavor
Burst system will automatically flavor the
product at the spout. You can also have
multiple flavors per serving.
Flavor Burst® syrup is stored within the
equipment cabinets in 1 gallon disposable
bags. Proper syrup injection rate is maintained
by adjusting the flavor level on the system
Touch Panel.
Components of the Base-2S system should be
cleaned daily to ensure the highest standard of
sanitation. When your equipment is delivered
or if it has been unused for more than 24 hours,
follow the DAILY OPENING PROCEDURES in
your standard operations manual(s).
NOTE: PARTS AND PART NUMBERS MAY
VARY FROM WHAT IS SHOWN AND LISTED.
CONSULT YOUR LOCAL DISTRIBUTOR IF
YOU HAVE ANY QUESTIONS CONCERNING
DIFFERENCES.
Always follow these safety precautions when
operating the Flavor Burst® system:
DO NOT operate the system without
reading this operator’s manual. Failure to follow
this instruction may result in equipment
damage, poor system performance, health
hazards, or personal injury.
DO NOT operate the system unless it is
properly grounded. Failure to follow this
instruction may result in electrocution.
DO NOT operate the system with larger
fuses than specified on the system data label.
Failure to follow this instruction may result in
electrocution or damage to the machine.
Consult your electrician.
DO NOT put objects or fingers in the
door spout. Failure to follow this instruction may
result in contaminated product or personal
injury from blade contact.
The cabinet system must be placed on a
level surface capable of supporting at least 220
lbs of weight. Failure to comply may result in
personal injury or equipment damage.
DO NOT place more than 25 lbs of
weight on top of the cabinet. Failure to comply
may result in personal injury or equipment
damage.
DO NOT install the unit in an area where
a water jet could be used, and do not use a
water jet to clean or rinse the system. Failure to
follow these instructions may result in serious
electrical shock.
INTRODUCTION SAFETY PRECAUTIONS

5
HAZARD COMMUNICATION STANDARD
(HCS) – The procedure(s) in this manual
include the use of chemical products. These
chemical products will be highlighted in
bold-faced letters followed by the
abbreviation (HCS) in the text portion of the
procedure. See the Hazard Communication
Standard (HCS) manual for the appropriate
Material Safety Data Sheet(s) (MSDS).
NOISE LEVEL: Airborne noise emission
does not exceed 70 dB(A) when measured at a
distance of 1.0 meter from the surface of the
machine and at a height of 1.6 meters from the
floor.
NOTE: Operations Manual subject to
change. Contact your local distributor for most
recent updates concerning the Base-2S
system.
NOTE: Access to the service area is
restricted to persons having safety / hygiene
knowledge and practical experience of the
appliance.
NOTE: This appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards
involved.
NOTE: Children shall not play with the
appliance.
NOTE: Cleaning and user maintenance
shall not be made by children without
supervision.
NOTE: Operate unit under normal
ambient temperatures between 60 and 80
degrees Fahrenheit. Unit should never be
exposed to freezing temperatures.
ENVIRONMENTAL NOTICES
If the crossed out wheeled bin symbol is affixed to this product, it signifies that this product
is compliant with the EU Directive for Waste Electric/Electronic Goods (WEEE) as well as
other similar legislation in affect after August 13, 2005. Therefore, it must be collected
separately after is use is completed, and cannot be disposed of as unsorted
municipal waste.
The user is responsible for returning the product to the appropriate collection facility, as specified by
your local codes. For additional information regarding applicable local laws, please contact the
municipal facility and/or local distributor.

6
PAGE INTENTIONALLY LEFT BLANK

7

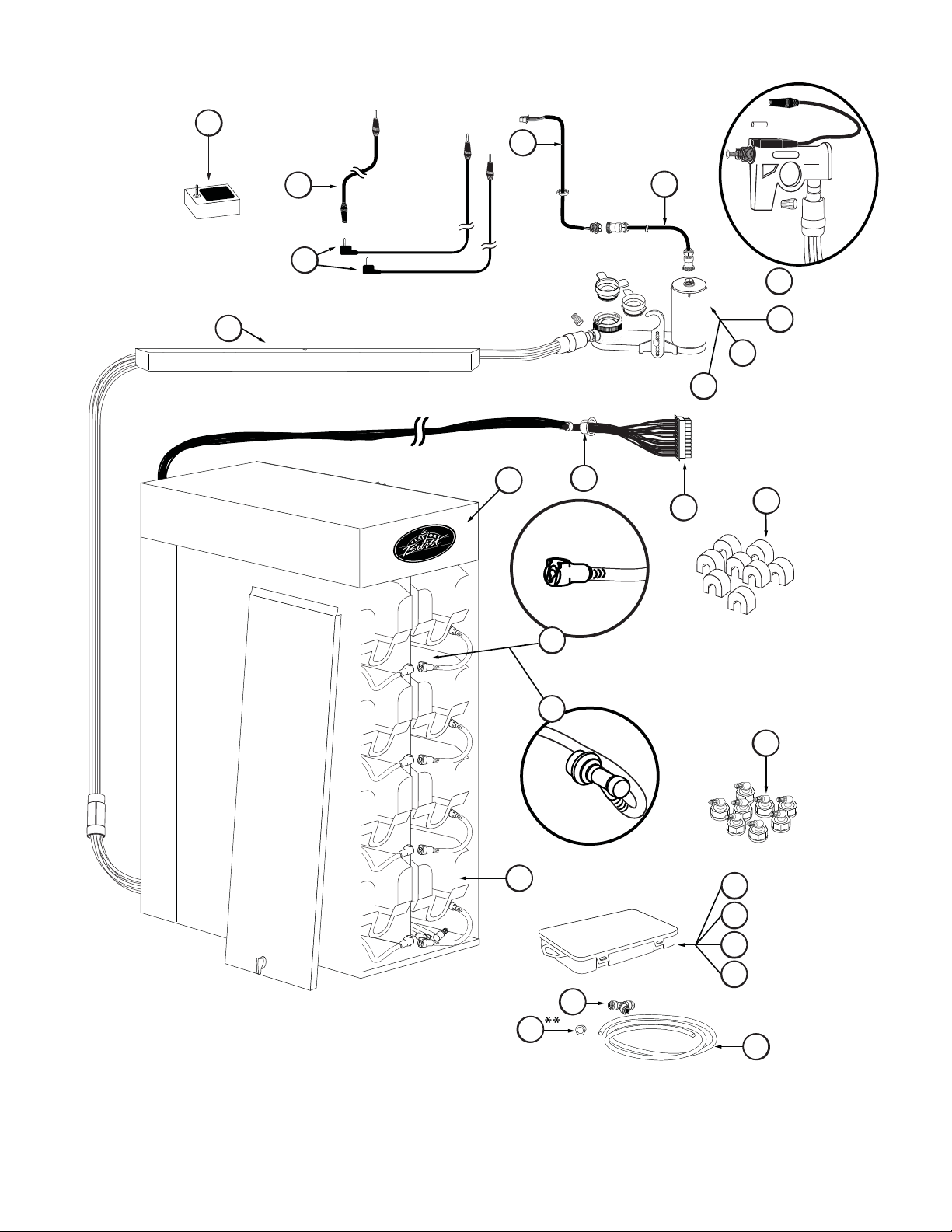

General System Overview (See Figure 1)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 ELE 930 INTERNAL ROTOR CABLE 1*
0**
FOR “SS”, “BLD” & “BEV” SYSTEMS:
Connects the external rotor cable to the
electronics board.
*1 for BASE SS-2S, BASE BLD-2S, & BASE
BEV-2S systems.
**0 for BASE FCB-2S systems.
2 ELE 931 EXTERNAL ROTOR CABLE 1*
0**
FOR “SS”, “BLD” & “BEV” SYSTEMS:
Connects the drive motor to the cabinet.
*1 for BASE SS-2S, BASE BLD-2S, & BAS
EBEV-2S systems.
**0 for BASE FCB-2S systems.
3-1 INJ 424TS INJECTOR ASSEMBLY 1*
0**
FOR “SS” SYSTEMS: Injects syrups into the
product.
*1 for BASE SS-2S systems.
**0 for BASE BLD-2S, BASE BEV-2S &
BASE FCB-2S s
y
stems.
OR…
3-2 INJ 424BLD FLAVOR BLEND BLENDING
ASSEMBLY
1*
0**
FOR “BLD” SYSTEMS: Blends syrups into
the product.
*1 for BASE BLD-2S systems.
**0 for BASE SS-2S, BASE BEV-2S & BASE
FCB-2S systems.
OR…
3-3 INJ 424VTS VERTICAL BLENDING ASSEMBLY 1*
0**
FOR “BEV” SYSTEMS: Blends syrups into
the product.
*1 for BASE BEV-2S systems.
**0 for BASE BLD-2S, BASE SS-2S & BASE
FCB-2S systems.
OR…
3-4 ADPT
TY80S-FCB
MODIFIED FCB FREEZER SPOUT
ASSEMBLY
1*
0**
FOR “FBC” SYSTEMS: Dispenses product
blended with syrups.
*1 for BASE FCB-2S systems.
**0 for BASE BLD-2S, BASE BEV-2S &
BASE SS-2S systems.
4 MIS 3196 STAINLESS TUBE / CABLE CASING
A
SSEMBLY 1 Attaches the flavor lines and/or cables to the side of the freezer.
5 TUB 803 0.17 x 1/4 LDPE TUBING 1 Transports sanitizer from tank to the pump.
6 CAB 113 FLAVOR TRAY 8 Houses syrup bags.
7 MIS 3191 OPEN-CLOSE BUSHING 1/2" 1 FOR DLX & INT UNITS: Protects the
sanitizer line enterin
g
DLX or INT cabinet.
8 FIX 1053 SANITIZER PUMP T CONNECTOR 1 Connects the Base sanitizer line to the tank.
9 ELE 525 36” SPIGOT SWITCH EXTENSION 1 Adds length to the spigot switch.
PARTS IDENTIFICATION/FUNCTIONS

8
General System Overview (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
10-1 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY
8*
0**
FOR “SS” & “BLD” SYSTEMS: Transports syrup
from the bag to the pumps.
*8 for BASE SS-2S & BASE BLD-2S systems.
**0 for BASE BEV-2S & BASE FCB-2S systems.
OR…
10-2 SYR 944SH SYRUP BAG CONNECTOR
ASSEMBLY - SHAKE
8*
0**
FOR “BEV” & “FCB” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for BASE BEV-2S & BASE FCB-2S systems.
**0 for BASE SS-2S & BASE BLD-2S systems.
11 ELE 924 WIRELESS SPIGOT SWITCH 1*
0**
FOR “SS” & “BLD” SYSTEMS: Sends a wireless
signal to the Touch Panel when the freezer draw
handle is activated.
*1 for BASE SS-2S & BASE BLD-2S systems.
**0 for BASE BEV-2S & BASE FCB-2S systems.
12-1 SPR 5800A SPARE PARTS KIT 1*
0**
FOR “SS” SYSTEMS: Houses extra spare parts
and wear items.
*1 for BASE SS-2S systems.
**0 for BASE BLD-2S, BASE BEV-2S & BASE
FCB-2S s
y
stems.
OR…
12-2 SPR 5800BLD SPARE PARTS KIT
TOUCHSCREEN FLAVOR BLEND
1*
0**
FOR “BLD” SYSTEMS: Houses extra spare parts
and wear items.
*1 for BASE BLD-2S systems.
**0 for BASE SS-2S, BASE BEV-2S & BASE FCB-
2S systems.
OR…
12-3 SPR 5800BEV SPARE PARTS KIT
TOUCHSCREEN BEVERAGE
1*
0**
FOR “BEV” SYSTEMS: Houses extra spare parts
and wear items.
*1 for BASE BEV-2S systems.
**0 for BASE BLD-2S, BASE SS-2S & BASE FCB-
2S systems.
OR…
12-4 SPR 5800FCB SPARE PARTS KIT
TOUCHSCREEN FCB
1*
0**
FOR “FCB” SYSTEMS: Houses extra spare parts
and wear items.
*1 for BASE FCB-2S systems.
**0 for BASE BLD-2S, BASE BEV-2S & BASE SS-
2S systems.
13 ELE 932-EXT PUMP HARNESS CABLE
EXTENSION 1 Provides power to the syrup & sanitizer pumps.
14 ELE 525M MALE TO MALE 48” SWITCH EXTENSION
2 Connects Touch Panel to the freezer switch.
15 SYR 946 SYRUP BAG LOCK 8*
0**
FOR “SS” & “BLD” SYSTEMS: Secures the
syrup bag adapters to the bag fitments.
*8 for BASE SS-2S & BASE BLD-2S systems.
**0 for BASE BEV-2S & BASE FCB-2S systems.
16 SYR 941A SYRUP BAG ADAPTER 8*
0**
FOR “SS” & “BLD” SYSTEMS: Connects soft
serve flavor bag to syrup out tube.
*8 for BASE SS-2S & BASE BLD-2S systems.
**0 for BASE BEV-2S & BASE FCB-2S systems.
17 N/A FLAVOR BURST STANDARD
CABINET ASSEMBLY 1 Houses syrup trays and bags.
18 MIS 3217 OPEN-CLOSE BUSHING 5/8” 1 Protects the cables and tubing.

9
PAGE INTENTIONALLY LEFT BLANK

10
General System Overview
13
18
5
8
7
(**PART USEDWHEN CONNECTING BASE UNITTO
EXISTING DELUXE OR INTEGRAGRATED SYSTEM)
4
26001
6
17
9
16
14
11
15
OR
“BEV” AND “FCB” SYSTEMS
“SS” AND “BLD” SYSTEMS
10-1
10-1
“SS” AND
“BLD”
SYSTEMS
“SS” AND
“BLD”
SYSTEMS
3-1
3-3
3-2
3-4
“SS” SYSTEMS
“BEV” SYSTEMS
“BLD” SYSTEMS
“FCB” SYSTEMS
OR
OR
OR
12-1
12-2
12-3
12-4
“BEV” SYSTEMS
“BLD” SYSTEMS
“SS” SYSTEMS
“FCB” SYSTEMS
OR
OR
OR
1
2
Figure 1

11
Cabinet – (See Figure 2)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 N/A ELECTRONICS SYSTEM 1 Control system for the unit.
2 CAB 135R-A RIGHT SIDE PANEL 1 Holds tray support brackets and panel brackets.
3 CAB 145 TRAY SUPPORT BRACKET 8 Supports flavoring trays.
4 FAS 2024 8-32 X 1/4 PAN HEAD 28 Fastens panel brackets to divider panel, secures
sides.
5 FAS 2014 8-32 X 1/2" PAN HEAD 25 Connects panels of the cabinet.
6-1 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY
8*
0**
FOR “SS” & “BLD” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for BASE SS-2S & BASE BLD-2S systems.
**0 for BASE BEV-2S & BASE FCB-2S systems.
OR…
6-2 SYR 944SH SYRUP BAG CONNECTOR
ASSEMBLY - SHAKE
8*
0**
FOR “BEV” & “FCB” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for BASE BEV-2S & BASE FCB-2S systems.
**0 for BASE SS-2S & BASE BLD-2S systems.
7 ELE 932 PUMP & SANITIZER CABLE
HARNESS 1 Provides power to the syrup and sanitizer pumps.
8 MIS 3066 MINI BUSHING 1 Protects flush tube.
9-1 MIS 3028-80 FLUSH TUBE ASSEMBLY – SOFT
SERVE
1*
0**
FOR “SS” & “BLD” SYSTEMS: Connects with
flavor line to flush with sanitizer solution.
*1 for 44SS, 44BLD, 44SS/BLD, 44SS/BEV,
44SS/FCB, 44BEV/BLD, & 44BLD/FCB models.
**0 for 44BEV, 44FCB, 44BEV/FCB models.
OR…
9-2 MIS 3028-S FLUSH TUBE ASSEMBLY -
SHAKE
1*
0**
FOR 44BEV & 44BEV/FCB MODELS: Connects
with flavor line to flush with sanitizer solution.
*1 for 44BEV and 44BEV/FCB models.
**0 for all other models.
OR…
9-3 N/A FLUSH TUBE ASSEMBLY – FCB
BASE
1*
0**
FOR 44FCB MODEL: Connects with flavor line to
flush with sanitizer solution.
*1 for 44FCB model.
**0 for all other models.
10 CAB 139 FRONT DOOR PANEL 1 Provides access to syrup bags and connectors.
11 CAB 136-A REAR PUMP COVER 1 Back panel to cover pumps.
12 FIX 1023 3/16" X 3/16" BARB TUBE CONNECT
1 Splices together flush tubes.
13 CAB 134 DIVIDER PANEL 1 Holds tray support brackets and divides trays.
14 CAB 144R RIGHT PANEL BRACKET 3 Holds tray support rails.
15 CAB 144L LEFT PANEL BRACKET 3 Holds tray support rails.
16 CAB 143 LATCH BRACKET 1 Provides latching tab for front panel latch.
17 FAS 2001 FRONT DOOR PANEL LATCH 1 Latches front door to cabinet front.
18 SYR 927 INTERNAL 9-TUBE ASSEMBLY 1 Transports syrup from bags to flavor
9-Tube Assembly.
19 SAN 748 PERISTALTIC SANITIZER PUMP 1 Pumps sanitizer solution to flush tube and
sanitizer line.

12
Cabinet (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
20-1 SYR 307 PERISTALTIC SYRUP PUMP 8*
0**
FOR “SS” & “BLD” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for BASE SS-2S & BASE BLD-2S systems.
**0 for BASE BEV-2S & BASE FCB-2S systems.
OR…
20-2 SYR 926 PERISTALTIC SYRUP PUMP 8*
0**
FOR “BEV” & “FCB” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for BASE BEV-2S & BASE FCB-2S systems.
**0 for BASE SS-2S & BASE BLD-2S systems.
21 CAB 155L PUMP MOUNTING STRIP 1 Support for trays and spacing between panels.
22 CAB 155R PUMP MOUNTING STRIP 1 Support for trays and spacing between panels.
23 FAS 2037 TAPPED NYLON SPACER 12 Secures screw to center panel, to support trays.
24 FAS 2032 STANDARD NYLON SPACERS 12 Provides extra support for flavor trays.
25 FAS 2034 8-32 X 3/4" MACHINE SCREW 12 Attaches bushings to divider panel.
26 MIS 3067 OPEN/CLOSED BUSHING 1 Strain relief for internal 9-Tube Assembly.
27 FIX 1033 1/4" X 1/4" BLKHD (PUSH-TO-
CONNECT) 1 Connects Sanitizer Tank tube to the unit.
28 TUB 803 TUBING-PER FOOT 1 Transports sanitizer solution from tank to pump.
29 CAB 133 BASE PANEL 1 Attaches the bottom of the inner and side panels.
30 RUB 618 RUBBER BUMPER WITH
WASHER 6 Provides spacing between cabinet base and
table.
31 FAS 2035 8-32 NUTS - EXT. LOCK
WASHER 6 Attaches to screw and holds rubber bumper in place.
32 MIS 3074 SHORTY PLUG #1672 6 Covers screw hole in rubber bumper.
33 FAS 2040 6-32 X 1/4" TAPPING SCREW 24 Secures tray support bracket to side panels.
34 CAB 135L-A LEFT SIDE PANEL 1 Holds tray support brackets and panel
brackets.
35 ELE 811 RELAY 1 Directs Touchscreen commands.
36 TUB 803 0.17 x 1/4 LDPE TUBING 1 Transports sanitizer solution from tank
to sanitizer pump.
37 FIX 1053 SANITIZER PUMP T
CONNECTOR 1 Connects the Base sanitizer line to the existing
sanitizer tank.
38 MIS 3191 OPEN-CLOSE BUSHING 1 FOR DLX & INT UNITS: Protects the sanitizer
line entering the DLX / INT cabinet.
39 ELE 932-EXT PUMP HARNESS CABLE
EXTENSION 1 Connects the base unit pump harness cables to
the Electronics Board.

13
PAGE INTENTIONALLY LEFT BLANK

14
Cabinet
29 32
27
30
5
5
28
31
35
38
36
(**PART USED WHEN CONNECTING BASE UNIT
TO EXISTING DELUXE OR INTEGRATED SYSTEM)
6-1
6-2
OR
“BEV” & “FCB”
SYSTEMS
“SS” & “BLD”
SYSTEMS
26
37
11
18
15
21
24
7
19
3
17
16 17
10
13
22 23
25
5
4
33
4
26002
2
8
5
4
14
34
4
39
12
See Figure 7
Electronic Parts
and Connections
1
4
OR
OR
“BEV” SYSTEMS
“SS” AND “BEV”
SYSTEMS
9-2
“FCB” SYSTEMS
9-3
9-1
20-1
20-2
OR
“BEV” & “FCB”
SYSTEMS
“SS” & “BLD”
SYSTEMS
Figure 2

15

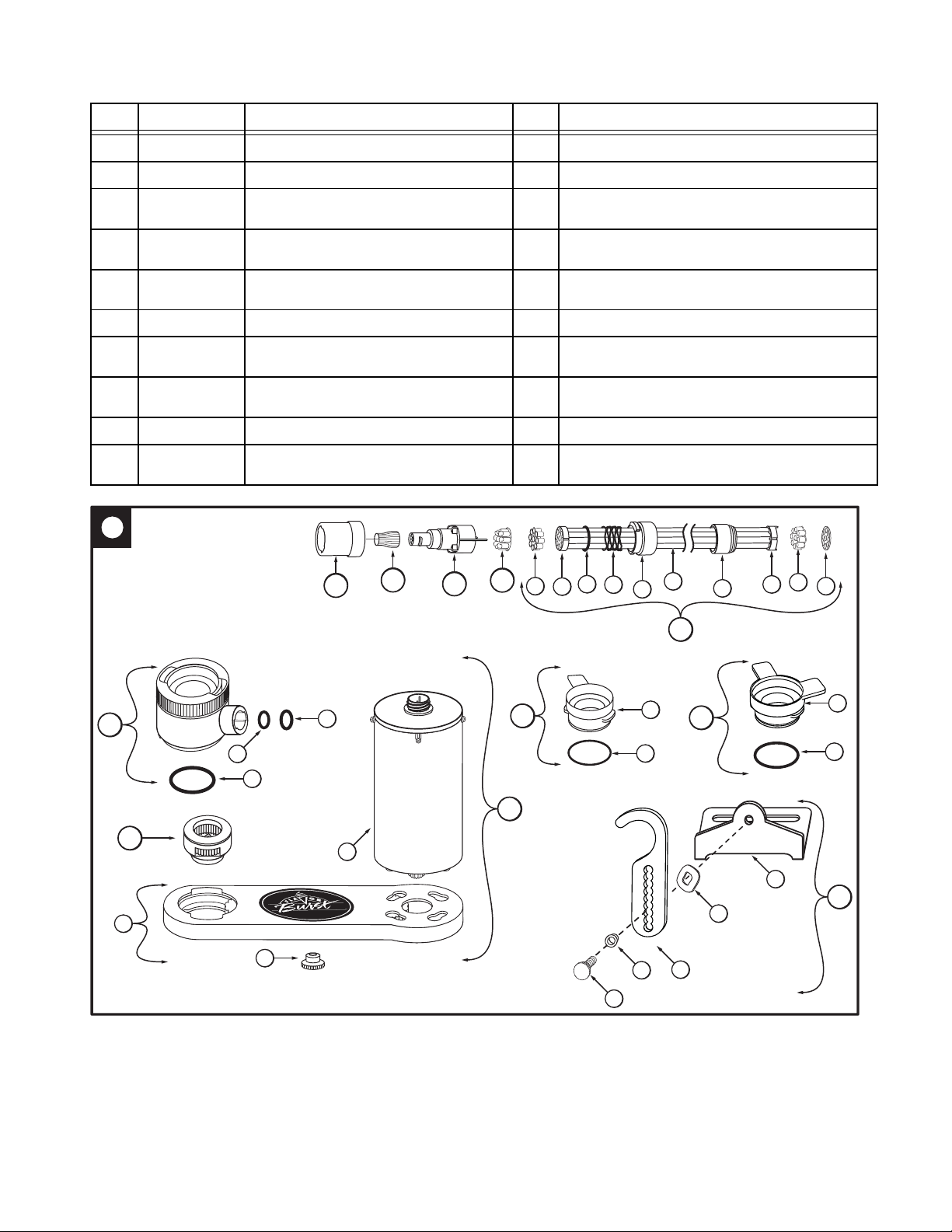

“SS” Injector Assembly and Related Parts (See Figure 3A)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
A INJ 424TS INJECTOR ASSEMBLY WITH SYRUP
LINES, ADAPTER, & BRACKET
1*
0**
FOR “SS” SYSTEMS: Injects syrups into the
product.
*1 for BASE SS-2S systems.
**0 for all other systems.
1 INJ 422 INJECTOR HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
1B RUB 651 INJECTOR HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
1C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2 INJ 321 GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup distribution.
3 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Injector Head from pumps.
3A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
3B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
3C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
3D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
3E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
3F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Injector Head.
3G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
3H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
4 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
5 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
6 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Injector Head.
7 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
8 MIS 3143 SUSPENSION BRACKET ASSEMBLY 1 Secures Injector Assembly to the freezer
door.
8A FAS 2107 INJECTOR BRACKET KNOB 1 ea. Secures the two bracket pieces.
8B MIS 3143A SUSPENSION BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Injector Assembly.
8C MIS 3143B SUSPENSION BRACKET PART B 1 ea. Secures Bracket Assembly to Injector
Assembly.
8D MIS 3144 NYLON SHOULDER WASHER 1 ea. Allows free horizontal movement for bracket
8E ROT 535 ROTOR BRACKET SPRING WASHER 1 ea. Allows space between hanging and base
brackets

16
“SS” Injector Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 INJ 323TS INJECTOR ASSEMBLY - NO HEAD 1 Powers Injector system.
9A INJ 330TS INJECTOR MOTOR ASSEMBLY 1 ea. Supplies power to Motor which turns gears.
9B INJ 331 INJECTOR GEARBOX ASSEMBLY 1 ea. Gears turn Gear Cartridge for even syrup
distribution.
9C FAS 2023 ACCESSORY MOUNTING
BRACKET KNOB 1 ea. Secures base Mounting Bracket to Gear Box.
10 ADPT 8750TA CROWN ADAPTER WITH TABS
AND O-RING 1 Attaches Injector Assembly to freezer door.
10A ADPT 8750T CROWN ADAPTER WITH TABS 1 ea. Attaches Injector Assembly to freezer door.
10B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure adapter to Injector
Head.
11 ADPT 101TA SPOUT ADAPTER WITH TAB AND
O-RING 1 Attaches Injector Assembly to freezer door.
11A ADPT 101T SPOUT ADAPTER 1 ea. Attaches Injector Assembly to freezer.
11B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure Adapter to Injector
Head.
A
3H
1
3
2
3B
3G
3E
3D
3B 3F
1C
1B
9A
9C
3A
3A 3C
9B
4567
9
10
10A
10B
11
11A
11B
26003A
1A
8
8B
8A
8C
8D
8E
FOR “SS” SYSTEMS
Figure 3A

17
“BLD” Blending Assembly and Related Parts (See Figure 3B)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
B INJ 424VBLD FLAVOR BLEND BLENDING
ASSEMBLY WITH SYRUP LINES,
ADAPTER, & BRACKET
1*
0**
FOR “BLD” SYSTEMS: Blends syrups into
the product.
*1 for BASE BLD-2S systems.
**0 for all other systems.
1 ADPT 101TA SPOUT ADAPTER WITH TAB AND O-
RING 1 Attaches Blending Assembly to freezer door.
1A ADPT 101T SPOUT ADAPTER 1 ea. Attaches Blending Assembly to freezer.
1B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure Adapter to
Blending Head.
2 INJ 422C BLENDING HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
2A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2B RUB 651 BLENDING HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
2C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
3 INJ 321C GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup distribution.
4 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Blending Head from
pumps.
4A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
4B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
4C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
4D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
4E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
4F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Blending Head.
4G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
4H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
5 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
6 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
7 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Blending Head.
8 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.

18
“BLD” Blending Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 MIS 3143 SUSPENSION BRACKET
ASSEMBLY 1 Secures Blending Assembly to freezer door.
9A FAS 2107 BLENDING BRACKET KNOB 1 ea. Secures the two bracket pieces.
9B MIS 3143A SUSPENSION BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Blending Assembly.
9C MIS 3143B SUSPENSION BRACKET PART B 1 ea. Secures Bracket Assembly to Blending
Assembly.
9D MIS 3144 NYLON SHOULDER WASHER 1 ea. Allows left and right movement for bracket.
9E ROT 535 ROTOR BRACKET SPRING
WASHER 1 ea. Allows space between hanging and base
brackets.
10 INJ 330HSB HIGH SPEED BLENDING MOTOR
ASSEMBLY 1 Powers Blending system.
11 INJ 331 BLENDING GEARBOX ASSEMBLY 1 Gears turn Gear Cartridge for even syrup
distribution.
11A FAS 2023 ACCESSORY MOUNTING
BRACKET KNOB 1 ea. Secures base Mounting Bracket to Gear Box.
12 ADPT 8750TA CROWN ADAPTER WITH TABS
AND O-RING 1 Attaches Blending Assembly to freezer door.
12A ADPT 8750T CROWN ADAPTER WITH TABS 1 ea. Attaches Blending Assembly to freezer door.
12B RUB 632 SPOUT ADAPTER O-RING 1 ea. Creates tension to secure adapter to
Blending Head.
FOR “BLD” SYSTEMS
B
4H
2
4
3
4B
4G
4E
4D
4B 4F
2C
2B
11A
4A
4A 4C
5678
12
12A
12B
1
1A
1B
26003
2A
9
9B
9A
9C
9D
9E
10
11
Figure 3B

19
“BEV” Blending Assembly and Related Parts (See Figure 3C)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
C INJ 424VTS
VERTICAL BLENDING ASSEMBLY
WITH SYRUP LINES, ADAPTER, &
BRACKET
1*
0**
FOR “BEV” SYSTEMS: Blends syrups into
the product.
*1 for BASE BEV-2S systems.
**0 for all other systems.
1 INJ 422 BLENDING HEAD ASSEMBLY 1 ea. Connects flavor line to inject syrups into
product.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
1B RUB 651 BLENDING HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
1C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2 INJ 321S GEAR CARTRIDGE ASSEMBLY –
VERTICAL BLENDER FOR SLUSH 1 Rotates product for even syrup distribution
throughout slush product.
3 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Blending Head from
pumps.
3A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
3B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
3C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
3D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
3E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
3F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Blending Head.
3G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
3H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
4 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
5 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
6 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Blending Head.
7 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
8 MIS 3143 BLENDING SUSPENSION BRACKET
ASSEMBLY 1 Secures Blending Assembly to the freezer door.
8A FAS 2107 INJECTOR BRACKET KNOB 1 ea. Secures the two bracket pieces.
8B MIS 3143A BLENDING BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Blending Assembly.
8C MIS 3143B BLENDING BRACKET PART B 1 ea. Secures Bracket Assembly to Blending
Assembly.
