16 Flavor Expansion Base-1S
- Operations Manual Supplement
Models: CTP BASE SS-1S
CTP BASE BLD-1S
CTP BASE BEV-1S
CTP BASE CBB-1S
Manufactured by
Flavor Burst Company
499 Commerce Drive
Danville, IN 46122
For general information and to locate a
distributor near you, call or visit our website:
Phone: [phone]
Toll Free Number: [phone]
Fax: [phone]
www.flavorburst.com
For pricing, ordering and support, contact one
of our qualified distributors.
PLEASE READ FIRST!
This supplement is not a full operations manual. It does not contain complete
information on installing and maintaining your new system. The purpose of this
manual supplement is to provide you with additional information and instruction,
such as diagrams and part lists, which are either not included or are different
from what is shown in the standard manual. Read through these installation and
maintenance instructions first and then refer to your standard manual for the rest
of the instructions. Be sure to also refer to your standard model to get complete
information needed for your system.
All manuals and supplements are available on www.flavorburst.com

1
PAGE INTENTIONALLY LEFT BLANK

2
TABLE OF CONTENTS
FCC Conformity Statement….....………………………………………….………………………...3
Introduction……………………………...………………………………………………….………….4
Safety Precautions……………………………..…………….………..…………….….…………....4
Environmental Notices………………...………………………………………….………………….5
Parts Identification/Function……...……………………….……..…..……….……..….…………..7
Equipment Setup……………………………….…….…..…………………...………..……...........24
Installing the Sanitizer Line – External Tank…………..………………..…….…………….24
Installing the Sanitizer Line – Internal Tank……...………………………………...……….25
Connecting the Pump Harness Cable….……….…………….……………..………....…...27
Connecting to a Standard Cabinet………………………….………………………..27
Connecting to a Deluxe Cabinet………………………………….…………………..28
Connecting to an Integrated Cabinet………………………………….………..……29
Installing the Injector / Blending Head and 9-Tube Assemblies…...…………….…….…30
Continuing Equipment Setup……………………………………..………………………..…30
Ordering/Service Information…………….……………………...……………………....………...31

3
FCC ID Conformity Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure and SAR Statements SAR Statement.
The Flavor 10* has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC
has established detailed SAR requirements and has established that these requirements. RF Exposure
Information. The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to
be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4)
addressing RF Exposure from radio frequency devices. This model meets the applicable government
requirements for exposure to radio frequency waves. The highest SAR level measured for this device
was 0.293W/kg.
*The Flavor 10 is also referred to as the Touch Panel throughout this manual.

4
Congratulations on your purchase of a Base-1S
series flavoring system! As a food and
beverage provider, your customers are your
greatest asset. Your primary concern must be
the health and welfare of your customers. This
manual supplement provides specialty
information on the parts of your equipment
model that differ from the standard model. Use
this supplement with your full standard
manual(s) for everyday operating guidelines
and procedures. We urge you to follow these
instructions carefully and maintain strict sanitary
practices in your daily operating routine. *Use
this manual supplement in conjunction with the
standard manual(s) included with your system.*
The CTP Base-1S unit is an add-on system that
uses your existing Flavor Burst Color Touch
Panel system to additional eight flavors to your
product. This means you can serve a total of
16 flavors from one spout. Each concentrated
flavoring is injected or blended throughout the
base product as it is dispensed. Dispensing
Flavor Burst product is very simple. Select the
flavor(s) from the screen and draw the product.
The Flavor Burst system will automatically
flavor the product at the spout. You can also
have multiple flavors per serving.
Flavor Burst®syrup is stored within the
equipment cabinets in 1-gallon disposable
bags. Proper syrup injection rate is maintained
by adjusting the flavor level on the system
Touch Panel.
Components of the Base-1S system should be
cleaned daily to ensure the highest standard of
sanitation. When your equipment is delivered
or if it has been unused for more than 24 hours,
follow the DAILY OPENING PROCEDURES in
your standard operations manual(s).
NOTE: PARTS AND PART NUMBERS MAY
VARY FROM WHAT IS SHOWN AND LISTED.
CONSULT YOUR LOCAL DISTRIBUTOR IF
YOU HAVE ANY QUESTIONS CONCERNING
DIFFERENCES.
Always follow these safety precautions when
operating the Flavor Burst®system:
DO NOT operate the system without
reading this operator’s manual. Failure to follow
this instruction may result in equipment
damage, poor system performance, health
hazards, or personal injury.
DO NOT operate the system unless it is
properly grounded. Failure to follow this
instruction may result in electrocution.
DO NOT operate the system with larger
fuses than specified on the system data label.
Failure to follow this instruction may result in
electrocution or damage to the machine.
Consult your electrician.
DO NOT put objects or fingers in the
door spout. Failure to follow this instruction may
result in contaminated product or personal
injury from blade contact.
The cabinet system must be placed on a
level surface capable of supporting at least 220
lbs of weight. Failure to comply may result in
personal injury or equipment damage.
DO NOT place more than 25 lbs of
weight on top of the cabinet. Failure to comply
may result in personal injury or equipment
damage.
DO NOT install the unit in an area where
a water jet could be used, and do not use a
water jet to clean or rinse the system. Failure to
follow these instructions may result in serious
electrical shock.
INTRODUCTION SAFETY PRECAUTIONS

5
HAZARD COMMUNICATION STANDARD
(HCS) – The procedure(s) in this manual
include the use of chemical products. These
chemical products will be highlighted in
bold-faced letters followed by the
abbreviation (HCS) in the text portion of the
procedure. See the Hazard Communication
Standard (HCS) manual for the appropriate
Material Safety Data Sheet(s) (MSDS).
NOISE LEVEL: Airborne noise emission
does not exceed 70 dB(A) when measured at a
distance of 1.0 meter from the surface of the
machine and at a height of 1.6 meters from the
floor.
NOTE: Operations Manual subject to
change. Contact your local distributor for most
recent updates concerning the Base-1S
system.
NOTE: Access to the service area is
restricted to persons having safety / hygiene
knowledge and practical experience of the
appliance.
NOTE: This appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards
involved.
NOTE: Children shall not play with the
appliance.
NOTE: Cleaning and user maintenance
shall not be made by children without
supervision.
NOTE: Operate unit under normal
ambient temperatures between 60 and 80
degrees Fahrenheit. Unit should never be
exposed to freezing temperatures.
ENVIRONMENTAL NOTICES
If the crossed out wheeled bin symbol is affixed to this product, it signifies that this product
is compliant with the EU Directive for Waste Electric/Electronic Goods (WEEE) as well as
other similar legislation in affect after August 13, 2005. Therefore, it must be collected
separately after is use is completed, and cannot be disposed of as unsorted
municipal waste.
The user is responsible for returning the product to the appropriate collection facility, as specified by
your local codes. For additional information regarding applicable local laws, please contact the
municipal facility and/or local distributor.

6
PAGE INTENTIONALLY LEFT BLANK

7

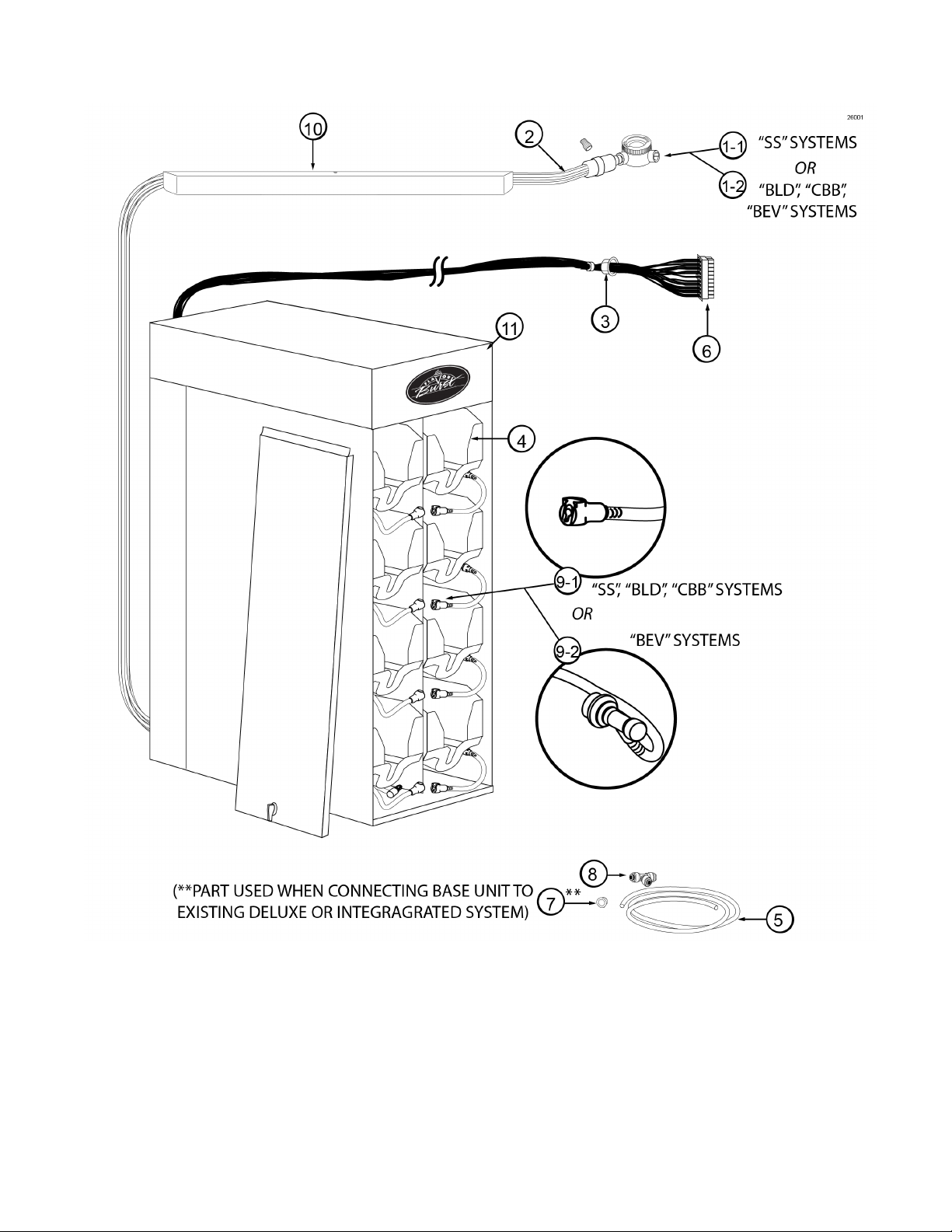

General System Overview (See Figure 1)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1-1 INJ 422-DH INJECTOR HEAD ASSEMBLY
WITH DOUBLE SYRUP PORTS
1*
0**
FOR “SS” SYSTEMS: Connects flavor line
to inject syrups into product.
*1 for SS-1S systems.
**0 for BLD-1S, BEV-1S, & CBB-1S systems.
OR…
1-2 INJ 422VS-DH BLENDING HEAD ASSEMBLY
WITH DOUBLE SYRUP PORTS
1*
0**
FOR “BLD”, “BEV”, & “CBB” SYSTEMS:
Connects flavor line to inject syrups into
product.
*1 for BLD-1S, BEV-1S, & CBB-1S systems.
**0 for SS-1S systems.
2 SYR 932-B 9-TUBE ASSEMBLY WITH
MANIFOLD 1 Transports the syrup from the bags to the
Injector / Blending Head.
3 MIS 3217 OPEN-CLOSE BUSHING 5/8” 1 Protects the cables and tubing.
4 CAB 113 FLAVOR TRAY 8 Houses syrup bags.
5 TUB 803 0.17 x 1/4 LDPE TUBING 1 Transports sanitizer from tank to the pump.
6 ELE 932-BASE
PUMP & SANITIZER CABLE
HARNESS FOR BASE UNIT 1 Provides power to the syrup and sanitizer pumps.
7 MIS 3191 OPEN-CLOSE BUSHING 1/2" 1 FOR DLX & INT UNITS: Protects the
sanitizer line enterin
g
DLX or INT cabinet.
8 FIX 1053 SANITIZER PUMP T CONNECTOR 1 Connects the Base sanitizer line to the tank.
9-1 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY
8*
0**
FOR “SS”, “BLD”, & “CBB” SYSTEMS:
Transports syrup from the bag to the pumps.
*8 for SS-1S, BLD-1S, & CBB-1S systems.
**0 for BEV-1S s
y
stems.
OR…
9-2 SYR 944SH SYRUP BAG CONNECTOR
ASSEMBLY - BEVERAGE
8*
0**
FOR “BEV” SYSTEMS: Transports syrup
from the bag to the pumps.
*8 for BEV-1S systems.
**0 for SS-1S, BLD-1S, & CBB-1S s
y
stems.
10 MIS 3196 STAINLESS TUBE / CABLE
CASING ASSEMBLY 1 Attaches the flavor lines and/or cables to the
side of the freezer.
11 N/A FLAVOR BURST SOFT SERVE
CABINET ASSEMBLY 1 Houses syrup trays and bags.
PARTS IDENTIFICATION/FUNCTIONS

8
General System Overview
Figure 1

9
Cabinet – (See Figure 2)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 N/A ELECTRONICS SYSTEM 1 Houses microprocessor and electronics.
2 CAB 135R-A RIGHT SIDE PANEL 1 Holds tray support brackets and panel
brackets.
3 CAB 145 TRAY SUPPORT BRACKET 8 Supports flavoring trays.
4 FAS 2024 8-32 X 1/4 PAN HEAD 28 Fastens panel brackets to divider panel,
secures sides.
5 FAS 2014 8-32 X 1/2" PAN HEAD 25 Attaches top panel, back cover, and
feet to cabinet.
6-1 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY
8*
0**
FOR “SS”, “BLD”, & “CBB” SYSTEMS:
Transports syrup from the bag to the pumps.
*8 for SS-1S, BLD-1S, & CBB-1S systems.
**0 for BEV-1S s
y
stems.
OR…
6-2 SYR 944SH SYRUP BAG CONNECTOR
ASSEMBLY - BEVERAGE
8*
0**
FOR “BEV” SYSTEMS: Transports syrup
from the bag to the pumps.
*8 for BEV-1S systems.
**0 for SS-1S, BLD-1S, & CBB-1S s
y
stems.
7 ELE 932-BASE
PUMP & SANITIZER CABLE
HARNESS FOR BASE UNIT 1 Provides power to the syrup and sanitizer
pumps.
8 MIS 3066 MINI BUSHING 1 Protects flush tube.
9-1 MIS 3028-80 FLUSH TUBE ASSEMBLY – SOFT
SERVE
1*
0**
FOR “SS”, “BLD”, “CBB” SYSTEMS:
Connects with flavor line to flush with
sanitizer solution.
*1 for SS-1S, BLD-1S, & CBB-1S systems.
**0 for BEV-1S s
y
stems.
OR…
9-2 MIS 3028-S FLUSH TUBE ASSEMBLY - SHAKE 1*
0**
FOR “BEV” SYSTEMS: Connects with
flavor line to flush with sanitizer solution.
*1 for BEV-1S systems.
**0 for SS-1S, BLD-1S, & CBB-1S s
y
stems.
10 CAB 139 FRONT DOOR PANEL 1 Provides easy access to syrup bags and
connectors.
11 CAB 136-A REAR PUMP COVER 1 Back panel to cover pumps.
12 FIX 1023 3/16" X 3/16" BARB TUBE
CONNECT 1 Splices together flush tubes.
13 CAB 134 DIVIDER PANEL 1 Holds tray support brackets and divides
flavor tra
y
s.
14 CAB 144R RIGHT PANEL BRACKET 3 Holds tray support rails.
15 CAB 144L LEFT PANEL BRACKET 3 Holds tray support rails.
16 CAB 143 LATCH BRACKET 1 Provides latching tab for front panel
latch.
17 FAS 2001 FRONT DOOR PANEL LATCH 1 Latches front door to cabinet front.
18 SYR 927 INTERNAL 9-TUBE ASSEMBLY 1 Transports syrup from bags to flavor
9-Tube Assembl
y
.
19 SAN 748 PERISTALTIC SANITIZER PUMP 1 Pumps sanitizer solution to flush tube
and sanitizer line.

10
Cabinet (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
20-1 SYR 307 PERISTALTIC SYRUP PUMP –
SOFT SERVE
8*
0**
FOR “SS” & “BLD” SYSTEMS: Pumps
syrup from flavor bags into flavor
lines.
*8 for SS-1S & BLD-1S systems.
**0 for BEV-1S & CBB-1S s
y
stems.
OR…
20-2 SYR 926 PERISTALTIC SYRUP PUMP -
BEVERAGE
8*
0**
FOR “BEV” SYSTEMS: Pumps syrup from
flavor bags to flavor lines.
*8 for BEV-1S systems.
**0 for SS-1S, BLD-1S & CBB-1S s
y
stems.
OR…
20-3 SYR 926P PERISTALTIC SYRUP PUMP –
PREMIUM BEVERAGE
8*
0**
FOR “CBB” SYSTEMS: Pumps syrup from
flavor bags to flavor lines.
*8 for CBB-1S systems.
**0 for SS-1S, BLD-1S & BEV-1S s
y
stems.
21 CAB 155L PUMP MOUNTING STRIP 1 Support for syrup trays and spacing
between panels.
22 CAB 155R PUMP MOUNTING STRIP 1 Support for syrup trays and spacing
between panels.
23 FAS 2037 TAPPED NYLON SPACER 12 Secures screw to center panel, and
support for tra
y
s.
24 FAS 2032 STANDARD NYLON SPACERS 12 Provides extra support for flavor trays.
25 FAS 2034 8-32 X 3/4" MACHINE SCREW 12 Attaches bushings to divider panel.
26 MIS 3067 OPEN/CLOSED BUSHING 1 Strain relief for internal 9-Tube
A
ssembl
y
.
27 FIX 1033 1/4" X 1/4" BLKHD (PUSH-TO-
CONNECT
)
1 Connects Sanitizer Tank tube to the unit.
28 TUB 803 TUBING-PER FOOT 1 Transports sanitizer solution from tank to
pump.
29 CAB 133 BASE PANEL 1 Attaches the bottom of the inner and side
panels.
30 RUB 618 RUBBER BUMPER WITH WASHER 6 Provides spacing between cabinet base and
table.
31 FAS 2035 8-32 NUTS - EXT. LOCK WASHER 6 Attaches to screw and holds rubber bumper
in place.
32 MIS 3074 SHORTY PLUG #1672 6 Covers screw hole in rubber bumper.
33 FAS 2040 6-32 X 1/4" TAPPING SCREW 24 Secures tray support bracket to side panels.
34 CAB 135L-A LEFT SIDE PANEL 1 Holds tray support brackets and panel
brackets.
35 ELE 811 RELAY 1 Directs Touch Panel commands.
36 TUB 803 0.17 x 1/4 LDPE TUBING 1 Transports sanitizer solution from tank
to sanitizer pump.
37 FIX 1053 SANITIZER PUMP T CONNECTOR 1 Connects the Base sanitizer line to the
existin
g
sanitizer tank.
38 MIS 3191 OPEN-CLOSE BUSHING 1 FOR DLX & INT UNITS: Protects the
sanitizer line enterin
g
the DLX / INT cabinet.

11
PAGE INTENTIONALLY LEFT BLANK

12
Cabinet
Figure 2

13
Injector /Blending Assembly and Related Parts (See Figure 3A)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1-1 INJ 422-DH INJECTOR HEAD ASSEMBLY WITH
DOUBLE SYRUP PORTS
1*
0**
FOR “SS” SYSTEMS: Connects flavor line
to inject syrups into product.
*1 for SS-1S systems.
**0 for BLD-1S, BEV-1S, & CBB-1S s
y
stems.
OR…
1-2 INJ 422VS-DH
BLENDING HEAD ASSEMBLY
WITH DOUBLE SYRUP PORTS
1*
0**
FOR “BLD”, “BEV”, & “CBB” SYSTEMS:
Connects flavor line to inject syrups into
product.
*1 for BLD-1S, BEV-1S, & CBB-1S systems.
**0 for SS-1S s
y
stems.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 2 ea. Provides sealed cavity inside syrup port.
1B RUB 651 INJECTOR HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
1C RUB 660 LARGER SYRUP PORT O-RING 2 ea. Provides sealed cavity inside syrup port.
2 MIS 3196 STAINLESS 9-TUBE CASING
A
SSEMBLY 1 Protects and holds the cables and 9-Tube
A
ssembl
y
in place on the freezer side panel.
2A MIS 3190 STAINLESS 9-TUBE CASING
HINGED CHANNEL 1 ea. Covers and protects the cables and tubes of the Casing Assembly.
2B MIS 3051 CH-6 CHANNEL MAGNET
A
SSEMBLY 2 ea. Holds the Casing Channel to the freezer
panel.
2C FAS 2040 6-32 x 1/4 PAN HEAD SCREW 1 ea. Secures the Casing cover to the mounting
brackets.
2D FAS 2024 8-32 x 1/4 PAN HEAD SCREW 4 ea. Secures the magnet assembly to the
mountin
g
brackets.
2E FAS 2035 8-32 NUTS – EXT. LOCK WASHER 4 ea. Secures the magnet assembly to the
mountin
g
brackets.
3 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Injector Head from pumps.
3A FAS 2051 ROLLED FLANGE EYELET 18 ea. Provides tension in syrup line to affix to line
coupler.
3B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
3C ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
3D INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
3E SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Injector Head.
3F ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
3G RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
4 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
5 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
6 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Injector Head.
7 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leaka
g
e.
8 CAB 113 FLAVOR TRAY 8 Houses syrup bags.

14
Injector /Blending Assembly and Related Parts (Continued)
Figure 3A

15

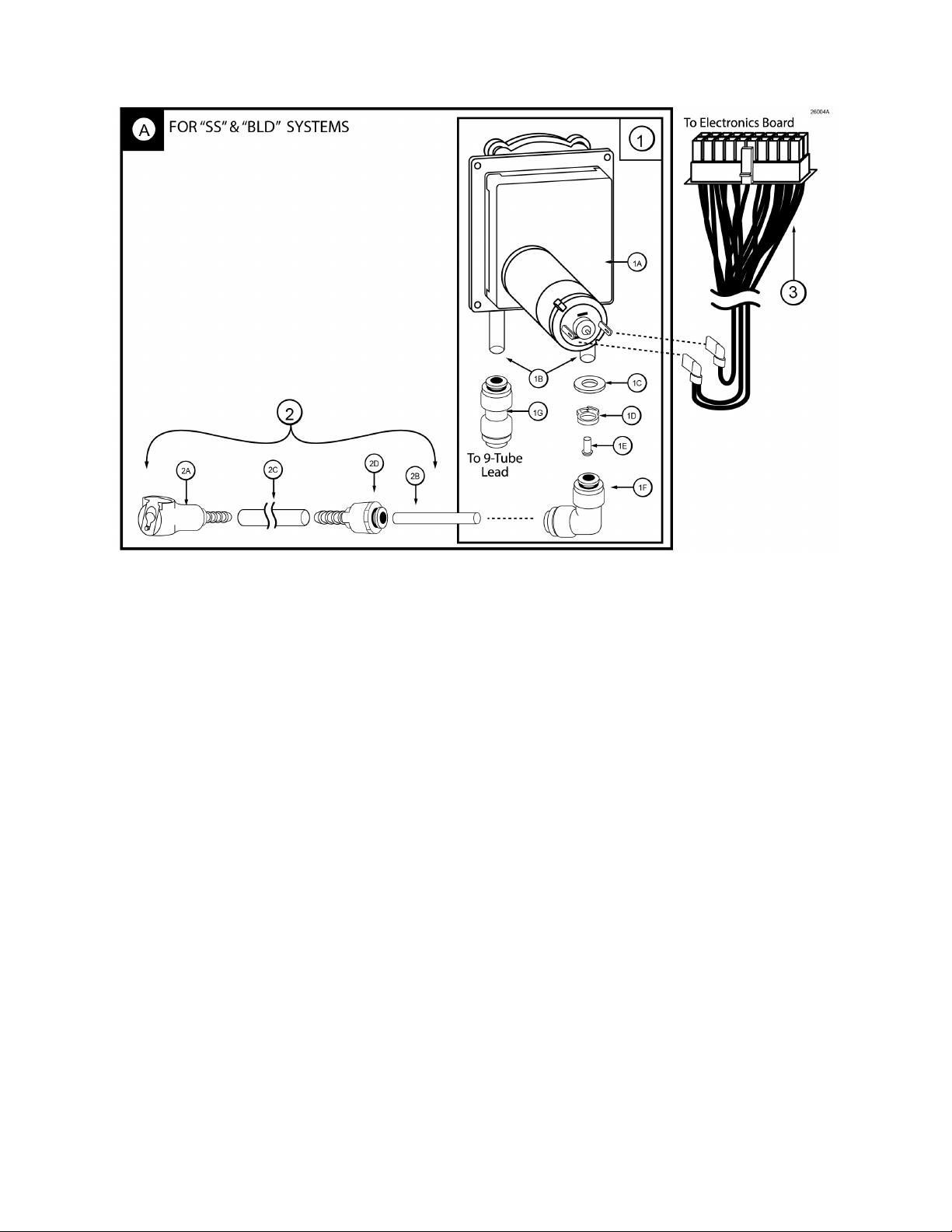

Soft Serve Syrup Pump and Related Parts (See Figure 4A)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
A N/A SOFT SERVE SYRUP PUMP
SYSTEM
8*
0**
FOR “SS” & “BLD” SYSTEMS: Pumps
syrup from flavor bags into flavor
lines.
*8 for SS-1S & BLD-1S systems.
**0 for BEV-1S & CBB-1S s
y
stems.
1 N/A SOFT SERVE SYRUP PUMP 1 Pumps syrup from bags to flavor lines.
1A SYR 307 PERISTALTIC SYRUP PUMP –
SOFT SERVE 1 ea. Pumps syrup from bags into flavor lines.
1B TUB 806 1/8” SYRUP PUMP REPL TUBE 1 ea. Transports syrup through pump.
1C FAS 2067 SYRUP PUMP TUBE WASHER-1/4 1 ea. Secures pump tube.
1D FAS 2066 SYRUP PUMP CLAMP-HOSE-1/4" 1 ea. Prevents pump tube from slipping.
1E FAS 2051 ROLLED FLANGE EYELET 1 ea. Creates tension for tighter fit.
1F FIX 1036 1/4" TO 1/4" OD UNION ELBOW 1 ea. Connects syrup in tube to pump.
1G FIX 1035 1/4 TO 3/16 OD REDUCING UNION 1 ea. Connects syrup pump to flavor line out.
2 SYR 944 SYRUP TUBE ASSEMBLY – SOFT
SERVE 1 Transports flavor from bag to pump.
2A FIX 1054 1/4” ID HOSE BARB SHUTOFF 1 ea. Connects flavor line to flavor bag.
2B SYR 902 FLAVOR-IN TUBE 1 ea. Carries syrup from syrup bag to pump.
2C TUB 811 TUBE-SILICONE .188X.375 PE
FB80 1 ea. Connects barb fitment to tube port.
2D FIX 1048 FITTING-1/4X1/4 BARB FB80 1 ea. Connects syrup tube to silicone tube.
3 ELE 932-BASE
PUMP & SANITIZER CABLE
HARNESS FOR BASE UNIT 1 Provides power to the syrup and sanitizer pumps.

16
Soft Serve Syrup Pump and Related Parts
Figure 4A

17
Beverage Syrup Pump and Related Parts (See Figure 4B)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
B N/A BEVERAGE SYRUP PUMP
SYSTEM
8*
0**
FOR “BEV” SYSTEMS: Pumps syrup
from flavor bags into flavor
lines.
*8 for BEV-1S systems.
**0 for SS-1S, BLD-1S & CBB-1S
s
y
stems.
1 N/A SHAKE SYRUP PUMP 1 ea. Pumps syrup from bags to flavor lines.
1A SYR 926 PERISTALTIC SYRUP PUMP 1 ea. Pumps syrup from bags into flavor lines.
1B TUB 809 1/4" SYRUP SHAKE PUMP
REPLACEMENT TUBE 1 ea. Transports syrup through pump.
1C FIX 1045 1/4" TUBE TO 1/4" HOSE STEM 1 ea. Creates tension for tighter fit, connects
pump to fitment.
1D FIX 1035 1/4 TO 3/16 OD REDUCING UNION 1 ea. Connects syrup pump to flavor line out.
1E FIX 1036 1/4" TO 1/4" OD UNION ELBOW 1 ea. Connects bag connector assembly to
flavor line/pump.
2 SYR 944SH SYRUP TUBE ASSEMBLY –
SHAKE BAG COUPLER 1 ea. Transports the flavoring from the syrup
ba
g
to the s
y
rup pump.
2A SYR 928 #27-1102-99 .265" BAG COUPLER 1 ea. Fastens bag fitment to bag connector.
2B TUB 811 TUBE-SILICONE .188X.375 PE FB80 1 ea. Provides sealed cavity inside bag fitment.
2C FIX 1048 FITTING ¼ X ¼ BARB FB80 1 ea. Connects bag coupler assembly to flavor
line/pump.
2D SYR 902 FLAVOR-IN TUBE 1 ea. Carries syrup from syrup bag to pump.
3 ELE 932-BASE PUMP & SANITIZER CABLE
HARNESS FOR BASE UNIT 1 Provides power to the syrup and sanitizer pumps.

18
Beverage Syrup Pump and Related Parts
Figure 4B

19
Premium Beverage Syrup Pump and Related Parts (See Figure 4C)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
A N/A PREMIUM BEVERAGE SYRUP
PUMP SYSTEM
8*
0**
FOR “CBB” SYSTEMS: Pumps syrup
from flavor bags into flavor
lines.
*8 for CBB-1S systems.
**0 for SS-1S, BEV-1S & BLD-1S
s
y
stems.
1 N/A SOFT SERVE SYRUP PUMP 1 Pumps syrup from bags to flavor lines.
1A SYR 926P PERISTALTIC SYRUP PUMP –
PREMIUM BEVERAGE 1 ea. Pumps syrup from bags to flavor lines.
1B TUB 806 1/8” SYRUP PUMP REPL TUBE 1 ea. Transports syrup through pump.
1C FAS 2067 SYRUP PUMP TUBE WASHER-1/4 1 ea. Secures pump tube.
1D FAS 2066 SYRUP PUMP CLAMP-HOSE-1/4" 1 ea. Prevents pump tube from slipping.
1E FAS 2051 ROLLED FLANGE EYELET 1 ea. Creates tension for tighter fit.
1F FIX 1036 1/4" TO 1/4" OD UNION ELBOW 1 ea. Connects syrup in tube to pump.
1G FIX 1035 1/4 TO 3/16 OD REDUCING UNION 1 ea. Connects syrup pump to flavor line out.
2 SYR 944 SYRUP TUBE ASSEMBLY – SOFT
SERVE 1 Transports flavor from bag to pump.
2A FIX 1054 1/4” ID HOSE BARB SHUTOFF 1 ea. Connects flavor line to flavor bag.
2B SYR 902 FLAVOR-IN TUBE 1 ea. Carries syrup from syrup bag to pump.
2C TUB 811 TUBE-SILICONE .188X.375 PE
FB80 1 ea. Connects barb fitment to tube port.
2D FIX 1048 FITTING-1/4X1/4 BARB FB80 1 ea. Connects syrup tube to silicone tube.
3 ELE 932-BASE
PUMP & SANITIZER CABLE
HARNESS FOR BASE UNIT 1 Provides power to the syrup and sanitizer pumps.
