Product sheet

Model HDV-WTX1
Wireless Articulating Semi-Rigid Probe
For use with the HDV600 Borescope only
Thank you for purchasing this professional camera probe. This sheet covers the warning and
specifications for the probe only. Instructions regarding the usage of the HDV600 Borescope are
provided in the Borescope User Guide.
Note: The camera LEDs become warm when set to maximum intensity
CAUTION: For the Articulating Probe, do not operate the articulation knob with the
probe in a coiled configuration. This will damage the articulation controls!
CAUTION: Always return the articulation and tension knobs to the neutral position
before removing the probe from the inspection area.
The label on the probe provides the Serial Number and Part Number in the format
shown below. Please do not remove this label; otherwise the warranty will be invalid.
Part No.TX1 F/M/R (flex/macro/rigid) Serial No: HDV110001
Warnings
•Do not bend to a smaller diameter than 10cm (4”)
•Warranty is invalid if stickers, tags, or labels are removed

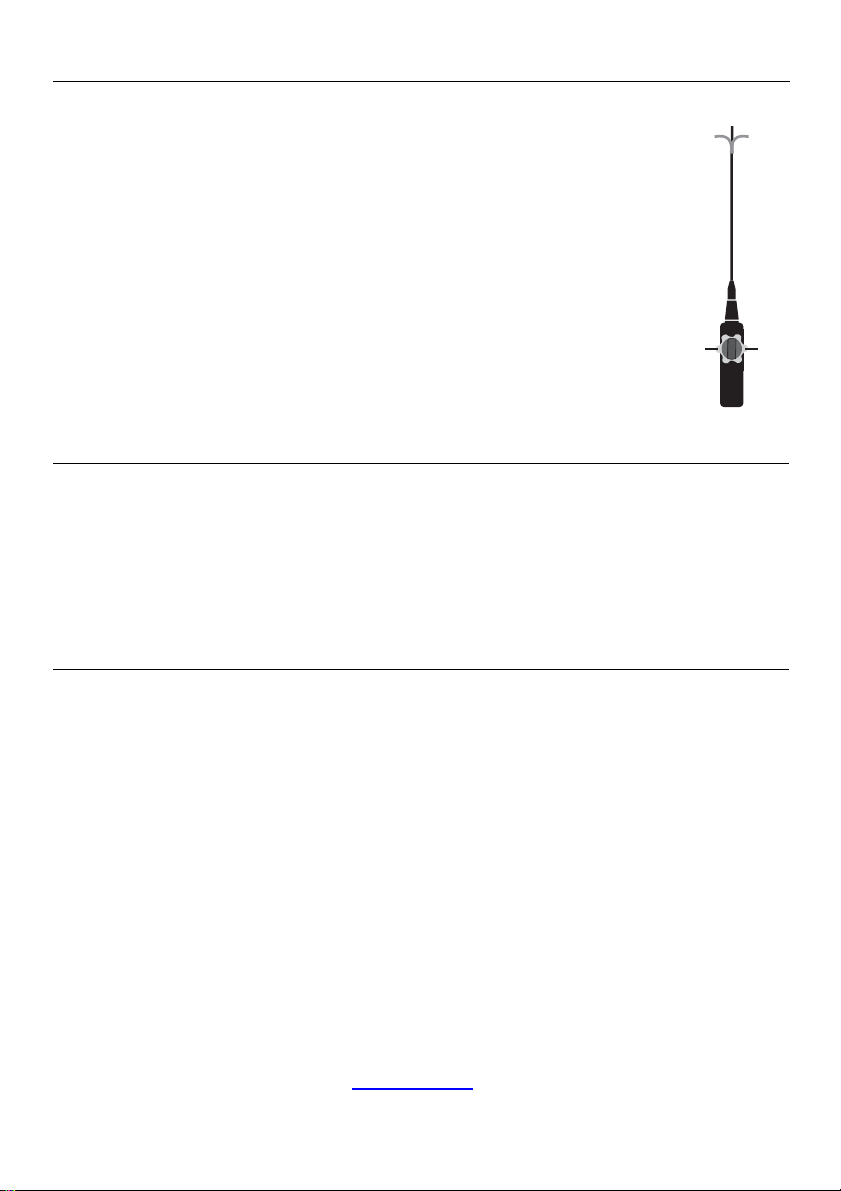

Articulating Probe Description
1. Articulation knob
2. Articulation tension knob
3. Articulating camera
4. Light intensity buttons
5. Power button
6. AC Adaptor and extension cable sockets
7. Carrying strap
12 345
6
7
www.ponpe.com
contact:
[email protected]

Articulation Setup and Orientation
The articulation direction and orientation may change if the probe is twisted and coiled during use or
when stored. To re-orient the probe:
1. Place the extended probe on a flat surface
2. Set the tension “F” knob to the left or released position.
3. Set the articulation knob to the center position with the R Δand ΔL labels
in the horizontal position.
4. Manually adjust the probe and camera to the zero degree position.
5. Rotate the articulation knob clockwise for a 90° bend.
6. If necessary, manually adjust the probe so that the camera lays flat on the
surface with a 90° articulation
7. Rotate the articulation knob counter-clockwise and confirm proper
orientation.
Charging the Battery
The AC charger port and charging status LED are located in the bottom access compartment.
Connect the charger to the probe and observe the color of the LED. Red indicates the battery is
charging. Green indicates the battery is fully charged.
Note: The rechargeable battery is not user replaceable.
Specifications
Resolution 640 x 480 pixels
Length 1m (3.3’)
Outer diameter (O.D.) 6mm (0.02”)
Battery 3.7V rechargeable Li-Polymer
Focus distance 2 to 6cm (0.79 to 2.36”)
Housing Stainless Steel
Field of View 60°
Number of LEDs 4
Lamp Output 3500 Lux at 20mm
Operating Temperature -20 to 70°C (-4 to 158°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Warranty 1 year
Copyright ©2011 Extech Instruments Corporation (a FLIR company)
All rights reserved including the right of reproduction in whole or in part in any form.
www.extech.com
Revision 2.1 2/12
