FLIR identiFINDER R200 User manual

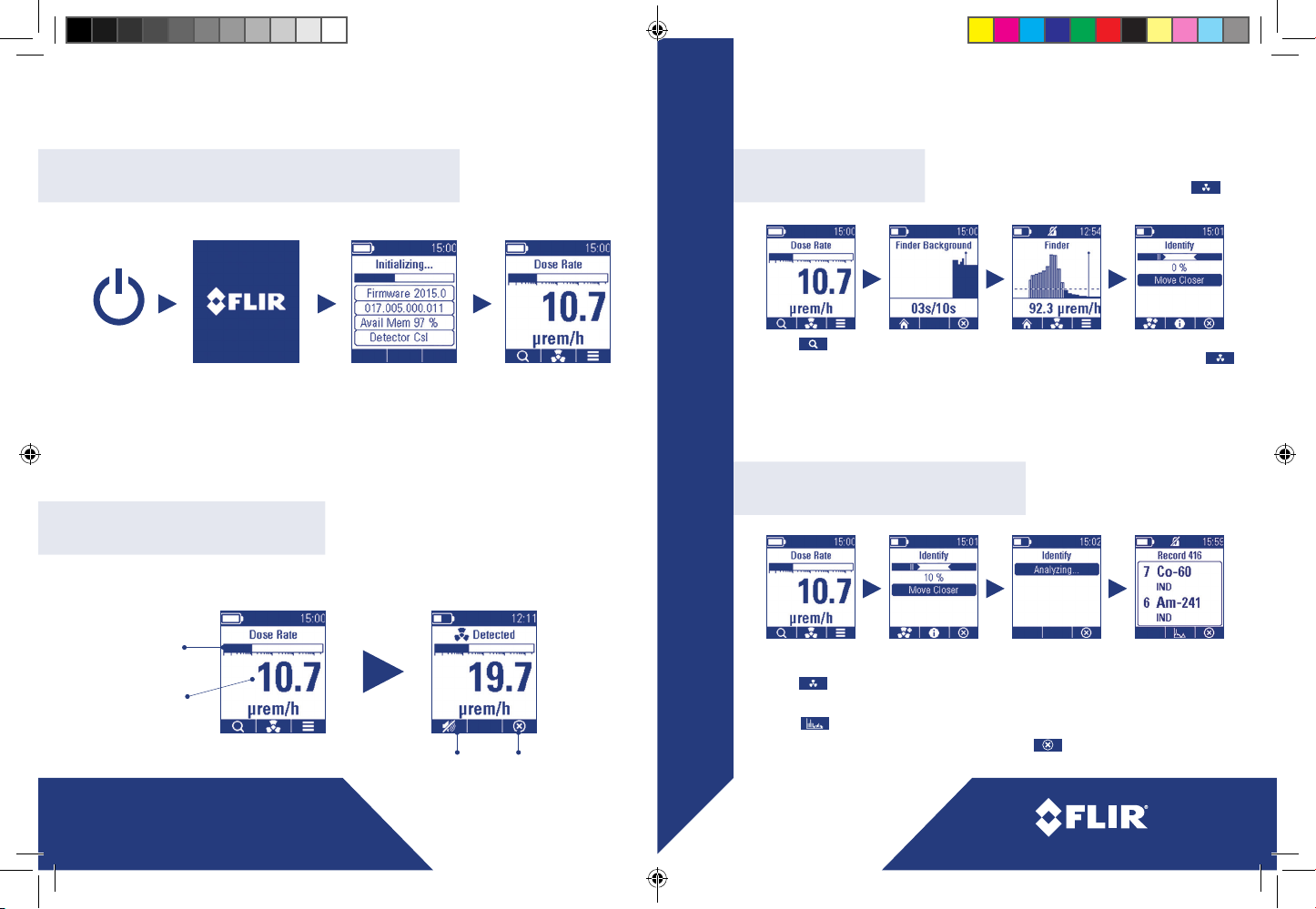

IDENTIFINDER
®R200 – Quick Start Guide
Display indicates
percent charged
OVERVIEW
CHARGE BATTERY
identiFINDER R200 SPRD
and replace backup battery
Display
Speaker
Taskbar
Left Right
Center
Power
Center of
Detection
Connection Port
(For Charging & Communication)
TURN IDENTIFINDER R200 OFF
NEED MORE INFO?
KIT CONTENTS
1
2Access Online Resources: Go to https://flir.pw/r200
Read Operations Manual (PDF): located on USB drive.
02232016
Equipment described herein may require US
Government authorization for export purposes.
Diversion contrary to US law is prohibited.
©2016 FLIR Systems, Inc. All rights reserved.
LED Indicator
Green = Power On
LED Indicator
Red = Alarm
Display and Navigation Buttons
Navigation Buttons correspond to
command icons on Display Taskbar
Flip down port cover and
insert charging cable.
Replace Backup Battery
Rotate counter-clockwise to remove
Backup Battery Door. Remove old CR123A
battery and insert new one. Rotate battery
door clockwise until fully sealed.
Press and hold Power button until
prompted for confirmation.
Select to confirm power off.
P/N DESCRIPTION
4204026 Power Supply; includes US, UK, EU and AU Adaptors
4204015 USB Cable 2.0; type A to mini-B male; 2.0 meters
102001 Wrist Strap Lanyard; 24 inches; black
4203626 Holster
4204014 USB Flash Drive
• Quick Start Guide PDF
• Operations manual PDF
• Software Drivers Installer
In addition to the identiFINDER R200 instrument, the kit
(P/N 4204085) includes the following items:
4.6x6.1_R200_QSG_022216.indd 2-3 2/24/16 4:57 PM

IDENTIFINDER
®R200 – Quick Start Guide
Press to display the spectrum.
To exit the identification mode and return home press .
FINDER MODE
IDENTIFICATION MODE
DOSE RATE MODE In Dose Rate Mode, the instrument is measuring the
gamma dose rate and will automatically alert the
operator when there is a significant change in ambient
dose rate level or when an alarm threshold is breached.
Press & hold
Power button
until splash
screen appears Wait until instrument
completes initialization
(<30 seconds)
Dose Rate Mode (Home)
appears automatically
following initialization
FLIR splash screen
(Default Mode)
In Finder Mode, the instrument can be used to localize
the source of an elevated dose level. If Finder Mode is
not needed, skip to Identification Mode by pressing:
Press to
enter Finder Mode.
Wait while background baseline is established
(10 seconds). The R200 will then automatically
enter Finder Mode. Bars indicate increased or
decreased activity levels during search.
Once source is
located, press
to identify source.
https://flir.pw/r200
TURN IDENTIFINDER R200 ON
You are now actively operating the unit as a Personal Radiation Detector.
Dose Rate Mode
(Home)
Radiation Detected
(Alarm)
Current Dose Rate
(Analog)
Mute Alarm Acknowledge Alarm
Dose Rate Reading
and Units (Digital)
May also be
displayed in Sieverts
After alarm, proceed to Finder
Mode or Identification Mode.
Once source is
detected or located,
press to enter
Identification Mode.
Proceed to Identification Mode.
The Magic Eye and on-screen prompts will guide you to maintain
optimum distance from source. Screen shows % complete or time
remaining for data collection. Instrument automatically analyzes
data when collection is complete.
In this mode, the R200 collects
data & analyzes it to determine the
identification of the source nuclide(s).
4.6x6.1_R200_QSG_022216.indd 4-5 2/24/16 4:57 PM
