Introduction
The 753 and 754 Documenting Process Calibrators (the
Product) are battery-powered, hand-held instruments that
measure and source electrical and physical parameters.
In addition, the 754 supplies basic HARTcommunicator
functions when used with HART-capable transmitters.
See the 754 HART Mode Users Guide for instructions on
how to use the HART communication feature.
The Product helps troubleshoot, calibrate, verify, and
document work performed on process instruments.
Note
All figures in this manual show the 754.
How to Contact Fluke
Fluke Corporation operates worldwide. For local contact
information, go to our website: www.fluke.com
To register your product, view, print, or download the
latest manual or manual supplement, go to our website.
[phone]
[email protected].
The latest software trial version of DPCTrack2 can be
downloaded at www.fluke.com/DPCTrack. For more
information see Communication with a PC in the Users
Manual.
753/754 Accessories can be found at
www.fluke.com/process_acc.

753/754
Getting Started
2
Safety Information
XW Warning
To prevent personal injury, use the Product
only as specified, or the protection supplied
by the Product can be compromised.
To prevent possible electrical shock, fire, or
personal injury:
•Read all safety Information before you
use the Product.
•Carefully read all instructions.
•Use only correct measurement category
(CAT), voltage, and amperage rated
probes, test leads, and adapters for the
measurement.
•The battery must be locked in place
before you operate the Product.
•Recharge the battery when the low
battery indicator shows to prevent
incorrect measurements.
•Do not apply more than the rated
voltage, between the terminals or
between each terminal and earth ground.
•Limit operation to the specified
measurement category, voltage, or
amperage ratings.
•Do not exceed the Measurement
Category (CAT) rating of the lowest rated
individual component of a Product,
probe, or accessory.
•Measure a known voltage first to make
sure that the Product operates correctly.
•Do not touch voltages > 30 V ac rms,
42 V ac peak, or 60 V dc.
•Do not use the Product around explosive
gas, vapor, or in damp or wet
environments.
•Do not use and disable the Product if it
is damaged.
•Do not use the Product if it operates
incorrectly.
•Keep fingers behind the finger guards on
the probes.
•Remove all probes, test leads, and
accessories that are not necessary for
the measurement.
•Only use probes, test leads, and
accessories that have the same
measurement category, voltage, and
amperage ratings as the Product.
•Connect the common test lead before
the live test lead and remove the live test
lead before the common test lead.

Documenting Process Calibrator
Safety Information
3
•Use only current probes, test leads, and
adapters supplied with the Product.
•Do not touch the probes to a voltage
source when the test leads are
connected to the current terminals.
•Use only cables with correct voltage
ratings.
•Do not use test leads if they are
damaged. Examine the test leads for
damaged insulation, exposed metal, or if
the wear indicator shows. Check test
lead continuity.
•Examine the case before you use the
Product. Look for cracks or missing
plastic. Carefully look at the insulation
around the terminals.
•Always put the stackable end of the test
lead into a terminal of the Product.

753/754
Getting Started
4
Symbols
Symbols used on the Product and in this manual are explained in Table 1.
Table 1. Symbols
Symbol Meaning Symbol Meaning
WWARNING - RISK OF DANGER. JEarth
X WARNING. HAZARDOUS VOLTAGE. Risk of
electric shock. »Consult user documentation.
, Application around and removal from uninsulated
hazardous live conductors is permitted. PConforms to European Union directives.
TDouble insulated ˜Equipotential
¼
Measurement Category II is applicable to test and
measuring circuits connected directly to utilization
points (socket outlets and similar points) of the low-
voltage MAINS installation.
BAC (Alternating Current)

Documenting Process Calibrator
5
Table 1. Symbols (cont.)
SymbolMeaning Symbol Meaning
fPressure ´
This product contains a Lithium-ion battery. Do
not mix with solid waste stream. Spent batteries
should be disposed of by a qualified recycler or
hazardous materials handler per local regulations.
Contact your authorized Fluke Service Center for
recycling information.
FDC (Direct Current) ~
This product complies with the WEEE Directive
and its marking requirements. The affixed label
indicates that you must not discard this
electrical/electronic product in domestic
household waste. Do not dispose of this product
as unsorted municipal waste. For information
about take-back and recycling programs available
in your country, see the Fluke website.

753/754
Getting Started
6
Before You Begin

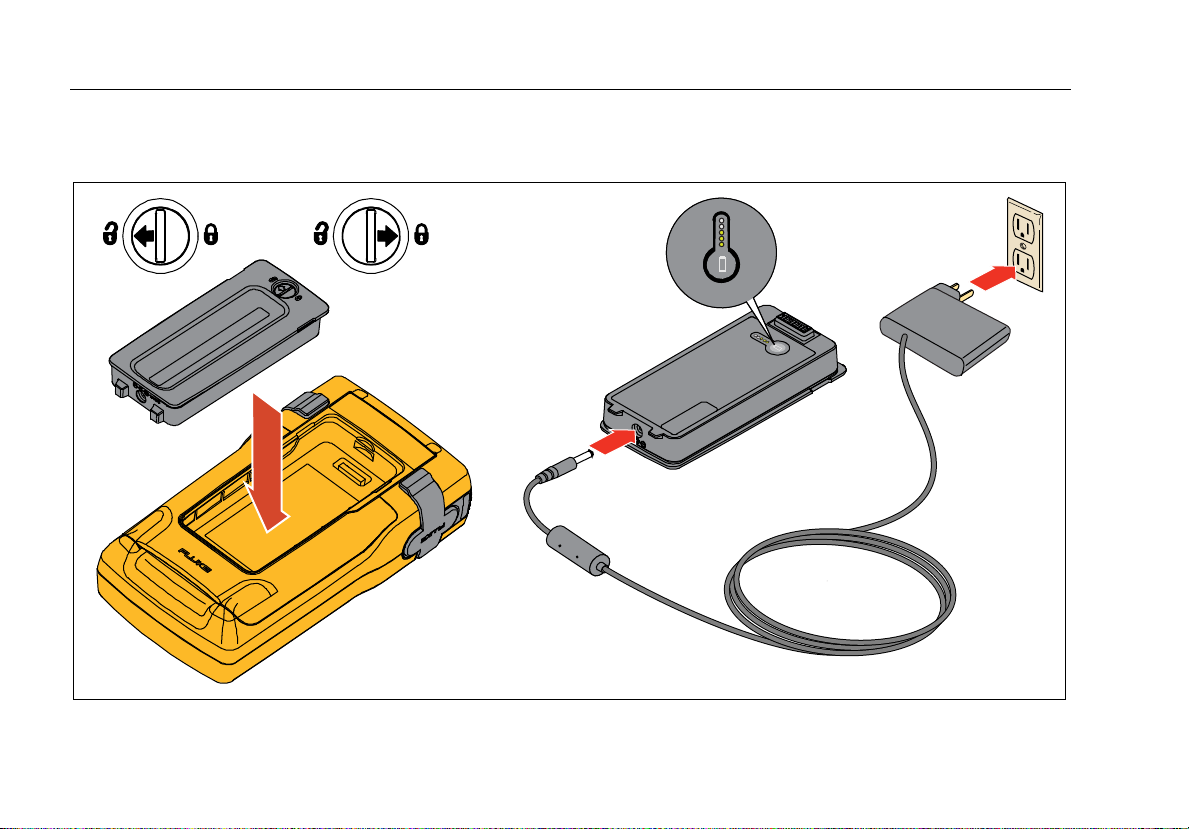

After you unpack the Product, charge the battery for
8 hours (if the battery is outside of the Product, charge for
5 hours). For more information, see The Battery in the
753/754 Users Manual. When the Battery is inside the
Product, it will only charge if the Product is off.
Standard Equipment

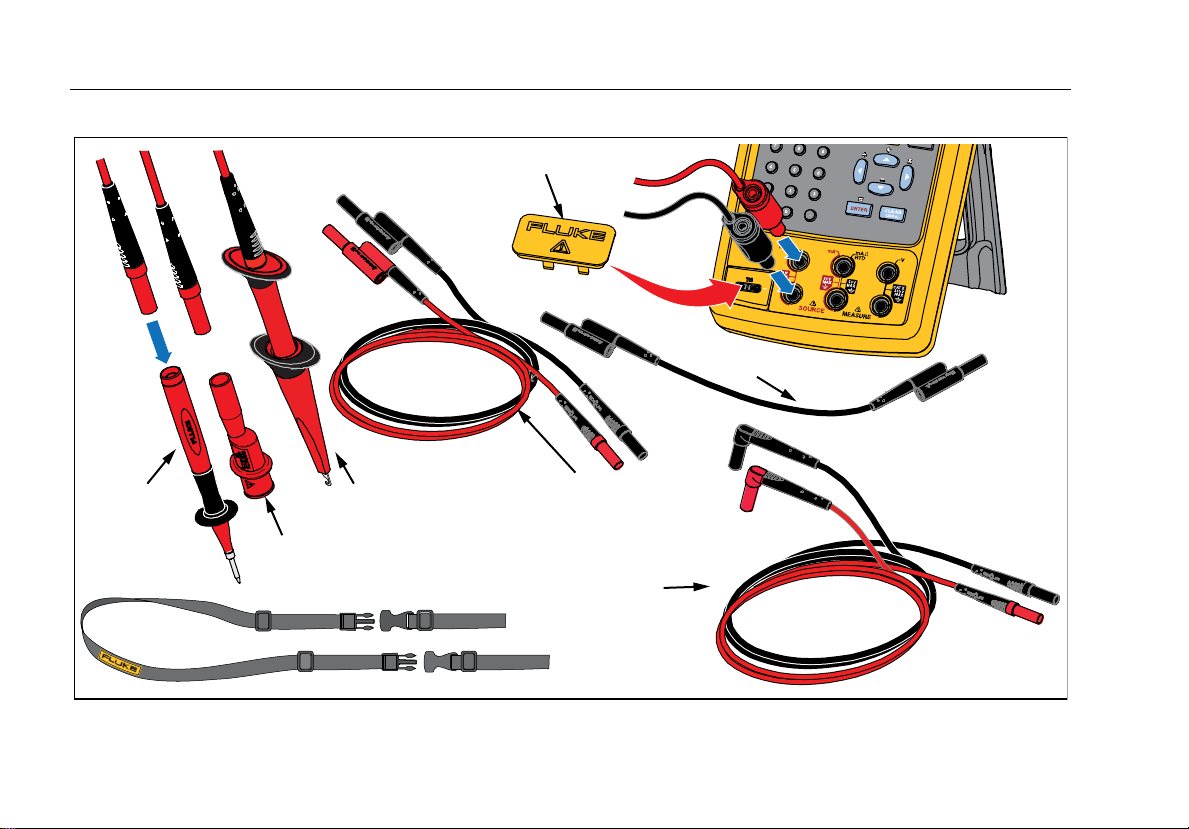

Items included with the Product are shown in Figure 1
and Table 2.
These items are also available:
•Calibration Manual (available from the Fluke website)
•Sample DPCTrack2 application software (available
from the Fluke website)
•NIST-traceable Certificate of Calibration

Documenting Process Calibrator
Standard Equipment
7
Table 2. Standard Equipment
Number Description Number Description
A TP220-1 Test Probe (3 Red and 3 Black) H Adjustable quick-release strap
B 754-8016, Alligator Clip Set (3 Red and 3 Black) I 753/754 Getting Started Manual
C AC280 SureGripTM Hook Clip Set (2 Red and 2
Black) J Battery Charger/Universal Power Supply
D
Fluke-75X-Stackable Test Lead Set (3 Red and 3
Black) or Fluke-75X-Stackable Test Lead Set (2
Red and 2 Black)
K Lithium Ion Battery Pack
E TC Cap L USB Cable: 6 ft. type A to type mini-B
F Fluke TL224 Industrial Test Lead Set (1 Red and
Black) M HART Communication Cable (754)
G Jumper for three-wire RTD measurement
connections

753/754
Getting Started
8
AD
G
C
B
E
F
H
gks01f.emf
Figure 1. Standard Equipment

Documenting Process Calibrator
Standard Equipment
9
I
K
L
M
J
gks02f.emf
Figure 1. Standard Equipment (cont.)

753/754
Getting Started
10
Operation Features
Input and Output Jacks
Figure 2 shows the input and output jacks and connectors. Table 3 explains their use.
Table 3. Input/Output Jacks and Connectors
No. Name Description
AHART jack (754 only) Connects the Product to HART devices.
BPressure module connector Connects the Product to a pressure module.
CTC input/output
Jack to measure or simulate thermocouples. This jack accepts a
miniature polarized thermocouple plug with flat, in-line blades spaced
7.9 mm (0.312 in) center to center.
D,EwMEASURE V jacks Input jacks to measure voltage, frequency, or three- or four-wire RTDs
(Resistance Temperature Detectors).
F,GwSOURCE mA, MEASURE
mA ΩRTD jacks
Jacks to source or measure current, measure resistance and RTDs, and
supply loop power.
H,IwSOURCE V ΩRTD jacks Output jacks to source voltage, resistance, frequency, and to simulate
RTDs.
JBattery Charger jack
Jack for the battery charger/universal power supply (referred to as the
battery charger throughout this manual). Use the battery charger for
bench-top applications where ac line power is available.
KUSB port (Type 2) Connects the Product to a USB port on a PC.

Documenting Process Calibrator
Operation Features
11
P1
15V DC
1
2
4
5
69 7
3
8
11
10
gks05f.emf
Figure 2. Input/Output Jacks and Connectors

753/754
Getting Started
12
Buttons
Table 4 tells you about the Product button functions. The softkeys are the four (F1-F4) blue buttons below the display.
Softkey functions are defined by the labels that show above the softkey during operation. Softkey labels and other display
text are shown in this manual in bold type, for example, Choices.
Table 4. Buttons
Button Description
oTurns the Product on and off.
ASelects mA (current) measure or source function. For loop power on/off, go to the Setup mode.
vSelects the dc voltage function in MEASURE mode, or selects dc voltage in SOURCE mode.
tSelects TC (thermocouple) or RTD (resistance temperature detector) measurement or sourcing functions.
pSelects the pressure measurement or source function.
W
X
Y
Z
Softkeys. Does the function specified by the label above each softkey on the display.
FAdjusts the backlight intensity (three levels).
sEnters and exits Setup mode to change operating parameters.
r(754)
u(753)
(754) Toggles between HART communication mode and analog operation. In calculator mode, this key
supplies the square root function.
(753) Adjusts the Range of the Product.

Documenting Process Calibrator
Operation Features
13
Table 4. Buttons (cont.)
Button Description
JU, D, L, R
Push Uor Rto increase display intensity. Push Dor Lto decrease intensity (seven
levels).
Make choices from lists on the display.
Increase or decrease the source level when using the step feature.
In calculator mode, provides arithmetic functions (+ - ÷×).
KCClears a partial data entry, or prompts for output value when in the SOURCE mode.
When you use a pressure module, zeros the pressure module indication.
LECompletes a numeric entry when a source value is set, or confirms a choice in a list. In
calculator mode, acts as the equals arithmetic operator (=).
MqToggles between resistance and continuity functions in MEASURE mode, or selects the
resistance function in SOURCE mode.
NhToggles between ac voltage and frequency functions in MEASURE mode, or selects
frequency output in SOURCE mode.
ONumeric
keypad Used when a numeric entry is necessary.
PMCycles the Product through MEASURE, SOURCE, and MEASURE/SOURCE modes.

753/754
Getting Started
14
The Battery
Figure 3 shows how to change and recharge the Battery. The Battery can be charged inside or outside of the Product with
the Battery Charger.
gks9f.emf
Figure 3. Battery Removal and Charger Use

Documenting Process Calibrator
Display Languages
15
Display Languages
The Product shows information in five languages:
•English
•European French
•Italian
•German
•Spanish
To change the display language:
1. Push s.
2. Push Ytwice.
3. Push Dthree times.
4. Push E.
5. Push Uor Dto highlight the language choice.
6. Push Eto confirm the language choice. This
language is the power-up default.
7. Push sto exit Setup mode.
Safety Specifications
Complete specifications are at www.fluke.com. See the
753/754 Product Specifications.
To achieve the best noise rejection, use battery power.

753/754
Getting Started
16
Safety
General ................................................................................................................IEC 61010-1: Pollution degree 2
Measurement .......................................................................................................IEC 61010-30: CAT II 300 V
Power ........................................................................................................................Internal battery pack: Lithium Ion, 7.2 V dc, 30 Wh
External Power Supply: 15 Vdc, 2 A
Operating Altitude....................................................................................................3000 m (9842 ft)
Storage Altitude .......................................................................................................13000 m (42650 ft)
Operating Temperature ...........................................................................................-10 to 50 °C
Storage Temperature ..............................................................................................-20 to 60 °C
Relative Humidity (Maximum, non-condensing)...................................................90 % to 35 °C
75 % to 40 °C
45 % to 50 °C
Intrusion Protection. ................................................................................................IEC 60529: IP52 non-operating
Maximum Voltage Between any Terminal and Earth Ground..............................300 V
Electromagnetic Compatibility (EMC)
International .............................................................. IEC 61326-1: Basic Electromagnetic Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-
coupled radio frequency energy that is necessary for the internal function of the
equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic
and those directly connected to a low-voltage power supply network that
supplies buildings used for domestic purposes. There may be potential
difficulties in ensuring electromagnetic compatibility in other environments due
to conducted and radiated disturbances.
