Pressure Calibrator
Introduction
The Fluke 718 Series Pressure Calibrators (hereafter
called “Calibrator”) can do the following:
•Calibrate P/I (pressure to current) transmitters
•Measure pressure via a 1/8-inch NPT pressure fitting
and an internal pressure sensor or via a Fluke 700
Series Pressure Module
•Source Pressure
•Measure current up to 24 mA
•Simultaneously display pressure and current
measurements.
•Supply loop voltage
•Calculates percentage in Percent Mode
•Calculates mA error in Percent Error Mode
The 718 Pressure Calibrators (hereafter, “the Calibrator”)
include:
•718 1G
•718 30G
•718 100G
•718 300G
The Calibrator takes 5-digit pressure readings in the
following units: psi, inH2O at 4 °C, inH2O at 20 °C, kPa,
cmH2O at 4 °C, cmH2O at 20 °C, bar, mbar, kg/cm2,
inHg, and mmHg.
Pressure sensor specifications are as listed under
“Pressure Sensor Input”.
The Calibrator measures pressure in the units shown in
Table 1.
For Pressure Modules, full scale readings for all pressure
ranges can be made in psi, kPa, and inHg units. To avoid
display overflow, full scale readings are limited to 1000 psi
in cmH2O, mbar, and mmHg units, and 3000 psi in inH2O
units. Pressures of at least 15 psi must be measured for
meaningful readings in bar and kg/cm2units.

718 Series
Product Overview
2
Table 1. Input Units
Displayed Pressure Units
psi
inH2O at 4°C
inH2O at 20°C
cmH2O at 4°C
cmH2O at 20°C
bar
mbar
kPa
inHg
mmHg
kg/cm2
Standard Equipment
The items listed below are included with your Calibrator. If
the Calibrator is damaged or something is missing, contact
the place of purchase immediately. To order replacement
parts or spares, see the user-replaceable parts list near
the end of this manual.
•TL75 test leads (one set)
•AC72 Alligator clips (one set)
•Holster
•718 Series Product Overview Manual
•718 Series CD-ROM (contains Users Manual)
Safety Information
Use the Calibrator only as specified in the Users Manual,
otherwise the protection provided by the Calibrator may be
impaired.
A Warning identifies conditions and actions that pose
hazard(s) to the user; a Caution identifies conditions and
actions that may damage the Calibrator or the equipment
under test.

Pressure Calibrator
Safety Information
3
XW Warning
To avoid possible electric shock or personal injury:
•Never apply more than 30 V between the mA terminals, or between either of the mA terminals and earth
ground.
•Do not use the Calibrator to make measurements in a CAT II, CAT III, or a CAT IV environment.
CAT I equipment is designed to protect against transient from high-voltage, low-energy sources,
such as electronic circuits or a copy machine
•Remove the test leads from the Calibrator before you open the battery door.
•Make sure the battery door is closed and latched before you operate the Calibrator.
•Do not operate the Calibrator if it is damaged.
•Do not operate the Calibrator around explosive gas, vapor, or dust.
•When using probes, keep fingers behind the finger guards on the probes.
•Use only two 9 V batteries, properly installed in the Calibrator case, to power the Calibrator.
•Follow all equipment safety procedures.
•Turn off circuit power before connecting the Calibrator mA and COM terminals in the circuit. Place
Calibrator in series with the circuit.
•When servicing the Calibrator, use only specified replacement parts.
•Do not allow water inside the case.

718 Series
Product Overview
4
XW Warning
•To avoid false readings, which could lead to possible electric shock or personal injury, replace the battery
as soon as the battery indicator Bappears.
•To avoid a violent release of pressure in a pressurized system, shut off the valve and slowly bleed off the
pressure before you attach or detach the internal pressure sensor or Pressure Module fitting to the
pressure line.
•To avoid over pressure damages, do not apply pressure that exceeds the limits listed in the Pressure
Specifications table in the “Specifications” section.
•To avoid mechanically damaging the Calibrator, do not apply torque between the pressure fitting and the
Calibrator case. See Figure 1 for the proper use of tools.
•To avoid misleading readings, disconnect the Pressure Module connector at the Calibrator.
•To avoid damage to the Pressure Module, refer to the related Instruction Sheet.
•To avoid damage to the pump, use with dry air and non-corrosive gases only.
•Check test leads for continuity before using. Inspect Calibrator for cracks or damage, do not use the probes
if they are damaged or show high resistance.

Pressure Calibrator
Safety Information
5
Hold in
fixed
position
wh001f.eps

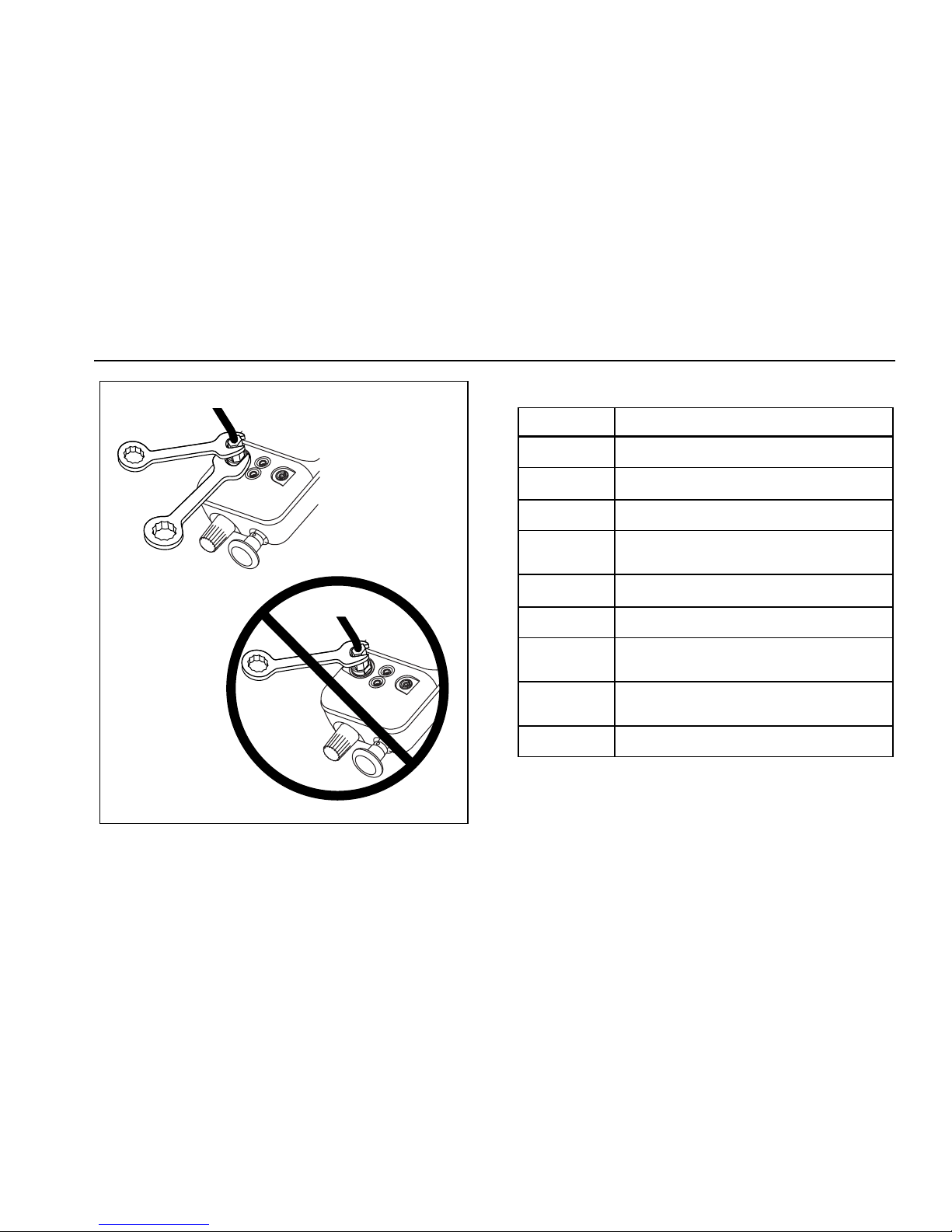

Figure 1. Connection Technique
Table 2. International Electrical Symbols
Symbol Meaning
J Earth ground
I Fuse
M Battery
W Refer to the manual for information
about this feature.
X Hazardous voltage. Risk of electric
shock.
T Double insulated
$ Conforms to relevant Canadian
Standards Association directives.
P Conforms to relevant European Union
directives
f Pressure

718 Series
Product Overview
6
Getting Aquainted with the Calibrator
Press Oto turn the Calibrator on and off. The Calibrator
displays pressure and current measurements
simultaneously. See Figure 2.
The upper part of the display shows the applied pressure
or vacuum. (Vacuum is shown as a negative value.) Press
Uto select a different unit. When you cycle the power
off and on, the Calibrator retains the unit you last used.
The lower part of the display shows the current (up to 24
mA) applied to the current (mA) inputs.
To source loop voltage, press Uwhile pressing Oon.
Power Saver
The Calibrator automatically turns off after 30 minutes of
inactivity. To reduce this time or disable this feature:
1. With the Calibrator OFF, press O.
2. P.S. xx is displayed, where xx is the turn-off time in
minutes. OFF means the power saver is disabled.
3. Press hto decrease or ato increase the turn-off
time.
4. To disable, press huntil the display shows OFF.
The Calibrator resumes normal operation after 2
seconds.
RANGE-1 O 1 PSI
MAX 5 PSI 34.5 P
-7 O 7 kP
Current mA
measurement
Pressure
measurement
Pressure
module input
Pressure
sensor input
(Install filter here)
Current
input
On/Off Button
718
PRESSURE
CALIBRATOR
HOLD
COM
mA
30V
MAX
0-30psi 0-206kPa
RANGE
UNITS
ZERO
DAMP
mA
MODE
HOLD
LOOP
POWER
BAROMETRIC ADJ.
MIN
MAX
SWITCH
TEST
ENTER
wh005f.eps
Figure 2. Front Panel Features

Pressure Calibrator
Pushbuttons
7
Pushbuttons
Pushbutton operation is described in Table 3.
Table 3. Pushbutton Functions
Pushbutton Description
UPress to select a different pressure unit. All units are available when the pressure sensor input is used. For
higher pressure module inputs, inappropriate (out-of-range) units are not available. Press Oon while
pressing Uto source loop voltage.
D
ENTER Turns pressure reading damping on and off. With damping on, the Calibrator averages several
measurements before displaying a reading. Press to confirm selection of 0 % and 100 % output parameters.
ZPress to zero the pressure display. Vent pressure to atmosphere before you press this pushbutton. With an
Absolute Pressure Module, see special instructions below.
NPress to read the minimum pressure and current readings since power was turned on or the registers were
cleared. Press again to read the maximum pressure and current readings since power was turned on. Press
and hold for 3 seconds to clear the MIN/MAX registers.
SPress to perform switch test.
Z
aPress to toggle the mA display mode between mA, mA Percent, and mA Percent Error.
h
WPress hto freeze the display. The gsymbol appears on the display. Press hagain to resume
normal operation.

718 Series
Product Overview
8
Switch Test
To perform a switch test follow these steps:
Note
This example used a normally closed switch.
The procedure is the same for an open switch
but the display reads OPEN instead of CLOSE.
1. Connect the Calibrator mA and COM terminals
to the switch using the pressure switch terminals
and connect the pump from the Calibrator to the
pressure switch. The polarity of the terminals
does not matter.
Note
If using an external pump, connect the pump to
the Calibrator and to the input of the switch
using a tee fitting.
2. Make sure the vent on the pump is open and
zero the Calibrator if necessary. Close the vent
after Zeroing the Calibrator.
3. Press Sto enter pressure switch test mode.
The Calibrator will display CLOSE instead of a
mA measurement.
4. Apply pressure with the pump slowly until the
switch opens.
Note
In the switch test mode, the display update rate
is increased to help capture changing pressure
inputs. Even with this enhanced sample rate,
pressuring the device under test should be done
slowly to ensure accurate readings.
5. OPEN is displayed once the switch is open.
Bleed the pump slowly until the pressure switch
closes. RCL appears on the display.
6. Press Sto read the pressure values for when
the switch opened, for when it closed, and for
the deadband.
Hold Sfor three seconds to exit the switch test or
press ato reset the switch test.

Pressure Calibrator
Pump Features
9
Pump Features
Refer to Table 4 and Figure 3.

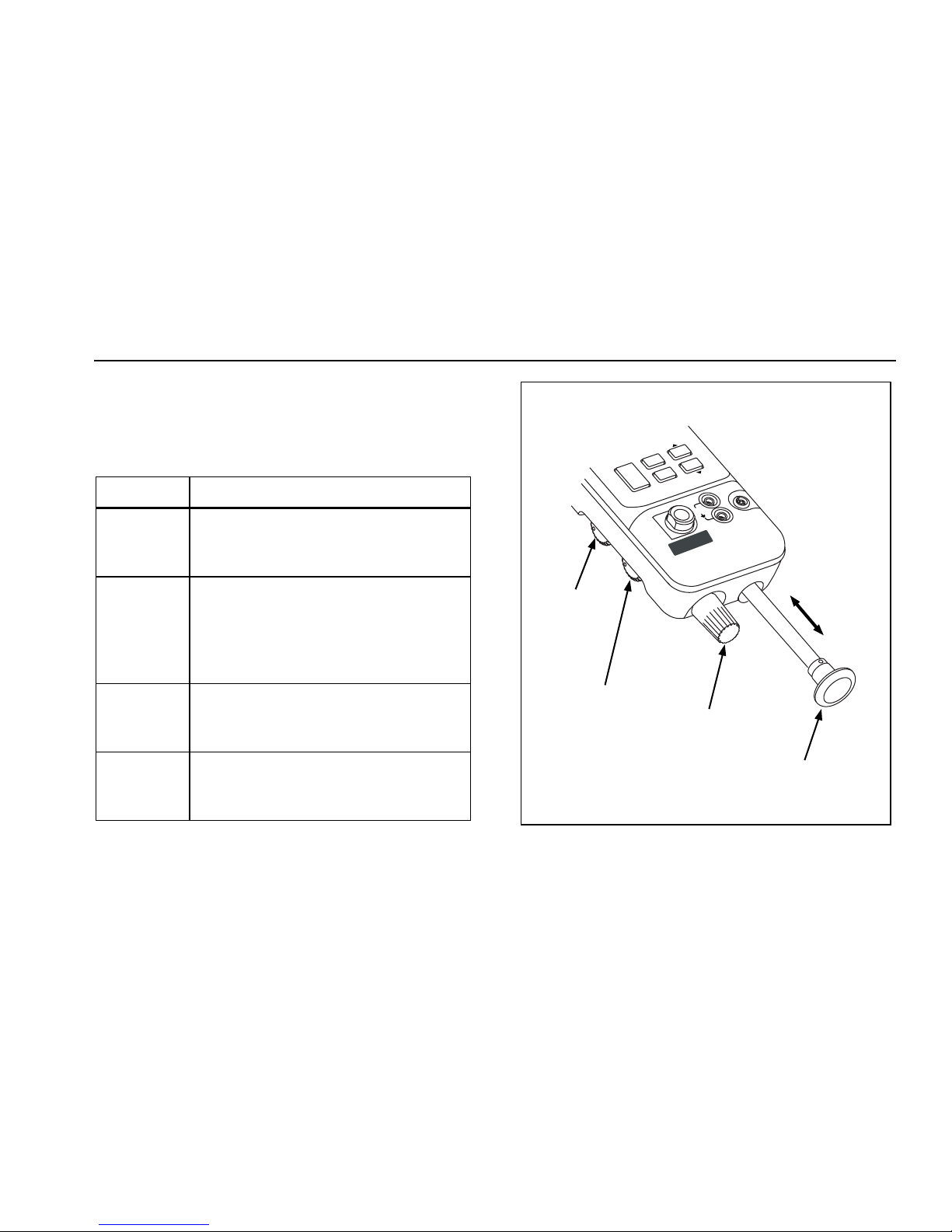

Table 4. Pump Features
Item Description
Pressure
Vacuum
Switch
Rotate forward (clockwise) for pressure,
backward (counter-clockwise) for
vacuum.
Pressure
Vacuum
Release
Valve
Rotate fully backward (counter-
clockwise) to release all pressure or
vacuum. (Rotate slightly for partial
release.) Rotate fully forward (clockwise)
to close valve.
Fine
Adjustment
Knob
Rotate either direction for precise
adjustment of applied pressure or
vacuum. Full rotation is about 30 turns.
Internal
Pump
Increase pressure on the inward stroke.
In vacuum mode, decrease pressure on
the outward stroke.
Pressure/
Vacuum
Switch
Fine
Adjustment
Knob
Internal Pump
Pressure/Vacuum
Release
Control
COM
mA
30V
MAX
0-30psi 0-206kPa
RANGE
ZERO
HOLD
BAROMETRIC ADJ.
mA
MODE
RANGE O 1 PSI
MAX 5 PSI P
-7 O 7 kP
MIN
MAX
SWITCH
TEST
wh009f.eps
Figure 3. Pump Features

718 Series
Product Overview
10
Replacing the Batteries
When the Bsymbol appears on the display, replace
the two 9 V alkaline batteries. Refer to Figure 4.
XW Warning
To avoid false readings, which could lead to
possible electric shock or personal injury,
replace the batteries as soon as the battery
indicator Bappears.
Disconnect test leads before opening battery
door.
wh008f.eps
Figure 4. Battery Replacement

Pressure Calibrator
Specifications
11
Specifications
Specifications are based on a one year calibration cycle
and apply for ambient temperature from +18 °C to +28 °C
unless stated otherwise. “Counts” are the number of
increments or decrements of the least significant digit.
Pressure Sensor Input
Model Range Accuracy
Max Non-
destructive
Pressure
1G -1 to 1 PSI
(-7 to 8 kPa)
5 PSI
(34.5 kPa)
30G -12 to 30 PSI (-
83 to 207 kPa)
60 PSI
(413 kPa)
100G -12 to 100 PSI
(-83 to 690
kPa)
200 PSI
(1.4 mPa)
300G -12 to 300 PSI
(-83 to 2068
kPa)
±0.05 % of
Range
375 PSI
(2.6 mPa)
Temperature coefficient: 0.01 % of range per ° C for
temperature ranges -10
° C to 18 ° C and 28 ° C to 55 ° C
Pressure Module Input
Range Resolution Accuracy
(determined by Pressure Module)
DC mA Input
Range Resolution Accuracy, ±(% of
Reading + Counts)
24 mA 0.001 mA 0.015 + 2
Fusless overvoltage protection
Temperature coefficient: 0.005 % of range per ° C for
temperature ranges -10
° C to 18 ° C and 28 ° C to 55 ° C
Loop Supply
24 V dc nominal
General Specifications
Maximum voltage applied between either mA terminal
and earth ground or between the mA terminals: 30 V
Maximum transient overvoltage: 240 V ac for
10 seconds
Storage temperature: -40 °C to 60 °C

718 Series
Product Overview
12
Operating temperature: -10 °C to 55 °C
Operating altitude: 3000 meters maximum
Relative humidity: 95 % up to 30 °C, 75 % up to 40 °C,
45 % up to 50 °C, and 35 % up to 55 °C
Vibration: Random 2 g, 5 Hz to 500 Hz per MIL-PRF-
28800F Class 2
Shock: 1 meter drop test, per IEC 61010-1
Safety: Certified as compliant to ISA-82.02.01 (IEC
61010-1 Mod) CSA C22.2 No. 1010.1
Protection Class: Class 2, Double insulated
Power requirements: Two 9 V batteries (ANSI/NEDA
1604A or IEC 6LR61)
Size: 60 mm H x 87 mm W x 210 mm L (2.38 in H x 3.41
in W x 8.28 in L); with holster: 66 mm H x 94 mm W x 216
mm L (2.61 in H x 3.72 in W x 8.5 in L)
Weight: 737 g (26 oz); with holster: 992 g (35 oz)

Pressure Calibrator
Parts
13
Parts
Replacement parts are listed in Table 5. These parts can be ordered by contacting Fluke. Refer to the Users Manual for a
complete list of user-replaceable parts.
Table 5. Parts
Item Description Part/ Mod. No. Qty
AC72 Alligator clip red
Alligator clip black
1670641
1670652
1
1
BT1, BT2 9 V battery, ANSI/NEDA 1604A or IEC 6LR61 614487 2
Holster Holster, Yellow 664182 1
H2, 3, 4 Case screw 832246 3
H5, 6 Battery door fasteners 948609 2
H7, 8 Bracket screw 641131 2
MP1 LCD bezel, 718 30G 664158 1
MP1 LCD bezel, 718 100G 664169 1
MP1 LCD bezel, 718 1G 2545047 1
MP1 LCD bezel, 718 300G 2545058 1
MP2 LCD 686482 1
MP3, 4 Pump retainer bracket 664201 2
MP5 Gasket 664208 1
1G pump 2571725 1
MP6 30G, 100G and 300G pump 2558508 1

718 Series
Product Overview
14
Table 5. Parts (cont.)
Item Description Part/ Mod. No. Qty
MP7, 8 Selector knob 664193 2
MP9 Vernier adjust knob 664190 1
MP10 Pump handle knob 664185 1
MP11, 12, 13 O-ring 146688 3
MP14 Spacer 687449 1
MP85 Case top/connector, 718 1G, 30G, 100G, 300G 2546299 1
MP86 Case bottom 664174 1
MP89, 90 Non-skid foot 885884 2
MP92 Battery door 664177 1
S1 Keypad 2113087 1
TL20 Industrial test lead set 1639457 Opt
TL75 Test lead set 855742 1
TM1 718 Product Overview Manual 1549632 1
- 718 CD-ROM (contains Users Manual) 1574463 1
- 71X Series Calibration Manual 686540 Opt
- Pump (with cleanout) rebuild kit 2553919 Opt
- 718 1G Top Case Decal 2546993 1
- 718 30G Top Case Decal 2547000 1
- 718 100G Top Case Decal 2547017 1
- 718 300G Top Case Decal 2547021 1
