1
Introduction
The Fluke PTi120 Pocket Thermal Imager (the Product or Imager) is a handheld, infrared imaging camera for use
in many applications. These applications include equipment troubleshooting, preventive and predictive
maintenance, building diagnostics, and research and development.
The Product shows thermal images on a high-visibility, industrial-quality LCD touch screen. The Product saves
images to internal memory which can be transferred to a PC through a direct USB connection to the PC or by
wireless transfer to a PC or mobile device.
The Product includes Fluke Connect desktop software. Fluke Connect is a high-performance, professional
software suite for quality analysis and reporting.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
2
Product Familiarization
Use Table 1 to identify the features of your Product.
Features
Table 1 lists the features of the Product.
Controls and Connections
Table 2 shows the controls and connections of the Product.
Table 1. Features
IR-Fusion Technology Image annotations
Visible Asset Identification
Fullscreen IR AutoblendFluke Connect desktop software
Table 2. Controls and Connections
Item Description Item Description
LCD touch screen (display) GHand strap
Image capture button HLED torch/flashlight
Fluke Connect indicator IInfrared camera lens
DPower button JVisual light camera lens
EUSB port KUSB cable
FConnector cover
1 2
3
4
5
7
11
8
10
9
6
PTi120
POCKET THERMAL
IMAGER
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Product Familiarization
3
Touch Screen (Display)
The touch screen is the user interface of the Product. The touch screen has a backlight for work in dimly lit
spaces.
Table 3 shows the default information on the screen of the Product.
Table 3. Display
Item Description Item Description
Center point marker HStatus bar
Center point temperature IBackground temperature
Scale JEmissivity value
DTemperature range upper value KTime
E
Range bar
The range of colors in the palette mapped to
a certain range of temperatures
LDate
FCenter point color in relation to the palette MBattery status
GTemperature range lower value
12
4
5
6
7
910111213
3
8
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
4
Basic Operation
Turn On and Off the Product
Before you use the Product for the first time, charge the battery for a minimum of 1.5 hours. See Charge
Batteries.
To turn on or turn off the Product, push and hold  for 2 seconds. To keep the Product on and turn the display
off, push  for <2 seconds.
Note
There is no visible way to tell if only the display is off or if the Product is off. To maximize the life of the
battery, use the LCD Time Out and Power Off features. See Table 8 for more information about how to
set these features.
Note
All thermal imagers need sufficient warm-up time for accurate temperature measurements and best
image quality. Warm-up time can vary by model and environmental conditions. Although most imagers
are fully warmed up in 3 minutes to 5 minutes, wait a minimum of 10 minutes if the most accurate
temperature measurement is important to your application. When you move an imager between
environments with large differences in ambient temperature, allow for additional adjustment time.
Capture Image
To capture an image:
1. Focus on a target.
2. Push and release the Image Capture button or double tap on the display to capture and freeze the image.
The image is in the memory buffer for you to save or to add an asset ID tag or note to the image. To add an
asset ID tag to the image, see Asset Identification (Asset ID). To add a note to an image, see Notes.
Note
Asset ID tags and notes can be saved with images captured in .is2 file format only. To select .is2 file
format, see Device Settings Menu.
Save Images to PC
To save images to a PC with the USB cord:
1. Turn on the Product.
2. Connect one end of the USB cord into the USB port on the Product and the other end into a USB port on a
PC.
The PC recognizes the Product as an external memory storage device.
3. On the PC:
a. Save the images to a directory.
b. Eject the Product from the PC.
4. Remove the USB cable from the PC and the Product.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Menu Controls
5
Menu Controls
To use the menus to change and view settings:
1. Tap the display to open the main menu.
2. Tap an icon on the main menu to open a submenu. See Table 5.
The background of the selected icon changes to yellow.
3. Tap a menu control to set and change options. See Table 4.
4. To close a submenu and return to live camera mode, tap the submenu icon again.
Table 4 lists the menu controls.
Table 4. Menu Controls
Item Control Function
Slider bar Adjusts a value. Touch and slide the bar to the left to decrease
the value or to the right to increase the value.
Toggle switch Turns on or off a feature.
Feature on.
Radio button
Selects one item from a list.
Option selected.
More menu options button Opens a menu to show other menu options.
Option menu button Opens an option menu to adjust a setting.
Numerical value adjuster
buttons
/Decreases a numerical value.
/Increases a numerical value.
Back arrow Returns to the previous menu.
Exit button
Closes menu and returns to camera mode.
Or,
Exits out of an Asset ID. See Asset ID.
Delete button Delete an image. See Delete Images.
Note button View, add, or edit a note. See Notes.
Add a note button With at least one note attached to an image, add another note
to the image. See Notes.
Asset ID button Add or remove an asset ID tag. See Asset ID.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
6
Main Menu
Table 5 lists the secondary menus available in the Main Menu.
Table 5. Main Menu
Item Secondary Menu Option Function
Memory <options> Select to review, edit, and delete captured images.
See Memory Menu (Memory Gallery).
Image IR-Fusion Set the IR-Fusion level. See Image Menu.
Palette <options> Set the palette to use on the image. See Palette
Menu.
DDisplay <options> Set the features to show on the display. See
Display Menu.
ELight
Torch Use the toggle switch to turn on or off the torch
(flashlight).
Backlight Use the slider bar to set the brightness level of the
display.
FSettings <options> Set user preferences and view information about
the Product. See Settings Menu.
123456
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Image Menu
7
Image Menu
The IR-Fusion slider bar sets the Product to take images from full visible light mode to full IR-Fusion mode. Use a
blend between visible light mode and IR-Fusion to view an object with some temperature overlays.
To adjust the IR-Fusion level:
1. Tap .
2. Use the slider bar to set the IR-Fusion level.
Alternatively, you can adjust the IR-Fusion level in camera mode. Touch the display and slide left to right to
increase the level of IR-Fusion. Slide from right to left to decrease the IR-Fusion level. See Figure 1.
Figure 1. IR-Fusion Level
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
8
Palette Menu
The standard palettes offer an equal, linear presentation of colors that allow for best presentation of detail. The
palettes are Grayscale, Ironbow, High Contrast, Amber, Hot Iron, and Blue-Red.
To change the palette of an image:
1. Tap .
2. Tap on a palette thumbnail.
A check mark shows on the selected palette. The color and temperature range bar on the display changes
according to the selected palette. See Figure 2.

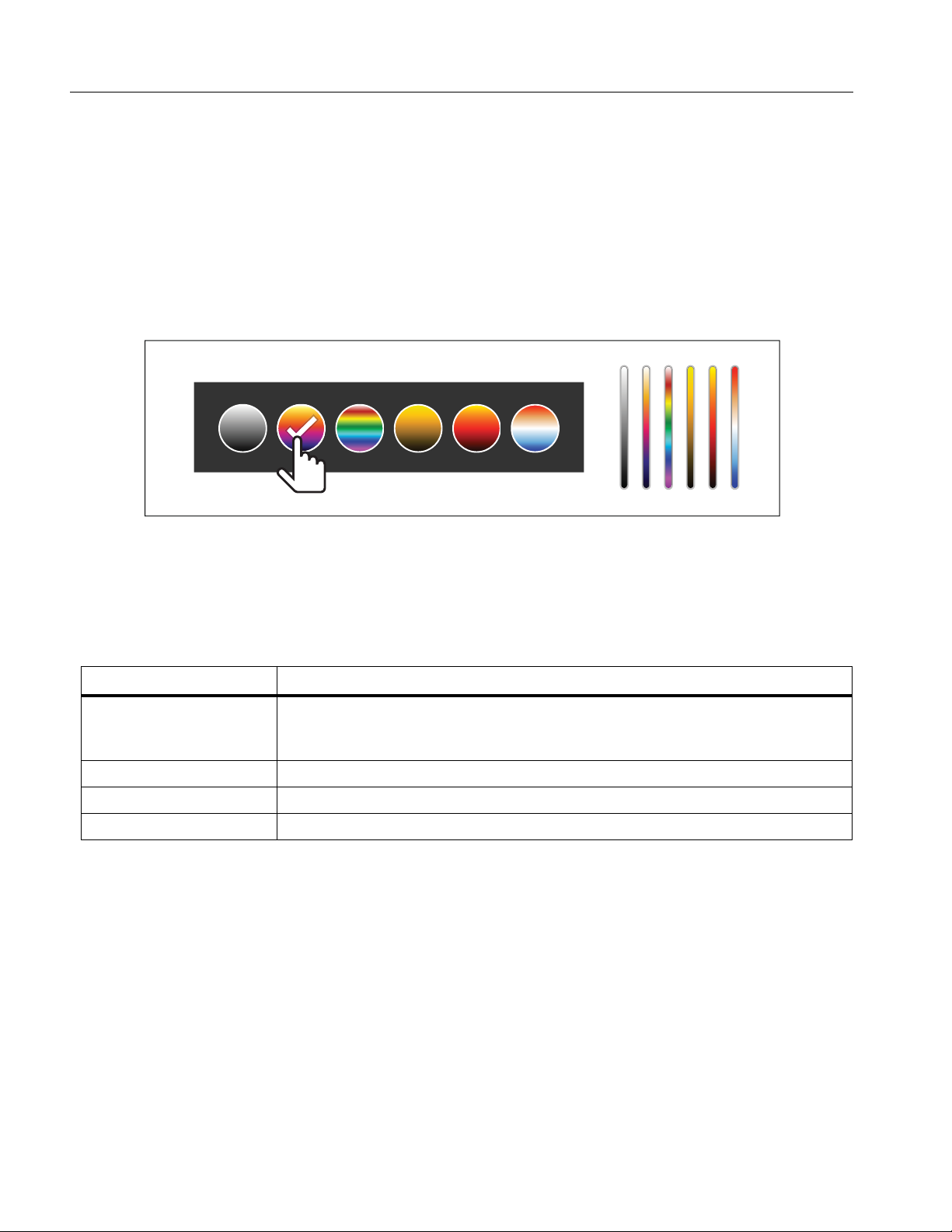

Figure 2. Palette and Range Bar Selection
Display Menu
Use the Display menu to set which features to show on the display. To show the Fluke logo on the display, see
Device Settings Menu. Table 6 lists the options in the Display menu.
Table 6. Display
Option Description
Spot Temp
(Min/Max)
Turn on or off the maximum and minimum temperature indicators on the display.
The Spot Temperatures are floating HI and LO temperature indicators that move
on the display as the temperature measurements of the image fluctuate.
Center Point Turn on or off the Center point marker and Center point temperature.
Scale Turn on or off the Scale.
Status Bar Turn on or off the Status bar
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Settings Menu
9
Settings Menu
Table 7 lists the options in the Settings menu.
Device Settings Menu
Table 8 lists the options in the Device Settings menu.
Table 7. Settings Menu
Option Menu Description
Scan Asset ID
Scan QR Code or Barcode
Assign images to an asset.
Scan a QR code or barcode attached to an asset or
manually enter an asset identification. See Asset
Identification (Asset ID).
IR Settings Set the infrared settings. See IR Settings Menu.
Device Settings Set user preferences and view information about the
Product. See Device Settings Menu.
Table 8. Device Settings Menu
Option Menu Option Description
File Format
IS2
Saves images as an .is2 file.
Choose the .is2 file format when image modification and maximum
resolution is needed.
The .is2 file format consolidates the infrared image, radiometric
temperature data, visible image, notes, and tags into a single file.
To customize or separate the visible and infrared images, use Fluke
Connect desktop software.
Use to assign an asset ID tag or to flag an asset image.
JPEG
Saves images as a .jpg file.
Choose the .jpg file format for images with the smallest file size,
where modification is not needed, and image quality and resolution
are not as important.
Units <options> Sets the temperature units. This option is not available in all
countries.
Distance
<options> Sets the distance to use to adjust the parallax correction between
the IR camera lens and visual light camera lens.
Units Sets the units to use to measure distance. This option is not
available in all countries.
Change Filename
Filename Prefix Changes the default filename that starts with IR_ to a different
3-character prefix.
Reset Filename
Numbers Resets the file number to 00001.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
10
IR Settings Menu
Table 9 lists the options available in the IR Settings menu.
Auto Off LCD Time Out Sets the time before the display automatically turns off.
Power Off Sets the time before the Product automatically turns off.
Date <options> Sets the date format and the date.
Time <options> Sets the time format and the time.
Fluke Logo NA Shows or hides the Fluke logo on the display.
Language <options> Sets the language to use on the display.
Decimal
Separator <options> Sets the decimal separator to comma or decimal point.
Reset to Factory
Defaults NA Erases user-set preferences and restores the factory default
settings.
Certificates NA Shows information about the wireless certificates of the Product.
Licenses NA Shows information about the Open Source Software Licenses used
to develop the Product.
Version NA Shows information about the version of the Product.
Table 9. IR Settings Menu
Option Description
Emissivity Select an emissivity value from a list of common materials. Use the scroll bar to
see all of the options. See Emissivity Adjustment.
Background
Changes the background temperature to compensate for reflected background
temperature.
Very hot objects or very cold objects can affect the apparent temperature and
measurement accuracy of the target, especially when surface emissivity is low.
Adjust the reflected background temperature to improve the accuracy of the
measurement.
Transmissivity Changes the values used to calculate the temperature based on the transmission
percentage of the infrared-transparent window (IR window). See Transmissivity.
Table 8. Device Settings Menu (cont.)
Option Menu Option Description
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Memory Menu (Memory Gallery)
11
Emissivity Adjustment
All objects radiate infrared energy. The actual surface temperature and emissivity of the target affects the
quantity of energy radiated. The Imager senses the infrared energy from the surface of the target and uses the
data to calculate an estimated temperature value. Many common materials such as wood, water, skin, cloth, and
painted surfaces, including metal, radiate energy well and have a high emissivity factor of ≥90 % (or 0.90). The
Imager measures temperatures accurately on targets with a high emissivity.
Shiny surfaces or unpainted metals do not radiate energy well and have a low emissivity factor of <0.60. For the
Imager to calculate a more accurate estimate of the actual temperature of targets with a low emissivity, adjust the
emissivity setting.
W Warning
To prevent personal injury, see emissivity information for actual temperatures. Reflective
objects result in lower than actual temperature measurements. These objects pose a burn
hazard.
Set emissivity as a direct value or from a list of emissivity values for some common materials. If the emissivity
value is <0.60, a caution shows on the display.
Note
Surfaces with an emissivity of
< 0.60 make it difficult to determine reliable and consistent actual
temperatures. The lower the emissivity is the greater the potential of error is when the Imager calculates
the temperature measurement because more of the energy reaching the camera is specified as
background temperature. This is also true even when adjustments to the emissivity and reflected
background adjustments are performed properly.
Transmissivity
When you do infrared inspections through IR windows, not all of the infrared energy emitted from the target is
transmitted through the optical material in the window. If you know the transmission percentage of the window,
adjust the transmission percentage in the Imager or in Fluke Connect desktop software to improve the accuracy
of the measurement.
When you do not do infrared inspections through an IR window, set Transmissivity to 100 % to disable the
correction percentage.
Memory Menu (Memory Gallery)
Note
When the memory is 90 % full, a yellow message bar shows at the top of the display. When the memory
is full, the message bar changes to red. To capture more images when the internal memory is full, save
the images to an external memory device and delete the images from the Product.
Images are saved to the internal memory storage. Use the Memory menu to view, edit, or delete images. Images
are organized by the date they were captured with the newest images at the top.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
12
When additional information has been saved with an .is2 file, an icon shows with the preview file. The icons are:
View Image
To open an image in fullscreen mode:
1. Tap .
2. If needed, touch the display and slide up or down to view all the images.
3. Tap on a thumbnail or preview image to view the image fullscreen.
A toolbar briefly opens on the top of the display. Tap on the image to open or close the toolbar.
Notes
Notes are stored with the image so you do not need to collate multiple files later. To add, edit, and delete notes,
use the keyboard that opens on the display.
Notes with Single Image
To add, edit, or delete a note:
1. Open an image in fullscreen mode.
2. Tap . If needed, tap first.
If no notes are saved with the image, a keyboard opens on the display.
3. Use the keyboard to enter a message.
4. Tap Save.
If a note is saved with the image, a list of notes opens on the display.
5. To add another note to the image, tap , use the keyboard to add the new note, and tap Save.
6. To edit a note, tap on a note, use the keyboard to edit it, and tap Save. If needed, scroll down to see all the
notes.
7. To delete a note, tap on a note, tap Delete, and tap Delete again.
Add a Note to Multiple Images
To add a note to multiple images at the same time:
1. Select  > > Add a Note to Multiple Images.
The display returns to the memory gallery.
2. Tap an image to select it. Tap an image again to clear the selection.
The border and filename text color change to yellow.
Asset ID
Note
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Memory Menu (Memory Gallery)
13
3. Repeat for each additional image.
4. Tap Add Note.
A keyboard opens on the display.
5. Use the keyboard to enter a message.
6. Tap Save.
Delete Images
To delete images, do the corresponding procedure below for the desired action.
Delete an Image
To delete only one image:
1. Open an image in fullscreen mode.
2. Tap . If needed, tap first.
3. Tap Delete.
Delete Multiple Images
To delete multiple images at the same time:
1. Select  > > Delete Multiple Images.
The display returns to the memory gallery.
2. Tap an image to select it. Tap an image again to clear the selection.
The border and filename text color change to yellow.
3. Repeat for each additional image.
4. Tap Delete Images.
5. Tap Delete.
Delete All Images
To delete all of the images at the same time:
1. Select  > > Delete All Images.
2. Tap Delete.
Asset ID
Use the memory gallery toolbar to add or remove an asset ID from an image that is saved in memory. See Asset
Identification (Asset ID).
To add an asset ID to an image:
1. Open an image in fullscreen mode.
2. Tap .
3. Assign an asset ID. See Asset Identification (Asset ID).
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
14
To remove an asset ID from an image:
1. Open an image in fullscreen mode.
2. Tap the asset ID that looks like on the display.
3. Tap Remove.
The display returns to the image in fullscreen mode, and the asset ID does not show on the display.
Asset Identification (Asset ID)
Use Asset ID to save and organize images by asset like a motor or electrical panel. Use a barcode, QR code, or
other unique identification as a tag to attach to images. When in camera mode, the asset ID shows on the display
and looks like . Asset IDs need to be unique to each asset.
Assign Asset ID Tag with a QR Code or Barcode
To save images to an asset with a QR code or barcode:
1. Select  > Scan Asset ID.
2. Focus a QR code or barcode in the white box on the display.
3. When the Product detects a barcode has been scanned, tap Use Barcode or Use QR Code. If the Product
cannot detect a barcode or QR code, manually enter a unique asset ID. See Assign Asset ID Tag Manually.
The display returns to camera mode, and the barcode or QR code number shows on the display.
4. Capture an image.
Assign Asset ID Tag Manually
To manually enter a unique asset ID:
1. Select  > Scan Asset ID.
2. Tap Manual Entry.
A keyboard opens on the display.
3. Enter a unique asset identification.
4. Tap Save.
The display returns to camera mode, and the asset ID shows on the display.
Exit an Asset ID Tag
To exit out of an asset ID and save images without an asset ID:
1. Tap the asset ID that looks like on the display.
2. Tap Exit Asset ID xxxxx (where xxxxx is the name of the asset ID).
The display returns to camera mode, and the asset ID does not show on the display.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Pocket Thermal Imager
Fluke Connect Desktop Software
15
Assign a Different Asset ID Tag
To exit out of an asset ID and save images with a different asset ID:
1. Tap the asset ID that looks like on the display.
2. Tap  Scan New Asset ID.
3. Assign a new asset ID. See Asset Identification (Asset ID).
Fluke Connect Desktop Software
Fluke Connect desktop software for a PC is available to use with the Product and contains features to analyze
images, organize data and information, and make professional reports.
Use Fluke Connect software to:
• Review notes, asset IDs, and flags.
• Export IR and visible images.
• Edit .is2 image files.
• Update the firmware with new features.
Download Fluke Connect Software
Go to https://www.fluke.com/en-us/support/software-downloads/software-for-fluke-infrared-cameras.
1. On the website, follow the instructions to download the software to the PC.
2. On the PC, follow the instructions to install Fluke Connect software. (Administrator privileges are required for
the installation.)
3. Restart the PC when installation is complete.
Update Firmware
1. On the PC, open Fluke Connect software.
2. Connect one end of the USB cable into your PC and the other end of the USB cable into the Product.
Windows automatically installs the device driver for use with the Product. Fluke Connect software recognizes
the connection with the Product.
3. On the PC:
a. Select Yes if prompted to download a firmware update file onto the PC.
b. Select the Product from the list on the left.
c. Select Yes if prompted to download a firmware update to the Product.
4. On the Product, tap Ok.
To complete the firmware update, the Product turns off.
5. To use the new firmware, turn on the Product.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

PTi120
Users Manual
16
Maintenance
The Product requires minimum maintenance.
Clean the Case
Clean the case with a damp cloth and a weak soap solution. Do not use abrasives, isopropyl alcohol, or solvents
to clean the case.
Lens Care
W Caution
To prevent damage to the infrared lens:
• Carefully clean the infrared lens. The lens has a delicate anti-reflective coating.
• Do not clean the lens too vigorously because this can damage the anti-reflective coating.
To clean the lens:
1. Use a pressurized can of air or a dry nitrogen-ion gun, if available, to blow off the particulates from the lens
surface.
2. Soak a lint-free cloth in a commercial lens cleaning liquid that contains alcohol, ethyl alcohol, or isopropyl
alcohol.
3. Squeeze the cloth to remove excess liquid.
4. Wipe the lens surface in one circular motion and discard the cloth.
5. If needed, repeat with a new lint-free cloth.
Battery Care
W Caution
To prevent damage, do not expose Product to heat sources or high-temperature environments
such as an unattended vehicle in the sun.
To get the best performance from the lithium-ion battery:
• Do not charge the Product for more than 24 hours as reduced battery life may result.
• Charge the Product for at least 1.5 hours every six-months for maximum battery life. Without use, the battery
will self-discharge in approximately six months.
Charge Batteries
Note
Make sure that the Product is near room temperature before you charge the battery. See the charging
temperature specification. Do not charge in hot or cold areas. When you charge in extreme
temperatures, battery capacity may be decreased.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
