foc.us TView Micro XGA User manual

TView Micro XGA
User’s Guide
Rev. 02/01

FCC NOTICE
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the installation manual, may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to try to correct the
interference by one or more of the following measures:
•This unit was tested with shielded cable. Therefore, for
continued compliance, use the shielded cables provided with the
unit.
•Re-orient or relocate the unit or receiving antenna.
•Increase the separation between the computer/converter and
television.
•Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
You may find the following booklet helpful:
How to Identify and Resolve Radio-TV Interference Problems (stock
number 004-000-000345-4)
To order the booklet, write to:
The U.S. Government Printing Office
Washington D.C. 20402

COPYRIGHT
This document and the software described in it are copyrighted under
United States Copyright Laws. No part of this document or software
may be copied without prior written consent from FOCUS
Enhancements, Inc. except in the normal use of the software as
described in this documentation. All printed circuits, their physical
implementation on printed circuit boards and associated software are
copyrighted with all rights reserved. Under the copyright laws, the
printed circuit board, or the software programs provided may not be
copied in whole or part, without written consent of FOCUS
Enhancements, Inc., except in the normal use of the software
programs to make a backup copy. This exception does not allow
copies to be made for others, whether sold or not, but all of the
material may be sold, given, or loaned to another person. Under the
law, copying includes translating into another language or format.
Microsoft Windows, Windows 95, and Microsoft are trademarks of
Microsoft Corporation. All other products named are trademarks of
their respective manufacturers.
©1999 FOCUS Enhancements, Inc. All Rights Reserved

This is a blank page
Table of Contents
CHAPTER 1 3
CHAPTER 2 9
Checking the Packing List 10
Packing List 10
Inspecting the Equipment 11
CHAPTER 3 21
What’s on the CD-ROM? 21
Windows 95 Installation 21
Using the TV Fonts in Windows 95, 98 & 2000 22
To select the TV fonts for your Windows 95 system, perform the
following steps: 22
CHAPTER 4 24
Auto-Save Memory Function 28
Functions of the TView Micro XGA LED 28
Dip Switches 30
Windows 95, 98 & 2000 30
Macintosh 31
Configuring the Macintosh Monitor Mode 31
CHAPTER 5 33
Brightness 34
Color 34
Sharpness 34
Tint or Hue 34
CHAPTER 6 35

TView Micro XGA User’s Guide
Preface 1
About the User’s Guide
The TView Micro XGA User’s Guide is designed to help you to
quickly and easily connect the hardware and install the software for
this product. The guide is divided into the following chapters:
Chapter 1: Introduction, which describes the key features and
functionality of the product and some of its many uses. The chapter
also discusses the notation conventions used in the guide.
Chapter 2: Installing the Hardware, which describes the
information you should know before installing and connecting the
TView Micro XGA hardware, and the steps required to perform the
installation.
Chapter 3: Installing the Software, which describes the
TView universal installer software, the steps required to perform the
installation, what you get with the software, and how to use the
applications.
Chapter 4: Image Control, describes the location and
functions of the control buttons on the TView Micro XGA unit, the
auto-save memory function, and the functions of the TView Micro
XGA LED. It also describes the steps involved in configuring your PC
or laptop video output.
Chapter 5: Tuning Your Television, this chapter describes
the methods you can use to tune the image on your television.
Chapter 6: Troubleshooting describes possible problems that
you might encounter and ways to solve them.

TView Micro XGA User’s Guide
About This Guide
2
Notation Conventions
This user’s guide uses the following conventions to specify certain
types of information.
Warns you about potential problems and
hazards during the installation or use of the
product. Read these warnings carefully, and
be sure you understand how they relate to the
installation procedures before proceeding.
Note: Points out important or useful information.
Contact Information
To get information on the reseller nearest to you, to order
replacement parts, or for technical support contact one of the
following:
Focus Enhancements
Worldwide Headquarters
1370 Dell Avenue
Campbell, CA
Customer Service 800-338-3348 (U.S. Only)
Technical Support 408-370-9963
On-line:
URL : http://www.FOCUSinfo.com
e-mail: [email protected]

TView Micro XGA User’s Guide
Chapter 1 3
Chapter 1
Introduction
The TView Micro XGA converts the VGA output from your computer
into video that can be displayed on a television or recorded to a VCR.
TView Micro XGA automatically detects VGA, SVGA, XGA
resolutions and synchronizes them with your television. The result is
a high quality, flicker-free television display from your computer.
Features
The TView Micro XGA includes the following features:
•Contains the industry leading FS 400 Chip which provides the
best possible resolution for PC-to-TV scan conversion
•Screen position controls
•2X Zoom with area pan control
•Compatibility with any size television monitor (NTSC/PAL) with
an RCA (composite), S-Video, or SCART (Europe only) input
connector.
•Support for 640 x 480 800 x 600 and 1024 x 768 resolution at
frequencies up to 152Hz
•16 Levels of Brightness Control along with 8 Levels of Color
Control adjustments which automatically save in memory when
changes are made
•TrueScale™ image compression that precisely fits the image on
your television without dropping lines or altering video resolution
•Works with multiple platforms including Mac OS 7.1 or higher,
Microsoft Windows 95, 98 , NT, 2000 and 2000 ME

TView Micro XGA User’s Guide
Introduction
4
•2D Flicker Filter with 8 Levels

TView Micro XGA User’s Guide
Chapter 1 5
Modes of Operation
The TView Micro XGA has ability to operate in three separate
modes:

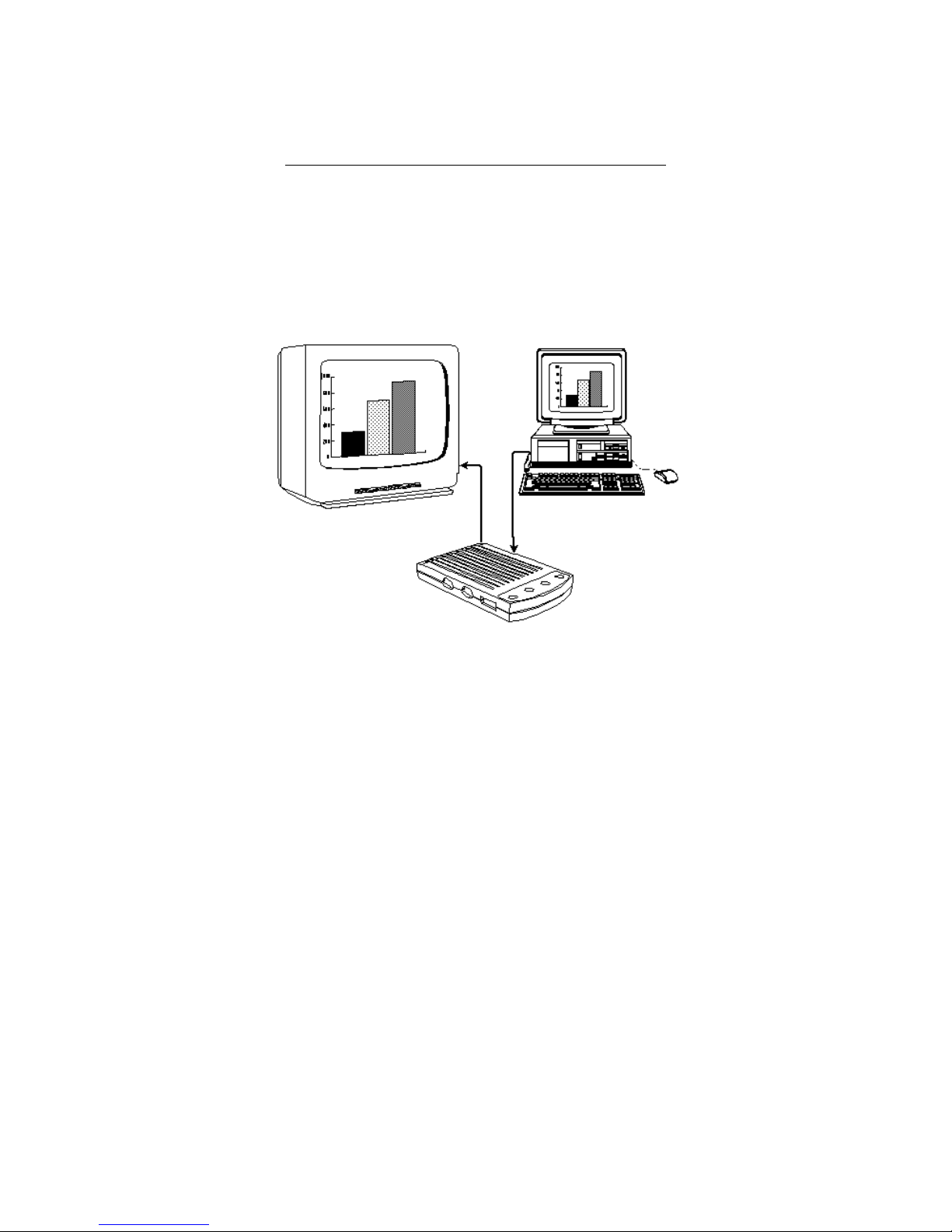

1. Presentation Mode: Display the same image on your computer
Figure 1-1: Presentation Mode
2. Television Only Mode: Use the television as your only display.

TView Micro XGA User’s Guide
Introduction
6

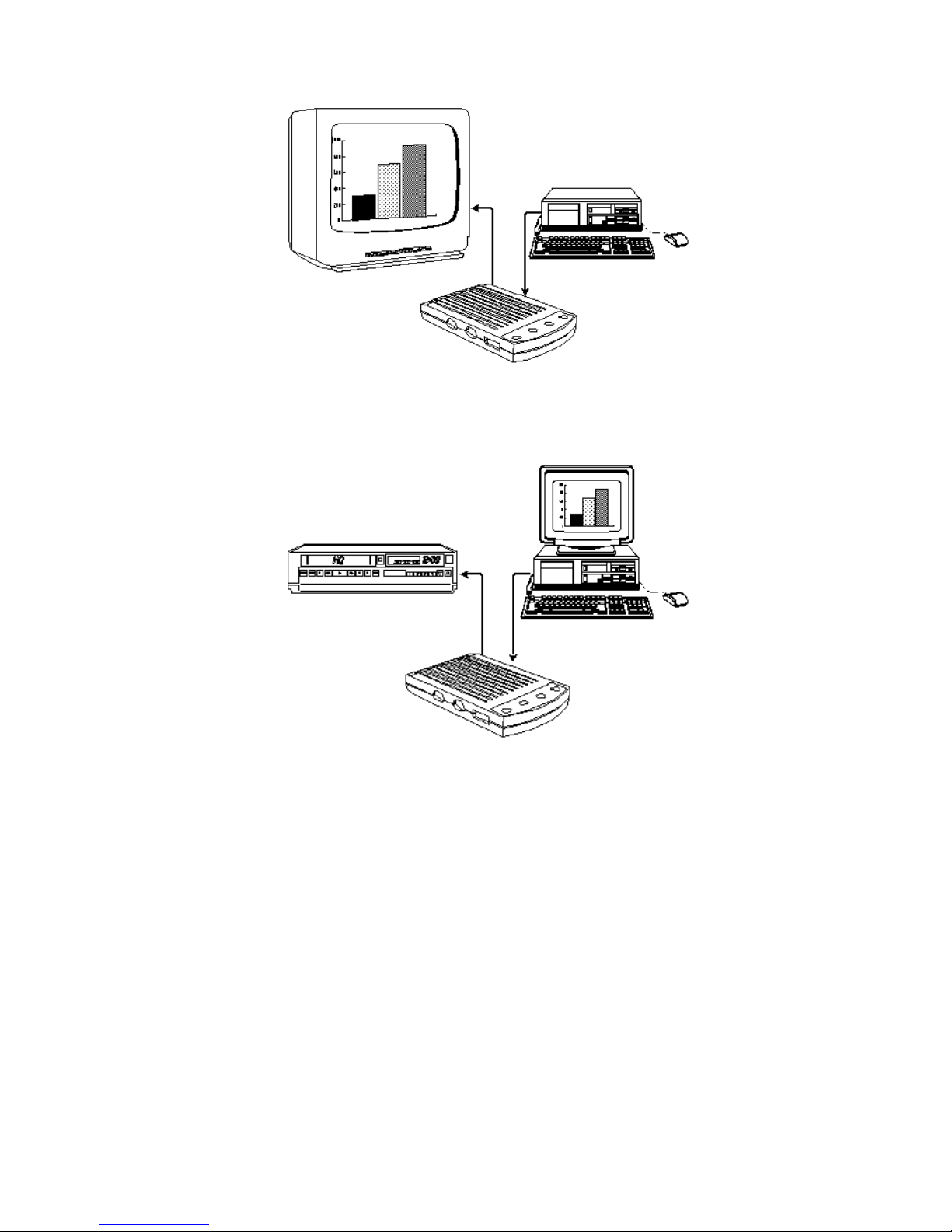

Figure 1-2: Television Only Mode
3. Video Record Mode: Record your video image directly to
videotape.
Figure 1-3: Video Record Mode

TView Micro XGA User’s Guide
Chapter 1 7
Suggested Uses for the TView Micro XGA
The TView Micro XGA can be used for many purposes. For example:
•Bring sales or other multimedia presentations from a laptop to a
large TV
•Create training tapes or outfit a training room
•Demonstrate a new software package using a large screen TV
•Project computer games onto a TV screen
•Cruise the internet on a television
•Conferencing via TV
•E-Mail
•Collaborating with others on computer-based projects
•View DVD movies from your computer straight to your
television

TView Micro XGA User’s Guide
Introduction
8
Specifications
Table 1: TView Micro XGA Specifications.
Computer
Compatibility
•Multiple platforms include Mac OS,
Windows 95, 98, 2000 & 2000 ME along
with any computer with a VGA output
Television
Compatibility
•Works with any size television monitor
(NTSC/PAL) with an RCA (composite), S-
Video, or SCART (Europe only) input
connector. For television receivers or
televisions without composite or S-Video
inputs, an RF Modulator is required (Radio
Shack #15-1283)
Color Modes and
Resolution
•Supports up to 16,777,216 colors (24-bit),
and up to 1024 x 768 152Hz
Power Supply •Maximum consumption 5 volt regulated
DC,
700 mA
Unit Weight •184 grams (without cables)
Unit Dimensions •12 cm x 7cm x 2.5cm

TView Micro XGA User’s Guide
Chapter 2 9
Chapter 2
Hardware Installation
This chapter describes the information you should know before
installing and connecting the TView Micro XGA hardware, and the
steps required to perform the installation.
System Requirements
Before installation, the following are system requirements for the
operation of the TView Micro XGA:
IBM (or compatible)
•Personal or multimedia computer with a 486 or higher processor
•Microsoft Windows 95, 98, NT, 2000 & 2000 ME
•VGA, SVGA, or XGA desktop resolution
Macintosh (or compatible)
•Macintosh Performa or PowerMac with a 68020 or higher
processor
•MacOS System Software 7.1 or higher
•VGA, SVGA, or XGA desktop resolution

TView Micro XGA User’s Guide
Hardware Installation
10
Note: In order to see the video output on both the computer
monitor and TV simultaneously, you will need to be using
a monitor with a VGA compatible input connector. If your
monitor is larger than 14”, it must be multisync (capable
of running at various frequencies). Refer to your
Macintosh documentation if you have any questions
Macintosh documentation if you have any questions
regarding the type of monitor you are using.
•A TV/monitor, VCR or any video device that can display or
record NTSC or PAL video.
Checking the Packing List
Check the packing list that is included in this manual. Compare the
list with the equipment you have purchased. Be sure that you have
received everything that is on the list. If anything is missing, contact
FOCUS Enhancements Customer Service department by calling 1-
800-338-3348.
Packing List
Your TView Micro XGA includes the following items:
•TView Micro XGA
•Power adapter 5V @700mA
•1 S-Video and 1 Composite video cable (US only)
•SCART Cable (Europe only)
•User’s guide (on CD ROM) and Quick-Start guide

TView Micro XGA User’s Guide
Chapter 2 11
Inspecting the Equipment
Before installing and connecting the hardware, inspect it for any
damage, which may have been incurred during shipment. Perform a
thorough inspection, looking for dents, scratches, or loose parts.
Look for anything that appears unusual or out-of-the ordinary. If any
of the equipment is damaged, contact FOCUS Enhancement’s
Customer Service department by calling 1-800-338-3348.
Connecting the TView Micro XGA to an
IBM PC or Macintosh Computer
This section describes the steps to connect your TView Micro XGA to
a television or VCR. The following sections describe how to connect
to IBM PCs, Macintosh PCs, IBM PC laptops and Notebooks, and
Macintosh PowerBooks.
Notes: 1. Before performing the steps to connect the TView
Micro XGA to a laptop computer, you must turn on the
external video connector. This is accomplished by using
a particular key sequence on the keyboard (for example,
FN + F11) or through the BIOS setup program. Refer to
your laptop owner's manual to determine how the
external video connector is turned on.
2. Ensure that you are using a Macintosh PowerBook
computer that has a connector for an external monitor.

TView Micro XGA User’s Guide
Hardware Installation
12
Perform the following steps to connect the TView Micro XGA to
a PC or Macintosh Desktop or Laptop:
1. Turn the computer and monitor off.
The computer must be off when connecting the TView
Micro XGA .Connecting with the power on could result
in static damage to your computer and video
equipment.
2. Disconnect the current monitor cable from the "monitor out" port
at the rear of the computer.
3. Locate the Video In cable (labeled “VGA Input”) attached to the
rear of the TView Micro XGA unit.
4. For an IBM PC or compatible, connect the cable connector
located at the other end of the VGA Input cable to the "monitor
out" port at the rear of the computer, the same port from which
you disconnected the current monitor cable in step 2. For a
Macintosh or compatible, using a Macintosh video adapter,
connect the other end of the VGA Input cable to the Macintosh
Video Output port located at the rear of the computer, the same
port from which you removed the current monitor cable in step
2.
5. Connect the male end of your computer’s monitor cable to the
female connector on the VGA input cable.
6. Connect the power adapter to the rear of the TView Micro XGA,
labeled 5V DC. Plug the adapter into the nearest wall outlet. The
LED at the front of the unit will illuminate; indicating the TView
Micro XGA is ON. For the meanings of each LED state, see

TView Micro XGA User’s Guide
Chapter 2 13
Functions of the TView Micro XGA LEDin Chapter 4.
Figure 2-1: Connecting the TView Micro XGA to an IBM or Macintosh PC
Note: Use AC power to power the laptop when using the
TView Micro XGA . If you use battery power, your video
output may be interrupted to conserve power.

TView Micro XGA User’s Guide
Hardware Installation
14
Connecting the TView Micro XGA to a
Television
The next step in connecting your system is to connect to the
television. (If you are planning to connect to a VCR, see "Connecting
to a VCR" below.) There are two possible ways to connect to a
television:
•Using a composite video connection
•Using an S-Video connection
•Using a SCART cable (Europe only)
Composite Video Connection
Composite video is a connection type used by most televisions,
VCRs, laserdisc players, and certain LCD panels. The connectors on
a composite video cable have an RCA-type plug. The plug has a long
metal pin projecting from its center and plugs into the composite
video in port at the rear of the television.
Figure 2-3: Composite Video Connectors
To determine if your television supports composite video, look for a
port on your television that matches the composite video out port at
the rear of the TView Micro XGA unit.

TView Micro XGA User’s Guide
Chapter 2 15
Note: The composite video port on the television may or may
not be labeled "video in.”
S-Video Connection
S-Video is a high-quality video connection used by some video
cameras and VCRs. The connector on an S-Video cable has a round
plug with several small metal pins. It plugs into the S-Video output
port at the rear of the TView Micro XGA unit.
Note: The S-Video connection is a newer video standard. This
type connection improves color, clarity, and resolution. It
is recommended that if the S-Video connection is
available it be used.
Figure 2-4: S-Video Connectors
To determine if your television supports S-Video, look for a port at
the rear of the television that matches the S-Video output port at the
rear of the TView Micro XGA Unit.
Note: The S-Video port on the television may or may not be
labeled "S-Video in."

TView Micro XGA User’s Guide
Hardware Installation
16
SCART Connection (Europe Only)
SCART is a high-quality video connection used on most televisions
and VCR's in Europe. The connector on the SCART cable provided
with the TView Micro XGA has two different connectors. The larger
end of the cable is rectangular in shape and contains 20 small metal
pins. This larger end of the cable plugs into the matching port on the
television or VCR. The smaller end of the SCART cable has a round
plug with several small metal pins and connects to the port labeled
SCART/S-Video on the Micro XGA.
Additionally, the SCART connector provided with the TView Micro
XGA can accept audio input from your computer. To utilize this
function, connect a standard 1/8" male mini stereo cable (not
included) to the female connector attached to the larger end of the
SCART cable.
To connect the TView Micro XGA unit to your
television, perform the following steps:
1. Connect one end of the supplied composite video cable to the
“Comp Video” port located on the side of the TView Micro XGA
unit, or connect the male end of the S-Video cable to the port on
the side of the TView Micro XGA labeled either "SCART/S-
Video."
2. Connect the other end of the composite cable or S-Video cable
to the Comp Video in or S-Video in port at on the television.
3. Turn the television on.
4. Turn the TView Micro XGA on.
5. Turn your computer on. If the cables have been connected
