Follett 230V 50Hz Supplement

Installation, Operation and Service Manual
EU155N Series - 230V 50Hz
Ice and Water Dispensers
Cool Ideas For Ice Managemen
t
801 Church Lane • PO Box D, Easton, PA 18044
[phone] • FAX [phone] • www.follettice.com
®
Following installation, please forward this manual
to the appropriate operations person.
Automatic load units
with two icemakers
Automatic load units
with one icemaker
00120303R00

Table of contents
Welcome to Follett. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Plumbing and clearance requirements. . . .. . . .. . . . . . . . . . . . . . . . .4
Field wiring diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installing dispenser in counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing remote icemaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disassembly for cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Disassembly for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Dispenser troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

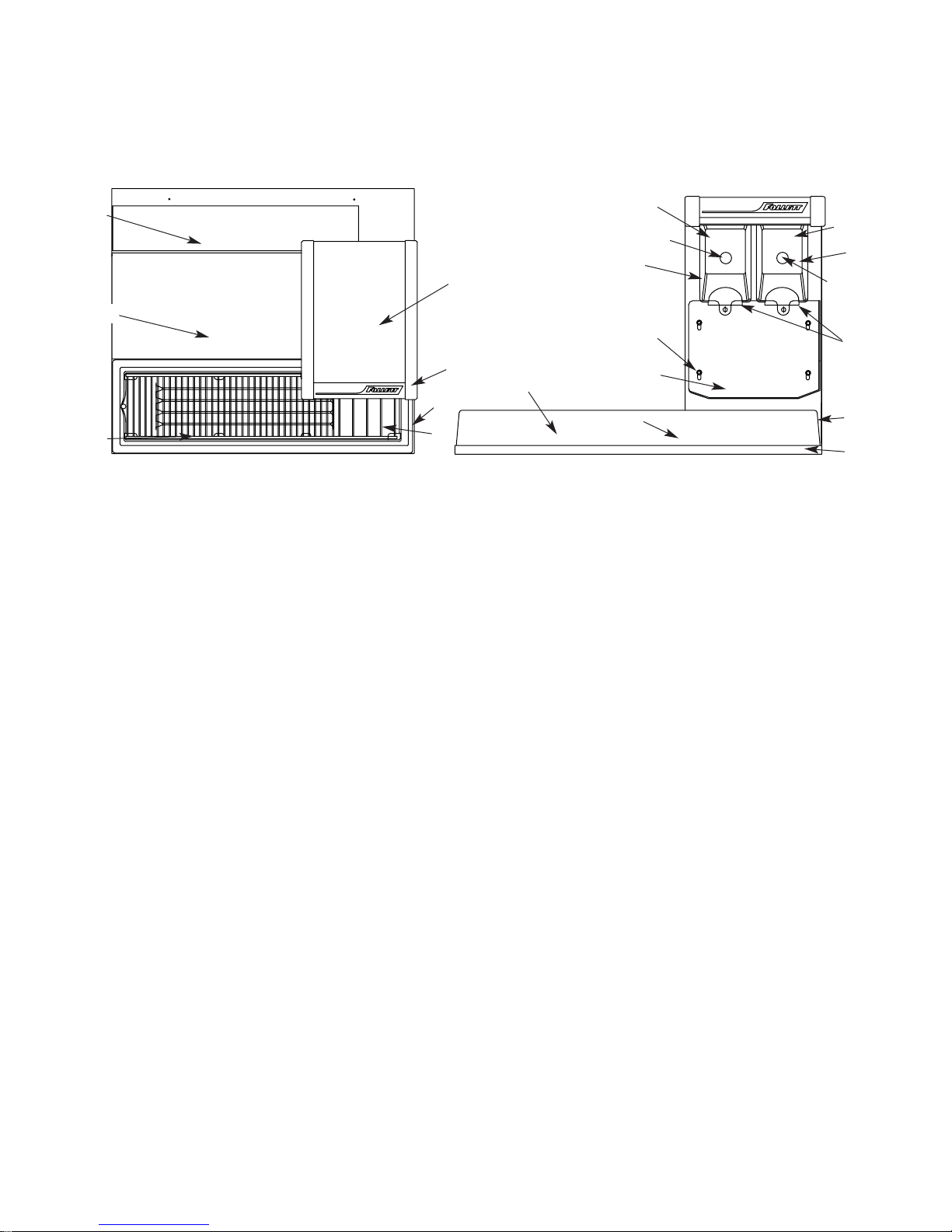

Dispenser exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Dispense assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

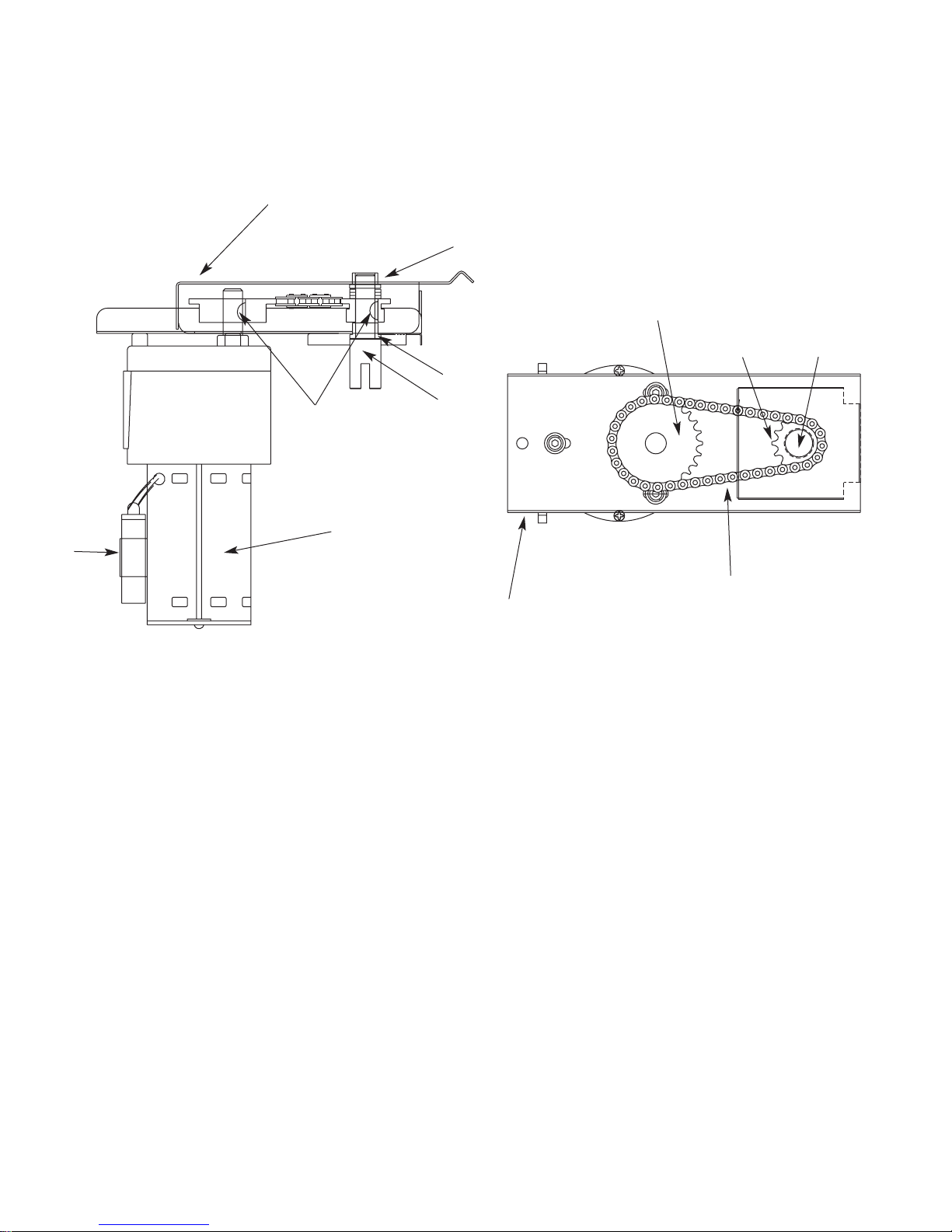

Auger motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

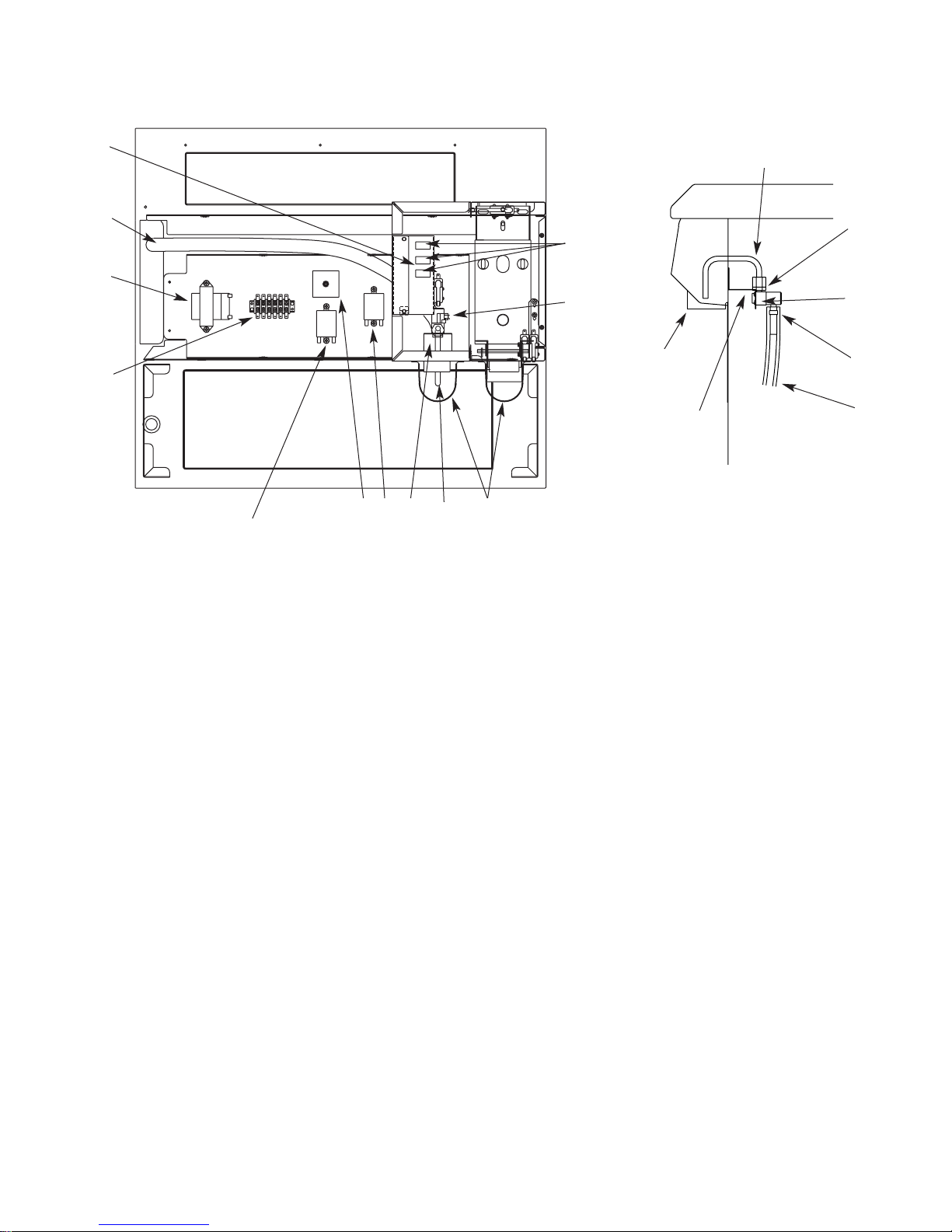

Electrical components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2

Welcome to Follett
Follett ice and water dispensers enjoy a well-deserved reputation for excellent performance, long-term reliability
and outstanding after-the-sale support. To ensure that this dispenser delivers that same degree of service, we
ask that you take a moment to review this manual before beginning the installation of the dispenser. Should you
have any questions or require technical help at any point, please call our technical service group at
[phone].
Before you begin
•After uncrating and removing all packing material, inspect the equipment for concealed shipping damage.
If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in
the filing of a claim, if necessary.
•Check your paperwork to determine which model you have. Follett model numbers are designed to
provide information about the type and capacity of Follett ice dispensing equipment. Following is an
explanation of the different model numbers in the U155 Series.
Specifications
Electrical requirements
Each icemaker and dispenser requires separate circuit with electrical disconnect within 6m. Equipment ground
required. Standard electrical - 230V, 50 Hz.
EU155NR400AR
Condenser type – A = air-cooled, W = water-cooled
Remote icemaker(s) capacity and refrigerant – 400 = 400 lbs (181kg)/day, R404A
800 = 800 lbs (363kg)/day, R404A
absence of = manual fill unit
N = ice and water only, no beverage rail or valves
Approximate storage capacity in lbs
Dispenser configuration – U = undercounter
3
Model Dispenser
number amperage
EU155N 2.0 amps
Ice dispense chute location – R = right side, L = left side
Alternate voltage – C = 230V 50Hz
Important cautions
•Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of this
area at all times. If access to this area is required, power to unit must be disconnected first.
•Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or
Follett compressed nugget ice. Crushed, flake, bagged, nugget or congealed ice cannot be used.
Use of these ices can jam dispenser and void warranty. Separate any “waffle-like” sections of
cubes before adding to dispenser. For ice compatibility questions, please call Follett customer
service at [phone].
•Follett recommends use of an activated carbon filter for units equipped with icemakers.
•Ice is slippery. Maintain counters and floors around dispenser in a clean and ice-free condition.
•Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
!

Plumbing
Dispenser 3/4" PVC slip joint for hopper drain
3/4" PVC pipe nipple for beverage drain pan
3/8 ID red line tubing for water in
Note: Drains should be hard piped and insulated. Maintain at least 6mm per
304mm run slope on drain line run
Icemaker Refer to Icemaker Installation Manual packed with icemaker for installation instructions
Clearance and access information
•1296mm above counter
•305mm on side opposite tower, below counter
•Counter front or rear panel must be removable for service access to both sides of dispenser and
icemaker(s), if any
•Below counter access to drain clean-out required on utility side of dispenser
•See Icemaker Installation Manual packed with icemaker(s) for clearance requirements for automatic
load dispensers
4
Side view Front view
553mm
305mm
305mm
696mm
712mm
1264mm
794mm
305mm min
480mm min
153mm min
480mm min
432mm
661mm
water connection
hopper drain
beverage
pan drain
Automatic load units with 1 icemaker
Automatic load units with 2 icemakers

5
Junction box
Junction box
Field wiring diagram is intended to aid electrician or technician in understanding how equipment works.
IMPORTANT
L1
L2
GND
Electric supply
230V 50Hz
L1
L2
GND
Electric supply
230V 50Hz
EU155N
Dispenser
Connections to complete
ER400A/W
ice machine
Junction box
L1
L2
GND
Electric supply
230V 50Hz
optional second
ER400A/W
Automatic load units

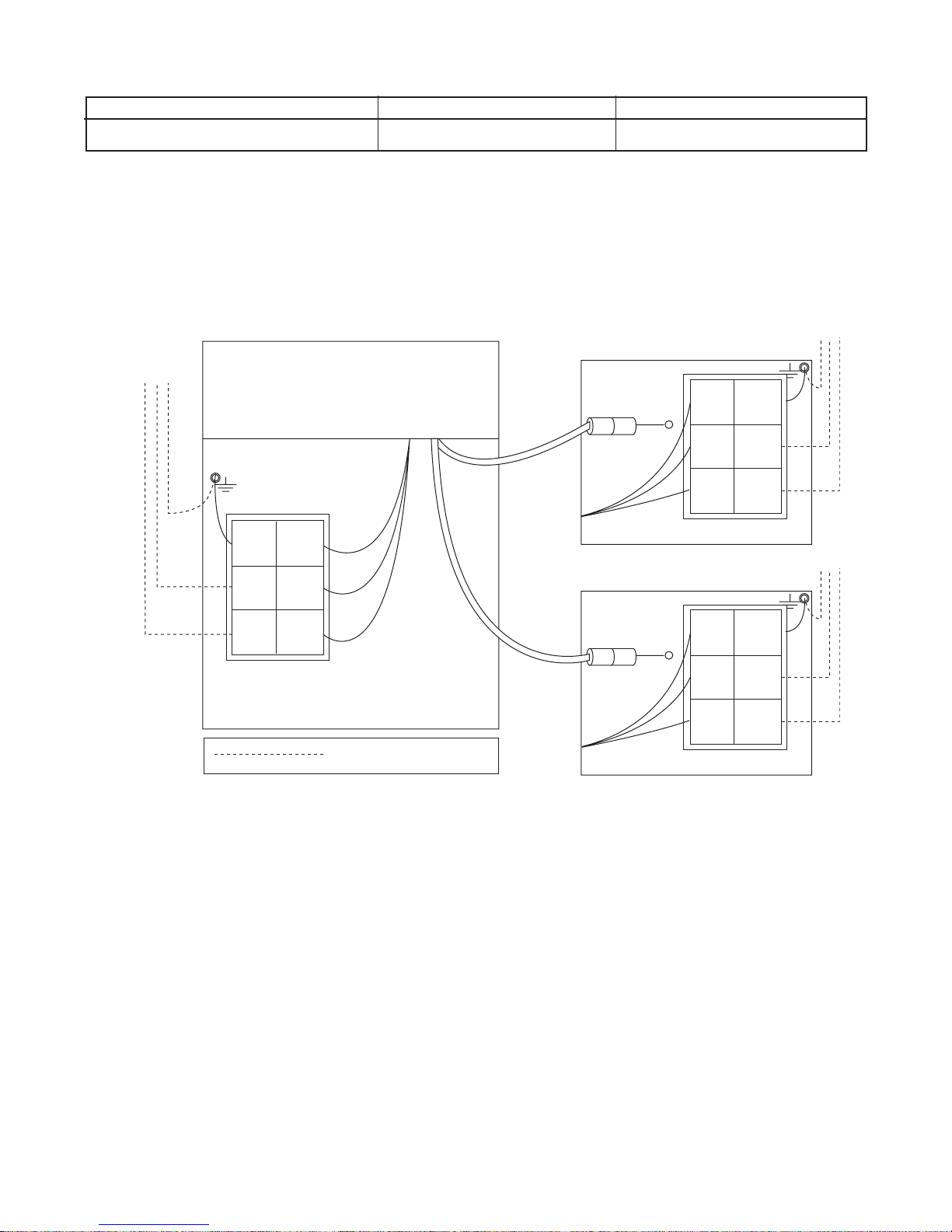

Field wiring diagrams
Model Circuits required
EU155N 230V 50Hz, (1) circuit required
Field wiring:

Installation
Installing EU155N dispenser in counter
1. Check that dispenser location meets all requirements in this manual and cut counter as shown.
2. Block up area below counter cut-out to support dispenser when lowered into place.
3. For automatic load dispensers, disconnect ice transport tube from bracket in storage area of dispenser.
(Since this tube must be reinstalled in bracket after dispenser is dropped into counter, note how tube is held
by bracket tabs before disconnecting.)
4. Carefully lower dispenser into counter until it rests on support blocks.
5. Adjust height from below with standard leg kit until dispenser flange rests flush with counter.
6. Apply a bead of NSF listed silicone sealant (Dow-Corning RTV-732 or equivalent) approximately 6mm in
diameter around perimeter of dispenser where it meets counter and smooth sealant to a 4mm radius.
7. Install a hard drain line, maintaining at least a 6mm per 304mm run slope, and insulate line to prevent
condensation.
8. Make electrical connections in accordance with applicable wiring diagrams provided, as well as NEC and
local codes. Provide disconnects within 3m of dispenser and icemaker for servicing.
Front of counter
(772mm) +3mm
- 3mm (667mm)
+3mm
- 3mm
Counter cut-out
All EU155N dispensers must be installed level in both directions and supported from
below with 153 – 229mm adjustable legs provided, or channels installed on site. DO
NOT hang dispenser on flange of counter.
!
PVC pipe is suggested. Care must be taken in sweating any metal drain pipe used.
Excessive heat applied while sweating metal pipe may melt plastic fitting on
dispenser.
!
6

Installing remote icemaker (automatic load units only)
1. Position icemaker in desired location.
2. Push one end of ice transport tube(s) through hole(s) provided in side of dispenser.
3. Route tube into ice tube bracket inside dispenser and engage bracket tabs in holes located in end of ice
transport tube(s). (See drawings below.)
4. Proceed with ice transport tube installation from dispenser to icemaker in compliance with instructions
contained in icemaker installation manual packed with icemaker.
7
Correct installation of remote icemaker(s) is critical to proper performance of
icemaker and dispenser.
Check to make sure bin signal on icemaker control board is switched to 24 volt
connection.
Refer to installation manual packed with icemaker for important details on ice
transport tube run, ventilation requirements and other installation requirements.
Failure to comply with instructions will void warranty.
!

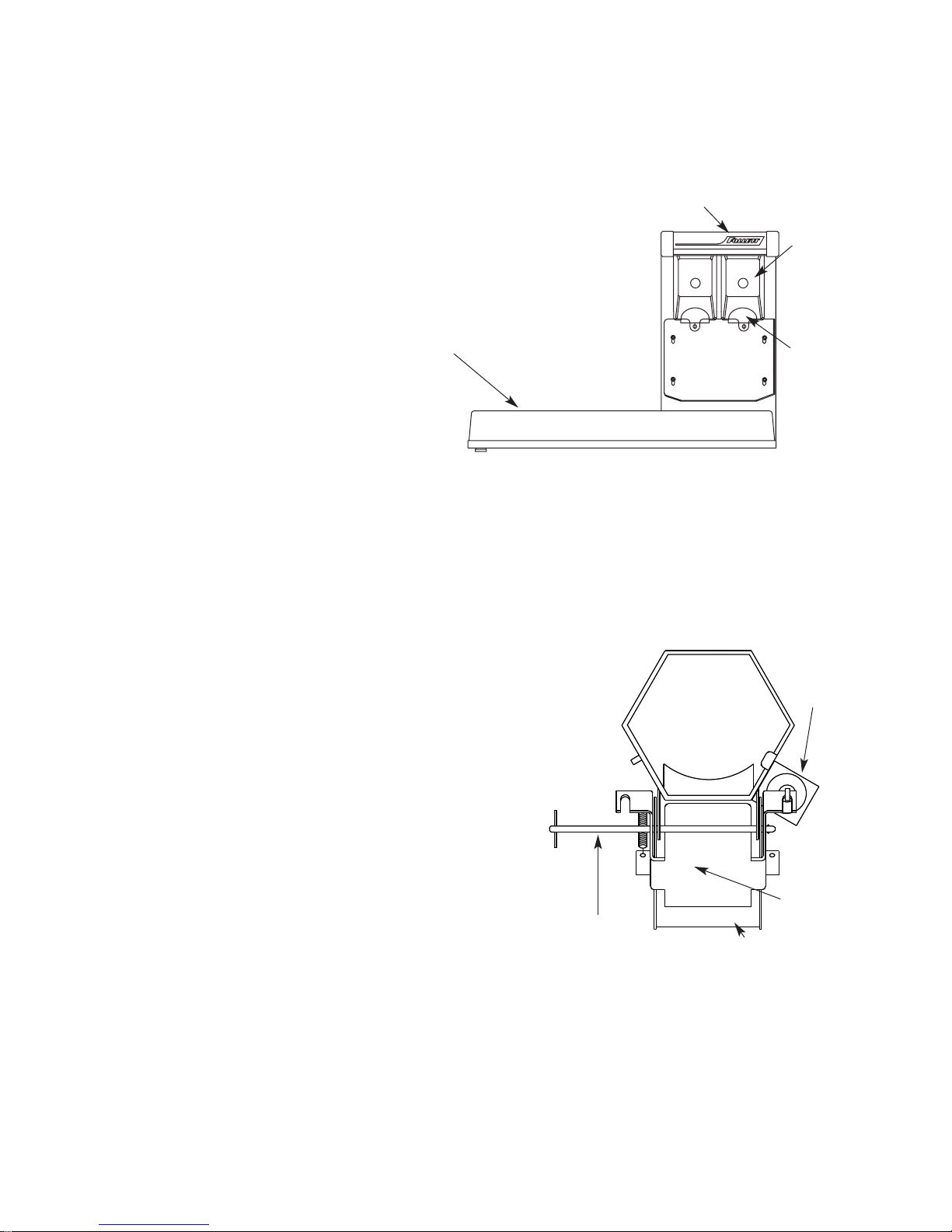

Tabs in ice tube
retainer bracket
engage holes in ice
tube and hold tube
in place
25mm
ice tube
Side view
ice tube
Ice tube retainer bracket
thermostat
Front view
thermostat

To start up and operate dispenser
1. Follow detailed cleaning instructions in service manual before operating dispenser.
2. For manual load units, remove front drain pan or rear lid and fill storage area with compatible ice.
3. Turn power switch located on control box to “ON” position.
4. For automatic fill units, follow detailed instructions in icemaker installation section of installation manual, then
turn icemaker (bin signal) switch(es) located on control box to “ON” position and begin to make ice.
5. When dispenser has at least 153mm of ice in storage area, press “PUSH FOR ICE” lever or button to ensure
that dispenser is operating properly. Note: If additional start-up information is needed, call Follett Corporation
at [phone].
User information

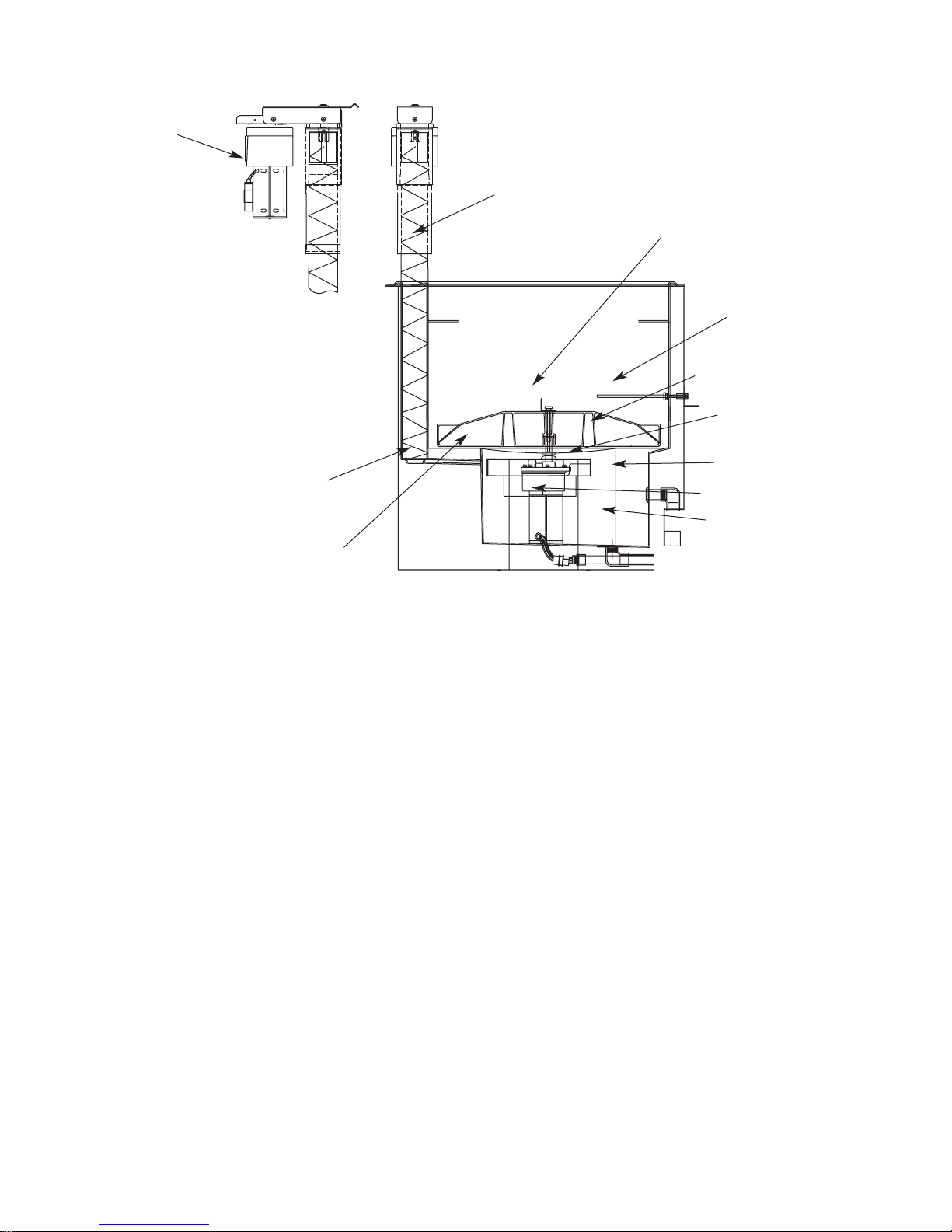

How the dispenser works
Follett's EU155N Series ice and water dispensers are available in manual load configurations (using ice from
another source) or automatic load configurations, fed from one or two Follett 400 lb (181kg)/day remote
icemakers.
In all models, ice is stored below the counter in the dispenser storage area. When the dispense lever or button is
pushed, the dispense motor is activated. This causes the wheel assembly in the storage area to turn, moving ice
to the vertical auger assembly, which carries ice up to the dispense chute where it drops by gravity into the
container.
In automatic load units, ice is manufactured in either one or two Follett remote icemakers. These icemakers may
be located up to 6m away from the dispenser. As water freezes to the inside walls of the icemaker evaporator, a
rotating stainless steel auger removes ice and carries it to the top of the evaporator assembly where it is
compressed and extruded through an outlet port. The extruded ice is then pushed through the tube to the storage
compartment of the dispenser. A level fill circuit maximizes fill in the storage area by rotating the wheel at
intervals until the bin is completely filled. When the bin is filled, a bin stat shuts the icemaker off to avoid
overfilling of the bin. The icemaker will restart after 20 minutes if the bin is calling for ice.
Cleaning and sanitizing procedures
Using solutions below, clean and sanitize storage area and beverage lines before starting up unit and on a
routine basis as noted below.
Solution A: Prepare a cleaning solution (200 ppm of available chlorine content) of Ecolab Mikro-chlor
Cleaner or equal chlorinated detergent. Cleaning solution temperature must be at
75˚ – 125˚F (24˚ to 52˚C).
Solution B: Prepare a sanitizing solution (50 ppm of available chlorine content) of Ecolab Mikro-chlor
Cleaner or equal chlorinated detergent. Sanitizing solution temperature must be at
75˚ – 125˚F (24˚ to 52˚C).
8
Follett manual load dispensers can accommodate most cube/cubelet ices up to 26mm
square and Follett compressed nugget ice. Crushed, flake, nugget, bagged or
congealed ice cannot be used. Use of these ices can jam dispenser and void
warranty. Separate any “waffle-like” sections of cubes before adding to dispenser.
For questions about ice compatibility, call Follett's customer service group at (610)
252-7301.
!
Warning: Always disconnect power before cleaning dispenser.
!

9
Cleaning bin before use
1. Wipe storage area with Solution A.
2. Rinse thoroughly with clear, potable water.
3. Wipe with Solution B to sanitize.
Periodic cleaning of dispenser
Recommended daily cleaning of drain pan
1. Remove all debris from drain pan.
2. Pour 1 gallon (4L) hot water into drain pan to keep drain lines clear.
Recommended weekly cleaning
1. Remove drain pan and grill and wash with Solution A. Rinse thoroughly.
2. Pour a solution of one cup (8oz/237ml) household bleach mixed with one gallon (3.8L) hot water into drain
pan to help prevent algae growth in drain lines.
Recommended quarterly cleaning (every 3 months)
1. Turn power switch to “OFF” position and remove top from dispenser.
2. Remove ice from storage area.

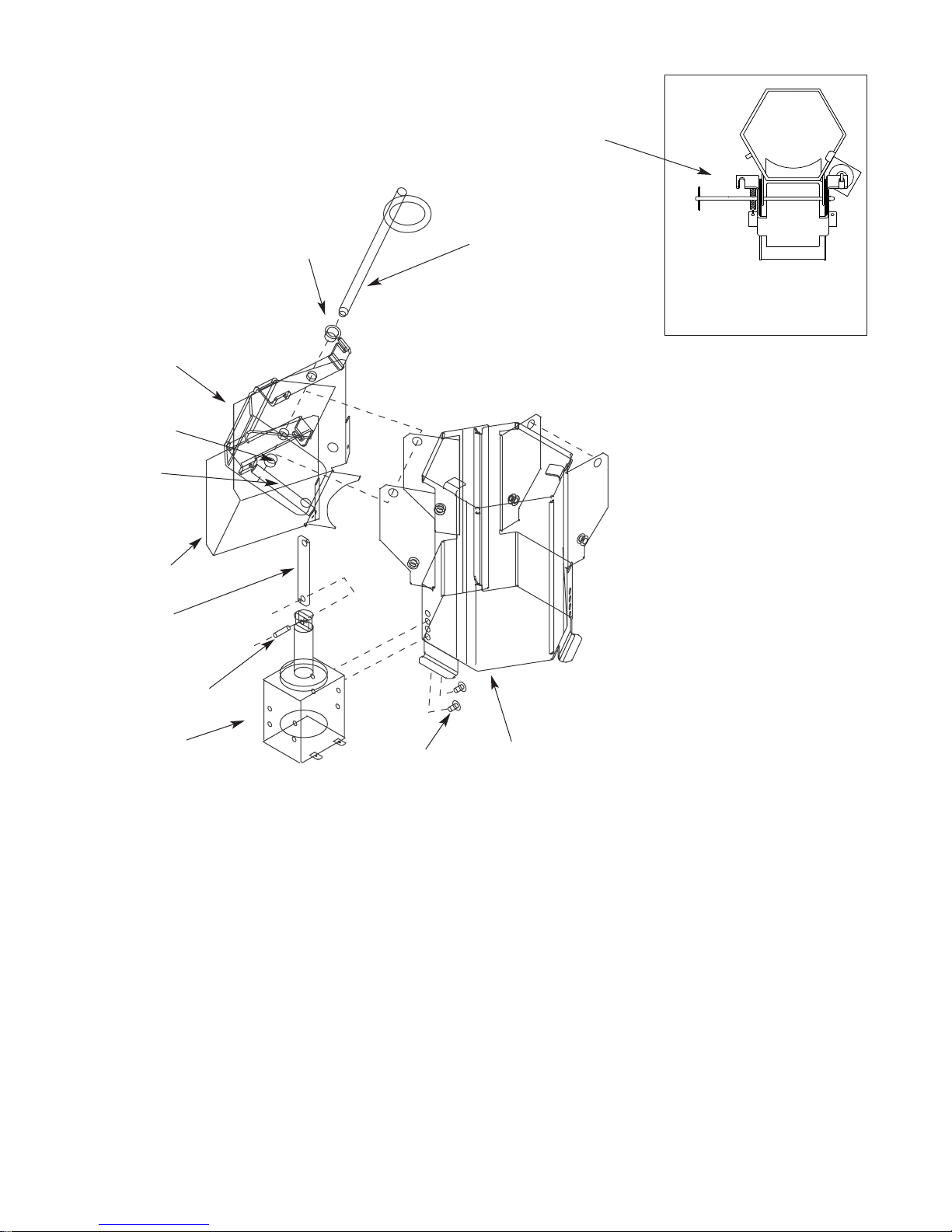

3. Remove dispense chute cover, chute, auger motor assembly, auger and auger tube (page 10).
4. Remove drain pan, grille, dispense wheel and cover plate (page 11).
5. Clean all components and bin storage area with Solution A, rinse thoroughly with clear water and sanitize
with Solution B.
6. Remove clean-out plug from drain line tee on side opposite dispense tower and let bath drain.
7. Use a bottle brush to clean coil with Solution A, then rinse and sanitize with Solution B.
8. Reinstall clean-out plug in drain line tee.
9. Pour potable water into bath to submerge coil.
Putting unit back in service after quarterly cleaning
1. Reassemble components.
2. For manual load units, fill unit with an approved ice (see caution statement on page 1).
3. For automatic load units with R400A/W (R404A refrigerant) icemakers, turn bin signal switch(es) and
dispenser power switch to “ON” position and allow storage area to fill.
4. Push dispense button or lever to test that dispenser is functioning properly.
Quarterly cleaning of icemaker system
Units equipped with icemakers require cleaning of icemaker system at least every three months, and
more often if local water conditions dictate. Failure to clean icemaker system will result in decreased
performance and potential damage to icemaker. Refer to Icemaker Operation and Service Manual.
DO NOT run plastic parts (drain pan, dispense chute cover, dispense wheel)
through a dishwasher.
!
On push button units, remove dispense switch from dispense chute cover
before cleaning chute cover.
!

Dispense chute cover removal
1. Remove top cover.
2. Push chute cover up vertically to slip off
holding tab.
3. After clearing tab, pull chute cover forward
to remove.
Dispense mechanism assembly
removal
1. Remove top cover.
2. Remove chute cover (see above).
3. Remove auger motor assembly (see above).
4. Remove quick release pins from the ice chutes
and gates, then unplug wires from solenoids.
5. Lift dispense mechanism up and off auger tube.
Auger and auger tube removal
(Fig. 3)
1. Remove auger motor and dispense mechanism
assembly (see above).
2. Pull auger upward to clear auger tube.
3. Lift auger tube upward to clear dispenser top.
4. Slide tube and bearing plate through auger
tube gasket.
Dispense wheel removal
1. Remove drain pan assembly and bin access cover.
2. Remove center thumbnut and threaded rod on
dispense wheel assembly and lift wheel out front
access opening.
Auger motor assembly removal
1. Remove top cover.
2. Remove one thumbnut on rear of motor bracket.
3. Lift motor bracket up and unplug electric
quick disconnects.
4. Remove motor assembly.
10
solenoid
quick
release
pin
gate
Disassembly instructions for periodic cleaning
Dispense assembly, top view
right-hand unit
Front view
right-hand unit
dispense
chute
drain pan
assembly
chute
cover
top cover
ice chute
Fig. 1
Fig. 2

Service
Disassembly instructions for service requirements only – NOT required for
any cleaning procedure
Dispense wheel motor removal (Fig. 3)
1. Remove drain pan, bin access cover and dispense wheel.
2. Remove stainless steel baffle plate under dispense wheel.
3. Remove two screws holding wheel motor bracket on bin.
4. Lift plate and motor up.
5. Unplug electric quick disconnects from motor.
6. Lift motor and mounting plate out front access opening.
11
2
wheel
motor
baffle
plate
wheel motor
mounting plate
dispense wheel
auger tube
auger
auger motor
(side view)
auger bearing
plate
stationary
agitator
rotating
agitator
front viewside view
Fig. 3

Blk
Blk
COUNTERCLOCKWISE ROTATION
COUNTERCLOCKWISE ROTATION
Red Yel
Red
Red
SWITCH NO. 1
SWITCH NO. 2
IM_#2
IM_#1
AutoFill Timer
24 Volts
R1
Blu
T-STAT
BIN
22
Red
33
96
18 MIN OFF
5 SEC ON
2
NO
C
DISPENSE RELAY
DISPENSE SWITCH
Brn
DISPENSE SOLENOID
Yel
Brn
3
1
AUTOFILL RELAY
BA
R2 Yel
Yel
DISPENSE RELAY
BR1 A
Yel
EU155N
Right hand
dispenser
Right or
left hand
dispenser
BLK
Blk
POWER
L1
Orn Pur RedRed
Pur
R2
220 Volts
1
T1
Orn
9
AUTOFILL R2
Pur
AUTOFILL
47
7
Blu
6
Blu
Blu
Red
WHEEL
Red M2
Blu
M1
WATER SWITCH
DISPENSE RELAY
R1
Orn
CNO WATER SOLENOID
AUGER MOTOR
TERMINAL STRIP CONNECTION
PIN and SOCKET CONNECTION
LEGEND:
CLOCKWISE ROTATION
CLOCKWISE ROTATION
EU155N
Left hand
dispenser
Wht
Orn Pur
Wht
Wht
71
R2
Orn 6
AUTOFILL
9
AUTOFILL R2
Pur
4 7
Pur
L2
Wht
R1
DISPENSE RELAY
Orn
Wht
Blk
RedRed
Blu Blu
BlkRedRed M2
WHEEL
Blu Blu
M1
Wht
AUGER MOTOR
PL2-1 PL2-2
PL2-3
PL3-2
PL3-1
PL3-3
PL2-1
PL2-3
PL2-2
PL3-2
PL3-1
PL3-3
Blk
white
SWITCH SWITCH
white
TOP LID
CNO
white
DRAINPAN
CNO
SWITCH
REAR LID
CNO
interlock relay
R3
B
Yel
A
INterlock RELAY
7
R3
4
Ice Machine 2
BIN SIGNAL
to
WHITE
BLACK
BIN SIGNAL
Ice Machine 1
to
BLACK
WHITE
Blu
Wiring diagrams
12

13
Symptom
Ice does not dispense.
• Auger motor does not run
• Wheel motor does not run
Ice does not dispense.
• Auger motor runs
• Wheel motor runs
• Gate does not open
Ice does not dispense.
• Auger motor does not run
• Wheel motor runs
Ice does not dispense.
• Auger motor runs
• Wheel motor does not run
No ice in dispenser.
Possible cause
1. Power switch faulty or in OFF
position; loose connection.
2. Faulty dispense switch.
3. Faulty transformer.
4. Drain pan ajar.
5. Faulty drain pan safety switch.
1. Loose electrical connection.
2. Linkage problem between
solenoid and gate.
3. Faulty solenoid.
1. Loose electrical connection.
2. Faulty auger motor.
3. Faulty run capacitor.
1. Loose electrical connection.
2. Faulty wheel motor.
3. Faulty run capacitor.
1. Power switch in OFF position or
faulty.
2. Bin signal switches in OFF
position or faulty.
3. Faulty bin t-stat.
4. Faulty transformer.
5. Icemaker related problem.
6. Faulty run capacitor.
Solution
1. Turn power switch to ON position;
check connections.
2. Replace switch.
3. Replace transformer.
4. Check pan and reseat.
5. Replace switch.
1. Check connections.
2. Check linkage.
3. Replace solenoid.
1. Check connections.
2. Check auger motor.
3. Check run capacitor.
1. Check connections.
2. Check wheel motor.
3. Check capacitor.
1. Check switch and replace if
necessary.
2. Check switch and replace if
necessary.
3. Replace bin t-stat.
4. Replace transformer.
5. Refer to icemaker Operation and
Service Manual for diagnosing.
6. Check for power and bin signal on
icemaker PC board.
Dispenser troubleshooting guide
Before calling for service
1. Check that there is ice in dispenser and that congealed cubes are not causing a jam.
2. Check that circuit breaker and switches are in “ON” position.
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off,
auger does not operate, even though the solenoids do.
4. Check that all drains are clear.
Note: For units equipped with Follett compressed nugget icemaker, see Icemaker Operation and Service
Manual for service and troubleshooting information.
If problems persist after following this basic troubleshooting guide, call Follett’s
technical service department at [phone].

Reference # Description Part #
1Label, “Follett” 502438
2Top cover (includes label and magnet) 502905
3Drain pan (includes magnet) 502903
4Grille, drain pan 502450
5Cover, electrical components 502902
6Lid, rear access (includes magnet) 502904
Not shown Cover, ice storage (under drain pan) 502453
7Label, ice, dispense cover, push button 502623
8Label, water, dispense cover, push button 502617
9Cover, dispense chute, push button operation (includes button and label), ice 502440
10 Cover, dispense chute, push button operation (includes button and label), water 502440
11 Chute, focus, clear plastic 502459
Not shown Push pin, clear chute 502610
12 Switch, push button operation, for ice (includes label) 502441
13 Splash shield, right hand unit 502612
Not shown Splash shield, left hand unit 502613
14 Thumbscrew, splash shield, 10-32 x 1/2 501100
Not shown Panel, access, right hand and left hand units 502907
16 Panel, wrap, right hand unit 502909
Not shown Panel, wrap, left hand unit 502908
Not shown Panel, rear, motor support, right hand unit 502586
Not shown Panel, rear, motor support, left hand unit 502587
Not shown Clip, Tinnerman, 10-32 502621
Not shown Screw, 10-32 x 1/2 502287
Not shown Legs, 153mm adjustable to 229mm, set of 4 502454
17 Switch, water dispense, push button operation (includes label) 502648
Not shown Plug 2 lead, male 502333
Not shown Plug 2 lead, female 502334
Top view
unit with right hand (RH) tower Front view
right hand (RH) tower
(push button dispensing)
14
Dispenser exterior
Replacement parts
5
4
2
1
3
13
3
14
10
7
11
17
68
15
12
9
16
17
4

Dispense assembly side view
(RH unit shown)
Reference # Description Part #
1Gate, dispense 502455
2Linkage pin, gate/solenoid 502456
3Pin, quick release, 141mm, dispense gate 502102
4Solenoid (includes linkage pin) 00120295
5Dispense mechanism assembly, right hand unit 502458
Not shown Dispense mechanism assembly, left hand unit 502496
6Spring, dispense mechanism (1 per side) 501950
7Chute, ice 502457
8Wrap, dispense mechanism 502607
9Bushing, Ni liners 501249
10 Screw, 8-32 x 5/16 502625
11 Pin, spring 502624
15
5
Dispense assembly – side view
top view
1
2
3
4
6
7
8
9
10
11
9

16
2
Reference # Description Part #
1Auger, LH unit (black, stamped with “1”) 502491
Not shown Auger, RH unit (gray, stamped with “2”) 502492
2Plate, auger bearing 501696
Not shown Tube, auger, right hand unit 502487
Not shown Tube, auger, left hand unit 502488
3Wheel, dispense (includes stud and rotating agitator) 501681
4Baffle (under dispense wheel) 501684
Not shown Drive bar (under dispense wheel) 501682
5Motor, vertical auger 502889
6Motor, wheel 502890
Not shown Seal, wheel motor 501333
Not shown Spacer, wheel motor 501768
Not shown Capacitor, wheel motor 502891
7Agitator, rotating, 534mm long 502484
8Plate, wheel motor mounting 502615
9Agitator, stationery 502490
Not shown Bracket, ice tube, double tube 502497
Not shown Ice transport tube (sold by the foot) 500366
Not shown Ice transport tube, 10 ft 502522
Not shown Ice transport tube, 20 ft 502523
Not shown Insulation, transport tube (sold by the foot) 501176
10 Coil, plain water 502461
11 Tubing, water (sold by the foot) 502356
Not shown Cover, blank ice entry 502674
Not shown Gasket, ice entry 502672
Not shown Plate, ice entry, 2 holes 502673
Hopper – side view
9
6
7
4
8
3
1
5
2
10
left-hand unit shown
11

17
Reference # Description Part #
Auger motor/drive assembly, vertical (includes all items below) 502893
1Motor, vertical auger (includes gearbox and capacitor) 502889
2Chain, auger drive #35, 40p 502477
3Sprocket 35#, 22T 5/8 bore 502478
4Sprocket 35#, 12T 5/8 bore 502479
5Drive shaft 502480
6Bearing, auger, upper and lower 501314
7Cover and bearing, chain drive (includes 501314) 502912
8Capacitor, 25mf, 270V 502892
9Key, Woodruff 502482
10 Washers, thrust (4) 501765
11 Mounting plate, auger motor (includes 501314) 502913
Auger motor
7
6
1
8
4
3
2
11
10
5
side view top view
9
6

Reference # Description Part #
1Transformer, 24V 502885
2Relay, dispense 501826
3Relay, auto fill 501826
4Timer, auto fill (automatic fill units) 502471
5Strip, terminal 502472
6Tube, water dispense, stainless steel 502356
7Bracket, water solenoid 502611
8Fitting, outlet, 1/8 MPT x 3/8, compression 502562
9Valve, solenoid, water 208103
10 Fitting, inlet, plastic, 1/4 barb 502637
11 Tubing, water (sold by the foot) 502356
13 Switches (power and icemaker) 502209
14 Bracket, switch mounting, RH (power and icemaker) 502914
Not shown Bracket, switch mounting, LH (power and icemaker) 502906
15 Chute, focus, clear plastic 502459
Not shown Thermostat, bin level 501432
Not shown Magnetic switch 502887
(1) one located under top cover
(2) two located under electrical component cover
Not shown Magnets 502888
(2) two located on drain pan
(1) one located on top cover
(1) one located on rear cover
Electrical components
18
11
1
5
24 3 7 6 15
9
13
14
15
6
8
9
10
11
7

Cool Ideas For Ice Managemen
t
00120303R00
10/03
801 Church Lane • PO Box D, Easton, PA 18044
[phone] • FAX [phone] • www.follettice.com
®
