INSTALLATION AND
MAINTENANCE MANUAL
Alcor FDR
Aluminium electric
radiators with heat
transfer fluid
GB
IST 03 F 042 - 01

2
Dear customer,
Thank you for choosing our product. Read this manual carefully before installing your radiator, as it provides useful information for
installation, use and proper maintenance of the appliance.
Remember that this manual must accompany the radiator should it be moved to a different installation location.
THE PACKAGE INCLUDES:
Aluminium radiator fitted with a thermostat with electronic regulation, kit made up of three mounting brackets with wall plugs and
instruction manual.
CONTENTS
1. CHARACTERISTICS ................................................................................................................................................................................................................................. Page 3
2. DESCRIPTION AND TECHNICAL SPECIFICATIONS OF THE PRODUCT.................................................................................................................................... Page 3
3. WARNINGS ................................................................................................................................................................................................................................................ Page 4
4. INSTALLATION ......................................................................................................................................................................................................................................... Page 4
5. ELECTRICAL CONNECTIONS ............................................................................................................................................................................................................... Page 7
6. REGULATION AND PROGRAMMING ................................................................................................................................................................................................ Page 8
7. CLEANING THE RADIATOR ................................................................................................................................................................................................................... Page 12
8. TROUBLESHOOTING .............................................................................................................................................................................................................................. Page 13
9. ENVIRONMENT......................................................................................................................................................................................................................................... Page 13
10. DECLARATION OF CONFORMITY ................................................................................................................................................................................................... Page 14

3
1. CHARACTERISTICS
1.1. Characteristics of the appliance
IP24: appliance protected against splashing water
Class I
1.2. Technical characteristics of the electronic part
Power supply 230 V +/-10% CA 50 Hz
Electrical resistor capacity Mod. FD5103 350 W
Mod. FD5106 600 W
Mod. FD5108 800 W
Mod. FD5110 1000 W
Mod. FD5112 1200 W
Mod. FD5115 1500 W
Mod. FD5118 1800 W
Insulation class Class I
Water protection rating IP24
Operating temperature 0 ÷ 40°C
Storage temperature -20 ÷ 80°C
Relative humidity RH 0 ÷ 85% without condensate
Regulation type Proportional integral
Temperature range 7° ÷ 35°C
Temperature reading resolution 1/16°C
Maximum range 0.5°C
Maximum deviation 1.5 °C
Radio Frequency 433,82 MHz
2. DESCRIPTION AND TECHNICAL SPECIFICATIONS OF THE PRODUCT
The radiator has a die-cast EN AB 46100 aluminium alloy body containing a fluid to transmit heat internally. This fluid is made up of highly refined
mineral oil with a high heat transmission coefficient, characterized by high oxygenation resistance for durability and low viscosity.
The internal fluid is heated by means of an electrical resistor with class I insulation, which has a control thermostat and safety thermal fuse.
The control and regulation electronics make it possible to regulate the ambient temperature with great precision.
This radiator is provided with an antenna and can be programmed with the help of a Remote Control
(optional accessory).
On the left-hand side there is a receptacle for distilled water used to humidify the environment.
NB: All Fondital radiators are manufactured with an identifying label which guarantees their traceability.
This label certifies that the appliance complies with European directives and electrical standards.
The appliance must be installed according to accepted practice, in accordance with current standards and the instructions contained in this
manual.
Radiator colour: RAL 9010.

4
3. WARNINGS
A label on the side of the radiator contains the symbol shown here. The meaning of this symbol is:
In order to avoid overheating the appliance, DO NOT COVER THE RADIATOR with clothing, pieces of cloth or other objects.
The radiator must never be:
- partially or totally covered
- in direct contact with or a short distance from curtains, furniture, etc.
The radiator must never be installed:
- in an alcove
- less than 10 cm. from the corners of the room
- beneath a power point
- on a shelf
The radiator must be mounted on the wall using the standard mounting brackets included.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsibke for their safety.
Children should be supervised to ensure that they do not play with the appliance.
All work required on the appliance must be performed by a qualified professional.
Repairs which require opening the liquid reservoir must be made by the manufacturer, its representatives or customer service.
4. INSTALLATION
To obtain the best results from your appliance in terms of thermal output and comfort, whenever possible we recommend installing the radiator
under a window or near areas of the space to be heated with high thermal dispersion.
The radiator must not be installed in an alcove or beneath a power point.
Curtains, furniture and objects which may obstruct proper heat distribution must be placed a minimum of 50 cm. from the front of the radiator.
Maintain a minimum space of 120 mm between the lower part of the radiator and the ground.

5
4.1. Mounting the radiator to the wall
The radiator can be mounted on the wall using the mounting brackets included with the appliance. The mounting system consists of:
When mounting, follow the steps illustrated below:
x2x2
x2
x3
x1
x3
x3
1 2
Number of sections
3/350W 5/600W 6/800W 7/1000W 9/1200W 11/1500W 12/1800W
Dimension A 80 160 160 240 320 400 400
Dimension B 80 80 160 160 240 320 400
Dimension C 500 500 500 500 500 500 500

6
3 4
5 6
7
The step shown in illustration 6 can only be
considered finished when the lower screw has been
completely tightened and the radiator is firmly fixed
to the wall, with no possible movement.
The minimum distance between the radiator and the floor must be
120 mm in all cases.

7
5.1. Details of bathroom installation
The appliance must be installed according to current regulations and laws in force in the country of use.
The radiator is class I and has IPX4 electrical protection. In bathrooms, it can be installed in areas 2 and 3 (see figure 1) provided that the control
device is not within reach of people using the shower or bathtub.
The radiator must not be connected to the earth lead.
In the bathroom, protect the power line with a 30 mA high sensitivity differential device.
Install a multi-pole circuit breaker. The distance between the contacts must be at least 3 mm.
2,25 m
fig. 1
AREA 0
AREA 0
AREA 1
AREA 2
AREA 3
5. ELECTRICAL CONNECTIONS
Important: When installing, or cleaning your Vantage Electric Radiator, it must be disconnected from the power supply.
The Vantage Electric Radiator must be connected only to a 230/240v AC power supply.
A multi-pole circuit breaker must be installed. The distance between the contacts must be at least 3 mm. The appliance’s power circuit must be
protected by a high sensitivity differential protection device.
The radiator is supplied with a 3-pin plug and allows phase, neutral and ground connections.
The electrical equipment must be provided with grounding.
Never insert metal objects into or attempt to pierce the side of the radiator containing the regulation system (right side).If the power cord is
damaged, it must be replaced by a qualified electrician only.

8
6. REGULATION AND PROGRAMMING
IMPORTANT: When using a Remote Control please refer to the instructions provided with the Remote Control itself.
6.1. Turning the radiator on
The appliance is regulated using four keys, as shown in the figure. When the appliance is in stand-by mode, the black dot on the screen will blink. To
turn the radiator on, press the‘on/off’ key, as shown in the following figure:
The radiator has various operating modes, as shown in the table on page 13.
When the radiator is in clock mode, the screen shows the time; in the other modes it shows the programmed temperature. A small icon indicates the
current mode.
There is an LED light on the control panel: when the system is in heating mode and the room temperature has not yet reached the desired
temperature programmed by the user, the LED is RED. Once the room reaches the programmed temperature, the LED turns GREEN.
6.2. Changing the mode
Press the‘mode’key to select the desired mode:
ICON INDICATING THE
SELECTED MODE
PROGRAMMED TEMPERATURE
LED

9
6.3. Programming TH and TL temperatures
It is possible to set two separate temperature levels: TH is the desired ambient temperature during operation in Comfort and Pilot Wire mode or
when programming; TL is the ambient temperature in Night-time Reduction mode.
These two temperature levels can be set using the plus and minus keys. A blinking temperature icon on the screen indicates that the temperature is
being set.
TH can be set in Comfort mode, TL can be set in Night-time Reduction mode.
The two temperature levels are also used when programming:
02468101214161820
TL
TH
TH is the desired ambient temperature during the time periods selected; TL is the (reduced) desired temperature outside the selected time
periods.
6.4. Child lock
The appliance can be locked to prevent improper or accidental use, to protect children, for example. In order to activate the lock, press and hold
the plus and minus keys at the same time for three seconds: the keypad will be locked.
In order to unlock the keypad, press and hold both the plus and minus keys again for three seconds.
THERMOMETER
THIS ICON INDICATES THAT
THE APPLIANCE IS LOCKED.
TIME
TEMPERATURE

10

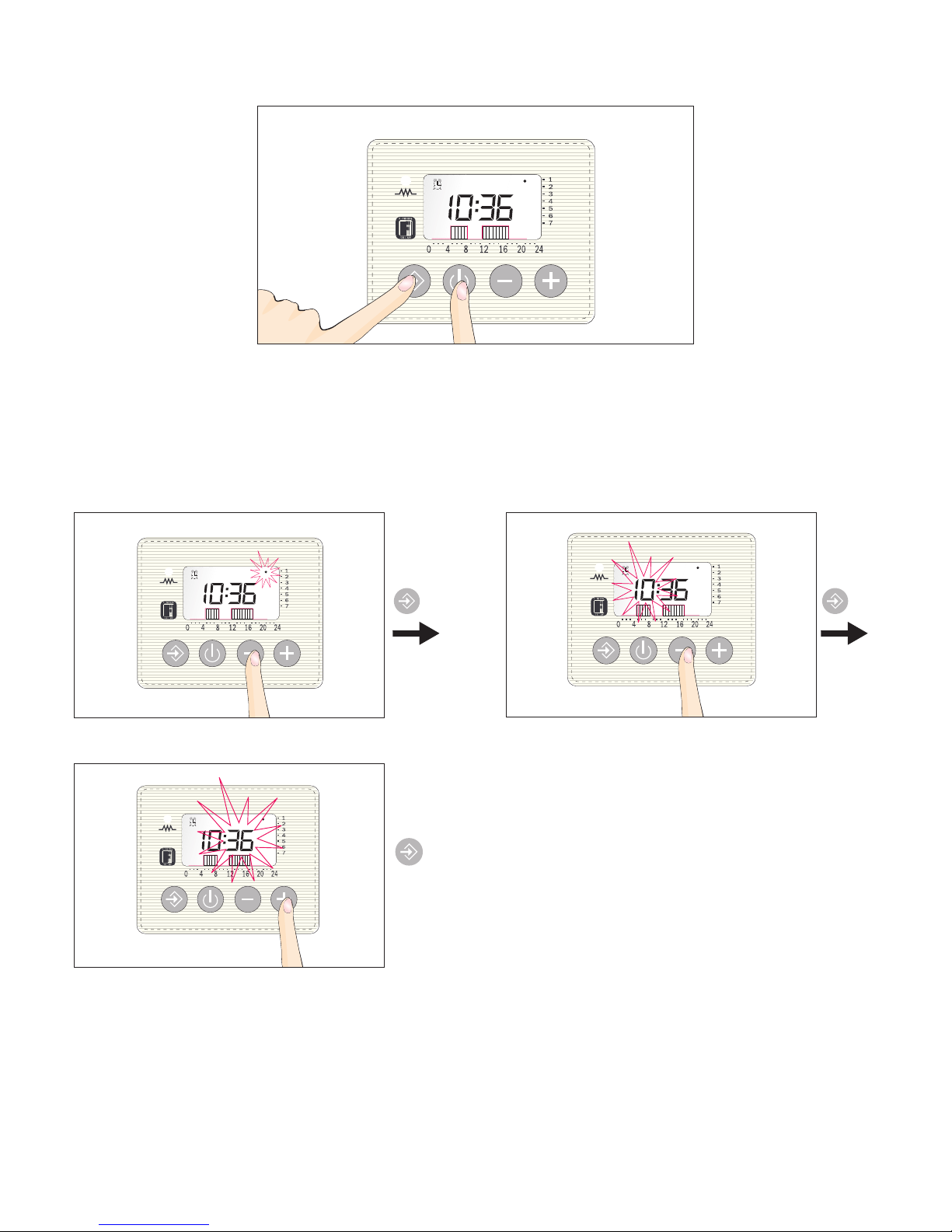

6.5. Setting times and weekly programming
Press the‘stand-by’ and ‘mode’keys at the same time and hold for three seconds.
You can now assign a setting to each day of the week. When a segment appears between two times on the programming bar (at the bottom of the
screen), this indicates that the TH temperature level has been selected for this period. The absence of a segment indicates that during this period,
the radiator will keep the temperature at the TL level.
Starting from day 1, select the times when the TH temperature is desired. Pressing the + key activates the segment on the screen, and therefore TH
as well. Pressing the - key deactivates the segment and the programmed temperature will be equivalent to the TL level.
A dot will blink on the screen next to the days of the week. The current day can be selected using the plus or minus key. Use the‘mode’key to confirm
the selection.
The number corresponding to the hour will blink. Set the correct time using the plus and minus keys. Confirm the selection with the ‘mode’key.
The number corresponding to the minutes will blink. Set the correct minutes using the plus and minus keys. Confirm the selection with the ‘mode’key.
DAY SETTING HOUR SETTING
MINUTE SETTING

11
02468101214161820
TL
TH
6.6. Description of operating modes
6.6.1. Programming mode
In this mode, the ambient temperature remains at the TH or TL level, depending on the times set by the user.
04 812 16 20 24
Confirm the selection using the ‘mode’key.
This same process must be repeated for each day of the week (1-7).
6.6.2. Pilot Wire mode (for radiators installed in France only)
This mode enables the user to control the radiator from a remote location.
1. Press the‘mode’key until the screen displays the icon
2. Select the desired temperature using the + and - keys. The operating mode will be selected by the Pilot Wire control centre.
6.6.3. Comfort mode
This is the normal mode when the radiator is in use, keeping the ambient temperature at the programmed level.
1. Press the‘mode’key until the screen displays the icon
2. Select the desired temperature using the + and - keys.
6.6.4. Night-time mode
When this operating mode is selected, the radiator will keep the ambient temperature at the programmed TL temperature. The desired TL
temperature is programmed as follows:
1. Press the‘mode’key until the screen displays the icon
2. Select the desired TL temperature using the + and - keys.
6.6.5. Anti-freeze mode
When this mode is selected, the ambient temperature will not drop below 7ºC.
6.6.6. Stand-by mode
The radiator is in stand-by mode.

12
7. CLEANING THE RADIATOR
For safety reasons, disconnect the power supply before cleaning the appliance.
Cleaning must be done when the radiator is turned off and is cold.
Do not use abrasive or corrosive products to clean the body: use soapy water, for example, and dry the external casing with a soft cloth.
Clean plastic parts, controls and the humidifier with a dry cloth only and avoid contact with chemicals or alcohol.
Summary of operating modes:
Mode Description
Setting: Daily and weekly programming which sets the two temperature levels (Comfort and Night-time) defined by the user
for each time of day
Pilot wire:
The temperature depends on the Pilot Wire control (for radiators installed in France only)
Stand-by:
The receiver is in stand-by
Comfort:
Comfort status and the temperature which the environment must be kept at are transmitted
Night-time
Night-time status and the temperature which the environment must be kept at are transmitted
Anti-freeze:
Minimum safety temperature: a fixed value equivalent to 7ºC is transmitted
Keypad lock:
Pressing on the keypad does not change functions; the keypad is not active
Err S The temperature sensor is broken

13
8. TROUBLESHOOTING
If the appliance stops working, do not use it: disconnect from the power supply and contact only a qualified technician who is authorized to work
on this type of product.
This appliance has been filled with an exact quantity of mineral oil.
Repairs which require opening the liquid reservoir must be made by the manufacturer, its representatives or customer service.
The manufacturer accepts no responsibility for harm to persons, animals, and objects which may result from untrained handling of or improper
work on the radiator.
TABLE OF TECHNICAL PROBLEMS:
PROBLEM RADIATOR STATUS POSSIBLE CAUSE SOLUTION
The radiator does not heat up LCD not lit Lack of power supply Verify that power is flowing to the
appliance
The radiator does not heat up LCD lit in Set mode The radiator is set for the night-
time level Check programmed settings
The radiator does not heat up LCD lit in Comfort or Set mode Malfunction in the electrical
resistor or regulation board
Contact technical support for
repair
The radiator does not heat up LCD lit in Comfort / Set / Night-
time or Anti-freeze mode
The ambient temperature is
higher than the programmed level
Check the temperature
programmed
The room does not get hot enough
in Comfort mode LCD lit in the desired mode The radiator is not large enough for the size of the room
Replace the radiator with one
with greater output
Ineffective ambient temperature
regulation Err S The temperature sensor is broken Contact technical support for repair
The radiator is leaking oil Any Defect in the body or improperly
closed connections
Contact technical support for
repair
9. ENVIRONMENT
The symbol placed on the appliance and shown here indicates that the product is subject to separate collection of electrical
appliances.
At the end of its useful life, it cannot be disposed of together with common municipal solid waste, but must be disposed of at a specific
collection centre for the area or be given to the distributor when a new appliance of the same type is purchased for the same use.
Separate collection of electrical and electronic appliances is part of a policy aimed at defending, protecting and improving the quality
of the environment, and at limiting the harmful effects on human health caused by the presence of substances considered hazardous
according to the classification applied in European directives.
Warning! Improper disposal of the appliance is subject to penalties.
When disposing of the radiator, respect current regulations and laws for discarding the oil.

14
DECLARATION OF CONFORMITY
With the present,
FONDITAL S.p.A.
with headquarters at
via Cerreto 40, 25079 Vobarno (BS), Italy
hereby declares that the
ELECTRICAL RADIATORS
FOR HEATING
Models
ALCOR FDR
manufactured by FONDITAL S.p.A.
are manufactured in accordance with European directives
- DIRECTIVE 2006/95/CE of 12 December 2006 on the harmonisation of the laws of Member States relating to Electrical
Equipment designed for use within certain voltage limits (low voltage)
- DIRECTIVE 2004/108/CE, for electromagnetic compatibility
- DIRECTIVE 2002/96/CE of 27 January 2003 on waste from electrical and electronic equipment (WEEE).
And in accordance with the following harmonized regulations:
- EN 60335-1: safety of electrical equipment for domestic or similar uses. General regulations.
- EN 60335-2-30: safety of electrical equipment for domestic or similar uses. Part 2: Specific regulations for electrical
heating appliances for premises.
- EN 55014-1: 2000 + A1: 2001 + A2: 2002
- EN 61000-3-2: 2000
- EN 61000-3-3: 1995 + A1: 2001
- EN 55014-2: 1997 + A1: 2001
- EN 61000-4-2: 1995 + A1: 1999 + A2: 2001
- EN 61000-4-4: 1995 + A1: 2001 + A2: 2002
- EN 61000-4-5: 1995 + A1: 2001
- EN 61000-4-6: 1996 + A1: 2001
- EN 61000-4-11: 1994 + A1: 2001
09/04/13
10. DECLARATION OF CONFORMITY

15

16
FONDITAL S.p.A.
25079 VOBARNO (Brescia) Italy - Via Cerreto 40
Tel. [phone] - Fax [phone]
e mail: [e-mail] - www.fondital.it
The manufacturer reserves the right to modify the products
as it deems necessary and useful, without affecting their basic features.
Uff. Pubblicità Fondital IST 03 F 042 - 01 Aprile 2013 (04/2013)
0ZLIBIST57
