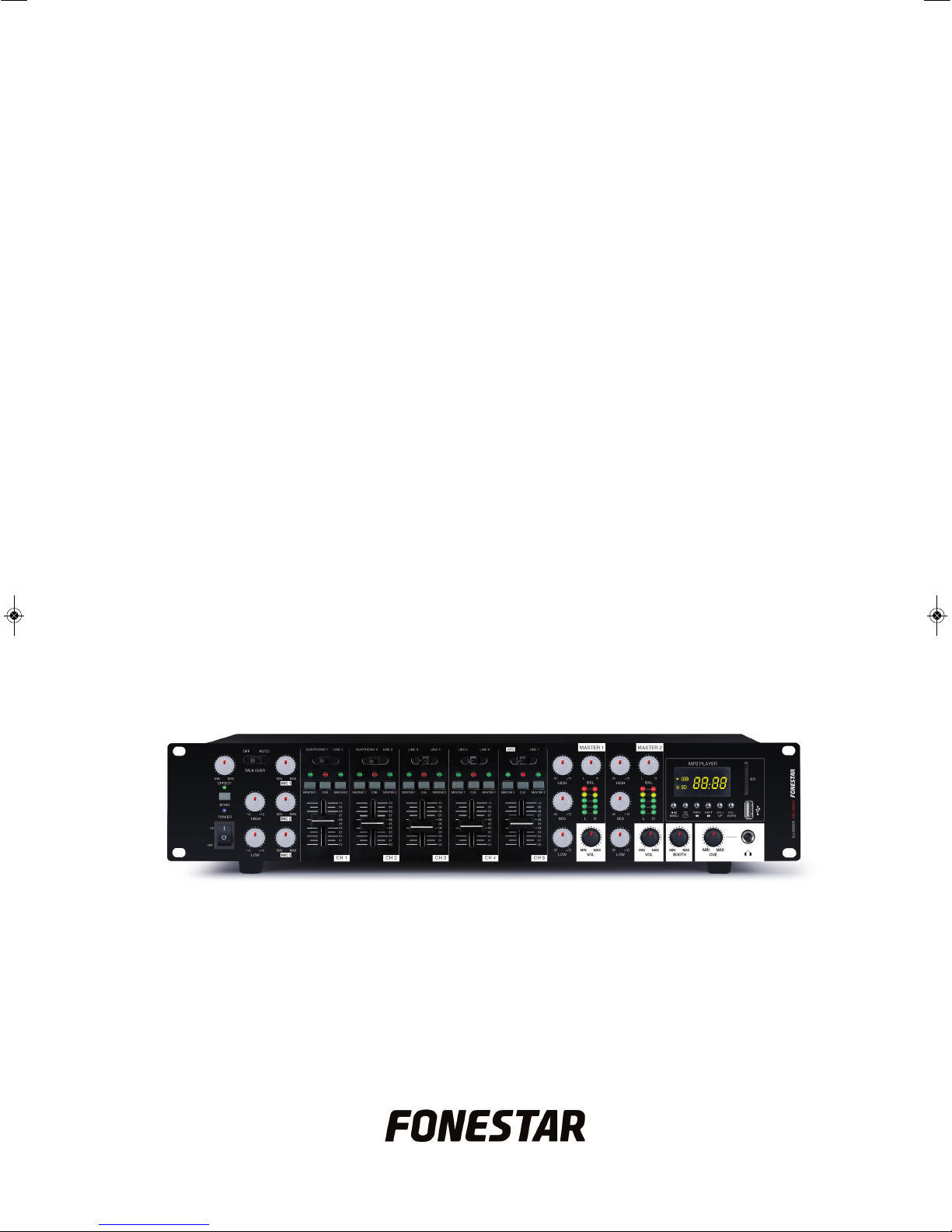

FONESTAR SM-1860U User manual

SM-1860U
PROFESSIONAL MIXER WITH
USB/SD/MP3 PLAYER
INSTRUCTION MANUAL
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 1

We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SEC RITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
- 2-
EN
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 2

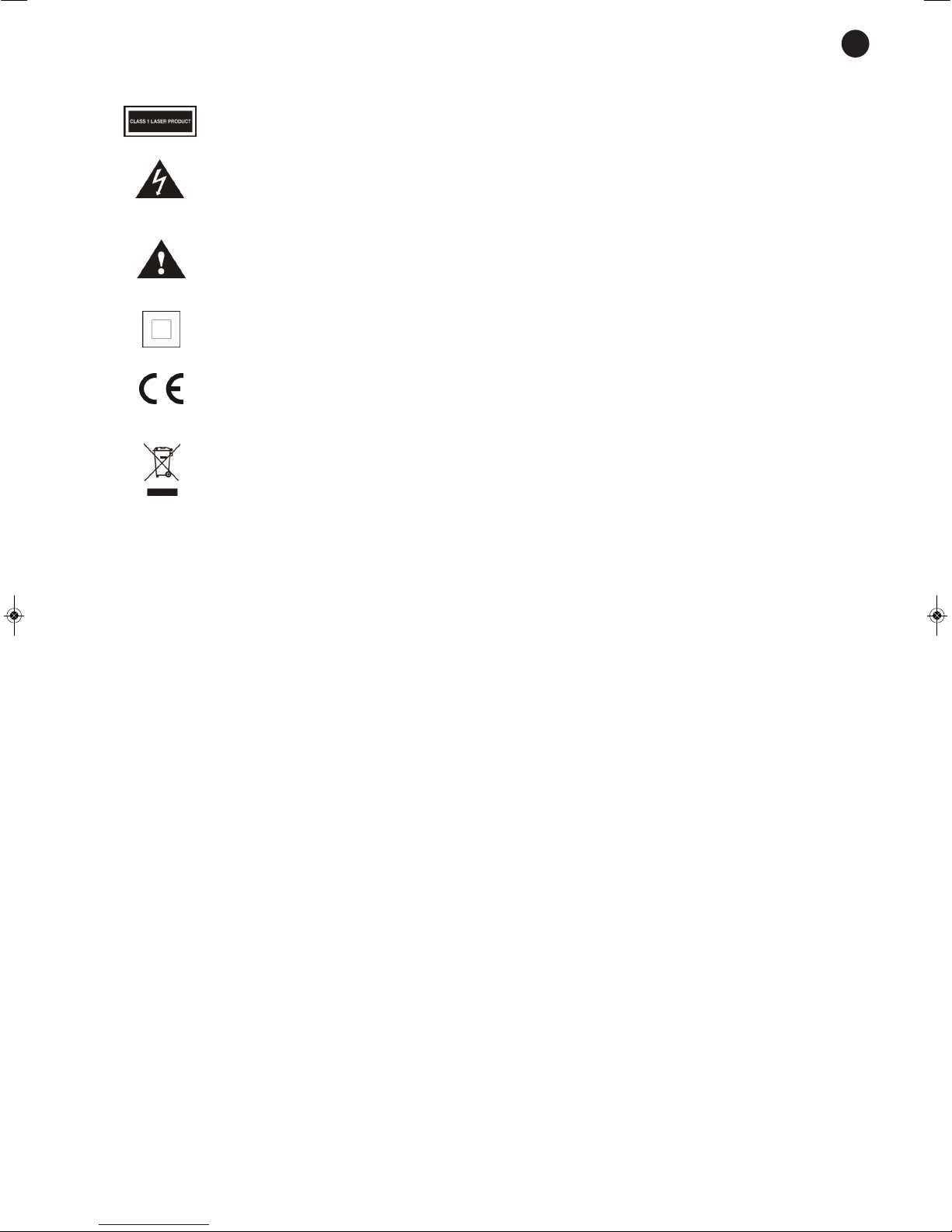

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
- 3-
EN
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 3

DESCRIPTION
Professional mixer with 12 inputs, 8 channels, assignable to 2 master outputs with independent volume
control. USB/SD/MP3 player and connection to PC as a USB audio device.
CONTROLS AND F NCTIONS
FRONT PANEL
1.- EFFECT: volume control which regulates the intensity of the ECHO effect.
2.- LED ECHO power indicator.
3.- ECHO: pressing this button activates the ECHO effect in the 3 microphones.
4.- POWER: Mixer LED power indicator.
5.- Mixer on/off switch.
6.- TALK OVER: power switch for the talkover function. When the AUTO option
is selected, the talkover function is automatically activated when a signal is
detected in the MIC 1 input. This function attenuates the level of the CH1
to CH 5 channel inputs.
7.- HIGH, LOW: tone controls. Equalizers that control the bass and treble
levels from the MIC 1, MIC 2 and MIC 3 microphone inputs. Controls with
a gain of ±12 dB.
HIGH: high-pass filter with cut off frequency of 10,000 Hz.
LOW: low-pass filter with cut off frequency of 100 Hz.
8.- MIC 1, MIC 2, MIC 3: microphone volume controls.
9.- Input selectors: allow selection of input source in each channel.
10.- LED indicator that lights up when the CUE control has been activated.
11.- LED indicators that light up when the MASTER 1 and/or MASTER 2 controls have been activated.
12.- MASTER 1, MASTER 2: buttons that assign each input signal individually to the master outputs.
13.- C E: activates cueing in the corresponding channel through the headphones.
14.- Sliding volume control: controls the volume level of each channel.
EN
- 4-
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 4

EN
- 5-
15.- LOW, MID, HIGH: master output tone controls. Equalizer for
adjusting the bass, mid and treble levels of each of the
MASTER 1 and MASTER 2 outputs.
16.- BAL: allows the balance of the final mix from the MASTER 1
and MASTER 2 outputs to be adjusted.
17.- LED indicators showing the level of the final mix from the
MASTER 1 and MASTER 2 outputs.
18.- VOL ME: MASTER 1 and MASTER 2 outputs volume control.
19.- USB/SD/MP3 player module:
12/MEN : a short press of this button stops current
playback. Press the button again to restart playback. A long
press of this button opens the configuration menu on the
MP3 player module.
EQ/REPEAT: a short press of this button allows changing
among the different equalizations. Likewise, a long press
allows changing among the different playback modes
(REPEAT 1, REPEAT FOLDER, REPEAT ALL, RANDOM).
PREV/5: in playback mode, a short press of this button rewinds to the previous track in the storage
device connected. A long press quickly rewinds the track currently being played.
NEXT/6: in playback mode, a short press of this button forwards to the next track in the storage device
connected. A long press fasts forwards the track currently being played.
VOL+/VOL-: MP3 player module volume controls.
20.- BOOTH: BOOTH output volume control. The booth signal is a mix of the master output signals.
21.- C E: headphone output volume control.
22.- Headphone output, 6.3 mm stereo jack connector.
23.- Port for connecting USB flash drives and storage devices.
24.- SD: SD memory card connection slot.
MP3 PLAYER MEN
1.- Music: player access.
2, 3.- PC connection. Allows playback of audio files from the computer. Connect the computer via the USB
port and use it to play the audio files contained in it (PC connection) or in the memory card (SD).
4.- System configuration: allows the following parameters of the mixer to be consulted/modified: contrast,
language and version.
Access each menu with the 12 button, navegate through the options using the 7/8buttons and select the
required option with the 12 button.
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 5

REAR PANEL
1.- AC SELECT: power supply voltage selector.
2.- AC socket: to connect the mains supply cable.
3.- MASTER 1 BALANCED O TP T: line level balanced output MASTER 1 corresponding to the final mix,
2 x XLR connector.
4.- MASTER 2: line level unbalanced output MASTER 2, 2 x RCA connector.
5.- MASTER 1: line level unbalanced output MASTER 1, 2 x RCA connector.
6.- BOOTH: line level unbalanced output BOOTH. The BOOTH output is the mix of the two master outputs,
2 x RCA connector.
7.- REC: line level recording output. The REC output is the mix of the two master outputs and the volume
control does not affect it. 2 x RCA connector.
8.- Stereo line level inputs for channels CH 3 to CH 5. Allows the connection of players with line level
output, 2 x RCA connector.
9.- Stereo line level and phono level inputs for channels CH 1 and CH 2. Allows the connection of players
with line level and phono level output respectively, 2 x RCA connector.
10.- PHONO/A X: selectors for choosing the type of input for the CH1 and CH2 channel phono/aux
connectors.
11.- GND: mixer earth.
12.- MIC 1: balanced microphone input, combo connector (XLR and 6.3 mm stereo jack).
13.- MIC 2, MIC 3: balanced microphone inputs, XLR connectors.
- 6-
EN
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 6

CONNECTION
- Before making any connections, make sure that all equipment has been switched off and disconnected
from the mains.
- Check that all the sliding volume controls for each channel and the MASTER output level controls are
at their minimum.
- Connect the players to the CH 3 to CH 5 channel inputs.
- Connect the players with aux line level output (such as CD players) to the AUX input in channels CH 1
and CH 2 and place the input level selector in the AUX position.
- Connect the turntable to the PHONO inputs in channels CH 1 and CH 2 and place the input level selector
in the PHONO position. If your turntable has an earth connection, connect it to the GND terminal on the
rear panel.
- Connect a USB device or an SD memory card with MP3 files to the corresponding port on the MP3
player.
- Connect the balanced or unbalanced MASTER output to a line level input on an amplifier or power
amplifier. If you wish, you can connect the BOOTH output to monitored or autoamplified loudspeakers.
- Connect the equipment to the power supply.
- Switch the equipment on in this order: firstly the players, then the SM-1860 mixer and finally the
power amp or amplifier.
- Adjust the level of each channel using the sliding control and press the selector of the output you want
to send it to.
- 7-
EN
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 7

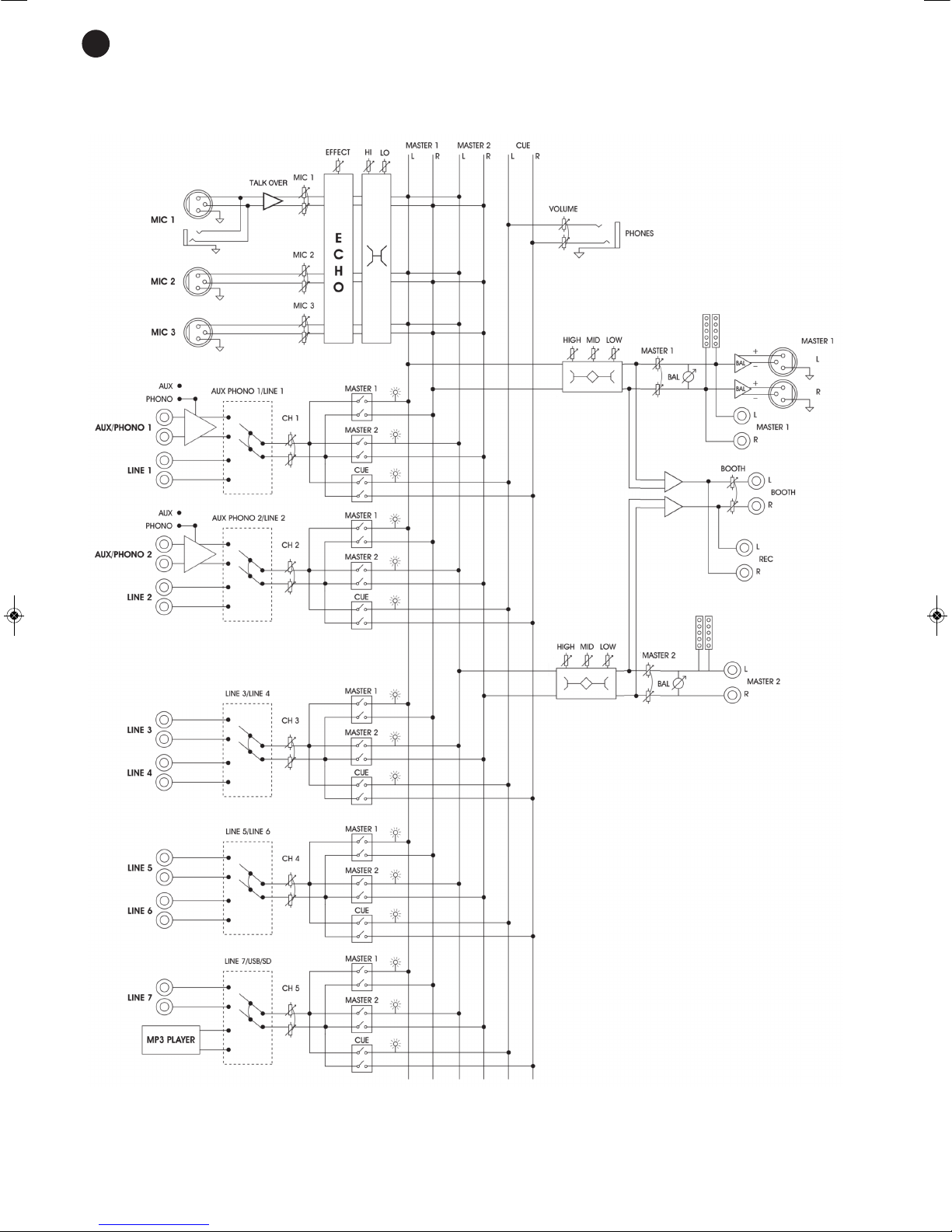

BLOCK DIAGRAM
EN
- 8-
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 8

TECHNICAL SPECIFICATIONS
SM-1860
CHARACTERISTICS Professional mixer with 12 inputs, 8 channels, assignable to 2 master outputs
with independent volume control.
USB/SD/MP3 player.
SB PLAYER MP3 files are played from USB/SD or from the PC
USB port for USB flash drive connection and connection to PC as an audio USB
device
SD card reader
ID3 tag
INP TS 1 balanced mic. combo (XLR and 6.3 mm jack), 1,700 Ω 4 mV, 2 balanced mics.,
XLR, 1,700 Ω 4 mV
7 unbalanced stereo lines 22,000 Ω 100 mV and 2 phono/aux 2 x RCA 47,000 Ω
2 mV and 47,000 Ω 100 mV
CONTROLS MIC1: volume, bass (±12 dB, 100 Hz), treble (±12 dB, 10,000 Hz), echo effect
and talkover
MIC2 and MIC3: volume, bass (±12 dB, 100 Hz), and treble (±12 dB, 10,000 Hz)
and echo effect
Input channels: input selector, sliding volume, allocation to master 1, master 2
and headphone CUE. LED indicator for the allocation to each output.
Master 1 and Master 2: volume, bass (+12, -32 dB, 100 Hz), mid (+12, -32 dB,
1500 Hz) and treble (+12, -32 dB, 10,000 Hz), mid and treble, balance and level
LED indicator
Booth output: Volume control
Headphone output: Volume control
USB/SD player: play/pause, menu access, equalization and repeat mode, track
fast forward and rewind and volume control.
F NCTIONS Allocation matrix with 5 input channels to 2 master outputs
CUE through headphones, assignable to each channel
3-band equalizer in master outputs
LED master 1 and 2 output level indicators
Talk over for level reduction in the MIC 1 input
O TP TS Master 1 (2 x XLR and 2 x RCA), Master 2 (2 x RCA), REC (2 x RCA), booth (2 x
RCA) and stereo headphones (6.3 mm jack)
RESPONSE 20-20,000 Hz
S/N RATIO Mic.: 65 dB
Phono: 55 dB
Line/Aux: 75 dB
POWER S PPLY 230/115 V CA, 10 W maximum
DIMENSIONS 483 x 89 x 205 mm depth. 2 U 19" rack
- 9-
EN
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 9

- 10 -
EN
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 10

- 11 -
EN
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General
para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof
of the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business
or distributor where the product was purchased in no more than 2 months after being conscious of the problem.
It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected
by the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo
1/2007 16 Noviembre’.
FONESTAR is a member of ECOEMBALA ES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Poligono Trascueto - 39600 Revilla de Camargo, Cantabria (SPAIN)
www.fonestar.com
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 11

www.fonestar.com
160928_SM-1860U_MANUAL_(EN)_Maquetación 1 28/9/16 15:24 Pá ina 12
