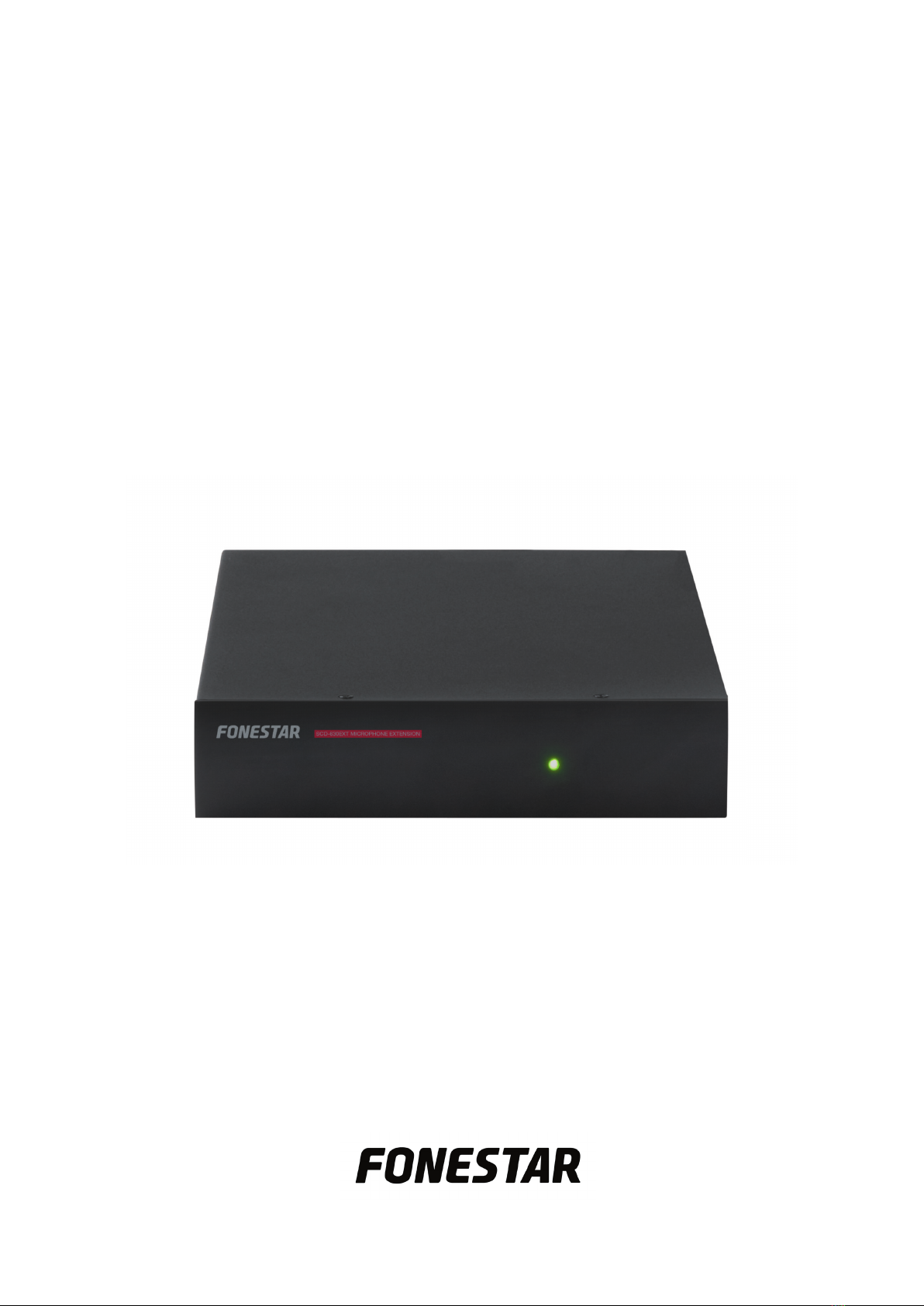

FONESTAR SCD-630EXT User manual

QUICK START GUIDE/GUÍA RÁPIDA/
GUIDE DE DÉMARRAGE RAPIDE/GUIA RÁPIDO
SCD-630EXT
MICROPHONE EXTENSION
EXTENSIÓN DE MICRÓFONOS
EXTENSION DE MICROPHONES
EXTENSÃO DE MICROFONES

CONTROLS AND CONNECTIONS
ON/OFF
STATUS
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONE EXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT MICROPHONE EXTENSION
SCD-610P (IN)
SCD-620D (IN)
SCD-630EXT (INPUT)
SCD-600 (MIC INPUT)
SCD-610P (LINK)
SCD-620D (LINK)
SCD-630EXT (OUTPUT)
230 V AC
ON/OFF
STATUS
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONE EXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT MICROPHONE EXTENSION
SCD-610P (IN)
SCD-620D (IN)
SCD-630EXT (INPUT)
SCD-600 (MIC INPUT)
SCD-610P (LINK)
SCD-620D (LINK)
SCD-630EXT (OUTPUT)
230 V AC
ON/OFF
STATUS
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONE EXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT MICROPHONE EXTENSION
SCD-610P (IN)
SCD-620D (IN)
SCD-630EXT (INPUT)
SCD-600 (MIC INPUT)
SCD-610P (LINK)
SCD-620D (LINK)
SCD-630EXT (OUTPUT)
230 V AC
INSTALLATION/INSTALACIÓN/INSTALLATION/INSTALAÇÃO
EN This extension allows to increase the number of microphones in the SCD-600 conference system. This
system supports 1 or 2 SCD-630EXT extensions resulting in the following 2 modes:
- MODE 1: 1 SCD-630EXT extension. Supports connecting branches of up to 16 microphones from
the main unit and the extension. 64 microphones in total*.
- MODE 2: 2 extensions SCD-630EXT. Supports connecting branches of up to 12 microphones from
the main unit and the extension. 72 microphones in total*
IMPORTANTE: the total length of the installation should not exceed 100 m and the cables between
microphones should not exceed 2-3 metres.
*The main unit SCD-600 and the extension SCD-630EXT have 2 ports, i.e. 2 microphone branches per unit.
ES Esta extensión permite aumentar el número de micrófonos en el sistema de conferencias SCD-600.
Este sistema admite 1 o 2 extensiones SCD-630EXT dando lugar a los 2 modos siguientes:
- MODO 1: 1 extensión SCD-630EXT. Admite conectar ramas de hasta 16 micrófonos desde la
unidad principal y la extensión. 64 micrófonos en total*
- MODO 2: 2 extensiones SCD-630EXT. Admite conectar ramas de hasta 12 micrófonos desde la
unidad principal y la extensión. 72 micrófonos en total*
IMPORTANTE: la longitud total de la instalación no debe superar los 100 m y los cables entre micrófonos
no deben superar los 2-3 metros.
*La unidad principal SCD-600 y la extensión SCD-630EXT disponen de 2 puertos, es decir, 2 ramas de micrófonos por equipo.
FR Cette extension vous permet d'augmenter le nombre de microphones dans le système de conférence
SCD-600. Ce système prend en charge 1 ou 2 postes SCD-630EXT, ce qui donne lieu aux 2 modes
suivants :
- MODE 1 : 1 extension SCD-630EXT. Permet de connecter des branches de 16 microphones au
maximum à partir de l'unité principale et de l'extension. 64 microphones au total*
- MODE 2 : 2 extensions SCD-630EXT. Permet de connecter des branches de 12 microphones au
maximum à partir de l'unité principale et de l'extension. 72 microphones au total*
IMPORTANT: la longueur totale de l'installation ne doit pas dépasser 100 m et les câbles entre les
microphones ne doivent pas dépasser 2-3 mètres.
*L'unité principale SCD-600 et l'extension SCD-630EXT ont 2 ports, c'est-à-dire 2 branches de microphone par unité.

PT Esta extensão permite aumentar o número de microfones no sistema de conferências SCD-600. Este
sistema suporta 1 ou 2 extensões SCD-630EXT resultando nos 2 modos seguintes:
- MODO 1: 1 SCD-630EXT extensão. Suporta a ligação de ramos de até 16 microfones desde a
unidade principal e da extensão. 64 microfones no total*.
- MODO 2: 2 extensões SCD-630EXT. Suporta a ligação de ramos de até 12 microfones desde a
unidade principal e da extensão. 72 microfones no total*.
IMPORTANTE: O comprimento total da instalação não deve exceder 100 m e os cabos entre microfones
não devem exceder 2-3 metros.
*A unidade principal SCD-600 e a extensão SCD-630EXT têm 2 portas, ou seja, 2 ramificações de microfone por equipamento.
MODE 1
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONEEXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISKOF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISKOFELECTRIC SHOCK
DONOTOPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONEEXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISKOF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISKOFELECTRIC SHOCK
DONOTOPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
SCD-600
MAX. 12 MAX. 12
MAX. 12
MAX. 12
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
L
R
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
MAX. 12
MAX. 12
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONEEXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISKOF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISKOFELECTRIC SHOCK
DONOTOPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT
MAX. 72 MICs: 1 SCD-610P + 71 SCD-620D / 72 SCD-620D)
AMPLIFIER
PLAYER
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
SCD-630EXT
SCD-600
MAX. 16 MAX. 16
MAX. 16
MAX. 16
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
L
R
MAX. 64 MICs: 1 SCD-610P + 63 SCD-620D / 65 SCD-620D)
AMPLIFIER
PLAYER
SCD-600
MAX. 8 MAX. 8
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
L
R
MAX. 16 MICs: 1 SCD-610P + 15 SCD-620D / 16 SCD-620D
AMPLIFIER
PLAYER
MODE 2
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONEEXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISKOF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISKOFELECTRIC SHOCK
DONOTOPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONEEXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISKOF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISKOFELECTRIC SHOCK
DONOTOPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
SCD-600
MAX. 12 MAX. 12
MAX. 12
MAX. 12
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
L
R
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
MAX. 12
MAX. 12
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
LINK IN
2
POWER
CONSUMPTION: 350 W
SCD-630EXT
MICROPHONEEXTENSION
~110-120 V AC. 50/60 Hz
FUSE: T6.3 AL 250 V
~220-240 V AC. 50/60 Hz
FUSE: T3.5 AL 250 V
CAUTION: SHOCK HAZARD - DO NOT OPEN
RISKOF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISKOFELECTRIC SHOCK
DONOTOPEN
LINK IN
1
36 V DC, 2 A 36 V DC, 2 A
SCD-630EXT
MAX. 72 MICs: 1 SCD-610P + 71 SCD-620D / 72 SCD-620D)
AMPLIFIER
PLAYER
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
SCD-630EXT
SCD-600
MAX. 16 MAX. 16
MAX. 16
MAX. 16
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
L
R
MAX. 64 MICs: 1 SCD-610P + 63 SCD-620D / 65 SCD-620D)
AMPLIFIER
PLAYER
SCD-600
MAX. 8 MAX. 8
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN
24V DC, 100 mA
LINK IN 24V DC, 100 mA
LINK IN
L
R
MAX. 16 MICs: 1 SCD-610P + 15 SCD-620D / 16 SCD-620D
AMPLIFIER
PLAYER
