FONESTAR AIP-4010 User manual

AIP-4010
IP AUDIO TRANSMITTER
INSTRUCTION MANUAL
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:37 Pá ina 1

- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instruc-
tions that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is swit-
ched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:37 Pá ina 2

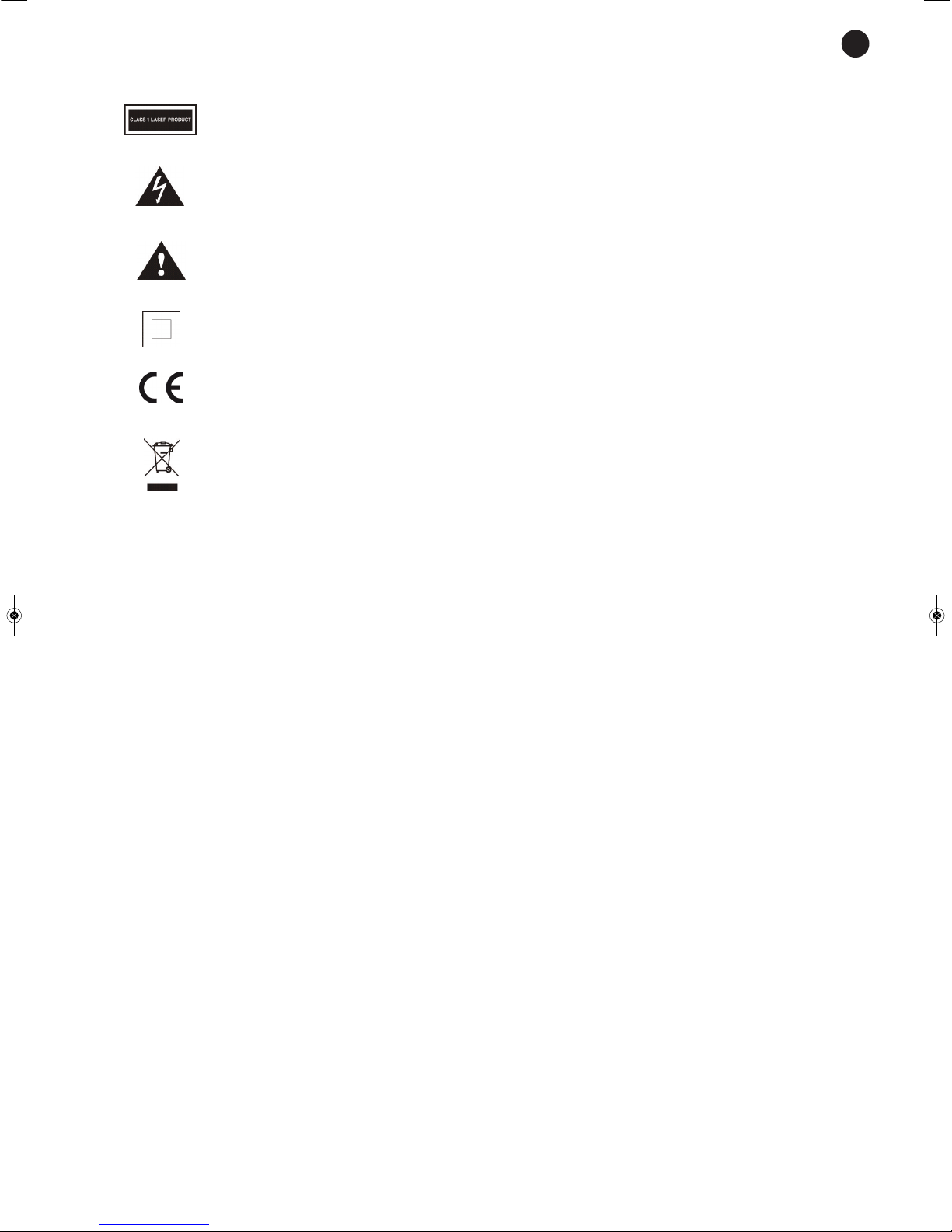

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle indi-
cates that visible or invisible laser radiation could be produced. Avoid direct expose to the
laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has con-
nection terminals or a circuit with areas with a current which could cause an electric shock,
even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has dou-
ble electrical insulation.
The European Community symbol shows that the machine complies with the current Eu-
ropean Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the pro-
duct is disposed of it must be done properly, placing it in a special selective electronic and
electrical equipment container or through a dealer when purchasing a similar product, at no
additional cost. It also shows that the machine was put on the market after 13th August
2005 (European Community Directive 2002/96/CE of Electrical and Electronic recycling,
and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI (Re-
gistro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketabi-
lity or fitness for any other use.
All rights reserved by FONESTAR, S.A.
- 3-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:37 Pá ina 3

DESCRIPTION
- IP audio transmitter with line input.
- For transmitting an analogue audio signal to a local area network.
- With 4 level inputs and 4 output relays for activating events and controlling external devices.
- Automatic setting of network parameters.
- Perfect solution for large shopping centres, schools, office buildings, etc.
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- On/off switch.
2.- LED power indicators.
3.- LINE IN: line input, 3.5 mm stereo jack connector.
4.- Connection port for SD memory cards. Only valid for updating firmware.
5.- Connection port for USB storage devices. Only valid for firmware updating.
6.- Reset button.
BACK PANEL
1.- ETHERNET: port for connecting a local network using a Cat 5e/6, R -45 connector.
2.- RS-232 CONTROL: port for connecting to other pieces of equipment, female D9 connector.
3.- LINE IN: line input, 2 x RCA connectors.
4.- OUTPUT: isolated programmable contact opening and closing outputs, euroblock connectors.
5.- INPUT: isolated programmable inputs for activating events through contact closure, euroblock
connectors.
6.- Input for connecting the AC power cable.
- 4-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:37 Pá ina 4

CONNECTION
- Connect the AIP-4010 transmitter to the local area network using the Ethernet port, R -45.
-Connect the output from the desired audio source to one of the LINE IN inputs.
- Connect the equipment to the mains.
Note: if you use the front LINE IN input, the LINE IN input on the back panel will be disabled.
CONFIGURATION
There are two ways to set the AIP-4010 audio transmitter:
- Through the net using the AIP-Go application.
- Through an external configuration file generated by the AIP-Go application.
THROUGH THE NET USING THE AIP-GO APPLICATION
To set the parameters on the AIP-4010 transmitter through the local area network, use the AIP-Go
application. Execute the program and perform the steps below:
Select the Device List option in the Devices menus. The window Network Devices will open. Select the
transmitter that you want to set and then press the button Configure.
- 5-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 5

The Device Setup window will open. To set the net parameters, select the Network option.
1.- Activate/deactivate the DHCP setting.
With the DHCP option deactivated, it is possible to set:
2. The IP address on the AIP-4010 transmitter.
3. The Netmask from the AIP-4010 transmitter.
4. The gateway from the AIP-4010 transmitter.
To set the input and relay connector parameters, select the I/O option.
5.- For selecting the state of the relays in standby if they
are normally open (Norm. open) or normally closed
(Norm. closed).
6. For selecting the active sensors through short-circuit
(Closed cir.), or active through open circuit (Open cir.).
To upgrade and restart the equipment, select the Options tag.
7.- For upgrading the AIP-4010 audio transmitter
firmware. For more information, see the Firmware
Upgrading section in this instruction manual.
8. For restarting the equipment.
- 6-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 6

USING THE CONFIGURATION FILE
The AIP-4010 audio transmitter obtains an IP address automatically if the DHCP option on the router is
activated. Otherwise, the IP address has to be assigned manually and all the parameters have to be set to
make it suitable for its data network and the equipment to work. When all options have been established, a
file can be generated to set the AIP-4010 transmitter.
Execute the AIP-Go application and follow the steps below:
In the program options, select the option ‘General > Advanced > Device setup’ and the following window will
open.
1.- Activate/deactivate the option to change the
name of the transmitter.
2.- Write the name of the transmitter to be set.
3.- For activating/deactivating the change to the
network configuration.
4.- Activate/deactivate the DHCP setting.
With the DHCP option deactivated, the following
can be set:
5.- The IP address on the AIP-4010 transmitter.
6.- The Netmask for the AIP-4010 transmitter.
7.- The gateway for the AIP-4010 transmitter.
8.- For changing the range of gates for the
channel.
9.- Insert the range of the ports from the AIP-
4010 transmitter to be set or use the default
option.
10.- For activating/deactivating the change in the
connection parameters.
11.- For selecting the multicast group that the
device will join. Use the default option or set
the group by inserting the values.
12.- For modifying the communication port
between the transmitter and the rest of the
devices.
13.- For defining the lifetime of the network data.
- 7-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 7

Once all the parameters have been set, select the Exportar option and save the configration file in an SD
memory card SD or a USB storage device.
Then, insert the SD memory card or USB storage device in the corresponding port on the front panel of the
equipment, with the equipment switched off. Then switch the equipment back on.
If configuration was finalized correctly, 30 seconds after switching back on, the indicators will blink 3 times
in blue, and will make three noises at the same time.
On the other hand, if configuration was not finalized correctly, 30 seconds after switching back on, the
indicators will blink 5 times in red and will make 5 noises at the same time. In this case check if all the
configuration data is correct and modify it if necessary to set if correctly.
FIRM ARE UPGRADING
There are two ways to upgrade the AIP-4010 audio transmitter firmware: using an upgrading file or through
the AIP-Go application. For both options, download the upgrading file from the Fonestar (www.fonestar.com)
web page. To do this, go to the product software tab (AIP-4010) and download the upgrading file.
UPGRADING FILE
Once the upgrading file has been downloaded, save it on an SD memory card or a USB storage device.
Insert the storage device into the corresponding port on the front panel of the equipment with the equipment
switched off. Then switch the equipment on again.
If the upgrading was performed correctly, 30 seconds after switching on again, the indicators will blink 3
times in blue, and will make three noises at the same time.
On the other hand, if upgrading was not finalized correctly, 30 seconds after switching back on, the indicators
will blink 5 times in red and will make 5 noises at the same time. In this case, try to upgrade the equipment
again.
USING THE AIP-GO APPLICATION
To upgrade software using the AIP-Go application, execute the program and follow the steps below:
Select the Device List option on the Devices menu.
-8-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 8

The Network Devices window will open. Select the transmitter that you want to upgrade and then press the
Configure button.
The Device Setup will open. To upgrade the software, select the Options tab and press the Upgrade button.
Now, select the upgrading file that you downloaded from the Fonestar web page and wait for the AIP-4010
transmitter to restart.
-9-
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 9

RESETTING THE DEFAULT VALUES
The AIP-4010 audio transmitter gives the option to set the equipment with the default values. To do this,
follow the steps below:
1.- Insert a cylindrical element with a diameter of less than 3 mm through the reset button hole on the front
panel of the equipemnt.
2.- Hold the reset button down for 20 seconds.
3.- Wait for an audio signal that will indicate that the equipment has been restarted with the default values.
AIP-4010 OPERATING STATUS
The red and blue indicators, together with the audio signals show the current status of the system. These
indications start working 30 seconds after switching the AIP-4010 transmitter on. Below you will find a
description of all the operating status for the equipment in accordance with the state of the indicators on the
front panel:
LED INDICATORS STATE / FUNCTION
Permanently alight in blue. Configuration of the IP address using DHCP and default
connection parameters.
Stay alight in blue and blink once every 6
seconds.
Configuration of the fixed IP address and default
connection parameters.
Stay alight in blue and blink twice every 6
seconds.
Configuration of the IP address using DHCP and
different connection parameters to the default values.
Stay alight in blue and blink three times every
6 seconds.
Configuration of the fixed IP address and different
connection parameters to the default values.
Blink once in red every 6 seconds. Equipment with no network connection.
- 10 -
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 10

TECHNICAL SPECIFICATIONS
AIP-4010
CHARACTERISTICS IP audio Transmitter.
For audio transmission through streaming using multicast through the
local area network (LAN).
General purpose inputs and outputs.
Remote upgrading through software for PC or locally through SD or
USB.
INPUTS 1 line, 2 x RCA and 3.5 mm stereo jack
4 separate programmable inputs for events activation through contact
closure, euroblock
1 USB/SD port for firmware upgrading
OUTPUTS 1 ethernet 10/100 base T, R -45
4 separate programmable outputs for opening and closing contacts,
euroblock
PO ER SUPPLY 100-240 V AC, 16 W
DIMENSIONS 337 x 44.5 x 240 mm depth. 1 U 19" rack
ACCESSORIES Mounts for assembly in 19" rack
SOFT ARE Software for PC with automatic detection of the AIP series devices
connected to the local area network
Audio channel creation
Remote selection of the audio channel in each receiver
Remote adjustment of the configuration parameters
Scheduled and real-time messages
Firmware upgrading
- 11 -
EN
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 11

ARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and
commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than
showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being sold with that
problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the device,
the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and purpose of the
product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor where
the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to contact
FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or
crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish law
‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALA ES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (SPAIN)
www.fonestar.com
AIP-4010_MANUAL_(EN)_20170529_Maquetación 1 29/5/17 9:38 Pá ina 12
