Foscam FI8908W User manual

IP Wireless / Wired Camera
Quick Installation Guide
(For Mac OS)
Model:FI8908W Model:FI8908W
Color:Black Color:White
ShenZhen Foscam Intelligent Technology Co., Ltd

FI8908W Quick Installation Guide
Quick Installation Guide-For MAC users
Packing List
1) IP CAMERAX 1 2) Wi-Fi Antenna (only available for wireless model)
3) DC Power Supply X 1 4) Network Cable X 1
5) Mounting bracket ×1 6) CD X 1 (Include user manual、IP camera tool)
7) Quick Installation Guide X 1
QuickInstallationGuideFlowChart
Software Installation
Login the camera
Wireless LAN Settings
DDNS Service Settings
Hardware Installation
1HardwareInstallation
(1) Open the package
www.foscam.com
- 1 -

FI8908W Quick Installation Guide
Figure 1.0
(2) Connect the Antenna.
Screw the antenna to the back of the camera, make sure it attached well.
Figure 1.1
(3) Plug the network cable and power.
Use network cable connects with the camera and your router. Plug in the power.
The green network light under the lens will blink and the camera will pan/tilt.
www.foscam.com
- 2 -

FI8908W Quick Installation Guide
Figure 1.2
2SoftwareInstallation
Please put the small CD in your CD driver of your laptop and find the folder “For
MAC”, then open the folder “IP Camera Tool”. Copy the IP camera tool to your MAC
and you can use the tool.
3 Login the camera

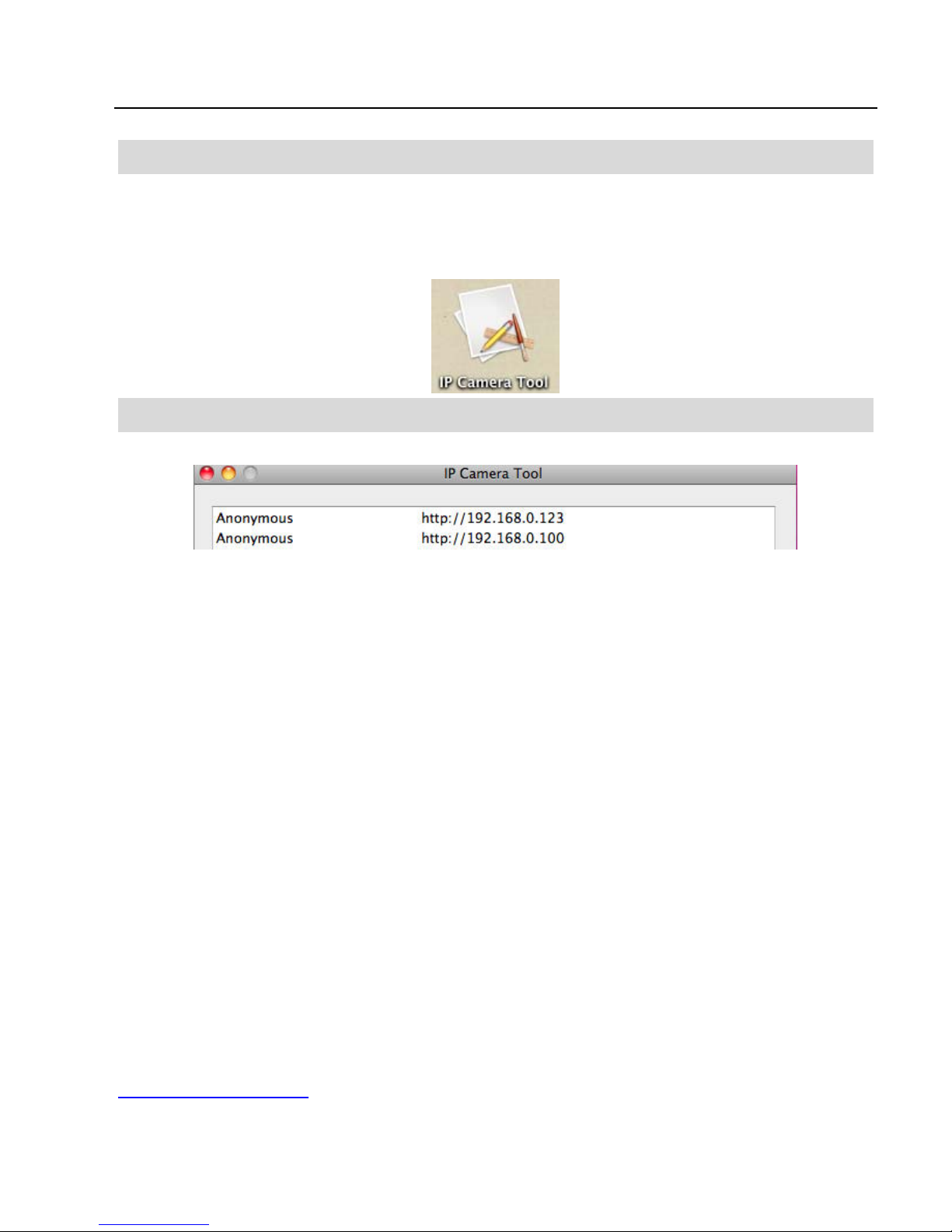

Dbclick the IP Camera Tool and you could see the following picture.
Figure 1.3
The IP camera tool could find the cam’s IP automatically after you plug the network
cable. If not, Please make sure that DHCP is enabled in your router. Don’t enable
MAC address filter. Or disable firewall or antivirus to try again.
Dbclick the IP address on the IP camera tool and you will enter the login UI.
www.foscam.com
- 3 -

FI8908W Quick Installation Guide
Figure 1.4

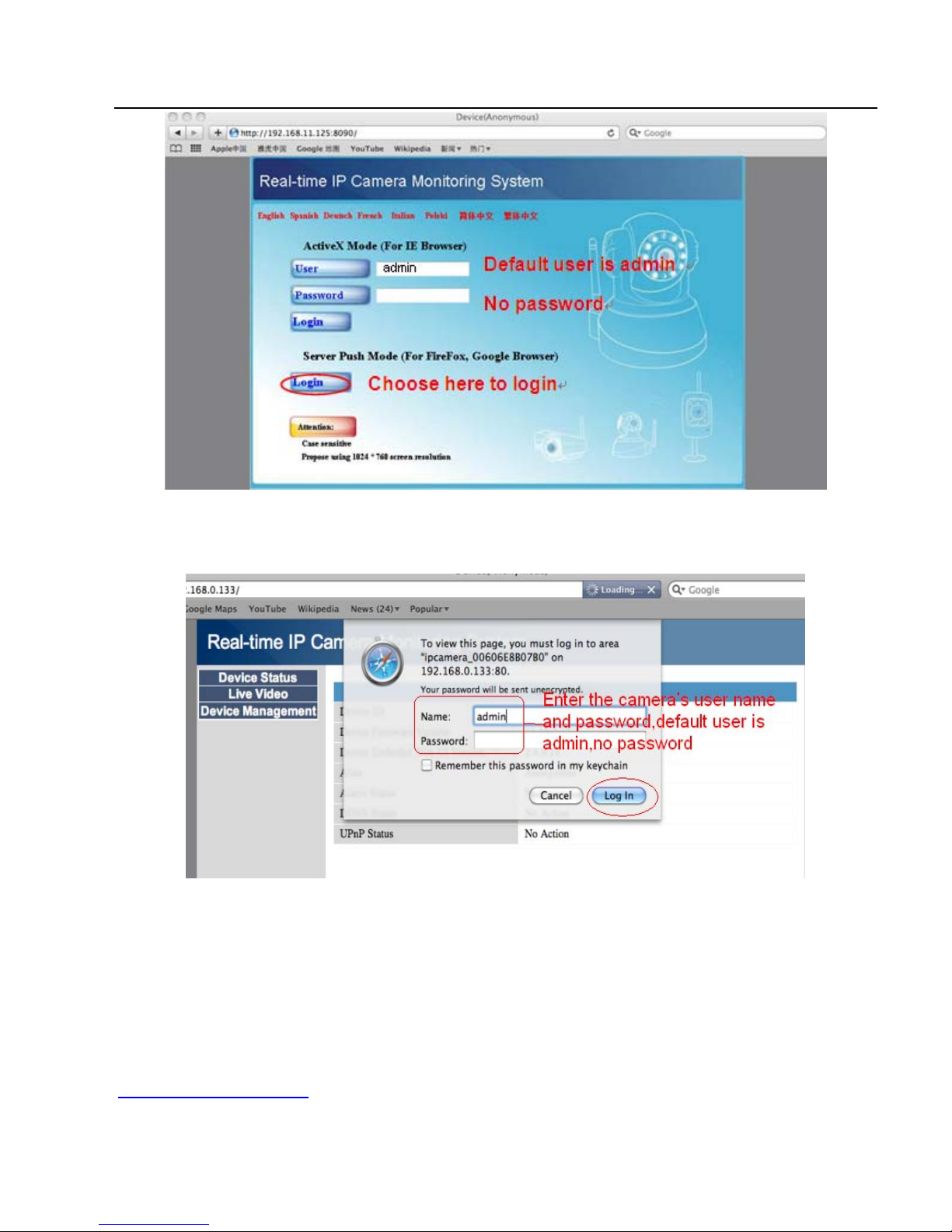

Fill in user name and password and choose the second login.
Figure 1.5
The browser will prompt you enter the camera’s user name and password. Please fill
in admin and choose Log in. You can see the device status.
www.foscam.com
- 4 -

FI8908W Quick Installation Guide
Figure 1.6
Click Live Video. You can see living video.
Figure 1.7
4 Wireless LAN Settings

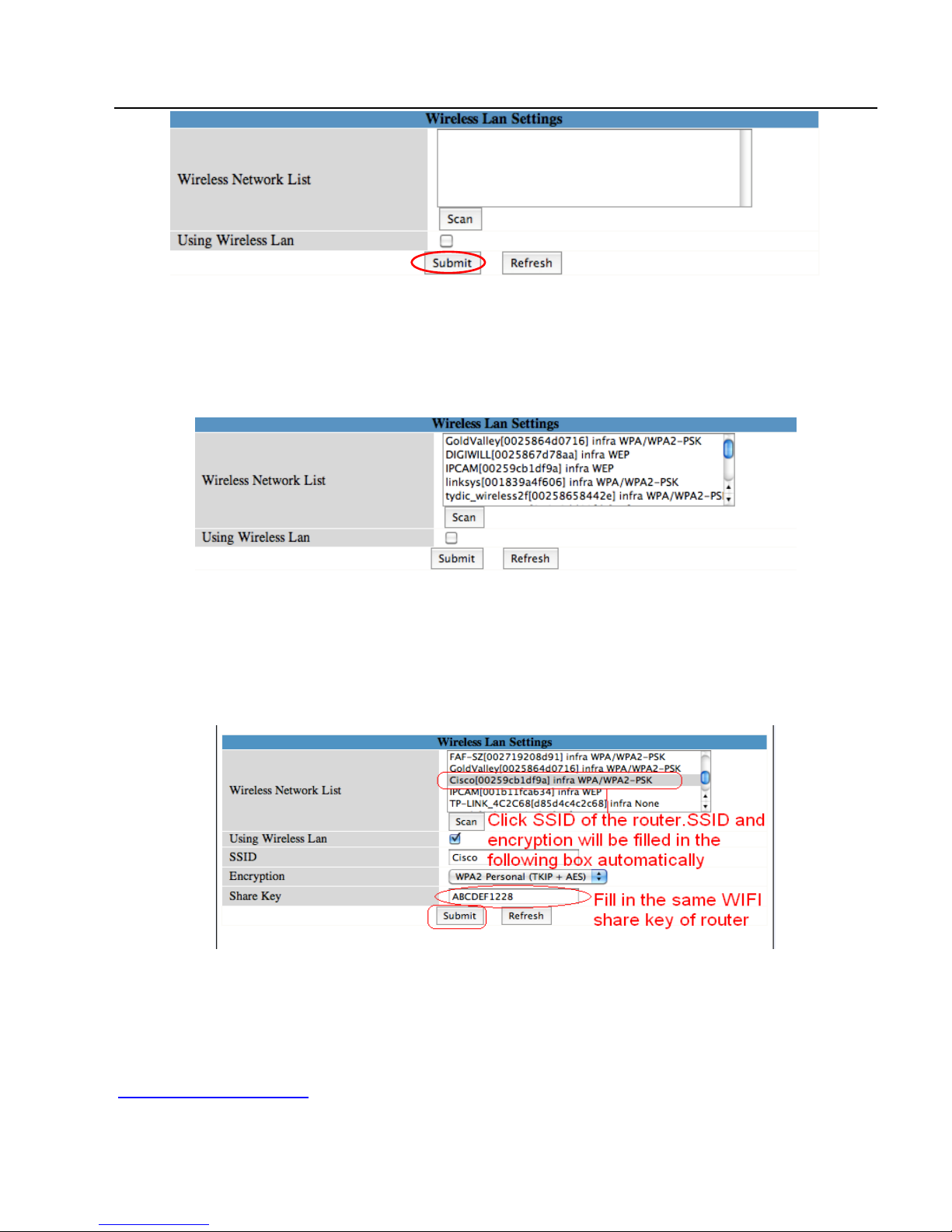

(1) Please choose Device Management and click Wireless LAN Settings.
Then choose Using Wireless LAN.
Click Scan button and the camera will detect WIFI device around it.
It could also find your router and show it in the list. (Figure 1.9)
www.foscam.com
- 5 -

FI8908W Quick Installation Guide
Figure 1.8
Click scan button to find WIFI device
If the camera could not find some WIFI device, please click the scan button again.
Make sure that the time between the first scan and the second scan is more than
1~2 minute.
Figure 1.9
(2) Click the SSID of your router in the list, the corresponding information (SSID &
Encryption) will be filled in the following boxes automatically.
You only need fill in share key.
Figure 2.0
Make sure that SSID, Encryption and share key are exactly the same with your
router.
www.foscam.com
- 6 -

FI8908W Quick Installation Guide
Figure 2.1
Figure 2.2
Please click Submit after finish these settings, the camera will reboot.
Plug out the network cable after you click submit about 10 seconds.
The camera will work on WIFI after reboot.
Note: If your camera could not connect WIFI, please see FAQ in user manual.
5 DDNS Service Settings
5.1 Static IP user
Static IP users need not set DDNS service settings for remote access. When
finished the connection of camera in LAN and port forwarding. (Figure 3.5/3.6) You
www.foscam.com
- 7 -

FI8908W Quick Installation Guide
can access the camera directly from Internet by the WAN IP and port number. There
are two ways to obtain your WAN IP.
zObtain the WAN IP from Website
Please enter these strings in your browser: http://www.whatismyip.com.The
webpage at this address will show you the current WAN IP.
Figure 2.3
zObtain the WAN IP address from the router
You can find the WAN IP in your router. Normally, it is in system status.
Take the WRT54G router of LINKSYS for example,
1) Obtain the IP address of the router(LAN gateway address),user name and
password for login the router from the network administrator,
2) Enter the LAN IP address of the router (LINKSYS WRT54G, such as: default
LAN IP is 192.168.1.1) in the address bar of the IE to login the router; Open the
Status page to find out the WAN address of the router. In this example, the
address is 183.37.28.254.
Access the IP Camera from the Internet
You can access the IP Camera from the Internet. (remote access)
Enter WAN IP address and port number in the browser to login the camera.
For example: Http:// 183.37.28.254:85
Note: Make sure the Port mapping is success. You can do port mapping by two
ways.
1) Enter setting page of the router which camera connect with to enable UPNP
www.foscam.com
- 8 -

FI8908W Quick Installation Guide
function. Then login the camera as administrator, choose UPnP Settings to
enable UPNP and make sure the state is “UPnP success”.
2) Do port forwarding manually. (details: Figure 3.5/3.6)
If your router has Virtual server, it is used to do port mapping. Please add the
camera’s LAN IP and port which you set in basic network settings to the Virtual map
list.
Note: If you plug the camera in a router, the camera will have dynamic IP address,
you need set DDNS service settings to view it remotely.
5.2 How to set DDNS Service Settings (For dynamic IP user)
(1) Please first visit www.dyndns.com to get an account.

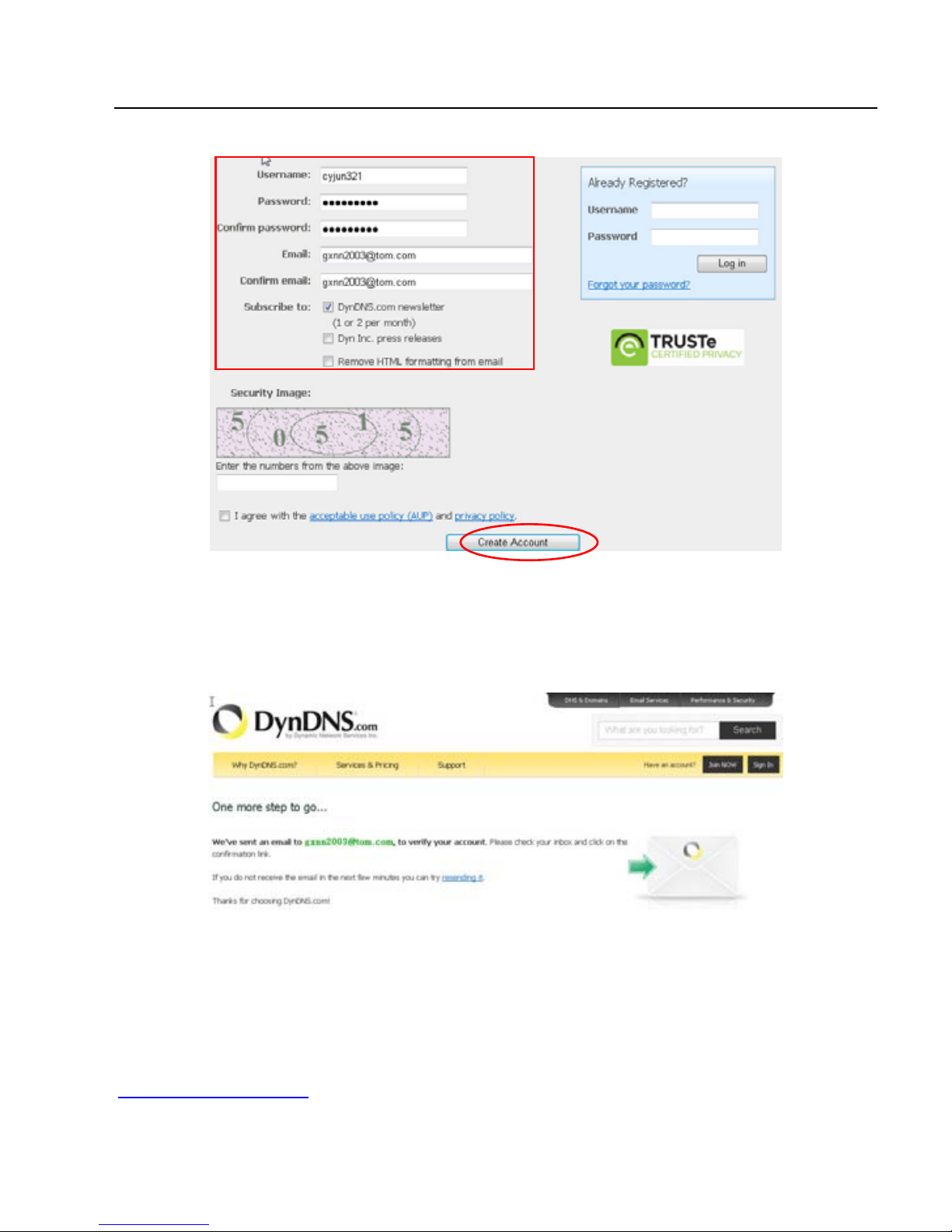

Choose Sign up FREE to get a free account.
Figure 2.4
Please set as the following picture.
