Frabill ICE HUNTER 115 User manual

Part# FRB000471
Pièce nº FRB000471
© 2020 FRABILL, Inc. All Rights Reserved.
© 2020 FRABILL, Inc. Tous Droits Rèservès.
#FRBSH115
#FRBSH115
ICE HUNTER
ICE HUNTER
™
™115
Nº FRBSH115
Nº FRBSH115
ICE HUNTER
ICE HUNTER
™
™115
INSTRUCTION MANUAL FOR ICE HUNTER™ 115
FLIP-OVER STYLE ICE SHELTERS
MANUEL D’INSTRUCTIONS POUR LES ABRIS
SUR GLACE ICE HUNTER™ 115 DE STYLE PIVOTANT
ICE HUNTER™ 115
Printed in the USA
Imprimé aux Etats-Unis

2 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
(Indicates a potential hazardous situation which, if not avoided, could result in injury or death)
Death from asphyxiation may occur from propane heaters or lanterns in a non-ventilated area.
Keep top of doors unzipped for ventilation.
Keep all flame and heat sources away from this tent fabric.
This tent is made with flame-resistant fabric which meets the flammability requirements of CPAI-84. It is not fire-proof.
The fabric will burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent may render the flame-resistant properties ineffective.
• Never use candles, matches, or open flames of any kind near a tent.
• Cooking inside a tent is dangerous.
• Build campfires downwind, and several meters away from a tent. Always be sure to extinguish camp fires before leaving camp, or
retiring for the night.
• Practice extreme caution when using fuel powered lanterns and heaters inside a tent. Use battery operated equipment whenever possible.
• Never refuel lamps, heaters, or stoves inside a tent.
• Extinguish or turn off all lanterns before going to sleep.
• Avoid smoking inside a tent.
• Never store flammable liquids inside a tent.
INJURY OR DEATH MAY RESULT IF:
Tent is exposed to open flame. Do not use open flame as heat source inside shelter.
Nighttime collisions: Exterior reflectors on all four corners must be visible.
Falling Hazard
Never tow shelter with passengers inside.
(Conveys potential equipment damage)
Do not exceed 20 miles per hour/ 32 kilometers per hour when towing ice shelter.
Never leave ice shelter unattended when set up.
Check local regulations specific to the use of portable ice shelters
WARRANTY INFORMATION
Frabill, Inc. warrants to the original purchaser that all Frabill, Inc. Ice Shelters are free from manufacturers defects for the term of one year
from the date of purchase. This warranty does not cover cracked windows, tent tears, and broken or bent poles due to high wind weather
conditions or unattended use. Frabill will repair or replace any part found to be defective within the one-year period upon inspection by the
Frabill Quality Control Team. All parts must be returned to Frabill, Inc. postage-prepaid to include the original dated receipt. All returns must
be coded with a return authorization number, which can be obtained from the Frabill, Inc.,Customer Service Department.
For return authorization, call or write:
FRABILL, Inc.
Attention: Customer Service Department
431 E. South St.
Plano, IL 60545-1601
LIMITATION OF LIABILITY
It is understood that Frabill, Inc.’s liability for its products, whether due to breach of warranty, negligence, strict liability or otherwise is limited
to the repair of the product as stated in the warranty information. Frabill, Inc. is not liable for any injury, loss, damage or expense, whether
direct or consequential, including but not limited to loss of use, income, profit or damage that occurs during the sale, installation, use of or the
repair or replacement of Frabill, Inc. products. Frabill, Inc. is not liable for any damage that may occur during any modifications that are made to
the product at any time to improve performance of the product. Frabill, Inc. is not obligated to make such changes to any products currently in
service.
WARNING!
!
CAUTION
IMPORTANT
Safety Instructions and Warranty Information
Phone [phone], option 3
Fax [phone]
e-mail: [email protected]
(8:00 a.m. to 4:30 p.m. M-F)
www.frabill.com

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 3
Safety Instructions and Warnings ............................................................................................... 2
Warranty ............................................................................................................................................ 2
Parts List ............................................................................................................................................ 4
Assembly Instructions ..................................................................................................................... 5
Safe Use and Operation................................................................................................................... 13
Tips for Use, Maintenance and Care............................................................................................. 13
Frabill Shelter Accessories............................................................................................................. 15
Table des matières
Consignes de sécurité et avertissements .................................................................................. 17
Garantie .............................................................................................................................................. 17
Liste de pièces .................................................................................................................................. 18
Instructions d’assemblage.............................................................................................................. 19
Utilisation et exploitation sécuritaires ........................................................................................... 27
Conseils d’utilisation, Entretien et soins ....................................................................................... 28
Accessoires des Frabill ................................................................................................................... 30
Need help? We’re a Toll-Free call away! 1-800-558-1005, option 3
Frabill, Inc. is committed to customer satisfaction. If you have any questions
or encounter a problem while assembling your shelter, please do not return
to the retailer.
Besoin d’aide ? Nous sommes à un appel sans frais de vous !
1 800 558-1005, option 3
Frabill, Inc. est déterminée à assurer la satisfaction de sa clientèle. Si vous
avez des questions ou rencontrez un problème au moment d’assembler votre
abri, prière de ne pas retourner l’abri.
STOP!
Table of Contents

4 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
Parts List
Shelter instructions
Tools Required: Phillips Screwdriver, 7/16” deep well socket and 7/16” wrench.
A cordless drill is recommended. Approximate Assembly Time: 2 hours
ITEM PART # QTY. DESCRIPTION
A 612025 1 KEDER TREKKER 2006
B 203437 20 #8X0.5 PHP HD RD SCRW
C 807154 2 BRACE WIND BRAKE BNT
POLE
D 806055 1 ROPE 8 FEET NYLON
E 81795 2 FRAME BRACKET
F 200015 30 NUT .250-20 HEX NYLK
G 200028 23 WASHER .250 FLAT SAE
H 200034 7 BOLT .250-20 X 1.43 ELEV
I 200050 3 BOLT .250-20 X1.50 MACH
PAN HD
J 200053 15 BOLT .250-20 X 1.00 CAP HEX
K 200089 3 BOLT .250-20X.750 CAP HEX
L 807120 8 BEARING POLE
N FRB000441 1 TENT SHELTER 115
S 81928 1 BASE 33X56X8X0.225BS
SHELTER
T 81883 4 U-FRAME 51.6X32.7X0.706DIA
SHL
HH 81752 1 ASSY JUMP SEAT FIXED 8"
BASE
II 200013 2 BOLT .250-20 X 1.25 CAP HEX
JJ 200107 2 BOLT .250-20X2.00 CAP HEX
KK 81749 1 ASSY CLIP PIN
LL 81742 1 CLIP 8" BASE SEAT
MM 81806 1 ASSY FIXED JUMP SEAT BAR
00 81753 1 LEG BOAT SEAT
ITEM F
ITEM G
ITEM H
ITEM I
ITEM K
ITEM L
ITEM B
ITEM C
ITEM KK
ITEM JJ
(Aprroximate Sizes/Tailles Approximatives)
ITEM J
ITEM II

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 5
ITEM NO. PART NUMBER DESCRIPTION QTY.
E 81795 FRAME BRACKET 2
F 200015 NUT .250-20 HEX NYLK 8
J 200053 BOLT .250-20X1.00 CAP HEX 8
G 200028 WASHER .250 FLAT SAE 4
S 81928 BASE 33X56X8X0.225BS SHELTER 1
Shelter Assembly
S
J
E
G
F

6 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
ITEM NO. PART NO. DESCRIPTION QTY.
E 81795 FRAME BRACKET 2
F 200015 NUT .250-20 HEX NYLK 2
C 807154 BRACE WIND BRAKE BNT POLE 2
K 200089 BOLT .250-20X.750 CAP HEX 2
Shelter Assembly (Continued)
F
E
C
K

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 7
ITEM NO. PART NUMBER DESCRIPTION QTY.
MM 81806 ASSY FIXED JUMP SEAT BAR 1
J 200053 BOLT .250-20X1.00 CAP HEX 6
G 200028 WASHER .250 FLAT SAE 6
F 200015 NUT .250-20 HEX NYLK 6
S 81928 BASE 33X56X8X0.225BS SHELTER 1
F
J
G
S
MM
INSERT 2 SIDE BOLTS, WASHERS, AND NUTS FIRST

8 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
ITEM NO. PART NUMBER DESCRIPTION QTY.
E 81795 FRAME BRACKET 2
L 807120 BEARING POLE 8
T 81883 U-FRAME 51.6X32.7X0.706DIA SHL 4
H 200034 BOLT .250-20 X 1.43 ELEV 6
I 200050 BOLT .250-20 X1.50 MACH PAN HD 2
F 200015 NUT .250-20 HEX NYLK 8
Shelter Assembly (Continued)
F
T
L
E
H
I

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 9

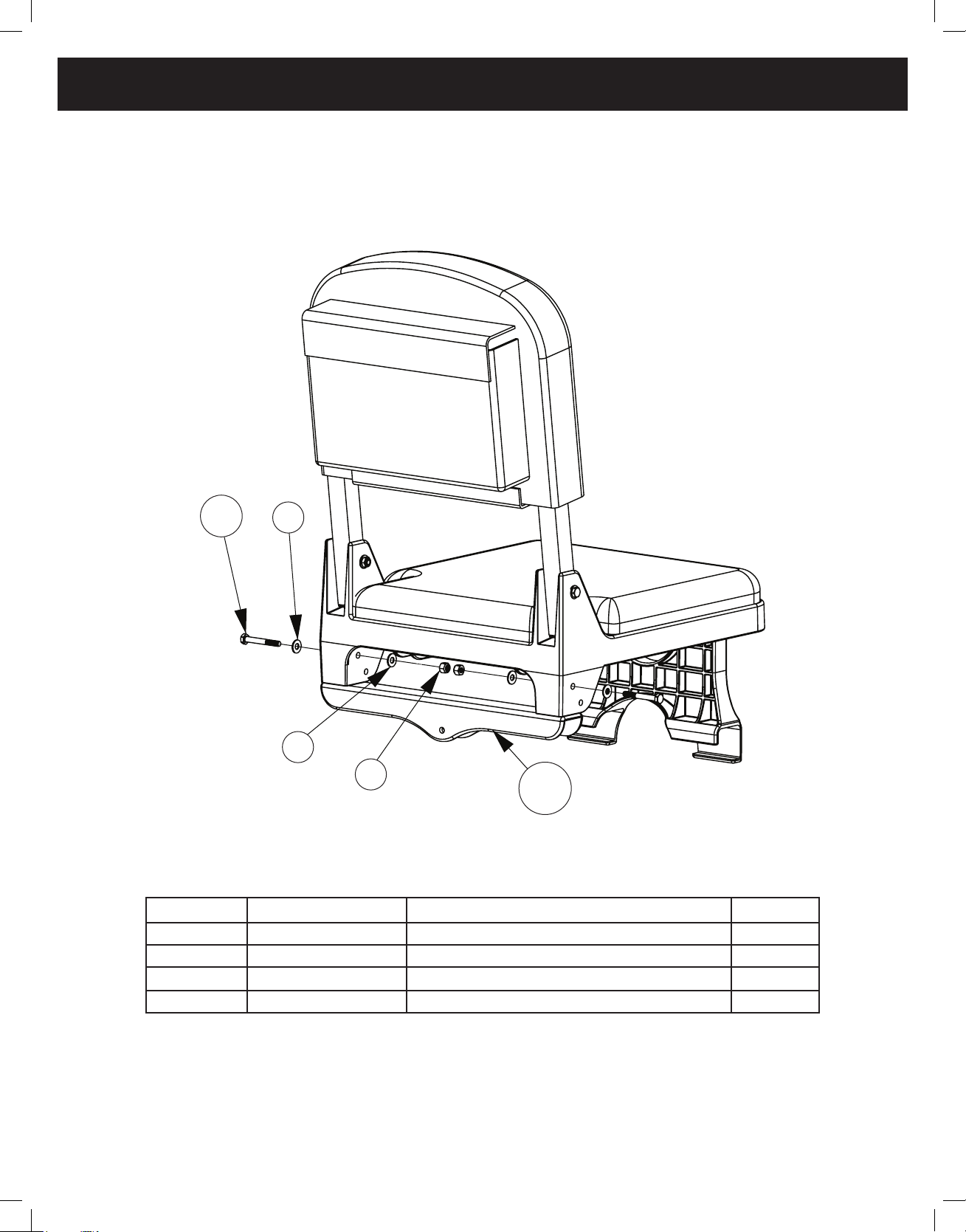

ITEM NO. PART NUMBER DESCRIPTION QTY.
LL 81742 CLIP 8" BASE SEAT 1
G 200028 WASHER .250 FLAT SAE 4
II 200013 BOLT .250-20X1.25 CAP HEX 2
F 200015 NUT .250-20 HEX NYLK 2
II
LL GF
G

10 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
ITEM NO. PART NUMBER DESCRIPTION QTY.
OO 81753 LEG BOAT SEAT 1
G 200028 WASHER .250 FLAT SAE 4
F 200015 NUT .250-20 HEX NYLK 2
JJ 200107 BOLT .250-20X2.00 CAP HEX 2
Shelter Assembly (Continued)
G
G
F
JJ
OO

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 11
OO
KK
JUMP SEAT INSTALLATION:
1. CLIP SEAT ON LIP OF BASE
2. PIVOT DOWN UNTIL SEAT IS RESTING ON SUPPORT BAR
3. TAKE ITEM "KK" AND INSERT INTO HOLE IN ITEM "OO"

12 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
Tools Required: Philips Screwdriver, 7/16” deep well socket, and 7/16” wrench.
A cordless drill is recommended. Approximate assembly time 1-2 hours.

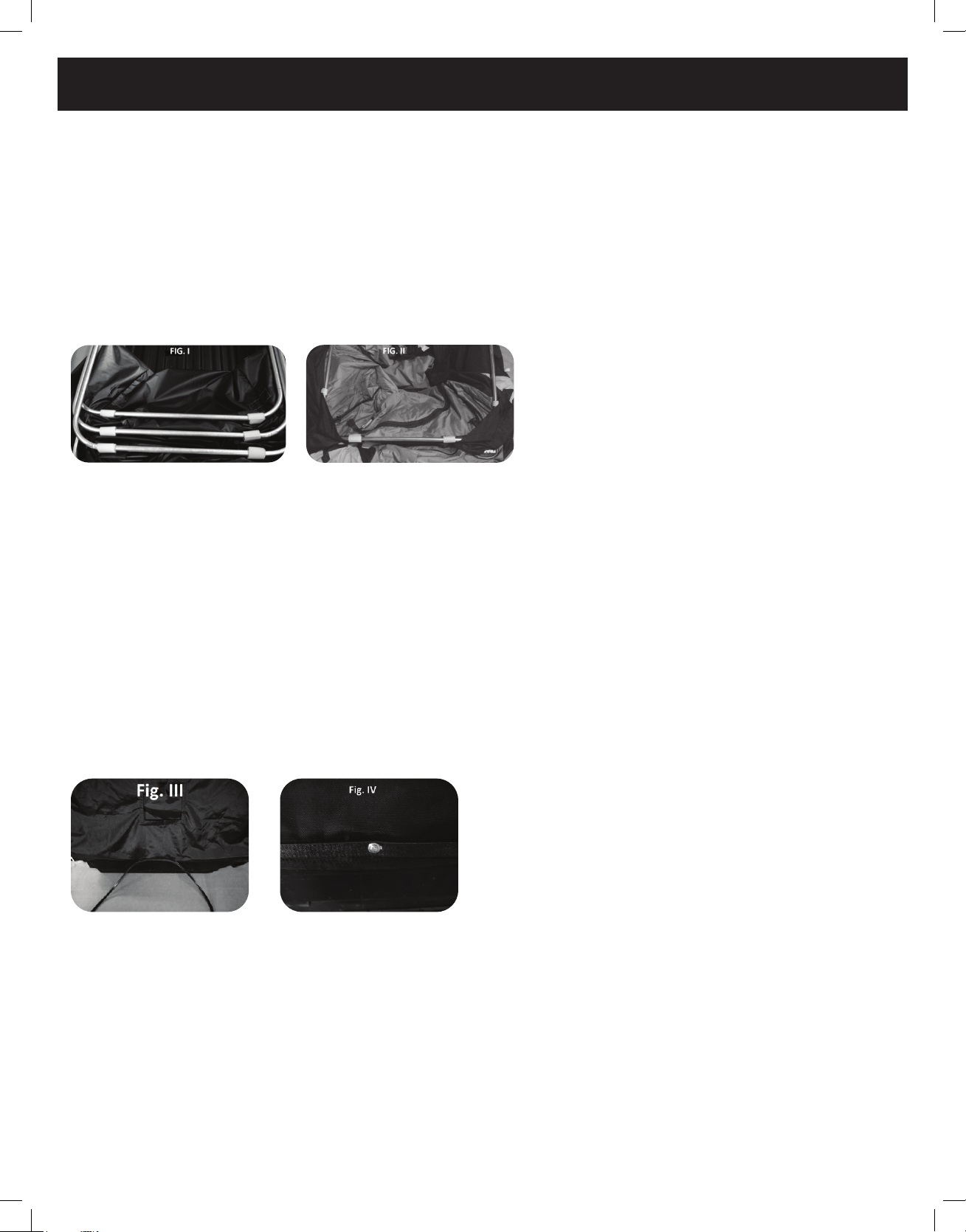

TENT ASSEMBLY (NOTE: Snap buttons to be in middle position)
1. Lay tent [N] under back edge of base [S], (opposite side of corner brackets) with the yellow Velcro straps facing
up and edge without corner pockets closest to the base [S] (Fig. I & II).
2. Starting with the U-Frame [T] closest to the base and the Velcro closest to the base, wrap the yellow Velcro straps
around the U-Frame [T]. (Fig. I) NOTE: Yellow Velcro straps should be on inside of tent after assembly.
3. Repeat step 2 for 2 more U-frames [T]
4. For the last U-frame [T] wrap the 4 yellow Velcro straps around the U-Frame [T]. (Fig. II)
5. Position corner pockets over corners of U-frame [T]. Insert buckles through d-rings securing pockets around corner
of U-frame [T]. (Fig. II)
STORM GUARD SYSTEM ASSEMBLY
(CAUTION! In small amount of incidences, sharp edges of the screws may protrude thru lip of the base after assembling the
Storm Guard System. Please use caution when loading and unloading unit)
1. Flip unit to the closed position.
2. Take the Storm Guard System [A] and find the middle.
3. From the center of the back of the base [S] pull the tent [N] tight making sure the front U-frame [T] is still
touching the ground.
4. Wrap the excess tent material under the lip of the base [P] and push the Storm Guard System [A] over the top of the tent
material and onto the lip of the base [S] across the back edge. (Fig. III) Before continuing to the sides, insert 5 – screws
[B] across the back evenly spaced. The screws [B] should go through the Storm Guard System [A], tent [N], base [S],
and back into the Storm Guard System [A]. (Fig. IV)
5. Continue pushing the Storm Guard System [A] over the tent material onto the lip of the base [S] to either side making
sure the tent [N] is tight and the front U-Frame [T] is still touching the ground.
6. Take the remaining screws [B] and start at one end of the Storm Guard System [A] insert the screws [B] at least every
8 inches on each side of the base [S]. NOTE: there may be extra screws once finished.
7. At the front of the base [S] locate the 2 holes. Thread the yellow rope [D] toward the inside of the base [S].
Secure each end with a knot.
Shelter Instructions

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 13
Collapsed Closed
Safe Use and Operation
Tips for Use
SETUP
Move to front side and lift U-Frames [T] toward you to enclose the base area. NOTE: if U-frames do not pivot easily check
to make sure tent is not caught on framework.
TENT POSITIONS
Collapsed – Tent down resting on the base for transport or storage.
Closed – Tent rotated over the base onto the ice.
Windbreak – First pole raised with windbreak bar rotated over front U-frame.
COLLASPING FOR TRANSPORT
1. Fully rotate the frame to the collapsed position
2. Make sure all material is tucked into base to eliminate dragging the tent material.
3. Place bucket and tackle inside base
• If towing your shelter with a motorized vehicle, we highly recommend adding a Frabill Hyfax Kit to extend the life
of your base.
• Only use the yellow rope for towing your ice shelter by hand. For
towing with powered gear, see our optional tow bar #1639 and
Hyfax Runner Kit #1640. See www.frabill.com or back page for more
information.
• Always set up your ice shelter with the back facing or quartering into
the wind. This keeps the wind at your back and minimizes blow back
into the front fishing area.
• Custom fit transport covers are available for all Flip-over style portable
shelters. Ideal for keeping snow and ice out of the base and your
equipment when towing the shelter across the ice. See www.frabill.
com or back page for more information.
• When setting up your shelter, bank the edges with ice shavings and snow to help hold it in place. If there is no snow you
can fold the storm flap under the frame and weigh it down with extra equipment to help hold the shelter in place.
• Your ice shelter is equipped with a Velcro tab located on the door, which attaches to a second Velcro tab located on the
side panel of the shelter. This holds the door open on warmer days.
• Flip-over ice shelters are equipped with two bi-directional zippers, which allow the door to be opened from either side.
This feature also allows you to close the door from both bottom corners until the zippers meet at the top. This allows you
to open the door slightly at the top for added ventilation.
Wind

14 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
In Season Care
All Frabill ice shelters are treated with a water repellent sealer. This sealer will help to repel water from leaking into the tent.
This does not guarantee against leakage due to heavy rains, standing snow or seepage through the seams of the tent.
The recommended product to waterproof the tent is Camp Dry™ Water Repellent Spray. If any other
commercial water repellent product is used, test on the skirt of the tent prior to applying to the entire unit. Tent defects
caused by applying any foreign substance to the tent will invalidate the Frabill warranty.
Always use care when folding your tent after each use. Be careful of plastic windows and frame mechanics. Should a tear
occur, patches are available for a minimal cost through the Frabill customer service department.
Preparing your Flip-Over Ice Shelter for Storage
Prevent rodent, mold, mildew damage!
1. Unscrew all screws from Storm Guard System, and remove tent from base and U-frames.
2. Hand wash with soap and water to remove any fish remains or odor. Do not use washing machine as it may damage tent
and windows.
3. Allow tent to dry thoroughly.
4. Fold tent neatly in tamper proof container. Do not fold windows.
Keep Storm Guard System and screws in this container also.
5. Mothballs may be added to protect fabric from rodents.
6. Store container in a cool dry area off the ground.
Maintenance and Care

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 15
Ice fishing products are seasonal items and supplies are limited.
Please visit our website at www.frabill.com
to view and order from our entire line of fishing products.
Toll free: 800-558-1005, option 3
Website: www.frabill.com
Address: 431 E. South St.
Plano, IL 60545-1601
1686 Accessory Hanger
1. Durable nickel plating
2. Can be secured vertically or horizontally
3. Doesn’t need to be removed when you collapse your shelter
4. Allows for easy movement along any rail.
5. Can be used with any frame system
6. Ideal for hanging a variety of accessories
7. Two hooks per package.
Universal design heavy-duty tubular steel towbar has a 1 pin attachment for
fast and easy attachment. Includes all hardware, including pin to attach
to ATV/Snowmobile. Has a compact design that is easy for storage. The main
bar stays permanently attached to the base and swivels out of the way for
storage.
Portable Shelter Tow Bar #1639
Hyfax Runner Kits #1638 & #1640
Shelter Lights #1610 & #1611
Fully directional, swivel lights with velcro fastener that attaches to shelter
frame. Impact resistant housing. Runs on AA batteries.
Removable wear strips that extend the life of the shelter base by taking the
abuse that snow, ice and pavement put on the base. Each kit includes 4
runner strips and the mounting hardware. Hyfax strips can be easily trimmed
to fit most models of shelters. For shelter models #640500/640510/640520/
640600/640610/640620/640630 use #1640 kit. All other shelters use the
#1638 kit.
Add more storage capacity to your fishing bucket. Unique wrap around design
straps onto any 5-6 gallon pail. Leaves the buckets interior open for
carrying your catch, extra equipment or even a bait container. Separate
storage pockets with Velcro ties hold rods, tip-ups, and a tackle box. Velcro
closures maintains a secure fit around the pail and equipment.
Pail Pak #1655
The ice Scooper is backed by a Limited Lifetime Warranty. Extremely durable.
Polypropylene/reinforced nylon construction. 30” engraved ruler on the
handle. Large scoop to remove ice shavings more effectively. Long handle
design prevents stress on your back.
Ice Scooper #1685
Protect your equipment and shelter during transport. Custom fitted covers
designed especially for each Frabill shelter model. A must for keeping ice,
snow and debris out of your shelter during transport. Quick zip access panel
(add or remove items from base without removing cover)
Frabill Portable Shelter Transport Covers
Cover Model # Fits Shelter Model # Description
6401 640100/640200 Recon/Recruit
FRBS6404 640300/640310/640320/FRBS115 Sentinel/ Ice Hunter 115
FRBS6405 640400/640410/640420/
640430/640440/FRBSH200/FRBSH195
Aegis/Ice Hunter
FRBS6406 640500/640510/640520/FRBSH285
640600/640610/640620/640630 Citadel/Predator/
Ice Hunter 285

16 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
Notes

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 17
(indique une situation potentiellement dangereuse pouvant, si non évitée, causer des blessures ou
la mort)
L’utilisation d’appareils de chauffage ou de lanternes au propane dans des endroits non ventilés peut causer la mort par asphyxie.
Maintenir la partie supérieure des portes ouverte pour assurer la ventilation.
Garder toute flamme et source de chaleur éloignée du tissu de tente.
Cette tente est fabriquée en tissu résistant aux flammes qui satisfait aux exigences d’inflammabilité de la norme CPAI-84. Elle n’est pas
ignifugée. Le tissu brûlera s’il est laissé en contact maintenu avec tout type de flamme.
L’application de toute substance étrangère à la tente peut altérer ses propriétés de résistance à la flamme.
• Ne jamais utiliser de bougies, allumettes ou flammes nues de quelque sorte près d’une tente.
• Il est dangereux de cuisiner à l’intérieur d’une tente.
• Etablir vos feux de camp sous le vent, et à plusieurs mètres d’une tente. Toujours veiller à éteindre les feux de camp avant de quitter
le campement ou de se retirer pour la nuit.
• faire preuve d’extrêmes précautions lors de l’utilisation de lanternes et des réchauds à essence à l’intérieur d’une tente. Utiliser
de l’équipement fonctionnant à piles chaque fois que c’est possible.
• Ne jamais recharger de lampes, des réchauds ou des fourneaux à l’intérieur d’une tente.
• Éteindre toutes les lanternes avant d’aller dormir.
• Éviter de fumer à l’intérieur d’une tente.
• Ne jamais entreposer de liquides inflammables à l’intérieur d’une tente.
DES BLESSURES OU LA MORT PEUVENT ÊTRE ENTRAINÉES SI :
Une tente est exposée à une flamme nue. On ne doit pas utiliser une flamme nue comme source de chaleur à l’intérieur de l’abri.
Collisions nocturnes : Les réflecteurs extérieurs disposés aux quatre coins doivent être visibles.
Danger de chute
Ne jamais remorquer l’abri avec des passagers à l’intérieur.
(indique un risque potentiel d’endommagement de l’équipement)
Ne pas dépasser 32 km/h / 20 mph en remorquant l’abri sur glace.
Ne jamais laisser l’abri sur glace sans surveillance lorsqu’il est monté.
Vérifier les règlements locaux spécifiques à l’utilisation des abris sur glace portatifs.
INFORMATIONS SUR LA GARANTIE
Frabill, Inc. garantit à l’acheteur original que tous les abris sur glace fabriqués par Frabill, Inc. seront sans défaut de fabrication et ce pour
une période d’un an après la date d’achat. Cette garantie ne couvre pas les fenêtres brisées, les déchirures dans la toile et les piquets brisés
ou pliés par des vents violents ou suite à une utilisation non- appropriée. Frabill réparera ou remplacera toute pièce défectueuse pendant
cette période d’un an après inspection par l’équipe de contrôle qualité de Frabill. Toutes les pièces doivent être retournées port prépayé à
Frabill, Inc. accompagnées du reçu original indiquant la date d’achat d’origine. Toutes les pièces retournées doivent être codées avec un
numéro d’autorisation de retour, qui peut être obtenu en s’adressant au service client de Frabill, Inc.
AVERTISSEMENT!
!
MISE EN GARDE
IMPORTANT
Consignes de sécurité et renseignements concernant la garantie
Phone [phone], option 3
Fax [phone]
e-mail: [email protected]
(8:00 a.m. to 4:30 p.m. M-F)
www.frabill.com
For return authorization, call or write:
FRABILL, Inc.
Attention: Customer Service Department
431 E. South St.
Plano, IL 60545-1601
Pour obtenir une autorisation de retour, téléphonez ou écrivez à
Limitation de Responsabilité
Il est entendu que la responsabilité de Frabill, Inc. pour ses produits, qu’elle soit dû à une violation de garantie, négligence, responsabilité
inconditionnelle ou autre, est limitée à la réparation du produit comme stipulé dans les renseignements sur la garantie. Frabill, Inc. ne sera
pas responsable de blessure, perte, ni dommages et intérêts, qu’ils soient directes ou indirectes, y compris sans être limité à une perte
d’usage, revenu, bénéfice ou à des dommages quelconques qui se produiraient pendant la vente, l’installation, l’utilisation ou la réparation ou
le remplacement des produits de Frabill, Inc. Frabill, Inc ne sera pas responsable pour dommages qui pourraient se produire lors de toutes
modifications quelconques faites à n’importe quel moment pour améliorer la performance du produit. Frabill, Inc. n’ai pas obligé de faire de
tels changements à n’importe lequel de ses produits couramment en service.

18 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
Liste de piéces
Instructions pour Abri
Outils nécessaires : tournevis Phillips, clé à douille profonde 7/16 po et une clé 7/16 po. Une
perceuse est recommandée. Durée d’assemblage : environ 2 heures
PIÉCE NO. DE
PIÉCE QTÉ DESCRIPTION
A 612025 1 KEDER TREKKER 2006
B 203437 20 VIS #8-0.5 PHP TÊTE RONDE
C 807154 2 ACCROCHE PARE-VENT POTEAU
COUDÉ
D 806055 1 CORDE NYLON 8 PIEDS
E 81795 2 ÉQUERRE DE CADRE
F 200015 30 ÉCROU .250-20 HEX NYLK
G 200028 23 RONDELLE PLATE .250 SAE
H 200034 7 BOULON ELEV .250-20X1.423
I 200050 3 BOULON MÉCANIQUE .250-20X1.5
TÊTE BOMBÉE
J 200053 15 BOULON HEX BORGNE .250-
20X1.00
K 200089 3 BOULON HEX BORGNE .250-
20X.750
L 807120 8 POTEAU PORTEUR
N FRB000441 1 TENTE D’ABRI 115
S 81928 1 BASE D’ABRI 33X56X8X0.225BS
T 81883 4 CADRE EN U 51.6X32.7X0.706 DIA
SHL
HH 81752 1 ASS BASE 8 PIEDS STRAPONTIN
FIXE
II 200013 2 BOULON HEX BORGNE .250-
20X1.25
JJ 200107 2 BOULON HEX BORGNE .250-
20X2.00
KK 81749 1 ASS GOUPILLE D’ATTACHE
LL 81742 1 CLIP BASE DE SIÈGE 8 PO
MM 81806 1 ASS BARRE STRAPONTIN FIXE
00 81753 1 SIÈGE DE BARQUE AVEC DES
PIEDS
PIÈCE F
PIÈCE G
PIÈCE H
ITEM I
PIÈCE K
PIÈCE L
PIÈCE B
PIÈCE C
PIÈCE KK
PIÈCE JJ
(Aprroximate Sizes/Tailles Approximatives)
PIÈCE J
PIÈCE II

Frabill Instruction • Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com 19
PIÈCE NUMÉRO DE PIÈCE DESCRIPTION QTÉ
E 81795 ÉQUERRE DE CADRE 2
F 200015 ÉCROU .250-20 HEX NYLK 8
J 200053 BOULON HEX BORGNE .250-20X1.00 8
G 200028 RONDELLE PLATE .250 SAE 4
S 81928 BASE D’ABRI 33X56X8X0.225BS 1
Instructions pour Abri
S
J
E
G
F

20 Frabill Instruction Manual• Manuel d’instructions 1-800-558-1005 • email: [email protected] • www.frabill.com
F
E
C
K
Instructions pour Abri
PIÉCE NUMÉRO DE PIÉCE DESCRIPTION QTÉ
E 81795 ÉQUERRE DE CADRE 2
F 200015 ÉCROU .250-20 HEX NYLK 2
C 807154 ACCROCHE PARE-VENT POTEAU COUDÉ 2
K 200089 BOULON HEX BORGNE .250-20 X .750 2
