Contents Page
1. Application 1
2. Technical data 1
3. Description 2
3.1 Construction 2-3
3.2 Function 4-7
4. Installation 7
4.1 Location 7
4.2 Assembly dimensions 8
4.3 Connecting the machine 9
5. Operation 10
5.1 Cleaning and preserving agent 10
5.2 Nozzles and recoil forces 10
5.3 Working pressures and spray flow rates 11
5.4 Operating temperature 11
5.5 Selection of the cleaning program 11
5.6 Works setting 12
5.7. Commissioning 12-14
5.8. Taking the machine out of order 14
5.9 Restarting of the machine 15
6. Maintenance 15
6.1 High-pressure pump 15
6.2 Water filter, cleaning agent filter 15
7. Troubles, causes and troubleshooting 16-17
8. Checking 18
9. Prevention of accidents 18
10. Safety instructions 18

- 2 -
1. Application
The wall-mounted FRANK hot water high-pressure cleaner module is used for
cleaning, degreasing, phosphatizing, preserving and desinfecting vehicles, machines,
machine components, containers, etc.
2. Technical data
High-pressure stage HD: Working pressure max.: 180 bar
Flow rate: 11,5 l/min
Operating temperature max.: 70 °C
Heating capacity: 18 kW/30 kW
Water temperature after max. 70 °C
heating period: about 17 minutes/10 minutes
Constant temperature: 40 °C/55 °C
Supply voltage: 400 V 3N AC 50 Hz 230 V 3 AC 50 Hz
Rated load:
at a heat capacity of 18 kW: 23 kW 35 A 23 kW 60 A
at a heat capacity of 30 kW: 35 kW 52,5 A
Noise emission, sound level: max. 72 dB (A)*
Dimensions:
Module:
Length: 1000 mm
Height: 825 mm
Width: 580 mm
Master control cabinet:
Length: 600 mm
Height: 600 mm
Width: 210 mm
*measured outside, at a distance of 1 m from the machine surface and 1.6 m
above the ground.

- 3 -
3. Description
3.1 Construction
The wall-mounted FRANK hot water high-pressure module is a stationary,
electrically-heated machine. The machine consists of an enamelled chassis with wall
consoles, hot water tank made of stainless steel with electrical gilled pipes, high-
pressure pump with electric motor, cold water tank and a separate master control
cabinet.
On the pressure side the machine is equipped with a glycerine-dampered pressure
gauge, an overflow safety valve, a flow monitor switch, a pressure switch and a
pressure accumulator.
The construction and dimensions are shown in the basic circuit diagram.

- 4 -
3.2 Function

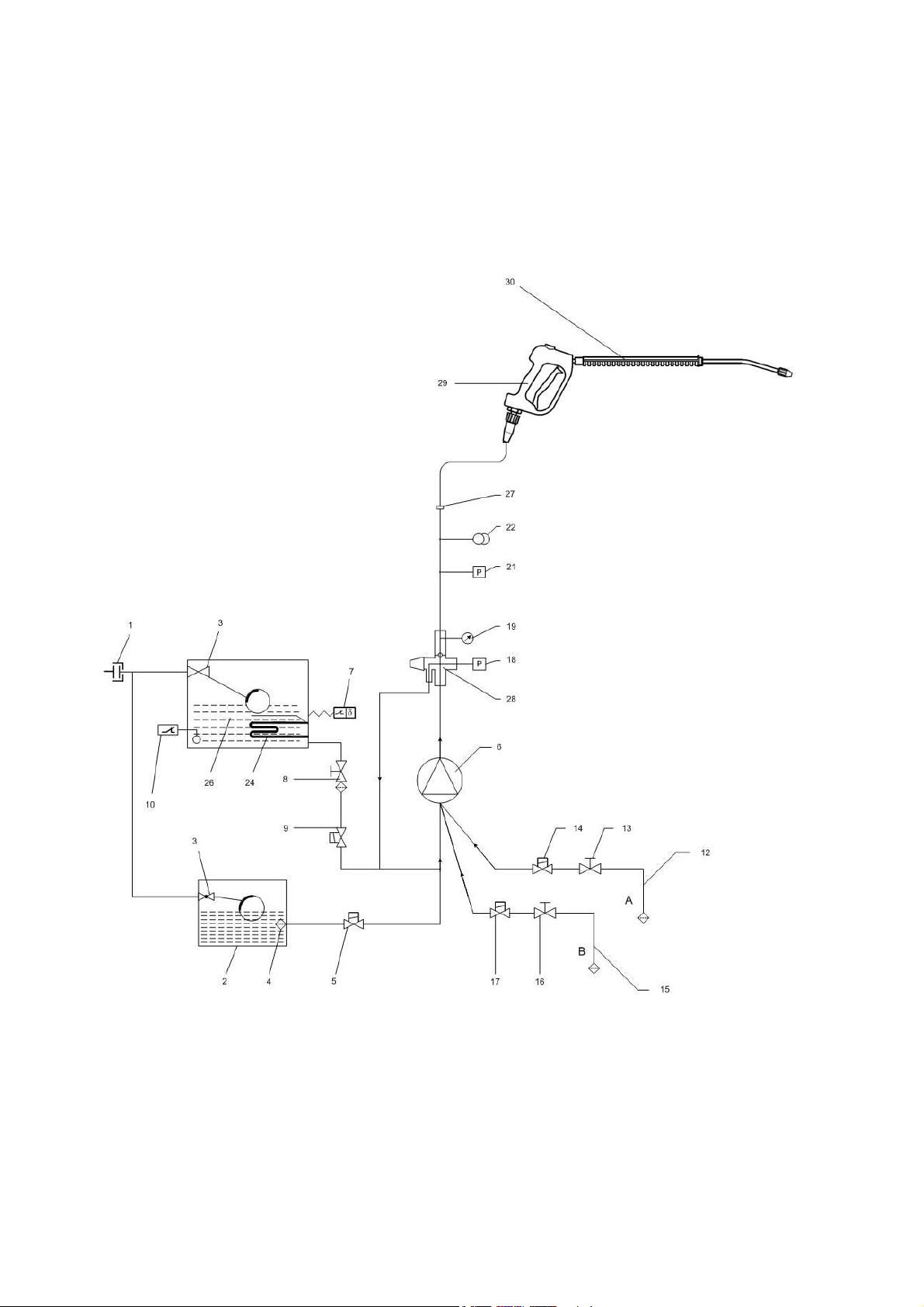

3.2.1 Functional diagram

- 5 -
3.2.2 Water and cleansing agent/Preserving agent system
The incoming water from the mains flows past the float valve into the water inlet tank.
The high-pressure pump collects the water and conveys it under pressure to the safety
spray lance.
Cleaning agent A or B can be added to the water through dosing valves via 2 solenoid
valves. For this purpose, the suction tubes for the cleaning agents are placed in the
tanks filled with cleaning agents.
The solenoid valves in the cleaning agent suction hoses shut off or open the intake of
cleaning agents in accordance with the programme selected on the control cabinet.
3.2.3 Safety spray lance with mechanical spray gun
The mechanical spray gun permits operation of the machine only when the safety
controllever has been activated. The spray gun is opened by activating the lever.
When the lever is released, the gun is closed, preventing any further release of fluid
from the spraylance.
When the gun is closed during operations, a pressure surge in the system is released, as
a result of which the machine is switched off by means of a pressure switch. After the
pressure has fallen to approx. 20 bar, the machine is switched on again by a second
pressure switch, when the lever of the gun is activated once again.
The spray gun is a safety device. Repair works are to be carried out by
experts only.
3.2.4 Overflow safety valve
The overflow safety valve with integrated electric pressure switch protects the
machine against excessive pressure and is designed in such a manner that it cannot be
set above the maximum admissible operating pressure. The check nut of the
handwheel is sealed with lacquer.
Replacement, repair works, and settings are to be carried out
by experts only.

- 6 -
3.2.5 Level switch
The tabular radiators in the hot water tank are monitored by the level switch. In case of
lack of water the tabular radiators are switched off automatically. At hot water
operation – programme “HOT” – the level switch protects also the high pressure
pump, which is also automatically switched off in case of lack of water.
3.2.6 Regulating thermostat/heating switch
The thermostat has a regulating function.
Thermostat and heating switch form a unit. Both of them are actuated by a
thermostat spindle and the turning button.
By setting the desired temperature, the heating is switched on.
By turning back the turning button anticlockwise until the limit has been
reached, the heating is switched off.
3.2.7 Pressure switch
The machine is equipped with two identical pressure switches. One of them has the
safety function of a pressure switch. It switches off the machine in the event of the
spray gun being closed.
The second pressure switch starts the machine when the spray gun has been opened,
after the pressure has fallen to approx. 20 bar. The pressure cannot be regulated on
the pressure switches.
Pressure switches are safety devices. Replacement and repair
works may be done by experts only.
3.2.8 Pressure accumulator (pulsation damper)
The pressure accumulator dampens the pulsation of the high-pressure pump and
delays the restarting of the machine in the event of a leakage in the pressure system.
The filling pressure of the accumulator is 20 bar and must not fall below. Faulty
accumulators are to be replaced immediately.
3.2.9 Control cabinet
All electrical components are centrally installed in the control cabinet. A main and
emergency switch is installed in the front door and can be operated from outside
the cabinet.
Maintenance and repair works may only be carried out by experts
with the main and emergency switch being switched off and
being protected against unintentional starting.

- 7 -
3.2.9.1 Fuses
The fuses protect the electrical components of the control circuit in the event
of faults.
3.2.9.2 Motor protection
The motor is protected against overloading by an overload release device. In the
event of overloading the release device switches off the motor and restarts it again
automatically after it has cooled down. If the motor is repeatedly switched off by
the release device, the cause of the fault is to be eliminated.
3.2.9.3 Automatic cutoff system
By closing the spray gun the machine is switched off by means of a pressure switch,
the time sequence of the automatic cutoff system starts. During the time sequence
the machine remains in operating condition. By opening the spray gun during the
time sequence the time gone is deleted, which means, when closing the spray gun
again, the time sequence starts from zero.
After the time to be set on a time relay has gone by, the operating condition is
deleted.
For restarting the machine, the start button on the control box at the washing site
must be switched on.
At works the time of the automatic cutoff device is set to approx. 5 minutes.
In case the time for the operating condition has to be changed, the setting has
to be carried out by an expert on the corresponding time relay in the main
switch cabinet.
4. Installation
4.1 Location
The machine must not be installed and operated
in fire and explosion hazard areas.
Frost protection
The machine, the long-distance pipings and the washing bays
have to be installed in such a manner to protect them from
frost.
The machine is designed for stationary installation on a
solid wall.
The satisfactory solidity of the wall
must be checked and approved by an expert
on site. If there is no sufficient solidity
of the wall for wall installation, the
machine is to be mounted on a scaffolding.

- 8 -
4.2 Assembly dimensions

- 9 -
4.3 Connecting the machine
4.3.1 Electrical connection
The machine must be connected to the mains in
accordance with the appropriate regulations
by a locally authorized senior electrician.
63 A slow blow fuses must be installed in the building
for the 30 kW version, 40 A slow fuses for the 18 kW
version.
4.3.2 Water connection
The machine is to be connected to a tap of the pressure water pipe with
a ½ "DN 12 hose, suitable for pipe pressure.
With a flow pressure of minimum 2 bar up to maximum 10 bar the water
supply must be guaranteed according to the maximum volume flow of the
corresponding machine type.
4.3.3 Long-distance piping
The long-distance piping is to be carried out by a skilled fitter for oil and water
systems. Only components of the FRANK long-distance piping range are to be
used as the thermal and chemical constancy can be guaranteed for these parts
only.
For the installation and maintenance of the long-distance piping
special instructions have to be followed.
4.3.4 High-pressure hose and spraying device
Only components which are approved by the manufacturer and
marked in accordance with regulations are to be used.
High-pressure hose and spraying device are to be connected
pressure-sealed to the machine. The high-pressure hose must not
be driven over, pulled excessively or twisted.

- 10 -
5. Operation
5.1 Cleaning agents
Only the following FRANK chemicals and possibly
certain other additional agents authhorized by the
manufacturer may be used, since material compatibility
can only be guaranteed for these cleaning agents.
FRANK Cleaning agents
FRANKOCLEAN NER 0800 FRANKOCLEAN LMI 0480
FRANKOCLEAN FZG 1070 FRANKOCLEAN WAX 0710
FRANKOCLEAN FZG 1170 FRANKOCLEAN DEF 1040
FRANKOCLEAN ALU 1020 FRANKOCLEAN AKO 1000
FRANKOCLEAN LWB 1140 FRANKOCLEAN HRB 1150
Observe the instructions for use of these cleaning and
preserving agents. If necessary, wear protective glasses
and safety clothing.
5.2 Nozzles and recoiling forces
The approved nozzle is adapted to the maximum flow rate, the admissible pump
pressure and to the direct connection of a high-pressure hose pipe DN 8 x 10 m.
The appropriate nozzle size is to be taken from the table below.
For long-distance pipings and/or longer hose pipes larger nozzles are to be used.
The nozzle size is to be chosen and laid down in such a manner that the working
pressure of the high-pressure stage (HD), indicated in section 2, is not exceeded.
When handling safety spray lance, the recoil should be taken into
account, and the fact that torque is produced by the recoil when
angled spray lances are in operation. This torque increases with the
length of the lance.
Admissible Jet shape Spray Flow rate Pump Recoil
nozzles; angle l/min. pressure N
code number bar
0004 Full jet -
1504 Flat jet 15°
2504* Flat jet 25° 11,5 180 32 N
4004 Flat jet 40°
5004 Flat jet 50°
6504 Flat jet 65°
*Supplied nozzle for direct connection to a high-pressure hose DN 8 10 m without remote piping.

- 11 -
5.3 Working pressures and spray flow rates, infinitely variable
Working pressure Flow rate
bar l/min
180 11,5
150 10,5
120 9,5
90 8,0
60 6,5
5.4 Operating temperatures
The operating temperature can be adjusted infinitely on the thermostat.
It can be set to maximum 70 °C.
5..5 Selection of the cleaning program
... .to be done on the control box of the washing bay:
Start button, programe "COLD"
Button for programe "HOT"
A
Button for cleaning agent A or B for
program "COLD"or "HOT"
B
STOP button for deleting the program.
The button must be actuated in order to
change the program from HOT to COLD
or from operation with detergent to
operation without detergent.
Actuate start button and select the
program desired.

- 12 -
5.6 Works setting
The machine has been set and tested according to the technical data
under section 2.
The works setting and testing has been done under the following conditions:
Ambient temperature (Air temperature): 18 °C
Medium air pressure: 986 hPa
5.7 Commissioning
5.7.1 Initial commissioning
Compare the technical data on the machine plate to the technical data of this
operating instructions.
Check oil level of the high-pressure pump.
Fill up cold water tank and hot water tank. For this purpose open tap of the
water supply pipe and set main and emergency switch to "1".
Operate and deaerate the machine with cold water, without the adding of cleaning
agents for about 1 minute, at zero pressure. For this purpose:
- set turning button of the regulating thermostat right back to the stop.
- set dosing valve button to "0"
- set main and emergency switch to "1"
- actuate button switch on the control cabinet at the washing site.
Thereupon:
- set main and emergency switch to "O".
- connect spray lance and spray gun to the high-pressure hose in a pressure-
sealed manner.
5.7.2 Rated value settings
Set operating temperature on the turning button of the regulating thermostat.
Set the dosing of the cleaning and preserving agents on the dosing valve button
according to the table below:

- 13 -
Formulation concentration 1:10 (1 part cleaning agent, 10 parts water)
Dosing valve position Percentage of final concentration of the
cleaning agent in the water jet
1
2 0,09
3 0,39
4 0,51
5 0,52
6 0,55
7 0,58
8 0,63
9 0,66
10 0,67
If higher concentrations are required, the formulation of the cleaning agent has to
be increased.
The maximum suction height for the cleaning agent is 1 m. The suction baskets must
be located below the cleaning agent level in the tank.
The desired cleaning agent A or B can be selected on the button of the control box at
the washing site.
A T T E N T I O N!
When the cleaning agent tank is empty, shut the corresponding dosing valve. Do not
select the program with the empty tank, as air will be sucted which can damage the
pump.
5.7.3 Starting the machine, program selection
Set main and emergency switch to "1".
Start machine by actuating the START button switch on the control cabinet
at the washing site.
A T T E N T I O N !
Machine starts with spray gun closed and switches off immediately.
Select program – see section 5.5

- 14 -
5.7.4 Operating the safety spray lance
Direct high-pressure safety spray lance at the object to be cleaned.
Release and actuate safety lever on the spray gun. The water is now conveyed
to the nozzle.
Spray pressure builds up and quickly attains the selected operating pressure.
Avoid an opening and closing of the spray gun in quick succession.
Securely hold the spray lance with both hands.
Avoid opening and releasing the spray gun in rapid succession.
Do not direct high-pressure jet at persons, live parts or machine.
The high-pressure hose has to be handled carefully in order to
prevent to be driven over or to be pulled excessively.
Buckling of the hose should be avoided.
6.1 Taking the machine out of operation
Keep the machine running for at least 1 minute with cold water but without the
addition of cleaning agents to flush out all chemical residues.
Release safety lever of the spray gun, close spray gun. The machine is switched
off by means of a pressure switch.
The time sequence of the automatic cutoff system starts – see section 3.2.9.3.
After the time sequence of the automatic cutoff system has finished, open spray
gun for pressure release for a short period and secure safety lever of the spray
gun using the locking device to prevent any unintentional opening of the spray
gun
The machine can only be restarted by pressing the START button again.
For longer periods of non-use and/or maintenance and servicing
purposes, set. main and emergency switch to "0". Open gun
until machine is depressurized. Turn off water supply.
In case of danger - e.g. leakage on spray appliance or on high-
pressure hose pipe -press STOP button on the control cabinet at
the washing site.
.

- 15 -
5.9. Restarting of the machine
When restarting the machine, make sure the machine and particularly the power
supply cord, the high-pressure hose and the safety spray lance are in perfectly good
condition.
6. Maintenance Maintenance and repair works may only be done by qualified
personnel. Set main and emergency switch to "0"and protect
against switching on.
Keep off hot parts - danger of burning.
Maintenance and repair works may only be carried out by
qualified staff.
6.1 High-pressure pump
Change the pump lubrication oil at intervals of approx. 200 operating hours, but at the
latest, after 3 months of operation. For lubrication use branded oils of SAE 90 quality
only. When changing the oil, remove the draining screw, drain the oil and dispose it
properly. Then put the oil draining screw back into place and refill new oil through the
funnel until the upper mark on the dipstick is reached. Between oil changes check the
oil level regularly; the oil level must always be between the two marks on the dipstick.
If necessary, refill oil.
6.2. Water filter, Cleaning agent filter
Regularly check the filter in the water inlet solenoid valve of the hot water tank, in the
dirt trap of the ball valve of the hot water suction pipe, in the cold water tank and on
the cleaning agent suction hoses for contamination and clean them, if necessary.

- 16 -
11. Troubles, causes and troubleshooting
Trouble Possible cause What to do about it
Machine is not No current; low voltage Have an expert:
running or switches Interruptance in power supply check the fuse of local
off during operation installation and control fuses
in the circuit box of the machine,
replace if necessary; check supply
cable, wall socket and voltage
Fuse(s) in main switch cabinet Have an expert check the cause
blown out and have the fuses replaced.
Low or excessive voltage, Provide required voltage
overcurrent release switches off
Excessive pump pressure, See under "Trouble" "Excessive
overcurrent release switches off. pump pressure"
Threephase current motor runs See under "Cause" Disturbances
on 2 phases, overcurrent release in the electric power supply"
switches off
Pump fails to Leakage in pump or in Check and retighten screw
reach required chemical suction hose connections, replace sealings
pressure if necessary, tighten hose clips;
check dosing valve for leaks,
replace, if necessary
Leakage in pressure system Have an expert check pipes,
hoses, fittings for leakage,
have leaking parts sealed or
replaced, if necessary

- 17 -
Trouble Possible Cause What to do about it
Pump fails to reach the Defective pump sleeves Have sleeves replaced
required pressure
Defective pump valves Have valves replaced
Worn out spray nozzle Have nozzle replaced
Wrong spray nozzle Mount correct nozzle
Water filter contaminated Have filter cleaned
Lack of water Provide required supply flow
pressure
Excessive pump pressure Nozzle blocked Remove and clean nozzle,
flush spray lance without nozzle
Wrong spray nozzle Mount correct nozzle
No flow of cleansing Cleansing agent filter Fill up cleansing agent or
agents on suction hose empty or dip suction filter deeper in
suction filter on suction hose is cleansing agent tank.
not below the liquid level
Suction filter on cleansing agent Clean filter
hose contaminated
Rated temperature Regulating thermostat Increase temperature
can not be reached has been adjusted too low
Tabular radiator defective Localize defective tabular
radiator and have it replaced
by an expert

- 18 -
8. Checking
The machine must be checked by an expert in accordance with the " regulations
for liquid spray appliances" if necessary, but at least every 12 months in order to
guarantee a safe operation. The results of these tests must be recorded in writing.
9. Prevention of accidents
The machine has been designed as to exclude accidents if operated
properly. The operators must be warned of the danger of injury by hot machine
parts and by the high-pressure jet. The regulations "working with liquid spray
appliances"must be followed.
The machine must only be operated with mounted cover
The machine must not be operated when further persons are
in the operating area.
Do not direct the high-pressure jet to persons, current-carrying parts
or to the machine.
Do not operate the machine with defective high-pressure hose or
defective electrical wires.
The machine must not be operated by children or untrained persons.
10. Safety instructions
For reasons of safety only those spare parts and accessories which are
approved by the manufacturer and specified in the appropriatespare
parts list are to be used. The manufacturer is responsible for the effects
on the safety, reliability and performance of the machine only when the
following conditions are fulfilled:
- servicing, extensions, adjustments, modifications and repair works are
carried out by persons authorized by the manufacturer and recorded.
- connection to the electric power supply is carried out in accordance
with national regulations considering the local operational area.
- machine is used in accordance with the Operating Instructions.
This operating manual has to be handed over to the operator.

- 19 -
OPERATING INSTRUCTIONS
FEM 813 - 18 kW
Supplements, corrections
2 Technical Data
Maximum volume flow: 13 l/min
Operating pressure: 130 bar
Operating temperature: 70 °C
Heat capacity: 18 kW
Water temperature 70 °C
after heating period: 13 min. (approx.)
Constant temperature: 35 °C (approx.)
Mains supply: 400 V 3N AC 50Hz 230 V 3 AC 50 Hz
Nominal consumption: 23 kW, 35 A 23 kW, 61 A
Noise emissions: 80 dB (A), measured outside, at a
distance of 1 m from the machine surface and 1 m
above ground.
5.2 Recoil force 32 N
5.3 Working pressures and spray flow rates
130 bar - 13 l/min
93 bar - 11 l/min
62 bar - 9 l/min
The other technical data and instructions are the same as for model
FEM 718
